◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50890 - TFR/S(THAILAND) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-75 - CONDENSER ▶
8-75 — CONDENSER (#17191) — 149 parça

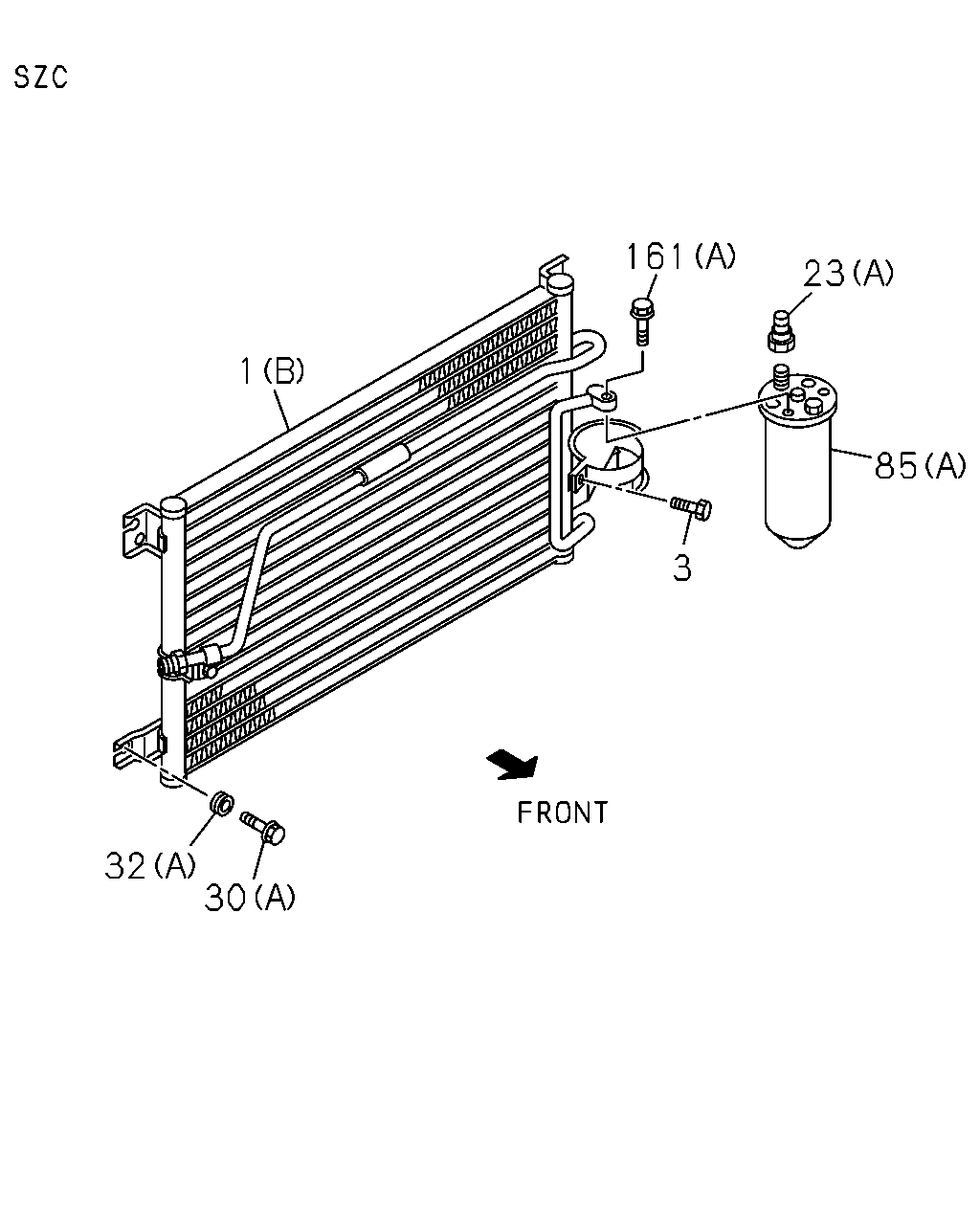

çizim 11625
161 23 1 85 3 32 30
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 CONDENSER; A/C
4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (B) SZC THA 		8-97920-922-0 01 1 0009- ● ●
1 CONDENSER; A/C
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (B) SZC THA 		8-97920-922-0 01 1 0009- ●
1 CONDENSER; A/C
COOLER WO/HEATER<YL1> (B) SZC THA 		8-97920-922-0 01 1 0009- ● ● ●
1 CONDENSER; A/C
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) SDTI THA 		8-97921-306-0 01 1 0009- ● ●
1 CONDENSER; A/C
4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (A) SDTI THA 		8-97921-306-0 01 1 0009- ● ●
1 CONDENSER; A/C
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> (C) SCAL THA 		8-97920-875-4 01 1 0009- ● ●
1 CONDENSER; A/C
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (C) SCAL THA 		8-97920-875-4 01 1 0009- ●
1 CONDENSER; A/C
COOLER WO/HEATER<YL1> (C) SCAL THA 		8-97920-875-4 01 1 0009- ●
23 SWITCH; PRESSURE,CONDENSER
A/T AISIN<RMD> COOLER WO/HEATER<YL1> THA 		8-97234-542-0 01 1 0009- ● ●
23 SWITCH; PRESSURE,CONDENSER
A/T AISIN<RMD> THA 		8-97234-542-0 01 1 0009- ●
23 SWITCH; PRESSURE,CONDENSER
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (B) SDTI THA 		8-97921-394-0 01 1 0009- ● ●
23 SWITCH; PRESSURE,CONDENSER
4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (B) SDTI THA 		8-97921-394-0 01 1 0009- ● ●
23 SWITCH; PRESSURE,CONDENSER
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> (C) SCAL THA 		8-97920-012-0 01 1 0009-0011 ● ●
23 SWITCH; PRESSURE,CONDENSER
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (C) SCAL THA 		8-97920-012-0 01 1 0009-0011 ●
23 SWITCH; PRESSURE,CONDENSER
COOLER WO/HEATER<YL1> (C) SCAL THA 		8-97920-012-0 01 1 0009-0011 ●
23 SWITCH; PRESSURE,CONDENSER
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> SCAL THA 		8-97921-764-0 01 1 0012- ● ●
23 SWITCH; PRESSURE,CONDENSER
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> SCAL THA 		8-97921-764-0 01 1 0012- ●
23 SWITCH; PRESSURE,CONDENSER
COOLER WO/HEATER<YL1> SCAL THA 		8-97921-764-0 01 1 0012- ●
23 SWITCH; PRESSURE,CONDENSER
4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (A) SZC THA 		8-97911-190-0 01 1 0009- ● ●
23 SWITCH; PRESSURE,CONDENSER
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) SZC THA 		8-97911-190-0 01 1 0009- ●
23 SWITCH; PRESSURE,CONDENSER
COOLER WO/HEATER<YL1> (A) SZC THA 		8-97911-190-0 01 1 0009- ● ● ●
30 BOLT; CONDENSER,A/C
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (B) SDTI THA 		8-97921-396-0 04 1 0009- ● ●
30 BOLT; CONDENSER,A/C
4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (B) SDTI THA 		8-97921-396-0 04 1 0009- ● ●
30 BOLT; CONDENSER,A/C
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> (C) SCAL THA 		8-97919-264-0 04 1 0009- ● ●
30 BOLT; CONDENSER,A/C
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (C) SCAL THA 		8-97919-264-0 04 1 0009- ●
30 BOLT; CONDENSER,A/C
COOLER WO/HEATER<YL1> (C) SCAL THA 		8-97919-264-0 04 1 0009- ●
30 BOLT; CONDENSER,A/C
4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (A) SZC THA 		8-97921-291-0 04 1 0009-0105 ● ●
30 BOLT; CONDENSER,A/C
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) SZC THA 		8-97921-291-0 04 1 0009-0105 ●
30 BOLT; CONDENSER,A/C
COOLER WO/HEATER<YL1> (A) SZC THA 		8-97921-291-0 04 1 0009-0105 ● ● ●
30 BOLT; CONDENSER,A/C
4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> THA 		8-97922-095-0 04 1 0106- ● ●
30 BOLT; CONDENSER,A/C
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> THA 		8-97922-095-0 04 1 0106- ●
30 BOLT; CONDENSER,A/C
COOLER WO/HEATER<YL1> THA 		8-97922-095-0 04 1 0106- ● ● ●
32 GROMMET; CONDENSER
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> (B) SCAL THA 		8-97920-566-0 04 1 0009- ● ●
32 GROMMET; CONDENSER
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (B) SCAL THA 		8-97920-566-0 04 1 0009- ●
32 GROMMET; CONDENSER
COOLER WO/HEATER<YL1> (B) SCAL THA 		8-97920-566-0 04 1 0009- ●
32 GROMMET; CONDENSER
4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (A) SZC THA 		8-97920-858-0 04 1 0009- ● ●
32 GROMMET; CONDENSER
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) SZC THA 		8-97920-858-0 04 1 0009- ●
32 GROMMET; CONDENSER
COOLER WO/HEATER<YL1> (A) SZC THA 		8-97920-858-0 04 1 0009- ● ● ●
85 DRYER; RECEIVER
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (B) SDTI THA 		8-97921-393-0 01 1 0009- ● ●
85 DRYER; RECEIVER
4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (B) SDTI THA 		8-97921-393-0 01 1 0009- ● ●
85 DRYER; RECEIVER
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> (C) SCAL THA 		8-97920-011-0 01 1 0009-0011 ● ●
85 DRYER; RECEIVER
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (C) SCAL THA 		8-97920-011-0 01 1 0009-0011 ●
85 DRYER; RECEIVER
COOLER WO/HEATER<YL1> (C) SCAL THA 		8-97920-011-0 01 1 0009-0011 ●
85 DRYER; RECEIVER
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> SCAL THA 		8-97921-763-0 01 1 0012- ● ●
85 DRYER; RECEIVER
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> SCAL THA 		8-97921-763-0 01 1 0012- ●
85 DRYER; RECEIVER
COOLER WO/HEATER<YL1> SCAL THA 		8-97921-763-0 01 1 0012- ●
85 DRYER; RECEIVER
4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (A) SZC THA 		8-97920-338-0 01 1 0009- ● ●
85 DRYER; RECEIVER
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) SZC THA 		8-97920-338-0 01 1 0009- ●
85 DRYER; RECEIVER
COOLER WO/HEATER<YL1> (A) SZC THA 		8-97920-338-0 01 1 0009- ● ● ●
161 BOLT; PIPE
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (B) SDTI THA 		8-97921-395-0 01 1 0009- ● ●
161 BOLT; PIPE
4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (B) SDTI THA 		8-97921-395-0 01 1 0009- ● ●
161 BOLT; PIPE
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> (C) SCAL THA 		8-97919-264-0 01 1 0009- ● ●
161 BOLT; PIPE
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (C) SCAL THA 		8-97919-264-0 01 1 0009- ●
161 BOLT; PIPE
COOLER WO/HEATER<YL1> (C) SCAL THA 		8-97919-264-0 01 1 0009- ●
161 BOLT; PIPE
4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (A) M10X25 THA 		8-97920-322-0 01 1 0009- ● ●
161 BOLT; PIPE
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) M10X25 THA 		8-97920-322-0 01 1 0009- ●
161 BOLT; PIPE
COOLER WO/HEATER<YL1> (A) M10X25 THA 		8-97920-322-0 01 1 0009- ● ● ●

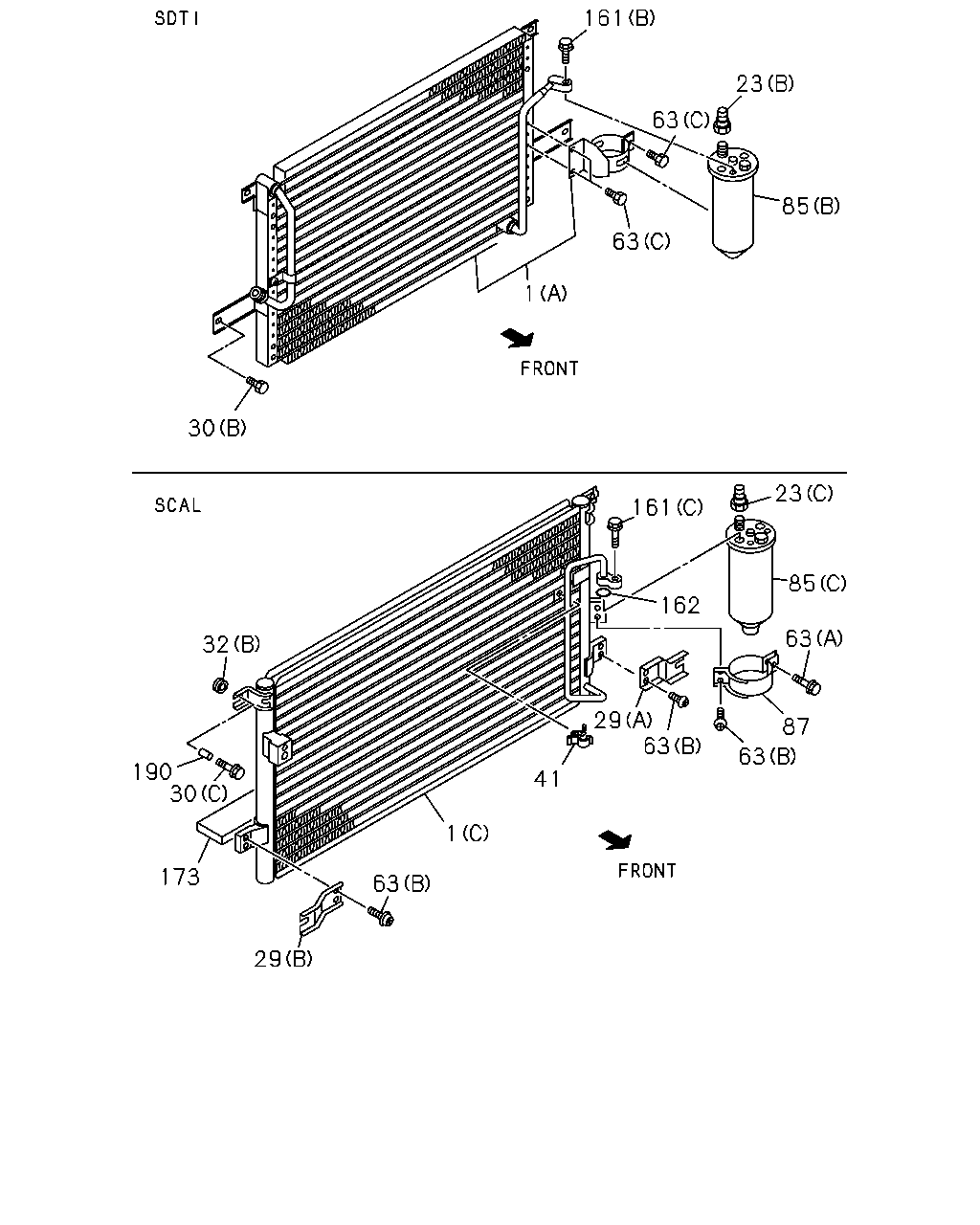

çizim 46960
161 23 63 85 63 1 30 23 161 85 162 63 32 29 63 87 63 190 30 41 1 173 63 29
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 CONDENSER; A/C
4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (B) SZC THA 		8-97920-922-0 01 1 0009- ● ●
1 CONDENSER; A/C
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (B) SZC THA 		8-97920-922-0 01 1 0009- ●
1 CONDENSER; A/C
COOLER WO/HEATER<YL1> (B) SZC THA 		8-97920-922-0 01 1 0009- ● ● ●
1 CONDENSER; A/C
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) SDTI THA 		8-97921-306-0 01 1 0009- ● ●
1 CONDENSER; A/C
4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (A) SDTI THA 		8-97921-306-0 01 1 0009- ● ●
1 CONDENSER; A/C
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> (C) SCAL THA 		8-97920-875-4 01 1 0009- ● ●
1 CONDENSER; A/C
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (C) SCAL THA 		8-97920-875-4 01 1 0009- ●
1 CONDENSER; A/C
COOLER WO/HEATER<YL1> (C) SCAL THA 		8-97920-875-4 01 1 0009- ●
23 SWITCH; PRESSURE,CONDENSER
A/T AISIN<RMD> COOLER WO/HEATER<YL1> THA 		8-97234-542-0 01 1 0009- ● ●
23 SWITCH; PRESSURE,CONDENSER
A/T AISIN<RMD> THA 		8-97234-542-0 01 1 0009- ●
23 SWITCH; PRESSURE,CONDENSER
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (B) SDTI THA 		8-97921-394-0 01 1 0009- ● ●
23 SWITCH; PRESSURE,CONDENSER
4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (B) SDTI THA 		8-97921-394-0 01 1 0009- ● ●
23 SWITCH; PRESSURE,CONDENSER
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> (C) SCAL THA 		8-97920-012-0 01 1 0009-0011 ● ●
23 SWITCH; PRESSURE,CONDENSER
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (C) SCAL THA 		8-97920-012-0 01 1 0009-0011 ●
23 SWITCH; PRESSURE,CONDENSER
COOLER WO/HEATER<YL1> (C) SCAL THA 		8-97920-012-0 01 1 0009-0011 ●
23 SWITCH; PRESSURE,CONDENSER
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> SCAL THA 		8-97921-764-0 01 1 0012- ● ●
23 SWITCH; PRESSURE,CONDENSER
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> SCAL THA 		8-97921-764-0 01 1 0012- ●
23 SWITCH; PRESSURE,CONDENSER
COOLER WO/HEATER<YL1> SCAL THA 		8-97921-764-0 01 1 0012- ●
23 SWITCH; PRESSURE,CONDENSER
4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (A) SZC THA 		8-97911-190-0 01 1 0009- ● ●
23 SWITCH; PRESSURE,CONDENSER
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) SZC THA 		8-97911-190-0 01 1 0009- ●
23 SWITCH; PRESSURE,CONDENSER
COOLER WO/HEATER<YL1> (A) SZC THA 		8-97911-190-0 01 1 0009- ● ● ●
29 BRACKET; SIDE
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> (A) SCAL THA 		8-97920-876-3 01 1 0009- ● ●
29 BRACKET; SIDE
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) SCAL THA 		8-97920-876-3 01 1 0009- ●
29 BRACKET; SIDE
COOLER WO/HEATER<YL1> (A) SCAL THA 		8-97920-876-3 01 1 0009- ●
29 BRACKET; SIDE
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> (B) SCAL THA 		8-97920-877-2 01 1 0009- ● ●
29 BRACKET; SIDE
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (B) SCAL THA 		8-97920-877-2 01 1 0009- ●
29 BRACKET; SIDE
COOLER WO/HEATER<YL1> (B) SCAL THA 		8-97920-877-2 01 1 0009- ●
30 BOLT; CONDENSER,A/C
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (B) SDTI THA 		8-97921-396-0 04 1 0009- ● ●
30 BOLT; CONDENSER,A/C
4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (B) SDTI THA 		8-97921-396-0 04 1 0009- ● ●
30 BOLT; CONDENSER,A/C
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> (C) SCAL THA 		8-97919-264-0 04 1 0009- ● ●
30 BOLT; CONDENSER,A/C
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (C) SCAL THA 		8-97919-264-0 04 1 0009- ●
30 BOLT; CONDENSER,A/C
COOLER WO/HEATER<YL1> (C) SCAL THA 		8-97919-264-0 04 1 0009- ●
30 BOLT; CONDENSER,A/C
4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (A) SZC THA 		8-97921-291-0 04 1 0009-0105 ● ●
30 BOLT; CONDENSER,A/C
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) SZC THA 		8-97921-291-0 04 1 0009-0105 ●
30 BOLT; CONDENSER,A/C
COOLER WO/HEATER<YL1> (A) SZC THA 		8-97921-291-0 04 1 0009-0105 ● ● ●
30 BOLT; CONDENSER,A/C
4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> THA 		8-97922-095-0 04 1 0106- ● ●
30 BOLT; CONDENSER,A/C
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> THA 		8-97922-095-0 04 1 0106- ●
30 BOLT; CONDENSER,A/C
COOLER WO/HEATER<YL1> THA 		8-97922-095-0 04 1 0106- ● ● ●
32 GROMMET; CONDENSER
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> (B) SCAL THA 		8-97920-566-0 04 1 0009- ● ●
32 GROMMET; CONDENSER
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (B) SCAL THA 		8-97920-566-0 04 1 0009- ●
32 GROMMET; CONDENSER
COOLER WO/HEATER<YL1> (B) SCAL THA 		8-97920-566-0 04 1 0009- ●
32 GROMMET; CONDENSER
4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (A) SZC THA 		8-97920-858-0 04 1 0009- ● ●
32 GROMMET; CONDENSER
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) SZC THA 		8-97920-858-0 04 1 0009- ●
32 GROMMET; CONDENSER
COOLER WO/HEATER<YL1> (A) SZC THA 		8-97920-858-0 04 1 0009- ● ● ●
41 CLIP; PIPE TO CONDENSER
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> SCAL THA 		8-97919-277-0 01 1 0009-0011 ● ●
41 CLIP; PIPE TO CONDENSER
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> SCAL THA 		8-97919-277-0 01 1 0009-0011 ●
41 CLIP; PIPE TO CONDENSER
COOLER WO/HEATER<YL1> SCAL THA 		8-97919-277-0 01 1 0009-0011 ●
63 BOLT; RECEIVER TANK
4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> SZC THA 		8-97920-339-0 01 1 0009- ● ●
63 BOLT; RECEIVER TANK
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> SZC THA 		8-97920-339-0 01 1 0009- ●
63 BOLT; RECEIVER TANK
COOLER WO/HEATER<YL1> SZC THA 		8-97920-339-0 01 1 0009- ● ● ●
63 BOLT; RECEIVER TANK
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (C) SDTI THA 		8-97911-140-0 03 1 0009- ● ●
63 BOLT; RECEIVER TANK
4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (C) SDTI THA 		8-97911-140-0 03 1 0009- ● ●
63 BOLT; RECEIVER TANK
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> (A) SCAL THA 		8-97919-274-0 01 1 0009- ● ●
63 BOLT; RECEIVER TANK
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) SCAL THA 		8-97919-274-0 01 1 0009- ●
63 BOLT; RECEIVER TANK
COOLER WO/HEATER<YL1> (A) SCAL THA 		8-97919-274-0 01 1 0009- ●
63 BOLT; RECEIVER TANK
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> (B) SCAL THA 		8-97919-275-0 06 1 0009- ● ●
63 BOLT; RECEIVER TANK
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (B) SCAL THA 		8-97919-275-0 06 1 0009- ●
63 BOLT; RECEIVER TANK
COOLER WO/HEATER<YL1> (B) SCAL THA 		8-97919-275-0 06 1 0009- ●
85 DRYER; RECEIVER
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (B) SDTI THA 		8-97921-393-0 01 1 0009- ● ●
85 DRYER; RECEIVER
4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (B) SDTI THA 		8-97921-393-0 01 1 0009- ● ●
85 DRYER; RECEIVER
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> (C) SCAL THA 		8-97920-011-0 01 1 0009-0011 ● ●
85 DRYER; RECEIVER
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (C) SCAL THA 		8-97920-011-0 01 1 0009-0011 ●
85 DRYER; RECEIVER
COOLER WO/HEATER<YL1> (C) SCAL THA 		8-97920-011-0 01 1 0009-0011 ●
85 DRYER; RECEIVER
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> SCAL THA 		8-97921-763-0 01 1 0012- ● ●
85 DRYER; RECEIVER
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> SCAL THA 		8-97921-763-0 01 1 0012- ●
85 DRYER; RECEIVER
COOLER WO/HEATER<YL1> SCAL THA 		8-97921-763-0 01 1 0012- ●
85 DRYER; RECEIVER
4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (A) SZC THA 		8-97920-338-0 01 1 0009- ● ●
85 DRYER; RECEIVER
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) SZC THA 		8-97920-338-0 01 1 0009- ●
85 DRYER; RECEIVER
COOLER WO/HEATER<YL1> (A) SZC THA 		8-97920-338-0 01 1 0009- ● ● ●
87 BRACKET; RECEIVER DRYER
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> SCAL THA 		8-97919-271-1 01 1 0009- ● ●
87 BRACKET; RECEIVER DRYER
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> SCAL THA 		8-97919-271-1 01 1 0009- ●
87 BRACKET; RECEIVER DRYER
COOLER WO/HEATER<YL1> SCAL THA 		8-97919-271-1 01 1 0009- ●
161 BOLT; PIPE
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (B) SDTI THA 		8-97921-395-0 01 1 0009- ● ●
161 BOLT; PIPE
4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (B) SDTI THA 		8-97921-395-0 01 1 0009- ● ●
161 BOLT; PIPE
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> (C) SCAL THA 		8-97919-264-0 01 1 0009- ● ●
161 BOLT; PIPE
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (C) SCAL THA 		8-97919-264-0 01 1 0009- ●
161 BOLT; PIPE
COOLER WO/HEATER<YL1> (C) SCAL THA 		8-97919-264-0 01 1 0009- ●
161 BOLT; PIPE
4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (A) M10X25 THA 		8-97920-322-0 01 1 0009- ● ●
161 BOLT; PIPE
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) M10X25 THA 		8-97920-322-0 01 1 0009- ●
161 BOLT; PIPE
COOLER WO/HEATER<YL1> (A) M10X25 THA 		8-97920-322-0 01 1 0009- ● ● ●
162 GASKET; PIPE TO DRYER
4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> SZC THA 		8-97911-189-0 01 1 0009- ● ●
162 GASKET; PIPE TO DRYER
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> SZC THA 		8-97911-189-0 01 1 0009- ●
162 GASKET; PIPE TO DRYER
COOLER WO/HEATER<YL1> SZC THA 		8-97911-189-0 01 1 0009- ● ● ●
162 GASKET; PIPE TO DRYER
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> SCAL THA 		8-97919-270-0 01 1 0009- ● ●
162 GASKET; PIPE TO DRYER
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> SCAL THA 		8-97919-270-0 01 1 0009- ●
162 GASKET; PIPE TO DRYER
COOLER WO/HEATER<YL1> SCAL THA 		8-97919-270-0 01 1 0009- ●
173 INSULATOR; CONDENSER
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> SCAL THA 		8-97919-276-2 01 1 0009- ● ●
173 INSULATOR; CONDENSER
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> SCAL THA 		8-97919-276-2 01 1 0009- ●
173 INSULATOR; CONDENSER
COOLER WO/HEATER<YL1> SCAL THA 		8-97919-276-2 01 1 0009- ●
190 COLLAR; ISOLATOR
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> SCAL THA 		8-97921-246-0 04 1 0009- ● ●
190 COLLAR; ISOLATOR
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> SCAL THA 		8-97921-246-0 04 1 0009- ●
190 COLLAR; ISOLATOR
COOLER WO/HEATER<YL1> SCAL THA 		8-97921-246-0 04 1 0009- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
