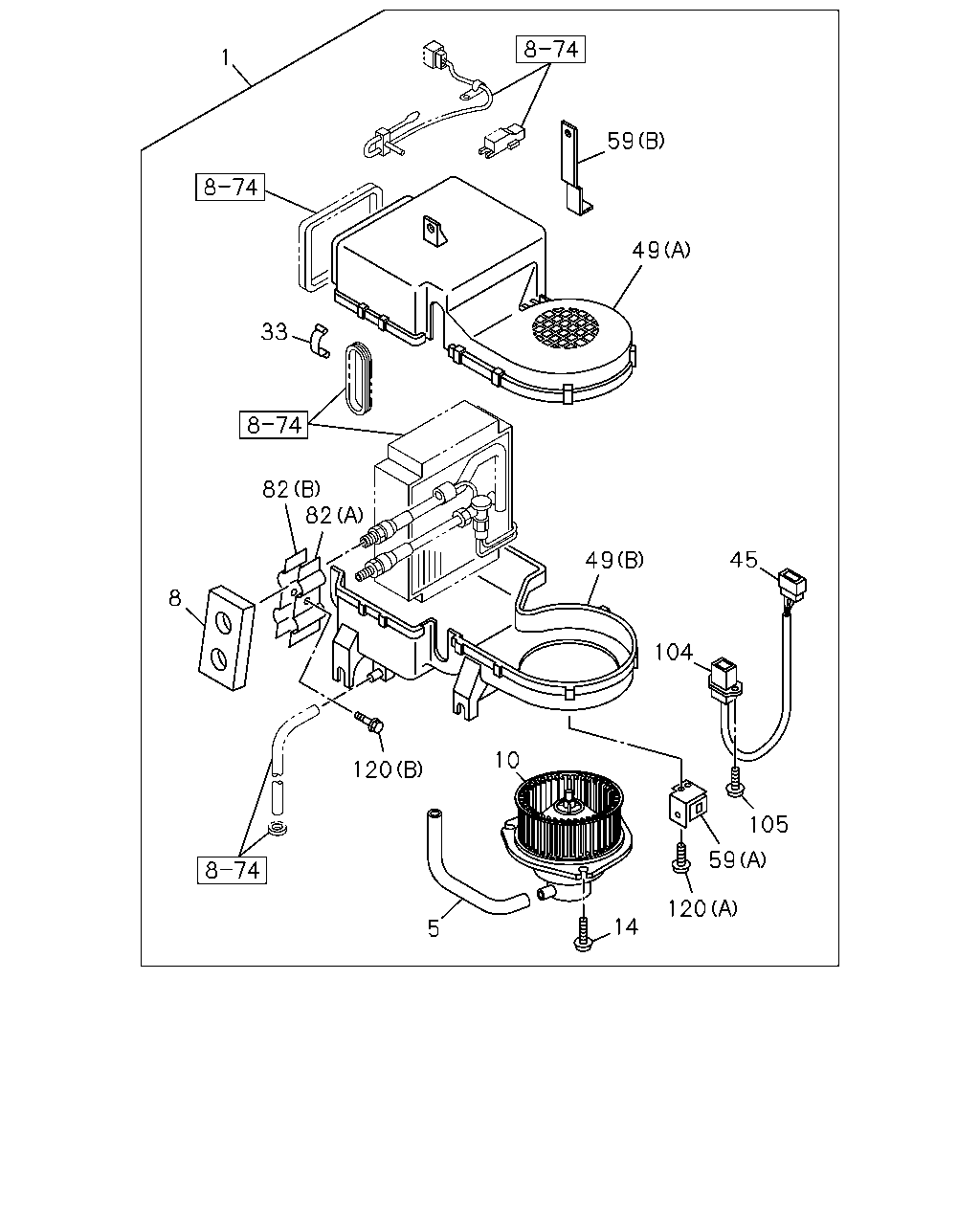

8-73 — BLOWER UNIT (#17189) — 48 parça

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	BLOWER ASM 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> SDTI THA	8-97918-919-2	01	1	0009-	●	●
1	BLOWER ASM 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> SDTI THA	8-97918-919-2	01	1	0009-	●		●
1	BLOWER ASM 4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> SCAL THA	8-97919-282-0	01	1	0009-0011	●		●
1	BLOWER ASM 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> SCAL THA	8-97919-282-0	01	1	0009-0011	●
1	BLOWER ASM COOLER WO/HEATER<YL1> SCAL THA	8-97919-282-0	01	1	0009-0011		●
1	BLOWER ASM 4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> SCAL THA	8-97921-758-0	01	1	0012-	●		●
1	BLOWER ASM 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> SCAL THA	8-97921-758-0	01	1	0012-	●
1	BLOWER ASM COOLER WO/HEATER<YL1> SCAL THA	8-97921-758-0	01	1	0012-		●

1 59 49 33 82 82 45 49 8 104 10 120 105 59 120 14 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	BLOWER ASM 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> SDTI THA	8-97918-919-2	01	1	0009-	●	●
1	BLOWER ASM 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> SDTI THA	8-97918-919-2	01	1	0009-	●		●
1	BLOWER ASM 4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> SCAL THA	8-97919-282-0	01	1	0009-0011	●		●
1	BLOWER ASM 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> SCAL THA	8-97919-282-0	01	1	0009-0011	●
1	BLOWER ASM COOLER WO/HEATER<YL1> SCAL THA	8-97919-282-0	01	1	0009-0011		●
1	BLOWER ASM 4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> SCAL THA	8-97921-758-0	01	1	0012-	●		●
1	BLOWER ASM 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> SCAL THA	8-97921-758-0	01	1	0012-	●
1	BLOWER ASM COOLER WO/HEATER<YL1> SCAL THA	8-97921-758-0	01	1	0012-		●
5	HOSE; AIR 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> SDTI THA	8-97919-540-0	01	1	0009-	●	●
5	HOSE; AIR 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> SDTI THA	8-97919-540-0	01	1	0009-	●		●
8	SEAL; BLOWER UNIT 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> SDTI THA	8-97919-551-0	01	1	0009-	●	●
8	SEAL; BLOWER UNIT 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> SDTI THA	8-97919-551-0	01	1	0009-	●		●
10	MOTOR ASM; FAN,BLOWER UNIT 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> SDTI THA	8-97919-538-0	01	1	0009-	●	●
10	MOTOR ASM; FAN,BLOWER UNIT 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> SDTI THA	8-97919-538-0	01	1	0009-	●		●
14	SCREW; COVER TO CASE 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> SDTI THA	8-97919-546-0	03	1	0009-	●	●
14	SCREW; COVER TO CASE 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> SDTI THA	8-97919-546-0	03	1	0009-	●		●
33	CLIP; BLOWER UNIT 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> SDTI THA	8-97919-544-0	13	1	0009-	●	●
33	CLIP; BLOWER UNIT 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> SDTI THA	8-97919-544-0	13	1	0009-	●		●
45	HARNESS; BLOWER UNIT 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> THA	8-97919-553-0	01	1	0009-	●	●
45	HARNESS; BLOWER UNIT 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> THA	8-97919-553-0	01	1	0009-	●		●
49	CASE; BLOWER UNIT 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) SDTI THA	8-97919-535-0	01	1	0009-	●	●
49	CASE; BLOWER UNIT 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (A) SDTI THA	8-97919-535-0	01	1	0009-	●		●
49	CASE; BLOWER UNIT 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (B) SDTI THA	8-97919-536-1	01	1	0009-	●	●
49	CASE; BLOWER UNIT 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (B) SDTI THA	8-97919-536-1	01	1	0009-	●		●
59	BRACKET; BLOWER COVER 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) SDTI THA	8-97919-542-0	01	1	0009-	●	●
59	BRACKET; BLOWER COVER 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (A) SDTI THA	8-97919-542-0	01	1	0009-	●		●
59	BRACKET; BLOWER COVER 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (B) SDTI THA	8-97919-543-0	01	1	0009-	●	●
59	BRACKET; BLOWER COVER 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (B) SDTI THA	8-97919-543-0	01	1	0009-	●		●
82	BRACKET; BLOWER UNIT 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) THA	8-97919-549-0	01	1	0009-	●	●
82	BRACKET; BLOWER UNIT 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (A) THA	8-97919-549-0	01	1	0009-	●		●
82	BRACKET; BLOWER UNIT 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (B) THA	8-97919-550-0	01	1	0009-	●	●
82	BRACKET; BLOWER UNIT 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (B) THA	8-97919-550-0	01	1	0009-	●		●
104	RESISTOR; BLOWER UNIT 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> SDTI THA	8-97911-150-0	01	1	0009-	●	●
104	RESISTOR; BLOWER UNIT 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> SDTI THA	8-97911-150-0	01	1	0009-	●		●
105	SCREW; RESISTOR 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> SDTI THA	8-97919-547-0	02	1	0009-	●	●
105	SCREW; RESISTOR 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> SDTI THA	8-97919-547-0	02	1	0009-	●		●
120	BOLT; BLOWER 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) THA	8-97919-545-0	06	1	0009-	●	●
120	BOLT; BLOWER 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (A) THA	8-97919-545-0	06	1	0009-	●		●
120	BOLT; BLOWER 4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (B) THA	8-97919-554-0	01	1	0009-	●	●
120	BOLT; BLOWER 4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (B) THA	8-97919-554-0	01	1	0009-	●		●
