8-72 — COOLER UNIT (#17188) — 57 parça

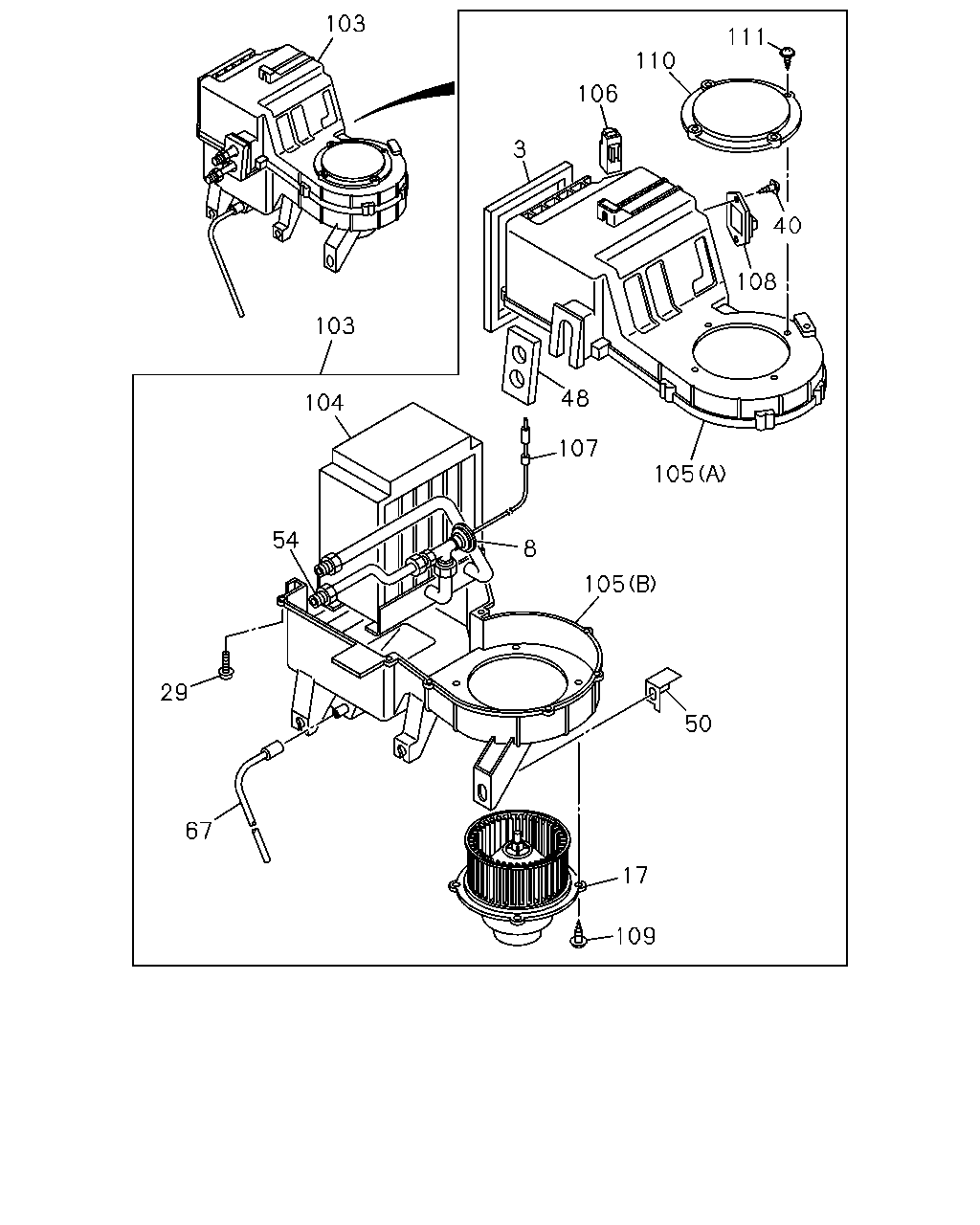

çizim 51417
103 111 110 106 40 3 108 103 48 104 107 105 54 8 105 29 50 67 17 109
BalonParca AdiParca NoAdetTipApplied Date A B C D E
3 LINING; CASE
4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> THA 		8-97914-727-0 01 1 0009- ● ●
3 LINING; CASE
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> THA 		8-97914-727-0 01 1 0009- ●
3 LINING; CASE
COOLER WO/HEATER<YL1> THA 		8-97914-727-0 01 1 0009- ● ● ●
8 VALVE; EXPANSION
4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> THA 		8-97921-333-0 01 1 0009- ● ●
8 VALVE; EXPANSION
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> THA 		8-97921-333-0 01 1 0009- ●
8 VALVE; EXPANSION
COOLER WO/HEATER<YL1> THA 		8-97921-333-0 01 1 0009- ● ● ●
17 MOTOR; FAN
4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> THA 		8-97920-331-0 01 1 0009- ● ●
17 MOTOR; FAN
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> THA 		8-97920-331-0 01 1 0009- ●
17 MOTOR; FAN
COOLER WO/HEATER<YL1> THA 		8-97920-331-0 01 1 0009- ● ● ●
29 SCREW; CASE
4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> THA 		8-97914-730-0 12 1 0009- ● ●
29 SCREW; CASE
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> THA 		8-97914-730-0 12 1 0009- ●
29 SCREW; CASE
COOLER WO/HEATER<YL1> THA 		8-97914-730-0 12 1 0009- ● ● ●
40 SCREW; RESISTOR FIX,COOLER UNIT
4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> THA 		8-97914-730-0 02 1 0009- ● ●
40 SCREW; RESISTOR FIX,COOLER UNIT
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> THA 		8-97914-730-0 02 1 0009- ●
40 SCREW; RESISTOR FIX,COOLER UNIT
COOLER WO/HEATER<YL1> THA 		8-97914-730-0 02 1 0009- ● ● ●
48 SEAL; EVAP,COOLER UNIT
4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> THA 		8-97920-334-0 01 1 0009- ● ●
48 SEAL; EVAP,COOLER UNIT
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> THA 		8-97920-334-0 01 1 0009- ●
48 SEAL; EVAP,COOLER UNIT
COOLER WO/HEATER<YL1> THA 		8-97920-334-0 01 1 0009- ● ● ●
50 BRACKET; COOLING UNIT
4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> THA 		8-97920-335-0 01 1 0009- ● ●
50 BRACKET; COOLING UNIT
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> THA 		8-97920-335-0 01 1 0009- ●
50 BRACKET; COOLING UNIT
COOLER WO/HEATER<YL1> THA 		8-97920-335-0 01 1 0009- ● ● ●
54 PIPE; COOLER UNIT
4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> THA 		8-97920-333-0 01 1 0009- ● ●
54 PIPE; COOLER UNIT
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> THA 		8-97920-333-0 01 1 0009- ●
54 PIPE; COOLER UNIT
COOLER WO/HEATER<YL1> THA 		8-97920-333-0 01 1 0009- ● ● ●
67 HOSE; DRAIN
4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> SZC THA 		8-97910-839-1 01 1 0009- ● ●
67 HOSE; DRAIN
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> SZC THA 		8-97910-839-1 01 1 0009- ●
67 HOSE; DRAIN
COOLER WO/HEATER<YL1> SZC THA 		8-97910-839-1 01 1 0009- ● ● ●
103 COOLER UNIT
4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> SZC THA 		8-97920-318-2 01 1 0009- ● ●
103 COOLER UNIT
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> SZC THA 		8-97920-318-2 01 1 0009- ●
103 COOLER UNIT
COOLER WO/HEATER<YL1> SZC THA 		8-97920-318-2 01 1 0009- ● ● ●
104 EVAPORATOR; CORE
4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> THA 		8-97920-328-0 01 1 0009- ● ●
104 EVAPORATOR; CORE
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> THA 		8-97920-328-0 01 1 0009- ●
104 EVAPORATOR; CORE
COOLER WO/HEATER<YL1> THA 		8-97920-328-0 01 1 0009- ● ● ●
105 CASE; COOLER UNIT
4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (A) THA 		8-97920-329-0 01 1 0009- ● ●
105 CASE; COOLER UNIT
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) THA 		8-97920-329-0 01 1 0009- ●
105 CASE; COOLER UNIT
COOLER WO/HEATER<YL1> (A) THA 		8-97920-329-0 01 1 0009- ● ● ●
105 CASE; COOLER UNIT
4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (B) THA 		8-97920-330-0 01 1 0009- ● ●
105 CASE; COOLER UNIT
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (B) THA 		8-97920-330-0 01 1 0009- ●
105 CASE; COOLER UNIT
COOLER WO/HEATER<YL1> (B) THA 		8-97920-330-0 01 1 0009- ● ● ●
106 THERMOSTAT; COOLER UNIT
4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> SZC THA 		8-97919-511-0 01 1 0009- ● ●
106 THERMOSTAT; COOLER UNIT
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> SZC THA 		8-97919-511-0 01 1 0009- ●
106 THERMOSTAT; COOLER UNIT
COOLER WO/HEATER<YL1> SZC THA 		8-97919-511-0 01 1 0009- ● ● ●
107 CLIP; THERMOSTAT
4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> THA 		8-97914-724-0 01 1 0009- ● ●
107 CLIP; THERMOSTAT
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> THA 		8-97914-724-0 01 1 0009- ●
107 CLIP; THERMOSTAT
COOLER WO/HEATER<YL1> THA 		8-97914-724-0 01 1 0009- ● ● ●
108 RESISTOR; COOLER UNIT
4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> THA 		8-97911-183-1 01 1 0009- ● ●
108 RESISTOR; COOLER UNIT
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> THA 		8-97911-183-1 01 1 0009- ●
108 RESISTOR; COOLER UNIT
COOLER WO/HEATER<YL1> THA 		8-97911-183-1 01 1 0009- ● ● ●
109 SCREW; FAN MOTOR
4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> THA 		8-97920-727-0 04 1 0009- ● ●
109 SCREW; FAN MOTOR
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> THA 		8-97920-727-0 04 1 0009- ●
109 SCREW; FAN MOTOR
COOLER WO/HEATER<YL1> THA 		8-97920-727-0 04 1 0009- ● ● ●
110 GRILLE; RETURN
4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> THA 		8-97919-495-0 01 1 0009- ● ●
110 GRILLE; RETURN
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> THA 		8-97919-495-0 01 1 0009- ●
110 GRILLE; RETURN
COOLER WO/HEATER<YL1> THA 		8-97919-495-0 01 1 0009- ● ● ●
111 SCREW; RETURN GRILLE
4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> THA 		8-97914-726-0 04 1 0009- ● ●
111 SCREW; RETURN GRILLE
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> THA 		8-97914-726-0 04 1 0009- ●
111 SCREW; RETURN GRILLE
COOLER WO/HEATER<YL1> THA 		8-97914-726-0 04 1 0009- ● ● ●
