◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50890 - TFR/S(THAILAND) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-71 - COMPRESSOR; AIR CONDITIONING ▶
8-71 — COMPRESSOR; AIR CONDITIONING (#17187) — 13 parça

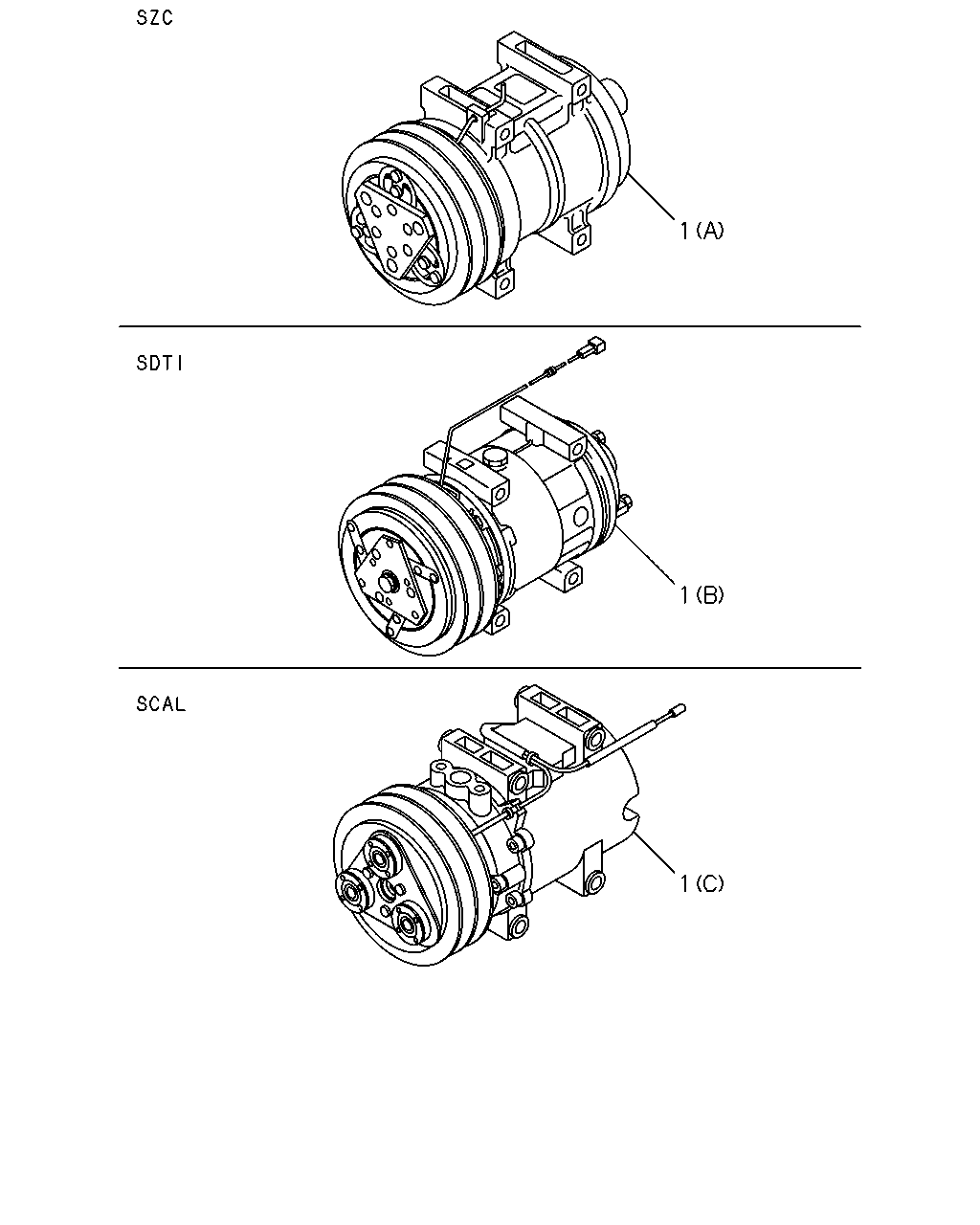

çizim 51294
1 1 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 COMPRESSOR ASM; A/C
COOLER WO/HEATER<YL1> (B) SDTI THA 		8-97910-853-2 01 1 0009-0104 ● ● ● ● ● ●
1 COMPRESSOR ASM; A/C
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> SDTI THA 		8-97910-853-2 01 1 0105- ● ●
1 COMPRESSOR ASM; A/C
4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> SDTI THA 		8-97910-853-2 01 1 0105- ● ●
1 COMPRESSOR ASM; A/C
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> (C) SCAL THA 		8-97920-860-2 01 1 0009-0104 ● ●
1 COMPRESSOR ASM; A/C
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (C) SCAL THA 		8-97920-860-2 01 1 0009-0104 ●
1 COMPRESSOR ASM; A/C
COOLER WO/HEATER<YL1> (C) SCAL THA 		8-97920-860-2 01 1 0009-0104 ●
1 COMPRESSOR ASM; A/C
4JH1 ENG<RJX> M/T MUA 5 SPEED<RMN> POWER STEERING<N40> COOLER WO/HEATER<YL1> SCAL THA 		8-97920-860-2 01 1 0105- ●
1 COMPRESSOR ASM; A/C
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> SCAL THA 		8-97920-860-2 01 1 0105- ●
1 COMPRESSOR ASM; A/C
COOLER WO/HEATER<YL1> SCAL THA 		8-97920-860-2 01 1 0105- ● ● ● ●
1 COMPRESSOR ASM; A/C
POWER STEERING<N40> COOLER WO/HEATER<YL1> SCAL THA 		8-97920-860-2 01 1 0105- ●
1 COMPRESSOR ASM; A/C
4JH1 ENG<RJX> POWER STEERING<N40> COOLER WO/HEATER<YL1> (A) SZC THA 		8-97910-826-4 01 1 0009- ● ●
1 COMPRESSOR ASM; A/C
4JA1 ENG<RLE> COOLER WO/HEATER<YL1> (A) SZC THA 		8-97910-826-4 01 1 0009- ●
1 COMPRESSOR ASM; A/C
COOLER WO/HEATER<YL1> (A) SZC THA 		8-97910-826-4 01 1 0009- ● ● ●
