◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50817 - NPR/NQR-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-80 - BACK PANEL ▶
6-80 — BACK PANEL (#17185) — 163 parça

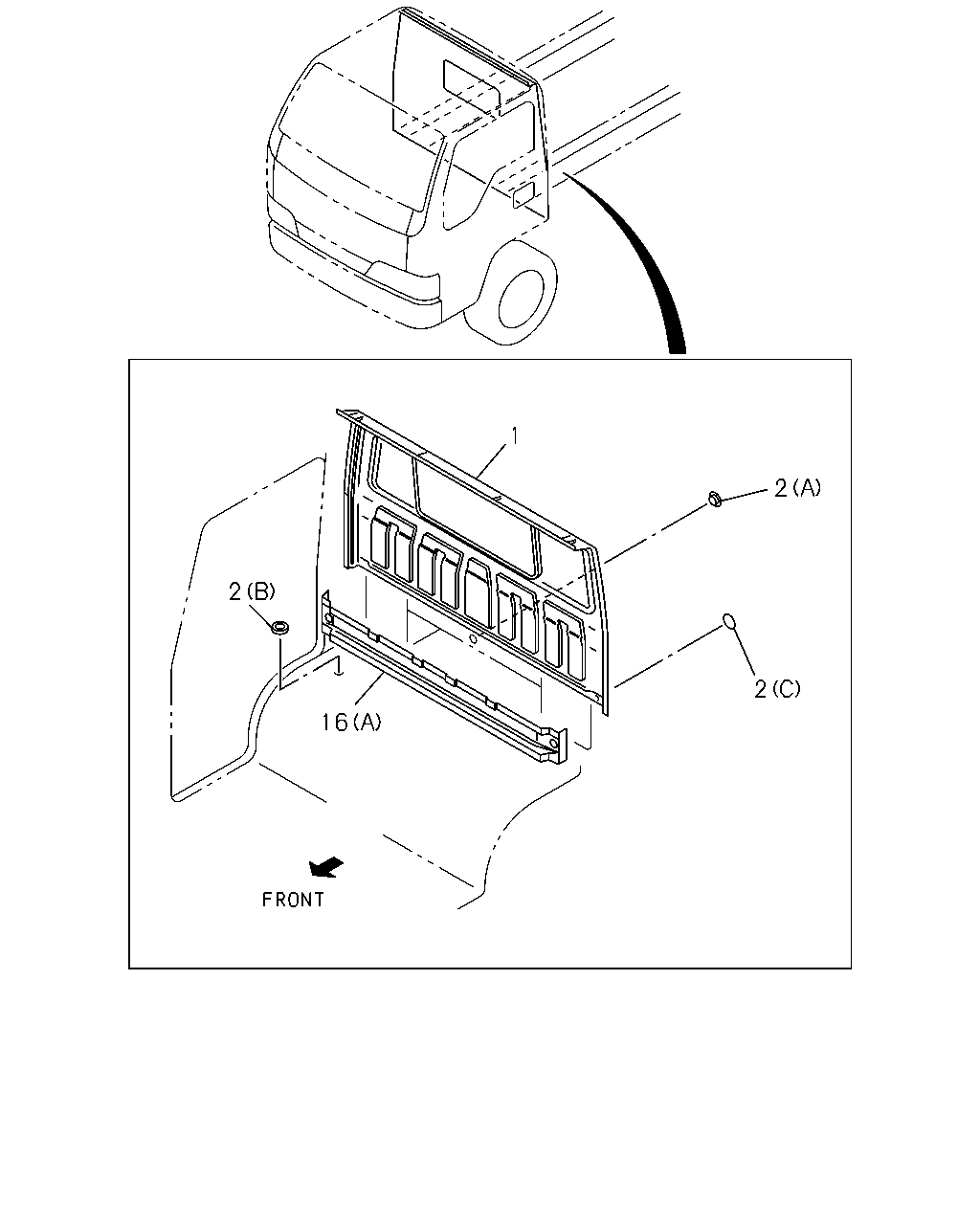

çizim 9665
1 2 2 2 16
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 16.587 PANEL; BACK OUTER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 		8-97851-267-6 01 1 9811-0105 ●
1 16.587 PANEL; BACK OUTER
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97851-267-6 01 1 9811-0105 ●
1 16.587 PANEL; BACK OUTER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 		8-97851-267-6 01 1 0106- ●
1 16.587 PANEL; BACK OUTER
4HG1 ENG(RJH) 		8-97851-267-6 01 1 0106- ●
1 16.587 PANEL; BACK OUTER 8-97859-127-0 01 1 9811- ● ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.165 (A) OD=25 BLACK 		1-76798-019-0 04 1 9811- ● ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
02.580 (C) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 9811- ● ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
00.785 (B) OD=16.2 		8-94492-493-0 02 1 9811- ● ● ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
15.222 (D) OD=35 		8-94122-971-0 04 1 9811- ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HG1 ENG(RJH),4HF1 ENG(RLS) (A) 		8-97851-106-9 01 1 9811-9811 ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97851-106-9 01 1 9811-9811 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HG1 ENG(RJH),4HF1 ENG(RLS) INTERIOR DELUXE<RBB> EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-106-9 01 1 9812-9907 ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. INTERIOR DELUXE<RBB> (A) 		8-97851-106-9 01 1 9812-9907 ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97851-106-9 01 1 9812-9907 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> (A) 		8-97851-106-9 01 1 9908-0012 ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HG1 ENG(RJH),4HF1 ENG(RLS) INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> AIR INTAKE REAR VERTICAL<KJ3> EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-106-9 01 1 9908-0012 ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A) 		8-97851-106-9 01 1 9908-0012 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HG1 ENG(RJH),4HF1 ENG(RLS) (A) 		8-97851-106-9 01 1 9908-0012 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> (A) 		8-97851-106-9 01 1 0101-0105 ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HG1 ENG(RJH),4HF1 ENG(RLS) INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> AIR INTAKE REAR VERTICAL<KJ3> EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-106-9 01 1 0101-0105 ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A) 		8-97851-106-9 01 1 0101-0105 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HG1 ENG(RJH),4HF1 ENG(RLS) (A) 		8-97851-106-9 01 1 0101-0105 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97851-106-9 01 1 0101-0105 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> (A) 		8-97851-106-9 01 1 0106- ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HG1 ENG(RJH),4HF1 ENG(RLS) INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> AIR INTAKE REAR VERTICAL<KJ3> EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-106-9 01 1 0106- ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A) 		8-97851-106-9 01 1 0106- ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HG1 ENG(RJH) (A) 		8-97851-106-9 01 1 0106- ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97851-106-9 01 1 0106- ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> (A) 		8-97890-837-1 01 1 9811-0105 ● ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A) 		8-97890-837-1 01 1 0106- ● ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97851-501-6 01 1 9811-9907 ● ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HG1 ENG(RJH),4HF1 ENG(RLS) INTERIOR DELUXE<RBB> AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-501-6 01 1 9811-9907 ● ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97851-501-6 01 1 9908-0105 ● ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HG1 ENG(RJH),4HF1 ENG(RLS) INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-501-6 01 1 9908-0105 ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (A) 		8-97851-501-6 01 1 0106- ● ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HG1 ENG(RJH),4HF1 ENG(RLS) INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-501-6 01 1 0106- ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97851-415-1 01 1 9811-0105 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HG1 ENG(RJH),4HF1 ENG(RLS) (B) 		8-97851-415-1 01 1 9811-0105 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97851-415-1 01 1 0106- ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HG1 ENG(RJH) (B) 		8-97851-415-1 01 1 0106- ●

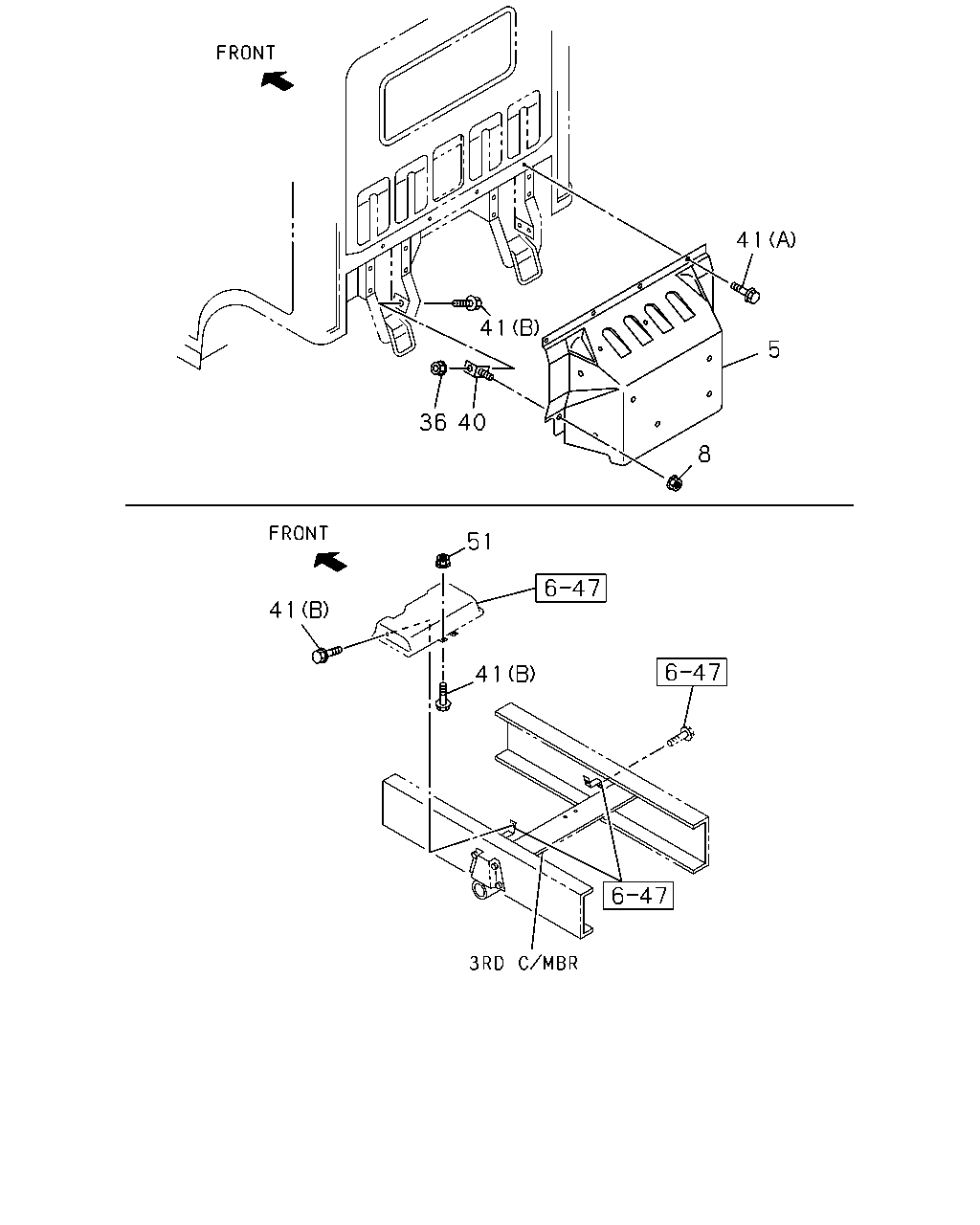

çizim 47455
41 41 5 36 40 8 51 41 41
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
5 16.587 PANEL; CAB BACK
NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97287-554-0 01 1 0112-0207 ●
8 16.587 NUT; BACK PANEL
NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0112-0207 ●
36 16.587 NUT; BRKT
NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0201-0207 ●
40 16.587 BRACKET; BACK PANEL
NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97322-264-0 02 1 0201-0207 ●
41 16.587 BOLT
NOISE PACK FOR REGULATION VAR.2<7TF> 08.155 (A) M5X16 TAPPING W/PL WASHER 		8-94496-177-1 04 1 0112-0207 ●
41 16.587 BOLT
NOISE PACK FOR REGULATION VAR.2<7TF> 02.664 (B) M8X20 FLANGE 		0-28680-820-0 02 1 0112-0112 ●
41 16.587 BOLT
NOISE PACK FOR REGULATION VAR.2<7TF> 02.664 (B) M8X20 FLANGE 		0-28680-820-0 02 1 0201-0207 ●
41 16.587 BOLT
NOISE PACK FOR REGULATION VAR.2<7TF> 02.664 (B) M8X20 FLANGE 		0-28680-820-0 02 1 0201-0207 ●
51 16.587 NUT; PANEL
NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0112-0207 ●

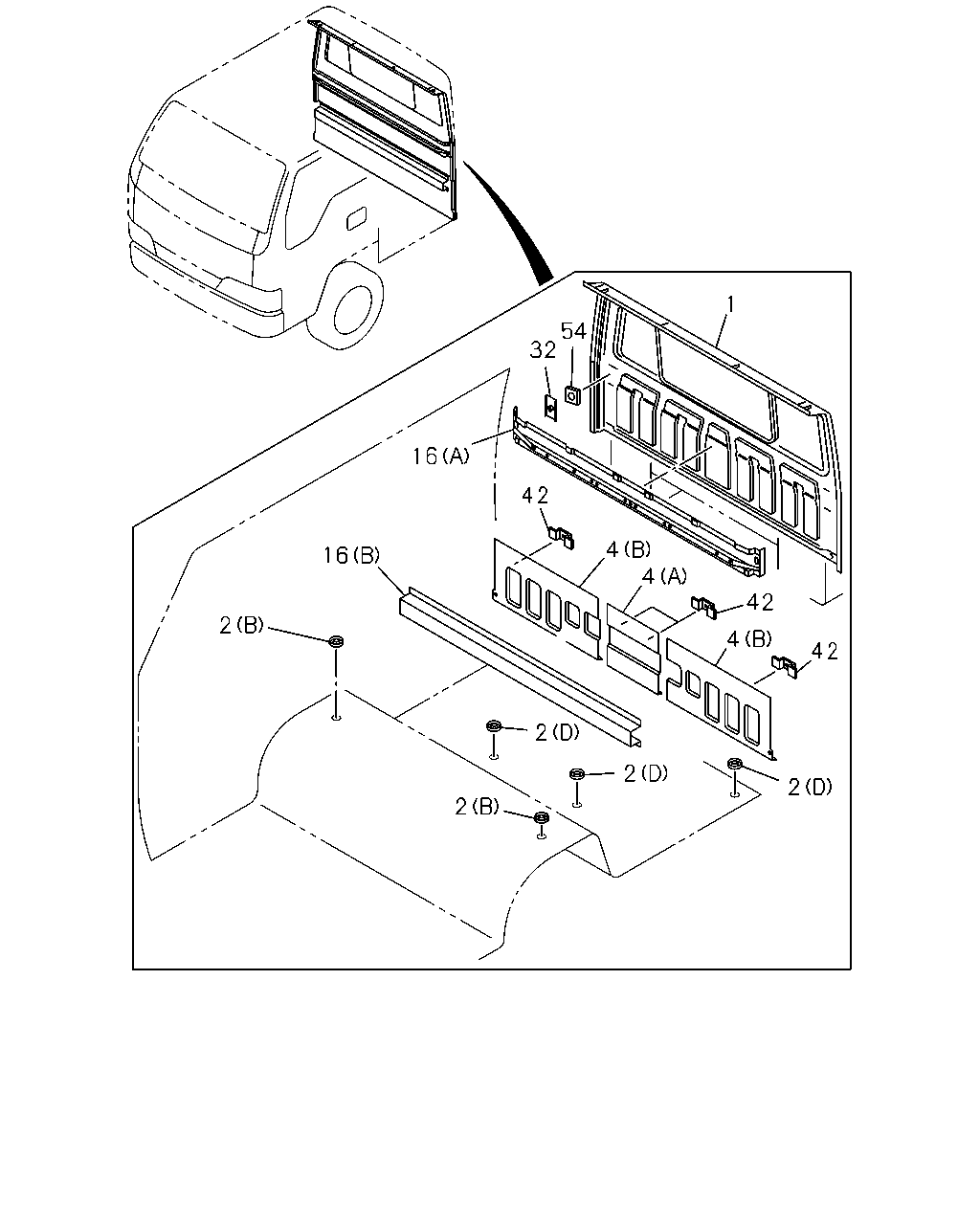

çizim 49379
1 54 32 16 2 4 4 16 42 2 4 2 2 2 2 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 16.587 PANEL; BACK OUTER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 		8-97851-267-6 01 1 9811-0105 ●
1 16.587 PANEL; BACK OUTER
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97851-267-6 01 1 9811-0105 ●
1 16.587 PANEL; BACK OUTER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 		8-97851-267-6 01 1 0106- ●
1 16.587 PANEL; BACK OUTER
4HG1 ENG(RJH) 		8-97851-267-6 01 1 0106- ●
1 16.587 PANEL; BACK OUTER 8-97859-127-0 01 1 9811- ● ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.165 (A) OD=25 BLACK 		1-76798-019-0 04 1 9811- ● ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
02.580 (C) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 9811- ● ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
00.785 (B) OD=16.2 		8-94492-493-0 02 1 9811- ● ● ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
15.222 (D) OD=35 		8-94122-971-0 04 1 9811- ●
4 16.575 PANEL; CAB BACK LWR
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A) 		8-97851-268-3 01 1 9811-0105 ●
4 16.575 PANEL; CAB BACK LWR
4HG1 ENG(RJH),4HF1 ENG(RLS) (A) 		8-97851-268-3 01 1 9811-0105 ●
4 16.575 PANEL; CAB BACK LWR
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A) 		8-97851-268-3 01 1 0106- ●
4 16.575 PANEL; CAB BACK LWR
4HG1 ENG(RJH) (A) 		8-97851-268-3 01 1 0106- ●
4 16.575 PANEL; CAB BACK LWR
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A) 		8-97851-293-5 01 1 9811-0105 ●
4 16.575 PANEL; CAB BACK LWR
4HG1 ENG(RJH),4HF1 ENG(RLS) (A) 		8-97851-293-5 01 1 9811-0105 ●
4 16.575 PANEL; CAB BACK LWR
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A) 		8-97851-293-5 01 1 0106- ●
4 16.575 PANEL; CAB BACK LWR
4HG1 ENG(RJH) (A) 		8-97851-293-5 01 1 0106- ●
4 16.575 PANEL; CAB BACK LWR
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97892-520-1 01 1 9811- ●
4 16.575 PANEL; CAB BACK LWR
4HG1 ENG(RJH),4HF1 ENG(RLS) (B) 		8-97851-292-5 01 1 9811-0105 ●
4 16.575 PANEL; CAB BACK LWR
4HG1 ENG(RJH) (B) 		8-97851-292-5 01 1 0106- ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HG1 ENG(RJH),4HF1 ENG(RLS) (A) 		8-97851-106-9 01 1 9811-9811 ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97851-106-9 01 1 9811-9811 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HG1 ENG(RJH),4HF1 ENG(RLS) INTERIOR DELUXE<RBB> EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-106-9 01 1 9812-9907 ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. INTERIOR DELUXE<RBB> (A) 		8-97851-106-9 01 1 9812-9907 ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97851-106-9 01 1 9812-9907 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> (A) 		8-97851-106-9 01 1 9908-0012 ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HG1 ENG(RJH),4HF1 ENG(RLS) INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> AIR INTAKE REAR VERTICAL<KJ3> EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-106-9 01 1 9908-0012 ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A) 		8-97851-106-9 01 1 9908-0012 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HG1 ENG(RJH),4HF1 ENG(RLS) (A) 		8-97851-106-9 01 1 9908-0012 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> (A) 		8-97851-106-9 01 1 0101-0105 ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HG1 ENG(RJH),4HF1 ENG(RLS) INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> AIR INTAKE REAR VERTICAL<KJ3> EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-106-9 01 1 0101-0105 ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A) 		8-97851-106-9 01 1 0101-0105 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HG1 ENG(RJH),4HF1 ENG(RLS) (A) 		8-97851-106-9 01 1 0101-0105 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97851-106-9 01 1 0101-0105 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> (A) 		8-97851-106-9 01 1 0106- ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HG1 ENG(RJH),4HF1 ENG(RLS) INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> AIR INTAKE REAR VERTICAL<KJ3> EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-106-9 01 1 0106- ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A) 		8-97851-106-9 01 1 0106- ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HG1 ENG(RJH) (A) 		8-97851-106-9 01 1 0106- ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97851-106-9 01 1 0106- ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> (A) 		8-97890-837-1 01 1 9811-0105 ● ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A) 		8-97890-837-1 01 1 0106- ● ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97851-501-6 01 1 9811-9907 ● ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HG1 ENG(RJH),4HF1 ENG(RLS) INTERIOR DELUXE<RBB> AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-501-6 01 1 9811-9907 ● ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97851-501-6 01 1 9908-0105 ● ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HG1 ENG(RJH),4HF1 ENG(RLS) INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-501-6 01 1 9908-0105 ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (A) 		8-97851-501-6 01 1 0106- ● ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HG1 ENG(RJH),4HF1 ENG(RLS) INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-501-6 01 1 0106- ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97851-415-1 01 1 9811-0105 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HG1 ENG(RJH),4HF1 ENG(RLS) (B) 		8-97851-415-1 01 1 9811-0105 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97851-415-1 01 1 0106- ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HG1 ENG(RJH) (B) 		8-97851-415-1 01 1 0106- ●
32 16.587 PATCH; AIR INT DUCT
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 		8-97892-522-1 01 1 9811- ●
42 16.587 BRACKET; HEAT PROTECTOR
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 16.588 		8-94265-170-1 04 1 9811-0105 ●
42 16.587 BRACKET; HEAT PROTECTOR
4HG1 ENG(RJH),4HF1 ENG(RLS) 16.588 		8-94265-170-1 04 1 9811-0105 ●
42 16.587 BRACKET; HEAT PROTECTOR
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 16.588 		8-94265-170-1 04 1 0106- ●
42 16.587 BRACKET; HEAT PROTECTOR
4HG1 ENG(RJH) 16.588 		8-94265-170-1 04 1 0106- ●
54 16.587 SEAL; STUD
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 16.585 30X30 ID=9 T=0.7 		1-61281-444-0 01 1 9901- ●
çizim 49380
1 54 32 16 2 4 4 16 42 2 4 2 2 2 2 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 16.587 PANEL; BACK OUTER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 		8-97851-267-6 01 1 9811-0105 ●
1 16.587 PANEL; BACK OUTER
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97851-267-6 01 1 9811-0105 ●
1 16.587 PANEL; BACK OUTER
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 		8-97851-267-6 01 1 0106- ●
1 16.587 PANEL; BACK OUTER
4HG1 ENG(RJH) 		8-97851-267-6 01 1 0106- ●
1 16.587 PANEL; BACK OUTER 8-97859-127-0 01 1 9811- ● ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.165 (A) OD=25 BLACK 		1-76798-019-0 04 1 9811- ● ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
02.580 (C) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 9811- ● ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
00.785 (B) OD=16.2 		8-94492-493-0 02 1 9811- ● ● ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
15.222 (D) OD=35 		8-94122-971-0 04 1 9811- ●
4 16.575 PANEL; CAB BACK LWR
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A) 		8-97851-268-3 01 1 9811-0105 ●
4 16.575 PANEL; CAB BACK LWR
4HG1 ENG(RJH),4HF1 ENG(RLS) (A) 		8-97851-268-3 01 1 9811-0105 ●
4 16.575 PANEL; CAB BACK LWR
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A) 		8-97851-268-3 01 1 0106- ●
4 16.575 PANEL; CAB BACK LWR
4HG1 ENG(RJH) (A) 		8-97851-268-3 01 1 0106- ●
4 16.575 PANEL; CAB BACK LWR
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A) 		8-97851-293-5 01 1 9811-0105 ●
4 16.575 PANEL; CAB BACK LWR
4HG1 ENG(RJH),4HF1 ENG(RLS) (A) 		8-97851-293-5 01 1 9811-0105 ●
4 16.575 PANEL; CAB BACK LWR
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A) 		8-97851-293-5 01 1 0106- ●
4 16.575 PANEL; CAB BACK LWR
4HG1 ENG(RJH) (A) 		8-97851-293-5 01 1 0106- ●
4 16.575 PANEL; CAB BACK LWR
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97892-520-1 01 1 9811- ●
4 16.575 PANEL; CAB BACK LWR
4HG1 ENG(RJH),4HF1 ENG(RLS) (B) 		8-97851-292-5 01 1 9811-0105 ●
4 16.575 PANEL; CAB BACK LWR
4HG1 ENG(RJH) (B) 		8-97851-292-5 01 1 0106- ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HG1 ENG(RJH),4HF1 ENG(RLS) (A) 		8-97851-106-9 01 1 9811-9811 ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97851-106-9 01 1 9811-9811 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HG1 ENG(RJH),4HF1 ENG(RLS) INTERIOR DELUXE<RBB> EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-106-9 01 1 9812-9907 ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. INTERIOR DELUXE<RBB> (A) 		8-97851-106-9 01 1 9812-9907 ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97851-106-9 01 1 9812-9907 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> (A) 		8-97851-106-9 01 1 9908-0012 ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HG1 ENG(RJH),4HF1 ENG(RLS) INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> AIR INTAKE REAR VERTICAL<KJ3> EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-106-9 01 1 9908-0012 ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A) 		8-97851-106-9 01 1 9908-0012 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HG1 ENG(RJH),4HF1 ENG(RLS) (A) 		8-97851-106-9 01 1 9908-0012 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> (A) 		8-97851-106-9 01 1 0101-0105 ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HG1 ENG(RJH),4HF1 ENG(RLS) INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> AIR INTAKE REAR VERTICAL<KJ3> EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-106-9 01 1 0101-0105 ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A) 		8-97851-106-9 01 1 0101-0105 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HG1 ENG(RJH),4HF1 ENG(RLS) (A) 		8-97851-106-9 01 1 0101-0105 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97851-106-9 01 1 0101-0105 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> (A) 		8-97851-106-9 01 1 0106- ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HG1 ENG(RJH),4HF1 ENG(RLS) INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> AIR INTAKE REAR VERTICAL<KJ3> EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-106-9 01 1 0106- ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A) 		8-97851-106-9 01 1 0106- ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HG1 ENG(RJH) (A) 		8-97851-106-9 01 1 0106- ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97851-106-9 01 1 0106- ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> (A) 		8-97890-837-1 01 1 9811-0105 ● ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A) 		8-97890-837-1 01 1 0106- ● ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97851-501-6 01 1 9811-9907 ● ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HG1 ENG(RJH),4HF1 ENG(RLS) INTERIOR DELUXE<RBB> AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-501-6 01 1 9811-9907 ● ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (A) 		8-97851-501-6 01 1 9908-0105 ● ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HG1 ENG(RJH),4HF1 ENG(RLS) INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-501-6 01 1 9908-0105 ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (A) 		8-97851-501-6 01 1 0106- ● ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HG1 ENG(RJH),4HF1 ENG(RLS) INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> AUSTRALIA EQUIPMENT(RR3) (A) 		8-97851-501-6 01 1 0106- ● ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97851-415-1 01 1 9811-0105 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HG1 ENG(RJH),4HF1 ENG(RLS) (B) 		8-97851-415-1 01 1 9811-0105 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (B) 		8-97851-415-1 01 1 0106- ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HG1 ENG(RJH) (B) 		8-97851-415-1 01 1 0106- ●
32 16.587 PATCH; AIR INT DUCT
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 		8-97892-522-1 01 1 9811- ●
42 16.587 BRACKET; HEAT PROTECTOR
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 16.588 		8-94265-170-1 04 1 9811-0105 ●
42 16.587 BRACKET; HEAT PROTECTOR
4HG1 ENG(RJH),4HF1 ENG(RLS) 16.588 		8-94265-170-1 04 1 9811-0105 ●
42 16.587 BRACKET; HEAT PROTECTOR
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 16.588 		8-94265-170-1 04 1 0106- ●
42 16.587 BRACKET; HEAT PROTECTOR
4HG1 ENG(RJH) 16.588 		8-94265-170-1 04 1 0106- ●
54 16.587 SEAL; STUD
4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 16.585 30X30 ID=9 T=0.7 		1-61281-444-0 01 1 9901- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
