6-78 — FLOOR HOLE PLUG (#17184) — 40 parça

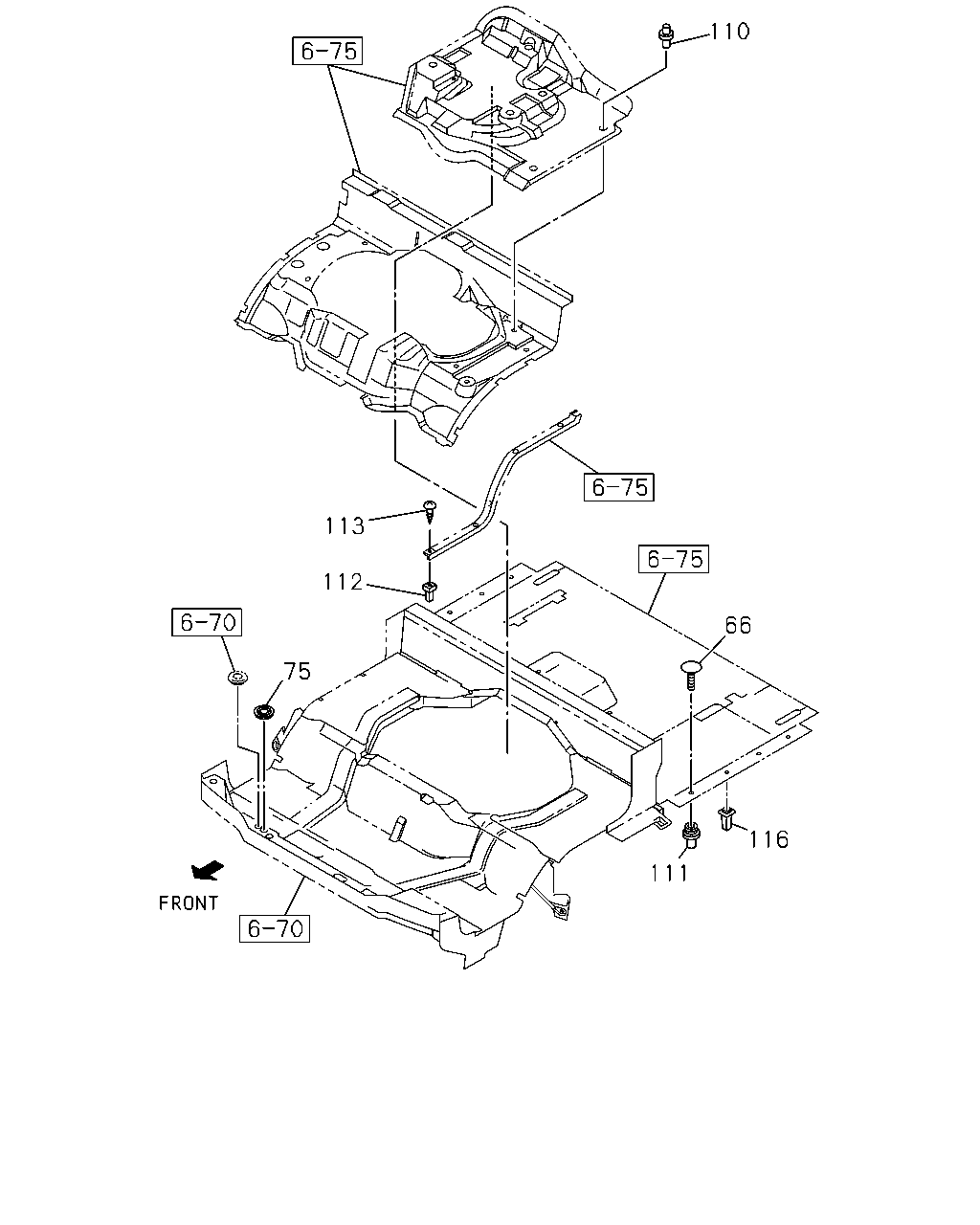

110 113 112 66 75 116 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
66	16.800 PLUG; FLOOR MAT,CAB RR FLOOR DARK GRAY	8-97867-158-0	04	1	9811-	●
75	09.775 PLUG; RUBBER,FLOOR EXC. DUMP BODY LONG SHINMEIWA(RS9), HYDRO BRAKE BOOSTER<7QQ> 16.549 OD=38	8-94159-507-0	01	1	9811-		●	●	●	●
75	09.775 PLUG; RUBBER,FLOOR 16.549 OD=38	8-94159-507-0	01	1	9811-	●					●
110	16.802 FASTENER; FLOOR MAT G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) BLACK	8-94279-089-0	15	1	9811-0211		●	●	●
110	16.802 FASTENER; FLOOR MAT AUSTRALIA EQUIPMENT(RR3) BLACK	8-94279-089-0	15	1	9811-0211	●
110	16.802 FASTENER; FLOOR MAT G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) BLACK	8-94279-089-0	14	1	0212-		●	●	●
110	16.802 FASTENER; FLOOR MAT AUSTRALIA EQUIPMENT(RR3) BLACK	8-94279-089-0	14	1	0212-	●
110	16.802 FASTENER; FLOOR MAT EXC. AUSTRALIA EQUIPMENT(RR3) BLACK	8-94279-089-0	13	1	9811-0012	●	●	●	●	●
110	16.802 FASTENER; FLOOR MAT G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) AUSTRALIA EQUIPMENT(RR3) BLACK	8-94279-089-0	13	1	9811-0012		●	●	●	●
110	16.802 FASTENER; FLOOR MAT BLACK	8-94279-089-0	13	1	9811-0012							●
110	16.802 FASTENER; FLOOR MAT EXC. AUSTRALIA EQUIPMENT(RR3) BLACK	8-94279-089-0	13	1	0101-0211	●	●	●	●	●
110	16.802 FASTENER; FLOOR MAT G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) AUSTRALIA EQUIPMENT(RR3) BLACK	8-94279-089-0	13	1	0101-0211		●	●	●	●
110	16.802 FASTENER; FLOOR MAT BLACK	8-94279-089-0	13	1	0101-0211						●	●
110	16.802 FASTENER; FLOOR MAT EXC. AUSTRALIA EQUIPMENT(RR3) BLACK	8-94279-089-0	12	1	0212-	●	●	●	●	●
110	16.802 FASTENER; FLOOR MAT G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) AUSTRALIA EQUIPMENT(RR3) BLACK	8-94279-089-0	12	1	0212-		●	●	●	●
110	16.802 FASTENER; FLOOR MAT BLACK	8-94279-089-0	12	1	0212-						●	●
111	16.800 FASTENER; FLOOR MAT,CAB RR MTG 16.802 BLACK	8-94279-089-0	12	1	9811-9901	●
111	16.800 FASTENER; FLOOR MAT,CAB RR MTG 4HG1 ENG(RJH),4HF1 ENG(RLS) 16.802 BLACK	8-94279-089-0	12	1	9902-0105	●
111	16.800 FASTENER; FLOOR MAT,CAB RR MTG 4HG1 ENG(RJH) 16.802 BLACK	8-94279-089-0	12	1	0106-	●
111	16.800 FASTENER; FLOOR MAT,CAB RR MTG 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 16.802 BLACK	8-94279-089-0	15	1	9902-	●
112	16.800 GROMMET; SCREW,TRIM COVER 04.931 H=15	8-94463-268-1	10	1	9811-	●	●	●	●	●	●	●
113	16.800 SCREW; TRIM COVER 08.845 M5X14 TAPPING W/PL WASHER	0-74110-514-0	10	1	9811-	●	●	●	●	●	●	●
116	16.547 GROMMET; SCREW,FLOOR MAT 16.802 D=7.8X7.8 L=18 NATURAL	8-94279-043-0	08	1	9811-	●

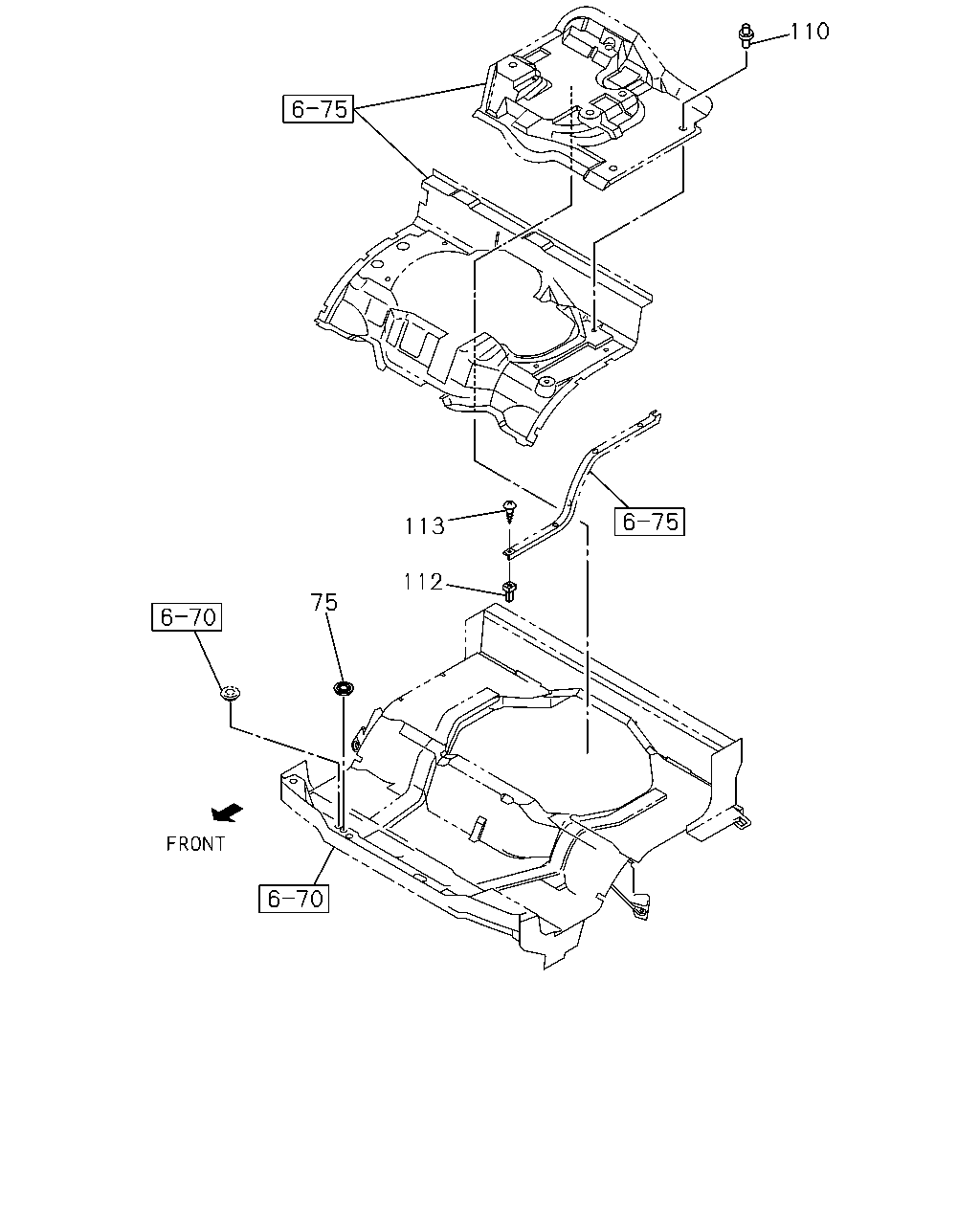

110 113 112 75

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
75	09.775 PLUG; RUBBER,FLOOR EXC. DUMP BODY LONG SHINMEIWA(RS9), HYDRO BRAKE BOOSTER<7QQ> 16.549 OD=38	8-94159-507-0	01	1	9811-		●	●	●	●
75	09.775 PLUG; RUBBER,FLOOR 16.549 OD=38	8-94159-507-0	01	1	9811-	●					●
110	16.802 FASTENER; FLOOR MAT G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) BLACK	8-94279-089-0	15	1	9811-0211		●	●	●
110	16.802 FASTENER; FLOOR MAT AUSTRALIA EQUIPMENT(RR3) BLACK	8-94279-089-0	15	1	9811-0211	●
110	16.802 FASTENER; FLOOR MAT G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) AUSTRALIA EQUIPMENT(RR3) BLACK	8-94279-089-0	14	1	0212-		●	●	●
110	16.802 FASTENER; FLOOR MAT AUSTRALIA EQUIPMENT(RR3) BLACK	8-94279-089-0	14	1	0212-	●
110	16.802 FASTENER; FLOOR MAT EXC. AUSTRALIA EQUIPMENT(RR3) BLACK	8-94279-089-0	13	1	9811-0012	●	●	●	●	●
110	16.802 FASTENER; FLOOR MAT G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) AUSTRALIA EQUIPMENT(RR3) BLACK	8-94279-089-0	13	1	9811-0012		●	●	●	●
110	16.802 FASTENER; FLOOR MAT BLACK	8-94279-089-0	13	1	9811-0012							●
110	16.802 FASTENER; FLOOR MAT EXC. AUSTRALIA EQUIPMENT(RR3) BLACK	8-94279-089-0	13	1	0101-0211	●	●	●	●	●
110	16.802 FASTENER; FLOOR MAT G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) AUSTRALIA EQUIPMENT(RR3) BLACK	8-94279-089-0	13	1	0101-0211		●	●	●	●
110	16.802 FASTENER; FLOOR MAT BLACK	8-94279-089-0	13	1	0101-0211						●	●
110	16.802 FASTENER; FLOOR MAT EXC. AUSTRALIA EQUIPMENT(RR3) BLACK	8-94279-089-0	12	1	0212-	●	●	●	●	●
110	16.802 FASTENER; FLOOR MAT G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) AUSTRALIA EQUIPMENT(RR3) BLACK	8-94279-089-0	12	1	0212-		●	●	●	●
110	16.802 FASTENER; FLOOR MAT BLACK	8-94279-089-0	12	1	0212-						●	●
112	16.800 GROMMET; SCREW,TRIM COVER 04.931 H=15	8-94463-268-1	10	1	9811-	●	●	●	●	●	●	●
113	16.800 SCREW; TRIM COVER 08.845 M5X14 TAPPING W/PL WASHER	0-74110-514-0	10	1	9811-	●	●	●	●	●	●	●
