Sayfa 0-81D - Isuzu EPC

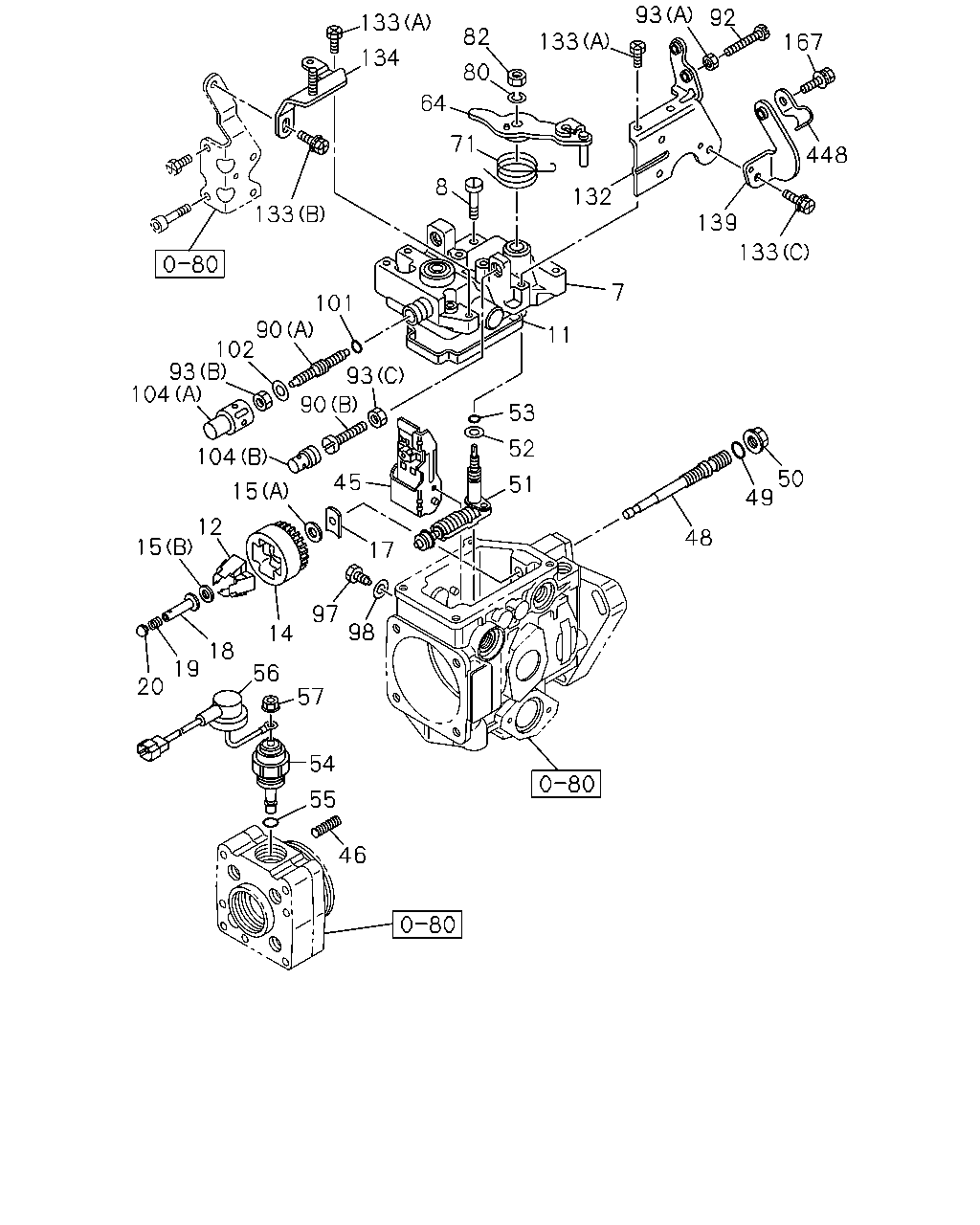

0-81D — GOVERNOR; INJECTION PUMP (#17181) — 225 parça

93 92 133 82 133 167 134 80 64 71 448 8 132 133 139 133 7 101 90 102 93 104 11 93 90 53 52 104 50 49 45 51 15 12 15 48 17 97 98 14 18 19 56 20 57 54 55 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	03.308 COVER; GOV HSG,INJ PUMP ASM PART: B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, E = 8-97324-405-1, 97324405	8-94328-617-0	01	1	-
8	01.531 BOLT; GOV COVER,INJ PUMP 03.330 ASM PART: B = 8-97207-203-0, 97207203	8-94227-636-0	04	1	-
8	01.531 BOLT; GOV COVER,INJ PUMP 03.330 ASM PART: E = 8-97324-405-1, 97324405	8-94227-636-0	03	1	-
8	01.531 BOLT; GOV COVER,INJ PUMP 03.330 ASM PART: C = 8-97223-104-1, 97223104	8-94227-636-0	04	1	-0111
8	01.531 BOLT; GOV COVER,INJ PUMP 03.330 ASM PART: C = 8-97223-104-1, 97223104	8-94227-636-0	03	1	0112-
11	03.308 GASKET; COVER TO HSG,GOV ASM PART: B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, E = 8-97324-405-1, 97324405	8-97136-413-0	01	1	-
12	03.308 FLYWEIGHT ASM; GOV 03.318 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94228-403-0	01	1	-
14	03.308 HOLDER; GOV FLYWEIGHT,INJ PUMP 03.318 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94227-613-0	01	1	-
15	03.308 WASHER; LK,FLYWEIGHT FIX,GOV 03.318, (A) ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94227-612-0	01	1	-
15	03.308 WASHER; LK,FLYWEIGHT FIX,GOV 03.318, (B) ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94227-614-0	01	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV 03.318, T=1.05 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94227-607-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV 03.318, T=1.25 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94227-608-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV 03.318, T=1.45 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94227-609-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV 03.318, T=1.65 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94227-610-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV 03.318, T=1.85 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94227-611-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV 03.318, T=1.15 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94231-123-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV 03.318, T=1.35 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94231-124-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV 03.318, T=1.55 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94231-125-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV 03.318, T=1.75 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94231-126-0	AR	1	-
18	03.308 SLEEVE; GOV ASM PART: B = 8-97207-203-0, 97207203	8-97168-224-0	01	1	-
18	03.308 SLEEVE; GOV ASM PART: A = 8-97204-043-0, 97204043, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-97214-475-0	01	1	-
19	03.308 CAP; GOV SLEEVE,INJ PUMP ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94408-519-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.20 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94372-499-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.30 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94372-500-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.40 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94372-501-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.50 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94372-502-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=2.10 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94408-520-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=2.30 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94408-521-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=2.50 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94408-522-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=2.70 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94408-523-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=2.90 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94408-524-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.10 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94408-525-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.30 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94408-526-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.50 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94408-527-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.70 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94408-528-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.90 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94408-529-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.10 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94408-530-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.30 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94408-531-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.50 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94408-532-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.70 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94408-533-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.90 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94408-534-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.10 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94408-535-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=2.20 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94428-868-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=2.40 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94428-869-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=2.60 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94428-870-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=2.80 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94428-871-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.00 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94428-872-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.20 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94428-873-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.40 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94428-874-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.60 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94428-875-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.80 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94428-876-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.00 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94428-877-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.20 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94428-878-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.40 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94428-879-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.60 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94428-880-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.80 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94428-881-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.00 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94428-882-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.60 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-97163-167-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.70 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-97163-168-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.80 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-97163-169-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.90 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-97163-170-0	01	1	-
45	03.308 LEVER ASM; GOV,INJ PUMP ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-97168-214-0	01	1	-
46	03.308 SPRING; GOV,INJ PUMP ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94473-128-0	02	1	-
48	03.308 SHAFT; GOV,INJ PUMP ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94248-002-0	01	1	-
49	03.308 GASKET; GOV SHAFT,INJ PUMP 03.318 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94227-606-0	01	1	-
50	03.308 NUT; GOV SHAFT,INJ PUMP ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94473-129-0	01	1	-
51	03.308 SHAFT; LOAD CONT LEVER,GOV ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-97211-764-0	01	1	-
52	03.308 WASHER; CONT SHAFT,GOV ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94227-590-0	01	1	-
53	03.308 GASKET; CONT SHAFT,GOV 03.306 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94227-585-0	01	1	-
54	03.308 VALVE; MAG,ENG STOP,INJ PUMP ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94433-811-0	01	1	-
55	03.308 GASKET; MAG VLV,INJ PUMP 03.318 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94239-373-0	01	1	-
56	03.308 WIRE; LEAD,MAG VLV,INJ PUMP ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94343-355-0	01	1	-
57	03.318 NUT; VLV 03.308 ASM PART: C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105	8-94473-135-0	01	1	-0111
57	03.318 NUT; VLV 03.308 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203	8-94473-135-0	01	1	-
57	03.318 NUT; VLV ASM PART: E = 8-97324-405-1, 97324405	8-97138-042-1	01	1	-
57	03.318 NUT; VLV ASM PART: C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105	8-97138-042-1	01	1	0112-
64	03.308 LEVER; LOAD CONT,GOV STAMP 193 ASM PART: C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105	8-97175-325-0	01	1	-0111
64	03.308 LEVER; LOAD CONT,GOV STAMP 193 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, E = 8-97324-405-1, 97324405	8-97175-325-0	01	1	-
64	03.308 LEVER; LOAD CONT,GOV STAMP 194 ASM PART: C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105	8-97175-326-0	01	1	-0111
64	03.308 LEVER; LOAD CONT,GOV STAMP 194 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, E = 8-97324-405-1, 97324405	8-97175-326-0	01	1	-
64	03.308 LEVER; LOAD CONT,GOV STAMP 281 ASM PART: C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105	8-97332-321-0	01	1	0112-
64	03.308 LEVER; LOAD CONT,GOV STAMP 282 ASM PART: C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105	8-97332-322-0	01	1	0112-
71	03.306 SPRING; CONT LEVER,GOV 03.330 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94132-785-0	01	1	-
80	03.308 WASHER; LK,CONT LEVER,GOV 00.206, ID=6.1 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	9-09150-506-0	01	1	-
82	03.308 NUT; CONT LEVER FIX,GOV 03.318 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	1-15729-006-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV 01.531, (C) ASM PART: A = 8-97204-043-0, 97204043, D = 8-97223-105-1, 97223105	8-94313-253-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV (A), L=53.0 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94316-274-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV (A), L=55.0 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94316-275-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV (A), L=57.0 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94316-276-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV 01.531, (B) ASM PART: B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, E = 8-97324-405-1, 97324405	8-94426-049-0	01	1	-
92	03.308 BOLT; FULL LOAD STOPPER,GOV 01.531 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94426-049-0	01	1	-
93	03.162 NUT; ADJ SCREW LK,INJ PUMP GOV 03.318, (A) ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	1-15729-006-0	01	1	-
93	03.162 NUT; ADJ SCREW LK,INJ PUMP GOV 03.308, (B) ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94316-277-0	01	1	-
93	03.162 NUT; ADJ SCREW LK,INJ PUMP GOV (C) ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94426-047-1	01	1	-
97	03.308 BOLT; PIVOT,GOV LEVER ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94227-601-0	02	1	-
98	03.308 GASKET; PIVOT BOLT,GOV LEVER 03.306 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94227-602-0	02	1	-
101	03.308 GASKET; ADJ SPRING CAPSULE,GOV ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94227-598-0	01	1	-
102	03.308 WASHER; FULL LOAD ADJ SCREW,GOV ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94227-593-0	01	1	-
104	03.308 CAP; LOCK NUT,ADJ SCREW (A), L=16.5 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94316-262-0	01	1	-
104	03.308 CAP; LOCK NUT,ADJ SCREW (B), L=18.0 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94316-263-0	01	1	-
104	03.308 CAP; LOCK NUT,ADJ SCREW (B), L=21.0 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94316-264-0	01	1	-
104	03.308 CAP; LOCK NUT,ADJ SCREW (B), L=24.0 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94316-265-0	01	1	-
104	03.308 CAP; LOCK NUT,ADJ SCREW (B), L=27.0 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94316-266-0	01	1	-
132	03.308 BRACKET; ADJ SCREW,GOV ASM PART: B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, E = 8-97324-405-1, 97324405	8-97211-763-0	01	1	-
132	03.308 BRACKET; ADJ SCREW,GOV ASM PART: A = 8-97204-043-0, 97204043, D = 8-97223-105-1, 97223105	8-97224-414-0	01	1	-
133	03.308 BOLT; BRKT FIX,GOV (D) ASM PART: A = 8-97204-043-0, 97204043, D = 8-97223-105-1, 97223105	1-15749-537-0	02	1	-
133	03.308 BOLT; BRKT FIX,GOV 03.330, (E) ASM PART: C = 8-97223-104-1, 97223104	8-94227-636-0	01	1	0112-
133	03.308 BOLT; BRKT FIX,GOV 03.330, (E) ASM PART: E = 8-97324-405-1, 97324405	8-94227-636-0	01	1	-
133	03.308 BOLT; BRKT FIX,GOV 03.306, (A) ASM PART: A = 8-97204-043-0, 97204043, D = 8-97223-105-1, 97223105	8-94331-551-0	01	1	-
133	03.308 BOLT; BRKT FIX,GOV 03.306, (A) ASM PART: B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, E = 8-97324-405-1, 97324405	8-94331-551-0	03	1	-
133	03.308 BOLT; BRKT FIX,GOV 03.330, (B) ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94343-302-0	02	1	-
134	03.308 BRACKET; CONT CABLE,GOV ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-97168-218-0	01	1	-
139	03.485 BRACKET; INJ PUMP ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-97211-766-0	01	1	-
167	03.308 BOLT; PLATE 03.330, (B) ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94247-717-0	01	1	-
448	03.308 PLATE; BRKT ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-97211-767-0	01	1	-

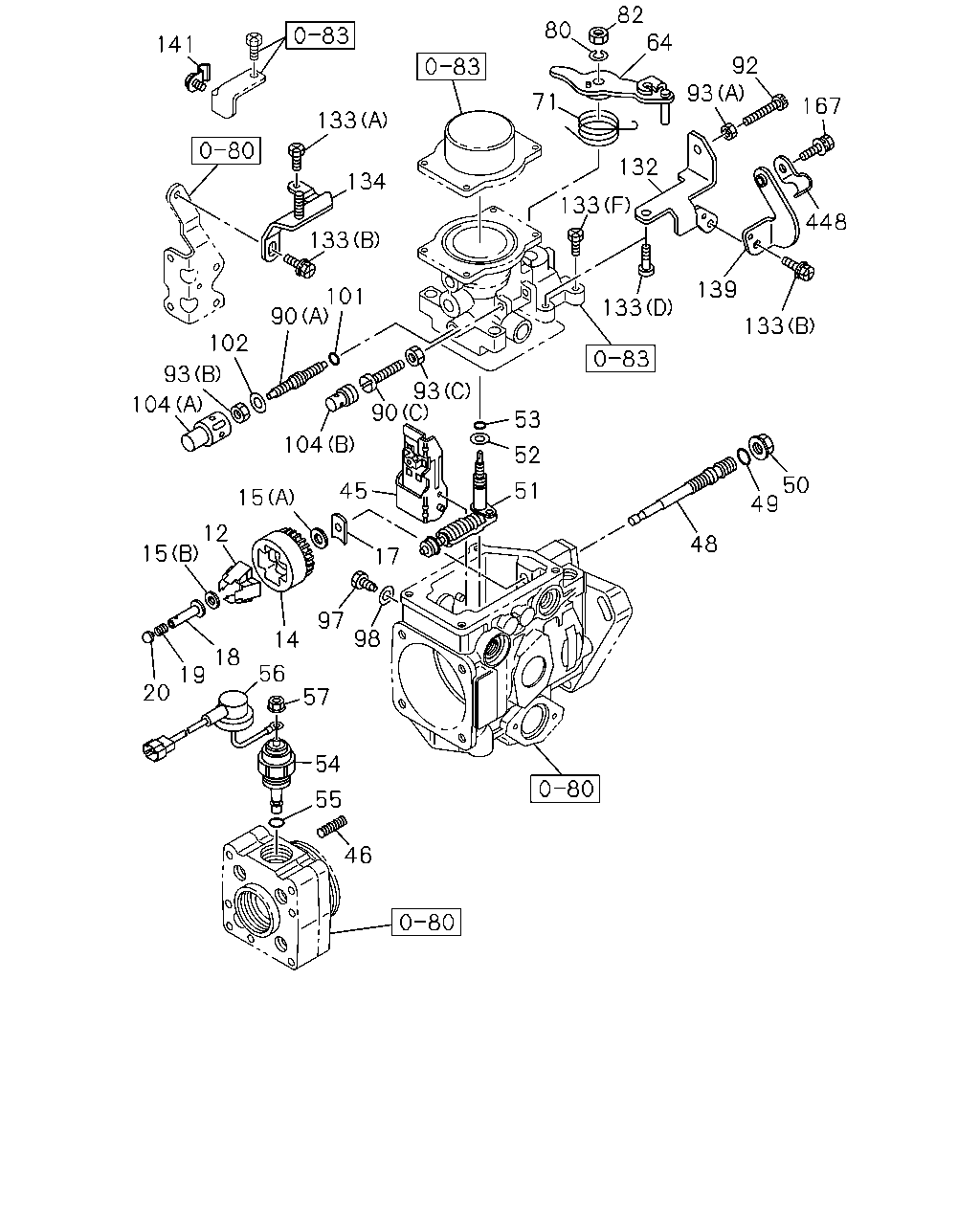

82 64 80 141 92 93 71 167 133 132 134 133 448 133 139 101 133 90 133 102 93 93 90 104 53 104 52 50 49 45 51 15 12 15 48 17 97 98 14 18 56 19 20 57 54 55 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	03.308 FLYWEIGHT ASM; GOV 03.318 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94228-403-0	01	1	-
14	03.308 HOLDER; GOV FLYWEIGHT,INJ PUMP 03.318 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94227-613-0	01	1	-
15	03.308 WASHER; LK,FLYWEIGHT FIX,GOV 03.318, (A) ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94227-612-0	01	1	-
15	03.308 WASHER; LK,FLYWEIGHT FIX,GOV 03.318, (B) ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94227-614-0	01	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV 03.318, T=1.05 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94227-607-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV 03.318, T=1.25 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94227-608-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV 03.318, T=1.45 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94227-609-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV 03.318, T=1.65 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94227-610-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV 03.318, T=1.85 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94227-611-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV 03.318, T=1.15 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94231-123-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV 03.318, T=1.35 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94231-124-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV 03.318, T=1.55 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94231-125-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV 03.318, T=1.75 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94231-126-0	AR	1	-
18	03.308 SLEEVE; GOV ASM PART: B = 8-97207-203-0, 97207203	8-97168-224-0	01	1	-
18	03.308 SLEEVE; GOV ASM PART: A = 8-97204-043-0, 97204043, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-97214-475-0	01	1	-
19	03.308 CAP; GOV SLEEVE,INJ PUMP ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94408-519-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.20 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94372-499-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.30 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94372-500-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.40 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94372-501-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.50 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94372-502-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=2.10 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94408-520-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=2.30 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94408-521-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=2.50 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94408-522-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=2.70 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94408-523-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=2.90 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94408-524-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.10 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94408-525-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.30 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94408-526-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.50 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94408-527-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.70 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94408-528-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.90 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94408-529-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.10 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94408-530-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.30 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94408-531-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.50 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94408-532-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.70 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94408-533-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.90 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94408-534-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.10 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94408-535-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=2.20 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94428-868-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=2.40 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94428-869-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=2.60 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94428-870-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=2.80 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94428-871-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.00 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94428-872-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.20 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94428-873-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.40 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94428-874-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.60 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94428-875-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.80 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94428-876-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.00 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94428-877-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.20 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94428-878-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.40 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94428-879-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.60 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94428-880-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.80 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94428-881-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.00 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94428-882-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.60 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-97163-167-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.70 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-97163-168-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.80 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-97163-169-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.90 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-97163-170-0	01	1	-
45	03.308 LEVER ASM; GOV,INJ PUMP ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-97168-214-0	01	1	-
46	03.308 SPRING; GOV,INJ PUMP ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94473-128-0	02	1	-
48	03.308 SHAFT; GOV,INJ PUMP ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94248-002-0	01	1	-
49	03.308 GASKET; GOV SHAFT,INJ PUMP 03.318 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94227-606-0	01	1	-
50	03.308 NUT; GOV SHAFT,INJ PUMP ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94473-129-0	01	1	-
51	03.308 SHAFT; LOAD CONT LEVER,GOV ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-97211-764-0	01	1	-
52	03.308 WASHER; CONT SHAFT,GOV ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94227-590-0	01	1	-
53	03.308 GASKET; CONT SHAFT,GOV 03.306 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94227-585-0	01	1	-
54	03.308 VALVE; MAG,ENG STOP,INJ PUMP ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94433-811-0	01	1	-
55	03.308 GASKET; MAG VLV,INJ PUMP 03.318 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94239-373-0	01	1	-
56	03.308 WIRE; LEAD,MAG VLV,INJ PUMP ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94343-355-0	01	1	-
57	03.318 NUT; VLV 03.308 ASM PART: C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105	8-94473-135-0	01	1	-0111
57	03.318 NUT; VLV 03.308 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203	8-94473-135-0	01	1	-
57	03.318 NUT; VLV ASM PART: E = 8-97324-405-1, 97324405	8-97138-042-1	01	1	-
57	03.318 NUT; VLV ASM PART: C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105	8-97138-042-1	01	1	0112-
64	03.308 LEVER; LOAD CONT,GOV STAMP 193 ASM PART: C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105	8-97175-325-0	01	1	-0111
64	03.308 LEVER; LOAD CONT,GOV STAMP 193 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, E = 8-97324-405-1, 97324405	8-97175-325-0	01	1	-
64	03.308 LEVER; LOAD CONT,GOV STAMP 194 ASM PART: C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105	8-97175-326-0	01	1	-0111
64	03.308 LEVER; LOAD CONT,GOV STAMP 194 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, E = 8-97324-405-1, 97324405	8-97175-326-0	01	1	-
64	03.308 LEVER; LOAD CONT,GOV STAMP 281 ASM PART: C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105	8-97332-321-0	01	1	0112-
64	03.308 LEVER; LOAD CONT,GOV STAMP 282 ASM PART: C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105	8-97332-322-0	01	1	0112-
71	03.306 SPRING; CONT LEVER,GOV 03.330 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94132-785-0	01	1	-
80	03.308 WASHER; LK,CONT LEVER,GOV 00.206, ID=6.1 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	9-09150-506-0	01	1	-
82	03.308 NUT; CONT LEVER FIX,GOV 03.318 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	1-15729-006-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV 01.531, (C) ASM PART: A = 8-97204-043-0, 97204043, D = 8-97223-105-1, 97223105	8-94313-253-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV (A), L=53.0 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94316-274-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV (A), L=55.0 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94316-275-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV (A), L=57.0 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94316-276-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV 01.531, (B) ASM PART: B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, E = 8-97324-405-1, 97324405	8-94426-049-0	01	1	-
92	03.308 BOLT; FULL LOAD STOPPER,GOV 01.531 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94426-049-0	01	1	-
93	03.162 NUT; ADJ SCREW LK,INJ PUMP GOV 03.318, (A) ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	1-15729-006-0	01	1	-
93	03.162 NUT; ADJ SCREW LK,INJ PUMP GOV 03.308, (B) ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94316-277-0	01	1	-
93	03.162 NUT; ADJ SCREW LK,INJ PUMP GOV (C) ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94426-047-1	01	1	-
97	03.308 BOLT; PIVOT,GOV LEVER ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94227-601-0	02	1	-
98	03.308 GASKET; PIVOT BOLT,GOV LEVER 03.306 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94227-602-0	02	1	-
101	03.308 GASKET; ADJ SPRING CAPSULE,GOV ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94227-598-0	01	1	-
102	03.308 WASHER; FULL LOAD ADJ SCREW,GOV ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94227-593-0	01	1	-
104	03.308 CAP; LOCK NUT,ADJ SCREW (A), L=16.5 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94316-262-0	01	1	-
104	03.308 CAP; LOCK NUT,ADJ SCREW (B), L=18.0 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94316-263-0	01	1	-
104	03.308 CAP; LOCK NUT,ADJ SCREW (B), L=21.0 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94316-264-0	01	1	-
104	03.308 CAP; LOCK NUT,ADJ SCREW (B), L=24.0 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94316-265-0	01	1	-
104	03.308 CAP; LOCK NUT,ADJ SCREW (B), L=27.0 ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94316-266-0	01	1	-
132	03.308 BRACKET; ADJ SCREW,GOV ASM PART: B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, E = 8-97324-405-1, 97324405	8-97211-763-0	01	1	-
132	03.308 BRACKET; ADJ SCREW,GOV ASM PART: A = 8-97204-043-0, 97204043, D = 8-97223-105-1, 97223105	8-97224-414-0	01	1	-
133	03.308 BOLT; BRKT FIX,GOV (D) ASM PART: A = 8-97204-043-0, 97204043, D = 8-97223-105-1, 97223105	1-15749-537-0	02	1	-
133	03.308 BOLT; BRKT FIX,GOV 03.330, (E) ASM PART: C = 8-97223-104-1, 97223104	8-94227-636-0	01	1	0112-
133	03.308 BOLT; BRKT FIX,GOV 03.330, (E) ASM PART: E = 8-97324-405-1, 97324405	8-94227-636-0	01	1	-
133	03.308 BOLT; BRKT FIX,GOV 03.306, (A) ASM PART: A = 8-97204-043-0, 97204043, D = 8-97223-105-1, 97223105	8-94331-551-0	01	1	-
133	03.308 BOLT; BRKT FIX,GOV 03.306, (A) ASM PART: B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, E = 8-97324-405-1, 97324405	8-94331-551-0	03	1	-
133	03.308 BOLT; BRKT FIX,GOV 03.330, (B) ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94343-302-0	02	1	-
134	03.308 BRACKET; CONT CABLE,GOV ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-97168-218-0	01	1	-
139	03.485 BRACKET; INJ PUMP ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-97211-766-0	01	1	-
141	03.308 PLATE ASM; PIPE BRKT ASM PART: A = 8-97204-043-0, 97204043, D = 8-97223-105-1, 97223105	8-94174-822-0	01	1	-
167	03.308 BOLT; PLATE 03.330, (B) ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-94247-717-0	01	1	-
448	03.308 PLATE; BRKT ASM PART: A = 8-97204-043-0, 97204043, B = 8-97207-203-0, 97207203, C = 8-97223-104-1, 97223104, D = 8-97223-105-1, 97223105, E = 8-97324-405-1, 97324405	8-97211-767-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
