0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#17170) — 384 parça

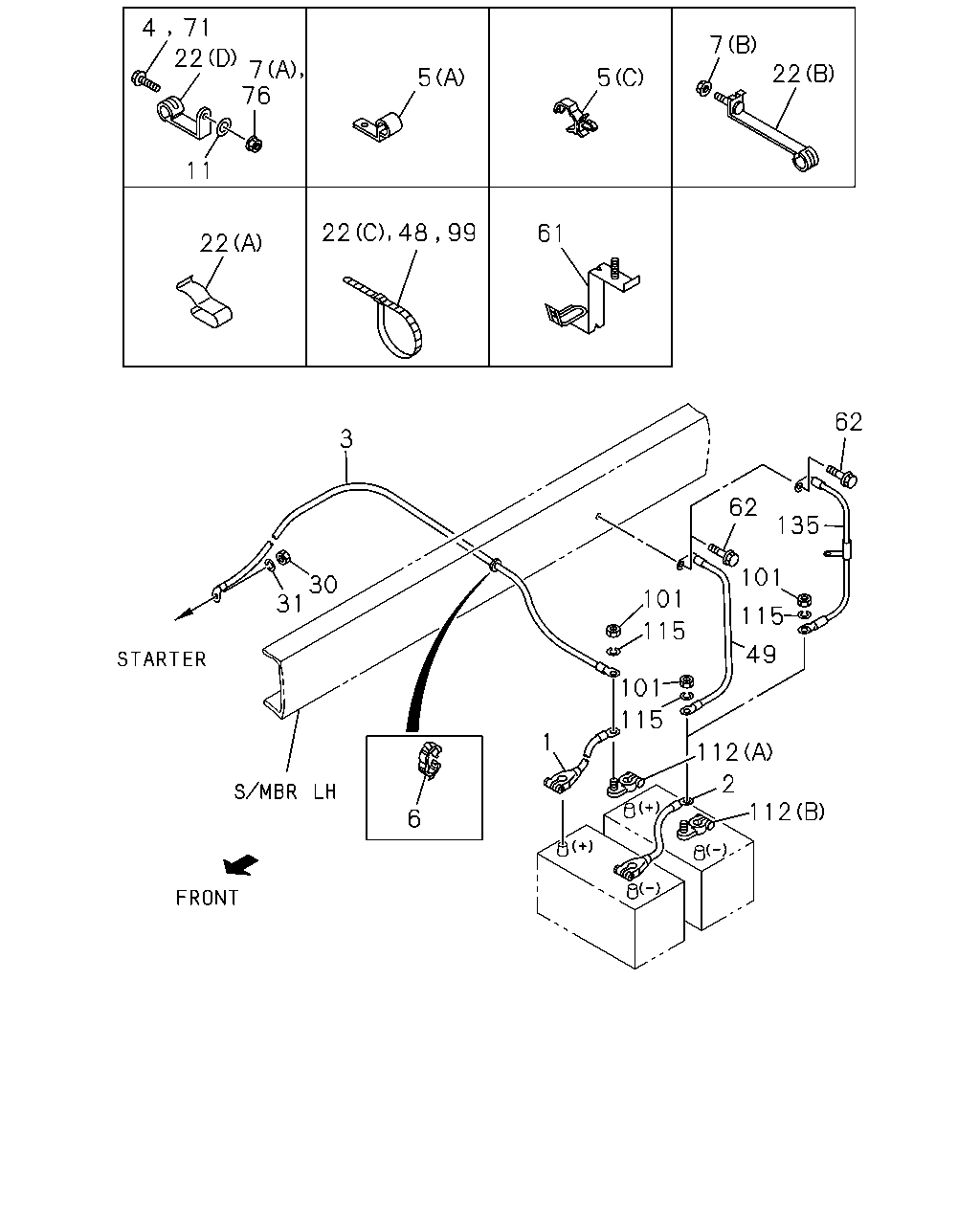

çizim 47156
71 22 4 7 7 76 22 5 5 11 61 22 62 3 62 135 101 30 31 101 115 115 49 101 115 1 112 2 112 6 22 48 99
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 02.341 CABLE; BATTERY
VOLTAGE 24V<7AE> L=180 		1-82650-265-0 01 1 9811-0105 ● ● ●
1 02.341 CABLE; BATTERY
VOLTAGE 24V<7AE> L=280 		8-97230-719-1 01 1 0106- ● ● ●
1 02.341 CABLE; BATTERY
EXC. VOLTAGE 24V<7AE> 02.342 L=200 		8-94171-823-2 01 1 9811- ● ●
1 02.341 CABLE; BATTERY
L=180 		8-97033-975-1 01 1 9811-0105 ●
1 02.341 CABLE; BATTERY
L=180 		8-97230-530-2 01 1 0106-0106 ●
2 02.341 CABLE; BATTERY
EXC. VOLTAGE 24V<7AE> L=200 		8-94171-824-2 01 1 9811- ● ●
2 02.341 CABLE; BATTERY
L=180 		8-97034-115-1 01 1 9811-0105 ●
2 02.341 CABLE; BATTERY
L=180 		8-97230-538-1 01 1 0106-0106 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR/NQR SGL CAB(NP**S*) M/T MZZ6U(RSF) VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B>,BATTERY 115E41R<6XD> 		8-97352-486-0 01 1 0208- ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR/NQR SGL CAB&LONG(NPC6SK) NPR/NQR SGL CAB&EXTEND LONG(NPC6SN) M/T MZZ6U(RSF) BATTERY 115E41R<6XD> 		8-97352-504-0 01 1 0208- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
MINI BUS CHASSIS<V4B> CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) EXC. VOLTAGE 24V<7AE> 		8-97321-198-0 01 1 0109- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
MINI BUS CHASSIS<V4B> EXC. VOLTAGE 24V<7AE> 		8-97218-576-0 01 1 9811- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. MINI BUS CHASSIS<V4B>,VOLTAGE 24V<7AE> 		8-97218-575-0 01 1 9811-0105 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. MINI BUS CHASSIS<V4B>,CHARGE AIR COOLER<6PL>,VOLTAGE 24V<7AE> 		8-97218-575-0 01 1 9811-0105 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. MINI BUS CHASSIS<V4B>,VOLTAGE 24V<7AE> 		8-97218-575-0 01 1 0106- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) MINI BUS CHASSIS<V4B> VOLTAGE 24V<7AE> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97092-834-0 01 1 9811- ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) VOLTAGE 24V<7AE> EXC. MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 		8-97065-467-3 01 1 9811- ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
MINI BUS CHASSIS<V4B> VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 		8-97217-902-0 01 1 9811- ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR/NQR SGL CAB(NP**S*) VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 		8-97215-916-0 01 1 9811-9905 ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR/NQR SGL CAB(NP**S*) VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B>,BATTERY 115E41R<6XD> 		8-97215-916-0 01 1 9906- ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE 8-97068-729-1 01 1 9811-9903 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE 8-97214-185-0 01 1 9904-9904 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE 8-97226-677-0 01 1 9905-0105 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 115E41R<6XD> 		8-97231-286-0 01 1 9906- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
CHARGE AIR COOLER<6PL> EXC. MINI BUS CHASSIS<V4B>,VOLTAGE 24V<7AE> L=1000 		8-97181-963-2 01 1 9811- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
MINI BUS CHASSIS<V4B> CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE> 		8-97203-770-0 01 1 9811-0108 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
MINI BUS CHASSIS<V4B> CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE>,ENGINE POWER N-SPEC(7QV) 		8-97203-770-0 01 1 0109- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR DBL CAB(NP**W*) 		8-97213-972-0 01 1 9811-9905 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR DBL CAB(NP**W*) EXC. BATTERY 115E41R<6XD> 		8-97213-972-0 01 1 9906-0105 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR DBL CAB(NP**W*) EXC. BATTERY 115E41R<6XD> 		8-97306-210-0 01 1 0106- ●
4 02.559 BOLT; BATTERY CABLE
VOLTAGE 24V<7AE> 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 9811-9905 ● ● ●
4 02.559 BOLT; BATTERY CABLE
VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 9906- ● ● ●
4 02.559 BOLT; BATTERY CABLE
BATTERY 115E41R<6XD> M8X25 FLANGE 		0-28680-825-0 01 1 9906- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
MINI BUS CHASSIS<V4B> EXC. VOLTAGE 24V<7AE> (C) ID=16 		8-97040-812-0 01 1 9811- ● ● ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
CHARGE AIR COOLER<6PL> EXC. MINI BUS CHASSIS<V4B>,VOLTAGE 24V<7AE> (C) ID=16 		8-97040-812-0 01 1 9811- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) MINI BUS CHASSIS<V4B> VOLTAGE 24V<7AE> (D) ID=13 L=32 		9-09525-265-0 01 1 9811- ● ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
MINI BUS CHASSIS<V4B> VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 01.166 (D) ID=13 L=40 		9-09525-276-0 02 1 9811- ● ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
VOLTAGE 24V<7AE> EXC. FRAME STRAIGHT TYPE<7KJ> 03.430 (E) ID=13 L=20 		1-09700-888-0 01 1 9811-9905 ● ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR/NQR SGL CAB(NP**S*) VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 03.430 (E) ID=13 L=20 		1-09700-888-0 01 1 9906- ● ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NQR SGL CAB&SUPER LONG(NPC6SS) NPR DBL CAB&MIDDLE(NPC6WF) EXC. BATTERY 115E41R<6XD> 03.430 (E) ID=13 L=20 		1-09700-888-0 01 1 9906- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR/NQR SGL CAB(NP**S*) VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> (B) ID=13 L=90 		8-97015-782-1 02 1 9811-9905 ● ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR/NQR SGL CAB(NP**S*) VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> (B) ID=13 L=90 		8-97015-782-1 02 1 9906-0112 ● ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NQR SGL CAB&SUPER LONG(NPC6SS) NPR DBL CAB&MIDDLE(NPC6WF) BATTERY 115E41R<6XD> (B) ID=13 L=90 		8-97015-782-1 02 1 9906-0112 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR/NQR SGL CAB(NP**S*) VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> (B) ID=13 L=90 		8-97015-782-1 02 1 0201- ● ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR DBL CAB(NP**W*) BATTERY 115E41R<6XD> (B) ID=13 L=90 		8-97015-782-1 02 1 0201- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
MINI BUS CHASSIS<V4B> EXC. VOLTAGE 24V<7AE> 01.531 (D) ID=16 L=28 		9-09525-556-0 03 1 9811- ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
04.342 (F) ID=14-12 		8-94379-592-0 01 1 9811-0105 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
(B) ID=13 L=90 		8-97015-782-1 01 1 9811-0105 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
BATTERY 115E41R<6XD> (A) 		8-94165-399-0 01 1 9811-9905 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
BATTERY 115E41R<6XD> 03.483 (E) ID=13 H=18 L=20 		1-09700-813-0 01 1 9906- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR DBL CAB(NP**W*) (B) ID=13 L=90 		8-97015-782-1 03 1 9811-9905 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR DBL CAB(NP**W*) EXC. BATTERY 115E41R<6XD> (B) ID=13 L=90 		8-97015-782-1 03 1 9906- ●
6 02.343 GROMMET; BATTERY CABLE
M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) MINI BUS CHASSIS<V4B> VOLTAGE 24V<7AE> EXC. FRAME STRAIGHT TYPE<7KJ> ID=17 		8-94128-319-2 01 1 9811- ● ● ●
6 02.343 GROMMET; BATTERY CABLE
EXC. VOLTAGE 24V<7AE> ID=17 		8-94128-319-2 01 1 9811- ● ●
6 02.343 GROMMET; BATTERY CABLE
ID=17 		8-94128-319-2 01 1 9811- ●
7 02.343 NUT; (+) CABLE
VOLTAGE 24V<7AE> 04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 9811-9905 ● ● ●
7 02.343 NUT; (+) CABLE
VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> 04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 9906- ● ● ●
7 02.343 NUT; (+) CABLE
VOLTAGE 24V<7AE> 00.002 (C) M8 		9-09110-508-0 01 1 9811- ● ● ●
7 02.343 NUT; (+) CABLE
NPR/NQR SGL CAB(NP**S*) VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE 		0-91150-108-0 02 1 9811-9905 ● ● ●
7 02.343 NUT; (+) CABLE
NQR SUPER LONG(NP***S) EXC. BATTERY 115E41R<6XD> 07.633 (B) M8 FLANGE 		0-91150-108-0 02 1 9906-0112 ● ● ● ●
7 02.343 NUT; (+) CABLE
NPR/NQR SGL CAB(NP**S*) VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE 		0-91150-108-0 02 1 9906-0112 ● ● ●
7 02.343 NUT; (+) CABLE
NPR/NQR SGL CAB(NP**S*) VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> EXC. BATTERY 115E41R<6XD> 07.633 (B) M8 FLANGE 		0-91150-108-0 02 1 0201- ● ● ●
7 02.343 NUT; (+) CABLE
MINI BUS CHASSIS<V4B> EXC. VOLTAGE 24V<7AE> 04.594 (A) M6 FLANGE 		0-91150-106-0 03 1 9811- ● ●
7 02.343 NUT; (+) CABLE
EXC. VOLTAGE 24V<7AE> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9811-0105 ● ●
7 02.343 NUT; (+) CABLE
07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9811-0105 ●
7 02.343 NUT; (+) CABLE
EXC. VOLTAGE 24V<7AE> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0106- ● ●
7 02.343 NUT; (+) CABLE
NPR DBL CAB(NP**W*) 07.633 (B) M8 FLANGE 		0-91150-108-0 03 1 9811-9905 ●
7 02.343 NUT; (+) CABLE
BATTERY 115E41R<6XD> 07.633 (B) M8 FLANGE 		0-91150-108-0 03 1 9906-0112 ●
7 02.343 NUT; (+) CABLE
NPR/NQR SGL CAB(NP**S*) BATTERY 115E41R<6XD> 07.633 (B) M8 FLANGE 		0-91150-108-0 03 1 0201- ●
7 02.343 NUT; (+) CABLE
NPR DBL CAB(NP**W*) 07.633 (B) M8 FLANGE 		0-91150-108-0 03 1 0201- ●
11 02.343 WASHER; BATTERY CABLE EARTH
MINI BUS CHASSIS<V4B> CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) EXC. VOLTAGE 24V<7AE> 06.760 ID=8.4 OD=22 		9-09160-708-0 01 1 0109- ●
22 02.343 CLIP; BATTERY CABLE
MINI BUS CHASSIS<V4B> EXC. VOLTAGE 24V<7AE> 02.559 (A) T=6.0 		5-09709-012-0 02 1 9811- ●
22 02.343 CLIP; BATTERY CABLE
EXC. MINI BUS CHASSIS<V4B>,VOLTAGE 24V<7AE> 02.559 (B) ID=13 L=90 		8-97015-782-1 01 1 9811- ●
22 02.343 CLIP; BATTERY CABLE
EXC. VOLTAGE 24V<7AE> (D) ID=14 H=50 L=20 		1-09700-843-0 01 1 9811-0105 ●
22 02.343 CLIP; BATTERY CABLE
MINI BUS CHASSIS<V4B> CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE> (D) ID=14 H=50 L=20 		1-09700-843-0 01 1 9811-0105 ●
22 02.343 CLIP; BATTERY CABLE
EXC. CHARGE AIR COOLER<6PL>,VOLTAGE 24V<7AE> (D) ID=14 H=50 L=20 		1-09700-843-0 01 1 9811-0105 ●
22 02.343 CLIP; BATTERY CABLE
EXC. VOLTAGE 24V<7AE> (D) ID=14 H=50 L=20 		1-09700-843-0 01 1 0106- ●
22 02.343 CLIP; BATTERY CABLE
MINI BUS CHASSIS<V4B> CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE> (D) ID=14 H=50 L=20 		1-09700-843-0 01 1 0106- ●
22 02.343 CLIP; BATTERY CABLE
MINI BUS CHASSIS<V4B> VOLTAGE 24V<7AE> 03.162 (C) L=140 		5-09707-031-1 05 1 9903- ● ●
22 02.343 CLIP; BATTERY CABLE
MINI BUS CHASSIS<V4B> EXC. VOLTAGE 24V<7AE> 03.162 (C) L=140 		5-09707-031-1 03 1 9811-0011 ● ●
22 02.343 CLIP; BATTERY CABLE
NPR/NQR SHORT(NP***C) DELETION EGYPT VAR.3<34D>,DELETION EGYPT STD BUS<39D> EXC. BRAZIL EQUIPMENT(RWF),FRAME STRAIGHT TYPE<7KJ> 03.162 (C) L=140 		5-09707-031-1 03 1 0012-0105 ● ● ● ●
22 02.343 CLIP; BATTERY CABLE
NPR/NQR SGL CAB&MIDDLE(NPC6SF) NPR/NQR SGL CAB&LONG(NPC6SK) DELETION EGYPT VAR.3<34D>,DELETION EGYPT STD BUS<39D>,DELETION TURKEY TRUCK<46D>,DELETION TURKEY-BUS<47D> EXC. BRAZIL EQUIPMENT(RWF),FRAME STRAIGHT TYPE<7KJ>,ISRAEL EQUIPMENT(7LX) 03.162 (C) L=140 		5-09707-031-1 03 1 0012-0105 ● ● ● ●
22 02.343 CLIP; BATTERY CABLE
NQR EXTEND LONG(NP***N) DELETION EGYPT VAR.3<34D>,DELETION EGYPT STD BUS<39D> EXC. BRAZIL EQUIPMENT(RWF),FRAME STRAIGHT TYPE<7KJ>,ISRAEL EQUIPMENT(7LX) 03.162 (C) L=140 		5-09707-031-1 03 1 0012-0105 ● ● ● ●
22 02.343 CLIP; BATTERY CABLE
NPR/NQR SGL CAB&MIDDLE(NPC6SF) NPR/NQR SGL CAB&LONG(NPC6SK) DELETION EGYPT VAR.3<34D>,DELETION EGYPT STD BUS<39D>,DELETION TURKEY TRUCK<46D>,DELETION TURKEY-BUS<47D> ISRAEL EQUIPMENT(7LX) EXC. MANUAL TILT CAB<RWZ>,FRAME STRAIGHT TYPE<7KJ> 03.162 (C) L=140 		5-09707-031-1 03 1 0012-0105 ● ● ● ●
22 02.343 CLIP; BATTERY CABLE
NQR EXTEND LONG(NP***N) DELETION EGYPT VAR.3<34D>,DELETION EGYPT STD BUS<39D> ISRAEL EQUIPMENT(7LX) EXC. MANUAL TILT CAB<RWZ>,FRAME STRAIGHT TYPE<7KJ> 03.162 (C) L=140 		5-09707-031-1 03 1 0012-0105 ● ● ● ●
22 02.343 CLIP; BATTERY CABLE
MINI BUS CHASSIS<V4B> EXC. VOLTAGE 24V<7AE> 03.162 (C) L=140 		5-09707-031-1 03 1 0106- ● ●
22 02.343 CLIP; BATTERY CABLE
NPR DBL CAB(NP**W*) BATTERY 115E41R<6XD> 03.162 (C) L=140 		5-09707-031-1 01 1 9906-0108 ●
22 02.343 CLIP; BATTERY CABLE
MINI BUS CHASSIS<V4B> CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) EXC. VOLTAGE 24V<7AE> 03.162 (C) L=140 		5-09707-031-1 01 1 0109- ●
22 02.343 CLIP; BATTERY CABLE
NPR DBL CAB(NP**W*) BATTERY 115E41R<6XD> 03.162 (C) L=140 		5-09707-031-1 01 1 0109- ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
02.559 M8 		9-09110-408-0 01 1 9811-0105 ● ● ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
02.559 M8 		9-09110-408-0 01 1 0106- ● ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
00.002 ID=8.2 		9-09150-508-0 01 1 9811-0105 ● ● ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
00.002 ID=8.2 		9-09150-508-0 01 1 0106- ● ● ●
48 02.343 CLIP; CABLE
VOLTAGE 24V<7AE> 03.162 L=140 		5-09707-031-0 01 1 9811-9902 ● ● ●
48 02.343 CLIP; CABLE
03.162 L=140 		5-09707-031-0 01 1 9811-9902 ●
48 02.343 CLIP; CABLE
03.162 L=140 		5-09707-031-1 01 1 9903-0105 ● ● ● ●
48 02.343 CLIP; CABLE
03.162 L=140 		5-09707-031-1 01 1 0106-0106 ● ● ● ●
48 02.343 CLIP; CABLE
03.162 L=140 		5-09707-031-1 01 1 0106- ● ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
MINI BUS CHASSIS<V4B> VOLTAGE 24V<7AE> 		9-82933-125-0 01 1 9903- ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> L=200 30BY 		9-82933-456-0 01 1 9811-9902 ● ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
VOLTAGE 24V<7AE> EXC. MINI BUS CHASSIS<V4B> L=200 30BY 		9-82933-456-0 01 1 9903- ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
EXC. BATTERY 115E41R<6XD> L=200 30BY 		9-82933-456-0 01 1 9903- ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
L=500 		8-97035-845-3 01 1 9811-0105 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
BATTERY 115E41R<6XD> L=400 		9-82933-248-0 01 1 9811-9905 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
BATTERY 115E41R<6XD> L=770 		8-97231-489-0 01 1 9906- ●
61 02.333 BRACKET; BATTERY CABLE
EXC. VOLTAGE 24V<7AE> 		8-97202-472-1 01 1 9811-0108 ●
61 02.333 BRACKET; BATTERY CABLE
EXC. VOLTAGE 24V<7AE> 		8-97202-472-1 01 1 0109- ●
61 02.333 BRACKET; BATTERY CABLE
ENGINE POWER N-SPEC(7QV) EXC. VOLTAGE 24V<7AE> 		8-97202-472-1 01 1 0109- ●
61 02.333 BRACKET; BATTERY CABLE
EXC. VOLTAGE 24V<7AE> 		8-97202-141-1 01 1 9811-0108 ●
61 02.333 BRACKET; BATTERY CABLE
EXC. VOLTAGE 24V<7AE>,ENGINE POWER N-SPEC(7QV) 		8-97202-141-1 01 1 0109- ●
62 02.343 BOLT; EARTH CABLE FIX
MINI BUS CHASSIS<V4B> CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) EXC. VOLTAGE 24V<7AE> M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0109- ●
62 02.343 BOLT; EARTH CABLE FIX
M8X30 W/LK&PL WASHER 		8-97087-204-0 01 1 9811- ●
62 02.343 BOLT; EARTH CABLE FIX
EXC. CHINA EQUIPMENT(YT2) M8X30 W/LK&PL WASHER 		8-97087-204-0 01 1 9811- ●
62 02.343 BOLT; EARTH CABLE FIX
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 9811-0105 ● ●
62 02.343 BOLT; EARTH CABLE FIX
CHINA EQUIPMENT(YT2) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 9811-0105 ●
62 02.343 BOLT; EARTH CABLE FIX
CHINA EQUIPMENT(YT2) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0106-0108 ●
62 02.343 BOLT; EARTH CABLE FIX
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0106-0108 ●
62 02.343 BOLT; EARTH CABLE FIX
VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL> M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0109- ●
71 02.343 BOLT; BATTERY CABLE
MINI BUS CHASSIS<V4B> EXC. VOLTAGE 24V<7AE> 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 9811-0105 ● ●
71 02.343 BOLT; BATTERY CABLE
EXC. VOLTAGE 24V<7AE> 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 9811-0105 ●
71 02.343 BOLT; BATTERY CABLE
MINI BUS CHASSIS<V4B> CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE> 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 9811-0105 ●
71 02.343 BOLT; BATTERY CABLE
EXC. CHARGE AIR COOLER<6PL>,VOLTAGE 24V<7AE> 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 9811-0105 ●
71 02.343 BOLT; BATTERY CABLE
MINI BUS CHASSIS<V4B> EXC. VOLTAGE 24V<7AE> 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0106- ● ●
71 02.343 BOLT; BATTERY CABLE
EXC. VOLTAGE 24V<7AE> 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0106- ●
71 02.343 BOLT; BATTERY CABLE
MINI BUS CHASSIS<V4B> CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE> 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0106- ●
76 02.343 NUT; BATTERY CABLE
EXC. MINI BUS CHASSIS<V4B>,VOLTAGE 24V<7AE> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9811- ●
76 02.343 NUT; BATTERY CABLE
M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) MINI BUS CHASSIS<V4B> VOLTAGE 24V<7AE> EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 M6 FLANGE 		0-91150-106-0 01 1 9811- ● ● ●
76 02.343 NUT; BATTERY CABLE
MINI BUS CHASSIS<V4B> EXC. VOLTAGE 24V<7AE> 04.594 M6 FLANGE 		0-91150-106-0 01 1 9811- ● ●
76 02.343 NUT; BATTERY CABLE
MINI BUS CHASSIS<V4B> VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 04.594 M6 FLANGE 		0-91150-106-0 03 1 9811- ● ● ●
99 02.343 CLIP; BATTERY CABLE
NQR SUPER LONG(NP***S) BATTERY 115E41R<6XD> 03.162 L=140 		5-09707-031-1 01 1 9906-0105 ● ● ●
99 02.343 CLIP; BATTERY CABLE
NPR/NQR SGL CAB&MIDDLE(NPC6SF) NPR/NQR SGL CAB&LONG(NPC6SK) NPR/NQR SGL CAB&EXTEND LONG(NPC6SN) NQR SGL CAB&SUPER LONG(NPC6SS) BATTERY 115E41R<6XD> 03.162 L=140 		5-09707-031-1 01 1 9906-0105 ●
99 02.343 CLIP; BATTERY CABLE
EXC. MINI BUS CHASSIS<V4B>,VOLTAGE 24V<7AE> 03.162 L=140 		5-09707-031-1 02 1 0106- ●
99 02.343 CLIP; BATTERY CABLE
NPR/NQR SGL CAB&MIDDLE(NPC6SF) NPR/NQR SGL CAB&LONG(NPC6SK) NPR/NQR SGL CAB&EXTEND LONG(NPC6SN) EXC. MINI BUS CHASSIS<V4B>,CHARGE AIR COOLER<6PL>,VOLTAGE 24V<7AE> 03.162 L=140 		5-09707-031-1 02 1 9903-0105 ● ●
99 02.343 CLIP; BATTERY CABLE
BATTERY 115E41R<6XD> 03.162 L=140 		5-09707-031-1 01 1 0106- ●
101 02.343 NUT; BATTERY CABLE CLIP
EXC. VOLTAGE 24V<7AE> 09.011 M10 		9-09110-410-0 02 1 9811- ● ●
112 02.343 TERMINAL; BATTERY
EXC. VOLTAGE 24V<7AE> (A) <+> 		1-82695-003-0 01 1 9811- ● ●
112 02.343 TERMINAL; BATTERY
EXC. VOLTAGE 24V<7AE> (B) <-> 		1-82695-004-0 01 1 9811- ● ●
112 02.343 TERMINAL; BATTERY
(A) <+> 		8-94361-935-0 01 1 9811-0105 ●
112 02.343 TERMINAL; BATTERY
NPR/NQR SGL CAB&LONG(NPC6SK) NPR/NQR SGL CAB&EXTEND LONG(NPC6SN) M/T MZZ6U(RSF) (B) <+> 		8-94361-935-0 01 1 0208- ●
112 02.343 TERMINAL; BATTERY
(B) <-> 		8-97035-508-0 01 1 9811-0105 ●
115 02.343 WASHER; LK,CABLE,BATTERY
EXC. VOLTAGE 24V<7AE> 00.002 ID=10.2 		9-09150-510-0 02 1 9811- ● ●
135 02.343 CABLE; ENG TO BATTERY
MINI BUS CHASSIS<V4B> CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) EXC. VOLTAGE 24V<7AE> L=2320 		8-97321-197-0 01 1 0109- ●
135 02.343 CABLE; ENG TO BATTERY
MINI BUS CHASSIS<V4B> EXC. VOLTAGE 24V<7AE> L=2430 		8-97218-578-0 01 1 9811- ●
135 02.343 CABLE; ENG TO BATTERY
EXC. MINI BUS CHASSIS<V4B>,VOLTAGE 24V<7AE> L=1650 		8-97218-577-0 01 1 9811-0105 ●
135 02.343 CABLE; ENG TO BATTERY
EXC. MINI BUS CHASSIS<V4B>,CHARGE AIR COOLER<6PL>,VOLTAGE 24V<7AE> L=1650 		8-97218-577-0 01 1 9811-0105 ●
135 02.343 CABLE; ENG TO BATTERY
EXC. MINI BUS CHASSIS<V4B>,VOLTAGE 24V<7AE> L=1650 		8-97218-577-0 01 1 0106- ●
135 02.343 CABLE; ENG TO BATTERY
CHARGE AIR COOLER<6PL> EXC. MINI BUS CHASSIS<V4B>,VOLTAGE 24V<7AE> L=780 		8-97181-964-1 01 1 9811- ●
135 02.343 CABLE; ENG TO BATTERY
MINI BUS CHASSIS<V4B> CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE> L=2350 		8-97203-769-0 01 1 9811-0108 ●
135 02.343 CABLE; ENG TO BATTERY
MINI BUS CHASSIS<V4B> CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE>,ENGINE POWER N-SPEC(7QV) L=2350 		8-97203-769-0 01 1 0109- ●
çizim 47259
7 4 5 5 5 4 7 7 76 6 3 7 5 30 31 1 49 62 22 48
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 02.341 CABLE; BATTERY
VOLTAGE 24V<7AE> L=180 		1-82650-265-0 01 1 9811-0105 ● ● ●
1 02.341 CABLE; BATTERY
VOLTAGE 24V<7AE> L=280 		8-97230-719-1 01 1 0106- ● ● ●
1 02.341 CABLE; BATTERY
EXC. VOLTAGE 24V<7AE> 02.342 L=200 		8-94171-823-2 01 1 9811- ● ●
1 02.341 CABLE; BATTERY
L=180 		8-97033-975-1 01 1 9811-0105 ●
1 02.341 CABLE; BATTERY
L=180 		8-97230-530-2 01 1 0106-0106 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR/NQR SGL CAB(NP**S*) M/T MZZ6U(RSF) VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B>,BATTERY 115E41R<6XD> 		8-97352-486-0 01 1 0208- ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR/NQR SGL CAB&LONG(NPC6SK) NPR/NQR SGL CAB&EXTEND LONG(NPC6SN) M/T MZZ6U(RSF) BATTERY 115E41R<6XD> 		8-97352-504-0 01 1 0208- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
MINI BUS CHASSIS<V4B> CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) EXC. VOLTAGE 24V<7AE> 		8-97321-198-0 01 1 0109- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
MINI BUS CHASSIS<V4B> EXC. VOLTAGE 24V<7AE> 		8-97218-576-0 01 1 9811- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. MINI BUS CHASSIS<V4B>,VOLTAGE 24V<7AE> 		8-97218-575-0 01 1 9811-0105 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. MINI BUS CHASSIS<V4B>,CHARGE AIR COOLER<6PL>,VOLTAGE 24V<7AE> 		8-97218-575-0 01 1 9811-0105 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. MINI BUS CHASSIS<V4B>,VOLTAGE 24V<7AE> 		8-97218-575-0 01 1 0106- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) MINI BUS CHASSIS<V4B> VOLTAGE 24V<7AE> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97092-834-0 01 1 9811- ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) VOLTAGE 24V<7AE> EXC. MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 		8-97065-467-3 01 1 9811- ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
MINI BUS CHASSIS<V4B> VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 		8-97217-902-0 01 1 9811- ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR/NQR SGL CAB(NP**S*) VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 		8-97215-916-0 01 1 9811-9905 ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR/NQR SGL CAB(NP**S*) VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B>,BATTERY 115E41R<6XD> 		8-97215-916-0 01 1 9906- ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE 8-97068-729-1 01 1 9811-9903 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE 8-97214-185-0 01 1 9904-9904 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE 8-97226-677-0 01 1 9905-0105 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 115E41R<6XD> 		8-97231-286-0 01 1 9906- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
CHARGE AIR COOLER<6PL> EXC. MINI BUS CHASSIS<V4B>,VOLTAGE 24V<7AE> L=1000 		8-97181-963-2 01 1 9811- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
MINI BUS CHASSIS<V4B> CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE> 		8-97203-770-0 01 1 9811-0108 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
MINI BUS CHASSIS<V4B> CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE>,ENGINE POWER N-SPEC(7QV) 		8-97203-770-0 01 1 0109- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR DBL CAB(NP**W*) 		8-97213-972-0 01 1 9811-9905 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR DBL CAB(NP**W*) EXC. BATTERY 115E41R<6XD> 		8-97213-972-0 01 1 9906-0105 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR DBL CAB(NP**W*) EXC. BATTERY 115E41R<6XD> 		8-97306-210-0 01 1 0106- ●
4 02.559 BOLT; BATTERY CABLE
VOLTAGE 24V<7AE> 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 9811-9905 ● ● ●
4 02.559 BOLT; BATTERY CABLE
VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 9906- ● ● ●
4 02.559 BOLT; BATTERY CABLE
BATTERY 115E41R<6XD> M8X25 FLANGE 		0-28680-825-0 01 1 9906- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
MINI BUS CHASSIS<V4B> EXC. VOLTAGE 24V<7AE> (C) ID=16 		8-97040-812-0 01 1 9811- ● ● ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
CHARGE AIR COOLER<6PL> EXC. MINI BUS CHASSIS<V4B>,VOLTAGE 24V<7AE> (C) ID=16 		8-97040-812-0 01 1 9811- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) MINI BUS CHASSIS<V4B> VOLTAGE 24V<7AE> (D) ID=13 L=32 		9-09525-265-0 01 1 9811- ● ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
MINI BUS CHASSIS<V4B> VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 01.166 (D) ID=13 L=40 		9-09525-276-0 02 1 9811- ● ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
VOLTAGE 24V<7AE> EXC. FRAME STRAIGHT TYPE<7KJ> 03.430 (E) ID=13 L=20 		1-09700-888-0 01 1 9811-9905 ● ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR/NQR SGL CAB(NP**S*) VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 03.430 (E) ID=13 L=20 		1-09700-888-0 01 1 9906- ● ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NQR SGL CAB&SUPER LONG(NPC6SS) NPR DBL CAB&MIDDLE(NPC6WF) EXC. BATTERY 115E41R<6XD> 03.430 (E) ID=13 L=20 		1-09700-888-0 01 1 9906- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR/NQR SGL CAB(NP**S*) VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> (B) ID=13 L=90 		8-97015-782-1 02 1 9811-9905 ● ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR/NQR SGL CAB(NP**S*) VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> (B) ID=13 L=90 		8-97015-782-1 02 1 9906-0112 ● ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NQR SGL CAB&SUPER LONG(NPC6SS) NPR DBL CAB&MIDDLE(NPC6WF) BATTERY 115E41R<6XD> (B) ID=13 L=90 		8-97015-782-1 02 1 9906-0112 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR/NQR SGL CAB(NP**S*) VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> (B) ID=13 L=90 		8-97015-782-1 02 1 0201- ● ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR DBL CAB(NP**W*) BATTERY 115E41R<6XD> (B) ID=13 L=90 		8-97015-782-1 02 1 0201- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
MINI BUS CHASSIS<V4B> EXC. VOLTAGE 24V<7AE> 01.531 (D) ID=16 L=28 		9-09525-556-0 03 1 9811- ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
04.342 (F) ID=14-12 		8-94379-592-0 01 1 9811-0105 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
(B) ID=13 L=90 		8-97015-782-1 01 1 9811-0105 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
BATTERY 115E41R<6XD> (A) 		8-94165-399-0 01 1 9811-9905 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
BATTERY 115E41R<6XD> 03.483 (E) ID=13 H=18 L=20 		1-09700-813-0 01 1 9906- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR DBL CAB(NP**W*) (B) ID=13 L=90 		8-97015-782-1 03 1 9811-9905 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR DBL CAB(NP**W*) EXC. BATTERY 115E41R<6XD> (B) ID=13 L=90 		8-97015-782-1 03 1 9906- ●
6 02.343 GROMMET; BATTERY CABLE
M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) MINI BUS CHASSIS<V4B> VOLTAGE 24V<7AE> EXC. FRAME STRAIGHT TYPE<7KJ> ID=17 		8-94128-319-2 01 1 9811- ● ● ●
6 02.343 GROMMET; BATTERY CABLE
EXC. VOLTAGE 24V<7AE> ID=17 		8-94128-319-2 01 1 9811- ● ●
6 02.343 GROMMET; BATTERY CABLE
ID=17 		8-94128-319-2 01 1 9811- ●
7 02.343 NUT; (+) CABLE
VOLTAGE 24V<7AE> 04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 9811-9905 ● ● ●
7 02.343 NUT; (+) CABLE
VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> 04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 9906- ● ● ●
7 02.343 NUT; (+) CABLE
VOLTAGE 24V<7AE> 00.002 (C) M8 		9-09110-508-0 01 1 9811- ● ● ●
7 02.343 NUT; (+) CABLE
NPR/NQR SGL CAB(NP**S*) VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE 		0-91150-108-0 02 1 9811-9905 ● ● ●
7 02.343 NUT; (+) CABLE
NQR SUPER LONG(NP***S) EXC. BATTERY 115E41R<6XD> 07.633 (B) M8 FLANGE 		0-91150-108-0 02 1 9906-0112 ● ● ● ●
7 02.343 NUT; (+) CABLE
NPR/NQR SGL CAB(NP**S*) VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE 		0-91150-108-0 02 1 9906-0112 ● ● ●
7 02.343 NUT; (+) CABLE
NPR/NQR SGL CAB(NP**S*) VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> EXC. BATTERY 115E41R<6XD> 07.633 (B) M8 FLANGE 		0-91150-108-0 02 1 0201- ● ● ●
7 02.343 NUT; (+) CABLE
MINI BUS CHASSIS<V4B> EXC. VOLTAGE 24V<7AE> 04.594 (A) M6 FLANGE 		0-91150-106-0 03 1 9811- ● ●
7 02.343 NUT; (+) CABLE
EXC. VOLTAGE 24V<7AE> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9811-0105 ● ●
7 02.343 NUT; (+) CABLE
07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9811-0105 ●
7 02.343 NUT; (+) CABLE
EXC. VOLTAGE 24V<7AE> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0106- ● ●
7 02.343 NUT; (+) CABLE
NPR DBL CAB(NP**W*) 07.633 (B) M8 FLANGE 		0-91150-108-0 03 1 9811-9905 ●
7 02.343 NUT; (+) CABLE
BATTERY 115E41R<6XD> 07.633 (B) M8 FLANGE 		0-91150-108-0 03 1 9906-0112 ●
7 02.343 NUT; (+) CABLE
NPR/NQR SGL CAB(NP**S*) BATTERY 115E41R<6XD> 07.633 (B) M8 FLANGE 		0-91150-108-0 03 1 0201- ●
7 02.343 NUT; (+) CABLE
NPR DBL CAB(NP**W*) 07.633 (B) M8 FLANGE 		0-91150-108-0 03 1 0201- ●
22 02.343 CLIP; BATTERY CABLE
MINI BUS CHASSIS<V4B> EXC. VOLTAGE 24V<7AE> 02.559 (A) T=6.0 		5-09709-012-0 02 1 9811- ●
22 02.343 CLIP; BATTERY CABLE
EXC. MINI BUS CHASSIS<V4B>,VOLTAGE 24V<7AE> 02.559 (B) ID=13 L=90 		8-97015-782-1 01 1 9811- ●
22 02.343 CLIP; BATTERY CABLE
EXC. VOLTAGE 24V<7AE> (D) ID=14 H=50 L=20 		1-09700-843-0 01 1 9811-0105 ●
22 02.343 CLIP; BATTERY CABLE
MINI BUS CHASSIS<V4B> CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE> (D) ID=14 H=50 L=20 		1-09700-843-0 01 1 9811-0105 ●
22 02.343 CLIP; BATTERY CABLE
EXC. CHARGE AIR COOLER<6PL>,VOLTAGE 24V<7AE> (D) ID=14 H=50 L=20 		1-09700-843-0 01 1 9811-0105 ●
22 02.343 CLIP; BATTERY CABLE
EXC. VOLTAGE 24V<7AE> (D) ID=14 H=50 L=20 		1-09700-843-0 01 1 0106- ●
22 02.343 CLIP; BATTERY CABLE
MINI BUS CHASSIS<V4B> CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE> (D) ID=14 H=50 L=20 		1-09700-843-0 01 1 0106- ●
22 02.343 CLIP; BATTERY CABLE
MINI BUS CHASSIS<V4B> VOLTAGE 24V<7AE> 03.162 (C) L=140 		5-09707-031-1 05 1 9903- ● ●
22 02.343 CLIP; BATTERY CABLE
MINI BUS CHASSIS<V4B> EXC. VOLTAGE 24V<7AE> 03.162 (C) L=140 		5-09707-031-1 03 1 9811-0011 ● ●
22 02.343 CLIP; BATTERY CABLE
NPR/NQR SHORT(NP***C) DELETION EGYPT VAR.3<34D>,DELETION EGYPT STD BUS<39D> EXC. BRAZIL EQUIPMENT(RWF),FRAME STRAIGHT TYPE<7KJ> 03.162 (C) L=140 		5-09707-031-1 03 1 0012-0105 ● ● ● ●
22 02.343 CLIP; BATTERY CABLE
NPR/NQR SGL CAB&MIDDLE(NPC6SF) NPR/NQR SGL CAB&LONG(NPC6SK) DELETION EGYPT VAR.3<34D>,DELETION EGYPT STD BUS<39D>,DELETION TURKEY TRUCK<46D>,DELETION TURKEY-BUS<47D> EXC. BRAZIL EQUIPMENT(RWF),FRAME STRAIGHT TYPE<7KJ>,ISRAEL EQUIPMENT(7LX) 03.162 (C) L=140 		5-09707-031-1 03 1 0012-0105 ● ● ● ●
22 02.343 CLIP; BATTERY CABLE
NQR EXTEND LONG(NP***N) DELETION EGYPT VAR.3<34D>,DELETION EGYPT STD BUS<39D> EXC. BRAZIL EQUIPMENT(RWF),FRAME STRAIGHT TYPE<7KJ>,ISRAEL EQUIPMENT(7LX) 03.162 (C) L=140 		5-09707-031-1 03 1 0012-0105 ● ● ● ●
22 02.343 CLIP; BATTERY CABLE
NPR/NQR SGL CAB&MIDDLE(NPC6SF) NPR/NQR SGL CAB&LONG(NPC6SK) DELETION EGYPT VAR.3<34D>,DELETION EGYPT STD BUS<39D>,DELETION TURKEY TRUCK<46D>,DELETION TURKEY-BUS<47D> ISRAEL EQUIPMENT(7LX) EXC. MANUAL TILT CAB<RWZ>,FRAME STRAIGHT TYPE<7KJ> 03.162 (C) L=140 		5-09707-031-1 03 1 0012-0105 ● ● ● ●
22 02.343 CLIP; BATTERY CABLE
NQR EXTEND LONG(NP***N) DELETION EGYPT VAR.3<34D>,DELETION EGYPT STD BUS<39D> ISRAEL EQUIPMENT(7LX) EXC. MANUAL TILT CAB<RWZ>,FRAME STRAIGHT TYPE<7KJ> 03.162 (C) L=140 		5-09707-031-1 03 1 0012-0105 ● ● ● ●
22 02.343 CLIP; BATTERY CABLE
MINI BUS CHASSIS<V4B> EXC. VOLTAGE 24V<7AE> 03.162 (C) L=140 		5-09707-031-1 03 1 0106- ● ●
22 02.343 CLIP; BATTERY CABLE
NPR DBL CAB(NP**W*) BATTERY 115E41R<6XD> 03.162 (C) L=140 		5-09707-031-1 01 1 9906-0108 ●
22 02.343 CLIP; BATTERY CABLE
MINI BUS CHASSIS<V4B> CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) EXC. VOLTAGE 24V<7AE> 03.162 (C) L=140 		5-09707-031-1 01 1 0109- ●
22 02.343 CLIP; BATTERY CABLE
NPR DBL CAB(NP**W*) BATTERY 115E41R<6XD> 03.162 (C) L=140 		5-09707-031-1 01 1 0109- ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
02.559 M8 		9-09110-408-0 01 1 9811-0105 ● ● ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
02.559 M8 		9-09110-408-0 01 1 0106- ● ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
00.002 ID=8.2 		9-09150-508-0 01 1 9811-0105 ● ● ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
00.002 ID=8.2 		9-09150-508-0 01 1 0106- ● ● ●
48 02.343 CLIP; CABLE
VOLTAGE 24V<7AE> 03.162 L=140 		5-09707-031-0 01 1 9811-9902 ● ● ●
48 02.343 CLIP; CABLE
03.162 L=140 		5-09707-031-0 01 1 9811-9902 ●
48 02.343 CLIP; CABLE
03.162 L=140 		5-09707-031-1 01 1 9903-0105 ● ● ● ●
48 02.343 CLIP; CABLE
03.162 L=140 		5-09707-031-1 01 1 0106-0106 ● ● ● ●
48 02.343 CLIP; CABLE
03.162 L=140 		5-09707-031-1 01 1 0106- ● ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
MINI BUS CHASSIS<V4B> VOLTAGE 24V<7AE> 		9-82933-125-0 01 1 9903- ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> L=200 30BY 		9-82933-456-0 01 1 9811-9902 ● ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
VOLTAGE 24V<7AE> EXC. MINI BUS CHASSIS<V4B> L=200 30BY 		9-82933-456-0 01 1 9903- ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
EXC. BATTERY 115E41R<6XD> L=200 30BY 		9-82933-456-0 01 1 9903- ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
L=500 		8-97035-845-3 01 1 9811-0105 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
BATTERY 115E41R<6XD> L=400 		9-82933-248-0 01 1 9811-9905 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
BATTERY 115E41R<6XD> L=770 		8-97231-489-0 01 1 9906- ●
62 02.343 BOLT; EARTH CABLE FIX
MINI BUS CHASSIS<V4B> CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) EXC. VOLTAGE 24V<7AE> M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0109- ●
62 02.343 BOLT; EARTH CABLE FIX
M8X30 W/LK&PL WASHER 		8-97087-204-0 01 1 9811- ●
62 02.343 BOLT; EARTH CABLE FIX
EXC. CHINA EQUIPMENT(YT2) M8X30 W/LK&PL WASHER 		8-97087-204-0 01 1 9811- ●
62 02.343 BOLT; EARTH CABLE FIX
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 9811-0105 ● ●
62 02.343 BOLT; EARTH CABLE FIX
CHINA EQUIPMENT(YT2) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 9811-0105 ●
62 02.343 BOLT; EARTH CABLE FIX
CHINA EQUIPMENT(YT2) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0106-0108 ●
62 02.343 BOLT; EARTH CABLE FIX
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0106-0108 ●
62 02.343 BOLT; EARTH CABLE FIX
VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL> M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0109- ●
76 02.343 NUT; BATTERY CABLE
EXC. MINI BUS CHASSIS<V4B>,VOLTAGE 24V<7AE> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9811- ●
76 02.343 NUT; BATTERY CABLE
M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) MINI BUS CHASSIS<V4B> VOLTAGE 24V<7AE> EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 M6 FLANGE 		0-91150-106-0 01 1 9811- ● ● ●
76 02.343 NUT; BATTERY CABLE
MINI BUS CHASSIS<V4B> EXC. VOLTAGE 24V<7AE> 04.594 M6 FLANGE 		0-91150-106-0 01 1 9811- ● ●
76 02.343 NUT; BATTERY CABLE
MINI BUS CHASSIS<V4B> VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 04.594 M6 FLANGE 		0-91150-106-0 03 1 9811- ● ● ●

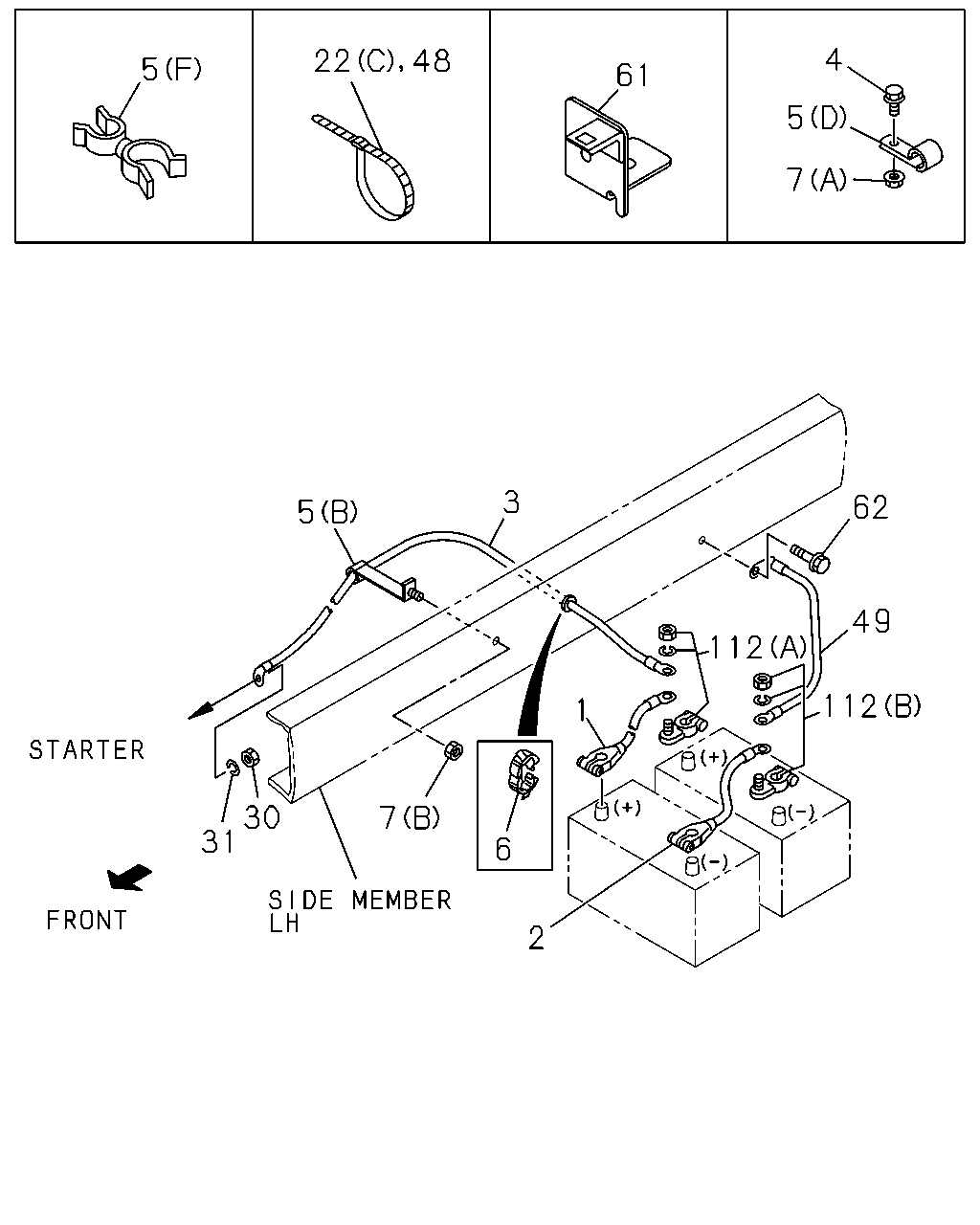

çizim 47306
4 5 61 5 7 3 62 5 49 112 112 1 30 31 7 6 2 22 48
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 02.341 CABLE; BATTERY
VOLTAGE 24V<7AE> L=180 		1-82650-265-0 01 1 9811-0105 ● ● ●
1 02.341 CABLE; BATTERY
VOLTAGE 24V<7AE> L=280 		8-97230-719-1 01 1 0106- ● ● ●
1 02.341 CABLE; BATTERY
EXC. VOLTAGE 24V<7AE> 02.342 L=200 		8-94171-823-2 01 1 9811- ● ●
1 02.341 CABLE; BATTERY
L=180 		8-97033-975-1 01 1 9811-0105 ●
1 02.341 CABLE; BATTERY
L=180 		8-97230-530-2 01 1 0106-0106 ●
2 02.341 CABLE; BATTERY
EXC. VOLTAGE 24V<7AE> L=200 		8-94171-824-2 01 1 9811- ● ●
2 02.341 CABLE; BATTERY
L=180 		8-97034-115-1 01 1 9811-0105 ●
2 02.341 CABLE; BATTERY
L=180 		8-97230-538-1 01 1 0106-0106 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR/NQR SGL CAB(NP**S*) M/T MZZ6U(RSF) VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B>,BATTERY 115E41R<6XD> 		8-97352-486-0 01 1 0208- ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR/NQR SGL CAB&LONG(NPC6SK) NPR/NQR SGL CAB&EXTEND LONG(NPC6SN) M/T MZZ6U(RSF) BATTERY 115E41R<6XD> 		8-97352-504-0 01 1 0208- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
MINI BUS CHASSIS<V4B> CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) EXC. VOLTAGE 24V<7AE> 		8-97321-198-0 01 1 0109- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
MINI BUS CHASSIS<V4B> EXC. VOLTAGE 24V<7AE> 		8-97218-576-0 01 1 9811- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. MINI BUS CHASSIS<V4B>,VOLTAGE 24V<7AE> 		8-97218-575-0 01 1 9811-0105 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. MINI BUS CHASSIS<V4B>,CHARGE AIR COOLER<6PL>,VOLTAGE 24V<7AE> 		8-97218-575-0 01 1 9811-0105 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. MINI BUS CHASSIS<V4B>,VOLTAGE 24V<7AE> 		8-97218-575-0 01 1 0106- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) MINI BUS CHASSIS<V4B> VOLTAGE 24V<7AE> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97092-834-0 01 1 9811- ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) VOLTAGE 24V<7AE> EXC. MINI BUS CHASSIS<V4B>,FRAME STRAIGHT TYPE<7KJ> 		8-97065-467-3 01 1 9811- ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
MINI BUS CHASSIS<V4B> VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 		8-97217-902-0 01 1 9811- ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR/NQR SGL CAB(NP**S*) VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 		8-97215-916-0 01 1 9811-9905 ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR/NQR SGL CAB(NP**S*) VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B>,BATTERY 115E41R<6XD> 		8-97215-916-0 01 1 9906- ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE 8-97068-729-1 01 1 9811-9903 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE 8-97214-185-0 01 1 9904-9904 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE 8-97226-677-0 01 1 9905-0105 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 115E41R<6XD> 		8-97231-286-0 01 1 9906- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
CHARGE AIR COOLER<6PL> EXC. MINI BUS CHASSIS<V4B>,VOLTAGE 24V<7AE> L=1000 		8-97181-963-2 01 1 9811- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
MINI BUS CHASSIS<V4B> CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE> 		8-97203-770-0 01 1 9811-0108 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
MINI BUS CHASSIS<V4B> CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE>,ENGINE POWER N-SPEC(7QV) 		8-97203-770-0 01 1 0109- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR DBL CAB(NP**W*) 		8-97213-972-0 01 1 9811-9905 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR DBL CAB(NP**W*) EXC. BATTERY 115E41R<6XD> 		8-97213-972-0 01 1 9906-0105 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NPR DBL CAB(NP**W*) EXC. BATTERY 115E41R<6XD> 		8-97306-210-0 01 1 0106- ●
4 02.559 BOLT; BATTERY CABLE
VOLTAGE 24V<7AE> 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 9811-9905 ● ● ●
4 02.559 BOLT; BATTERY CABLE
VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 9906- ● ● ●
4 02.559 BOLT; BATTERY CABLE
BATTERY 115E41R<6XD> M8X25 FLANGE 		0-28680-825-0 01 1 9906- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
MINI BUS CHASSIS<V4B> EXC. VOLTAGE 24V<7AE> (C) ID=16 		8-97040-812-0 01 1 9811- ● ● ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
CHARGE AIR COOLER<6PL> EXC. MINI BUS CHASSIS<V4B>,VOLTAGE 24V<7AE> (C) ID=16 		8-97040-812-0 01 1 9811- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) MINI BUS CHASSIS<V4B> VOLTAGE 24V<7AE> (D) ID=13 L=32 		9-09525-265-0 01 1 9811- ● ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
MINI BUS CHASSIS<V4B> VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 01.166 (D) ID=13 L=40 		9-09525-276-0 02 1 9811- ● ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
VOLTAGE 24V<7AE> EXC. FRAME STRAIGHT TYPE<7KJ> 03.430 (E) ID=13 L=20 		1-09700-888-0 01 1 9811-9905 ● ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR/NQR SGL CAB(NP**S*) VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 03.430 (E) ID=13 L=20 		1-09700-888-0 01 1 9906- ● ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NQR SGL CAB&SUPER LONG(NPC6SS) NPR DBL CAB&MIDDLE(NPC6WF) EXC. BATTERY 115E41R<6XD> 03.430 (E) ID=13 L=20 		1-09700-888-0 01 1 9906- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR/NQR SGL CAB(NP**S*) VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> (B) ID=13 L=90 		8-97015-782-1 02 1 9811-9905 ● ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR/NQR SGL CAB(NP**S*) VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> (B) ID=13 L=90 		8-97015-782-1 02 1 9906-0112 ● ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NQR SGL CAB&SUPER LONG(NPC6SS) NPR DBL CAB&MIDDLE(NPC6WF) BATTERY 115E41R<6XD> (B) ID=13 L=90 		8-97015-782-1 02 1 9906-0112 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR/NQR SGL CAB(NP**S*) VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> (B) ID=13 L=90 		8-97015-782-1 02 1 0201- ● ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR DBL CAB(NP**W*) BATTERY 115E41R<6XD> (B) ID=13 L=90 		8-97015-782-1 02 1 0201- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
MINI BUS CHASSIS<V4B> EXC. VOLTAGE 24V<7AE> 01.531 (D) ID=16 L=28 		9-09525-556-0 03 1 9811- ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
04.342 (F) ID=14-12 		8-94379-592-0 01 1 9811-0105 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
(B) ID=13 L=90 		8-97015-782-1 01 1 9811-0105 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
BATTERY 115E41R<6XD> (A) 		8-94165-399-0 01 1 9811-9905 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
BATTERY 115E41R<6XD> 03.483 (E) ID=13 H=18 L=20 		1-09700-813-0 01 1 9906- ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR DBL CAB(NP**W*) (B) ID=13 L=90 		8-97015-782-1 03 1 9811-9905 ●
5 02.559 CLIP; BATTERY CABLE TO BODY
NPR DBL CAB(NP**W*) EXC. BATTERY 115E41R<6XD> (B) ID=13 L=90 		8-97015-782-1 03 1 9906- ●
6 02.343 GROMMET; BATTERY CABLE
M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB) MINI BUS CHASSIS<V4B> VOLTAGE 24V<7AE> EXC. FRAME STRAIGHT TYPE<7KJ> ID=17 		8-94128-319-2 01 1 9811- ● ● ●
6 02.343 GROMMET; BATTERY CABLE
EXC. VOLTAGE 24V<7AE> ID=17 		8-94128-319-2 01 1 9811- ● ●
6 02.343 GROMMET; BATTERY CABLE
ID=17 		8-94128-319-2 01 1 9811- ●
7 02.343 NUT; (+) CABLE
VOLTAGE 24V<7AE> 04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 9811-9905 ● ● ●
7 02.343 NUT; (+) CABLE
VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> 04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 9906- ● ● ●
7 02.343 NUT; (+) CABLE
VOLTAGE 24V<7AE> 00.002 (C) M8 		9-09110-508-0 01 1 9811- ● ● ●
7 02.343 NUT; (+) CABLE
NPR/NQR SGL CAB(NP**S*) VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE 		0-91150-108-0 02 1 9811-9905 ● ● ●
7 02.343 NUT; (+) CABLE
NQR SUPER LONG(NP***S) EXC. BATTERY 115E41R<6XD> 07.633 (B) M8 FLANGE 		0-91150-108-0 02 1 9906-0112 ● ● ● ●
7 02.343 NUT; (+) CABLE
NPR/NQR SGL CAB(NP**S*) VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 07.633 (B) M8 FLANGE 		0-91150-108-0 02 1 9906-0112 ● ● ●
7 02.343 NUT; (+) CABLE
NPR/NQR SGL CAB(NP**S*) VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> EXC. BATTERY 115E41R<6XD> 07.633 (B) M8 FLANGE 		0-91150-108-0 02 1 0201- ● ● ●
7 02.343 NUT; (+) CABLE
MINI BUS CHASSIS<V4B> EXC. VOLTAGE 24V<7AE> 04.594 (A) M6 FLANGE 		0-91150-106-0 03 1 9811- ● ●
7 02.343 NUT; (+) CABLE
EXC. VOLTAGE 24V<7AE> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9811-0105 ● ●
7 02.343 NUT; (+) CABLE
07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 9811-0105 ●
7 02.343 NUT; (+) CABLE
EXC. VOLTAGE 24V<7AE> 07.633 (B) M8 FLANGE 		0-91150-108-0 01 1 0106- ● ●
7 02.343 NUT; (+) CABLE
NPR DBL CAB(NP**W*) 07.633 (B) M8 FLANGE 		0-91150-108-0 03 1 9811-9905 ●
7 02.343 NUT; (+) CABLE
BATTERY 115E41R<6XD> 07.633 (B) M8 FLANGE 		0-91150-108-0 03 1 9906-0112 ●
7 02.343 NUT; (+) CABLE
NPR/NQR SGL CAB(NP**S*) BATTERY 115E41R<6XD> 07.633 (B) M8 FLANGE 		0-91150-108-0 03 1 0201- ●
7 02.343 NUT; (+) CABLE
NPR DBL CAB(NP**W*) 07.633 (B) M8 FLANGE 		0-91150-108-0 03 1 0201- ●
22 02.343 CLIP; BATTERY CABLE
MINI BUS CHASSIS<V4B> EXC. VOLTAGE 24V<7AE> 02.559 (A) T=6.0 		5-09709-012-0 02 1 9811- ●
22 02.343 CLIP; BATTERY CABLE
EXC. MINI BUS CHASSIS<V4B>,VOLTAGE 24V<7AE> 02.559 (B) ID=13 L=90 		8-97015-782-1 01 1 9811- ●
22 02.343 CLIP; BATTERY CABLE
EXC. VOLTAGE 24V<7AE> (D) ID=14 H=50 L=20 		1-09700-843-0 01 1 9811-0105 ●
22 02.343 CLIP; BATTERY CABLE
MINI BUS CHASSIS<V4B> CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE> (D) ID=14 H=50 L=20 		1-09700-843-0 01 1 9811-0105 ●
22 02.343 CLIP; BATTERY CABLE
EXC. CHARGE AIR COOLER<6PL>,VOLTAGE 24V<7AE> (D) ID=14 H=50 L=20 		1-09700-843-0 01 1 9811-0105 ●
22 02.343 CLIP; BATTERY CABLE
EXC. VOLTAGE 24V<7AE> (D) ID=14 H=50 L=20 		1-09700-843-0 01 1 0106- ●
22 02.343 CLIP; BATTERY CABLE
MINI BUS CHASSIS<V4B> CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE> (D) ID=14 H=50 L=20 		1-09700-843-0 01 1 0106- ●
22 02.343 CLIP; BATTERY CABLE
MINI BUS CHASSIS<V4B> VOLTAGE 24V<7AE> 03.162 (C) L=140 		5-09707-031-1 05 1 9903- ● ●
22 02.343 CLIP; BATTERY CABLE
MINI BUS CHASSIS<V4B> EXC. VOLTAGE 24V<7AE> 03.162 (C) L=140 		5-09707-031-1 03 1 9811-0011 ● ●
22 02.343 CLIP; BATTERY CABLE
NPR/NQR SHORT(NP***C) DELETION EGYPT VAR.3<34D>,DELETION EGYPT STD BUS<39D> EXC. BRAZIL EQUIPMENT(RWF),FRAME STRAIGHT TYPE<7KJ> 03.162 (C) L=140 		5-09707-031-1 03 1 0012-0105 ● ● ● ●
22 02.343 CLIP; BATTERY CABLE
NPR/NQR SGL CAB&MIDDLE(NPC6SF) NPR/NQR SGL CAB&LONG(NPC6SK) DELETION EGYPT VAR.3<34D>,DELETION EGYPT STD BUS<39D>,DELETION TURKEY TRUCK<46D>,DELETION TURKEY-BUS<47D> EXC. BRAZIL EQUIPMENT(RWF),FRAME STRAIGHT TYPE<7KJ>,ISRAEL EQUIPMENT(7LX) 03.162 (C) L=140 		5-09707-031-1 03 1 0012-0105 ● ● ● ●
22 02.343 CLIP; BATTERY CABLE
NQR EXTEND LONG(NP***N) DELETION EGYPT VAR.3<34D>,DELETION EGYPT STD BUS<39D> EXC. BRAZIL EQUIPMENT(RWF),FRAME STRAIGHT TYPE<7KJ>,ISRAEL EQUIPMENT(7LX) 03.162 (C) L=140 		5-09707-031-1 03 1 0012-0105 ● ● ● ●
22 02.343 CLIP; BATTERY CABLE
NPR/NQR SGL CAB&MIDDLE(NPC6SF) NPR/NQR SGL CAB&LONG(NPC6SK) DELETION EGYPT VAR.3<34D>,DELETION EGYPT STD BUS<39D>,DELETION TURKEY TRUCK<46D>,DELETION TURKEY-BUS<47D> ISRAEL EQUIPMENT(7LX) EXC. MANUAL TILT CAB<RWZ>,FRAME STRAIGHT TYPE<7KJ> 03.162 (C) L=140 		5-09707-031-1 03 1 0012-0105 ● ● ● ●
22 02.343 CLIP; BATTERY CABLE
NQR EXTEND LONG(NP***N) DELETION EGYPT VAR.3<34D>,DELETION EGYPT STD BUS<39D> ISRAEL EQUIPMENT(7LX) EXC. MANUAL TILT CAB<RWZ>,FRAME STRAIGHT TYPE<7KJ> 03.162 (C) L=140 		5-09707-031-1 03 1 0012-0105 ● ● ● ●
22 02.343 CLIP; BATTERY CABLE
MINI BUS CHASSIS<V4B> EXC. VOLTAGE 24V<7AE> 03.162 (C) L=140 		5-09707-031-1 03 1 0106- ● ●
22 02.343 CLIP; BATTERY CABLE
NPR DBL CAB(NP**W*) BATTERY 115E41R<6XD> 03.162 (C) L=140 		5-09707-031-1 01 1 9906-0108 ●
22 02.343 CLIP; BATTERY CABLE
MINI BUS CHASSIS<V4B> CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) EXC. VOLTAGE 24V<7AE> 03.162 (C) L=140 		5-09707-031-1 01 1 0109- ●
22 02.343 CLIP; BATTERY CABLE
NPR DBL CAB(NP**W*) BATTERY 115E41R<6XD> 03.162 (C) L=140 		5-09707-031-1 01 1 0109- ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
02.559 M8 		9-09110-408-0 01 1 9811-0105 ● ● ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
02.559 M8 		9-09110-408-0 01 1 0106- ● ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
00.002 ID=8.2 		9-09150-508-0 01 1 9811-0105 ● ● ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
00.002 ID=8.2 		9-09150-508-0 01 1 0106- ● ● ●
48 02.343 CLIP; CABLE
VOLTAGE 24V<7AE> 03.162 L=140 		5-09707-031-0 01 1 9811-9902 ● ● ●
48 02.343 CLIP; CABLE
03.162 L=140 		5-09707-031-0 01 1 9811-9902 ●
48 02.343 CLIP; CABLE
03.162 L=140 		5-09707-031-1 01 1 9903-0105 ● ● ● ●
48 02.343 CLIP; CABLE
03.162 L=140 		5-09707-031-1 01 1 0106-0106 ● ● ● ●
48 02.343 CLIP; CABLE
03.162 L=140 		5-09707-031-1 01 1 0106- ● ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
MINI BUS CHASSIS<V4B> VOLTAGE 24V<7AE> 		9-82933-125-0 01 1 9903- ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
VOLTAGE 24V<7AE> EXC. BATTERY 115E41R<6XD> L=200 30BY 		9-82933-456-0 01 1 9811-9902 ● ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
VOLTAGE 24V<7AE> EXC. MINI BUS CHASSIS<V4B> L=200 30BY 		9-82933-456-0 01 1 9903- ● ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
EXC. BATTERY 115E41R<6XD> L=200 30BY 		9-82933-456-0 01 1 9903- ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
L=500 		8-97035-845-3 01 1 9811-0105 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
BATTERY 115E41R<6XD> L=400 		9-82933-248-0 01 1 9811-9905 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
BATTERY 115E41R<6XD> L=770 		8-97231-489-0 01 1 9906- ●
61 02.333 BRACKET; BATTERY CABLE
EXC. VOLTAGE 24V<7AE> 		8-97202-472-1 01 1 9811-0108 ●
61 02.333 BRACKET; BATTERY CABLE
EXC. VOLTAGE 24V<7AE> 		8-97202-472-1 01 1 0109- ●
61 02.333 BRACKET; BATTERY CABLE
ENGINE POWER N-SPEC(7QV) EXC. VOLTAGE 24V<7AE> 		8-97202-472-1 01 1 0109- ●
61 02.333 BRACKET; BATTERY CABLE
EXC. VOLTAGE 24V<7AE> 		8-97202-141-1 01 1 9811-0108 ●
61 02.333 BRACKET; BATTERY CABLE
EXC. VOLTAGE 24V<7AE>,ENGINE POWER N-SPEC(7QV) 		8-97202-141-1 01 1 0109- ●
62 02.343 BOLT; EARTH CABLE FIX
MINI BUS CHASSIS<V4B> CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) EXC. VOLTAGE 24V<7AE> M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0109- ●
62 02.343 BOLT; EARTH CABLE FIX
M8X30 W/LK&PL WASHER 		8-97087-204-0 01 1 9811- ●
62 02.343 BOLT; EARTH CABLE FIX
EXC. CHINA EQUIPMENT(YT2) M8X30 W/LK&PL WASHER 		8-97087-204-0 01 1 9811- ●
62 02.343 BOLT; EARTH CABLE FIX
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 9811-0105 ● ●
62 02.343 BOLT; EARTH CABLE FIX
CHINA EQUIPMENT(YT2) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 9811-0105 ●
62 02.343 BOLT; EARTH CABLE FIX
CHINA EQUIPMENT(YT2) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0106-0108 ●
62 02.343 BOLT; EARTH CABLE FIX
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0106-0108 ●
62 02.343 BOLT; EARTH CABLE FIX
VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL> M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0109- ●
112 02.343 TERMINAL; BATTERY
EXC. VOLTAGE 24V<7AE> (A) <+> 		1-82695-003-0 01 1 9811- ● ●
112 02.343 TERMINAL; BATTERY
EXC. VOLTAGE 24V<7AE> (B) <-> 		1-82695-004-0 01 1 9811- ● ●
112 02.343 TERMINAL; BATTERY
(A) <+> 		8-94361-935-0 01 1 9811-0105 ●
112 02.343 TERMINAL; BATTERY
NPR/NQR SGL CAB&LONG(NPC6SK) NPR/NQR SGL CAB&EXTEND LONG(NPC6SN) M/T MZZ6U(RSF) (B) <+> 		8-94361-935-0 01 1 0208- ●
112 02.343 TERMINAL; BATTERY
(B) <-> 		8-97035-508-0 01 1 9811-0105 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
