◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50815 - NPR/NQR-LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-60 - ENGINE ELECTRICAL CONTROL PARTS ▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS (#17169) — 313 parça

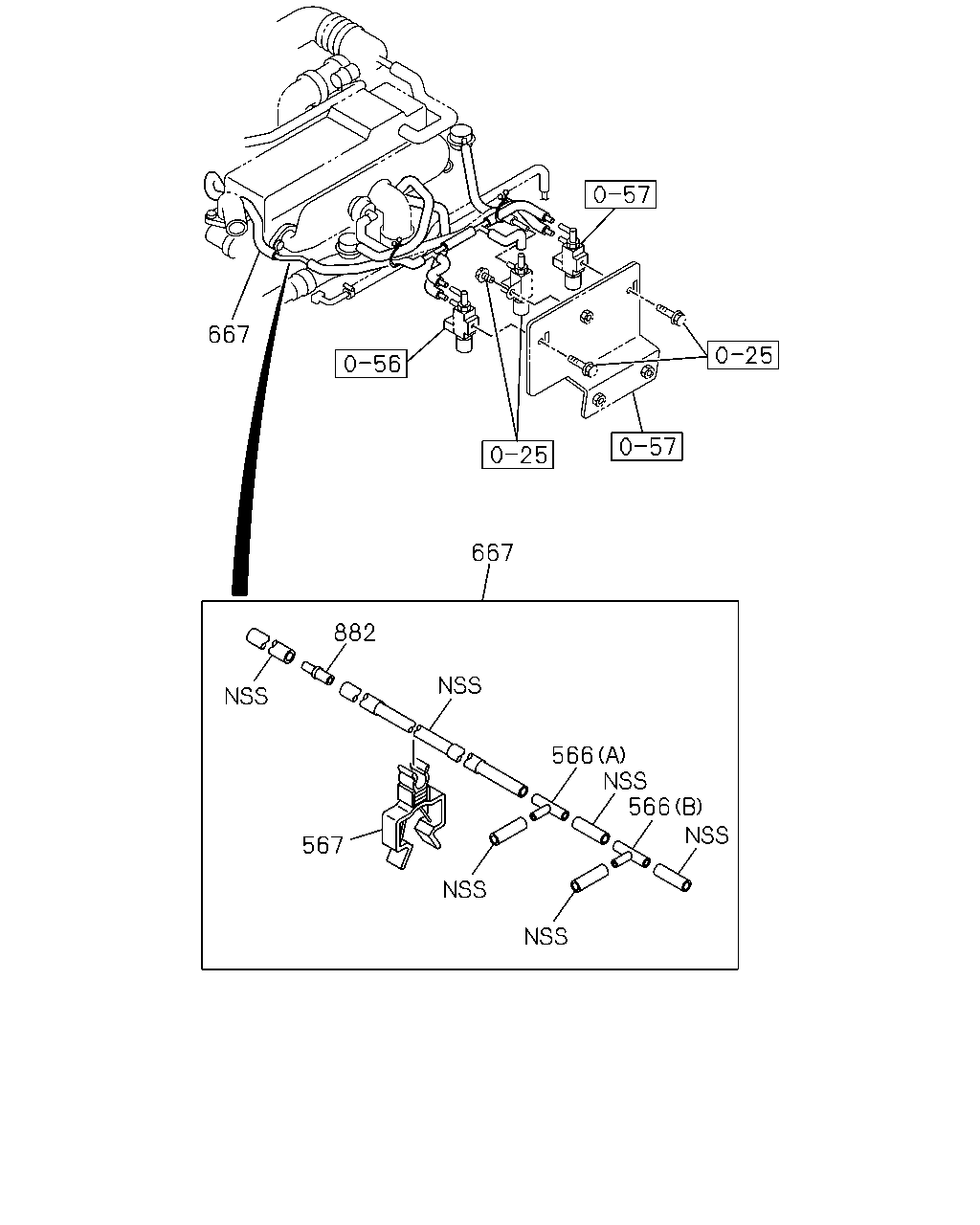

çizim 9940
667 667 882 566 566 567
BalonParca AdiParca NoAdetTipApplied Date A B C D
566 02.420 JOINT; 3 WAY
03.145 (A) BLACK 		8-94425-194-0 01 1 9811-9901 ●
566 02.420 JOINT; 3 WAY
03.680 (A) 3WAY 		8-94165-537-0 01 1 9902-9904 ●
566 02.420 JOINT; 3 WAY
03.680 (B) 3WAY 		8-94439-294-0 01 1 9811-9904 ●
567 03.726 CLIP; VAC HOSE
01.540 ID=23.6 		8-94315-427-0 01 1 9811-9901 ●
567 03.726 CLIP; VAC HOSE
01.540 ID=23.6 		8-94315-427-0 02 1 9902-9904 ●
667 03.280 HOSE; VAC,PUMP TO VSV 8-97208-197-0 01 1 9811-9901 ●
667 03.280 HOSE; VAC,PUMP TO VSV 8-97225-698-0 01 1 9902-9904 ●
667 03.280 HOSE; VAC,PUMP TO VSV 8-97228-358-1 01 1 9905-0105 ●
882 03.280 JOINT; 2 WAY
03.680 2WAY 		8-97165-694-0 01 1 9811-9904 ●

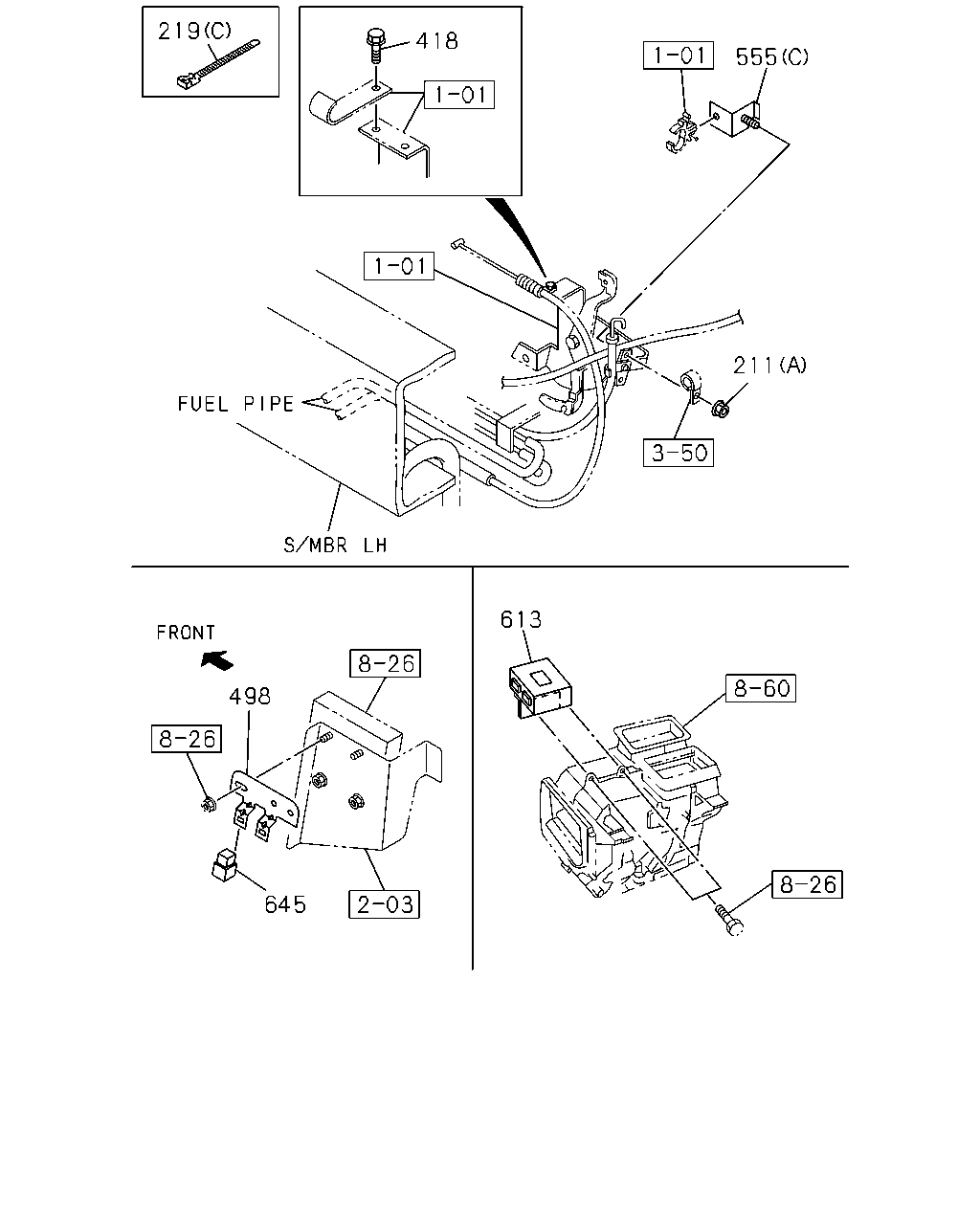

çizim 45708
219 418 555 211 613 498 645
BalonParca AdiParca NoAdetTipApplied Date A B C D
211 02.343 NUT; CABLE FIX
04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 9811-9812 ● ● ●
211 02.343 NUT; CABLE FIX
04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 9901- ● ●
211 02.343 NUT; CABLE FIX
EXC. ENGINE POWER N-SPEC(7QV) 04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 9901- ●
211 02.343 NUT; CABLE FIX
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 9811- ●
219 03.483 CLIP; ENG STOP CABLE
02.525 (A) T=4.5 & 9 		5-09709-023-0 01 1 9811- ● ●
219 03.483 CLIP; ENG STOP CABLE
EXC. ENGINE POWER N-SPEC(7QV) 02.525 (A) T=4.5 & 9 		5-09709-023-0 01 1 9811- ●
219 03.483 CLIP; ENG STOP CABLE
FRAME STRAIGHT TYPE<7KJ> 03.162 (B) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 9811- ● ●
219 03.483 CLIP; ENG STOP CABLE
FRAME STRAIGHT TYPE<7KJ> EXC. ENGINE POWER N-SPEC(7QV) 03.162 (B) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 9811- ●
219 03.483 CLIP; ENG STOP CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.115 (A) T=9 & 10.5 		8-97041-091-0 01 1 9811- ● ●
219 03.483 CLIP; ENG STOP CABLE
EXC. FRAME STRAIGHT TYPE<7KJ>,ENGINE POWER N-SPEC(7QV) 03.115 (A) T=9 & 10.5 		8-97041-091-0 01 1 9811- ●
219 03.483 CLIP; ENG STOP CABLE
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.162 (C) L=140 		5-09707-031-1 01 1 9811- ●
418 02.559 BOLT; CLIP
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE 		0-28680-825-0 01 1 9811- ●
498 02.510 BRACKET; RELAY
A/T 4 SPEED-AISIN(RNJ) VOLTAGE 24V<7AE> 		8-97228-905-0 01 1 9906-0005 ●
498 02.510 BRACKET; RELAY
A/T 4 SPEED-AISIN(RNJ) VOLTAGE 24V<7AE> 09.766 		8-97258-763-0 01 1 0006- ●
555 03.485 BRACKET; ENG STOP
(A) 		8-97119-039-2 01 1 9811- ● ●
555 03.485 BRACKET; ENG STOP
EXC. ENGINE POWER N-SPEC(7QV) (A) 		8-97119-039-2 01 1 9811- ●
555 03.485 BRACKET; ENG STOP
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97113-497-1 01 1 9811-9812 ● ●
555 03.485 BRACKET; ENG STOP
EXC. FRAME STRAIGHT TYPE<7KJ>,ENGINE POWER N-SPEC(7QV) (B) 		8-97113-497-1 01 1 9811-9812 ●
555 03.485 BRACKET; ENG STOP
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97188-280-0 01 1 9811- ●
613 03.670 CONTROL UNIT; ENG
EURO3 SPECIFICATION<NT3> CHARGE AIR COOLER<6PL> 		8-97261-161-2 01 1 0201- ●
613 03.670 CONTROL UNIT; ENG
TURBOCHARGER(K51) COLOMBIA EQUIPMENT(X74) 		8-97210-465-3 01 1 9811- ●
613 03.670 CONTROL UNIT; ENG
TURBOCHARGER(K51) EXC. COLOMBIA EQUIPMENT(X74) 		8-97205-636-3 01 1 9811- ●
613 03.670 CONTROL UNIT; ENG
CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> EXC. VENEZUELA EQUIPMENT(S2L) 		8-97212-109-0 01 1 9811-9901 ●
613 03.670 CONTROL UNIT; ENG
CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> EXC. VENEZUELA EQUIPMENT(S2L) 		8-97223-181-1 01 1 9902- ●
613 03.670 CONTROL UNIT; ENG
CHARGE AIR COOLER<6PL> EXC. VENEZUELA EQUIPMENT(S2L),EURO2 SPECIFICATION<7AF> 		8-97212-112-0 01 1 9811-9901 ●
613 03.670 CONTROL UNIT; ENG
CHARGE AIR COOLER<6PL> EXC. VENEZUELA EQUIPMENT(S2L),EURO2 SPECIFICATION<7AF> 		8-97223-184-1 01 1 9902-0112 ●
613 03.670 CONTROL UNIT; ENG
CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3>, VENEZUELAEQUIPMENT(S2L),EURO2 SPECIFICATION<7AF> 		8-97223-184-1 01 1 0201- ●
613 03.670 CONTROL UNIT; ENG
VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL> 		8-97212-107-0 01 1 9811-9901 ●
613 03.670 CONTROL UNIT; ENG
VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL> 		8-97223-180-1 01 1 9902- ●
645 02.510 RELAY; ENG CONT
A/T 4 SPEED-AISIN(RNJ) VOLTAGE 24V<7AE> 24V 12.5A MITUBA 		8-97062-815-1 01 1 9906-0104 ●
645 02.510 RELAY; ENG CONT
A/T 4 SPEED-AISIN(RNJ) VOLTAGE 24V<7AE> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0105- ●

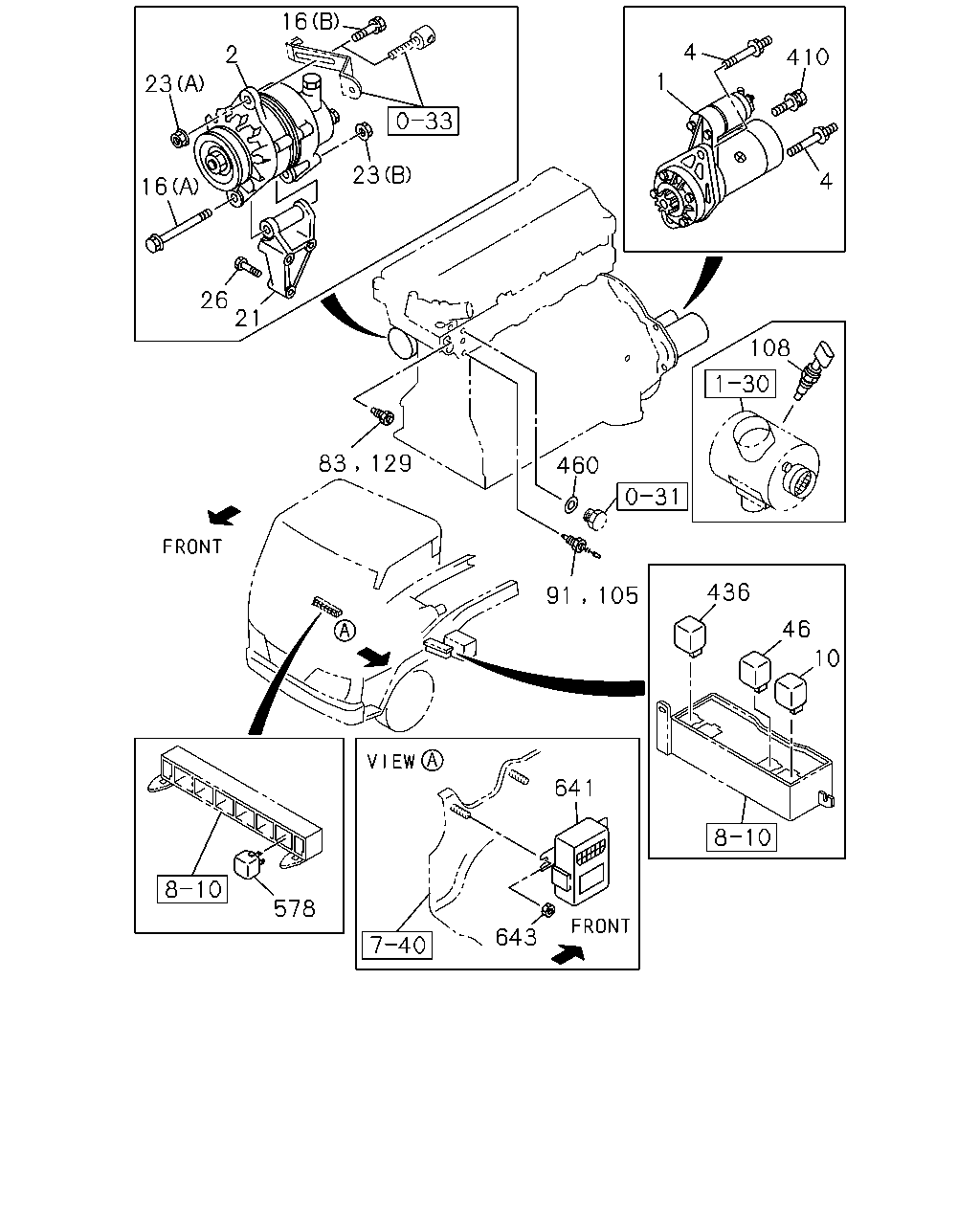

çizim 46424
16 4 2 410 1 23 23 4 16 26 21 108 83 129 460 436 91 105 46 10 641 578 643
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. COLOMBIA EQUIPMENT(X74) 12V 3.0KW 		8-97207-786-2 01 1 9811- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. VENEZUELA EQUIPMENT(S2L),COLOMBIA EQUIPMENT(X74) 12V 3.0KW 		8-97207-786-2 01 1 9811- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. COLOMBIA EQUIPMENT(X74),STARTER 24V4.5KW<78M> 24V 4.0KW 		8-97095-811-5 01 1 9811-9811 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. COLOMBIA EQUIPMENT(X74),STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI 		8-97216-185-0 01 1 9812-0001 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. COLOMBIA EQUIPMENT(X74),STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI 		8-97172-211-1 01 1 0002- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-97216-186-1 01 1 9811-0002 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. VENEZUELA EQUIPMENT(S2L),COLOMBIA EQUIPMENT(X74) 24V 4.5KW HITACHI 		8-97216-186-1 01 1 9811-0002 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-97226-787-1 01 1 0003-0109 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. VENEZUELA EQUIPMENT(S2L),COLOMBIA EQUIPMENT(X74) 24V 4.5KW HITACHI 		8-97226-787-1 01 1 0003-0109 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-97323-935-0 01 1 0110- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. VENEZUELA EQUIPMENT(S2L),COLOMBIA EQUIPMENT(X74) 24V 4.5KW HITACHI 		8-97323-935-0 01 1 0110- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW 		8-97120-356-2 01 1 9811-0105 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. COLOMBIA EQUIPMENT(X74) EXC. HYDRO BRAKE BOOSTER<7QQ> 12V 80A 		8-97189-650-0 01 1 9811-0011 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. COLOMBIA EQUIPMENT(X74) EXC. HYDRO BRAKE BOOSTER<7QQ> 12V 80A 		8-97189-650-0 01 1 0012-0105 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> EXC. VOLTAGE 24V<7AE> 12V 80A 		8-97189-650-0 01 1 0012-0105 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. COLOMBIA EQUIPMENT(X74) HYDRO BRAKE BOOSTER<7QQ> 12V 80A 		8-97189-650-0 01 1 0012-0105 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. COLOMBIA EQUIPMENT(X74) EXC. HYDRO BRAKE BOOSTER<7QQ> 12V 80A 		8-97189-650-0 01 1 0106-0108 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> EXC. VOLTAGE 24V<7AE> 12V 80A 		8-97189-650-0 01 1 0106-0108 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. COLOMBIA EQUIPMENT(X74) EXC. HYDRO BRAKE BOOSTER<7QQ> 12V 80A 		8-97189-650-0 01 1 0109- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE> 12V 80A 		8-97189-650-0 01 1 0109- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V60A(KG2),COLOMBIA EQUIPMENT(X74) 24V 50A 		8-97144-392-1 01 1 9811-0001 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V60A(KG2),COLOMBIA EQUIPMENT(X74) 24V 50A 		8-97186-551-1 01 1 0002- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A 		8-97175-390-1 01 1 9811-0002 ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A 		8-97175-390-1 01 1 0003-0201 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A 		8-97300-353-0 01 1 0202- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A 		8-97187-657-0 01 1 9811-0002 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. ISRAEL EQUIPMENT(7LX) 12V 50A 		8-97187-657-0 01 1 0003-0105 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. CHARGE AIR COOLER<6PL> GENERATOR 24V80A(7YN) 24V 80A 		8-97248-295-1 01 1 0106- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. ISRAEL EQUIPMENT(7LX) 12V 60A 		8-97187-658-0 01 1 0003-0105 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) CHARGE AIR COOLER<6PL> 24V 60A 		8-97250-258-1 01 1 0003-0105 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A 		8-97250-258-2 01 1 0106- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V60A(KG2),VENEZUELA EQUIPMENT(S2L) 24V 50A 		8-97170-163-2 01 1 9811- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> EXC. VOLTAGE 24V<7AE> 12V 80A 		8-97189-649-0 01 1 9811-0011 ●
4 02.042 BOLT; STARTER
A/T 4 SPEED-AISIN(RNJ) M10X15,M14X75 L=103 		8-97072-825-1 02 1 9811-9904 ● ● ●
4 02.042 BOLT; STARTER
FLOOR REMOTE SHIFT<M11> M10X15,M14X75 L=103 		8-97212-602-0 02 1 9811-9904 ● ● ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 9905- ● ● ●
4 02.042 BOLT; STARTER
M12X80 		0-28081-280-0 02 1 9811-0105 ●
10 02.100 RELAY; STARTER
VOLTAGE 24V<7AE> 02.510 24V 50A 		8-97173-947-0 01 1 9811-0106 ● ● ● ●
10 02.100 RELAY; STARTER
VOLTAGE 24V<7AE> 24V 50A 		8-97264-947-0 01 1 0107- ● ● ● ●
10 02.100 RELAY; STARTER
EXC. VOLTAGE 24V<7AE> 02.510 12V 80A 		8-97173-951-0 01 1 9811- ● ● ● ●
16 02.277 BOLT; GEN
(A) M10X133 		8-97146-998-0 01 1 9811- ● ● ●
16 02.277 BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONT(C60) 02.317 (B) M8X40 W/WASHER 		8-97011-792-4 01 1 9811- ● ● ●
16 02.277 BOLT; GEN
M8X130 FLANGE 		0-28085-813-0 01 1 9811-9910 ●
16 02.277 BOLT; GEN
M10X130 FLANGE 		0-28086-013-0 01 1 9911-0105 ●
21 02.277 BRACKET; GEN 8-97075-884-2 01 1 9811- ● ● ●
23 02.277 NUT; GEN
07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 9811- ● ● ●
23 02.277 NUT; GEN
08.917 (B) M10 FLANGE 		0-91150-210-0 01 1 9811-9910 ● ● ●
23 02.277 NUT; GEN
08.917 (B) M10 FLANGE 		0-91150-210-0 01 1 9911-0105 ● ● ● ●
23 02.277 NUT; GEN
08.917 (B) M10 FLANGE 		0-91150-210-0 01 1 0106- ● ● ●
23 02.277 NUT; GEN
01.540 (B) M8 FLANGE 		0-91150-208-0 01 1 9811-9910 ●
26 02.277 BOLT; GEN BRKT
08.900 M10X50 FLANGE 		0-28181-050-0 01 1 9811- ● ● ●
26 02.277 BOLT; GEN BRKT
03.890 M10X70 FLANGE 		0-28181-070-0 02 1 9811- ● ● ●
46 02.510 RELAY; GLOW PLUG
FAST GLOW SYSTEM<KM6> VOLTAGE 24V<7AE> 24V 50A 		8-97173-947-0 01 1 9811- ● ● ● ●
46 02.510 RELAY; GLOW PLUG
FAST GLOW SYSTEM<KM6> EXC. VOLTAGE 24V<7AE> 12V 80A 		8-97173-951-0 01 1 9811- ● ● ●
83 01.150 THERMOMETER UNIT
EXC. TURBOCHARGER(K51) DENSO 		8-94235-691-0 01 1 9811-9902 ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9811-9902 ● ●
83 01.150 THERMOMETER UNIT
EXC. TURBOCHARGER(K51) DENSO 		8-94235-691-0 01 1 9903-0105 ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9903-0105 ● ● ●
83 01.150 THERMOMETER UNIT
EXC. TURBOCHARGER(K51) DENSO 		8-94235-691-0 01 1 0106- ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 0106- ●
83 01.150 THERMOMETER UNIT
EXC. CHARGE AIR COOLER<6PL> DENSO 		8-94235-691-0 01 1 0106- ●
83 01.150 THERMOMETER UNIT
EXC. TURBOCHARGER(K51) YAZAKI 		8-94237-861-0 01 1 9811-9902 ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9811-9902 ● ●
83 01.150 THERMOMETER UNIT
EXC. TURBOCHARGER(K51) YAZAKI 		8-94237-861-0 01 1 9903-0105 ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9903-0105 ● ● ●
83 01.150 THERMOMETER UNIT
EXC. TURBOCHARGER(K51) YAZAKI 		8-94237-861-0 01 1 0106- ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 0106- ●
83 01.150 THERMOMETER UNIT
EXC. CHARGE AIR COOLER<6PL> YAZAKI 		8-94237-861-0 01 1 0106- ●
91 01.150 SWITCH; THERMO HTR
CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> 03.883 		8-97038-625-0 01 1 9811-9811 ●
91 01.150 SWITCH; THERMO HTR
CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> 03.883 		8-97038-625-0 01 1 9812-0204 ●
91 01.150 SWITCH; THERMO HTR
M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MBP6P(RNC),M/T MBP6Q(RNM) CHARGE AIR COOLER<6PL> 03.883 		8-97038-625-0 01 1 0205-0207 ●
91 01.150 SWITCH; THERMO HTR
M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MBP6P(RNC),M/T MBP6Q(RNM),M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> 03.883 		8-97038-625-0 01 1 0208- ●
105 01.150 SWITCH; THERMO,QOS
EXC. TURBOCHARGER(K51) 		8-94121-152-1 01 1 9811- ●
105 01.150 SWITCH; THERMO,QOS 8-94121-152-1 01 1 9811- ●
105 01.150 SWITCH; THERMO,QOS
EXC. CHARGE AIR COOLER<6PL> 		8-94121-152-1 01 1 9811- ●
105 01.150 SWITCH; THERMO,QOS
(A) QOS 		8-94336-668-0 01 1 9811-0105 ●
105 01.150 SWITCH; THERMO,QOS
(B) QWS 		8-94457-511-0 01 1 9811-0105 ●
108 01.150 SWITCH; THERMO
CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 		8-97189-295-0 01 1 9811-0112 ●
108 01.150 SWITCH; THERMO
CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3>,EURO2 SPECIFICATION<7AF> 		8-97189-295-0 01 1 0201- ●
129 01.150 SENSOR; GLOW PLUG,THERMO
TURBOCHARGER(K51) HITACHI 		8-97167-008-0 01 1 9811- ●
129 01.150 SENSOR; GLOW PLUG,THERMO
CHARGE AIR COOLER<6PL> HITACHI 		8-97167-008-0 01 1 9811- ●
129 01.150 SENSOR; GLOW PLUG,THERMO
TURBOCHARGER(K51) TRANSTRON 		8-97170-327-0 01 1 9811- ●
129 01.150 SENSOR; GLOW PLUG,THERMO
CHARGE AIR COOLER<6PL> TRANSTRON 		8-97170-327-0 01 1 9811- ●
410 02.343 BOLT; BRKT,GRAND
VOLTAGE 24V<7AE> 12.187 M8X20 W/LK&PL WASHER 		0-50140-820-0 01 1 9811- ● ● ●
436 02.510 RELAY; FAST IDLE (Q-CONTROL)
CHILE EQUIPMENT(6KB),ISRAEL EQUIPMENT(7LX) CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> 24V 12.5A MITUBA 		8-97062-815-1 01 1 9811-0104 ●
436 02.510 RELAY; FAST IDLE (Q-CONTROL)
CHILE EQUIPMENT(6KB),ISRAEL EQUIPMENT(7LX) CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0105- ●
460 02.363 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER(K51). 04.868 ID=16.2 		1-09630-086-0 01 1 9811- ●
460 02.363 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). 04.868 ID=16.2 		1-09630-086-0 01 1 9811- ●
578 02.510 RELAY; CHARGE WARNING
VOLTAGE 24V<7AE> 		8-97063-440-2 01 1 9811- ● ● ● ●
578 02.510 RELAY; CHARGE WARNING
EXC. VOLTAGE 24V<7AE> 12V 		8-97063-441-2 01 1 9811- ● ● ● ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> COLOMBIA EQUIPMENT(X74) 		8-97215-646-0 01 1 9811-9812 ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> COLOMBIA EQUIPMENT(X74) EXC. CHARGE AIR COOLER<6PL> 		8-97215-646-0 01 1 9811-9812 ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> 		8-97215-646-0 01 1 9901-0105 ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> COLOMBIA EQUIPMENT(X74) EXC. CHARGE AIR COOLER<6PL> 		8-97215-646-0 01 1 9901-0105 ●
641 02.510 TIMER; QOS
NPR/NQR SGL CAB&MIDDLE(NP**SF) FAST GLOW SYSTEM<KM6> 		8-97215-646-0 01 1 0106-0106 ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> EXC. TURBOCHARGER(K51),COLOMBIA EQUIPMENT(X74) 		8-97215-648-0 01 1 9811-9812 ● ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> EXC. COLOMBIA EQUIPMENT(X74),CHARGE AIRCOOLER<6PL> 		8-97215-648-0 01 1 9811-9812 ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> EXC. TURBOCHARGER(K51) 		8-97215-648-0 01 1 9901-0105 ● ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> EXC. COLOMBIA EQUIPMENT(X74),CHARGE AIRCOOLER<6PL> 		8-97215-648-0 01 1 9901-0105 ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> EXC. TURBOCHARGER(K51) 		8-97215-648-0 01 1 0106- ● ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> EXC. CHARGE AIR COOLER<6PL> 		8-97215-648-0 01 1 0106- ●
643 02.510 NUT; TIMER,QOS
FAST GLOW SYSTEM<KM6> EXC. TURBOCHARGER(K51) 04.594 M6 FLANGE 		0-91150-106-0 02 1 9811-9812 ● ●
643 02.510 NUT; TIMER,QOS
FAST GLOW SYSTEM<KM6> EXC. CHARGE AIR COOLER<6PL> 04.594 M6 FLANGE 		0-91150-106-0 02 1 9811-9812 ●
643 02.510 NUT; TIMER,QOS
FAST GLOW SYSTEM<KM6> EXC. TURBOCHARGER(K51) 04.594 M6 FLANGE 		0-91150-106-0 02 1 9901-0105 ●
643 02.510 NUT; TIMER,QOS
FAST GLOW SYSTEM<KM6> 04.594 M6 FLANGE 		0-91150-106-0 02 1 9901-0105 ● ●
643 02.510 NUT; TIMER,QOS
FAST GLOW SYSTEM<KM6> EXC. CHARGE AIR COOLER<6PL> 04.594 M6 FLANGE 		0-91150-106-0 02 1 9901-0105 ●
643 02.510 NUT; TIMER,QOS
FAST GLOW SYSTEM<KM6> EXC. TURBOCHARGER(K51) 04.594 M6 FLANGE 		0-91150-106-0 02 1 0106- ● ●
643 02.510 NUT; TIMER,QOS
FAST GLOW SYSTEM<KM6> EXC. CHARGE AIR COOLER<6PL> 04.594 M6 FLANGE 		0-91150-106-0 02 1 0106- ●

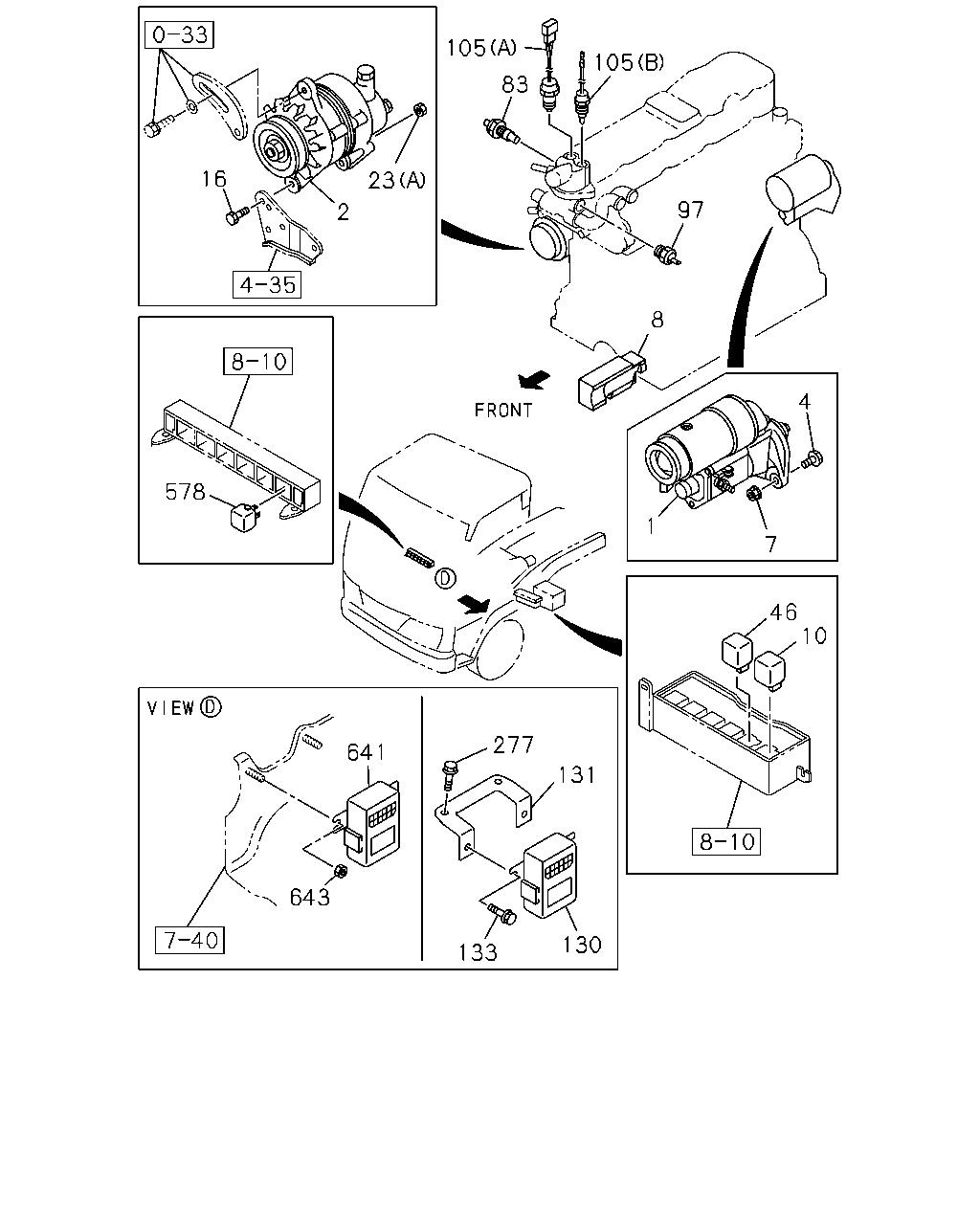

çizim 47447
105 105 83 16 23 97 2 8 4 578 1 7 46 10 277 641 131 643 130 133
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. COLOMBIA EQUIPMENT(X74) 12V 3.0KW 		8-97207-786-2 01 1 9811- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. VENEZUELA EQUIPMENT(S2L),COLOMBIA EQUIPMENT(X74) 12V 3.0KW 		8-97207-786-2 01 1 9811- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. COLOMBIA EQUIPMENT(X74),STARTER 24V4.5KW<78M> 24V 4.0KW 		8-97095-811-5 01 1 9811-9811 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. COLOMBIA EQUIPMENT(X74),STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI 		8-97216-185-0 01 1 9812-0001 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. COLOMBIA EQUIPMENT(X74),STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI 		8-97172-211-1 01 1 0002- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-97216-186-1 01 1 9811-0002 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. VENEZUELA EQUIPMENT(S2L),COLOMBIA EQUIPMENT(X74) 24V 4.5KW HITACHI 		8-97216-186-1 01 1 9811-0002 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-97226-787-1 01 1 0003-0109 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. VENEZUELA EQUIPMENT(S2L),COLOMBIA EQUIPMENT(X74) 24V 4.5KW HITACHI 		8-97226-787-1 01 1 0003-0109 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-97323-935-0 01 1 0110- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. VENEZUELA EQUIPMENT(S2L),COLOMBIA EQUIPMENT(X74) 24V 4.5KW HITACHI 		8-97323-935-0 01 1 0110- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW 		8-97120-356-2 01 1 9811-0105 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. COLOMBIA EQUIPMENT(X74) EXC. HYDRO BRAKE BOOSTER<7QQ> 12V 80A 		8-97189-650-0 01 1 9811-0011 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. COLOMBIA EQUIPMENT(X74) EXC. HYDRO BRAKE BOOSTER<7QQ> 12V 80A 		8-97189-650-0 01 1 0012-0105 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> EXC. VOLTAGE 24V<7AE> 12V 80A 		8-97189-650-0 01 1 0012-0105 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. COLOMBIA EQUIPMENT(X74) HYDRO BRAKE BOOSTER<7QQ> 12V 80A 		8-97189-650-0 01 1 0012-0105 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. COLOMBIA EQUIPMENT(X74) EXC. HYDRO BRAKE BOOSTER<7QQ> 12V 80A 		8-97189-650-0 01 1 0106-0108 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> EXC. VOLTAGE 24V<7AE> 12V 80A 		8-97189-650-0 01 1 0106-0108 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. COLOMBIA EQUIPMENT(X74) EXC. HYDRO BRAKE BOOSTER<7QQ> 12V 80A 		8-97189-650-0 01 1 0109- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE> 12V 80A 		8-97189-650-0 01 1 0109- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V60A(KG2),COLOMBIA EQUIPMENT(X74) 24V 50A 		8-97144-392-1 01 1 9811-0001 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V60A(KG2),COLOMBIA EQUIPMENT(X74) 24V 50A 		8-97186-551-1 01 1 0002- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A 		8-97175-390-1 01 1 9811-0002 ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A 		8-97175-390-1 01 1 0003-0201 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A 		8-97300-353-0 01 1 0202- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A 		8-97187-657-0 01 1 9811-0002 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. ISRAEL EQUIPMENT(7LX) 12V 50A 		8-97187-657-0 01 1 0003-0105 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. CHARGE AIR COOLER<6PL> GENERATOR 24V80A(7YN) 24V 80A 		8-97248-295-1 01 1 0106- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. ISRAEL EQUIPMENT(7LX) 12V 60A 		8-97187-658-0 01 1 0003-0105 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) CHARGE AIR COOLER<6PL> 24V 60A 		8-97250-258-1 01 1 0003-0105 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A 		8-97250-258-2 01 1 0106- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V60A(KG2),VENEZUELA EQUIPMENT(S2L) 24V 50A 		8-97170-163-2 01 1 9811- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> EXC. VOLTAGE 24V<7AE> 12V 80A 		8-97189-649-0 01 1 9811-0011 ●
4 02.042 BOLT; STARTER
A/T 4 SPEED-AISIN(RNJ) M10X15,M14X75 L=103 		8-97072-825-1 02 1 9811-9904 ● ● ●
4 02.042 BOLT; STARTER
FLOOR REMOTE SHIFT<M11> M10X15,M14X75 L=103 		8-97212-602-0 02 1 9811-9904 ● ● ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 9905- ● ● ●
4 02.042 BOLT; STARTER
M12X80 		0-28081-280-0 02 1 9811-0105 ●
7 02.042 NUT; STARTER
05.586 M12 FLANGE 		0-91150-112-0 02 1 9811-0105 ●
8 02.042 SPACER; STARTER 8-97210-762-0 01 1 9811-9902 ●
8 02.042 SPACER; STARTER
NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97210-762-0 01 1 9903-0105 ●
10 02.100 RELAY; STARTER
VOLTAGE 24V<7AE> 02.510 24V 50A 		8-97173-947-0 01 1 9811-0106 ● ● ● ●
10 02.100 RELAY; STARTER
VOLTAGE 24V<7AE> 24V 50A 		8-97264-947-0 01 1 0107- ● ● ● ●
10 02.100 RELAY; STARTER
EXC. VOLTAGE 24V<7AE> 02.510 12V 80A 		8-97173-951-0 01 1 9811- ● ● ● ●
16 02.277 BOLT; GEN
(A) M10X133 		8-97146-998-0 01 1 9811- ● ● ●
16 02.277 BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONT(C60) 02.317 (B) M8X40 W/WASHER 		8-97011-792-4 01 1 9811- ● ● ●
16 02.277 BOLT; GEN
M8X130 FLANGE 		0-28085-813-0 01 1 9811-9910 ●
16 02.277 BOLT; GEN
M10X130 FLANGE 		0-28086-013-0 01 1 9911-0105 ●
23 02.277 NUT; GEN
07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 9811- ● ● ●
23 02.277 NUT; GEN
08.917 (B) M10 FLANGE 		0-91150-210-0 01 1 9811-9910 ● ● ●
23 02.277 NUT; GEN
08.917 (B) M10 FLANGE 		0-91150-210-0 01 1 9911-0105 ● ● ● ●
23 02.277 NUT; GEN
08.917 (B) M10 FLANGE 		0-91150-210-0 01 1 0106- ● ● ●
23 02.277 NUT; GEN
01.540 (B) M8 FLANGE 		0-91150-208-0 01 1 9811-9910 ●
46 02.510 RELAY; GLOW PLUG
FAST GLOW SYSTEM<KM6> VOLTAGE 24V<7AE> 24V 50A 		8-97173-947-0 01 1 9811- ● ● ● ●
46 02.510 RELAY; GLOW PLUG
FAST GLOW SYSTEM<KM6> EXC. VOLTAGE 24V<7AE> 12V 80A 		8-97173-951-0 01 1 9811- ● ● ●
83 01.150 THERMOMETER UNIT
EXC. TURBOCHARGER(K51) DENSO 		8-94235-691-0 01 1 9811-9902 ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9811-9902 ● ●
83 01.150 THERMOMETER UNIT
EXC. TURBOCHARGER(K51) DENSO 		8-94235-691-0 01 1 9903-0105 ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9903-0105 ● ● ●
83 01.150 THERMOMETER UNIT
EXC. TURBOCHARGER(K51) DENSO 		8-94235-691-0 01 1 0106- ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 0106- ●
83 01.150 THERMOMETER UNIT
EXC. CHARGE AIR COOLER<6PL> DENSO 		8-94235-691-0 01 1 0106- ●
83 01.150 THERMOMETER UNIT
EXC. TURBOCHARGER(K51) YAZAKI 		8-94237-861-0 01 1 9811-9902 ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9811-9902 ● ●
83 01.150 THERMOMETER UNIT
EXC. TURBOCHARGER(K51) YAZAKI 		8-94237-861-0 01 1 9903-0105 ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9903-0105 ● ● ●
83 01.150 THERMOMETER UNIT
EXC. TURBOCHARGER(K51) YAZAKI 		8-94237-861-0 01 1 0106- ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 0106- ●
83 01.150 THERMOMETER UNIT
EXC. CHARGE AIR COOLER<6PL> YAZAKI 		8-94237-861-0 01 1 0106- ●
97 01.150 SWITCH; THERMO,EGR CONT 8-94368-591-0 01 1 9811-0105 ●
105 01.150 SWITCH; THERMO,QOS
EXC. TURBOCHARGER(K51) 		8-94121-152-1 01 1 9811- ●
105 01.150 SWITCH; THERMO,QOS 8-94121-152-1 01 1 9811- ●
105 01.150 SWITCH; THERMO,QOS
EXC. CHARGE AIR COOLER<6PL> 		8-94121-152-1 01 1 9811- ●
105 01.150 SWITCH; THERMO,QOS
(A) QOS 		8-94336-668-0 01 1 9811-0105 ●
105 01.150 SWITCH; THERMO,QOS
(B) QWS 		8-94457-511-0 01 1 9811-0105 ●
130 02.510 CONTROLLER; EGR 8-97201-734-3 01 1 9811-0105 ●
131 03.670 BRACKET; EGR 8-97217-813-1 01 1 9811-0105 ●
133 02.500 BOLT; EGR CONTROLLER
04.930 M6X20 FLANGE 		0-28680-620-0 04 1 9811-9904 ●
133 02.500 BOLT; EGR CONTROLLER
04.930 M6X20 FLANGE 		0-28680-620-0 02 1 9905-0105 ●
277 02.510 BOLT; BRKT
04.930 M6X20 FLANGE 		0-28680-620-0 02 1 9905-0105 ●
578 02.510 RELAY; CHARGE WARNING
VOLTAGE 24V<7AE> 		8-97063-440-2 01 1 9811- ● ● ● ●
578 02.510 RELAY; CHARGE WARNING
EXC. VOLTAGE 24V<7AE> 12V 		8-97063-441-2 01 1 9811- ● ● ● ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> COLOMBIA EQUIPMENT(X74) 		8-97215-646-0 01 1 9811-9812 ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> COLOMBIA EQUIPMENT(X74) EXC. CHARGE AIR COOLER<6PL> 		8-97215-646-0 01 1 9811-9812 ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> 		8-97215-646-0 01 1 9901-0105 ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> COLOMBIA EQUIPMENT(X74) EXC. CHARGE AIR COOLER<6PL> 		8-97215-646-0 01 1 9901-0105 ●
641 02.510 TIMER; QOS
NPR/NQR SGL CAB&MIDDLE(NP**SF) FAST GLOW SYSTEM<KM6> 		8-97215-646-0 01 1 0106-0106 ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> EXC. TURBOCHARGER(K51),COLOMBIA EQUIPMENT(X74) 		8-97215-648-0 01 1 9811-9812 ● ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> EXC. COLOMBIA EQUIPMENT(X74),CHARGE AIRCOOLER<6PL> 		8-97215-648-0 01 1 9811-9812 ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> EXC. TURBOCHARGER(K51) 		8-97215-648-0 01 1 9901-0105 ● ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> EXC. COLOMBIA EQUIPMENT(X74),CHARGE AIRCOOLER<6PL> 		8-97215-648-0 01 1 9901-0105 ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> EXC. TURBOCHARGER(K51) 		8-97215-648-0 01 1 0106- ● ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> EXC. CHARGE AIR COOLER<6PL> 		8-97215-648-0 01 1 0106- ●
643 02.510 NUT; TIMER,QOS
FAST GLOW SYSTEM<KM6> EXC. TURBOCHARGER(K51) 04.594 M6 FLANGE 		0-91150-106-0 02 1 9811-9812 ● ●
643 02.510 NUT; TIMER,QOS
FAST GLOW SYSTEM<KM6> EXC. CHARGE AIR COOLER<6PL> 04.594 M6 FLANGE 		0-91150-106-0 02 1 9811-9812 ●
643 02.510 NUT; TIMER,QOS
FAST GLOW SYSTEM<KM6> EXC. TURBOCHARGER(K51) 04.594 M6 FLANGE 		0-91150-106-0 02 1 9901-0105 ●
643 02.510 NUT; TIMER,QOS
FAST GLOW SYSTEM<KM6> 04.594 M6 FLANGE 		0-91150-106-0 02 1 9901-0105 ● ●
643 02.510 NUT; TIMER,QOS
FAST GLOW SYSTEM<KM6> EXC. CHARGE AIR COOLER<6PL> 04.594 M6 FLANGE 		0-91150-106-0 02 1 9901-0105 ●
643 02.510 NUT; TIMER,QOS
FAST GLOW SYSTEM<KM6> EXC. TURBOCHARGER(K51) 04.594 M6 FLANGE 		0-91150-106-0 02 1 0106- ● ●
643 02.510 NUT; TIMER,QOS
FAST GLOW SYSTEM<KM6> EXC. CHARGE AIR COOLER<6PL> 04.594 M6 FLANGE 		0-91150-106-0 02 1 0106- ●

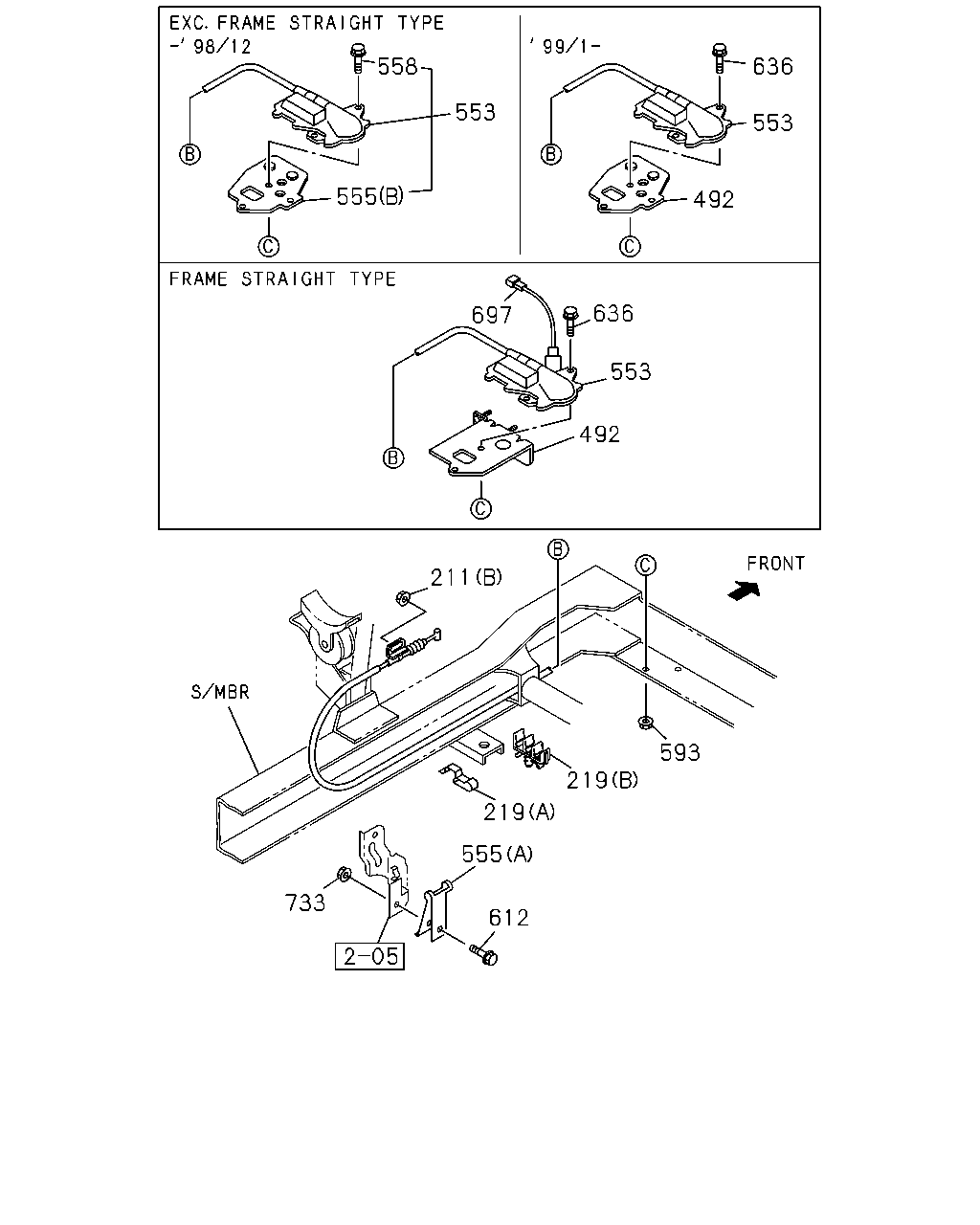

çizim 47574
558 636 553 553 555 492 636 697 553 492 211 593 219 219 555 733 612
BalonParca AdiParca NoAdetTipApplied Date A B C D
211 02.343 NUT; CABLE FIX
04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 9811-9812 ● ● ●
211 02.343 NUT; CABLE FIX
04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 9901- ● ●
211 02.343 NUT; CABLE FIX
EXC. ENGINE POWER N-SPEC(7QV) 04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 9901- ●
211 02.343 NUT; CABLE FIX
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 9811- ●
219 03.483 CLIP; ENG STOP CABLE
02.525 (A) T=4.5 & 9 		5-09709-023-0 01 1 9811- ● ●
219 03.483 CLIP; ENG STOP CABLE
EXC. ENGINE POWER N-SPEC(7QV) 02.525 (A) T=4.5 & 9 		5-09709-023-0 01 1 9811- ●
219 03.483 CLIP; ENG STOP CABLE
FRAME STRAIGHT TYPE<7KJ> 03.162 (B) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 9811- ● ●
219 03.483 CLIP; ENG STOP CABLE
FRAME STRAIGHT TYPE<7KJ> EXC. ENGINE POWER N-SPEC(7QV) 03.162 (B) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 9811- ●
219 03.483 CLIP; ENG STOP CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.115 (A) T=9 & 10.5 		8-97041-091-0 01 1 9811- ● ●
219 03.483 CLIP; ENG STOP CABLE
EXC. FRAME STRAIGHT TYPE<7KJ>,ENGINE POWER N-SPEC(7QV) 03.115 (A) T=9 & 10.5 		8-97041-091-0 01 1 9811- ●
219 03.483 CLIP; ENG STOP CABLE
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.162 (C) L=140 		5-09707-031-1 01 1 9811- ●
492 03.483 BRACKET; ENG STOPPER
FRAME STRAIGHT TYPE<7KJ> 		8-97127-037-0 01 1 9811-9812 ● ●
492 03.483 BRACKET; ENG STOPPER
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) 		8-97127-037-0 01 1 9811-9812 ●
492 03.483 BRACKET; ENG STOPPER
FRAME STRAIGHT TYPE<7KJ> 		8-97127-037-0 01 1 9901- ● ●
492 03.483 BRACKET; ENG STOPPER
FRAME STRAIGHT TYPE<7KJ> EXC. ENGINE POWER N-SPEC(7QV) 		8-97127-037-0 01 1 9901- ●
492 03.483 BRACKET; ENG STOPPER
EXC. FRAME STRAIGHT TYPE<7KJ> 03.485 		8-97113-497-1 01 1 9901- ● ●
492 03.483 BRACKET; ENG STOPPER
EXC. FRAME STRAIGHT TYPE<7KJ>,ENGINE POWER N-SPEC(7QV) 03.485 		8-97113-497-1 01 1 9901- ●
553 03.485 MOTOR ASM; ENG STOP
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>,VOLTAGE 24V<7AE> 		8-97216-181-0 01 1 9811-9812 ● ●
553 03.485 MOTOR ASM; ENG STOP
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>,VOLTAGE 24V<7AE>,ENGINE POWER N-SPEC(7QV) 		8-97216-181-0 01 1 9811-9812 ●
553 03.485 MOTOR ASM; ENG STOP
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>,VOLTAGE 24V<7AE> 		8-97216-181-0 01 1 9901-9910 ● ●
553 03.485 MOTOR ASM; ENG STOP
FRAME STRAIGHT TYPE<7KJ> EXC. VOLTAGE 24V<7AE>,ENGINE POWER N-SPEC(7QV) 		8-97216-181-0 01 1 9901-9910 ●
553 03.485 MOTOR ASM; ENG STOP
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>,VOLTAGE 24V<7AE> 		8-97231-004-0 01 1 9911-0004 ● ●
553 03.485 MOTOR ASM; ENG STOP
FRAME STRAIGHT TYPE<7KJ> EXC. VOLTAGE 24V<7AE>,ENGINE POWER N-SPEC(7QV) 		8-97231-004-0 01 1 9911-0004 ●
553 03.485 MOTOR ASM; ENG STOP
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>,VOLTAGE 24V<7AE> 		8-97255-073-0 01 1 0005- ● ●
553 03.485 MOTOR ASM; ENG STOP
FRAME STRAIGHT TYPE<7KJ> EXC. VOLTAGE 24V<7AE>,ENGINE POWER N-SPEC(7QV) 		8-97255-073-0 01 1 0005- ●
553 03.485 MOTOR ASM; ENG STOP
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97189-550-0 01 1 9811-9812 ● ●
553 03.485 MOTOR ASM; ENG STOP
EXC. FRAME STRAIGHT TYPE<7KJ>,ENGINE POWER N-SPEC(7QV) 		8-97189-550-0 01 1 9811-9812 ●
553 03.485 MOTOR ASM; ENG STOP
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97217-565-0 01 1 9901-9910 ● ●
553 03.485 MOTOR ASM; ENG STOP
EXC. FRAME STRAIGHT TYPE<7KJ>,ENGINE POWER N-SPEC(7QV) 		8-97217-565-0 01 1 9901-9910 ●
553 03.485 MOTOR ASM; ENG STOP
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97231-001-0 01 1 9911-0004 ● ●
553 03.485 MOTOR ASM; ENG STOP
EXC. FRAME STRAIGHT TYPE<7KJ>,ENGINE POWER N-SPEC(7QV) 		8-97231-001-0 01 1 9911-0004 ●
553 03.485 MOTOR ASM; ENG STOP
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97255-068-0 01 1 0005- ● ●
553 03.485 MOTOR ASM; ENG STOP
EXC. FRAME STRAIGHT TYPE<7KJ>,ENGINE POWER N-SPEC(7QV) 		8-97255-068-0 01 1 0005- ●
553 03.485 MOTOR ASM; ENG STOP
VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 		8-97189-552-0 01 1 9811-9812 ● ●
553 03.485 MOTOR ASM; ENG STOP
VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV) 		8-97189-552-0 01 1 9811-9812 ●
553 03.485 MOTOR ASM; ENG STOP
VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 		8-97189-552-0 01 1 9901-9910 ● ●
553 03.485 MOTOR ASM; ENG STOP
VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> EXC. ENGINE POWER N-SPEC(7QV) 		8-97189-552-0 01 1 9901-9910 ●
553 03.485 MOTOR ASM; ENG STOP
VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 		8-97231-002-0 01 1 9911-0004 ● ●
553 03.485 MOTOR ASM; ENG STOP
VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> EXC. ENGINE POWER N-SPEC(7QV) 		8-97231-002-0 01 1 9911-0004 ●
553 03.485 MOTOR ASM; ENG STOP
VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 		8-97255-069-0 01 1 0005- ● ●
553 03.485 MOTOR ASM; ENG STOP
VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> EXC. ENGINE POWER N-SPEC(7QV) 		8-97255-069-0 01 1 0005- ●
553 03.485 MOTOR ASM; ENG STOP
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. VOLTAGE 24V<7AE> 		8-97189-532-0 01 1 9811-9910 ●
553 03.485 MOTOR ASM; ENG STOP
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. VOLTAGE 24V<7AE> 		8-97231-003-0 01 1 9911-0005 ●
553 03.485 MOTOR ASM; ENG STOP
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. VOLTAGE 24V<7AE> 		8-97255-072-0 01 1 0006- ●
553 03.485 MOTOR ASM; ENG STOP
CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 		8-97170-348-2 01 1 9811-9910 ●
553 03.485 MOTOR ASM; ENG STOP
CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 		8-97234-347-0 01 1 9911-0004 ●
553 03.485 MOTOR ASM; ENG STOP
CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> FRAME STRAIGHT TYPE<7KJ> 		8-97255-071-0 01 1 0005- ●
555 03.485 BRACKET; ENG STOP
(A) 		8-97119-039-2 01 1 9811- ● ●
555 03.485 BRACKET; ENG STOP
EXC. ENGINE POWER N-SPEC(7QV) (A) 		8-97119-039-2 01 1 9811- ●
555 03.485 BRACKET; ENG STOP
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97113-497-1 01 1 9811-9812 ● ●
555 03.485 BRACKET; ENG STOP
EXC. FRAME STRAIGHT TYPE<7KJ>,ENGINE POWER N-SPEC(7QV) (B) 		8-97113-497-1 01 1 9811-9812 ●
555 03.485 BRACKET; ENG STOP
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97188-280-0 01 1 9811- ●
558 03.485 SCREW; BRKT TO MOTOR
EXC. FRAME STRAIGHT TYPE<7KJ> 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 9811-9812 ● ●
558 03.485 SCREW; BRKT TO MOTOR
EXC. FRAME STRAIGHT TYPE<7KJ>,ENGINE POWER N-SPEC(7QV) 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 9811-9812 ●
593 02.483 NUT; BRKT
04.785 M10 FLANGE 		0-91150-110-0 02 1 9811- ● ●
593 02.483 NUT; BRKT
EXC. ENGINE POWER N-SPEC(7QV) 04.785 M10 FLANGE 		0-91150-110-0 02 1 9811- ●
612 02.510 BOLT; BRKT
16.585 M8X20 		1-09981-468-0 01 1 9811- ● ●
612 02.510 BOLT; BRKT
EXC. ENGINE POWER N-SPEC(7QV) 16.585 M8X20 		1-09981-468-0 01 1 9811- ●
636 02.510 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9811-9812 ● ●
636 02.510 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> EXC. ENGINE POWER N-SPEC(7QV) 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9811-9812 ●
636 02.510 BOLT; BRKT
02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9901- ● ●
636 02.510 BOLT; BRKT
EXC. ENGINE POWER N-SPEC(7QV) 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9901- ●
697 03.726 HARNESS; CABLE
FRAME STRAIGHT TYPE<7KJ> 		8-97126-038-0 01 1 9811- ● ●
697 03.726 HARNESS; CABLE
FRAME STRAIGHT TYPE<7KJ> EXC. ENGINE POWER N-SPEC(7QV) 		8-97126-038-0 01 1 9811- ●
733 02.343 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 01 1 9811- ● ●
733 02.343 NUT; BRKT
EXC. ENGINE POWER N-SPEC(7QV) 07.633 M8 FLANGE 		0-91150-108-0 01 1 9811- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
