Sayfa 0-57 - Isuzu EPC

0-57 — EMISSION PIPING (#17168) — 400 parça

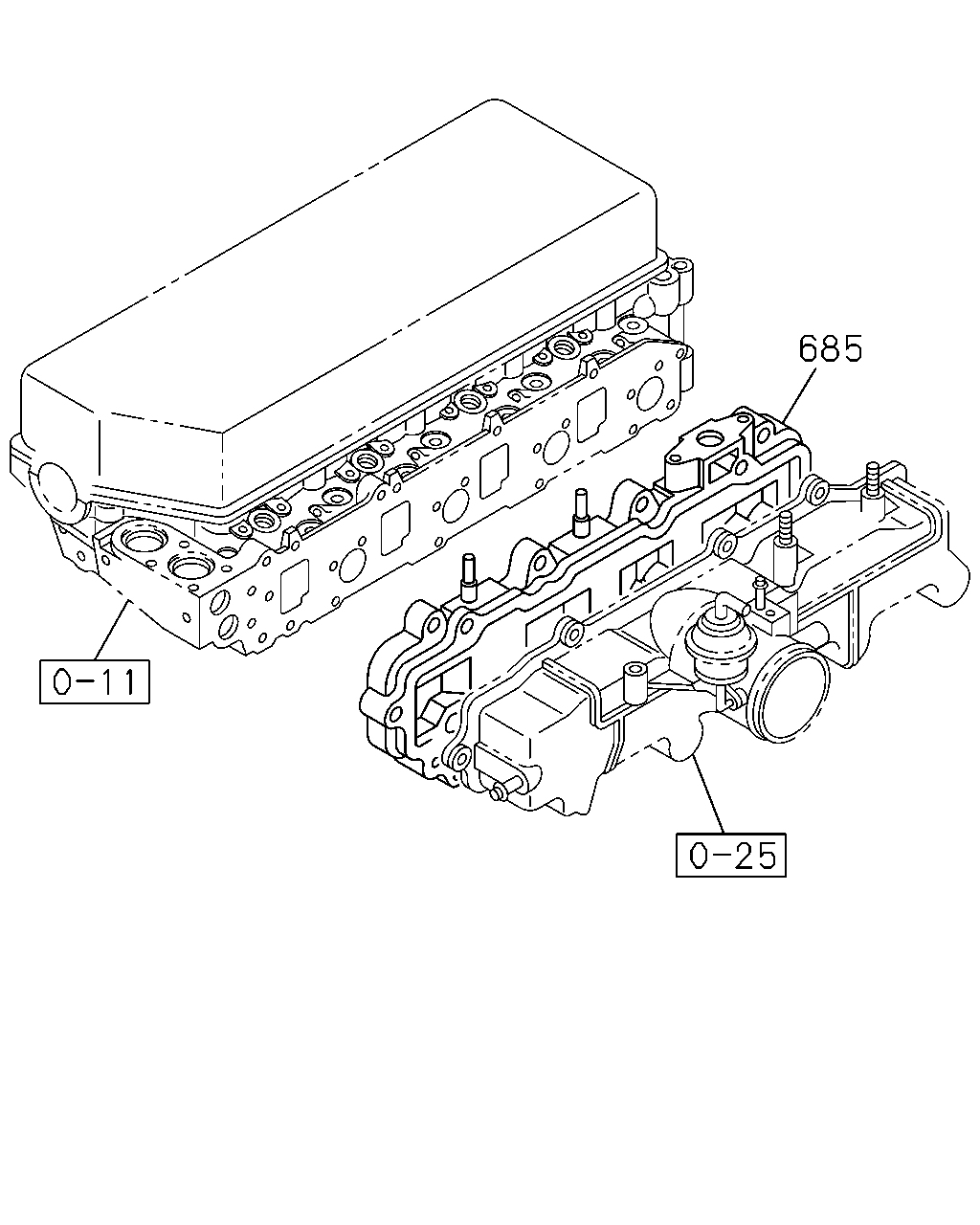

685

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
685	03.680 CASE; INLET,EGR TURBOCHARGER(K51)	8-97146-872-1	01	1	9811-	●
685	03.680 CASE; INLET,EGR EXC. TURBOCHARGER(K51)	8-97146-873-1	01	1	9811-	●
685	03.680 CASE; INLET,EGR	8-97146-873-1	01	1	9811-		●

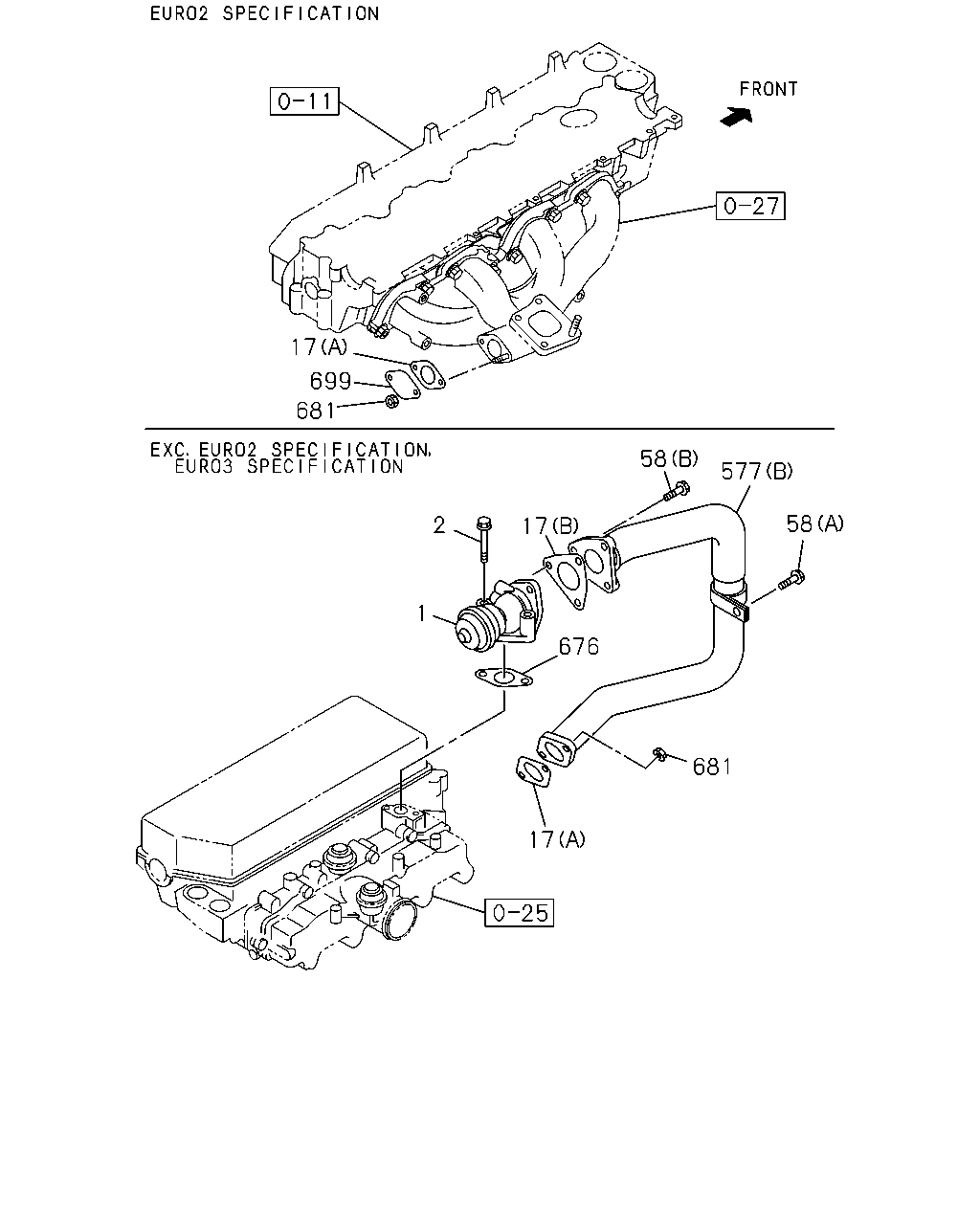

17 699 681 58 577 58 2 17 1 676 681 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	C	D
1	03.670 VALVE; EGR TURBOCHARGER(K51)	8-97115-533-3	01	1	9811-	●
1	03.670 VALVE; EGR	8-97208-656-2	01	1	9811-0105		●
1	03.670 VALVE; EGR CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF>	8-97135-088-4	01	1	9811-			●
2	03.670 BOLT; EGR VLV TURBOCHARGER(K51) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9811-	●
2	03.670 BOLT; EGR VLV CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 09.171 M8X80 FLANGE	0-28080-880-0	02	1	9811-			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION<NT3> (E)	8-97189-853-1	01	1	0201-0204			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> (E)	8-97189-853-1	01	1	0205-			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION<NT3> (F)	8-97213-386-0	01	1	0201-0204			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> (F)	8-97213-386-0	01	1	0205-			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER(K51) (C)	8-97113-023-0	01	1	9811-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D)	8-97192-765-0	03	1	9811-0105		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> (A)	8-94340-670-0	01	1	9811-			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> (B)	8-97166-993-0	01	1	9811-			●
58	03.417 BOLT; PIPE CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION<NT3> 02.559 (C) M8X25 FLANGE	0-28680-825-0	05	1	0201-0204			●
58	03.417 BOLT; PIPE EURO3 SPECIFICATION<NT3> 02.559 (C) M8X25 FLANGE	0-28680-825-0	05	1	0205-			●
58	03.417 BOLT; PIPE TURBOCHARGER(K51) 02.664 (A) M8X20 FLANGE	0-28680-820-0	03	1	9811-	●
58	03.417 BOLT; PIPE TURBOCHARGER(K51) 03.670 (B) M8X23 FLANGE	8-94103-629-2	02	1	9811-	●
58	03.417 BOLT; PIPE CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 02.664 (A) M8X20 FLANGE	0-28680-820-0	01	1	9811-0112			●
58	03.417 BOLT; PIPE CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3>,EURO2 SPECIFICATION<7AF> 02.664 (A) M8X20 FLANGE	0-28680-820-0	01	1	0201-			●
58	03.417 BOLT; PIPE CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	9811-0112			●
58	03.417 BOLT; PIPE CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3>,EURO2 SPECIFICATION<7AF> 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	0201-			●
577	03.675 PIPE; AIR,EGR CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION<NT3> (C)	8-97241-002-1	01	1	0201-0204			●
577	03.675 PIPE; AIR,EGR EURO3 SPECIFICATION<NT3> (C)	8-97241-002-2	01	1	0205-			●
577	03.675 PIPE; AIR,EGR CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION<NT3> (D)	8-97241-004-1	01	1	0201-0204			●
577	03.675 PIPE; AIR,EGR EURO3 SPECIFICATION<NT3> (D)	8-97241-004-1	01	1	0205-			●
577	03.675 PIPE; AIR,EGR TURBOCHARGER(K51) (A)	8-97200-643-2	01	1	9811-	●
577	03.675 PIPE; AIR,EGR CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> (B)	8-97148-952-1	01	1	9811-0112			●
577	03.675 PIPE; AIR,EGR CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3>,EURO2 SPECIFICATION<7AF> (B)	8-97148-952-2	01	1	0201-			●
676	03.417 GASKET; PIPE TURBOCHARGER(K51)	8-97146-683-0	02	1	9811-	●
676	03.417 GASKET; PIPE CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF>,ENGINE POWER N-SPEC(7QV)	8-97190-508-0	01	1	9811-0205			●
676	03.417 GASKET; PIPE CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3>,EURO2 SPECIFICATION<7AF>,ENGINE POWER N-SPEC(7QV)	8-97190-508-0	01	1	0206-			●
676	03.417 GASKET; PIPE FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> ENGINE POWER N-SPEC(7QV) EXC. EURO2 SPECIFICATION<7AF>	8-97170-683-0	01	1	9811-9811			●
676	03.417 GASKET; PIPE FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> ENGINE POWER N-SPEC(7QV) EXC. EURO2 SPECIFICATION<7AF>,HYDRO BRAKE BOOSTER<7QQ>,NOISE PACK FOR REGULATI ON VAR.2<7TF>	8-97170-683-0	01	1	9812-0112			●
676	03.417 GASKET; PIPE CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) EXC. EURO2 SPECIFICATION<7AF>	8-97170-683-0	01	1	0201-0207			●
676	03.417 GASKET; PIPE M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ),M/T MBP6Q(RNM) ENGINE POWER N-SPEC(7QV) CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3>,EURO2 SPECIFICATION<7AF>	8-97170-683-0	01	1	0208-			●
676	03.417 GASKET; PIPE M/T MZZ6U(RSF) FLOOR REMOTE SHIFT<M11> VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) EXC. HEATER & DEFROSTER(C41),EURO3 SPECIFICATION<NT3>,VOLTAGE 24V<7AE>,EURO2 S PECIFICATION<7AF>,HYDRO BRAKE BOOSTER<7QQ>,NOISE PACK FOR REGULATION VAR.2<7TF>	8-97170-683-0	01	1	0208-			●
681	03.671 NUT; EGR PIPE TURBOCHARGER(K51) 07.633 M8 FLANGE	0-91150-108-0	02	1	9811-	●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91150-208-0	02	1	9811-0105		●
681	03.671 NUT; EGR PIPE CHARGE AIR COOLER<6PL> 03.613 M8 FLANGE	8-97061-401-1	02	1	9811-			●
699	03.680 PLATE; BOSS,EXH MANIFOLD CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF>	8-97136-006-0	01	1	9811-			●

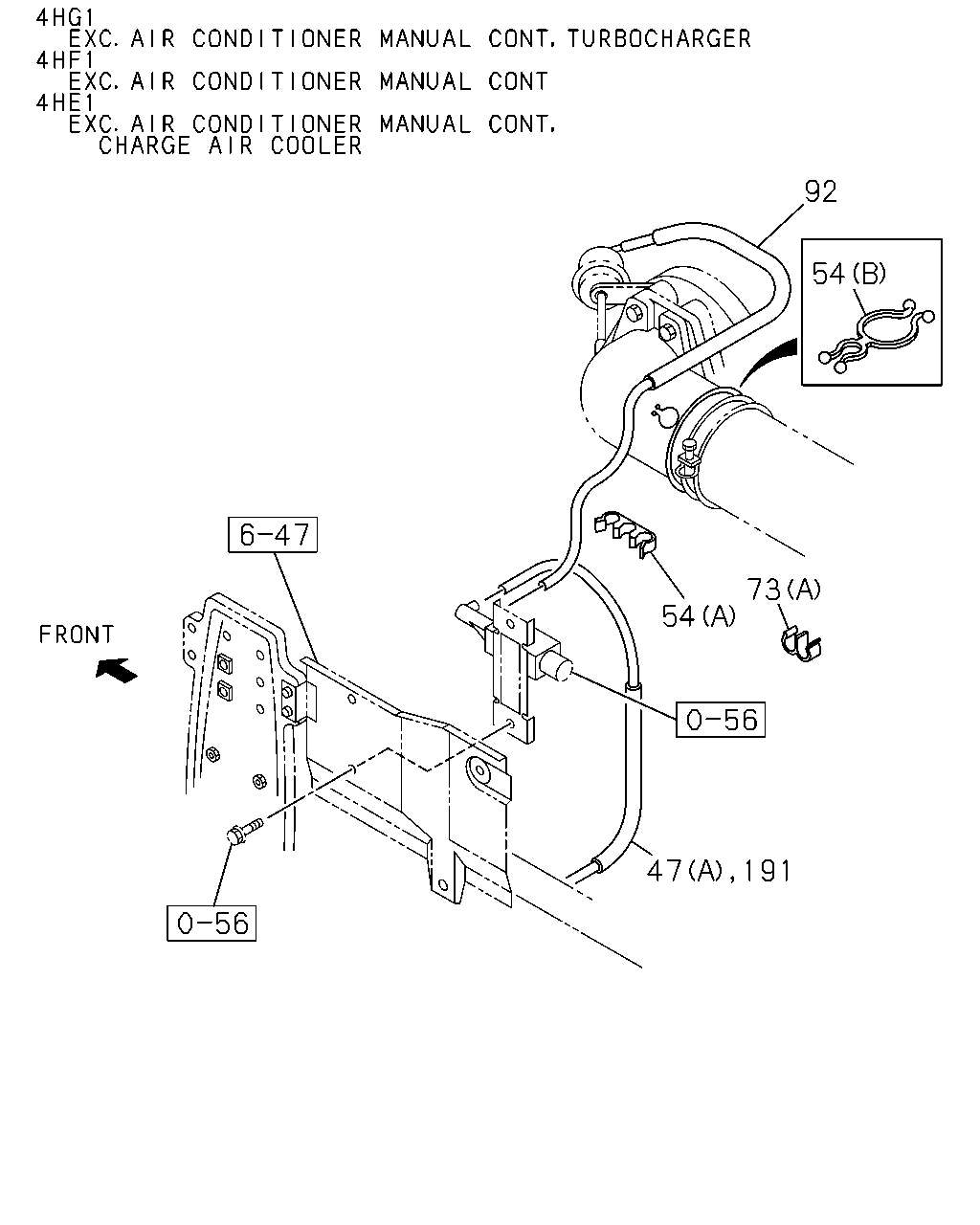

92 54 73 54 47 191

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
47	03.675 HOSE; VAC,VSV AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> ENGINE POWER N-SPEC(7QV) 08.962 (B) L=360 SERVICED BY L=3000	0-04730-300-0	01	1	0112-		●
47	03.675 HOSE; VAC,VSV AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER(K51) 08.962 (B) L=200 SERVICED BY L=3000	0-04730-300-0	01	1	9811-0101	●	●
47	03.675 HOSE; VAC,VSV AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER(K51) 08.962 (B) L=200 SERVICED BY L=3000	0-04730-300-0	01	1	0102-	●	●
47	03.675 HOSE; VAC,VSV EXC. TURBOCHARGER(K51) (A) L=310	8-97037-962-2	01	1	9811-0101	●	●
47	03.675 HOSE; VAC,VSV EXHAUST BRAKE<NF8> EXC. TURBOCHARGER(K51) (A) L=310	8-97037-962-2	01	1	0102-	●	●
54	03.680 CLIP; 3 HOSE AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> (A) ID=6.8 & 6.8 & 6.8	8-94208-734-0	02	1	9811-0101				●
54	03.680 CLIP; 3 HOSE AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> (A) ID=6.8 & 6.8 & 6.8	8-94208-734-0	02	1	0102-				●
54	03.680 CLIP; 3 HOSE EXC. CHARGE AIR COOLER<6PL> 03.407 (B)	8-94360-297-0	01	1	9811-0101				●
54	03.680 CLIP; 3 HOSE EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> 03.407 (B)	8-94360-297-0	01	1	0102-				●
73	03.680 CLIP; VAC HOSE EXC. TURBOCHARGER(K51) 03.162 (A) ID=6.8X2	8-94126-636-0	01	1	9811-0101	●
73	03.680 CLIP; VAC HOSE 03.162 (A) ID=6.8X2	8-94126-636-0	01	1	9811-0101		●
73	03.680 CLIP; VAC HOSE AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 03.162 (A) ID=6.8X2	8-94126-636-0	01	1	9811-0101				●
73	03.680 CLIP; VAC HOSE EXHAUST BRAKE<NF8> EXC. TURBOCHARGER(K51) 03.162 (A) ID=6.8X2	8-94126-636-0	01	1	0102-	●
73	03.680 CLIP; VAC HOSE EXHAUST BRAKE<NF8> 03.162 (A) ID=6.8X2	8-94126-636-0	01	1	0102-		●
73	03.680 CLIP; VAC HOSE AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> 03.162 (A) ID=6.8X2	8-94126-636-0	01	1	0102-				●
73	03.680 CLIP; VAC HOSE 03.278 (C) ID=37	8-94481-468-0	01	1	9811-9812			●
73	03.680 CLIP; VAC HOSE 01.540 (C) ID=30	8-94315-423-0	03	1	9901-0105			●
73	03.680 CLIP; VAC HOSE 03.162 (D) ID=13.2 & 7.5	8-94315-426-0	01	1	9902-0105			●
73	03.680 CLIP; VAC HOSE 03.278 (C) ID=37	8-94481-468-0	01	1	9909-0105			●
73	03.680 CLIP; VAC HOSE EXC. AIR CONDITIONER MANUAL CONT(C60), CHARGE AIR COOLER<6PL> 03.162 (A) ID=6.8X2	8-94126-636-0	02	1	9811-0101				●
73	03.680 CLIP; VAC HOSE EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60), CHARGE AIR COOLER<6PL> 03.162 (A) ID=6.8X2	8-94126-636-0	02	1	0102-				●
73	03.680 CLIP; VAC HOSE CHARGE AIR COOLER<6PL> 02.559 (B) L=250	5-09707-030-1	02	1	9811-0101				●
73	03.680 CLIP; VAC HOSE CHARGE AIR COOLER<6PL> HEATER & DEFROSTER(C41) 02.559 (B) L=250	5-09707-030-1	02	1	0102-				●
73	03.680 CLIP; VAC HOSE CHARGE AIR COOLER<6PL> EXC. HEATER & DEFROSTER(C41) 03.162 (B) L=140	5-09707-031-1	03	1	0102-				●
92	03.675 HOSE; VAC,THROTTLE BODY EXC. TURBOCHARGER(K51)	8-97106-645-3	01	1	9811-0101	●	●
92	03.675 HOSE; VAC,THROTTLE BODY EXHAUST BRAKE<NF8> EXC. TURBOCHARGER(K51)	8-97106-645-3	01	1	0102-	●	●
92	03.675 HOSE; VAC,THROTTLE BODY EXC. CHARGE AIR COOLER<6PL> L=415	8-97083-184-1	01	1	9811-0101				●
92	03.675 HOSE; VAC,THROTTLE BODY EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> L=415	8-97083-184-1	01	1	0102-				●
191	03.675 HOSE; RUBBER,3 WAY TO PIPE EXC. CHARGE AIR COOLER<6PL> L=310	8-97037-962-2	01	1	9811-0101				●
191	03.675 HOSE; RUBBER,3 WAY TO PIPE EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> L=310	8-97037-962-2	01	1	0102-				●

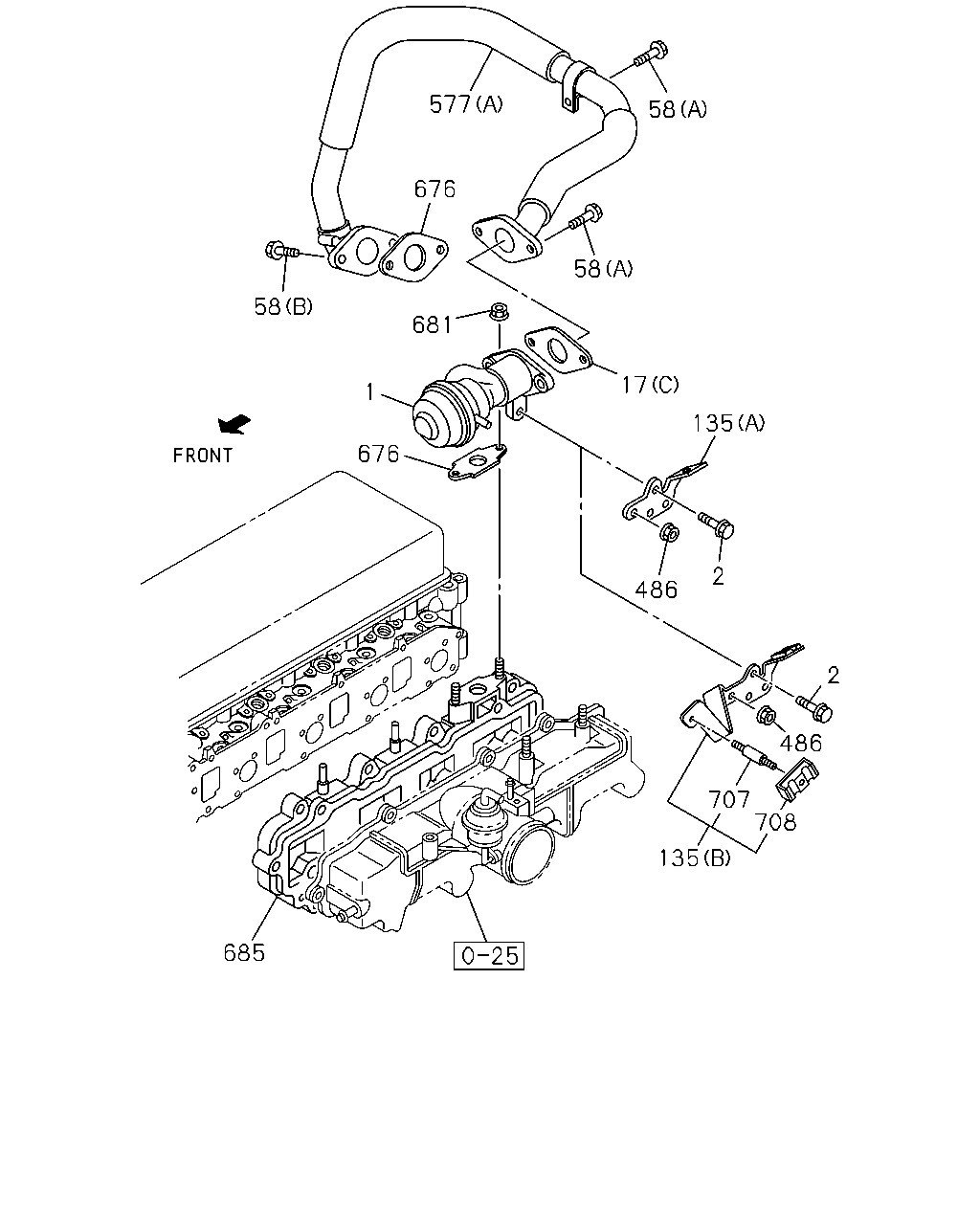

577 58 676 58 58 681 17 1 135 676 2 486 2 486 707 708 135 685

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.670 VALVE; EGR TURBOCHARGER(K51)	8-97115-533-3	01	1	9811-	●
1	03.670 VALVE; EGR	8-97208-656-2	01	1	9811-0105			●
1	03.670 VALVE; EGR CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF>	8-97135-088-4	01	1	9811-				●
2	03.670 BOLT; EGR VLV TURBOCHARGER(K51) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9811-	●
2	03.670 BOLT; EGR VLV CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 09.171 M8X80 FLANGE	0-28080-880-0	02	1	9811-				●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION<NT3> (E)	8-97189-853-1	01	1	0201-0204				●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> (E)	8-97189-853-1	01	1	0205-				●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION<NT3> (F)	8-97213-386-0	01	1	0201-0204				●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> (F)	8-97213-386-0	01	1	0205-				●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER(K51) (C)	8-97113-023-0	01	1	9811-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D)	8-97192-765-0	03	1	9811-0105			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> (A)	8-94340-670-0	01	1	9811-				●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> (B)	8-97166-993-0	01	1	9811-				●
58	03.417 BOLT; PIPE CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION<NT3> 02.559 (C) M8X25 FLANGE	0-28680-825-0	05	1	0201-0204				●
58	03.417 BOLT; PIPE EURO3 SPECIFICATION<NT3> 02.559 (C) M8X25 FLANGE	0-28680-825-0	05	1	0205-				●
58	03.417 BOLT; PIPE TURBOCHARGER(K51) 02.664 (A) M8X20 FLANGE	0-28680-820-0	03	1	9811-	●
58	03.417 BOLT; PIPE TURBOCHARGER(K51) 03.670 (B) M8X23 FLANGE	8-94103-629-2	02	1	9811-	●
58	03.417 BOLT; PIPE CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 02.664 (A) M8X20 FLANGE	0-28680-820-0	01	1	9811-0112				●
58	03.417 BOLT; PIPE CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3>,EURO2 SPECIFICATION<7AF> 02.664 (A) M8X20 FLANGE	0-28680-820-0	01	1	0201-				●
58	03.417 BOLT; PIPE CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	9811-0112				●
58	03.417 BOLT; PIPE CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3>,EURO2 SPECIFICATION<7AF> 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	0201-				●
135	03.680 BRACKET; EGR CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION<NT3> (C)	8-97302-225-0	01	1	0201-0204				●
135	03.680 BRACKET; EGR EURO3 SPECIFICATION<NT3> (C)	8-97302-225-0	01	1	0205-				●
135	03.680 BRACKET; EGR CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION<NT3> (D)	8-97302-226-0	01	1	0201-0204				●
135	03.680 BRACKET; EGR EURO3 SPECIFICATION<NT3> (D)	8-97302-226-0	01	1	0205-				●
135	03.680 BRACKET; EGR TURBOCHARGER(K51) (A)	8-97144-990-1	01	1	9811-9811	●
135	03.680 BRACKET; EGR TURBOCHARGER(K51) (B)	8-97221-358-1	01	1	9812-	●
486	03.671 NUT; BRKT CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION<NT3> 07.633 M8 FLANGE	0-91150-108-0	01	1	0201-0204				●
486	03.671 NUT; BRKT EURO3 SPECIFICATION<NT3> 07.633 M8 FLANGE	0-91150-108-0	01	1	0205-				●
486	03.671 NUT; BRKT TURBOCHARGER(K51) 07.633 M8 FLANGE	0-91150-108-0	02	1	9811-	●
577	03.675 PIPE; AIR,EGR CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION<NT3> (C)	8-97241-002-1	01	1	0201-0204				●
577	03.675 PIPE; AIR,EGR EURO3 SPECIFICATION<NT3> (C)	8-97241-002-2	01	1	0205-				●
577	03.675 PIPE; AIR,EGR CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION<NT3> (D)	8-97241-004-1	01	1	0201-0204				●
577	03.675 PIPE; AIR,EGR EURO3 SPECIFICATION<NT3> (D)	8-97241-004-1	01	1	0205-				●
577	03.675 PIPE; AIR,EGR TURBOCHARGER(K51) (A)	8-97200-643-2	01	1	9811-	●
577	03.675 PIPE; AIR,EGR CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> (B)	8-97148-952-1	01	1	9811-0112				●
577	03.675 PIPE; AIR,EGR CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3>,EURO2 SPECIFICATION<7AF> (B)	8-97148-952-2	01	1	0201-				●
676	03.417 GASKET; PIPE TURBOCHARGER(K51)	8-97146-683-0	02	1	9811-	●
676	03.417 GASKET; PIPE CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF>,ENGINE POWER N-SPEC(7QV)	8-97190-508-0	01	1	9811-0205				●
676	03.417 GASKET; PIPE CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3>,EURO2 SPECIFICATION<7AF>,ENGINE POWER N-SPEC(7QV)	8-97190-508-0	01	1	0206-				●
676	03.417 GASKET; PIPE FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> ENGINE POWER N-SPEC(7QV) EXC. EURO2 SPECIFICATION<7AF>	8-97170-683-0	01	1	9811-9811				●
676	03.417 GASKET; PIPE FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> ENGINE POWER N-SPEC(7QV) EXC. EURO2 SPECIFICATION<7AF>,HYDRO BRAKE BOOSTER<7QQ>,NOISE PACK FOR REGULATI ON VAR.2<7TF>	8-97170-683-0	01	1	9812-0112				●
676	03.417 GASKET; PIPE CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) EXC. EURO2 SPECIFICATION<7AF>	8-97170-683-0	01	1	0201-0207				●
676	03.417 GASKET; PIPE M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ),M/T MBP6Q(RNM) ENGINE POWER N-SPEC(7QV) CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3>,EURO2 SPECIFICATION<7AF>	8-97170-683-0	01	1	0208-				●
676	03.417 GASKET; PIPE M/T MZZ6U(RSF) FLOOR REMOTE SHIFT<M11> VENEZUELA EQUIPMENT(S2L) CHARGE AIR COOLER<6PL> ENGINE POWER N-SPEC(7QV) EXC. HEATER & DEFROSTER(C41),EURO3 SPECIFICATION<NT3>,VOLTAGE 24V<7AE>,EURO2 S PECIFICATION<7AF>,HYDRO BRAKE BOOSTER<7QQ>,NOISE PACK FOR REGULATION VAR.2<7TF>	8-97170-683-0	01	1	0208-				●
681	03.671 NUT; EGR PIPE TURBOCHARGER(K51) 07.633 M8 FLANGE	0-91150-108-0	02	1	9811-	●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91150-208-0	02	1	9811-0105			●
681	03.671 NUT; EGR PIPE CHARGE AIR COOLER<6PL> 03.613 M8 FLANGE	8-97061-401-1	02	1	9811-				●
685	03.680 CASE; INLET,EGR TURBOCHARGER(K51)	8-97146-872-1	01	1	9811-	●
685	03.680 CASE; INLET,EGR EXC. TURBOCHARGER(K51)	8-97146-873-1	01	1	9811-	●
685	03.680 CASE; INLET,EGR	8-97146-873-1	01	1	9811-		●
707	03.162 STUD; CLIP,INJ PIPE TURBOCHARGER(K51) M6X25 L=36	8-97214-234-0	01	1	9812-	●
708	03.162 CLIP; PIPE,INJ TURBOCHARGER(K51)	8-97213-481-0	01	1	9812-	●

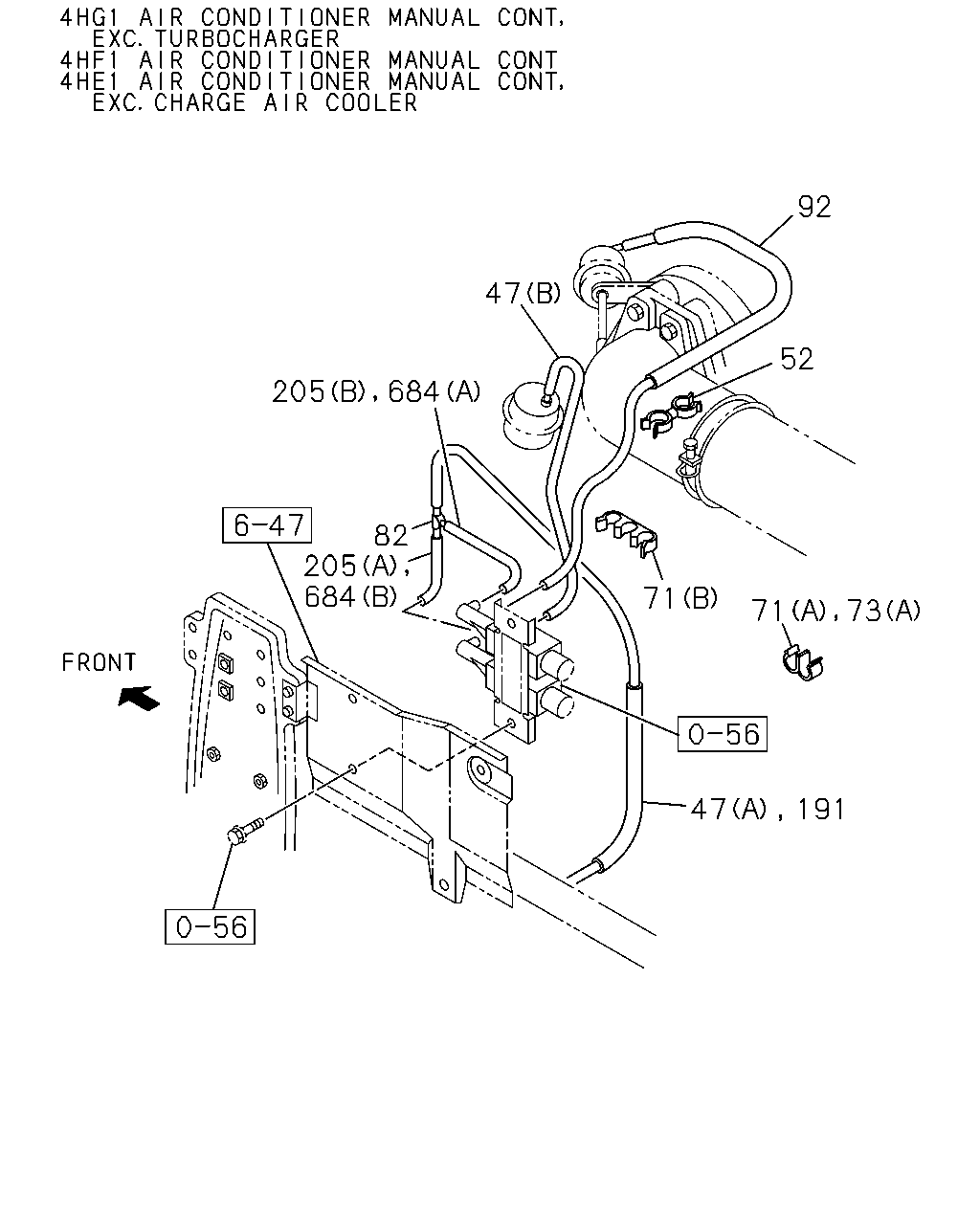

92 47 52 82 205 684 71 71 73 47 191 205 684

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
47	03.675 HOSE; VAC,VSV AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> ENGINE POWER N-SPEC(7QV) 08.962 (B) L=360 SERVICED BY L=3000	0-04730-300-0	01	1	0112-		●
47	03.675 HOSE; VAC,VSV AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER(K51) 08.962 (B) L=200 SERVICED BY L=3000	0-04730-300-0	01	1	9811-0101	●	●
47	03.675 HOSE; VAC,VSV AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER(K51) 08.962 (B) L=200 SERVICED BY L=3000	0-04730-300-0	01	1	0102-	●	●
47	03.675 HOSE; VAC,VSV EXC. TURBOCHARGER(K51) (A) L=310	8-97037-962-2	01	1	9811-0101	●	●
47	03.675 HOSE; VAC,VSV EXHAUST BRAKE<NF8> EXC. TURBOCHARGER(K51) (A) L=310	8-97037-962-2	01	1	0102-	●	●
52	03.680 CLIP; VSV HOSE EXC. TURBOCHARGER(K51) ID=7.5 & 7.5	8-97019-084-0	01	1	9811-0101	●	●
52	03.680 CLIP; VSV HOSE EXHAUST BRAKE<NF8> EXC. TURBOCHARGER(K51) ID=7.5 & 7.5	8-97019-084-0	01	1	0102-	●	●
71	03.680 CLIP; RUBBER HOSE AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> ENGINE POWER N-SPEC(7QV) (B) ID=6.8 & 6.8 & 6.8	8-94208-734-0	02	1	0112-		●
71	03.680 CLIP; RUBBER HOSE AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER(K51) 03.162 (A) ID=6.8X2	8-94126-636-0	01	1	9811-0101	●	●
71	03.680 CLIP; RUBBER HOSE AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER(K51) 03.162 (A) ID=6.8X2	8-94126-636-0	01	1	0102-	●	●
71	03.680 CLIP; RUBBER HOSE AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER(K51) (B) ID=6.8 & 6.8 & 6.8	8-94208-734-0	01	1	9811-0101	●	●
71	03.680 CLIP; RUBBER HOSE AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER(K51) (B) ID=6.8 & 6.8 & 6.8	8-94208-734-0	01	1	0102-	●	●
73	03.680 CLIP; VAC HOSE EXC. TURBOCHARGER(K51) 03.162 (A) ID=6.8X2	8-94126-636-0	01	1	9811-0101	●
73	03.680 CLIP; VAC HOSE 03.162 (A) ID=6.8X2	8-94126-636-0	01	1	9811-0101		●
73	03.680 CLIP; VAC HOSE AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 03.162 (A) ID=6.8X2	8-94126-636-0	01	1	9811-0101				●
73	03.680 CLIP; VAC HOSE EXHAUST BRAKE<NF8> EXC. TURBOCHARGER(K51) 03.162 (A) ID=6.8X2	8-94126-636-0	01	1	0102-	●
73	03.680 CLIP; VAC HOSE EXHAUST BRAKE<NF8> 03.162 (A) ID=6.8X2	8-94126-636-0	01	1	0102-		●
73	03.680 CLIP; VAC HOSE AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> 03.162 (A) ID=6.8X2	8-94126-636-0	01	1	0102-				●
73	03.680 CLIP; VAC HOSE 03.278 (C) ID=37	8-94481-468-0	01	1	9811-9812			●
73	03.680 CLIP; VAC HOSE 01.540 (C) ID=30	8-94315-423-0	03	1	9901-0105			●
73	03.680 CLIP; VAC HOSE 03.162 (D) ID=13.2 & 7.5	8-94315-426-0	01	1	9902-0105			●
73	03.680 CLIP; VAC HOSE 03.278 (C) ID=37	8-94481-468-0	01	1	9909-0105			●
73	03.680 CLIP; VAC HOSE EXC. AIR CONDITIONER MANUAL CONT(C60), CHARGE AIR COOLER<6PL> 03.162 (A) ID=6.8X2	8-94126-636-0	02	1	9811-0101				●
73	03.680 CLIP; VAC HOSE EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60), CHARGE AIR COOLER<6PL> 03.162 (A) ID=6.8X2	8-94126-636-0	02	1	0102-				●
73	03.680 CLIP; VAC HOSE CHARGE AIR COOLER<6PL> 02.559 (B) L=250	5-09707-030-1	02	1	9811-0101				●
73	03.680 CLIP; VAC HOSE CHARGE AIR COOLER<6PL> HEATER & DEFROSTER(C41) 02.559 (B) L=250	5-09707-030-1	02	1	0102-				●
73	03.680 CLIP; VAC HOSE CHARGE AIR COOLER<6PL> EXC. HEATER & DEFROSTER(C41) 03.162 (B) L=140	5-09707-031-1	03	1	0102-				●
82	03.680 JOINT; 3 WAY AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER(K51) 3WAY	8-94208-695-0	01	1	9811-0101	●
82	03.680 JOINT; 3 WAY AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 3WAY	8-94208-695-0	01	1	9811-0101		●		●
82	03.680 JOINT; 3 WAY AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER(K51) 3WAY	8-94208-695-0	01	1	0102-	●
82	03.680 JOINT; 3 WAY AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> 3WAY	8-94208-695-0	01	1	0102-		●		●
92	03.675 HOSE; VAC,THROTTLE BODY EXC. TURBOCHARGER(K51)	8-97106-645-3	01	1	9811-0101	●	●
92	03.675 HOSE; VAC,THROTTLE BODY EXHAUST BRAKE<NF8> EXC. TURBOCHARGER(K51)	8-97106-645-3	01	1	0102-	●	●
92	03.675 HOSE; VAC,THROTTLE BODY EXC. CHARGE AIR COOLER<6PL> L=415	8-97083-184-1	01	1	9811-0101				●
92	03.675 HOSE; VAC,THROTTLE BODY EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> L=415	8-97083-184-1	01	1	0102-				●
191	03.675 HOSE; RUBBER,3 WAY TO PIPE EXC. CHARGE AIR COOLER<6PL> L=310	8-97037-962-2	01	1	9811-0101				●
191	03.675 HOSE; RUBBER,3 WAY TO PIPE EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> L=310	8-97037-962-2	01	1	0102-				●
205	03.675 HOSE; VSV TO 3 WAY CONN AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 08.962 (A) L=30 SERVICED BY L=3000	0-04730-300-0	01	1	9811-0101				●
205	03.675 HOSE; VSV TO 3 WAY CONN AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> 08.962 (A) L=30 SERVICED BY L=3000	0-04730-300-0	01	1	0102-				●
205	03.675 HOSE; VSV TO 3 WAY CONN AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 08.962 (B) L=50 SERVICED BY L=3000	0-04730-300-0	01	1	9811-0101				●
205	03.675 HOSE; VSV TO 3 WAY CONN AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> 08.962 (B) L=50 SERVICED BY L=3000	0-04730-300-0	01	1	0102-				●
684	03.675 HOSE; VAC,JOINT TO VSV AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER(K51) 08.962 (A) L=30 SERVICED BY L=3000	0-04730-300-0	01	1	9811-0101	●	●
684	03.675 HOSE; VAC,JOINT TO VSV AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER(K51) 08.962 (A) L=30 SERVICED BY L=3000	0-04730-300-0	01	1	0102-	●	●
684	03.675 HOSE; VAC,JOINT TO VSV AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER(K51) 08.962 (B) L=50 SERVICED BY L=3000	0-04730-300-0	01	1	9811-0101	●	●
684	03.675 HOSE; VAC,JOINT TO VSV AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER(K51) 08.962 (B) L=50 SERVICED BY L=3000	0-04730-300-0	01	1	0102-	●	●

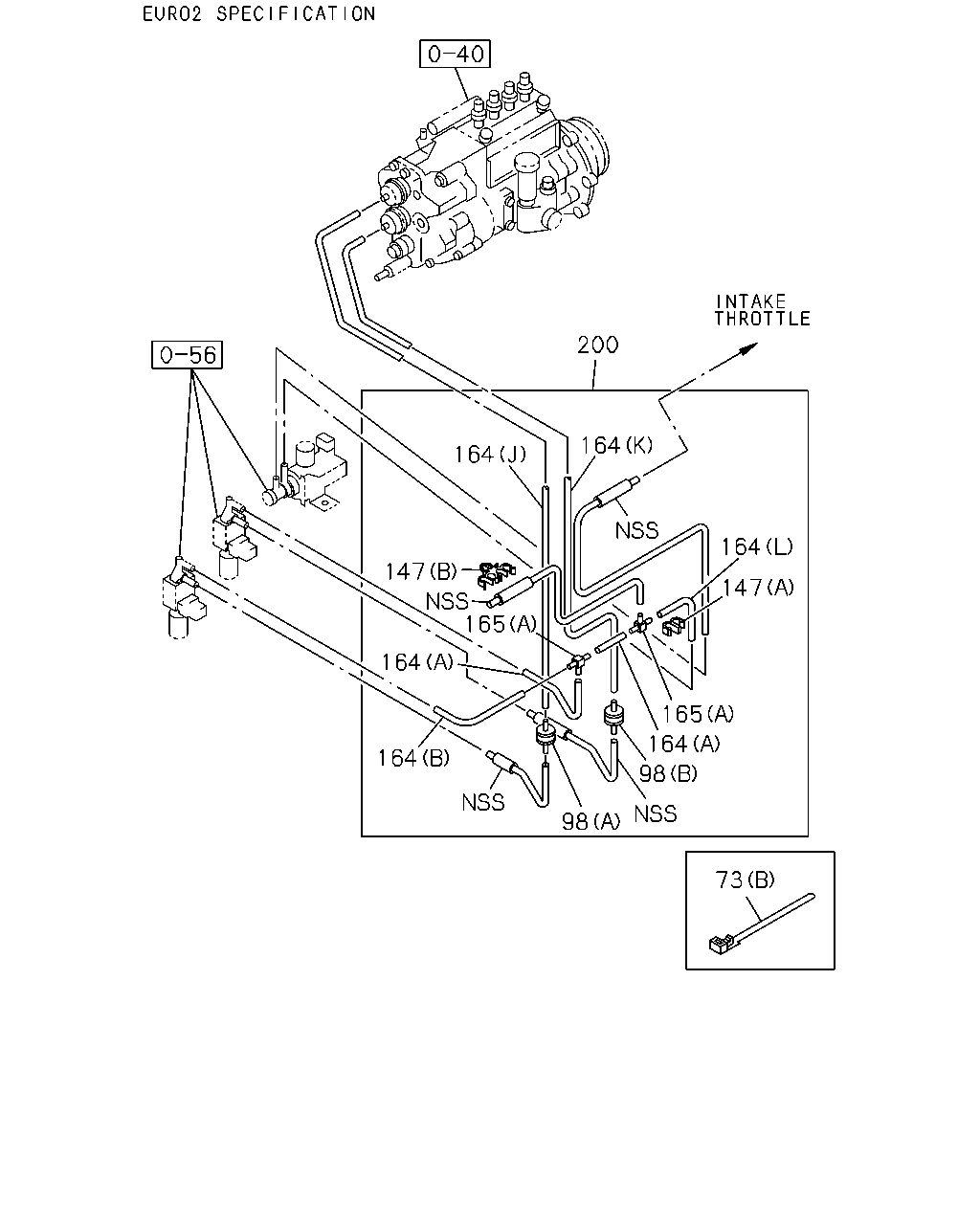

200 164 164 164 147 147 165 164 165 164 164 98 98 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
73	03.680 CLIP; VAC HOSE EXC. TURBOCHARGER(K51) 03.162 (A) ID=6.8X2	8-94126-636-0	01	1	9811-0101	●
73	03.680 CLIP; VAC HOSE 03.162 (A) ID=6.8X2	8-94126-636-0	01	1	9811-0101		●
73	03.680 CLIP; VAC HOSE AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 03.162 (A) ID=6.8X2	8-94126-636-0	01	1	9811-0101				●
73	03.680 CLIP; VAC HOSE EXHAUST BRAKE<NF8> EXC. TURBOCHARGER(K51) 03.162 (A) ID=6.8X2	8-94126-636-0	01	1	0102-	●
73	03.680 CLIP; VAC HOSE EXHAUST BRAKE<NF8> 03.162 (A) ID=6.8X2	8-94126-636-0	01	1	0102-		●
73	03.680 CLIP; VAC HOSE AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> 03.162 (A) ID=6.8X2	8-94126-636-0	01	1	0102-				●
73	03.680 CLIP; VAC HOSE 03.278 (C) ID=37	8-94481-468-0	01	1	9811-9812			●
73	03.680 CLIP; VAC HOSE 01.540 (C) ID=30	8-94315-423-0	03	1	9901-0105			●
73	03.680 CLIP; VAC HOSE 03.162 (D) ID=13.2 & 7.5	8-94315-426-0	01	1	9902-0105			●
73	03.680 CLIP; VAC HOSE 03.278 (C) ID=37	8-94481-468-0	01	1	9909-0105			●
73	03.680 CLIP; VAC HOSE EXC. AIR CONDITIONER MANUAL CONT(C60), CHARGE AIR COOLER<6PL> 03.162 (A) ID=6.8X2	8-94126-636-0	02	1	9811-0101				●
73	03.680 CLIP; VAC HOSE EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60), CHARGE AIR COOLER<6PL> 03.162 (A) ID=6.8X2	8-94126-636-0	02	1	0102-				●
73	03.680 CLIP; VAC HOSE CHARGE AIR COOLER<6PL> 02.559 (B) L=250	5-09707-030-1	02	1	9811-0101				●
73	03.680 CLIP; VAC HOSE CHARGE AIR COOLER<6PL> HEATER & DEFROSTER(C41) 02.559 (B) L=250	5-09707-030-1	02	1	0102-				●
73	03.680 CLIP; VAC HOSE CHARGE AIR COOLER<6PL> EXC. HEATER & DEFROSTER(C41) 03.162 (B) L=140	5-09707-031-1	03	1	0102-				●
98	03.670 VALVE; DELAY CHARGE AIR COOLER<6PL> (A)	8-94110-978-0	01	1	9811-				●
98	03.670 VALVE; DELAY CHARGE AIR COOLER<6PL> 03.415 (B) PINK	8-94145-108-0	01	1	9811-				●
147	03.680 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> (C) ID=7	8-94208-596-0	01	1	0108-				●
147	03.680 CLIP; RUBBER HOSE TURBOCHARGER(K51) 03.162 (A) ID=6.8X2	8-94126-636-0	03	1	9811-	●
147	03.680 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 03.162 (A) ID=6.8X2	8-94126-636-0	03	1	9811-				●
147	03.680 CLIP; RUBBER HOSE TURBOCHARGER(K51) 02.251 (B) 4XID=6.8	8-94132-799-0	01	1	9811-	●
147	03.680 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> 03.162 (A) ID=6.8X2	8-94126-636-0	01	1	9811-				●
147	03.680 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> (B) 4XID=6.7	8-94315-422-0	01	1	9811-				●
147	03.680 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> (B) 4XID=6.7	8-94315-422-0	02	1	9811-				●
164	03.675 HOSE; RUBBER TURBOCHARGER(K51) 08.962 (A) L=65 SERVICED BY L=3000	0-04730-300-0	01	1	9811-	●
164	03.675 HOSE; RUBBER TURBOCHARGER(K51) 08.962 (A) L=40 SERVICED BY L=3000	0-04730-300-0	01	1	9811-	●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> 08.962 (A) L=30 SERVICED BY L=3000	0-04730-300-0	02	1	9811-				●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> 08.962 (B) L=90 SERVICED BY L=3000	0-04730-300-0	01	1	9811-				●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> 08.962 (L) L=70 SERVICED BY L=3000	0-04730-300-0	01	1	9811-				●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> 08.962 (J) L=230 SERVICED BY L=3000	0-04731-300-0	01	1	9811-				●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> 08.962 (K) L=260 SERVICED BY L=3000	0-04732-300-0	01	1	9811-				●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 08.962 (C) L=40 SERVICED BY L=3000	0-04730-300-0	01	1	9811-				●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 08.962 (D) L=50 SERVICED BY L=3000	0-04730-300-0	03	1	9811-				●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 08.962 (E) L=60 SERVICED BY L=3000	0-04730-300-0	01	1	9811-				●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 08.962 (F) L=80 SERVICED BY L=3000	0-04730-300-0	01	1	9811-				●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 08.962 (G) L=150 SERVICED BY L=3000	0-04730-300-0	01	1	9811-				●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 08.962 (H) L=250 SERVICED BY L=3000	0-04731-300-0	01	1	9811-				●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 08.962 (I) L=280 SERVICED BY L=3000	0-04732-300-0	01	1	9811-				●
165	03.680 JOINT; HOSE TURBOCHARGER(K51) 3WAY	8-94208-695-0	01	1	9811-	●
165	03.680 JOINT; HOSE CHARGE AIR COOLER<6PL> (A) 3WAY	8-94208-695-0	02	1	9811-				●
165	03.680 JOINT; HOSE CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 03.670 (B) 4WAY	8-94100-256-0	01	1	9811-				●
165	03.680 JOINT; HOSE CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 03.145 (C) 3WAY	8-94237-690-0	01	1	9811-				●
200	03.675 HOSE; VAC TURBOCHARGER(K51)	8-97207-666-2	01	1	9811-	●
200	03.675 HOSE; VAC CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF>	8-97182-890-4	01	1	9811-				●
200	03.675 HOSE; VAC CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF>	8-97182-709-6	01	1	9811-				●

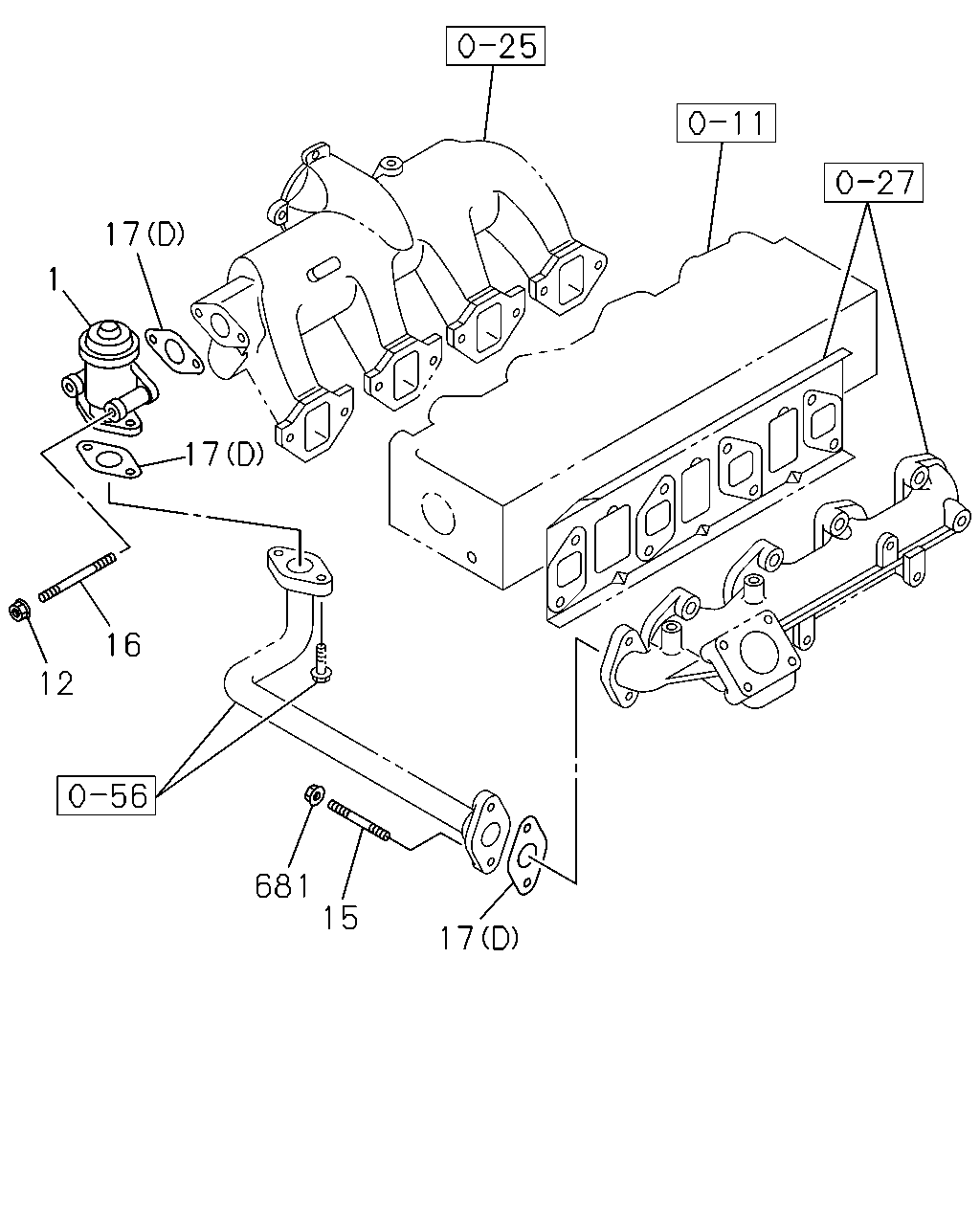

17 1 17 16 12 681 15 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	C	D
1	03.670 VALVE; EGR TURBOCHARGER(K51)	8-97115-533-3	01	1	9811-	●
1	03.670 VALVE; EGR	8-97208-656-2	01	1	9811-0105		●
1	03.670 VALVE; EGR CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF>	8-97135-088-4	01	1	9811-			●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE	0-91150-208-0	02	1	9811-0105		●
15	03.670 STUD; EGR PIPE M8X25 L=36	8-94156-470-2	02	1	9811-0105		●
16	03.275 STUD; EGR VLV 00.413 M8X55 L=67	9-04110-855-0	02	1	9811-0105		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION<NT3> (E)	8-97189-853-1	01	1	0201-0204			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> (E)	8-97189-853-1	01	1	0205-			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION<NT3> (F)	8-97213-386-0	01	1	0201-0204			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> (F)	8-97213-386-0	01	1	0205-			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER(K51) (C)	8-97113-023-0	01	1	9811-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D)	8-97192-765-0	03	1	9811-0105		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> (A)	8-94340-670-0	01	1	9811-			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> (B)	8-97166-993-0	01	1	9811-			●
681	03.671 NUT; EGR PIPE TURBOCHARGER(K51) 07.633 M8 FLANGE	0-91150-108-0	02	1	9811-	●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91150-208-0	02	1	9811-0105		●
681	03.671 NUT; EGR PIPE CHARGE AIR COOLER<6PL> 03.613 M8 FLANGE	8-97061-401-1	02	1	9811-			●

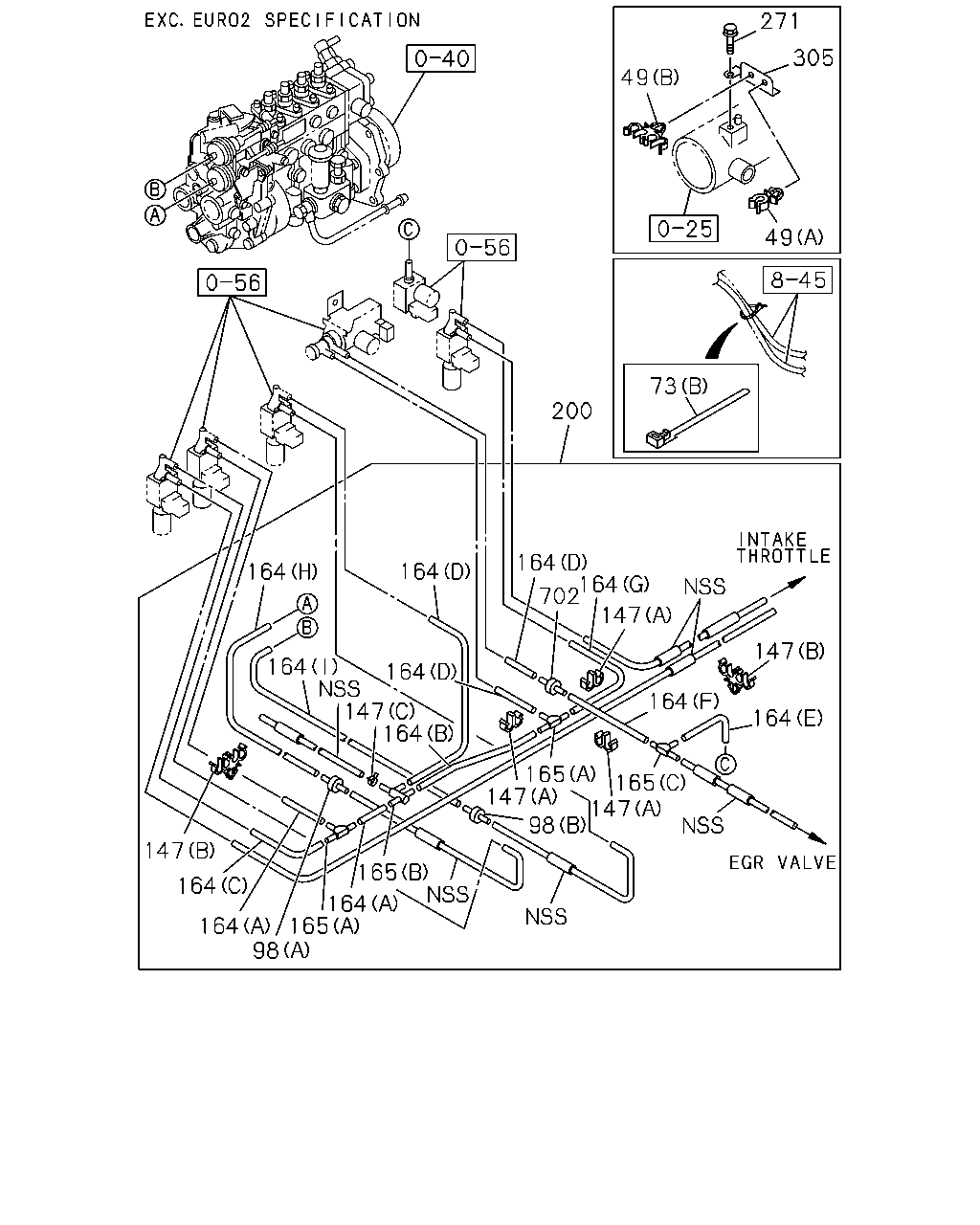

271 305 49 49 73 200 164 164 702 164 164 147 147 164 147 164 164 164 164 165 147 165 147 98 147 165 164 164 164 165 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
49	03.680 CLIP; HOSE CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 03.162 (A)	8-94253-984-0	01	1	9811-				●
49	03.680 CLIP; HOSE CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> (B) 4XID=6.7	8-94315-422-0	01	1	9811-				●
73	03.680 CLIP; VAC HOSE EXC. TURBOCHARGER(K51) 03.162 (A) ID=6.8X2	8-94126-636-0	01	1	9811-0101	●
73	03.680 CLIP; VAC HOSE 03.162 (A) ID=6.8X2	8-94126-636-0	01	1	9811-0101		●
73	03.680 CLIP; VAC HOSE AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 03.162 (A) ID=6.8X2	8-94126-636-0	01	1	9811-0101				●
73	03.680 CLIP; VAC HOSE EXHAUST BRAKE<NF8> EXC. TURBOCHARGER(K51) 03.162 (A) ID=6.8X2	8-94126-636-0	01	1	0102-	●
73	03.680 CLIP; VAC HOSE EXHAUST BRAKE<NF8> 03.162 (A) ID=6.8X2	8-94126-636-0	01	1	0102-		●
73	03.680 CLIP; VAC HOSE AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> 03.162 (A) ID=6.8X2	8-94126-636-0	01	1	0102-				●
73	03.680 CLIP; VAC HOSE 03.278 (C) ID=37	8-94481-468-0	01	1	9811-9812			●
73	03.680 CLIP; VAC HOSE 01.540 (C) ID=30	8-94315-423-0	03	1	9901-0105			●
73	03.680 CLIP; VAC HOSE 03.162 (D) ID=13.2 & 7.5	8-94315-426-0	01	1	9902-0105			●
73	03.680 CLIP; VAC HOSE 03.278 (C) ID=37	8-94481-468-0	01	1	9909-0105			●
73	03.680 CLIP; VAC HOSE EXC. AIR CONDITIONER MANUAL CONT(C60), CHARGE AIR COOLER<6PL> 03.162 (A) ID=6.8X2	8-94126-636-0	02	1	9811-0101				●
73	03.680 CLIP; VAC HOSE EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60), CHARGE AIR COOLER<6PL> 03.162 (A) ID=6.8X2	8-94126-636-0	02	1	0102-				●
73	03.680 CLIP; VAC HOSE CHARGE AIR COOLER<6PL> 02.559 (B) L=250	5-09707-030-1	02	1	9811-0101				●
73	03.680 CLIP; VAC HOSE CHARGE AIR COOLER<6PL> HEATER & DEFROSTER(C41) 02.559 (B) L=250	5-09707-030-1	02	1	0102-				●
73	03.680 CLIP; VAC HOSE CHARGE AIR COOLER<6PL> EXC. HEATER & DEFROSTER(C41) 03.162 (B) L=140	5-09707-031-1	03	1	0102-				●
98	03.670 VALVE; DELAY CHARGE AIR COOLER<6PL> (A)	8-94110-978-0	01	1	9811-				●
98	03.670 VALVE; DELAY CHARGE AIR COOLER<6PL> 03.415 (B) PINK	8-94145-108-0	01	1	9811-				●
147	03.680 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> (C) ID=7	8-94208-596-0	01	1	0108-				●
147	03.680 CLIP; RUBBER HOSE TURBOCHARGER(K51) 03.162 (A) ID=6.8X2	8-94126-636-0	03	1	9811-	●
147	03.680 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 03.162 (A) ID=6.8X2	8-94126-636-0	03	1	9811-				●
147	03.680 CLIP; RUBBER HOSE TURBOCHARGER(K51) 02.251 (B) 4XID=6.8	8-94132-799-0	01	1	9811-	●
147	03.680 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> 03.162 (A) ID=6.8X2	8-94126-636-0	01	1	9811-				●
147	03.680 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> (B) 4XID=6.7	8-94315-422-0	01	1	9811-				●
147	03.680 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> (B) 4XID=6.7	8-94315-422-0	02	1	9811-				●
164	03.675 HOSE; RUBBER TURBOCHARGER(K51) 08.962 (A) L=65 SERVICED BY L=3000	0-04730-300-0	01	1	9811-	●
164	03.675 HOSE; RUBBER TURBOCHARGER(K51) 08.962 (A) L=40 SERVICED BY L=3000	0-04730-300-0	01	1	9811-	●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> 08.962 (A) L=30 SERVICED BY L=3000	0-04730-300-0	02	1	9811-				●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> 08.962 (B) L=90 SERVICED BY L=3000	0-04730-300-0	01	1	9811-				●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> 08.962 (L) L=70 SERVICED BY L=3000	0-04730-300-0	01	1	9811-				●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> 08.962 (J) L=230 SERVICED BY L=3000	0-04731-300-0	01	1	9811-				●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> 08.962 (K) L=260 SERVICED BY L=3000	0-04732-300-0	01	1	9811-				●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 08.962 (C) L=40 SERVICED BY L=3000	0-04730-300-0	01	1	9811-				●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 08.962 (D) L=50 SERVICED BY L=3000	0-04730-300-0	03	1	9811-				●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 08.962 (E) L=60 SERVICED BY L=3000	0-04730-300-0	01	1	9811-				●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 08.962 (F) L=80 SERVICED BY L=3000	0-04730-300-0	01	1	9811-				●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 08.962 (G) L=150 SERVICED BY L=3000	0-04730-300-0	01	1	9811-				●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 08.962 (H) L=250 SERVICED BY L=3000	0-04731-300-0	01	1	9811-				●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 08.962 (I) L=280 SERVICED BY L=3000	0-04732-300-0	01	1	9811-				●
165	03.680 JOINT; HOSE TURBOCHARGER(K51) 3WAY	8-94208-695-0	01	1	9811-	●
165	03.680 JOINT; HOSE CHARGE AIR COOLER<6PL> (A) 3WAY	8-94208-695-0	02	1	9811-				●
165	03.680 JOINT; HOSE CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 03.670 (B) 4WAY	8-94100-256-0	01	1	9811-				●
165	03.680 JOINT; HOSE CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 03.145 (C) 3WAY	8-94237-690-0	01	1	9811-				●
200	03.675 HOSE; VAC TURBOCHARGER(K51)	8-97207-666-2	01	1	9811-	●
200	03.675 HOSE; VAC CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF>	8-97182-890-4	01	1	9811-				●
200	03.675 HOSE; VAC CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF>	8-97182-709-6	01	1	9811-				●
271	03.675 BOLT; BRKT CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION<NT3> 00.002 M8X25 FLANGE	0-28690-825-0	02	1	0201-0204				●
271	03.675 BOLT; BRKT EURO3 SPECIFICATION<NT3> 00.002 M8X25 FLANGE	0-28690-825-0	02	1	0205-				●
271	03.675 BOLT; BRKT 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9811-			●
271	03.675 BOLT; BRKT CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 02.500 M6X10 FLANGE	0-28080-610-0	01	1	9811-				●
305	03.675 BRACKET; RUBBER HOSE CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF>	8-97182-758-0	01	1	9811-				●
702	03.670 VALVE; DERIVERY CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF>	8-97145-713-0	01	1	9811-				●

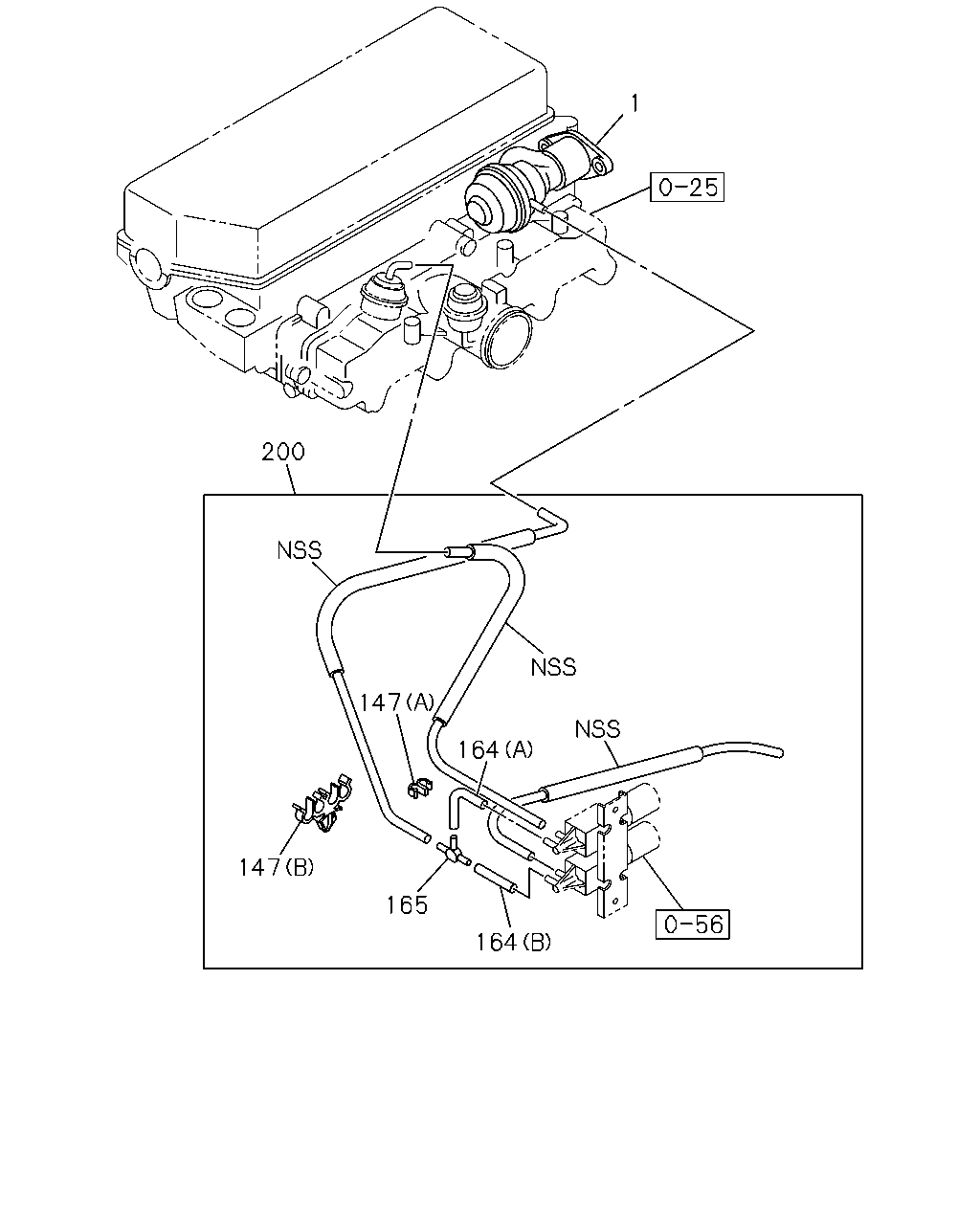

1 200 147 164 147 165 164

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	C	D
1	03.670 VALVE; EGR TURBOCHARGER(K51)	8-97115-533-3	01	1	9811-	●
1	03.670 VALVE; EGR	8-97208-656-2	01	1	9811-0105		●
1	03.670 VALVE; EGR CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF>	8-97135-088-4	01	1	9811-			●
147	03.680 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> (C) ID=7	8-94208-596-0	01	1	0108-			●
147	03.680 CLIP; RUBBER HOSE TURBOCHARGER(K51) 03.162 (A) ID=6.8X2	8-94126-636-0	03	1	9811-	●
147	03.680 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 03.162 (A) ID=6.8X2	8-94126-636-0	03	1	9811-			●
147	03.680 CLIP; RUBBER HOSE TURBOCHARGER(K51) 02.251 (B) 4XID=6.8	8-94132-799-0	01	1	9811-	●
147	03.680 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> 03.162 (A) ID=6.8X2	8-94126-636-0	01	1	9811-			●
147	03.680 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> (B) 4XID=6.7	8-94315-422-0	01	1	9811-			●
147	03.680 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> (B) 4XID=6.7	8-94315-422-0	02	1	9811-			●
164	03.675 HOSE; RUBBER TURBOCHARGER(K51) 08.962 (A) L=65 SERVICED BY L=3000	0-04730-300-0	01	1	9811-	●
164	03.675 HOSE; RUBBER TURBOCHARGER(K51) 08.962 (A) L=40 SERVICED BY L=3000	0-04730-300-0	01	1	9811-	●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> 08.962 (A) L=30 SERVICED BY L=3000	0-04730-300-0	02	1	9811-			●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> 08.962 (B) L=90 SERVICED BY L=3000	0-04730-300-0	01	1	9811-			●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> 08.962 (L) L=70 SERVICED BY L=3000	0-04730-300-0	01	1	9811-			●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> 08.962 (J) L=230 SERVICED BY L=3000	0-04731-300-0	01	1	9811-			●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> 08.962 (K) L=260 SERVICED BY L=3000	0-04732-300-0	01	1	9811-			●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 08.962 (C) L=40 SERVICED BY L=3000	0-04730-300-0	01	1	9811-			●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 08.962 (D) L=50 SERVICED BY L=3000	0-04730-300-0	03	1	9811-			●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 08.962 (E) L=60 SERVICED BY L=3000	0-04730-300-0	01	1	9811-			●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 08.962 (F) L=80 SERVICED BY L=3000	0-04730-300-0	01	1	9811-			●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 08.962 (G) L=150 SERVICED BY L=3000	0-04730-300-0	01	1	9811-			●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 08.962 (H) L=250 SERVICED BY L=3000	0-04731-300-0	01	1	9811-			●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 08.962 (I) L=280 SERVICED BY L=3000	0-04732-300-0	01	1	9811-			●
165	03.680 JOINT; HOSE TURBOCHARGER(K51) 3WAY	8-94208-695-0	01	1	9811-	●
165	03.680 JOINT; HOSE CHARGE AIR COOLER<6PL> (A) 3WAY	8-94208-695-0	02	1	9811-			●
165	03.680 JOINT; HOSE CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 03.670 (B) 4WAY	8-94100-256-0	01	1	9811-			●
165	03.680 JOINT; HOSE CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 03.145 (C) 3WAY	8-94237-690-0	01	1	9811-			●
200	03.675 HOSE; VAC TURBOCHARGER(K51)	8-97207-666-2	01	1	9811-	●
200	03.675 HOSE; VAC CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF>	8-97182-890-4	01	1	9811-			●
200	03.675 HOSE; VAC CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF>	8-97182-709-6	01	1	9811-			●

704 17 17 270 58 577 270 709 681 577 58 2 17 1 17 4 486 271 135 135 472

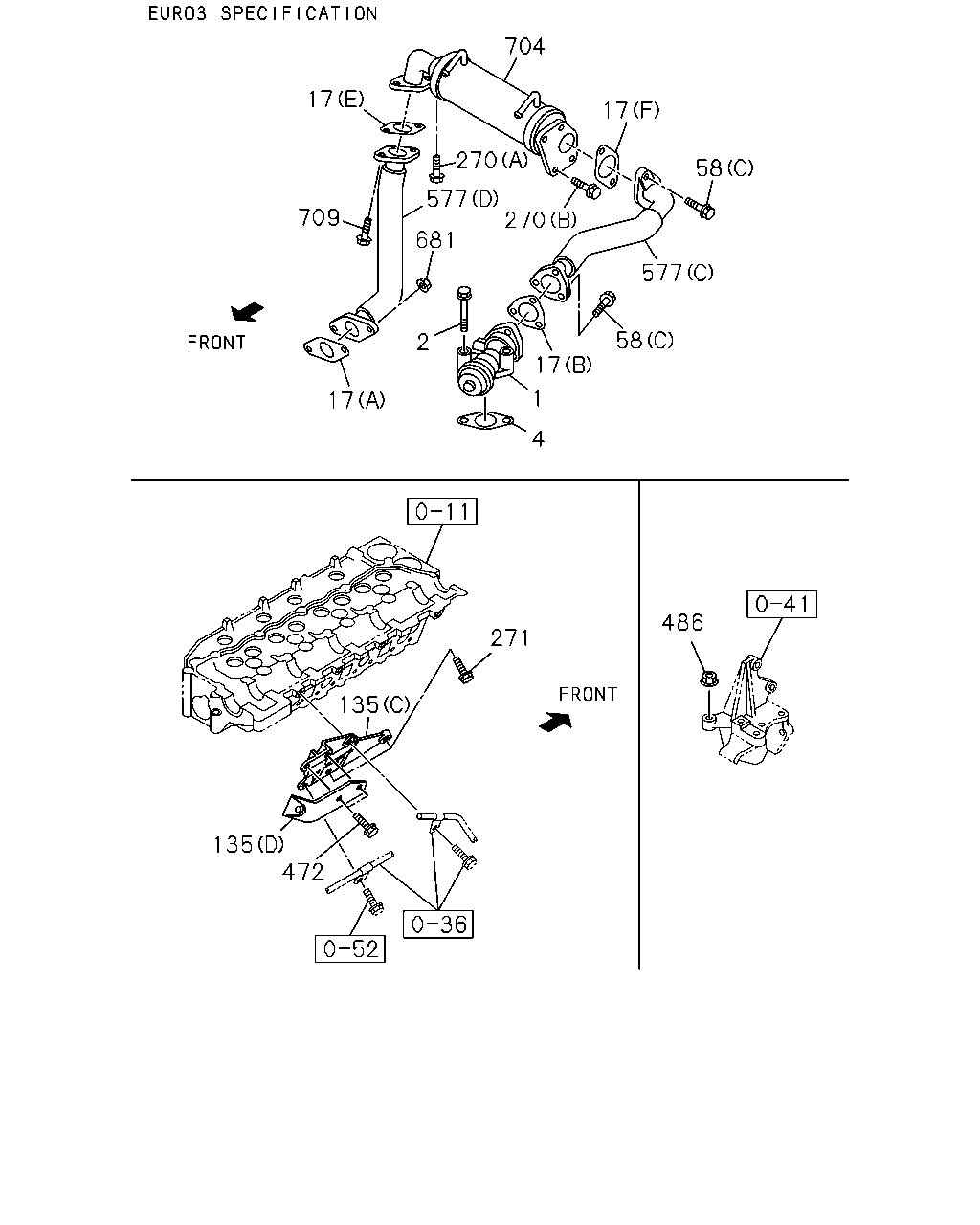

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	C	D
1	03.670 VALVE; EGR TURBOCHARGER(K51)	8-97115-533-3	01	1	9811-	●
1	03.670 VALVE; EGR	8-97208-656-2	01	1	9811-0105		●
1	03.670 VALVE; EGR CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF>	8-97135-088-4	01	1	9811-			●
2	03.670 BOLT; EGR VLV TURBOCHARGER(K51) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9811-	●
2	03.670 BOLT; EGR VLV CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 09.171 M8X80 FLANGE	0-28080-880-0	02	1	9811-			●
4	03.671 GASKET; EGR VLV CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION<NT3> 03.417	8-97190-508-0	01	1	0201-0204			●
4	03.671 GASKET; EGR VLV EURO3 SPECIFICATION<NT3> 03.417	8-97190-508-0	01	1	0205-			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION<NT3> (E)	8-97189-853-1	01	1	0201-0204			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> (E)	8-97189-853-1	01	1	0205-			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION<NT3> (F)	8-97213-386-0	01	1	0201-0204			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> (F)	8-97213-386-0	01	1	0205-			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER(K51) (C)	8-97113-023-0	01	1	9811-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D)	8-97192-765-0	03	1	9811-0105		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> (A)	8-94340-670-0	01	1	9811-			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> (B)	8-97166-993-0	01	1	9811-			●
58	03.417 BOLT; PIPE CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION<NT3> 02.559 (C) M8X25 FLANGE	0-28680-825-0	05	1	0201-0204			●
58	03.417 BOLT; PIPE EURO3 SPECIFICATION<NT3> 02.559 (C) M8X25 FLANGE	0-28680-825-0	05	1	0205-			●
58	03.417 BOLT; PIPE TURBOCHARGER(K51) 02.664 (A) M8X20 FLANGE	0-28680-820-0	03	1	9811-	●
58	03.417 BOLT; PIPE TURBOCHARGER(K51) 03.670 (B) M8X23 FLANGE	8-94103-629-2	02	1	9811-	●
58	03.417 BOLT; PIPE CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 02.664 (A) M8X20 FLANGE	0-28680-820-0	01	1	9811-0112			●
58	03.417 BOLT; PIPE CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3>,EURO2 SPECIFICATION<7AF> 02.664 (A) M8X20 FLANGE	0-28680-820-0	01	1	0201-			●
58	03.417 BOLT; PIPE CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	9811-0112			●
58	03.417 BOLT; PIPE CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3>,EURO2 SPECIFICATION<7AF> 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	0201-			●
135	03.680 BRACKET; EGR CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION<NT3> (C)	8-97302-225-0	01	1	0201-0204			●
135	03.680 BRACKET; EGR EURO3 SPECIFICATION<NT3> (C)	8-97302-225-0	01	1	0205-			●
135	03.680 BRACKET; EGR CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION<NT3> (D)	8-97302-226-0	01	1	0201-0204			●
135	03.680 BRACKET; EGR EURO3 SPECIFICATION<NT3> (D)	8-97302-226-0	01	1	0205-			●
135	03.680 BRACKET; EGR TURBOCHARGER(K51) (A)	8-97144-990-1	01	1	9811-9811	●
135	03.680 BRACKET; EGR TURBOCHARGER(K51) (B)	8-97221-358-1	01	1	9812-	●
270	03.680 BOLT CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION<NT3> 01.062 (A) M10X12 FLANGE	0-28181-012-0	01	1	0201-0204			●
270	03.680 BOLT EURO3 SPECIFICATION<NT3> 01.062 (A) M10X12 FLANGE	0-28181-012-0	01	1	0205-			●
270	03.680 BOLT CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION<NT3> 07.633 (B) M8X28 W/LK&PL WASHER	8-94438-324-1	02	1	0201-0204			●
270	03.680 BOLT EURO3 SPECIFICATION<NT3> 07.633 (B) M8X28 W/LK&PL WASHER	8-94438-324-1	02	1	0205-			●
271	03.675 BOLT; BRKT CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION<NT3> 00.002 M8X25 FLANGE	0-28690-825-0	02	1	0201-0204			●
271	03.675 BOLT; BRKT EURO3 SPECIFICATION<NT3> 00.002 M8X25 FLANGE	0-28690-825-0	02	1	0205-			●
271	03.675 BOLT; BRKT 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9811-		●
271	03.675 BOLT; BRKT CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 02.500 M6X10 FLANGE	0-28080-610-0	01	1	9811-			●
472	03.671 BOLT; BRKT CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION<NT3> 07.633 M8X28 W/LK&PL WASHER	8-94438-324-1	02	1	0201-0204			●
472	03.671 BOLT; BRKT EURO3 SPECIFICATION<NT3> 07.633 M8X28 W/LK&PL WASHER	8-94438-324-1	02	1	0205-			●
486	03.671 NUT; BRKT CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION<NT3> 07.633 M8 FLANGE	0-91150-108-0	01	1	0201-0204			●
486	03.671 NUT; BRKT EURO3 SPECIFICATION<NT3> 07.633 M8 FLANGE	0-91150-108-0	01	1	0205-			●
486	03.671 NUT; BRKT TURBOCHARGER(K51) 07.633 M8 FLANGE	0-91150-108-0	02	1	9811-	●
577	03.675 PIPE; AIR,EGR CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION<NT3> (C)	8-97241-002-1	01	1	0201-0204			●
577	03.675 PIPE; AIR,EGR EURO3 SPECIFICATION<NT3> (C)	8-97241-002-2	01	1	0205-			●
577	03.675 PIPE; AIR,EGR CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION<NT3> (D)	8-97241-004-1	01	1	0201-0204			●
577	03.675 PIPE; AIR,EGR EURO3 SPECIFICATION<NT3> (D)	8-97241-004-1	01	1	0205-			●
577	03.675 PIPE; AIR,EGR TURBOCHARGER(K51) (A)	8-97200-643-2	01	1	9811-	●
577	03.675 PIPE; AIR,EGR CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> (B)	8-97148-952-1	01	1	9811-0112			●
577	03.675 PIPE; AIR,EGR CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3>,EURO2 SPECIFICATION<7AF> (B)	8-97148-952-2	01	1	0201-			●
681	03.671 NUT; EGR PIPE TURBOCHARGER(K51) 07.633 M8 FLANGE	0-91150-108-0	02	1	9811-	●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91150-208-0	02	1	9811-0105		●
681	03.671 NUT; EGR PIPE CHARGE AIR COOLER<6PL> 03.613 M8 FLANGE	8-97061-401-1	02	1	9811-			●
704	03.337 COOLER ASM; EGR CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION<NT3>	8-97325-128-0	01	1	0201-0204			●
704	03.337 COOLER ASM; EGR EURO3 SPECIFICATION<NT3>	8-97325-128-0	01	1	0205-			●
709	03.670 BOLT; EGR COOLER CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION<NT3> M8X23 FLANGE	8-94103-629-2	02	1	0201-0204			●
709	03.670 BOLT; EGR COOLER EURO3 SPECIFICATION<NT3> M8X23 FLANGE	8-94103-629-2	02	1	0205-			●

414 73 255 303 73 194 198 271 198 73 73 73

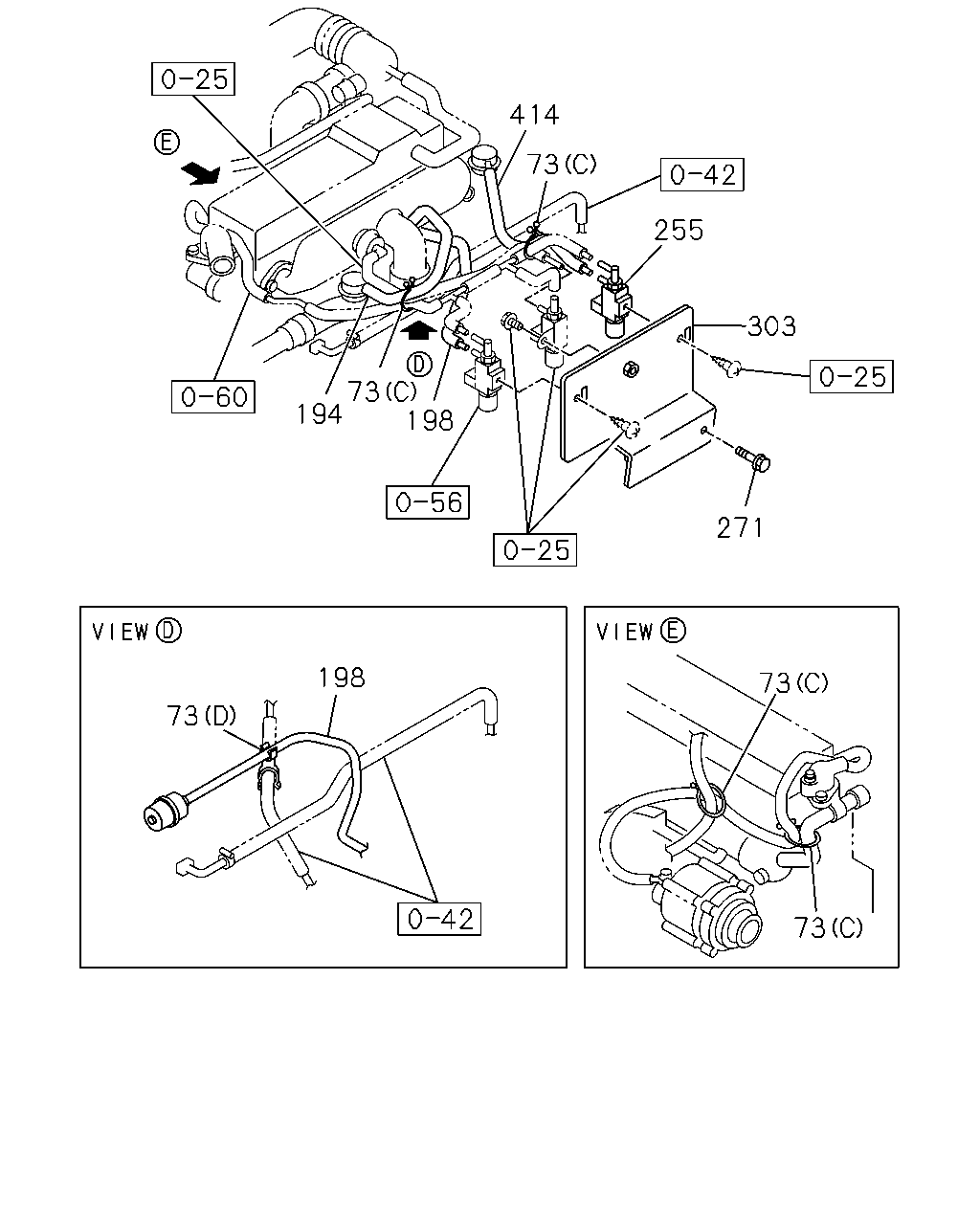

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
73	03.680 CLIP; VAC HOSE EXC. TURBOCHARGER(K51) 03.162 (A) ID=6.8X2	8-94126-636-0	01	1	9811-0101	●
73	03.680 CLIP; VAC HOSE 03.162 (A) ID=6.8X2	8-94126-636-0	01	1	9811-0101		●
73	03.680 CLIP; VAC HOSE AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 03.162 (A) ID=6.8X2	8-94126-636-0	01	1	9811-0101				●
73	03.680 CLIP; VAC HOSE EXHAUST BRAKE<NF8> EXC. TURBOCHARGER(K51) 03.162 (A) ID=6.8X2	8-94126-636-0	01	1	0102-	●
73	03.680 CLIP; VAC HOSE EXHAUST BRAKE<NF8> 03.162 (A) ID=6.8X2	8-94126-636-0	01	1	0102-		●
73	03.680 CLIP; VAC HOSE AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> 03.162 (A) ID=6.8X2	8-94126-636-0	01	1	0102-				●
73	03.680 CLIP; VAC HOSE 03.278 (C) ID=37	8-94481-468-0	01	1	9811-9812			●
73	03.680 CLIP; VAC HOSE 01.540 (C) ID=30	8-94315-423-0	03	1	9901-0105			●
73	03.680 CLIP; VAC HOSE 03.162 (D) ID=13.2 & 7.5	8-94315-426-0	01	1	9902-0105			●
73	03.680 CLIP; VAC HOSE 03.278 (C) ID=37	8-94481-468-0	01	1	9909-0105			●
73	03.680 CLIP; VAC HOSE EXC. AIR CONDITIONER MANUAL CONT(C60), CHARGE AIR COOLER<6PL> 03.162 (A) ID=6.8X2	8-94126-636-0	02	1	9811-0101				●
73	03.680 CLIP; VAC HOSE EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60), CHARGE AIR COOLER<6PL> 03.162 (A) ID=6.8X2	8-94126-636-0	02	1	0102-				●
73	03.680 CLIP; VAC HOSE CHARGE AIR COOLER<6PL> 02.559 (B) L=250	5-09707-030-1	02	1	9811-0101				●
73	03.680 CLIP; VAC HOSE CHARGE AIR COOLER<6PL> HEATER & DEFROSTER(C41) 02.559 (B) L=250	5-09707-030-1	02	1	0102-				●
73	03.680 CLIP; VAC HOSE CHARGE AIR COOLER<6PL> EXC. HEATER & DEFROSTER(C41) 03.162 (B) L=140	5-09707-031-1	03	1	0102-				●
194	03.675 HOSE; VAC	8-97208-495-0	01	1	9811-0105			●
198	03.675 HOSE; VAC,VSV 03.670	8-97208-487-0	01	1	9811-9901			●
198	03.675 HOSE; VAC,VSV L=300 SERVICED BY L=3000	0-04930-300-0	01	1	9902-0105			●
255	03.675 VALVE; VAC SW,EGR CONT	8-97171-030-0	01	1	9811-0105			●
271	03.675 BOLT; BRKT CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION<NT3> 00.002 M8X25 FLANGE	0-28690-825-0	02	1	0201-0204				●
271	03.675 BOLT; BRKT EURO3 SPECIFICATION<NT3> 00.002 M8X25 FLANGE	0-28690-825-0	02	1	0205-				●
271	03.675 BOLT; BRKT 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9811-			●
271	03.675 BOLT; BRKT CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 02.500 M6X10 FLANGE	0-28080-610-0	01	1	9811-				●
303	03.671 BRACKET; VAC SW	8-97205-844-1	01	1	9811-0105			●
414	03.675 HOSE; RUBBER,EGR VLV TO VSV	8-97194-944-0	01	1	9811-9812			●
414	03.675 HOSE; RUBBER,EGR VLV TO VSV	8-97224-049-0	01	1	9901-0006			●
414	03.675 HOSE; RUBBER,EGR VLV TO VSV	8-97259-489-0	01	1	0007-0105			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
