0-52 — OIL AND VACUUM PIPING; ENGINE (#17166) — 229 parça

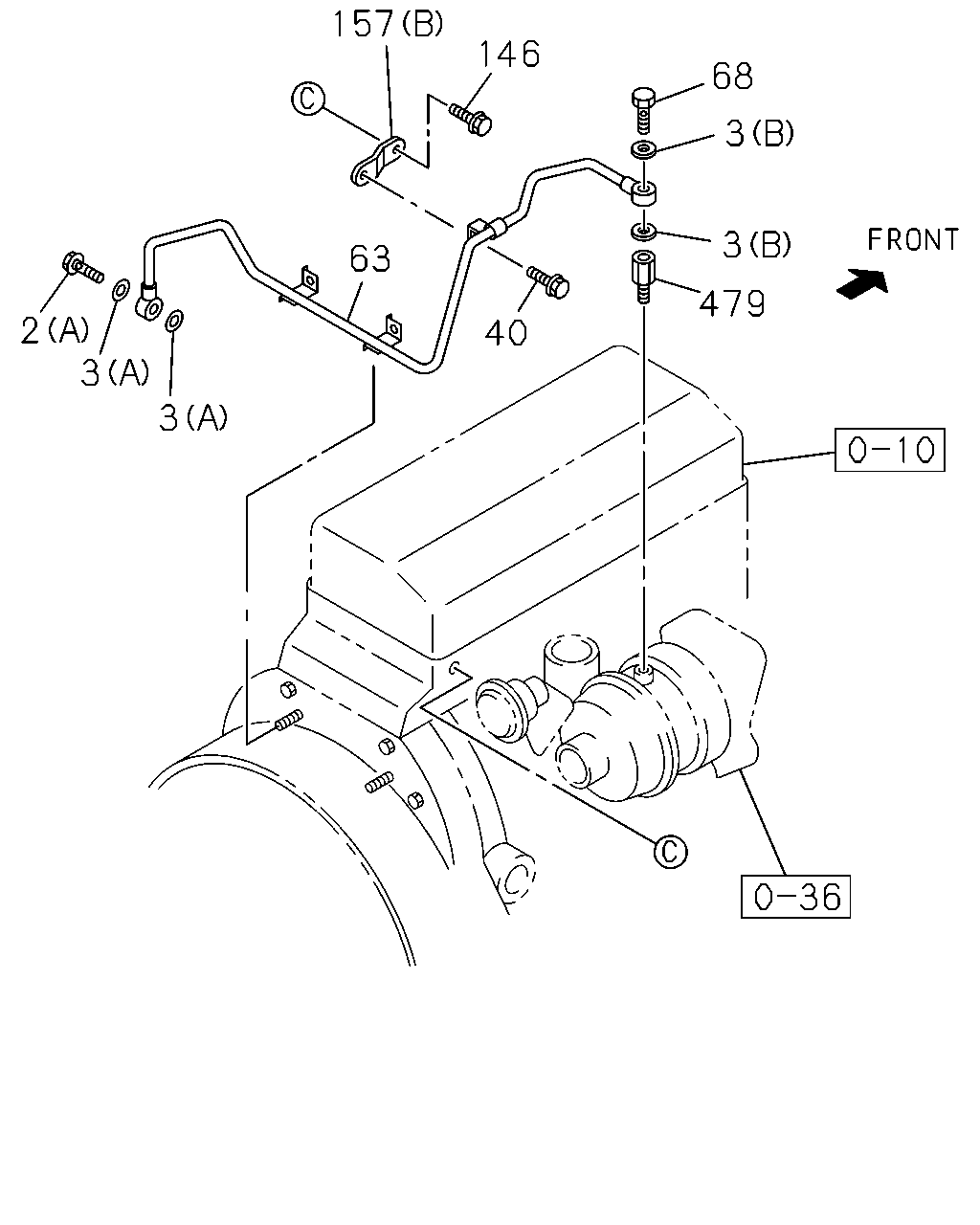

çizim 9871
157 146 68 3 3 63 479 2 3 40 3
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 01.531 BOLT; EYE,OIL PIPE
TURBOCHARGER(K51) (A) M10X40 FLANGE 		8-97182-847-0 01 1 9811- ●
2 01.531 BOLT; EYE,OIL PIPE
CHARGE AIR COOLER<6PL> (A) M10X40 FLANGE 		8-97182-847-0 01 1 9811- ●
2 01.531 BOLT; EYE,OIL PIPE
TURBOCHARGER(K51) 03.280 (B) M10X24 		9-09906-205-1 01 1 9811- ●
2 01.531 BOLT; EYE,OIL PIPE
03.280 (B) M10X24 		9-09906-205-1 01 1 9811- ●
2 01.531 BOLT; EYE,OIL PIPE
EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) (A),(B) M10X21 FLANGE 		1-09675-077-0 02 1 9811- ● ●
2 01.531 BOLT; EYE,OIL PIPE
03.358 M10X23 FLANGE 		8-94332-831-1 01 1 9811-0105 ●
2 01.531 BOLT; EYE,OIL PIPE
EXC. CHARGE AIR COOLER<6PL> (A) M10X36 		1-09675-183-0 01 1 9811- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER(K51) (A) ID=10.2 OD=15.2 		1-09630-083-0 05 1 0208- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> (A) ID=10.2 OD=15.2 		1-09630-083-0 05 1 0208- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER(K51) (A) ID=10.2 OD=15.2 		1-09630-083-0 05 1 9811-0207 ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> (A) ID=10.2 OD=15.2 		1-09630-083-0 05 1 9811-0207 ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). M/T MZZ6U(RSF) EXC. CHARGE AIR COOLER<6PL> (A) ID=10.2 OD=15.2 		1-09630-083-0 06 1 0208- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER(K51) 08.955 (B) ID=12.2 		9-09571-412-0 02 1 9811- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> 08.955 (B) ID=12.2 		9-09571-412-0 02 1 9811- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) (A) ID=10.2 OD=15.2 		1-09630-083-0 04 1 9811- ● ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> (A) ID=10.2 OD=15.2 		1-09630-083-0 04 1 9811- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0 		9-09571-414-0 02 1 9811-0105 ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> (A) ID=10.2 OD=15.2 		1-09630-083-0 02 1 9811- ●
40 01.531 BOLT; OIL PIPE
TURBOCHARGER(K51) 01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9811- ●
40 01.531 BOLT; OIL PIPE
02.500 M6X10 FLANGE 		0-28080-610-0 01 1 9811-0105 ●
40 01.531 BOLT; OIL PIPE
CHARGE AIR COOLER<6PL> 03.604 M10X16 FLANGE 		0-28181-016-0 02 1 9811- ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION<NT3> 		8-97260-199-1 01 1 0201- ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
TURBOCHARGER(K51) 		8-97210-076-3 01 1 9811-9907 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
TURBOCHARGER(K51) 		8-97232-015-0 01 1 9908-0204 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
TURBOCHARGER(K51) 		8-97349-474-0 01 1 0205- ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-97204-198-0 01 1 9811-9812 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-97224-297-0 01 1 9901-0105 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
CHARGE AIR COOLER<6PL> 		8-97214-394-0 01 1 9811-0112 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3> 		8-97214-394-0 01 1 0201- ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
EXC. CHARGE AIR COOLER<6PL> 		8-97182-990-0 01 1 9811-9907 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
EXC. CHARGE AIR COOLER<6PL> 		8-97229-042-0 01 1 9908- ●
68 01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER
TURBOCHARGER(K51) M12X28 FLANGE 		8-97166-518-0 01 1 9811- ●
68 01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER
CHARGE AIR COOLER<6PL> M12X28 FLANGE 		8-97166-518-0 01 1 9811- ●
68 01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER
EXC. CHARGE AIR COOLER<6PL> M10X26 		8-97081-817-0 01 1 9811- ●
146 01.531 BOLT; BRKT
TURBOCHARGER(K51) 01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9811- ●
157 01.519 BRACKET; OIL PIPE
TURBOCHARGER(K51) (B) 		8-97181-586-0 01 1 9811-0207 ●
157 01.519 BRACKET; OIL PIPE
CHARGE AIR COOLER<6PL> (B) 		8-97181-586-0 01 1 9811-0207 ●
157 01.519 BRACKET; OIL PIPE
TURBOCHARGER(K51) (B) 		8-97181-586-0 01 1 0208- ●
157 01.519 BRACKET; OIL PIPE
CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3> (B) 		8-97181-586-0 01 1 0208- ●
157 01.519 BRACKET; OIL PIPE
EXC. TURBOCHARGER(K51),POWER STEERING<N40> (A) 		8-97209-355-0 01 1 9811-0006 ●
157 01.519 BRACKET; OIL PIPE
EXC. POWER STEERING<N40> (A) 		8-97209-355-0 01 1 9811-0006 ●
479 01.531 ADAPTER
TURBOCHARGER(K51) 01.800 		8-94436-891-0 01 1 9811- ●
479 01.531 ADAPTER
CHARGE AIR COOLER<6PL> 01.800 		8-94436-891-0 01 1 9811- ●
çizim 47543
3 3 2 63 3 3 2 472 480 1 3 3 1 3 3 2 472 480 2 63 3 3 3 1 3 3 2 2
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 01.519 PIPE; OIL,INJ PUMP TO C/BL
TURBOCHARGER(K51) 		8-97200-615-2 01 1 9811- ●
1 01.519 PIPE; OIL,INJ PUMP TO C/BL
EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		8-97093-547-1 01 1 9811- ● ●
1 01.519 PIPE; OIL,INJ PUMP TO C/BL
CHARGE AIR COOLER<6PL> 		8-97148-923-3 01 1 9811-0104 ●
1 01.519 PIPE; OIL,INJ PUMP TO C/BL
CHARGE AIR COOLER<6PL> 		8-97314-008-0 01 1 0105- ●
1 01.519 PIPE; OIL,INJ PUMP TO C/BL
EXC. CHARGE AIR COOLER<6PL> 		8-97074-790-2 01 1 9811- ●
2 01.531 BOLT; EYE,OIL PIPE
TURBOCHARGER(K51) (A) M10X40 FLANGE 		8-97182-847-0 01 1 9811- ●
2 01.531 BOLT; EYE,OIL PIPE
CHARGE AIR COOLER<6PL> (A) M10X40 FLANGE 		8-97182-847-0 01 1 9811- ●
2 01.531 BOLT; EYE,OIL PIPE
TURBOCHARGER(K51) 03.280 (B) M10X24 		9-09906-205-1 01 1 9811- ●
2 01.531 BOLT; EYE,OIL PIPE
03.280 (B) M10X24 		9-09906-205-1 01 1 9811- ●
2 01.531 BOLT; EYE,OIL PIPE
EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) (A),(B) M10X21 FLANGE 		1-09675-077-0 02 1 9811- ● ●
2 01.531 BOLT; EYE,OIL PIPE
03.358 M10X23 FLANGE 		8-94332-831-1 01 1 9811-0105 ●
2 01.531 BOLT; EYE,OIL PIPE
EXC. CHARGE AIR COOLER<6PL> (A) M10X36 		1-09675-183-0 01 1 9811- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER(K51) (A) ID=10.2 OD=15.2 		1-09630-083-0 05 1 0208- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> (A) ID=10.2 OD=15.2 		1-09630-083-0 05 1 0208- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER(K51) (A) ID=10.2 OD=15.2 		1-09630-083-0 05 1 9811-0207 ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> (A) ID=10.2 OD=15.2 		1-09630-083-0 05 1 9811-0207 ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). M/T MZZ6U(RSF) EXC. CHARGE AIR COOLER<6PL> (A) ID=10.2 OD=15.2 		1-09630-083-0 06 1 0208- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER(K51) 08.955 (B) ID=12.2 		9-09571-412-0 02 1 9811- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> 08.955 (B) ID=12.2 		9-09571-412-0 02 1 9811- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) (A) ID=10.2 OD=15.2 		1-09630-083-0 04 1 9811- ● ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> (A) ID=10.2 OD=15.2 		1-09630-083-0 04 1 9811- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0 		9-09571-414-0 02 1 9811-0105 ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> (A) ID=10.2 OD=15.2 		1-09630-083-0 02 1 9811- ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION<NT3> 		8-97260-199-1 01 1 0201- ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
TURBOCHARGER(K51) 		8-97210-076-3 01 1 9811-9907 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
TURBOCHARGER(K51) 		8-97232-015-0 01 1 9908-0204 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
TURBOCHARGER(K51) 		8-97349-474-0 01 1 0205- ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-97204-198-0 01 1 9811-9812 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-97224-297-0 01 1 9901-0105 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
CHARGE AIR COOLER<6PL> 		8-97214-394-0 01 1 9811-0112 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3> 		8-97214-394-0 01 1 0201- ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
EXC. CHARGE AIR COOLER<6PL> 		8-97182-990-0 01 1 9811-9907 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
EXC. CHARGE AIR COOLER<6PL> 		8-97229-042-0 01 1 9908- ●
472 01.519 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ENGINE POWER N-SPEC(7QV) 01.531 ID=10.2 OD=15.2 		1-09630-083-0 02 1 9811-0003 ●
480 01.519 PLUG; OIL FILTER
ENGINE POWER N-SPEC(7QV) 08.971 M10X7 		9-09202-310-0 02 1 9811-9901 ●
480 01.519 PLUG; OIL FILTER
ENGINE POWER N-SPEC(7QV) M10X10 		1-09604-074-0 02 1 9902-0003 ●

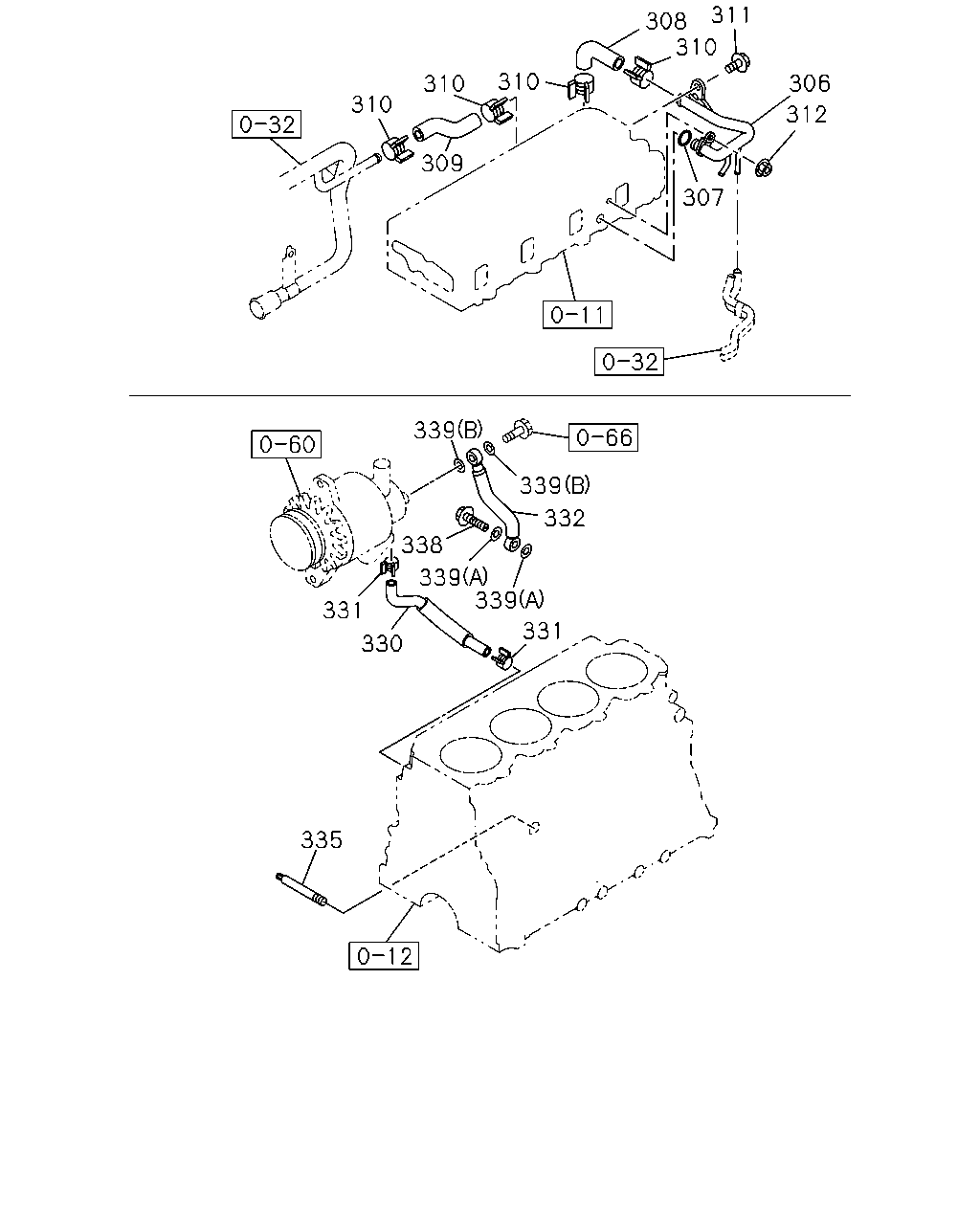

çizim 47828
311 308 310 310 306 310 310 312 309 307 339 339 332 338 339 339 331 331 330 335
BalonParca AdiParca NoAdetTipApplied Date A B C D
306 01.519 PIPE ASM; CYL HD TO OIL COOLER 8-97176-316-0 01 1 9811-9901 ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER 8-97225-604-0 01 1 9902-0105 ●
307 01.531 GASKET; WATER PIPE 8-97124-640-0 01 1 9811-0105 ●
308 01.540 HOSE; OIL COOLER FEED 8-94174-464-0 01 1 9811-0105 ●
309 01.540 HOSE; OIL COOLER RETURN 8-97176-138-0 01 1 9811-9812 ●
309 01.540 HOSE; OIL COOLER RETURN 8-97224-318-0 01 1 9901-0105 ●
310 01.540 CLIP; WATER HOSE FIX
01.166 ID=20.8 		8-94125-862-1 04 1 9811-0105 ●
311 01.531 BOLT; PIPE FIX
00.662 M8X14 FLANGE 		0-28080-814-0 01 1 9811-0105 ●
312 01.531 NUT; PIPE FIX
00.854 M8 FLANGE 		5-09440-005-0 01 1 9811-0105 ●
330 03.278 HOSE; VAC PUMP,RETURN 8-97073-920-1 01 1 9811-0105 ●
331 03.278 CLAMP; VAC HOSE,PUMP RETURN 8-97108-102-0 02 1 9811-0105 ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP 8-94443-644-1 01 1 9811-0105 ●
335 01.531 STOPPER; OIL PIPE 8-97203-568-0 01 1 9811-0105 ●
338 01.531 BOLT; JOINT,OIL PIPE
M8X20 EYE-BOLT 		5-09675-018-1 01 1 9811-0105 ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 02 1 9811-0105 ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 9811-0105 ●

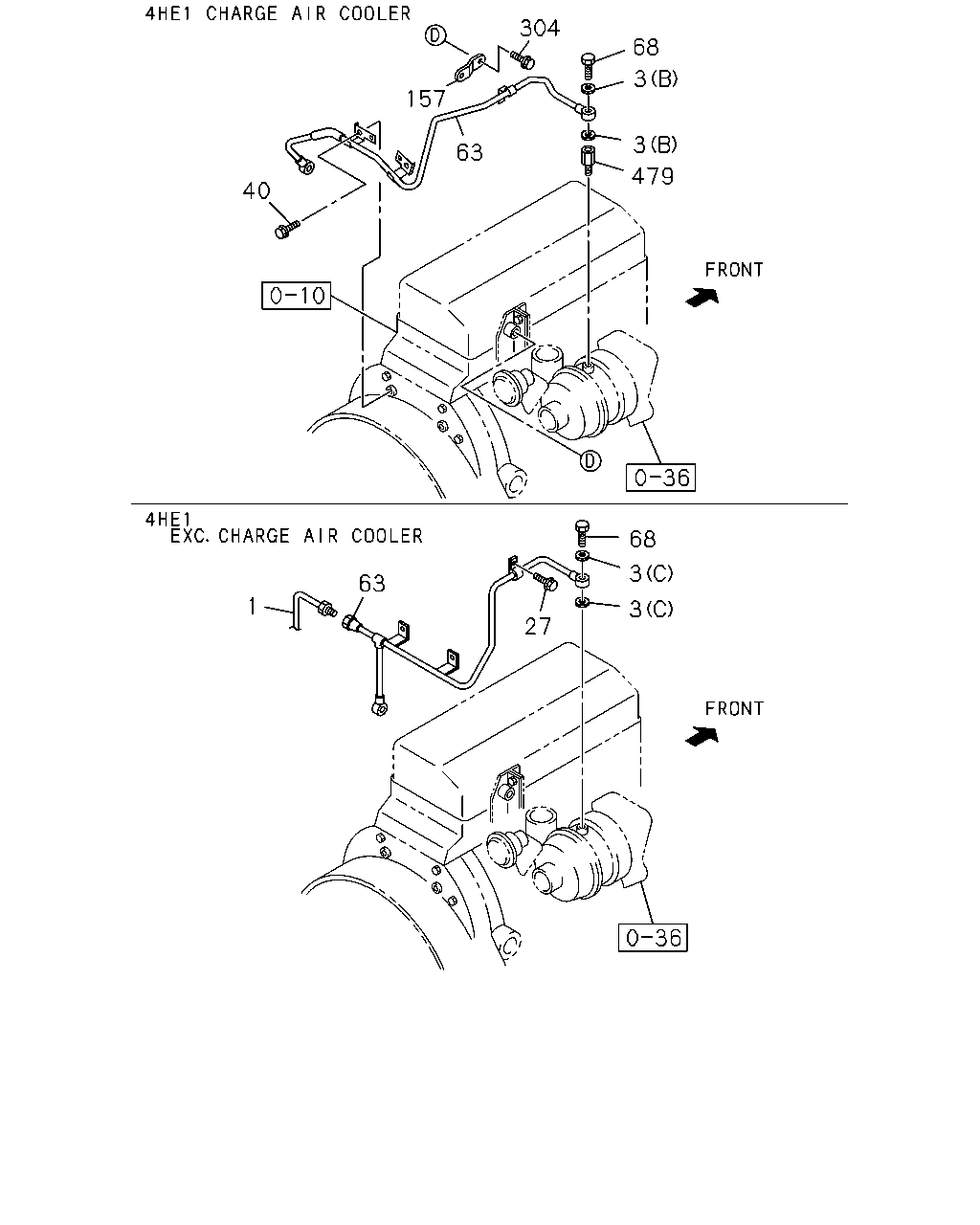

çizim 48112
304 68 3 157 3 63 479 40 68 3 63 1 3 27
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 01.519 PIPE; OIL,INJ PUMP TO C/BL
TURBOCHARGER(K51) 		8-97200-615-2 01 1 9811- ●
1 01.519 PIPE; OIL,INJ PUMP TO C/BL
EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		8-97093-547-1 01 1 9811- ● ●
1 01.519 PIPE; OIL,INJ PUMP TO C/BL
CHARGE AIR COOLER<6PL> 		8-97148-923-3 01 1 9811-0104 ●
1 01.519 PIPE; OIL,INJ PUMP TO C/BL
CHARGE AIR COOLER<6PL> 		8-97314-008-0 01 1 0105- ●
1 01.519 PIPE; OIL,INJ PUMP TO C/BL
EXC. CHARGE AIR COOLER<6PL> 		8-97074-790-2 01 1 9811- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER(K51) (A) ID=10.2 OD=15.2 		1-09630-083-0 05 1 0208- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> (A) ID=10.2 OD=15.2 		1-09630-083-0 05 1 0208- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER(K51) (A) ID=10.2 OD=15.2 		1-09630-083-0 05 1 9811-0207 ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> (A) ID=10.2 OD=15.2 		1-09630-083-0 05 1 9811-0207 ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). M/T MZZ6U(RSF) EXC. CHARGE AIR COOLER<6PL> (A) ID=10.2 OD=15.2 		1-09630-083-0 06 1 0208- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER(K51) 08.955 (B) ID=12.2 		9-09571-412-0 02 1 9811- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> 08.955 (B) ID=12.2 		9-09571-412-0 02 1 9811- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) (A) ID=10.2 OD=15.2 		1-09630-083-0 04 1 9811- ● ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> (A) ID=10.2 OD=15.2 		1-09630-083-0 04 1 9811- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0 		9-09571-414-0 02 1 9811-0105 ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> (A) ID=10.2 OD=15.2 		1-09630-083-0 02 1 9811- ●
27 01.531 BOLT; OIL PIPE FIX
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9811- ● ●
27 01.531 BOLT; OIL PIPE FIX
CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9811- ●
27 01.531 BOLT; OIL PIPE FIX
TURBOCHARGER(K51) M8X12,M10X20 L=42 		8-97118-911-0 01 1 9811-0002 ● ●
27 01.531 BOLT; OIL PIPE FIX
EXC. CHARGE AIR COOLER<6PL> 03.415 M8X35 FLANGE 		0-28080-835-0 01 1 9811- ●
40 01.531 BOLT; OIL PIPE
TURBOCHARGER(K51) 01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9811- ●
40 01.531 BOLT; OIL PIPE
02.500 M6X10 FLANGE 		0-28080-610-0 01 1 9811-0105 ●
40 01.531 BOLT; OIL PIPE
CHARGE AIR COOLER<6PL> 03.604 M10X16 FLANGE 		0-28181-016-0 02 1 9811- ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION<NT3> 		8-97260-199-1 01 1 0201- ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
TURBOCHARGER(K51) 		8-97210-076-3 01 1 9811-9907 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
TURBOCHARGER(K51) 		8-97232-015-0 01 1 9908-0204 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
TURBOCHARGER(K51) 		8-97349-474-0 01 1 0205- ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-97204-198-0 01 1 9811-9812 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-97224-297-0 01 1 9901-0105 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
CHARGE AIR COOLER<6PL> 		8-97214-394-0 01 1 9811-0112 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3> 		8-97214-394-0 01 1 0201- ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
EXC. CHARGE AIR COOLER<6PL> 		8-97182-990-0 01 1 9811-9907 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
EXC. CHARGE AIR COOLER<6PL> 		8-97229-042-0 01 1 9908- ●
68 01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER
TURBOCHARGER(K51) M12X28 FLANGE 		8-97166-518-0 01 1 9811- ●
68 01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER
CHARGE AIR COOLER<6PL> M12X28 FLANGE 		8-97166-518-0 01 1 9811- ●
68 01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER
EXC. CHARGE AIR COOLER<6PL> M10X26 		8-97081-817-0 01 1 9811- ●
157 01.519 BRACKET; OIL PIPE
TURBOCHARGER(K51) (B) 		8-97181-586-0 01 1 9811-0207 ●
157 01.519 BRACKET; OIL PIPE
CHARGE AIR COOLER<6PL> (B) 		8-97181-586-0 01 1 9811-0207 ●
157 01.519 BRACKET; OIL PIPE
TURBOCHARGER(K51) (B) 		8-97181-586-0 01 1 0208- ●
157 01.519 BRACKET; OIL PIPE
CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3> (B) 		8-97181-586-0 01 1 0208- ●
157 01.519 BRACKET; OIL PIPE
EXC. TURBOCHARGER(K51),POWER STEERING<N40> (A) 		8-97209-355-0 01 1 9811-0006 ●
157 01.519 BRACKET; OIL PIPE
EXC. POWER STEERING<N40> (A) 		8-97209-355-0 01 1 9811-0006 ●
304 01.540 BOLT; BRKT,OIL PIPE
CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9811-0112 ●
304 01.540 BOLT; BRKT,OIL PIPE
CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3> 01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0201- ●
479 01.531 ADAPTER
TURBOCHARGER(K51) 01.800 		8-94436-891-0 01 1 9811- ●
479 01.531 ADAPTER
CHARGE AIR COOLER<6PL> 01.800 		8-94436-891-0 01 1 9811- ●
çizim 48521
89 86 89 340 202 202 202 65 202 65 202 202 83 83 53 27 157 202 65 27 202 65
BalonParca AdiParca NoAdetTipApplied Date A B C D
27 01.531 BOLT; OIL PIPE FIX
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9811- ● ●
27 01.531 BOLT; OIL PIPE FIX
CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9811- ●
27 01.531 BOLT; OIL PIPE FIX
TURBOCHARGER(K51) M8X12,M10X20 L=42 		8-97118-911-0 01 1 9811-0002 ● ●
27 01.531 BOLT; OIL PIPE FIX
EXC. CHARGE AIR COOLER<6PL> 03.415 M8X35 FLANGE 		0-28080-835-0 01 1 9811- ●
53 01.531 NUT; OIL PIPE
07.633 M8 FLANGE 		0-91150-108-0 01 1 9811-0002 ● ●
65 01.531 BOLT; JOINT,OIL PIPE
(A) M10X21 FLANGE 		1-09675-078-0 01 1 9811- ● ● ●
65 01.531 BOLT; JOINT,OIL PIPE
03.162 (B) M14X27 FLANGE 		1-09675-086-0 01 1 9811- ● ● ●
83 01.519 PIPE; OIL,C/BL TO VAC PUMP
TURBOCHARGER(K51) 		8-97210-859-0 01 1 9811-9910 ●
83 01.519 PIPE; OIL,C/BL TO VAC PUMP 8-97228-670-0 01 1 9911- ● ●
83 01.519 PIPE; OIL,C/BL TO VAC PUMP
EXC. TURBOCHARGER(K51) 		8-97139-538-0 01 1 9811-9910 ● ●
83 01.519 PIPE; OIL,C/BL TO VAC PUMP 8-97029-287-1 01 1 9811-0109 ●
83 01.519 PIPE; OIL,C/BL TO VAC PUMP 8-97228-671-0 01 1 0110- ●
86 01.519 PIPE; OIL,VAC PUMP RETURN
01.430 		8-94455-311-1 01 1 9811- ● ● ●
89 04.681 CLIP; VAC HOSE
03.280 ID=17.1 		8-94122-679-0 01 1 9811-0002 ● ● ●
89 04.681 CLIP; VAC HOSE
03.280 ID=17.1 		8-94122-679-0 01 1 9811-0002 ● ● ●
89 04.681 CLIP; VAC HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 03.280 ID=17.1 		8-94122-679-0 01 1 0003-0004 ●
89 04.681 CLIP; VAC HOSE
TURBOCHARGER(K51) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) EXC. HIGH ALTITUDE COMPENSATOR(EE2) 03.280 ID=17.1 		8-94122-679-0 01 1 0003-0004 ●
89 04.681 CLIP; VAC HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) EXC. ENGINE POWER N-SPEC(7QV) 03.280 ID=17.1 		8-94122-679-0 01 1 0003-0004 ●
89 04.681 CLIP; VAC HOSE
CHARGE AIR COOLER<6PL> 03.280 ID=17.1 		8-94122-679-0 01 1 0003-0004 ●
89 04.681 CLIP; VAC HOSE
03.280 ID=17.1 		8-94122-679-0 01 1 0005- ● ● ●
89 04.681 CLIP; VAC HOSE
03.280 ID=17.1 		8-94122-679-0 01 1 0005- ● ● ●
157 01.519 BRACKET; OIL PIPE
TURBOCHARGER(K51) (B) 		8-97181-586-0 01 1 9811-0207 ●
157 01.519 BRACKET; OIL PIPE
CHARGE AIR COOLER<6PL> (B) 		8-97181-586-0 01 1 9811-0207 ●
157 01.519 BRACKET; OIL PIPE
TURBOCHARGER(K51) (B) 		8-97181-586-0 01 1 0208- ●
157 01.519 BRACKET; OIL PIPE
CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3> (B) 		8-97181-586-0 01 1 0208- ●
157 01.519 BRACKET; OIL PIPE
EXC. TURBOCHARGER(K51),POWER STEERING<N40> (A) 		8-97209-355-0 01 1 9811-0006 ●
157 01.519 BRACKET; OIL PIPE
EXC. POWER STEERING<N40> (A) 		8-97209-355-0 01 1 9811-0006 ●
202 01.531 GASKET; OIL PIPE
(A) ID=10.2 OD=15.2 		1-09630-083-0 02 1 9811- ● ● ●
202 01.531 GASKET; OIL PIPE
03.163 (B) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9811- ● ● ●
340 03.280 HOSE; VAC PUMP,RETURN
04.681 		8-94339-073-3 01 1 9811- ● ● ●

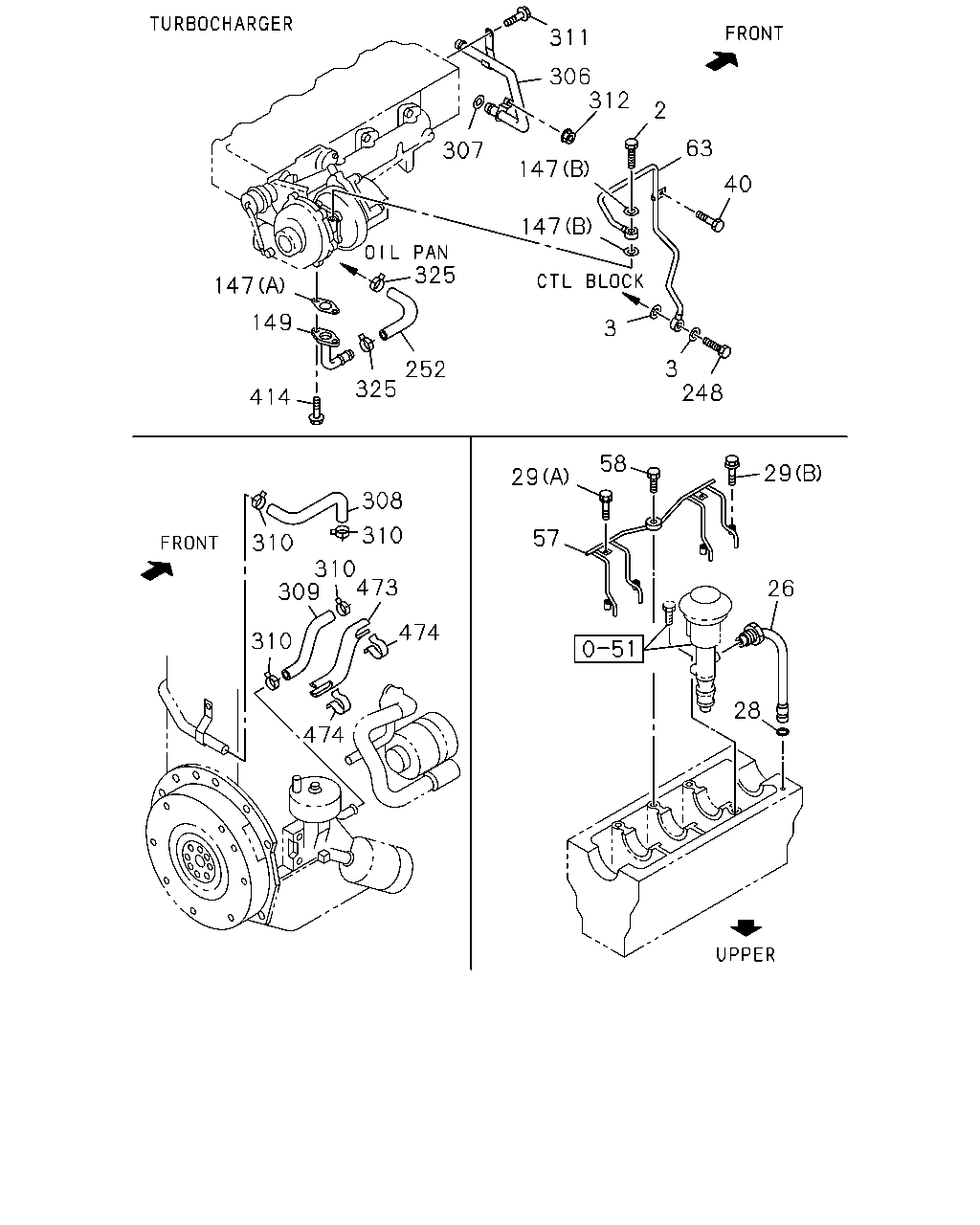

çizim 49236
311 306 312 2 63 307 147 40 147 325 147 149 3 3 248 252 325 414 58 29 29 308 310 57 310 310 309 473 26 474 310 28 474
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 01.531 BOLT; EYE,OIL PIPE
TURBOCHARGER(K51) (A) M10X40 FLANGE 		8-97182-847-0 01 1 9811- ●
2 01.531 BOLT; EYE,OIL PIPE
CHARGE AIR COOLER<6PL> (A) M10X40 FLANGE 		8-97182-847-0 01 1 9811- ●
2 01.531 BOLT; EYE,OIL PIPE
TURBOCHARGER(K51) 03.280 (B) M10X24 		9-09906-205-1 01 1 9811- ●
2 01.531 BOLT; EYE,OIL PIPE
03.280 (B) M10X24 		9-09906-205-1 01 1 9811- ●
2 01.531 BOLT; EYE,OIL PIPE
EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) (A),(B) M10X21 FLANGE 		1-09675-077-0 02 1 9811- ● ●
2 01.531 BOLT; EYE,OIL PIPE
03.358 M10X23 FLANGE 		8-94332-831-1 01 1 9811-0105 ●
2 01.531 BOLT; EYE,OIL PIPE
EXC. CHARGE AIR COOLER<6PL> (A) M10X36 		1-09675-183-0 01 1 9811- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER(K51) (A) ID=10.2 OD=15.2 		1-09630-083-0 05 1 0208- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> (A) ID=10.2 OD=15.2 		1-09630-083-0 05 1 0208- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER(K51) (A) ID=10.2 OD=15.2 		1-09630-083-0 05 1 9811-0207 ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> (A) ID=10.2 OD=15.2 		1-09630-083-0 05 1 9811-0207 ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). M/T MZZ6U(RSF) EXC. CHARGE AIR COOLER<6PL> (A) ID=10.2 OD=15.2 		1-09630-083-0 06 1 0208- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER(K51) 08.955 (B) ID=12.2 		9-09571-412-0 02 1 9811- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> 08.955 (B) ID=12.2 		9-09571-412-0 02 1 9811- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) (A) ID=10.2 OD=15.2 		1-09630-083-0 04 1 9811- ● ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> (A) ID=10.2 OD=15.2 		1-09630-083-0 04 1 9811- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0 		9-09571-414-0 02 1 9811-0105 ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> (A) ID=10.2 OD=15.2 		1-09630-083-0 02 1 9811- ●
26 01.519 PIPE; OIL,PUMP TO C/BL 8-97080-301-0 01 1 9811-0105 ●
28 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 01.516 ID=11 		5-09623-002-0 02 1 9811-0105 ●
29 01.531 BOLT; OIL PIPE,OIL JET
00.206 (A) M8X12 W/LK WASHER 		0-50040-812-0 02 1 9811-9812 ●
29 01.531 BOLT; OIL PIPE,OIL JET
00.206 (A) M8X10 FLANGE 		0-28080-810-0 02 1 9901-0105 ●
29 01.531 BOLT; OIL PIPE,OIL JET
01.540 (B) M6X25 W/LK&PL WASHER 		0-50140-625-0 04 1 9811-0105 ●
40 01.531 BOLT; OIL PIPE
TURBOCHARGER(K51) 01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9811- ●
40 01.531 BOLT; OIL PIPE
02.500 M6X10 FLANGE 		0-28080-610-0 01 1 9811-0105 ●
40 01.531 BOLT; OIL PIPE
CHARGE AIR COOLER<6PL> 03.604 M10X16 FLANGE 		0-28181-016-0 02 1 9811- ●
57 01.519 PIPE; OIL,OIL JET 8-94469-709-2 01 1 9811-0105 ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO 8-97145-612-0 01 1 9811-0104 ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO
01.639 		8-97311-976-0 01 1 0105-0105 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION<NT3> 		8-97260-199-1 01 1 0201- ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
TURBOCHARGER(K51) 		8-97210-076-3 01 1 9811-9907 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
TURBOCHARGER(K51) 		8-97232-015-0 01 1 9908-0204 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
TURBOCHARGER(K51) 		8-97349-474-0 01 1 0205- ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-97204-198-0 01 1 9811-9812 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-97224-297-0 01 1 9901-0105 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
CHARGE AIR COOLER<6PL> 		8-97214-394-0 01 1 9811-0112 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3> 		8-97214-394-0 01 1 0201- ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
EXC. CHARGE AIR COOLER<6PL> 		8-97182-990-0 01 1 9811-9907 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
EXC. CHARGE AIR COOLER<6PL> 		8-97229-042-0 01 1 9908- ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). 03.358 (A) 		8-94362-672-0 01 1 9811-0105 ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 9811-0105 ●
149 01.519 PIPE; OIL RETURN,TURBOCHARGER 8-97192-313-0 01 1 9811-0105 ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
03.162 M14X27 FLANGE 		1-09675-086-0 01 1 9811-0105 ●
252 01.855 HOSE; RUBBER,TURBOCHARGER RETURN 8-97176-141-0 01 1 9811-0105 ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER 8-97176-316-0 01 1 9811-9901 ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER 8-97225-604-0 01 1 9902-0105 ●
307 01.531 GASKET; WATER PIPE 8-97124-640-0 01 1 9811-0105 ●
308 01.540 HOSE; OIL COOLER FEED 8-94174-464-0 01 1 9811-0105 ●
309 01.540 HOSE; OIL COOLER RETURN 8-97176-138-0 01 1 9811-9812 ●
309 01.540 HOSE; OIL COOLER RETURN 8-97224-318-0 01 1 9901-0105 ●
310 01.540 CLIP; WATER HOSE FIX
01.166 ID=20.8 		8-94125-862-1 04 1 9811-0105 ●
311 01.531 BOLT; PIPE FIX
00.662 M8X14 FLANGE 		0-28080-814-0 01 1 9811-0105 ●
312 01.531 NUT; PIPE FIX
00.854 M8 FLANGE 		5-09440-005-0 01 1 9811-0105 ●
325 01.519 CLIP; RUBBER HOSE,OIL RETURN
06.672 ID=21 		8-94242-034-0 02 1 9811-9901 ●
325 01.519 CLIP; RUBBER HOSE,OIL RETURN
01.166 ID=20.8 		8-94125-862-1 02 1 9902-0105 ●
414 01.531 BOLT; OIL PIPE
02.559 M6X20 W/LK&PL WASHER 		0-50140-620-0 02 1 9811-0105 ●
473 01.540 INSULATOR; HOSE 8-97101-331-0 02 1 9811-0105 ●
474 01.540 CLIP; INSULATOR 8-97101-337-0 04 1 9811-0105 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
