◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50815 - NPR/NQR-LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-51 - OIL PUMP AND OIL STRAINER ▶
0-51 — OIL PUMP AND OIL STRAINER (#17165) — 54 parça

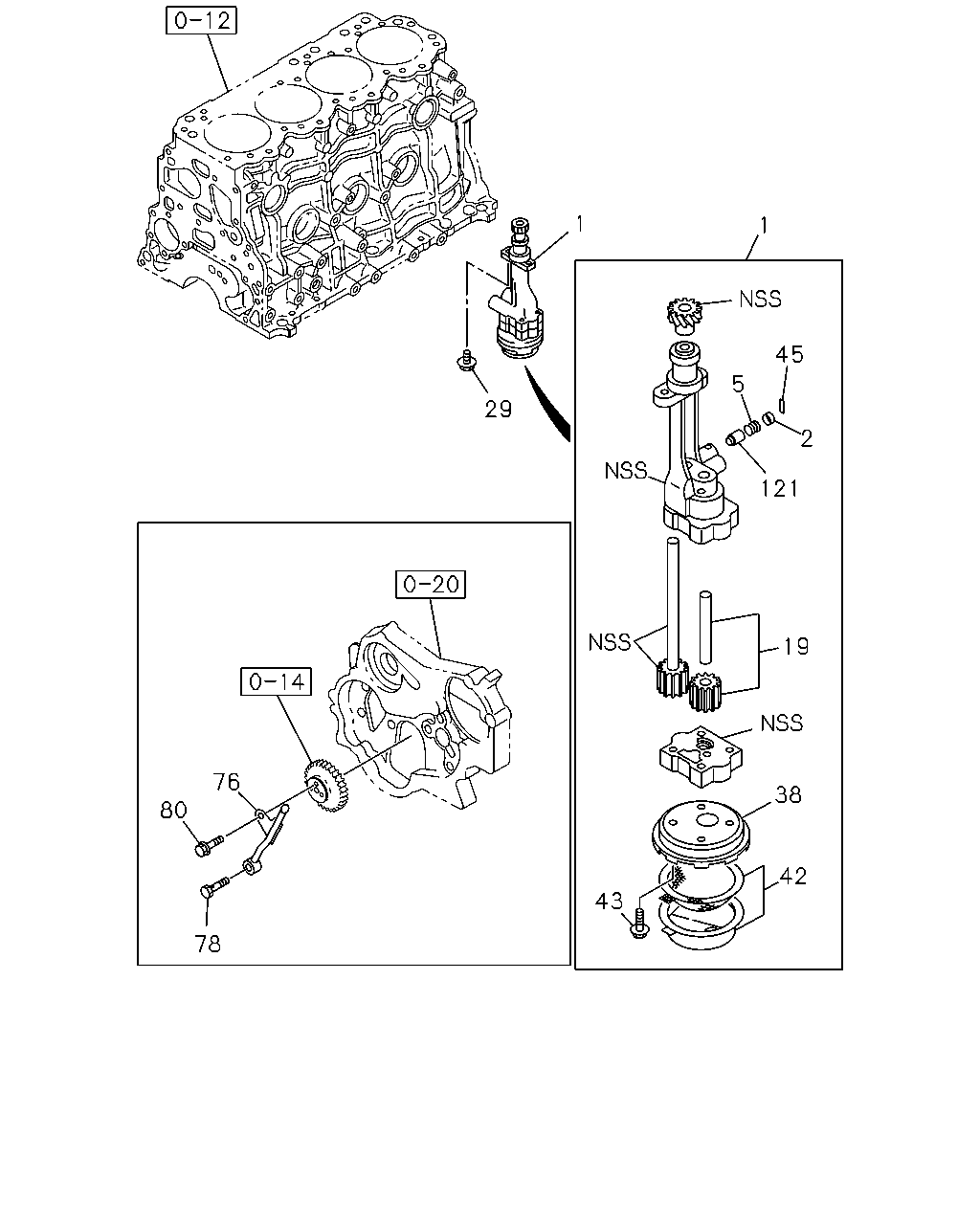

çizim 46385
1 1 45 5 29 2 121 19 76 38 80 42 43 78
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 01.652 PUMP ASM; OIL 8-97147-338-2 01 1 9811- ● ●
1 01.652 PUMP ASM; OIL 8-97033-175-3 01 1 9811-0105 ●
1 01.652 PUMP ASM; OIL 8-97075-283-2 01 1 9811- ●
2 01.609 SEAT; SPR 5-13165-004-0 01 1 9811-0105 ● ● ● ●
2 01.609 SEAT; SPR 5-13165-004-0 01 1 0106-0112 ● ● ●
5 01.609 SPRING; COIL 8-97147-503-0 01 1 9811-0112 ● ●
5 01.609 SPRING; COIL 8-97036-834-0 01 1 9811-0105 ●
5 01.609 SPRING; COIL 5-09580-098-0 01 1 9811-0112 ●
5 01.609 SPRING; COIL 5-09580-098-0 01 1 0201- ● ● ●
19 01.639 GEAR SET; OIL PUMP 8-94384-778-1 01 1 9811-0105 ●
29 01.652 BOLT; OIL PUMP
08.155 M8X25 FLANGE 		0-28090-825-0 02 1 9811- ● ● ●
29 01.652 BOLT; OIL PUMP
07.632 M8X30 FLANGE 		0-28090-830-0 02 1 9811- ● ● ●
29 01.652 BOLT; OIL PUMP
01.531 M8X25 FLANGE 		0-28080-825-0 02 1 9811-0105 ●
38 01.657 CASE; OIL STRAINER 8-97147-505-0 01 1 9811- ● ●
38 01.657 CASE; OIL STRAINER 8-97133-330-0 01 1 9811- ●
38 01.657 CASE; OIL STRAINER 8-97036-832-0 01 1 9811- ●
42 01.656 STRAINER; OIL,OIL PUMP 8-97182-909-0 01 1 9811-9905 ● ● ●
42 01.656 STRAINER; OIL,OIL PUMP 8-97230-894-0 01 1 9906- ● ● ●
42 01.656 STRAINER; OIL,OIL PUMP 8-97038-379-0 01 1 9811- ●
43 01.656 BOLT; CASE
04.866 M8X30 FLANGE 		0-28010-830-0 04 1 9811- ●
45 01.609 PIN; SPLIT,RELIEF VLV
06.022 L=30 		9-08104-030-0 01 1 9811-0105 ●
76 01.519 PIPE ASM; OIL 8-97160-706-0 01 1 9811-0105 ●
78 01.531 BOLT; EYE JOINT,OIL PIPE
M8X23 FLANGE 		8-94454-199-0 01 1 9811-0105 ●
80 01.531 BOLT; OIL PIPE FIX
00.727 M8X22 W/LK WASHER 		0-50040-822-0 01 1 9811-0105 ●
121 01.639 VALVE; RELIEF,OIL PUMP
01.837 		8-94235-567-1 01 1 9811-0105 ● ● ●
121 01.639 VALVE; RELIEF,OIL PUMP
01.837 		8-94235-567-1 01 1 0106-0112 ● ●

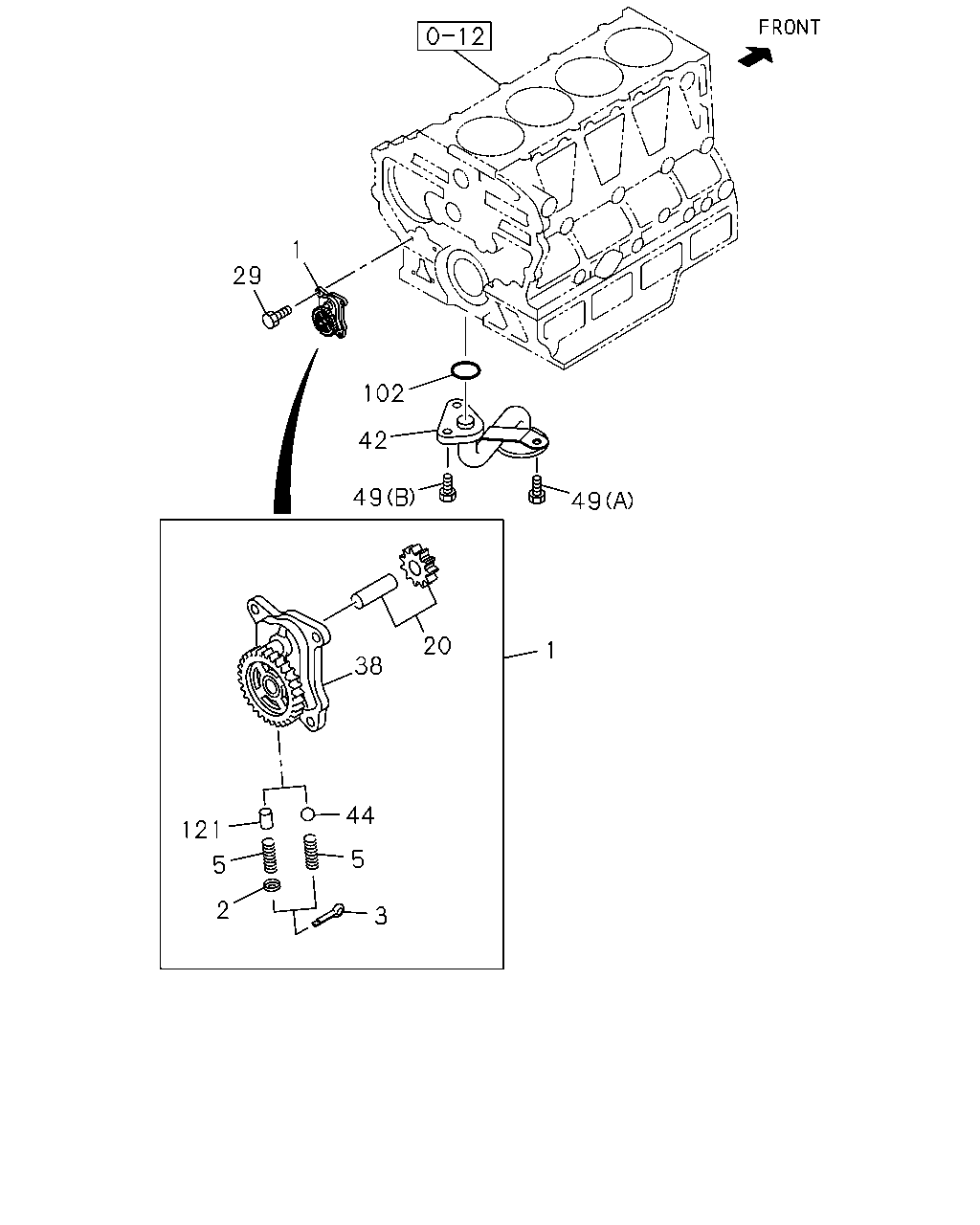

çizim 47603
1 29 102 42 49 49 20 1 38 44 121 5 5 2 3
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 01.652 PUMP ASM; OIL 8-97147-338-2 01 1 9811- ● ●
1 01.652 PUMP ASM; OIL 8-97033-175-3 01 1 9811-0105 ●
1 01.652 PUMP ASM; OIL 8-97075-283-2 01 1 9811- ●
2 01.609 SEAT; SPR 5-13165-004-0 01 1 9811-0105 ● ● ● ●
2 01.609 SEAT; SPR 5-13165-004-0 01 1 0106-0112 ● ● ●
3 01.639 PIN; SPLIT
09.023 OD=3.7 L=30 		9-08114-030-0 01 1 9811- ● ● ●
5 01.609 SPRING; COIL 8-97147-503-0 01 1 9811-0112 ● ●
5 01.609 SPRING; COIL 8-97036-834-0 01 1 9811-0105 ●
5 01.609 SPRING; COIL 5-09580-098-0 01 1 9811-0112 ●
5 01.609 SPRING; COIL 5-09580-098-0 01 1 0201- ● ● ●
20 01.639 GEAR; DRIVE,OIL PUMP
Z=9 		8-97078-736-0 01 1 9811- ● ● ●
29 01.652 BOLT; OIL PUMP
08.155 M8X25 FLANGE 		0-28090-825-0 02 1 9811- ● ● ●
29 01.652 BOLT; OIL PUMP
07.632 M8X30 FLANGE 		0-28090-830-0 02 1 9811- ● ● ●
29 01.652 BOLT; OIL PUMP
01.531 M8X25 FLANGE 		0-28080-825-0 02 1 9811-0105 ●
38 01.657 CASE; OIL STRAINER 8-97147-505-0 01 1 9811- ● ●
38 01.657 CASE; OIL STRAINER 8-97133-330-0 01 1 9811- ●
38 01.657 CASE; OIL STRAINER 8-97036-832-0 01 1 9811- ●
42 01.656 STRAINER; OIL,OIL PUMP 8-97182-909-0 01 1 9811-9905 ● ● ●
42 01.656 STRAINER; OIL,OIL PUMP 8-97230-894-0 01 1 9906- ● ● ●
42 01.656 STRAINER; OIL,OIL PUMP 8-97038-379-0 01 1 9811- ●
44 01.609 BALL; RELIEF VLV 5-09843-003-0 01 1 9811-0112 ●
44 01.609 BALL; RELIEF VLV 5-09843-003-0 01 1 0201- ● ● ●
49 01.531 BOLT; STRAINER,OIL PUMP
(A) M10X80 		8-97071-956-0 01 1 9811- ● ● ●
49 01.531 BOLT; STRAINER,OIL PUMP
00.724 (B) M8X14 		8-97073-782-0 01 1 9811- ● ● ●
102 01.656 GASKET; STRAINER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.2 		8-97137-501-0 01 1 9811-0211 ● ● ●
102 01.656 GASKET; STRAINER
ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 ID=24.5 		8-94399-398-0 01 1 0212- ● ● ●
121 01.639 VALVE; RELIEF,OIL PUMP
01.837 		8-94235-567-1 01 1 9811-0105 ● ● ●
121 01.639 VALVE; RELIEF,OIL PUMP
01.837 		8-94235-567-1 01 1 0106-0112 ● ●
