◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50815 - NPR/NQR-LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-50 - OIL COOLER AND OIL FILTER ▶
0-50 — OIL COOLER AND OIL FILTER (#17164) — 113 parça

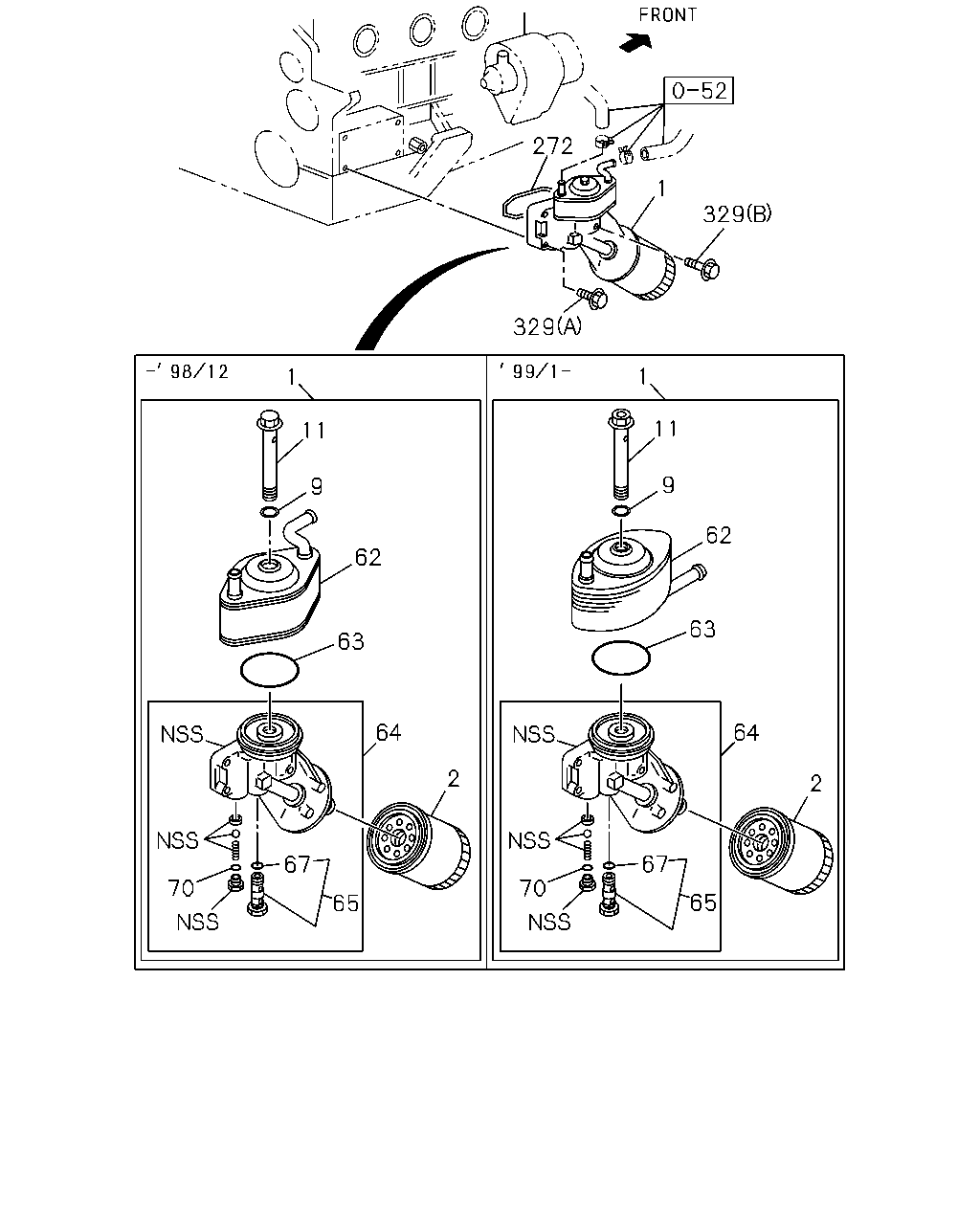

çizim 48052
272 1 329 329 1 1 11 11 9 9 62 62 63 63 64 64 2 2 67 67 70 70 65 65
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 01.540 FILTER & COOLER ASM; OIL 8-97176-074-2 01 1 9811-9812 ●
1 01.540 FILTER & COOLER ASM; OIL 8-97224-298-0 01 1 9901-0105 ●
2 01.836 ELEMENT; OIL FILTER 8-97148-270-1 01 1 9811- ● ● ●
2 01.836 ELEMENT; OIL FILTER 8-94340-697-1 01 1 9811-0105 ●
9 01.840 GASKET; CENTER BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97047-000-0 01 1 9811-0105 ●
11 01.840 BOLT; CENTER 8-97144-713-0 01 1 9811-0105 ●
62 01.540 COOLER ASM; OIL 8-97166-499-1 01 1 9811-9812 ●
62 01.540 COOLER ASM; OIL 8-97226-391-0 01 1 9901-0105 ●
63 01.550 GASKET; COOLER TO BRKT 8-94383-720-0 01 1 9811-9812 ●
63 01.550 GASKET; COOLER TO BRKT 8-94383-720-0 01 1 9901-0105 ●
64 01.540 BODY; OIL FILTER & OIL COOLER 8-97166-497-0 01 1 9811-0105 ●
65 01.540 VALVE; OIL COOLER 8-94450-772-0 01 1 9811-0105 ●
67 01.550 GASKET; VLV
01.837 		9-09920-975-0 01 1 9811-0105 ●
70 01.844 GASKET; PLUG,OIL FILTER 9-09921-193-0 01 1 9811-0105 ●
272 01.844 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1 		8-94399-676-0 02 1 9811-0211 ● ● ●
272 01.844 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1 		8-94399-399-0 02 1 0212- ● ● ●
272 01.844 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97065-983-0 01 1 9811-0105 ●
329 01.840 BOLT; OIL FILTER
01.540 (A) M8X35 W/LK WASHER 		0-50040-835-0 02 1 9811-9906 ●
329 01.840 BOLT; OIL FILTER
00.004 (A) M8X32 FLANGE 		0-28080-832-0 02 1 9907-0105 ●
329 01.840 BOLT; OIL FILTER
00.206 (B) M8X65 W/LK WASHER 		8-94205-986-1 02 1 9811-9903 ●
329 01.840 BOLT; OIL FILTER
01.251 (B) M8X60 FLANGE 		0-28080-860-0 02 1 9904-0105 ●

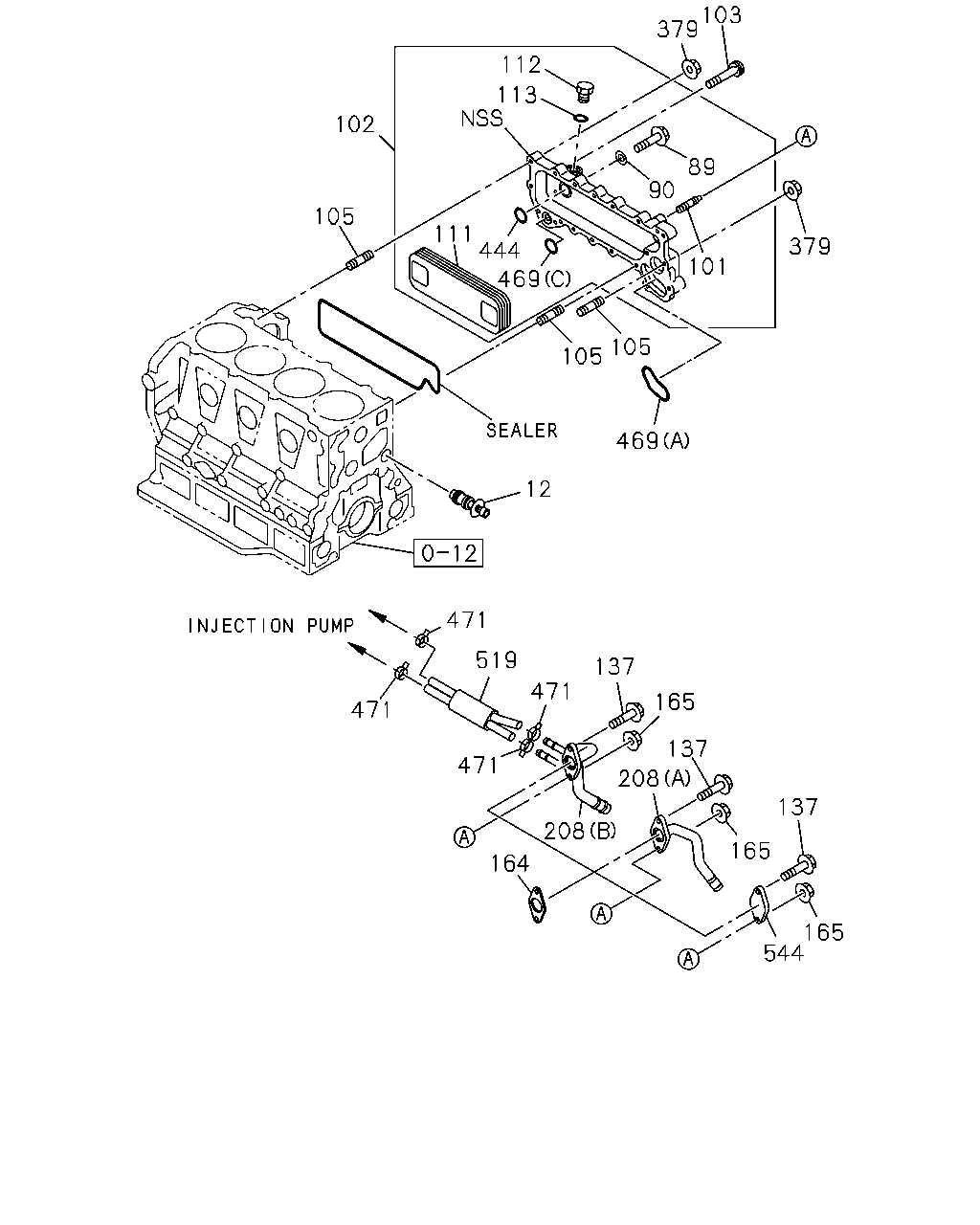

çizim 48054
103 379 112 113 102 89 90 105 111 444 379 101 469 105 105 469 12 471 519 137 471 165 471 137 471 208 137 208 165 164 165 544
BalonParca AdiParca NoAdetTipApplied Date A B C D
12 01.540 VALVE ASM; BYPASS 8-97075-754-0 01 1 9811-0107 ● ●
12 01.540 VALVE ASM; BYPASS
CHARGE AIR COOLER<6PL> 		8-97075-754-0 01 1 9811-0107 ●
12 01.540 VALVE ASM; BYPASS
CHARGE AIR COOLER<6PL> 		8-97075-754-0 01 1 0108- ●
12 01.540 VALVE ASM; BYPASS
EXC. CHARGE AIR COOLER<6PL> 		8-97013-566-2 01 1 9811-0107 ●
12 01.540 VALVE ASM; BYPASS 8-97013-566-2 01 1 0108- ● ●
12 01.540 VALVE ASM; BYPASS
EXC. CHARGE AIR COOLER<6PL> 		8-97013-566-2 01 1 0108- ●
89 01.540 BOLT; ELEMENT TO CASE
01.062 M8X16 FLANGE 		0-28080-816-0 04 1 9811- ● ● ●
90 01.540 GASKET; BOLT,OIL COOLER
01.550 		1-21729-043-0 04 1 9811- ● ● ●
101 01.540 STUD; OIL COOLER TO PIPE
03.407 M8X20 L=38 		0-49740-820-0 01 1 9811-0206 ● ● ●
102 01.540 COOLER ASM; OIL 8-97178-779-1 01 1 9811-9908 ● ●
102 01.540 COOLER ASM; OIL 8-97212-334-0 01 1 9909-0206 ● ●
102 01.540 COOLER ASM; OIL 8-97333-783-0 01 1 0207- ● ●
102 01.540 COOLER ASM; OIL 8-97178-814-1 01 1 9811-9906 ●
102 01.540 COOLER ASM; OIL 8-97212-763-0 01 1 9907-0206 ●
102 01.540 COOLER ASM; OIL 8-97333-784-0 01 1 0207-0208 ●
102 01.540 COOLER ASM; OIL 8-97333-877-0 01 1 0209- ●
103 01.540 BOLT; OIL COOLER
07.010 M8X20 FLANGE 		0-28080-820-0 07 1 9811- ● ●
103 01.540 BOLT; OIL COOLER
03.415 M8X35 FLANGE 		0-28080-835-0 07 1 9811- ● ●
103 01.540 BOLT; OIL COOLER
07.010 M8X20 FLANGE 		0-28080-820-0 08 1 9811- ●
103 01.540 BOLT; OIL COOLER
03.415 M8X35 FLANGE 		0-28080-835-0 08 1 9811- ●
105 01.540 STUD; OIL COOLER
M8X52 L=63 		8-97016-314-0 03 1 9811- ● ● ●
111 01.540 CORE; OIL COOLER 8-97028-739-0 01 1 9811-9908 ● ●
111 01.540 CORE; OIL COOLER 8-97222-512-0 01 1 9909-0206 ● ●
111 01.540 CORE; OIL COOLER 8-97334-101-0 01 1 0207- ● ●
111 01.540 CORE; OIL COOLER 8-97033-802-0 01 1 9811-0206 ●
111 01.540 CORE; OIL COOLER 8-97334-100-0 01 1 0207- ●
112 01.540 PLUG; OIL COOLER CASE
04.104 M18X12 		9-99202-318-0 01 1 9811-9908 ● ●
112 01.540 PLUG; OIL COOLER CASE 8-97028-587-0 01 1 9811-9906 ●
113 01.540 GASKET; PLUG,OIL COOLER CASE
06.673 ID=18 		9-09571-418-0 01 1 9811-9906 ● ● ●
113 01.540 GASKET; PLUG,OIL COOLER CASE
06.673 ID=18 		9-09571-418-0 01 1 9907-9908 ● ●
137 01.840 BOLT
02.664 M8X20 FLANGE 		0-28680-820-0 01 1 9811-0206 ● ● ●
137 01.840 BOLT
02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0207- ● ● ●
164 01.550 GASKET; HTR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97146-684-0 01 1 9811- ● ● ●
165 01.540 NUT; HTR PIPE
07.633 M8 FLANGE 		0-91150-108-0 01 1 9811-0206 ● ● ●
208 01.540 PIPE; WATER,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) (A) 		8-97146-519-0 01 1 9811-9812 ●
208 01.540 PIPE; WATER,HTR
TURBOCHARGER(K51) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) EXC. HIGH ALTITUDE COMPENSATOR(EE2) (A) 		8-97146-519-0 01 1 9811-9812 ●
208 01.540 PIPE; WATER,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) EXC. ENGINE POWER N-SPEC(7QV) (A) 		8-97146-519-0 01 1 9811-9812 ●
208 01.540 PIPE; WATER,HTR
CHARGE AIR COOLER<6PL> (A) 		8-97146-519-0 01 1 9811-9812 ●
208 01.540 PIPE; WATER,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) (A) 		8-97146-519-0 01 1 9901-0105 ●
208 01.540 PIPE; WATER,HTR
TURBOCHARGER(K51) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) EXC. HIGH ALTITUDE COMPENSATOR(EE2) (A) 		8-97146-519-0 01 1 9901-0105 ●
208 01.540 PIPE; WATER,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) EXC. ENGINE POWER N-SPEC(7QV) (A) 		8-97146-519-0 01 1 9901-0105 ●
208 01.540 PIPE; WATER,HTR
CHARGE AIR COOLER<6PL> (A) 		8-97146-519-0 01 1 9901-0105 ●
208 01.540 PIPE; WATER,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHARGE AIR COOLER<6PL> (A) 		8-97146-519-0 01 1 9901-0105 ●
208 01.540 PIPE; WATER,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) TURBOCHARGER(K51) EXC. HIGH ALTITUDE COMPENSATOR(EE2) (A) 		8-97146-519-0 01 1 0106- ●
208 01.540 PIPE; WATER,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) (A) 		8-97146-519-0 01 1 0106- ●
208 01.540 PIPE; WATER,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) EXC. ENGINE POWER N-SPEC(7QV) (A) 		8-97146-519-0 01 1 0106- ●
208 01.540 PIPE; WATER,HTR
HEATER & DEFROSTER(C41) CHARGE AIR COOLER<6PL> (A) 		8-97146-519-0 01 1 0106- ●
208 01.540 PIPE; WATER,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) EXC. HIGH ALTITUDE COMPENSATOR(EE2), CHARGE AIR COOLER<6PL> (A) 		8-97146-519-0 01 1 0106- ●
208 01.540 PIPE; WATER,HTR
TURBOCHARGER(K51) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) HIGH ALTITUDE COMPENSATOR(EE2) (A) 		8-97211-322-0 01 1 9811-9812 ●
208 01.540 PIPE; WATER,HTR
TURBOCHARGER(K51) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) HIGH ALTITUDE COMPENSATOR(EE2) (A) 		8-97211-322-0 01 1 9901-9902 ●
208 01.540 PIPE; WATER,HTR
HEATER & DEFROSTER(C41) HIGH ALTITUDE COMPENSATOR(EE2) EXC. CHARGE AIR COOLER<6PL> (A) 		8-97211-322-0 01 1 9901-9902 ●
208 01.540 PIPE; WATER,HTR
TURBOCHARGER(K51) HEATER & DEFROSTER(C41) HIGH ALTITUDE COMPENSATOR(EE2) (A) 		8-97211-322-1 01 1 9903-0105 ●
208 01.540 PIPE; WATER,HTR
HEATER & DEFROSTER(C41) HIGH ALTITUDE COMPENSATOR(EE2) EXC. CHARGE AIR COOLER<6PL> (A) 		8-97211-322-1 01 1 9903-0105 ●
208 01.540 PIPE; WATER,HTR
TURBOCHARGER(K51) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) HIGH ALTITUDE COMPENSATOR(EE2) (A) 		8-97211-322-1 01 1 0106-0205 ●
208 01.540 PIPE; WATER,HTR
VOLTAGE 24V<7AE> HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) HIGH ALTITUDE COMPENSATOR(EE2) EXC. CHARGE AIR COOLER<6PL> (A) 		8-97211-322-1 01 1 0106-0205 ●
208 01.540 PIPE; WATER,HTR
TURBOCHARGER(K51) HEATER & DEFROSTER(C41) HIGH ALTITUDE COMPENSATOR(EE2) (A) 		8-97211-322-1 01 1 0206- ●
208 01.540 PIPE; WATER,HTR
ENGINE POWER N-SPEC(7QV) (B) 		8-97139-585-1 01 1 9811- ●
379 01.540 NUT; OIL COOLER
07.633 M8 FLANGE 		0-91150-108-0 03 1 9811- ● ● ●
444 01.550 GASKET; ELEMENT TO BODY 8-97028-586-0 02 1 9811- ● ● ●
469 01.550 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-94338-878-1 01 1 9811- ● ● ●
469 01.550 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8 		8-94399-713-0 01 1 9811-0211 ● ● ●
469 01.550 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 01.844 (B) ID=9.8 		8-94399-339-0 01 1 0212- ● ● ●
469 01.550 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=26.35 		8-97137-500-0 01 1 9811-0211 ● ● ●
469 01.550 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=26.2 		9-09566-226-0 01 1 0212- ● ● ●
471 01.540 CLIP; HOSE
ENGINE POWER N-SPEC(7QV) 03.162 ID=15.5 		8-94221-519-0 04 1 9811- ●
519 01.540 HOSE; RUBBER
ENGINE POWER N-SPEC(7QV) 		8-97160-961-1 01 1 9811- ●
544 08.845 COVER; HEATER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97147-028-0 01 1 9811-0003 ●
544 08.845 COVER; HEATER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),ENGINE POWER N-SPEC(7QV) 		8-97147-028-0 01 1 9811-0003 ●
544 08.845 COVER; HEATER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),CHARGE AIR COOLER<6PL> 		8-97147-028-0 01 1 9811-0003 ●
544 08.845 COVER; HEATER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97147-028-0 01 1 0004- ● ●
544 08.845 COVER; HEATER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),ENGINE POWER N-SPEC(7QV) 		8-97147-028-0 01 1 0004- ●

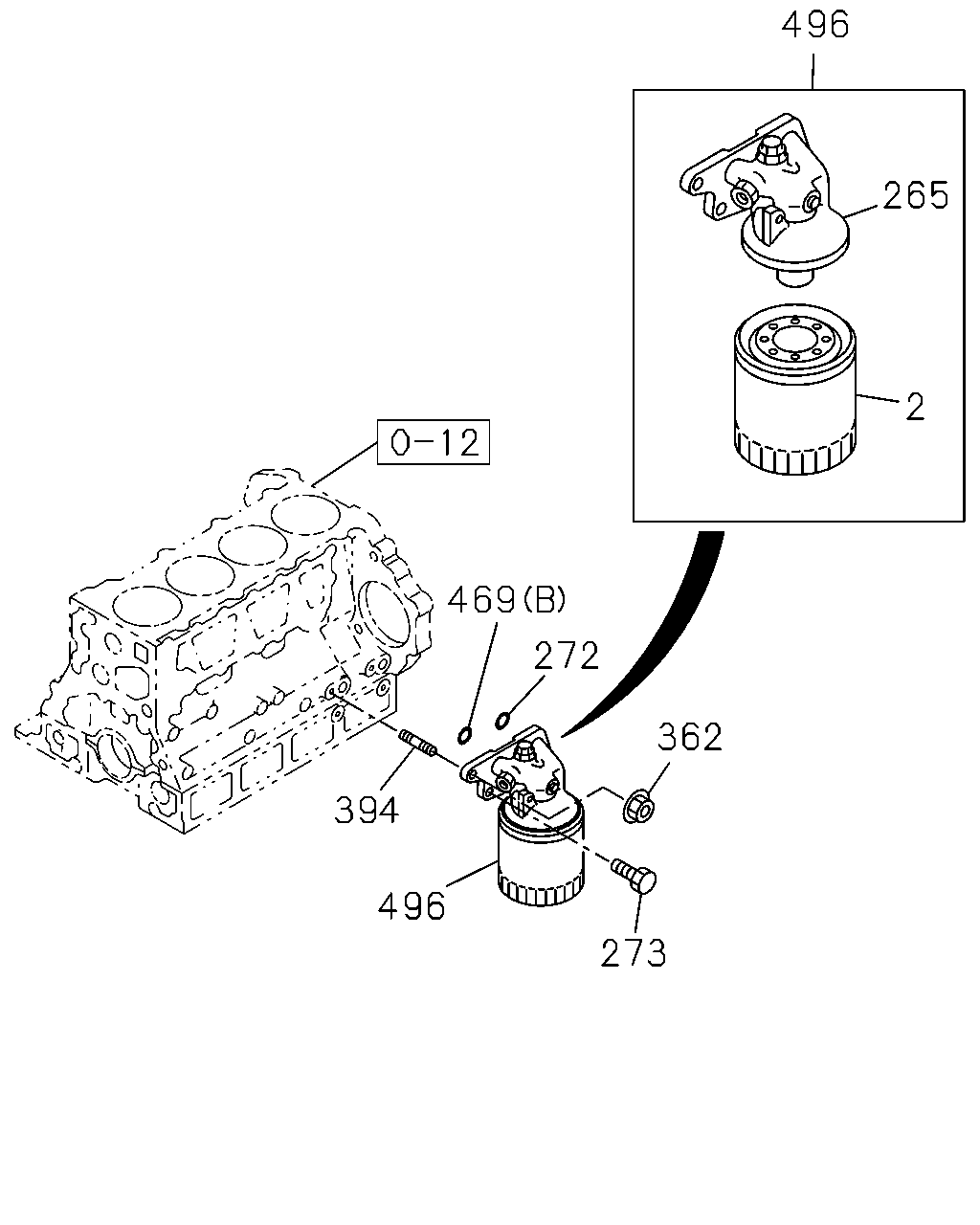

çizim 48267
496 265 2 469 272 362 394 496 273
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 01.836 ELEMENT; OIL FILTER 8-97148-270-1 01 1 9811- ● ● ●
2 01.836 ELEMENT; OIL FILTER 8-94340-697-1 01 1 9811-0105 ●
265 01.837 BODY; OIL FILTER 8-97096-677-2 01 1 9811-0003 ● ● ●
265 01.837 BODY; OIL FILTER 8-97096-677-3 01 1 0004- ● ●
265 01.837 BODY; OIL FILTER
EXC. ENGINE POWER N-SPEC(7QV) 		8-97096-677-3 01 1 0004- ●
265 01.837 BODY; OIL FILTER
ENGINE POWER N-SPEC(7QV) 		8-97247-088-1 01 1 0004- ●
272 01.844 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1 		8-94399-676-0 02 1 9811-0211 ● ● ●
272 01.844 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1 		8-94399-399-0 02 1 0212- ● ● ●
272 01.844 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97065-983-0 01 1 9811-0105 ●
273 01.840 BOLT; OIL FILTER
08.900 M10X30 FLANGE 		0-28781-030-0 02 1 9811- ● ● ●
362 01.837 NUT; OIL FILTER
04.785 M10 FLANGE 		0-91150-110-0 02 1 9811- ● ● ●
394 01.837 STUD; OIL FILTER
03.275 M10X25 L=40 		0-49841-025-0 02 1 9811- ● ● ●
469 01.550 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-94338-878-1 01 1 9811- ● ● ●
469 01.550 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8 		8-94399-713-0 01 1 9811-0211 ● ● ●
469 01.550 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 01.844 (B) ID=9.8 		8-94399-339-0 01 1 0212- ● ● ●
469 01.550 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=26.35 		8-97137-500-0 01 1 9811-0211 ● ● ●
469 01.550 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=26.2 		9-09566-226-0 01 1 0212- ● ● ●
496 01.835 FILTER ASM; OIL 8-97148-268-1 01 1 9811-0003 ● ● ●
496 01.835 FILTER ASM; OIL 8-97148-268-2 01 1 0004- ● ●
496 01.835 FILTER ASM; OIL
EXC. ENGINE POWER N-SPEC(7QV) 		8-97148-268-2 01 1 0004- ●
496 01.835 FILTER ASM; OIL
ENGINE POWER N-SPEC(7QV) 		8-97247-082-1 01 1 0004- ●
