6-20 — SIDE PANEL AND STEP
(#17155) — 77 parça
◀

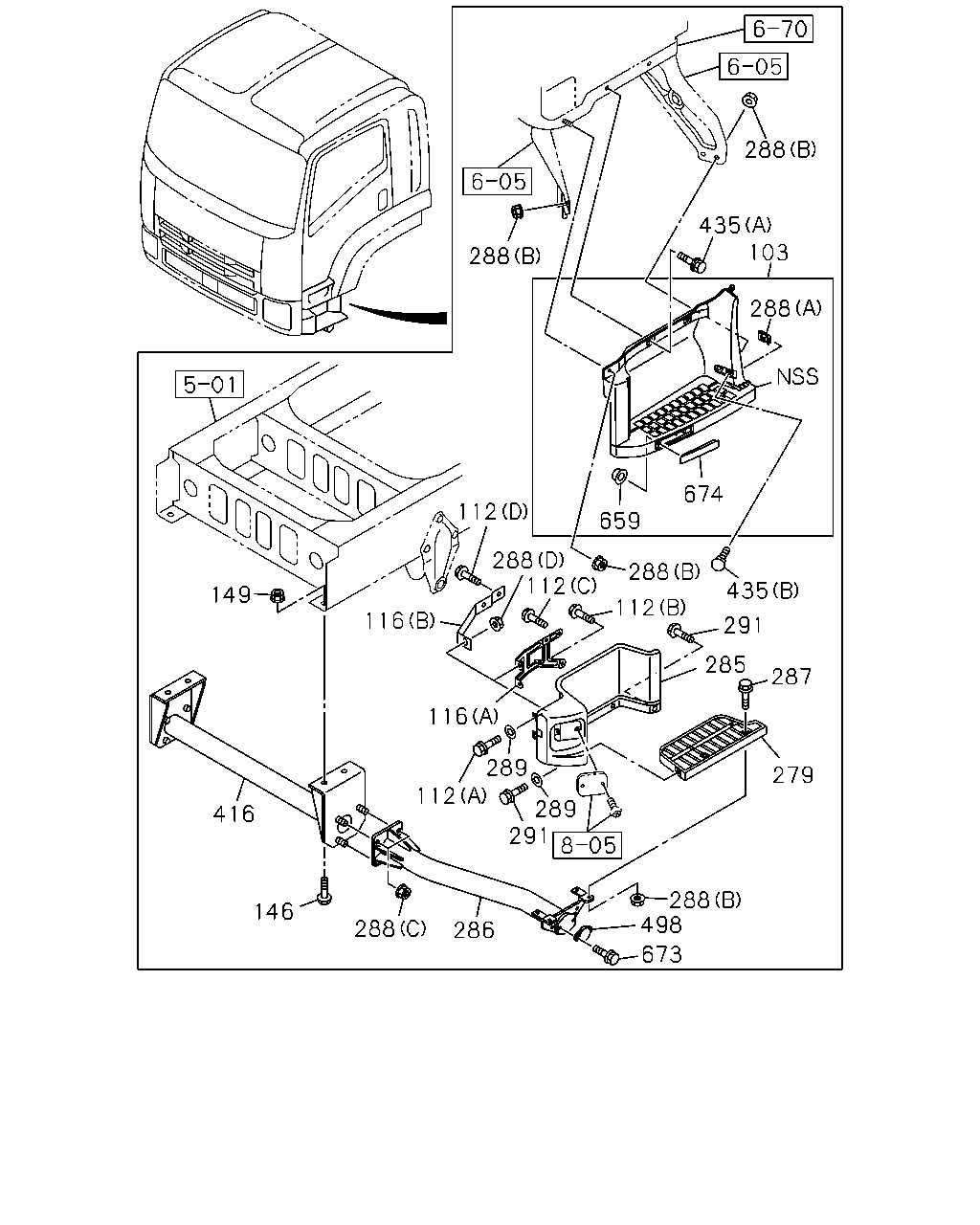

[620A] STEP (37 parça)

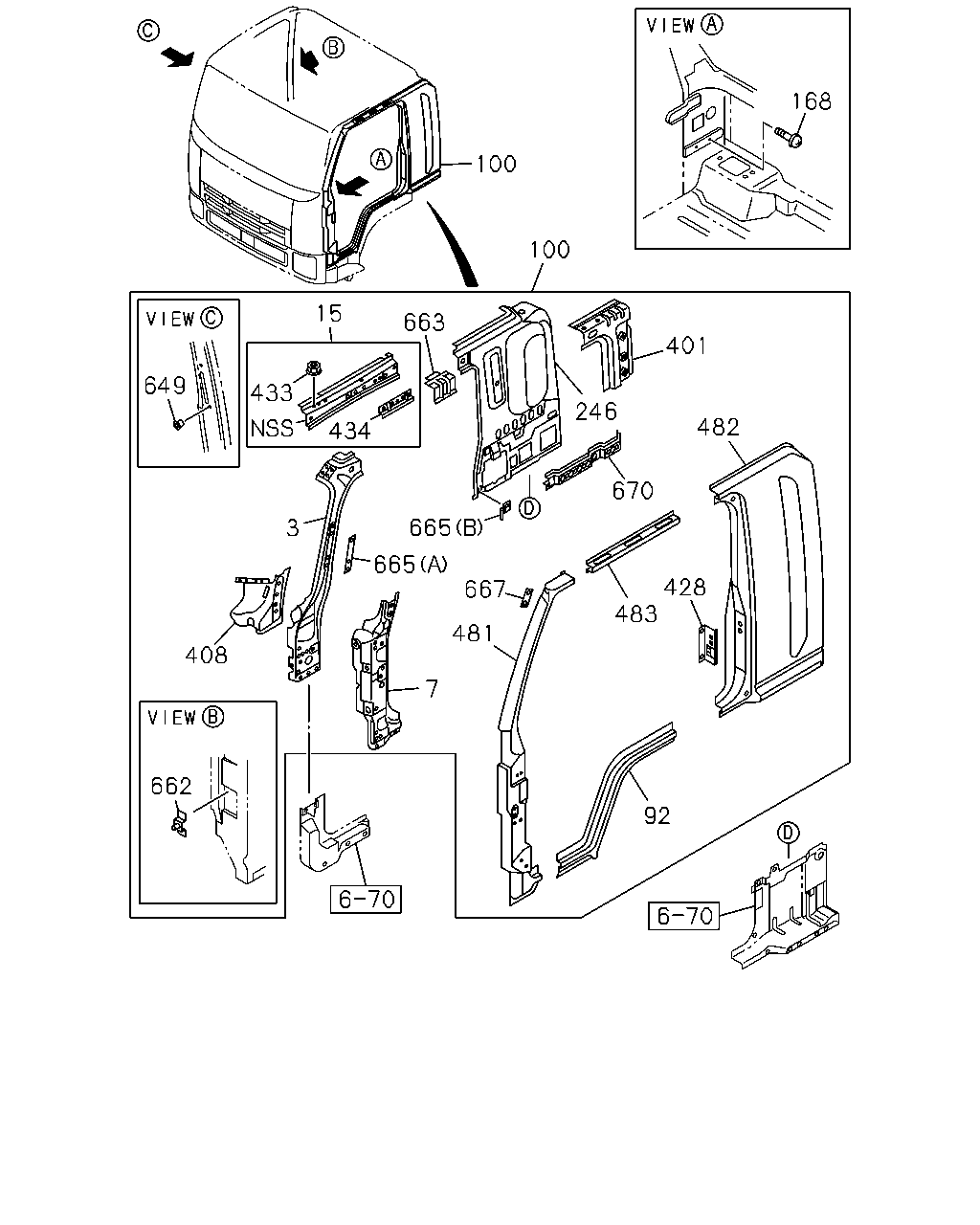

[620A] SIDE PANEL (40 parça)
▶
288
435
103
288
288
674
112
659
288
112
288
435
149
112
116
291
285
287
116
289
279
112
289
291
416
288
498
146
288
286
673
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
103
PLATE; STEP
8-98069-977-2
01
1
1001-
103
PLATE; STEP
8-98069-976-2
01
1
1001-
112
BOLT; 1ST STEP
(A) M6X16 FLANGE SOU
0-28050-616-0
04
1
1001-1112
112
BOLT; 1ST STEP
(A) M6X16 FLANGE SOU
0-28050-616-0
02
1
1201-
112
BOLT; 1ST STEP
(B) M6X25 FLANGE
0-28050-625-0
02
1
1001-1112
112
BOLT; 1ST STEP
(D) M8X12 FLANGE
0-28050-812-0
04
1
1201-
112
BOLT; 1ST STEP
(C) M8X16 FLANGE SOU
0-28050-816-0
04
1
1001-1112
112
BOLT; 1ST STEP
(B) M6X20 FLANGE
0-28050-620-0
02
1
1201-
116
STAY; 1ST STEP,FRT
(A)
8-98062-133-1
01
1
1001-1112
116
STAY; 1ST STEP,FRT
(B)
8-98196-756-0
02
1
1201-
116
STAY; 1ST STEP,FRT
(A)
8-98062-134-1
01
1
1001-1112
146
BOLT; STEP BRKT
M14X45 FLANGE
0-28851-445-0
04
1
1001-
149
NUT; STEP BRKT
M14 FLANGE SOU
0-91180-214-0
04
1
1001-
279
BOARD; STEP 1ST
1-53414-181-0
01
1
1001-
279
BOARD; STEP 1ST
1-53414-180-0
01
1
1001-
285
PLATE; STEP,1ST STEP
8-98017-535-3
01
1
1001-
285
PLATE; STEP,1ST STEP
8-98017-536-3
01
1
1001-
286
STEP ASM; 1ST
8-98082-430-2
01
1
1001-
286
STEP ASM; 1ST
8-98082-431-2
01
1
1001-
287
BOLT; BOARD STEP
M8X40 FLANGE SOU
0-28650-840-0
08
1
1001-1107
287
BOLT; BOARD STEP
M8X35 FLANGE SOU
0-28650-835-0
08
1
1108-
288
NUT; STEP
(D) M6 FLANGE SOU
0-91180-106-0
02
1
1201-
288
NUT; STEP
(B) M8 FLANGE SOU
0-91180-108-0
10
1
1201-
288
NUT; STEP
(B) M8 FLANGE SOU
0-91180-108-0
18
1
1001-1112
288
NUT; STEP
(B) M8 FLANGE SOU
0-91180-108-0
08
1
1201-
288
NUT; STEP
(C) M12 FLANGE SOU
0-91180-212-0
06
1
1001-
288
NUT; STEP
(A) M8
8-98040-792-0
02
1
1001-
289
WASHER; PL,STEP
ID=6.4 OD=18 SOU
0-91610-706-0
10
1
1001-
291
BOLT; STEP PLATE
M6X12 FLANGE SOU
0-28050-612-0
06
1
1001-
416
BRACKET; ASSIST STEP
8-98053-542-4
01
1
1001-
435
BOLT; RR STEP
(A) M8X24.5 W/LK&PL WASHER SOU
8-98059-720-0
04
1
1001-
435
BOLT; RR STEP
(B) M8X18
8-98146-670-0
08
1
1001-
498
REFLECTOR
1-82290-011-1
02
1
1001-
659
CLIP; SPRING NUT
8-97811-510-0
04
1
1001-
673
BOLT; REFLECTOR
M5X16 W/LK&PL WASHER
8-94198-538-0
04
1
1001-
674
COVER; REFLECTOR
8-98092-734-0
01
1
1001-
674
COVER; REFLECTOR
8-98092-733-0
01
1
1001-
168
100
100
15
663
401
649
433
246
434
482
670
665
3
665
428
483
667
481
408
7
662
92
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
PANEL; CLOSING,FRT PILLAR
8-98058-237-1
01
1
1001-
3
PANEL; CLOSING,FRT PILLAR
8-98058-236-1
01
1
1001-
7
REINFORCEMENT; HINGE
8-97585-244-4
01
1
1001-
7
REINFORCEMENT; HINGE
8-97585-240-3
01
1
1001-
15
PANEL; CANT RAIL SIDE
8-97585-293-2
01
1
1001-
15
PANEL; CANT RAIL SIDE
8-97585-292-2
01
1
1001-
92
PANEL; SIDE SILL,CAB
8-98055-462-1
01
1
1001-
92
PANEL; SIDE SILL,CAB
8-98055-461-1
01
1
1001-
100
PANEL ASM; BODY SIDE
LAMPS TWO ROOF MARKER<TEC>
8-97586-079-7
01
1
1001-
100
PANEL ASM; BODY SIDE
LAMPS TWO ROOF MARKER<TEC>
8-97586-063-5
01
1
1001-
100
PANEL ASM; BODY SIDE
EXC. LAMPS TWO ROOF MARKER<TEC>
8-97586-073-9
01
1
1001-
100
PANEL ASM; BODY SIDE
EXC. LAMPS TWO ROOF MARKER<TEC>
8-98044-544-5
01
1
1001-
168
BOLT; BODY SIDE PANEL
T25 M6X12 HEXALOBULAR SOCKET
0-38050-612-0
08
1
1001-
246
PANEL; RR PILLAR,INNER
8-97586-158-5
01
1
1001-
246
PANEL; RR PILLAR,INNER
8-97586-156-5
01
1
1001-
401
PATCH; CLOSING,FRT PILLAR
8-97586-160-2
01
1
1001-
401
PATCH; CLOSING,FRT PILLAR
8-97586-161-2
01
1
1001-
408
GUSSET; PILLAR
8-97586-194-2
01
1
1001-
408
GUSSET; PILLAR
8-97586-193-3
01
1
1001-
428
REINFORCEMENT; DOOR STRIKER
8-97585-261-4
01
1
1001-
428
REINFORCEMENT; DOOR STRIKER
8-97585-260-4
01
1
1001-
433
NUT; HEADER SHELF
M6
9-09114-086-0
04
1
1001-
434
PATCH; ASSIST GRIP
8-98039-020-0
01
1
1001-
434
PATCH; ASSIST GRIP
8-98039-019-0
01
1
1001-
481
PANEL; SIDE FRT PILLAR
LAMPS TWO ROOF MARKER<TEC>
8-98092-915-0
01
1
1001-
481
PANEL; SIDE FRT PILLAR
LAMPS TWO ROOF MARKER<TEC>
8-98093-579-0
01
1
1001-
481
PANEL; SIDE FRT PILLAR
EXC. LAMPS TWO ROOF MARKER<TEC>
8-98055-453-0
01
1
1001-
481
PANEL; SIDE FRT PILLAR
EXC. LAMPS TWO ROOF MARKER<TEC>
8-98055-470-0
01
1
1001-
482
PANEL; SIDE RR PILLAR
8-98055-469-0
01
1
1001-
482
PANEL; SIDE RR PILLAR
8-98055-468-0
01
1
1001-
483
PANEL; SIDE CANTRAIL
8-98055-460-0
01
1
1001-
483
PANEL; SIDE CANTRAIL
8-98055-458-0
01
1
1001-
649
NUT; POP
M5 POP NUT SOU
8-97249-574-0
02
1
1001-
662
BRACKET; DUCT
8-97584-611-1
01
1
1001-
663
BRACKET; AIR
8-97585-208-2
01
1
1001-
663
BRACKET; AIR
8-97585-207-2
01
1
1001-
665
REINFORCEMENT; GRIP,ASSIST
(A)
8-97585-314-0
02
1
1001-
665
REINFORCEMENT; GRIP,ASSIST
(B)
8-98012-287-1
02
1
1001-
667
BRACKET; MIRROR
8-98109-948-0
01
1
1001-
670
STIFFENER; PANEL,SIDE
8-98015-044-1
02
1
1001-
