◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11168 - FVM(SOUTH AFRICA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-01 - FRONT BUMPER ▶
6-01 — FRONT BUMPER (#17151) — 49 parça

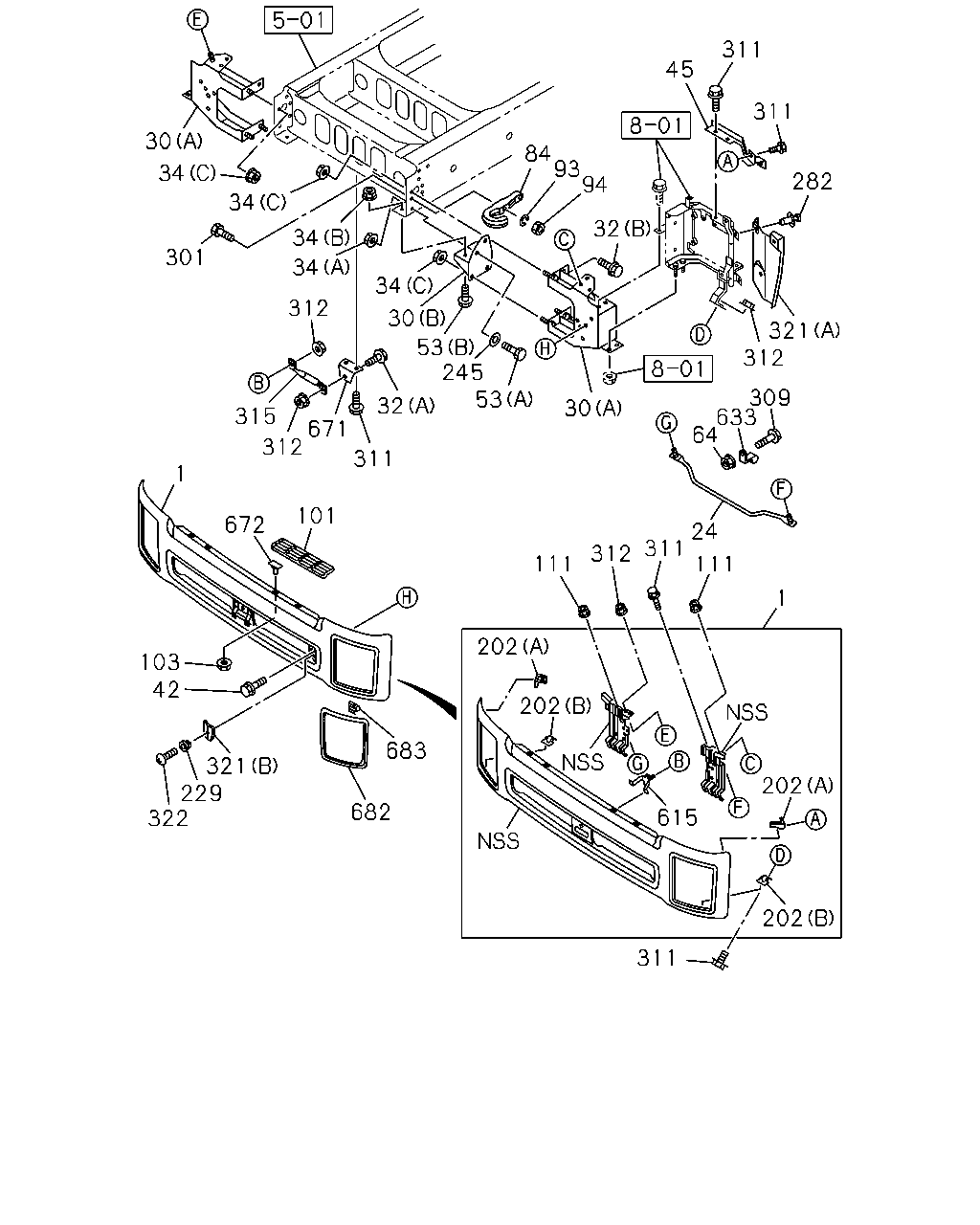

çizim 128152
311 45 311 30 84 93 94 34 282 34 32 34 301 34 34 312 30 321 312 53 245 53 309 633 64 32 30 315 671 312 311 1 101 672 24 311 312 111 111 1 202 103 42 202 683 202 321 229 322 682 615 202 311
BalonParca AdiParca NoAdetTipApplied Date
1 BUMPER ASM; FRT
WHITE 		8-97409-903-1 01 1 1001-
24 BAR; FRT BUMPER 8-97625-359-0 01 1 1001-
30 BRACKET; FRT BUMPER
(A) 		8-98034-434-2 01 1 1001-
30 BRACKET; FRT BUMPER
(B) 		8-98053-546-1 01 1 1001-
30 BRACKET; FRT BUMPER
(A) 		8-98034-435-2 01 1 1001-
30 BRACKET; FRT BUMPER
(B) 		8-98053-547-1 01 1 1001-
32 BOLT; BRKT,BUMPER
(B) M12X35 FLANGE 		0-28051-235-0 02 1 1001-
32 BOLT; BRKT,BUMPER
(A) M10X30 		8-94324-205-0 01 1 1001-
34 NUT; BRKT,BUMPER
(A) M16 SOU 		0-91110-516-0 02 1 1001-
34 NUT; BRKT,BUMPER
(C) M12 FLANGE SOU 		0-91180-212-0 06 1 1001-
34 NUT; BRKT,BUMPER
(B) M14 FLANGE SOU 		0-91180-214-0 04 1 1001-
42 BOLT; BUMPER
M10X30 		8-94324-205-0 06 1 1001-
45 BRACKET; BRKT TO BUMPER 8-97613-648-2 01 1 1001-
45 BRACKET; BRKT TO BUMPER 8-97613-647-2 01 1 1001-
53 BOLT; BRKT TO FRAME
(A) M16X40 		0-20851-640-0 02 1 1001-
53 BOLT; BRKT TO FRAME
(B) M14X45 FLANGE 		0-28851-445-0 04 1 1001-
64 NUT; CLIP
M6 FLANGE SOU 		0-91180-106-0 01 1 1001-
84 HOOK
SOU 		1-57181-027-1 01 1 1001-
93 WASHER; LK,HOOK
ID=16.2 SOU 		0-91510-816-0 02 1 1001-
94 NUT; HOOK
M16 SOU 		0-91110-516-0 02 1 1001-
101 STEP; BUMPER 8-97611-543-0 01 1 1001-
101 STEP; BUMPER 8-97611-542-0 01 1 1001-
103 NUT; BUMPER STEP
M6 FLANGE SOU 		0-91180-106-0 04 1 1001-
111 NUT; STAY
M8 FLANGE SOU 		0-91180-108-0 02 1 1001-
202 BRACKET; BUMPER SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR TRANS BLUE(999) (A) 		8-97613-637-0 01 1 1001-
202 BRACKET; BUMPER SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR TRANS BLUE(999) (B) 		8-97613-641-1 01 1 1001-
202 BRACKET; BUMPER SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR TRANS BLUE(999) (A) 		8-97613-636-0 01 1 1001-
202 BRACKET; BUMPER SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR TRANS BLUE(999) (B) 		8-97613-640-1 01 1 1001-
229 GROMMET
D=7X7 L=7.5 		5-09983-007-0 02 1 1001-
245 WASHER; PL,BRKT TO FRAME
ID=17 OD=30 		0-91610-516-0 02 1 1001-
282 FASTENER; BUMPER FILLER
D8X13.5 SOU 		1-09987-248-1 08 1 1001-
301 BOLT; HOOK TO FRAME
M16X70 SOU 		0-10861-670-0 02 1 1001-
309 BOLT; CLIP
M6X16 FLANGE SOU 		0-28650-616-0 01 1 1001-
311 BOLT; BRKT
M10X25 FLANGE SOU 		0-28651-025-0 06 1 1001-
311 BOLT; BRKT
M10X30 		8-94324-205-0 07 1 1001-
312 NUT; BRKT
M10 FLANGE SOU 		0-91180-210-0 05 1 1001-
315 STAY; BUMPER 8-97613-645-1 01 1 1001-
321 COVER; BUMPER FRT SIDE
(B) 		8-97616-297-1 01 1 1001-
321 COVER; BUMPER FRT SIDE
(A) 		8-97619-120-0 01 1 1001-
321 COVER; BUMPER FRT SIDE
(B) 		8-97616-296-1 01 1 1001-
321 COVER; BUMPER FRT SIDE
(A) 		8-97619-119-0 01 1 1001-
322 SCREW; COVER FIX
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1001-
615 BRACKET; BUMPER CENTER
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR TRANS BLUE(999) 		8-97613-643-1 01 1 1001-
633 CLIP; BUMPER
ID=16 H=24 L=20 		0-95207-315-0 01 1 1001-
671 BRACKET; STAY 8-97620-889-0 01 1 1001-
672 STUD; STEP
M6X20 		8-97611-666-0 04 1 1001-
682 BEZEL; BUMPER 8-97611-531-2 01 1 1001-
682 BEZEL; BUMPER 8-97611-530-2 01 1 1001-
683 CLIP; BEZEL,BUMPER 8-98084-293-0 08 1 1001-
