Isuzu WW
▶
TRUCKS
▶
NLR
▶
51642 - NLR/NMR(INDONESIA)
▶
9 - Tools
▶
9-01 - TOOLS
▶
9-01 — TOOLS
(#171461) — 23 parça
Tümü
A - NMR5SE
B - NMR5SN
◀

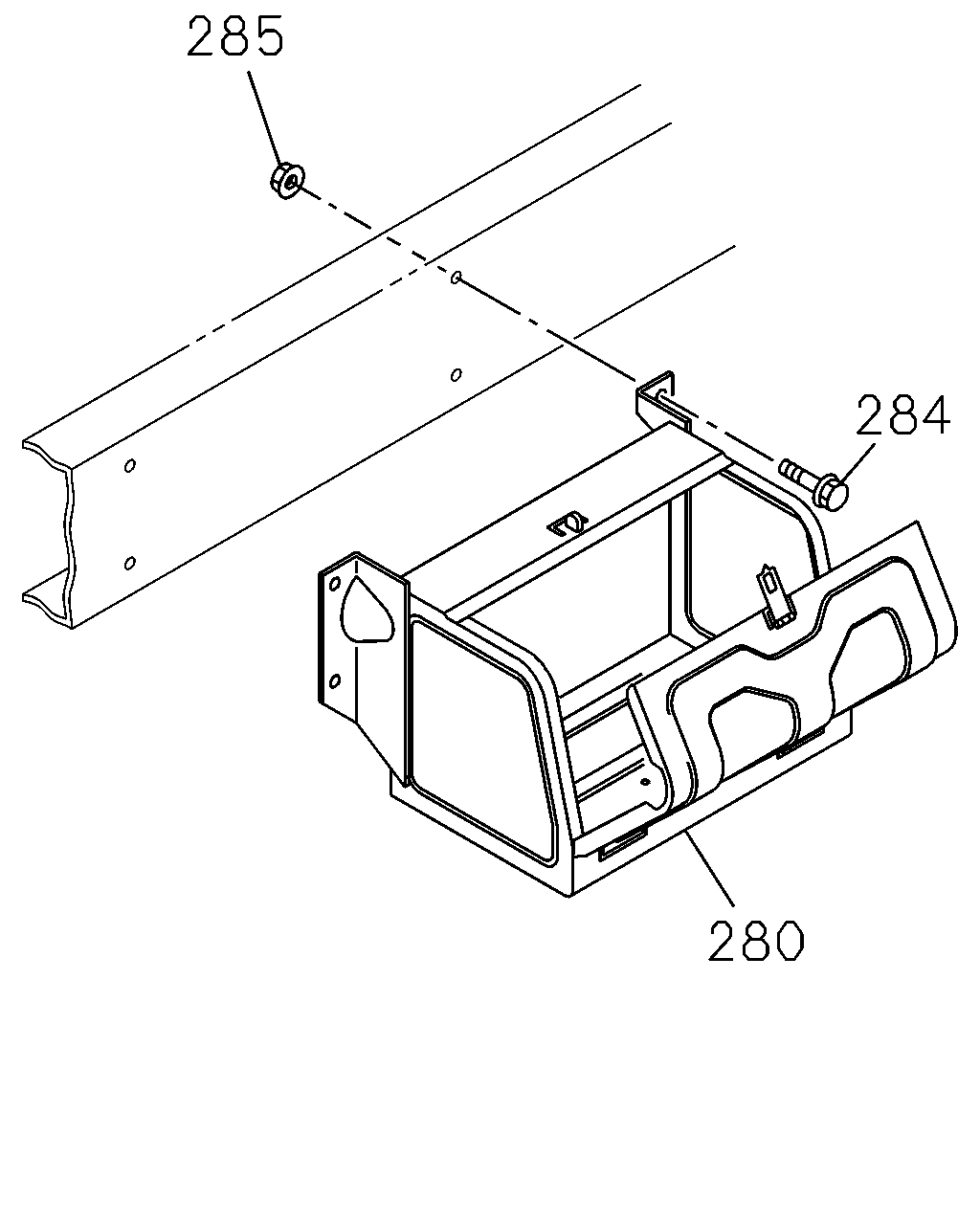

[901A] TOOL BOX (4 parça)

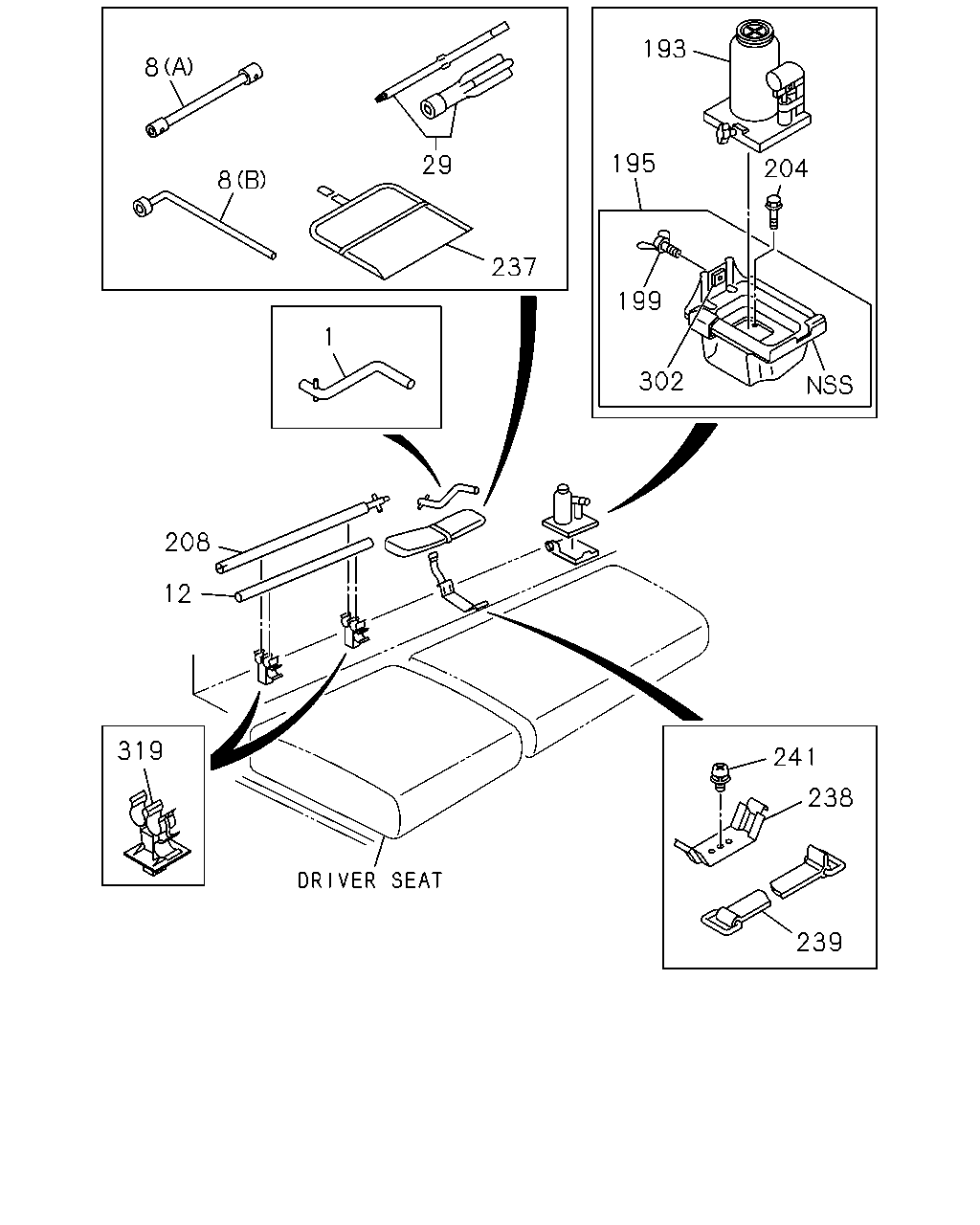

[901A] TOOLS (19 parça)
▶
285
284
280
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
280
08.821 BOX; TOOL
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2>
8-97222-496-0
01
1
1512-
●
280
08.821 BOX; TOOL
TOOL & STORAGE BOX<VK2>
8-97222-496-0
01
1
1512-
●
284
08.821 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> 06.216 M8X25 FLANGE IDN
0-28650-825-0
04
1
1512-
●
●
285
08.821 NUT; TOOL BOX
TOOL & STORAGE BOX<VK2> 01.062 M8 FLANGE IDN
0-91180-108-0
04
1
1512-
●
●
8
8
29
237
195
199
302
204
193
319
12
208
241
238
239
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
07.629 HANDLE; SPARE TIRE CARRIER
IDN
8-97218-985-0
01
1
1512-
●
●
8
08.821 WRENCH; WHEEL
(B) B=23 L=300 IMA
9-85113-935-0
01
1
1512-
●
8
08.821 WRENCH; WHEEL
(A) B=41X21 L=440 IDN
1-85113-015-1
01
1
1512-
●
12
08.821 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 IDN
8-98257-407-0
01
1
1512-
●
●
29
08.821 DRIVER; SCREW
<+>,<-> L=160 IDN
8-94242-798-1
01
1
1512-
●
●
193
08.820 JACK ASM
G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) 4TON IDN
8-98012-285-0
01
1
1512-
●
193
08.820 JACK ASM
5TON IDN
8-98114-047-0
01
1
1512-
●
195
08.820 BRACKET; JACK
8-97589-376-2
01
1
1512-
●
195
08.820 BRACKET; JACK
8-98033-737-2
01
1
1512-
●
199
08.820 BOLT; JACK
M8X30 WING
8-98005-536-0
01
1
1512-
●
199
08.820 BOLT; JACK
M8X50 WING
8-98005-537-0
01
1
1512-
●
204
08.820 BOLT; BRKT,JACK
06.216 M8X25 FLANGE IDN
0-28650-825-0
01
1
1512-
●
●
208
08.820 HANDLE; JACK
L=642 IDN
8-98181-477-0
01
1
1512-
●
●
237
08.821 BAG; TOOL
IDN
8-97130-903-1
01
1
1512-
●
●
238
08.820 SUPPORT; TOOL BAG
8-97994-977-0
01
1
1512-
●
●
239
08.820 BAND; TOOL BAG
L=100
5-73997-026-1
01
1
1512-
●
●
241
08.820 SCREW; TOOL BAG SUPPORT
16.570 M6X16
0-38050-616-0
01
1
1512-
●
●
302
08.820 NUT; JACK BRKT
8-98021-556-0
01
1
1512-
●
●
319
08.821 CLIP; TOOL BAR
8-97853-077-2
02
1
1512-
●
●
