Isuzu WW
▶
TRUCKS
▶
NLR
▶
51642 - NLR/NMR(INDONESIA)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-90 - RADIO AND TV
▶
8-90 — RADIO AND TV
(#171460) — 26 parça
Tümü
A - NMR5SE
B - NMR5SN
◀

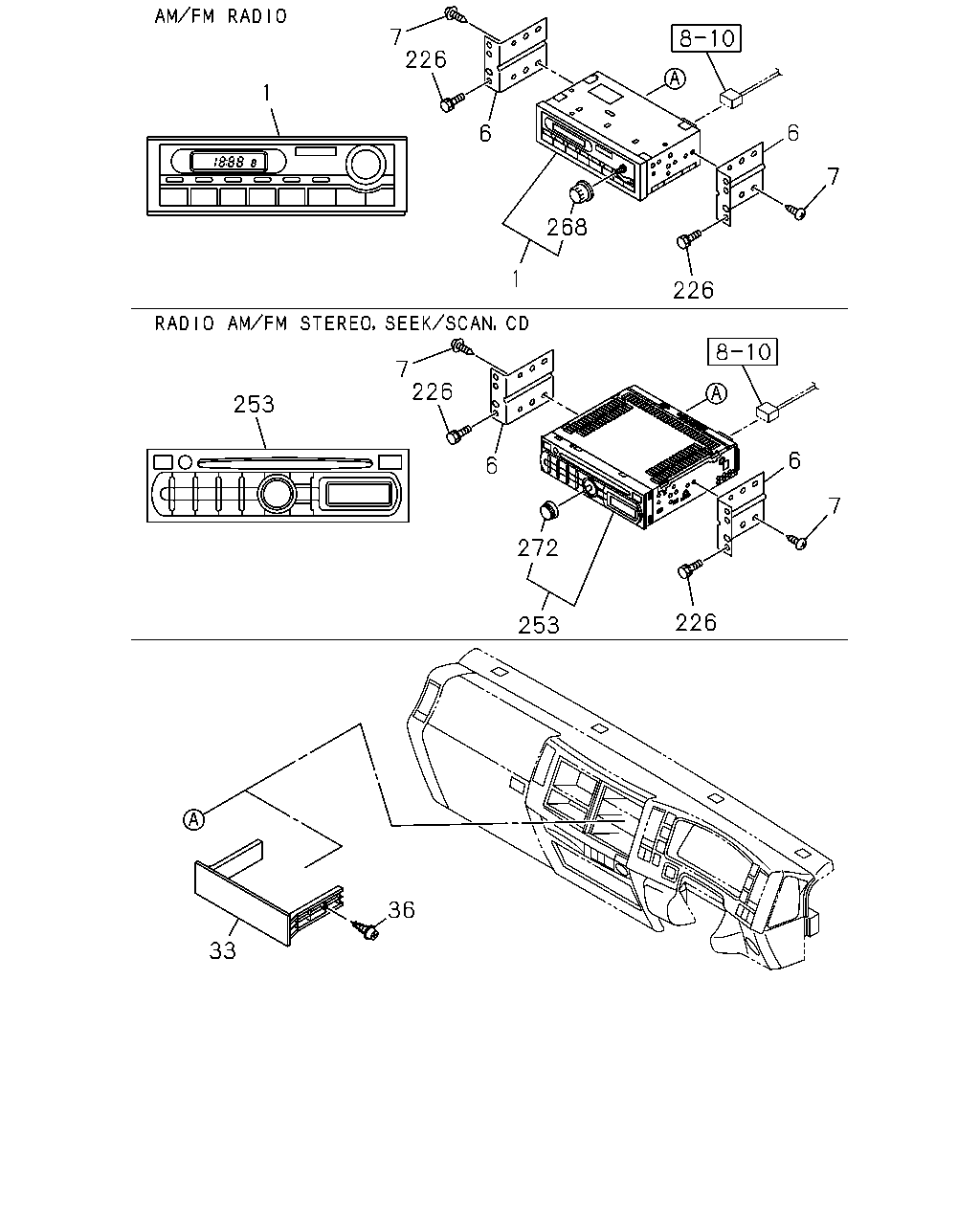

[890A] RADIO AND COVER (16 parça)

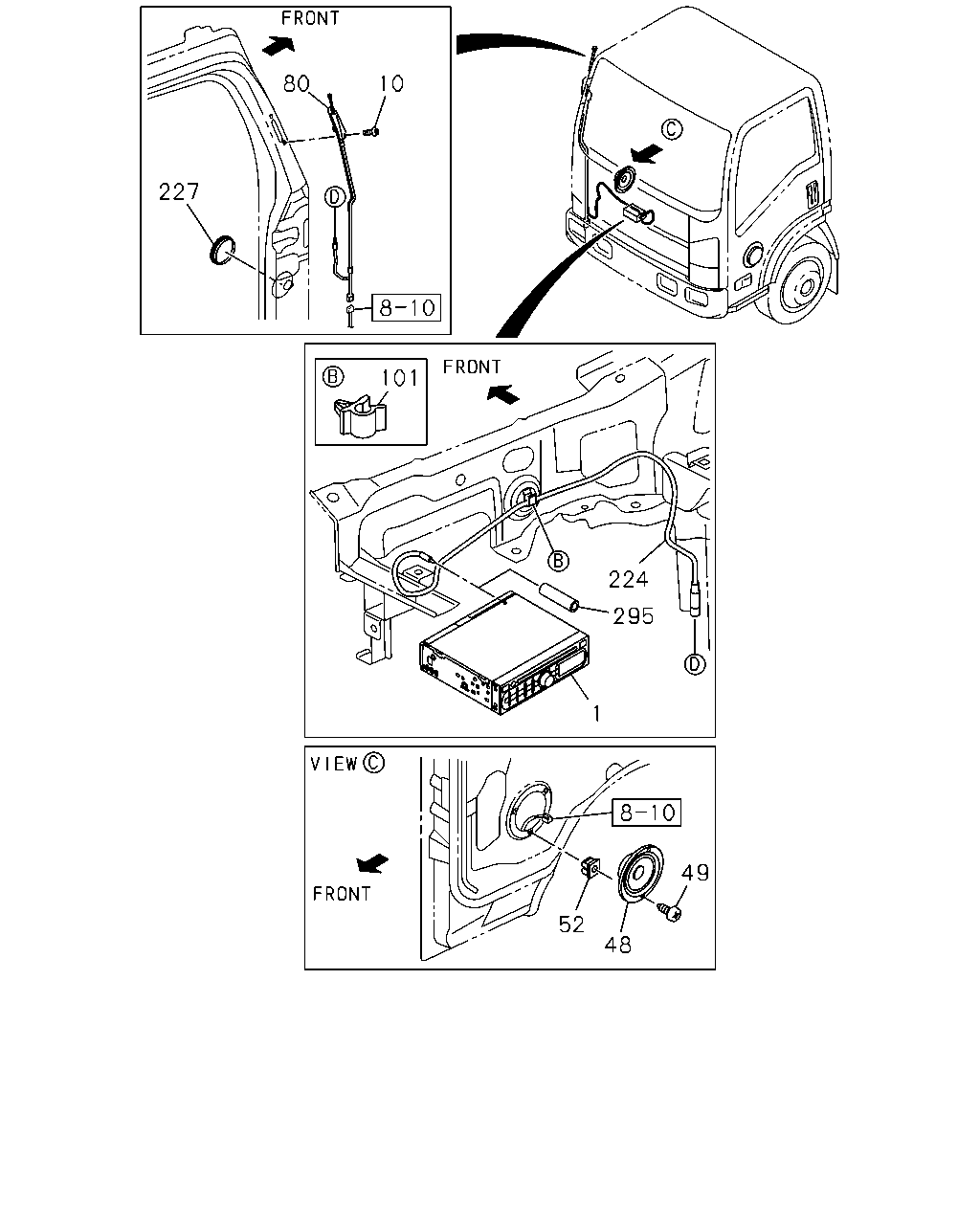

[890A] RADIO ANTENNA AND SPEAKER (10 parça)
▶
7
6
226
268
226
6
7
6
226
7
253
272
6
226
7
253
1
36
33
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
09.650 RADIO
VOLTAGE 12V<TRQ> AM/FM RADIO(U69) TUNER BAND ASIA<7DN> IDN
8-98083-559-0
01
1
1512-
●
1
09.650 RADIO
AM/FM RADIO(U69) VOLTAGE 24V<7AE> TUNER BAND ASIA<7DN> IDN
8-98032-643-0
01
1
1512-
●
1
09.650 RADIO
AM/FM RADIO(U69) TUNER BAND ASIA<7DN> IDN
8-98032-643-0
01
1
1512-
●
6
09.645 BRACKET; RADIO TO PANEL
8-97585-617-0
02
1
1512-
●
●
7
09.650 SCREW; RADIO
VOLTAGE 12V<TRQ> AM/FM RADIO(U69) TUNER BAND ASIA<7DN> M5X7 HEXALOBULAR SOCKET
8-98063-767-0
04
1
1512-
●
7
09.650 SCREW; RADIO
RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3), AM/FM RADIO(U69) VOLTAGE 24V<7AE> TUNER BAND ASIA<7DN> M5X7 HEXALOBULAR SOCKET
8-98063-767-0
04
1
1512-
●
7
09.650 SCREW; RADIO
RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3), AM/FM RADIO(U69) TUNER BAND ASIA<7DN> M5X7 HEXALOBULAR SOCKET
8-98063-767-0
04
1
1512-
●
33
09.650 COVER; RADIO
EXC. RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) ,AM/FM RADIO(U69) BLACK
8-97407-896-2
01
1
1512-
●
●
36
09.779 SCREW; COVER
EXC. RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) ,AM/FM RADIO(U69) 16.100 T25 L=10 HEXALOBULAR
8-98058-632-0
02
1
1512-
●
●
226
09.647 BOLT; BRKT
M5X20 TAPPING HEXALOBULAR
0-72180-520-0
02
1
1512-
●
●
253
09.645 DECK ASM; RADIO & CD
RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) VOLTAGE 24V<7AE> TUNER BAND ASIA<7DN>
8-98017-752-0
01
1
1512-
●
253
09.645 DECK ASM; RADIO & CD
RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) TUNER BAND ASIA<7DN>
8-98017-752-0
01
1
1512-
●
268
09.649 KNOB; VOL
AM/FM RADIO(U69) VOLTAGE 12V<TRQ>,VOLTAGE 24V<7AE> TUNER BAND ASIA<7DN> CLARION IDN
8-97375-820-0
01
1
1512-
●
268
09.649 KNOB; VOL
AM/FM RADIO(U69) TUNER BAND ASIA<7DN> CLARION IDN
8-97375-820-0
01
1
1512-
●
272
09.649 KNOB; AUDIO CONTROL
RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) VOLTAGE 24V<7AE> TUNER BAND ASIA<7DN> CLARION
8-98048-329-0
01
1
1512-
●
272
09.649 KNOB; AUDIO CONTROL
RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) TUNER BAND ASIA<7DN> CLARION
8-98048-329-0
01
1
1512-
●
10
80
227
101
224
295
49
52
48
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
10
09.647 SCREW; ANTENNA CABLE
M5X11 TAPPING W/TORQUES
8-98061-742-0
02
1
1512-
●
●
48
09.650 SPEAKER; AUDIO
2-SPEAKER SYSTEM BASE<U95> IDN
8-97317-001-1
02
1
1512-
●
●
48
09.650 SPEAKER; AUDIO
2-SPEAKER SYSTEM BASE<U95> IDN
8-97317-001-1
02
1
1512-
●
●
49
09.655 SCREW; SPEAKER
2-SPEAKER SYSTEM BASE<U95> M5X14 TAPPING W/TORQUES
8-98061-856-0
06
1
1512-
●
●
52
09.655 GROMMET; SCREW,SPEAKER
2-SPEAKER SYSTEM BASE<U95> 01.269 D=8.6X7.7 L=7.5 IDN
8-94279-078-0
06
1
1512-
●
●
80
09.645 ANTENNA
IDN
8-97387-265-3
01
1
1512-
●
●
101
09.649 CLIP; FEEDER TO BRKT
09.647 ID=4.8
8-94128-483-0
01
1
1512-
●
●
224
09.647 CABLE; EXT,FEEDER
IDN
8-98029-970-1
01
1
1512-
●
●
227
09.647 PROTECTOR; EDGE
8-98053-117-0
01
1
1512-
●
●
295
09.665 INSULATOR; ANTENNA
EXC. RADIO AM/FM STEREO,SEEK/SCAN,CD(UT3) ,AM/FM RADIO(U69)
8-98095-617-1
01
1
1512-
●
●
