Isuzu WW
▶
TRUCKS
▶
FVM
▶
11168 - FVM(SOUTH AFRICA)
▶
5 - Frame, Cab Mounting
▶
5-01 - FRAME AND OTHER PARTS
▶

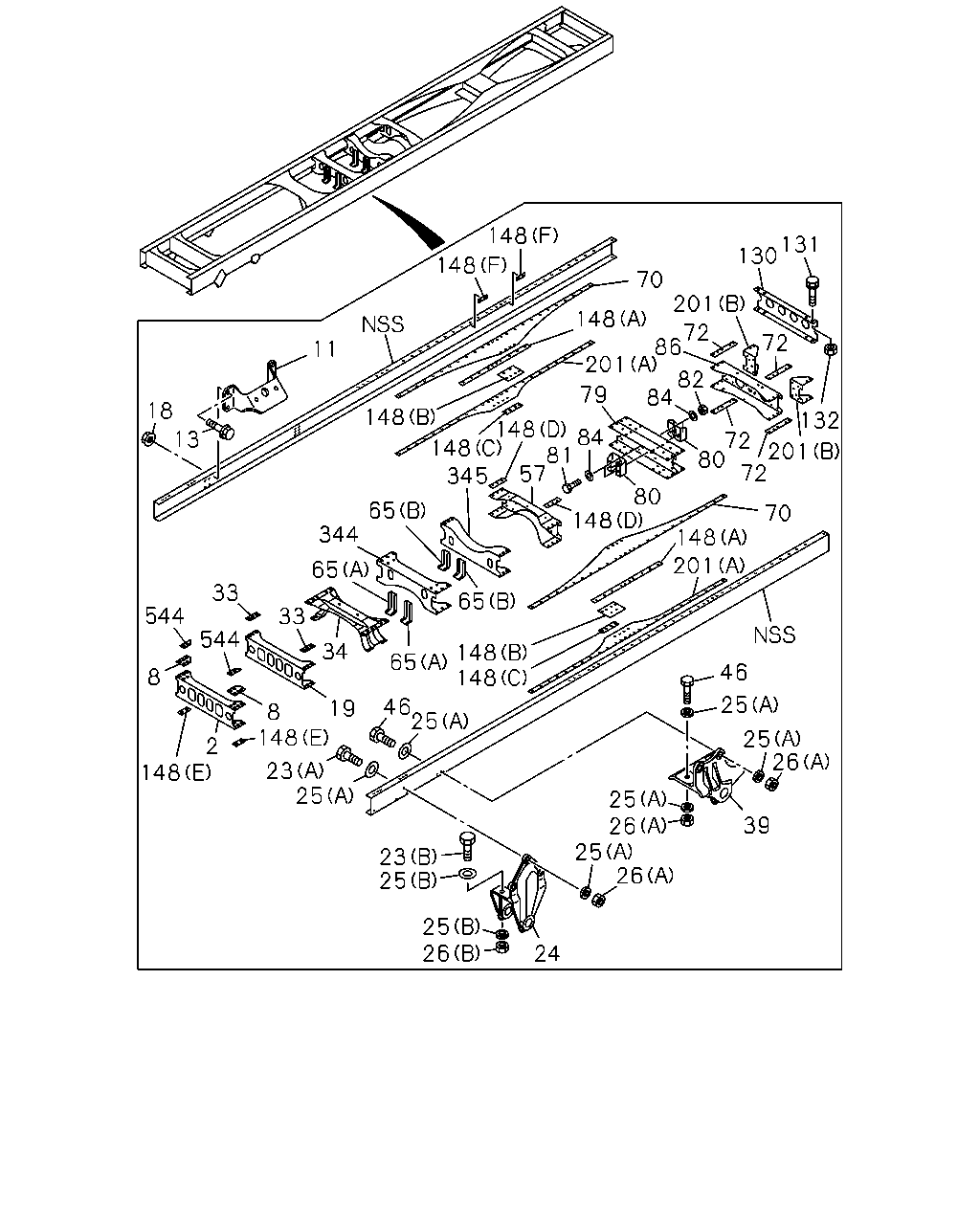

5-01 — FRAME AND OTHER PARTS
(#17146) — 44 parça
148
131
130
148
70
201
148
148
84
345
80
148
148
201
148
72
86
82
84
72
11
79
132
18
201
72
13
72
80
65
70
344
201
148
148
65
33
33
65
544
544
34
65
46
8
25
46
25
19
8
148
25
26
2
148
23
25
25
26
25
26
39
23
25
25
26
24
81
57
148
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
MEMBER; CROSS,1ST
8-97610-852-7
01
1
1001-
8
GUSSET; 1ST C/MBR
SOU
8-97611-027-0
02
1
1001-
11
BRACKET; ENG MTG
8-97619-550-0
02
1
1001-
13
BOLT; BRKT,ENG MTG
M12X35 FLANGE SOU
0-28661-235-0
08
1
1001-
18
NUT; BRKT,ENG MTG
M12 FLANGE SOU
0-91180-212-0
08
1
1001-
19
MEMBER; CROSS,2ND
8-97610-853-5
01
1
1001-
23
BOLT; BRKT,SPR
(A) M14X50 SOU
0-20951-450-0
06
1
1001-
23
BOLT; BRKT,SPR
(B) M16X60
0-20951-660-0
04
1
1001-
24
BRACKET; FRT SPR,FRT
8-98018-840-0
01
1
1001-
24
BRACKET; FRT SPR,FRT
8-98018-841-0
01
1
1001-
25
WASHER; PL,BRKT
(B) ID=16.2
1-09503-316-0
08
1
1001-
25
WASHER; PL,BRKT
(A) ID=15 SOU
8-98010-627-1
28
1
1001-
26
NUT; BRKT,SPR
(A) M14 SOU
0-91110-514-0
14
1
1001-
26
NUT; BRKT,SPR
(B) M16 SOU
0-91110-516-0
04
1
1001-
33
SPACER; 2ND C/MBR,UPR
SOU
8-97611-040-0
02
1
1001-
34
MEMBER; CROSS,3RD
SOU
8-97610-854-2
01
1
1001-
39
BRACKET; FRT SPR,RR
8-98043-648-0
01
1
1001-
39
BRACKET; FRT SPR,RR
8-98043-649-0
01
1
1001-
46
BOLT; BRKT FIX
M14X50 SOU
0-20951-450-0
08
1
1001-
57
MEMBER; CROSS,RR SUSP FRT
8-97612-103-1
01
1
1001-
65
BRACKET; CENTER BRG
(B)
8-97614-125-0
02
1
1001-
65
BRACKET; CENTER BRG
(A)
8-97621-881-0
02
1
1001-
70
GUSSET; TRUNNION,UPR
8-97612-106-0
02
1
1001-
72
SPACER; TRUNNION
8-97612-110-0
04
1
1001-
79
MEMBER; CROSS,TRUNNION ASM
8-97612-484-1
01
1
1001-
80
BRACKET; C/MBR
1-53363-068-0
02
1
1001-
81
BOLT; BRKT
M14X50
0-10956-450-0
02
1
1001-
82
NUT; BRKT
M14 SOU
0-91110-514-0
02
1
1001-
84
WASHER; PL,BRKT
ID=15 SOU
8-98010-627-1
04
1
1001-
86
MEMBER; CROSS,RR SUSP RR
8-97612-105-4
01
1
1001-
130
MEMBER; CROSS,END
8-97610-869-1
01
1
1001-
131
BOLT; END C/MBR
M12X30 W/LK WASHER SOU
0-50541-230-0
04
1
1001-
132
NUT; END C/MBR
M12 SOU
0-91110-512-0
04
1
1001-
148
SPACER; C/MBR
(E)
8-97611-039-0
02
1
1001-
148
SPACER; C/MBR
(D)
8-97612-109-0
02
1
1001-
148
SPACER; C/MBR
(F)
8-97612-111-0
04
1
1001-
148
SPACER; C/MBR
(A)
8-97612-112-0
02
1
1001-
148
SPACER; C/MBR
(B)
8-97612-113-0
02
1
1001-
148
SPACER; C/MBR
(C)
8-97612-115-0
02
1
1001-
201
GUSSET; C/MBR
(A)
8-97612-107-3
02
1
1001-
201
GUSSET; C/MBR
(B)
8-97612-108-2
02
1
1001-
344
MEMBER; CROSS,4TH
8-97611-238-1
01
1
1001-
345
MEMBER; CROSS,5TH
8-97611-238-1
01
1
1001-
544
PLATE; CAB FRT MTG
SOU
8-97615-598-0
02
1
1001-
