◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51642 - NLR/NMR(INDONESIA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-73 - BLOWER UNIT ▶
8-73 — BLOWER UNIT (#171458) — 24 parça

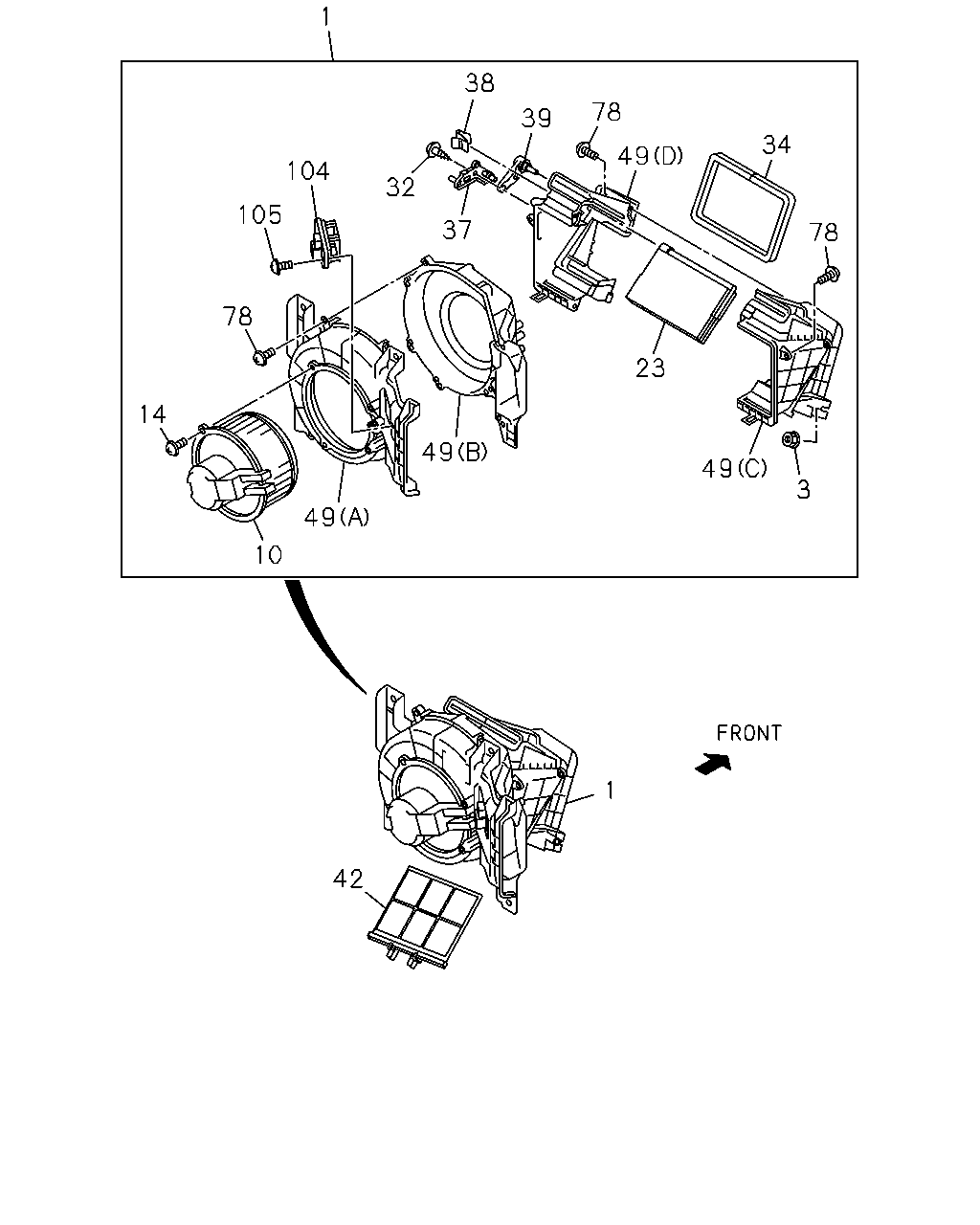

çizim 507836
1 1 42 49 23 78 34 49 78 39 38 32 49 37 104 105 78 14 10 49 3
BalonParca AdiParca NoAdetTipApplied Date A B
1 08.855 BLOWER ASM
FORGED AIR VENTILATION(C39) VOLTAGE 12V<TRQ> 		8-98183-590-0 01 1 1512- ●
1 08.855 BLOWER ASM
FORGED AIR VENTILATION(C39) VOLTAGE 24V<7AE> 		8-98183-589-0 01 1 1512- ●
1 08.855 BLOWER ASM
FORGED AIR VENTILATION(C39) 		8-98183-589-0 01 1 1512- ●
3 08.855 NUT; CASE
FORGED AIR VENTILATION(C39) 09.190 M6 		1-83539-354-0 02 1 1512- ● ●
10 08.855 MOTOR ASM; FAN,BLOWER UNIT
FORGED AIR VENTILATION(C39) VOLTAGE 12V<TRQ> 		8-98183-925-0 01 1 1512- ●
10 08.855 MOTOR ASM; FAN,BLOWER UNIT
FORGED AIR VENTILATION(C39) VOLTAGE 24V<7AE> 		8-98183-924-0 01 1 1512- ●
10 08.855 MOTOR ASM; FAN,BLOWER UNIT
FORGED AIR VENTILATION(C39) 		8-98183-924-0 01 1 1512- ●
14 08.857 SCREW; COVER TO CASE
FORGED AIR VENTILATION(C39) M5X16 		8-98047-448-0 03 1 1512- ● ●
23 08.857 SHUTTER; BLOWER UNIT
FORGED AIR VENTILATION(C39) 		8-98047-437-0 01 1 1512- ● ●
32 08.856 SCREW; LEVER
FORGED AIR VENTILATION(C39) 08.852 M4X16 		8-98047-416-0 01 1 1512- ● ●
34 08.856 LINING; BLOWER UNIT
FORGED AIR VENTILATION(C39) 		8-98047-430-0 01 1 1512- ● ●
37 09.786 LEVER; MODE LEVER
FORGED AIR VENTILATION(C39) 		8-98047-436-0 01 1 1512- ● ●
38 09.787 CLIP; BLOWER UNIT
FORGED AIR VENTILATION(C39) 08.854 		8-98047-417-0 01 1 1512- ● ●
39 09.786 LEVER; SHUTTER,BLOWER UNIT
FORGED AIR VENTILATION(C39) 		8-98047-435-0 01 1 1512- ● ●
42 08.857 FILTER; BLOWER UNIT
FORGED AIR VENTILATION(C39) 		8-98025-006-1 01 1 1512- ● ●
49 08.857 CASE; BLOWER UNIT
FORGED AIR VENTILATION(C39) (A) 		8-98047-440-0 01 1 1512- ● ●
49 08.857 CASE; BLOWER UNIT
FORGED AIR VENTILATION(C39) (B) 		8-98047-441-0 01 1 1512- ● ●
49 08.857 CASE; BLOWER UNIT
FORGED AIR VENTILATION(C39) (C) 		8-98047-442-0 01 1 1512- ● ●
49 08.857 CASE; BLOWER UNIT
FORGED AIR VENTILATION(C39) (D) 		8-98047-443-0 01 1 1512- ● ●
78 08.857 SCREW; CASE TO CASE
FORGED AIR VENTILATION(C39) 08.852 M4X16 TAPPING 		8-97957-708-0 15 1 1512- ● ●
104 08.855 RESISTOR; BLOWER UNIT
FORGED AIR VENTILATION(C39) VOLTAGE 12V<TRQ> 		8-98077-417-0 01 1 1512- ●
104 08.855 RESISTOR; BLOWER UNIT
FORGED AIR VENTILATION(C39) VOLTAGE 24V<7AE> 		8-98074-113-0 01 1 1512- ●
104 08.855 RESISTOR; BLOWER UNIT
FORGED AIR VENTILATION(C39) 		8-98074-113-0 01 1 1512- ●
105 08.855 SCREW; RESISTOR
FORGED AIR VENTILATION(C39) 08.852 M4X16 TAPPING 		8-97957-708-0 02 1 1512- ● ●
