8-65 — CONTROL LEVER; HEATER AND AIR CON (#171457) — 13 parça

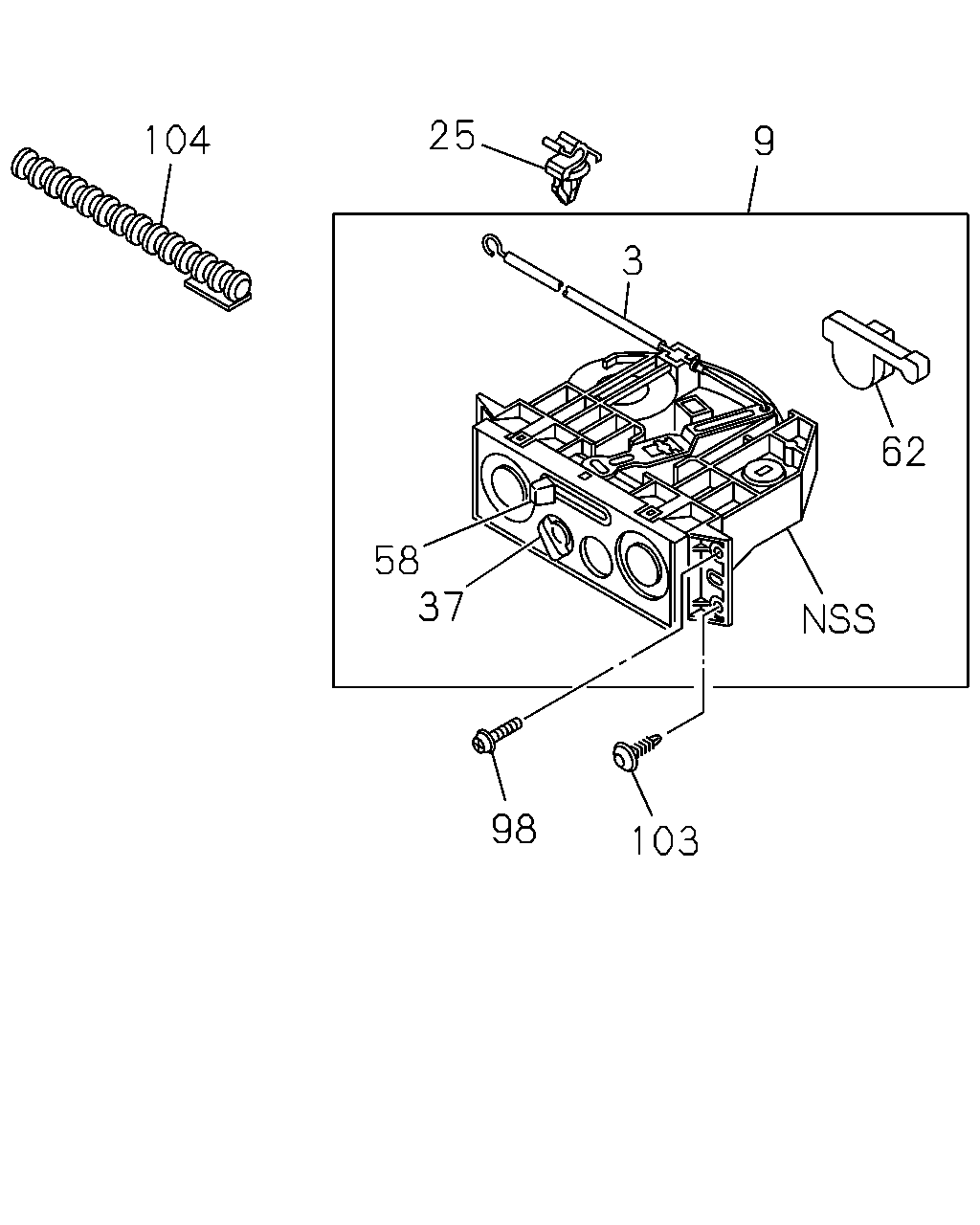

çizim 507854
104 25 3 9 58 37 98 103 62
BalonParca AdiParca NoAdetTipApplied Date A B
3 09.787 CABLE; HTR CONT LVR
FORGED AIR VENTILATION(C39) 		8-97927-121-0 01 1 1512- ● ●
9 08.852 LEVER ASM; HTR & A/C CONT
FORGED AIR VENTILATION(C39) VOLTAGE 12V<TRQ> 		8-98317-840-0 01 1 1512- ●
9 08.852 LEVER ASM; HTR & A/C CONT
FORGED AIR VENTILATION(C39) VOLTAGE 24V<7AE> 		8-98317-839-0 01 1 1512- ●
9 08.852 LEVER ASM; HTR & A/C CONT
FORGED AIR VENTILATION(C39) 		8-98317-839-0 01 1 1512- ●
25 08.854 CLIP; CABLE,CONT LEVER
FORGED AIR VENTILATION(C39) 09.647 ID=4.8 		8-94128-483-0 01 1 1512- ● ●
37 08.852 KNOB; SW,HTR CONT LVR
FORGED AIR VENTILATION(C39) 		8-97926-674-0 01 1 1512- ● ●
58 09.787 KNOB; LVR,HTR CONT LVR
FORGED AIR VENTILATION(C39) 		8-97926-675-0 01 1 1512- ● ●
62 08.991 BULB; HTR CONT LVR
FORGED AIR VENTILATION(C39) VOLTAGE 12V<TRQ> 		8-98326-697-0 01 1 1512- ●
62 08.991 BULB; HTR CONT LVR
FORGED AIR VENTILATION(C39) VOLTAGE 24V<7AE> 		8-97926-676-0 01 1 1512- ●
62 08.991 BULB; HTR CONT LVR
FORGED AIR VENTILATION(C39) 		8-97926-676-0 01 1 1512- ●
98 08.852 SCREW; CONT PANEL
FORGED AIR VENTILATION(C39) 09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 1512- ● ●
103 08.854 CLIP
FORGED AIR VENTILATION(C39) 16.742 DARK GRAY 		8-97098-326-0 01 1 1512- ● ●
104 08.852 GUIDE; CABLE
FORGED AIR VENTILATION(C39) 		8-98048-216-0 01 1 1512- ● ●
