8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#171453) — 17 parça

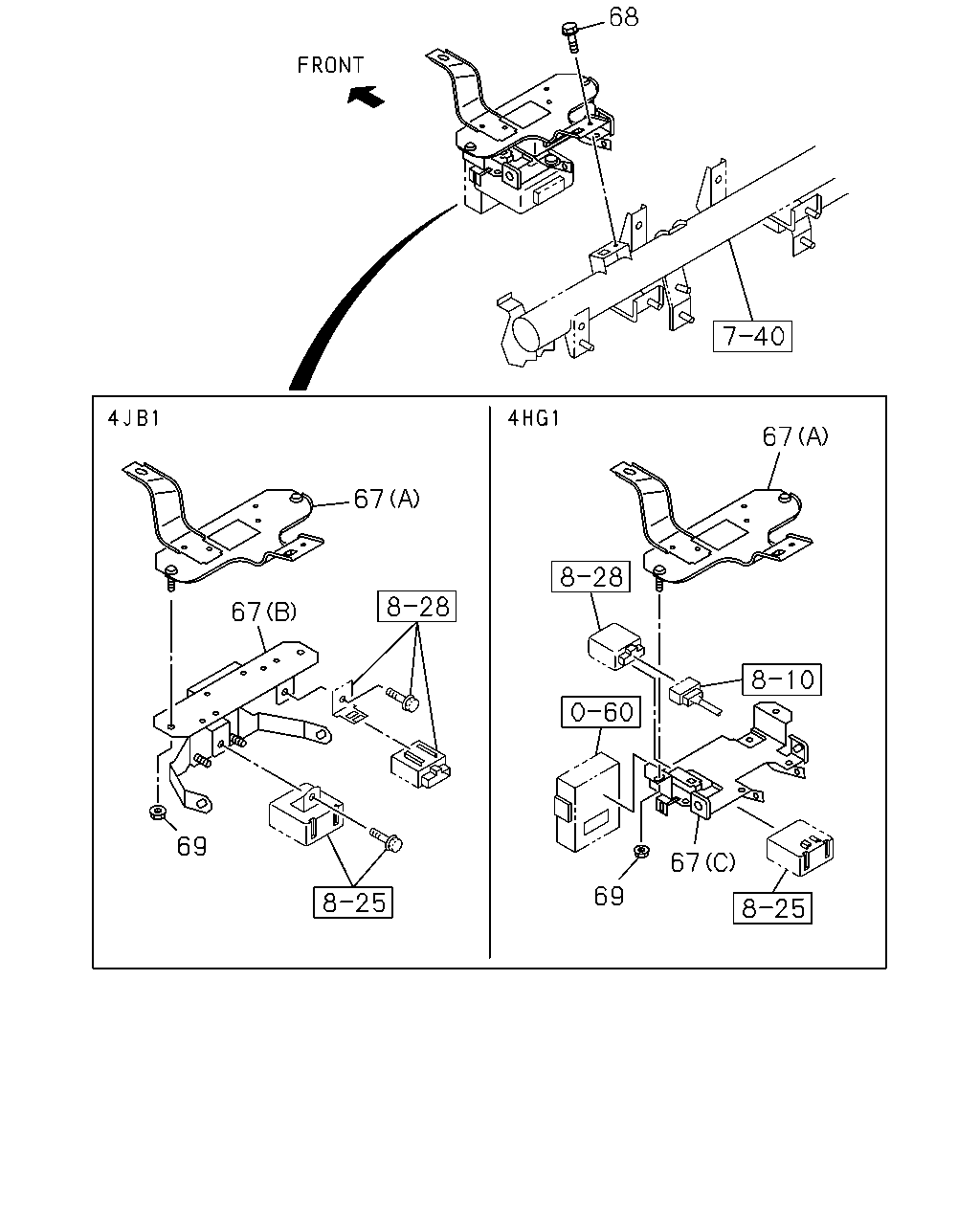

çizim 507735
67 69 67 67 67 69 68
BalonParca AdiParca NoAdetTipApplied Date A B
67 03.887 BRACKET; CONT UNIT
4HG1-T ENG(RDP) (C) 		8-98172-518-0 01 1 1512- ● ●
67 03.887 BRACKET; CONT UNIT
4JB1-TC ENG(RDT) (B) 		8-98072-631-4 01 1 1512- ●
67 03.887 BRACKET; CONT UNIT
(A) 		8-98022-170-1 01 1 1512- ● ●
68 02.500 BOLT; BRKT
00.206 M6X12 FLANGE 		0-28450-612-0 01 1 1512- ● ●
69 02.458 NUT; BRKT
01.062 M6 FLANGE IDN 		0-91180-106-0 02 1 1512- ● ●

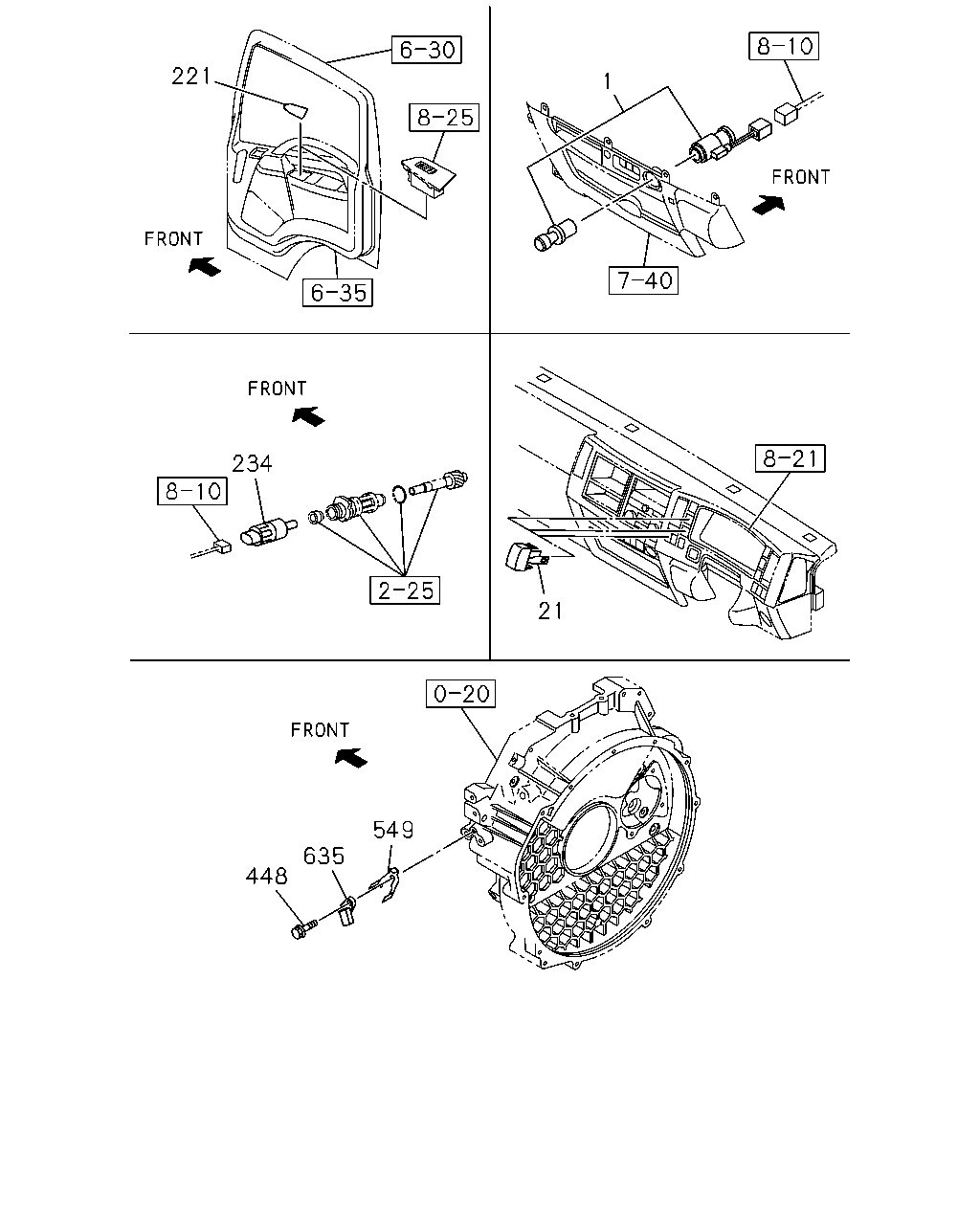

çizim 507771
221 234 549 635 448 21 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 09.709 LIGHTER; CIGAR
VOLTAGE 12V<TRQ> EXC. ASH TRAY & CIGAR LIGHTER DELETE<8PC> IDN 		8-97314-003-0 01 1 1512- ●
1 09.709 LIGHTER; CIGAR
VOLTAGE 24V<7AE> EXC. ASH TRAY & CIGAR LIGHTER DELETE<8PC> IDN 		8-98142-962-0 01 1 1512- ●
1 09.709 LIGHTER; CIGAR
EXC. ASH TRAY & CIGAR LIGHTER DELETE<8PC> IDN 		8-98142-962-0 01 1 1512- ●
21 09.744 COVER; HOLE
16.081 		8-98025-954-1 03 1 1512- ● ●
221 16.320 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-915-2 01 1 1512- ● ●
221 16.320 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-916-2 01 1 1512- ● ●
234 03.682 SENSOR; VEHICLE SPD
VOLTAGE 12V<TRQ> 4 PULSE PPS RESIN WHITE 		8-97377-920-0 01 1 1512- ●
234 03.682 SENSOR; VEHICLE SPD
VOLTAGE 24V<7AE> 25 PULSE ALUMINUM 		8-97328-058-1 01 1 1512- ●
234 03.682 SENSOR; VEHICLE SPD
25 PULSE ALUMINUM 		8-97328-058-1 01 1 1512- ●
448 02.500 BOLT; SENSOR
4HG1-T ENG(RDP) 09.242 M6X16 FLANGE 		0-28050-616-0 01 1 1512- ● ●
549 02.510 SHEET
4HG1-T ENG(RDP) 09.743 		8-97161-633-2 01 1 1512- ● ●
635 09.750 SENSOR; TACHOMETER
4HG1-T ENG(RDP) YAZAKI 		8-97214-325-0 01 1 1512- ● ●
