8-21 — METER ASM (#171451) — 15 parça

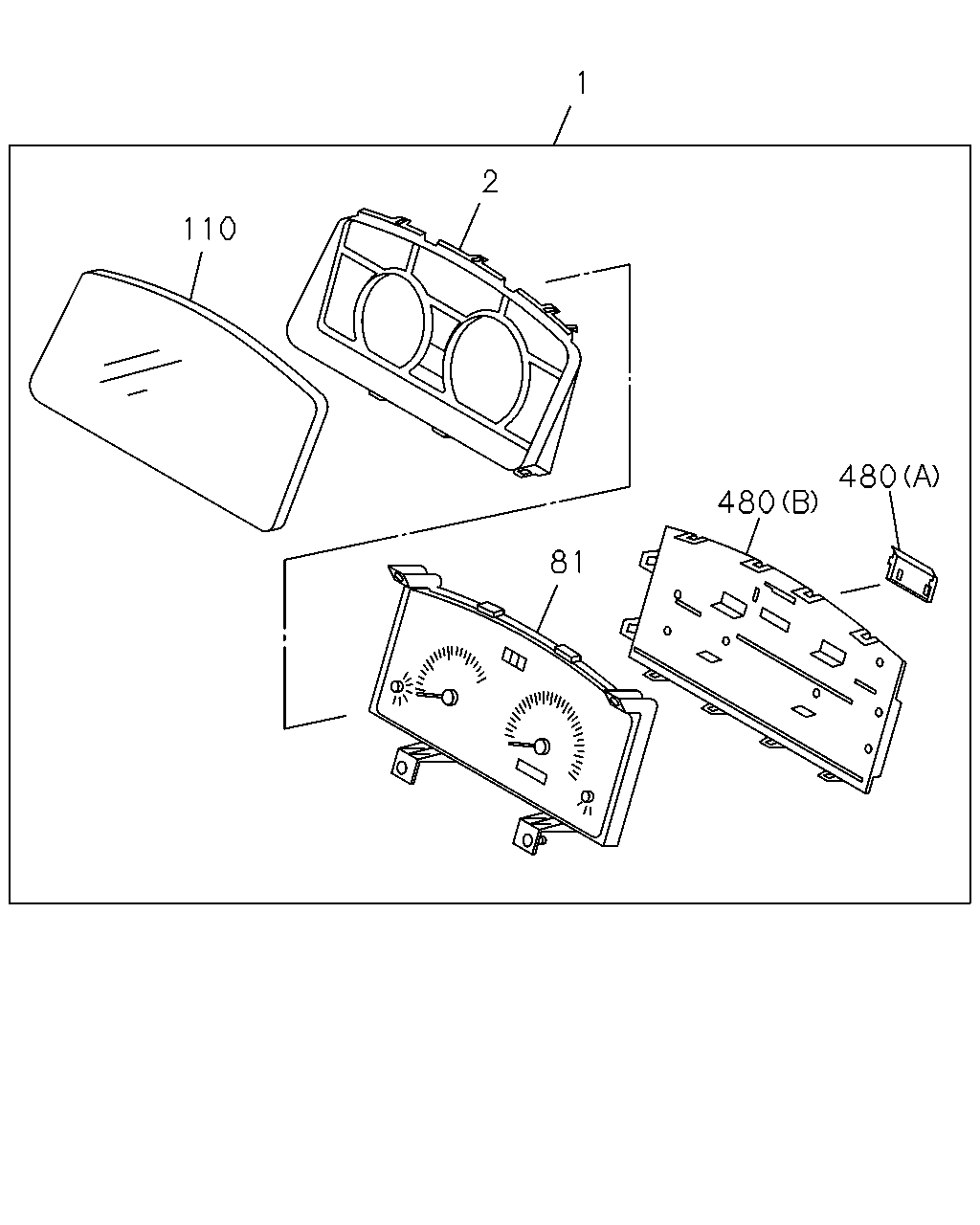

çizim 507664

110 2 1 480 480 81

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	1	09.735 METER COMPL; CLUSTER 4HG1-T ENG(RDP)	8-98168-759-0	01	1	1512-	●	●
	1	09.735 METER COMPL; CLUSTER 4JB1-TC ENG(RDT)	8-98080-732-2	01	1	1512-	●
	2	09.735 PANEL; CLUSTER	8-98054-432-0	01	1	1512-	●	●
	81	09.735 METER SUB ASM 4HG1-T ENG(RDP)	8-98176-354-0	01	1	1512-	●	●
	81	09.735 METER SUB ASM 4JB1-TC ENG(RDT)	8-98095-811-0	01	1	1512-	●
	110	09.748 GLASS; CLUSTER METER 4HG1-T ENG(RDP)	8-98054-431-0	01	1	1512-	●	●
	110	09.748 GLASS; CLUSTER METER 4JB1-TC ENG(RDT)	8-98054-642-0	01	1	1512-	●
	480	09.748 COVER; METER (B) BLACK	8-98054-433-0	01	1	1512-	●	●
	480	09.748 COVER; METER 4JB1-TC ENG(RDT) (A) BLACK DOT MATRIX FOR FPC PROTECTION	8-98054-881-0	01	1	1512-	●

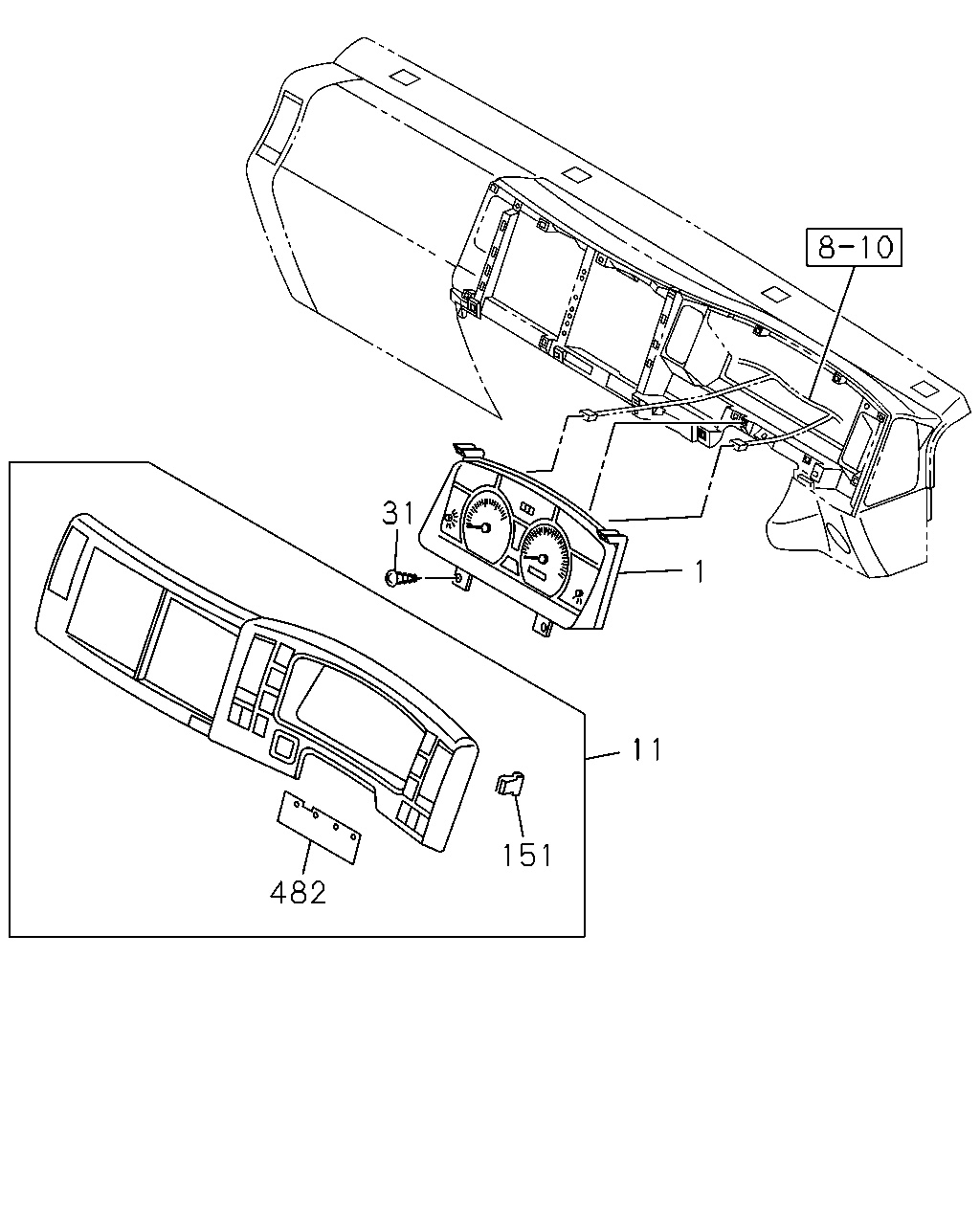

çizim 507862

31 1 11 151 482

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	1	09.735 METER COMPL; CLUSTER 4HG1-T ENG(RDP)	8-98168-759-0	01	1	1512-	●	●
	1	09.735 METER COMPL; CLUSTER 4JB1-TC ENG(RDT)	8-98080-732-2	01	1	1512-	●
	11	09.743 CLUSTER ASM; METER DARK GRAY	8-97405-350-6	01	1	1512-	●	●
	31	09.761 SCREW; METER,INST PANEL 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	1512-	●	●
	151	09.747 CLIP; METER CLUSTER 16.085	8-98021-271-0	13	1	1512-	●	●
	482	09.772 SEAL; CLUSTER METER	8-98116-842-0	01	1	1512-	●	●
