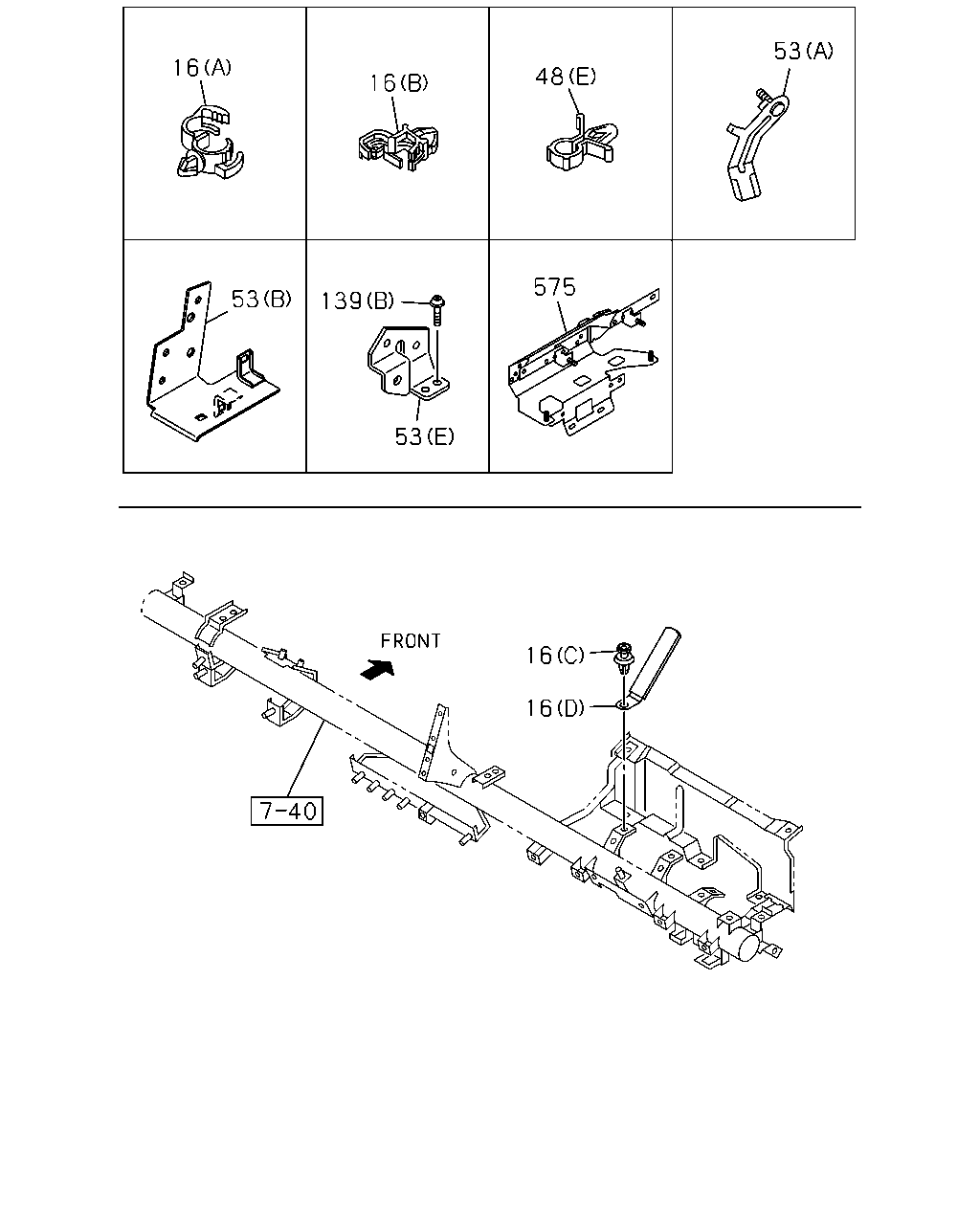

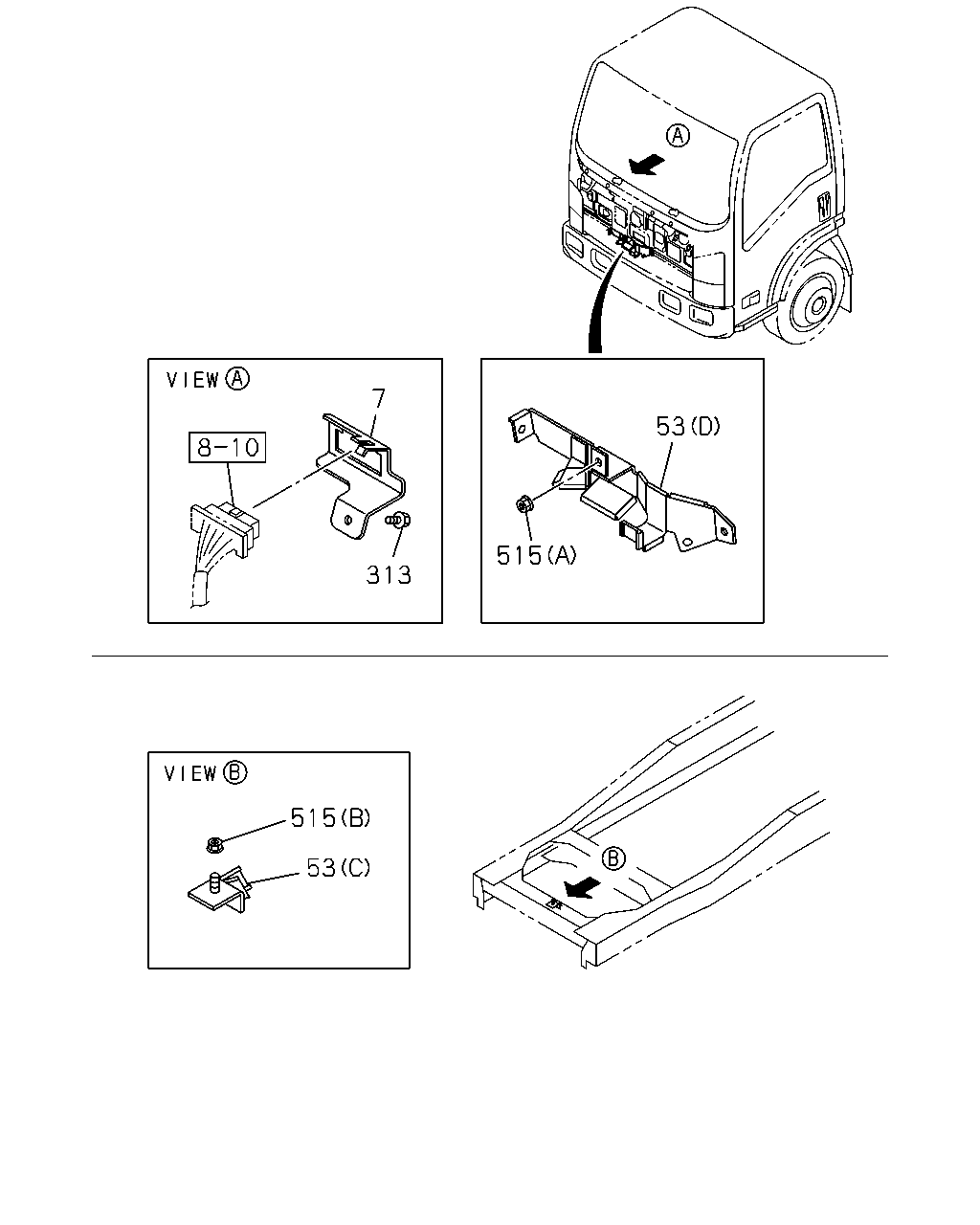

8-15 — FIXING PARTS; WIRING HARNESS (#171450) — 118 parça

53 515 313 7 515 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	02.559 BRACKET; CONNECTOR 4HG1-T ENG(RDP)	8-98043-070-1	01	1	1512-	●	●
53	02.483 BRACKET; HARNESS 4HG1-T ENG(RDP) 02.559 (A)	8-97018-095-3	01	1	1512-	●	●
53	02.483 BRACKET; HARNESS (C)	8-98018-900-2	01	1	1512-	●	●
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39) (E)	8-98084-590-0	01	1	1512-	●	●
53	02.483 BRACKET; HARNESS 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) (B)	8-97357-140-0	01	1	1512-	●
53	02.483 BRACKET; HARNESS (D)	8-98039-984-2	01	1	1512-	●	●
313	02.559 BOLT; BRKT 4HG1-T ENG(RDP) 09.171 M6X16 FLANGE	0-28450-616-0	01	1	1512-	●	●
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE IDN	0-91180-106-0	01	1	1512-	●	●
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	1512-	●	●
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE IDN	0-91180-106-0	02	1	1512-	●	●

242 150 313 529 460 377 386 377 159 519 577 469 219 515 294 515 577 516 139 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39) 16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1512-	●	●
139	02.559 BOLT; BRKT 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) (A)	8-97028-451-3	01	1	1512-	●
150	02.343 BOLT; CLIP 4JB1-TC ENG(RDT) M8X12 FLANGE IMA	0-28050-812-0	01	1	1512-	●
159	02.559 BOLT; GRAND ENG ELEC 02.343 M8X24 W/PL WASHER	8-98141-256-1	01	1	1512-	●	●
219	02.559 NUT 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) 01.062 M6 FLANGE IDN	0-91180-106-0	03	1	1512-	●
242	02.483 BOLT; BRKT,HARNESS 02.343 M8X16 FLANGE	0-28050-816-0	03	1	1512-	●	●
294	02.559 NUT 4HG1-T ENG(RDP) 02.343 M6 W/LK WASHER	8-94424-179-0	01	1	1512-	●	●
313	02.559 BOLT; BRKT 4HG1-T ENG(RDP) 09.171 M6X16 FLANGE	0-28450-616-0	01	1	1512-	●	●
377	02.559 BOLT; CAB EARTH 02.343 (B) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1512-	●	●
377	02.559 BOLT; CAB EARTH (A) M6X14 W/PL WASHER	8-98164-836-0	01	1	1512-	●	●
386	02.559 BOLT; GRAND HARNESS 02.343 M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1512-	●	●
460	02.559 BOLT; HARNESS PROTECTOR 01.060 M8X35 FLANGE	0-28650-835-0	01	1	1512-	●	●
469	02.559 NUT; PROTECTOR 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	1512-1512	●	●
469	02.559 NUT; PROTECTOR 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	1601-	●	●
469	02.559 NUT; PROTECTOR 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	1601-	●	●
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE IDN	0-91180-106-0	01	1	1512-	●	●
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	1512-	●	●
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE IDN	0-91180-106-0	02	1	1512-	●	●
516	02.559 BOLT; HARNESS 09.650 M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	1512-	●	●
519	02.559 NUT; EARTH CABLE 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) 02.042 M12 FLANGE	0-91180-112-0	01	1	1512-	●
529	02.559 BOLT; RELAY BOX 06.216 M8X25 FLANGE IDN	0-28650-825-0	03	1	1512-	●	●
577	02.559 NUT; FUSE BOX 01.062 (A) M6 FLANGE IDN	0-91180-106-0	02	1	1512-	●	●
577	02.559 NUT; FUSE BOX 09.744 (B) M5 FLANGE	5-09440-003-0	04	1	1512-	●	●

483 48 483 48 16 48 48 48 48 48 48 48 48 48 483 48 22 22 48 464

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	02.559 CLIP; HARNESS 02.694 (A) ID=6 & 10-13	8-97069-515-0	02	1	1512-	●	●
16	02.559 CLIP; HARNESS 16.578 (C) D8.5X19 PUSH RIVET	8-97857-210-0	01	1	1601-	●	●
16	02.559 CLIP; HARNESS 02.343 (B) ID=10 & 16	8-94413-325-0	01	1	1512-	●	●
16	02.559 CLIP; HARNESS 02.343 (B) ID=10 & 16	8-94413-325-0	01	1	1512-	●	●
16	02.559 CLIP; HARNESS 04.930 (D) L=91 ID=8.5	8-94329-956-0	01	1	1601-	●	●
22	02.559 CLIP; ENG HARNESS 4HG1-T ENG(RDP) (A) L=170.3	1-09987-182-0	01	1	1512-	●	●
22	02.559 CLIP; ENG HARNESS M/T MYY5T(RSM) (B) L=135	1-09987-143-1	01	1	1512-	●
22	02.559 CLIP; ENG HARNESS M/T MYY5T(RSM),M/T MYY6S(RST) (B) L=135	1-09987-143-1	01	1	1512-		●
48	02.559 CLIP; FRAME HARNESS 01.240 (B) ID=14 L=47	5-09700-319-0	04	1	1512-	●	●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP) 01.240 (B) ID=14 L=47	5-09700-319-0	04	1	1512-	●	●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP) 03.162 (A) L=140	5-09707-031-1	01	1	1512-	●	●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP),4JB1-TC ENG(RDT) (C) T=4.5 & 9	8-97371-947-0	01	1	1512-	●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) (C) T=4.5 & 9	8-97371-947-0	01	1	1512-	●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP) (C) T=4.5 & 9	8-97371-947-0	01	1	1512-		●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP),4JB1-TC ENG(RDT) 01.240 (B) ID=14 L=47	5-09700-319-0	01	1	1512-	●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) 01.240 (B) ID=14 L=47	5-09700-319-0	01	1	1512-	●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP) 01.240 (B) ID=14 L=47	5-09700-319-0	01	1	1512-		●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP) EXC. HEAVY DUTY FRAME<6WB> 01.240 (B) ID=14 L=47	5-09700-319-0	01	1	1512-		●
48	02.559 CLIP; FRAME HARNESS (G) ID=33 L=63	1-09700-807-0	06	1	1512-	●	●
48	02.559 CLIP; FRAME HARNESS (H) ID=31 L=30	1-09700-969-0	01	1	1512-	●	●
48	02.559 CLIP; FRAME HARNESS (I) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1512-	●	●
48	02.559 CLIP; FRAME HARNESS (J) T=4.5 & 13	5-09709-096-0	01	1	1512-	●	●
48	02.559 CLIP; FRAME HARNESS (K) ID=30 W/STUD	8-97078-642-2	01	1	1512-	●	●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP),4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) 02.525 (F) T=9.2 & 9	5-09709-025-0	01	1	1512-	●
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT) (D) ID=19 H=70 L=25	1-09700-773-0	01	1	1512-	●
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT) 01.240 (B) ID=14 L=47	5-09700-319-0	02	1	1512-	●
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT) 01.240 (B) ID=14 L=47	5-09700-319-0	03	1	1512-	●
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT) M/T MSB5M(RM5),M/T MSB5S(R45) 04.785 (E) ID=9.6	8-94147-870-0	01	1	1512-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2400MM(24W) 01.240 (B) ID=14 L=47	5-09700-319-0	07	1	1512-1512	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2400MM(24W) 01.240 (B) ID=14 L=47	5-09700-319-0	07	1	1601-	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) G.V.W. 4.0-4.5TON(RPR) 01.240 (B) ID=14 L=47	5-09700-319-0	11	1	1512-	●
48	02.559 CLIP; FRAME HARNESS (L) L=250	5-09707-030-1	02	1	1512-	●	●
48	02.559 CLIP; FRAME HARNESS 03.162 (A) L=140	5-09707-031-1	03	1	1512-	●	●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP) (M) T=6.0	8-97371-948-0	01	1	1512-		●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP) (N) T=9 & 10.5	8-97371-949-0	01	1	1512-		●
48	02.559 CLIP; FRAME HARNESS 01.240 (B) ID=14 L=47	5-09700-319-0	10	1	1512-1512		●
48	02.559 CLIP; FRAME HARNESS 01.240 (B) ID=14 L=47	5-09700-319-0	10	1	1601-		●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP) 01.240 (B) ID=14 L=47	5-09700-319-0	10	1	1601-		●
464	02.525 CLIP; SEDIMENTER HARNESS 02.559 ID=6.5	8-94257-639-0	01	1	1512-	●	●
483	02.559 CLIP; ENG HARNESS 4HG1-T ENG(RDP) 03.162 (C) L=140	5-09707-031-1	03	1	1512-	●	●
483	02.559 CLIP; ENG HARNESS 4JB1-TC ENG(RDT) (A) ID=11 L=20	0-95235-035-0	01	1	1512-	●
483	02.559 CLIP; ENG HARNESS 4JB1-TC ENG(RDT) 04.342 (B) L=197	1-83574-032-0	01	1	1512-	●

16 16 53 139 53 575 48 53 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	02.559 CLIP; HARNESS 02.694 (A) ID=6 & 10-13	8-97069-515-0	02	1	1512-	●	●
16	02.559 CLIP; HARNESS 16.578 (C) D8.5X19 PUSH RIVET	8-97857-210-0	01	1	1601-	●	●
16	02.559 CLIP; HARNESS 02.343 (B) ID=10 & 16	8-94413-325-0	01	1	1512-	●	●
16	02.559 CLIP; HARNESS 02.343 (B) ID=10 & 16	8-94413-325-0	01	1	1512-	●	●
16	02.559 CLIP; HARNESS 04.930 (D) L=91 ID=8.5	8-94329-956-0	01	1	1601-	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (B) ID=14 L=47	5-09700-319-0	04	1	1512-	●	●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP) 01.240 (B) ID=14 L=47	5-09700-319-0	04	1	1512-	●	●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP) 03.162 (A) L=140	5-09707-031-1	01	1	1512-	●	●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP),4JB1-TC ENG(RDT) (C) T=4.5 & 9	8-97371-947-0	01	1	1512-	●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) (C) T=4.5 & 9	8-97371-947-0	01	1	1512-	●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP) (C) T=4.5 & 9	8-97371-947-0	01	1	1512-		●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP),4JB1-TC ENG(RDT) 01.240 (B) ID=14 L=47	5-09700-319-0	01	1	1512-	●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) 01.240 (B) ID=14 L=47	5-09700-319-0	01	1	1512-	●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP) 01.240 (B) ID=14 L=47	5-09700-319-0	01	1	1512-		●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP) EXC. HEAVY DUTY FRAME<6WB> 01.240 (B) ID=14 L=47	5-09700-319-0	01	1	1512-		●
48	02.559 CLIP; FRAME HARNESS (G) ID=33 L=63	1-09700-807-0	06	1	1512-	●	●
48	02.559 CLIP; FRAME HARNESS (H) ID=31 L=30	1-09700-969-0	01	1	1512-	●	●
48	02.559 CLIP; FRAME HARNESS (I) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1512-	●	●
48	02.559 CLIP; FRAME HARNESS (J) T=4.5 & 13	5-09709-096-0	01	1	1512-	●	●
48	02.559 CLIP; FRAME HARNESS (K) ID=30 W/STUD	8-97078-642-2	01	1	1512-	●	●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP),4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) G.V.W. 3.0-3.5TON(RPP),G.V.W. 4.0-4.5TON(RPR) 02.525 (F) T=9.2 & 9	5-09709-025-0	01	1	1512-	●
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT) (D) ID=19 H=70 L=25	1-09700-773-0	01	1	1512-	●
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT) 01.240 (B) ID=14 L=47	5-09700-319-0	02	1	1512-	●
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT) 01.240 (B) ID=14 L=47	5-09700-319-0	03	1	1512-	●
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT) M/T MSB5M(RM5),M/T MSB5S(R45) 04.785 (E) ID=9.6	8-94147-870-0	01	1	1512-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2400MM(24W) 01.240 (B) ID=14 L=47	5-09700-319-0	07	1	1512-1512	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2400MM(24W) 01.240 (B) ID=14 L=47	5-09700-319-0	07	1	1601-	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) G.V.W. 4.0-4.5TON(RPR) 01.240 (B) ID=14 L=47	5-09700-319-0	11	1	1512-	●
48	02.559 CLIP; FRAME HARNESS (L) L=250	5-09707-030-1	02	1	1512-	●	●
48	02.559 CLIP; FRAME HARNESS 03.162 (A) L=140	5-09707-031-1	03	1	1512-	●	●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP) (M) T=6.0	8-97371-948-0	01	1	1512-		●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP) (N) T=9 & 10.5	8-97371-949-0	01	1	1512-		●
48	02.559 CLIP; FRAME HARNESS 01.240 (B) ID=14 L=47	5-09700-319-0	10	1	1512-1512		●
48	02.559 CLIP; FRAME HARNESS 01.240 (B) ID=14 L=47	5-09700-319-0	10	1	1601-		●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP) 01.240 (B) ID=14 L=47	5-09700-319-0	10	1	1601-		●
53	02.483 BRACKET; HARNESS 4HG1-T ENG(RDP) 02.559 (A)	8-97018-095-3	01	1	1512-	●	●
53	02.483 BRACKET; HARNESS (C)	8-98018-900-2	01	1	1512-	●	●
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39) (E)	8-98084-590-0	01	1	1512-	●	●
53	02.483 BRACKET; HARNESS 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) (B)	8-97357-140-0	01	1	1512-	●
53	02.483 BRACKET; HARNESS (D)	8-98039-984-2	01	1	1512-	●	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39) 16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1512-	●	●
139	02.559 BOLT; BRKT 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) (A)	8-97028-451-3	01	1	1512-	●
575	02.559 BRACKET; FUSE BOX	8-98173-144-3	01	1	1512-	●	●
