8-10 — WIRING HARNESS AND FUSE (#171449) — 95 parça

13 575 575 329 525

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

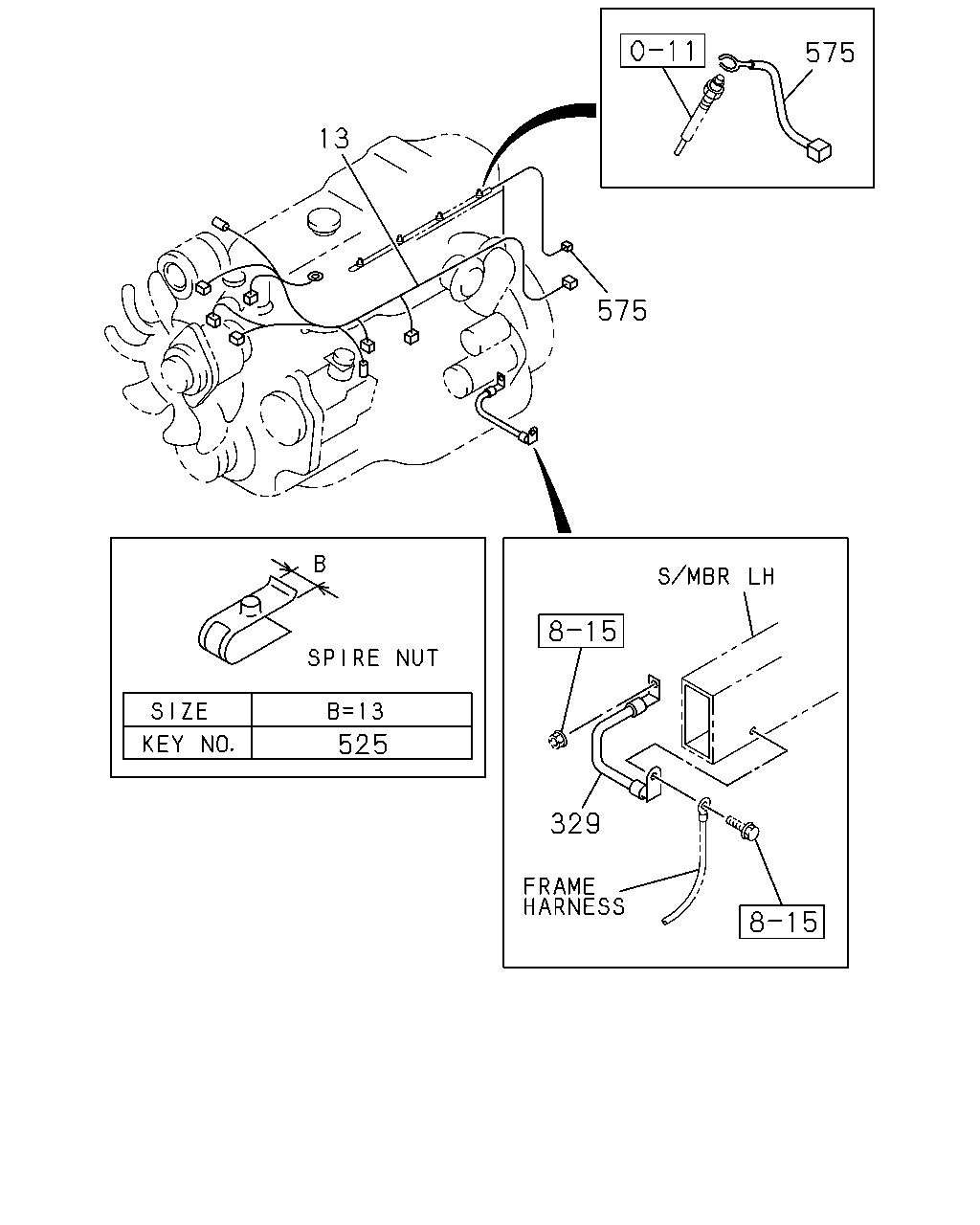

13	02.525 HARNESS; ENG 4HG1-T ENG(RDP)	8-98298-790-0	01	1	1512-	●	●
13	02.525 HARNESS; ENG 4JB1-TC ENG(RDT) IDN	8-97218-750-1	01	1	1512-	●
329	02.480 CABLE; ENG TO FRAME 4HG1-T ENG(RDP)	8-97520-927-0	01	1	1512-	●	●
329	02.480 CABLE; ENG TO FRAME 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) IDN	8-97260-486-1	01	1	1512-	●
525	08.919 NUT; CLIP 01.062 M6 FLANGE IDN	0-91180-106-0	03	1	1512-	●	●
525	08.919 NUT; CLIP 4JB1-TC ENG(RDT) 01.062 M6 FLANGE IDN	0-91180-106-0	01	1	1512-	●
575	02.525 HARNESS; GLOW PLUG 4JB1-TC ENG(RDT) IDN	8-97212-328-0	01	1	1512-	●

1 28 41 4 29 431 431 694 453 293 36 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

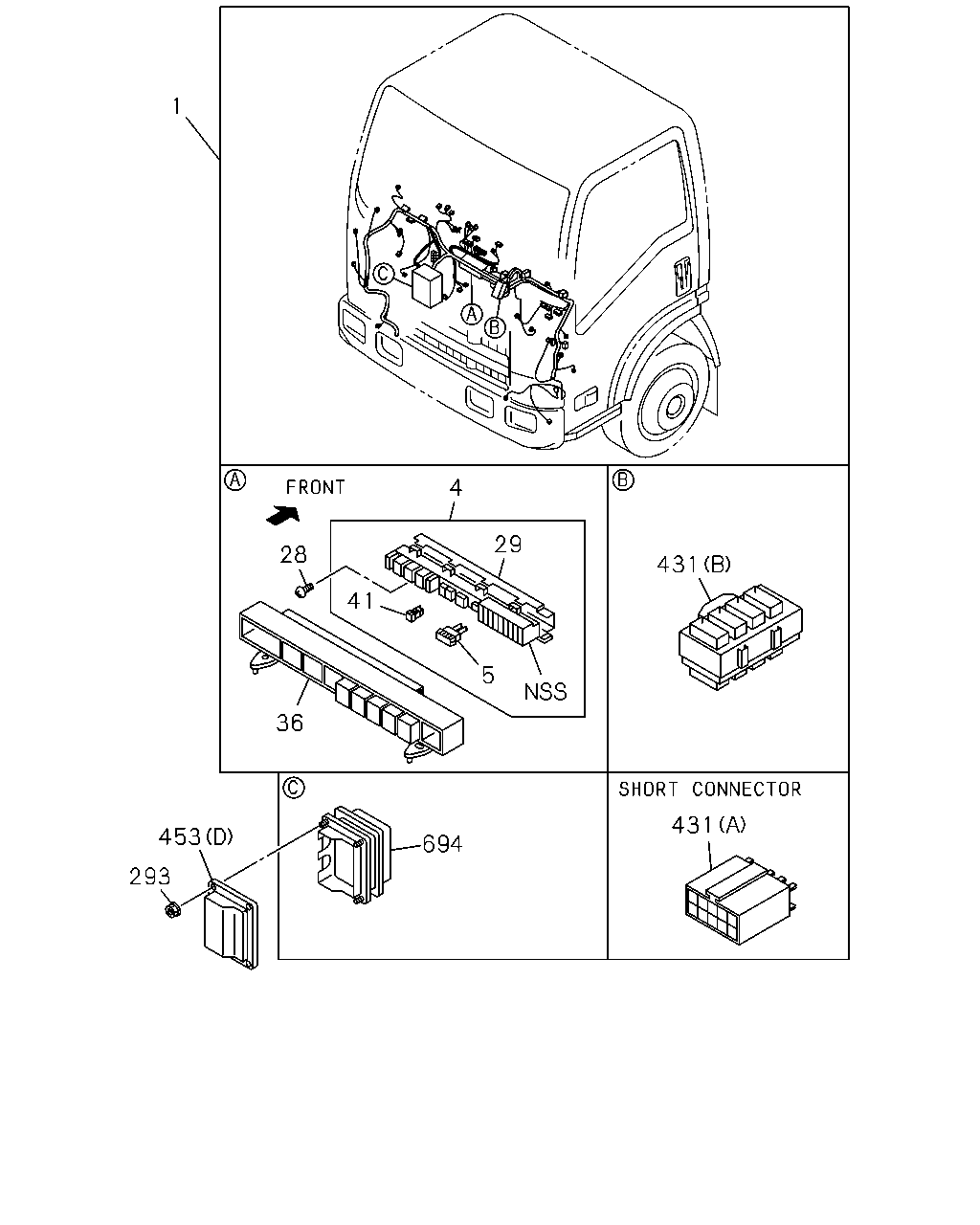

1	02.480 HARNESS; CAB 4HG1-T ENG(RDP) FORGED AIR VENTILATION(C39) IDN	8-97695-487-0	01	1	1512-	●	●
1	02.480 HARNESS; CAB 4HG1-T ENG(RDP) EXC. FORGED AIR VENTILATION(C39) IDN	8-97695-665-0	01	1	1512-	●	●
1	02.480 HARNESS; CAB 4JB1-TC ENG(RDT) FORGED AIR VENTILATION(C39) IDN	8-97695-486-0	01	1	1512-	●
1	02.480 HARNESS; CAB 4JB1-TC ENG(RDT) EXC. FORGED AIR VENTILATION(C39) IDN	8-97695-664-0	01	1	1512-	●
4	02.483 BOX ASM; FUSE,HARNESS IDN	8-97187-921-1	01	1	1512-	●	●
5	02.485 FUSE; FACIA HARNESS 4HG1-T ENG(RDP) 08.965 20A MINI YELLOW IDN	8-97062-024-0	AR	1	1512-	●	●
5	02.485 FUSE; FACIA HARNESS 08.965 10A MINI RED IDN	8-97062-022-0	AR	1	1512-	●	●
5	02.485 FUSE; FACIA HARNESS 08.965 15A MINI BLUE IDN	8-97062-023-0	AR	1	1512-	●	●
5	02.485 FUSE; FACIA HARNESS 4JB1-TC ENG(RDT) 08.965 25A MINI CLEAR IDN	8-97062-025-0	AR	1	1512-	●
28	02.483 SCREW; FUSE BOX 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1512-	●	●
29	02.483 COVER; FUSE BOX IDN	8-97074-955-0	01	1	1512-	●	●
36	02.530 BOX; RELAY IDN	8-97187-918-1	01	1	1512-	●	●
41	08.821 PULLER; FUSE IDN	8-97103-388-0	01	1	1512-	●	●
293	02.559 NUT 01.062 M6 FLANGE IDN	0-91180-106-0	04	1	1512-	●	●
431	02.530 CONNECTOR; JOINT (A) 10P IDN	8-97077-943-0	02	1	1512-	●	●
431	02.530 CONNECTOR; JOINT (B) IDN	8-98046-206-0	01	1	1512-	●	●
453	02.483 PROTECTOR; HARNESS (B) IDN	8-97120-589-0	01	1	1512-	●	●
453	02.483 PROTECTOR; HARNESS 4HG1-T ENG(RDP) EXHAUST BRAKE<NF8> (A) IDN	8-94417-716-0	02	1	1512-	●
453	02.483 PROTECTOR; HARNESS 4HG1-T ENG(RDP) (A) IDN	8-94417-716-0	02	1	1512-		●
453	02.483 PROTECTOR; HARNESS 4HG1-T ENG(RDP) EXHAUST BRAKE<NF8> (C) IDN	8-94482-169-0	01	1	1512-	●
453	02.483 PROTECTOR; HARNESS 4HG1-T ENG(RDP) (C) IDN	8-94482-169-0	01	1	1512-		●
453	02.483 PROTECTOR; HARNESS 4JB1-TC ENG(RDT) (A) IDN	8-94417-716-0	01	1	1512-	●
453	02.483 PROTECTOR; HARNESS (D)	8-98034-039-1	01	1	1512-	●	●
694	02.483 BOX ASM; CONNECTOR IDN	8-98057-772-0	01	1	1512-	●	●

8 35 184 174 174 453 453 453 639

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

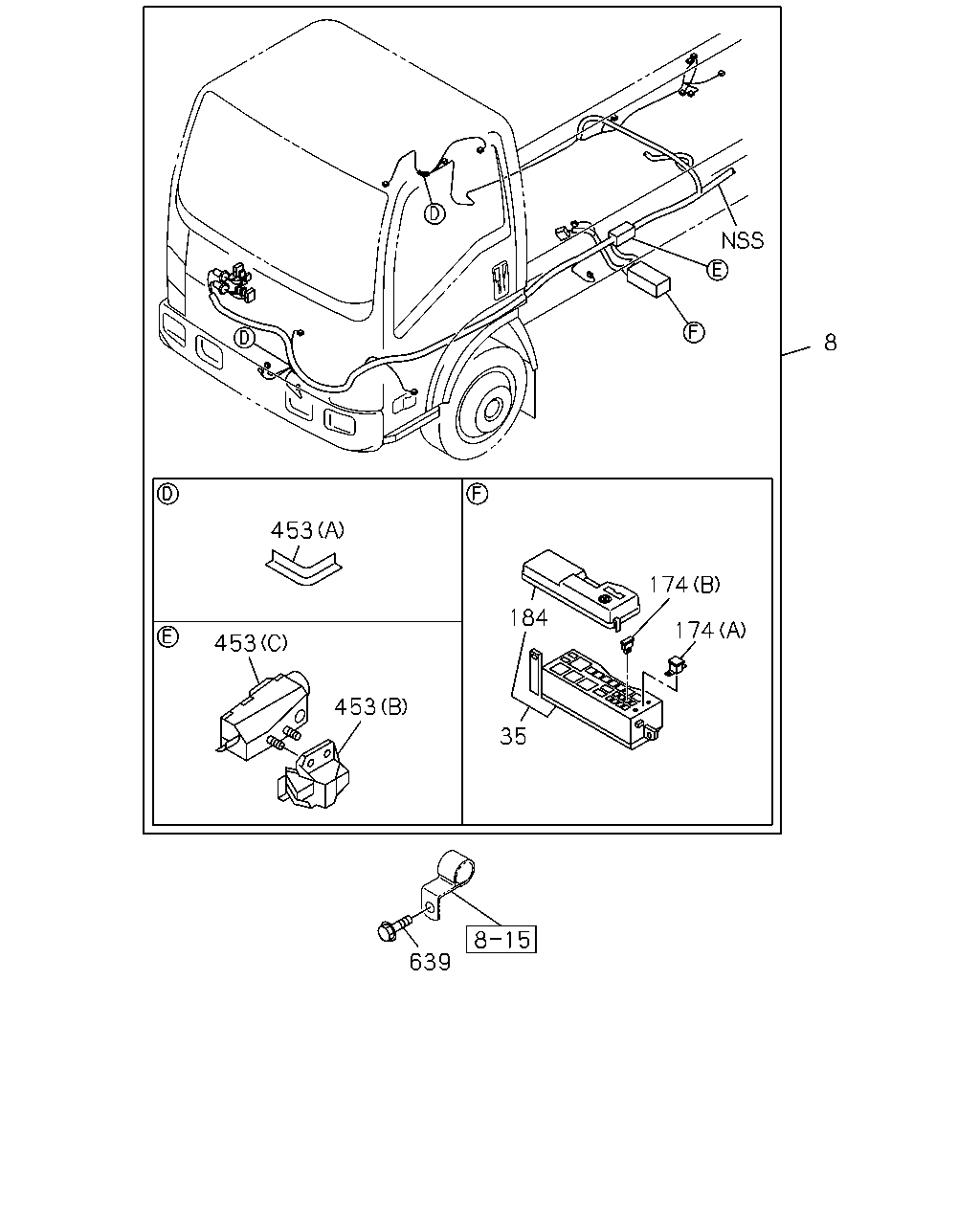

8	02.480 HARNESS; FRAME,FRT 4HG1-T ENG(RDP) GENERATOR 24V60A(KG2) EXHAUST BRAKE<NF8> IDN	8-97695-743-0	01	1	1512-1512	●
8	02.480 HARNESS; FRAME,FRT 4HG1-T ENG(RDP) GENERATOR 24V60A(KG2) EXHAUST BRAKE<NF8> IDN	8-97695-743-0	01	1	1601-	●
8	02.480 HARNESS; FRAME,FRT 4HG1-T ENG(RDP) GENERATOR 24V60A(KG2) IDN	8-97695-743-0	01	1	1601-		●
8	02.480 HARNESS; FRAME,FRT 4HG1-T ENG(RDP) EXHAUST BRAKE<NF8> EXC. GENERATOR 24V60A(KG2) IDN	8-97695-485-0	01	1	1512-1512	●
8	02.480 HARNESS; FRAME,FRT 4HG1-T ENG(RDP) IDN	8-97695-485-0	01	1	1512-1512		●
8	02.480 HARNESS; FRAME,FRT 4HG1-T ENG(RDP) EXHAUST BRAKE<NF8> EXC. GENERATOR 24V60A(KG2) IDN	8-97695-485-0	01	1	1601-	●
8	02.480 HARNESS; FRAME,FRT 4HG1-T ENG(RDP) EXC. GENERATOR 24V60A(KG2) IDN	8-97695-485-0	01	1	1601-		●
8	02.480 HARNESS; FRAME,FRT 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> IDN	8-97695-484-0	01	1	1512-	●
8	02.480 HARNESS; FRAME,FRT 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8> IDN	8-97695-663-0	01	1	1512-	●
35	02.530 BOX; RELAY & FUSE IDN	8-97377-739-0	01	1	1512-	●	●
174	08.965 FUSE; SLOW BLOW (A) 100A BLUE IDN	8-94388-306-1	AR	1	1512-	●	●
174	08.965 FUSE; SLOW BLOW (B) 60A YELLOW IDN	8-97219-407-0	AR	1	1512-	●	●
174	08.965 FUSE; SLOW BLOW (A) 10A MINI RED IDN	8-97062-022-0	AR	1	1512-	●	●
174	08.965 FUSE; SLOW BLOW (A) 15A MINI BLUE IDN	8-97062-023-0	AR	1	1512-	●	●
174	08.965 FUSE; SLOW BLOW (B) 30A PINK IDN	8-97183-643-0	AR	1	1512-	●	●
174	08.965 FUSE; SLOW BLOW (B) 40A GREEN IDN	8-97183-644-0	AR	1	1512-	●	●
174	08.965 FUSE; SLOW BLOW (B) 50A RED IDN	8-97183-645-0	AR	1	1512-	●	●
184	02.559 COVER; RELAY & FUSE BOX IDN	8-97377-741-0	01	1	1512-	●	●
453	02.483 PROTECTOR; HARNESS (B) IDN	8-97120-589-0	01	1	1512-	●	●
453	02.483 PROTECTOR; HARNESS 4HG1-T ENG(RDP) EXHAUST BRAKE<NF8> (A) IDN	8-94417-716-0	02	1	1512-	●
453	02.483 PROTECTOR; HARNESS 4HG1-T ENG(RDP) (A) IDN	8-94417-716-0	02	1	1512-		●
453	02.483 PROTECTOR; HARNESS 4HG1-T ENG(RDP) EXHAUST BRAKE<NF8> (C) IDN	8-94482-169-0	01	1	1512-	●
453	02.483 PROTECTOR; HARNESS 4HG1-T ENG(RDP) (C) IDN	8-94482-169-0	01	1	1512-		●
453	02.483 PROTECTOR; HARNESS 4JB1-TC ENG(RDT) (A) IDN	8-94417-716-0	01	1	1512-	●
453	02.483 PROTECTOR; HARNESS (D)	8-98034-039-1	01	1	1512-	●	●
639	08.900 BOLT; CLIP 00.685 M6X25 FLANGE	0-28650-625-0	02	1	1512-	●	●
639	08.900 BOLT; CLIP 4JB1-TC ENG(RDT) 03.162 M6X20 FLANGE	0-28650-620-0	01	1	1512-	●

18 85 18 204 408 409 374

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

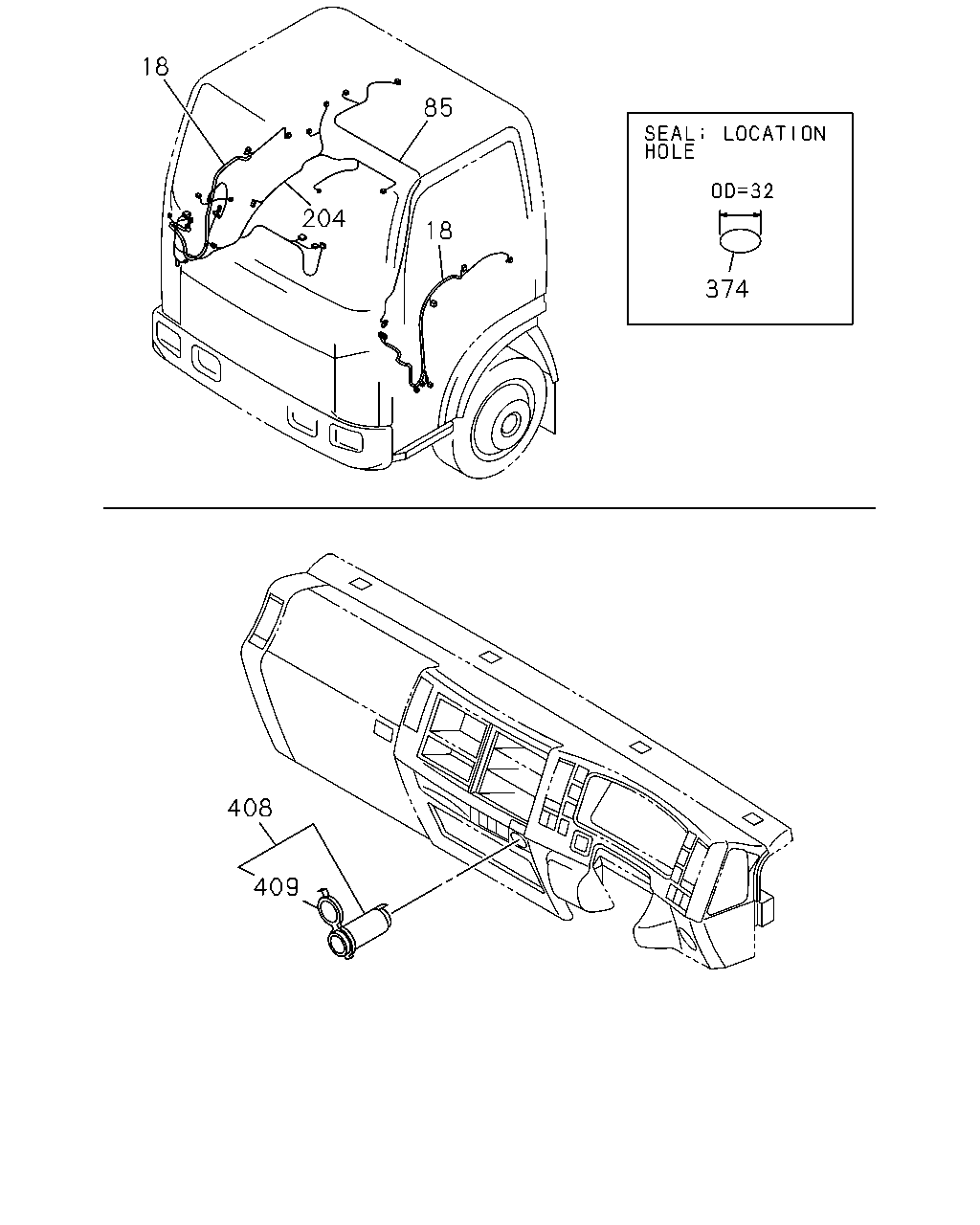

18	02.480 HARNESS; DOOR IDN	8-97695-490-0	01	1	1512-	●	●
18	02.480 HARNESS; DOOR IDN	8-97695-491-0	01	1	1512-	●	●
85	06.495 HARNESS; ROOM LAMP IDN	8-97695-489-0	01	1	1512-	●	●
204	02.559 HARNESS; CABLE,FLOOR IDN	8-97695-488-0	01	1	1512-	●	●
374	02.530 PLUG; HARNESS CONNECTOR 16.545 OD=32 BLACK	8-98031-126-0	01	1	1512-	●	●
408	02.575 SOCKET ASM; ACCESSORY VOLTAGE 12V<TRQ> ASH TRAY & CIGAR LIGHTER DELETE<8PC>	8-97288-746-0	01	1	1512-	●
408	02.575 SOCKET ASM; ACCESSORY VOLTAGE 24V<7AE> ASH TRAY & CIGAR LIGHTER DELETE<8PC>	8-98169-757-0	01	1	1512-	●
408	02.575 SOCKET ASM; ACCESSORY ASH TRAY & CIGAR LIGHTER DELETE<8PC>	8-98169-757-0	01	1	1512-		●
409	02.530 CAP; ACCESSORY SOCKET VOLTAGE 12V<TRQ> ASH TRAY & CIGAR LIGHTER DELETE<8PC>	8-97327-326-0	01	1	1512-	●
409	02.530 CAP; ACCESSORY SOCKET VOLTAGE 24V<7AE> ASH TRAY & CIGAR LIGHTER DELETE<8PC>	8-98183-771-0	01	1	1512-	●
409	02.530 CAP; ACCESSORY SOCKET ASH TRAY & CIGAR LIGHTER DELETE<8PC>	8-98183-771-0	01	1	1512-		●

8 9 9 171 709

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

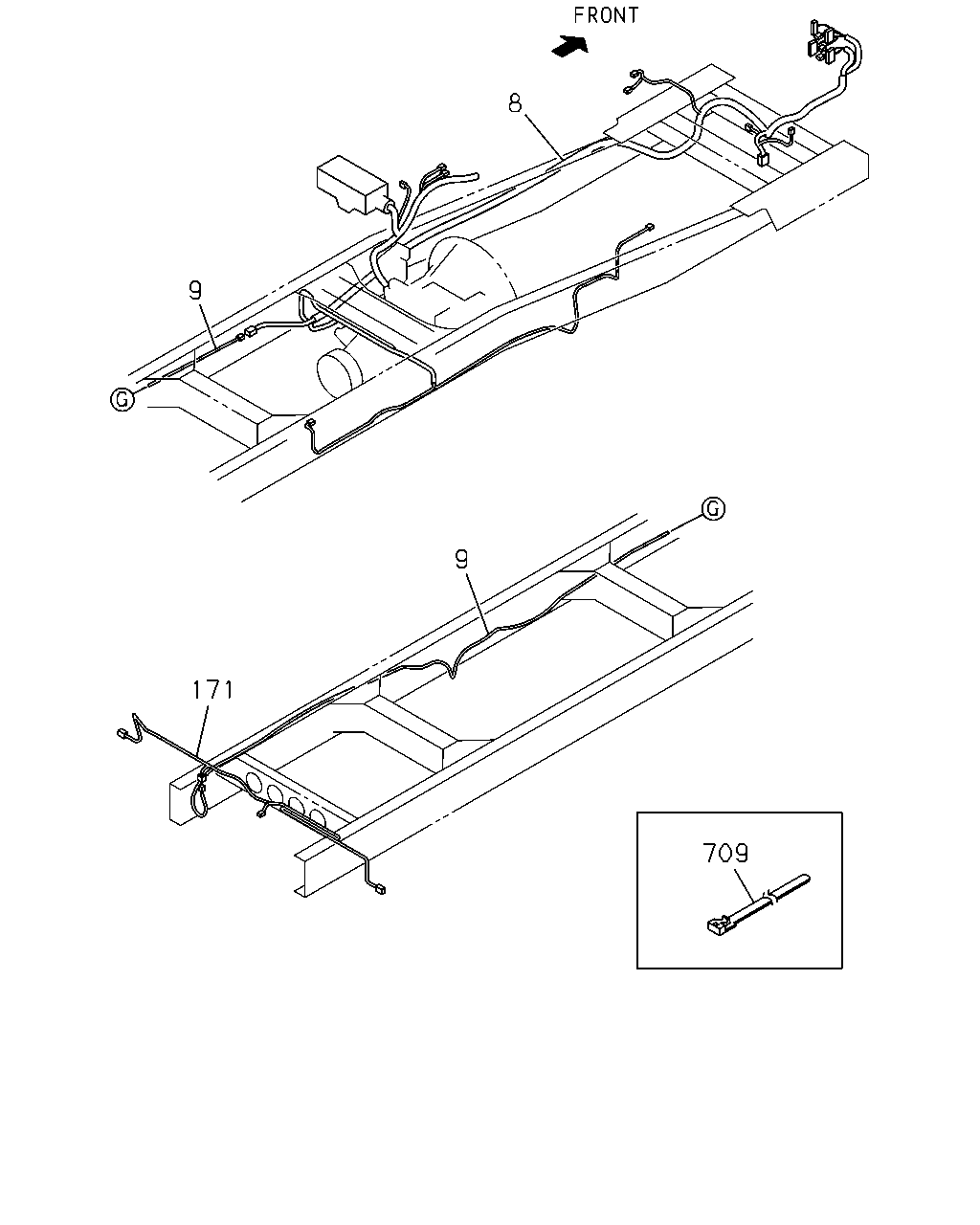

8	02.480 HARNESS; FRAME,FRT 4HG1-T ENG(RDP) GENERATOR 24V60A(KG2) EXHAUST BRAKE<NF8> IDN	8-97695-743-0	01	1	1512-1512	●
8	02.480 HARNESS; FRAME,FRT 4HG1-T ENG(RDP) GENERATOR 24V60A(KG2) EXHAUST BRAKE<NF8> IDN	8-97695-743-0	01	1	1601-	●
8	02.480 HARNESS; FRAME,FRT 4HG1-T ENG(RDP) GENERATOR 24V60A(KG2) IDN	8-97695-743-0	01	1	1601-		●
8	02.480 HARNESS; FRAME,FRT 4HG1-T ENG(RDP) EXHAUST BRAKE<NF8> EXC. GENERATOR 24V60A(KG2) IDN	8-97695-485-0	01	1	1512-1512	●
8	02.480 HARNESS; FRAME,FRT 4HG1-T ENG(RDP) IDN	8-97695-485-0	01	1	1512-1512		●
8	02.480 HARNESS; FRAME,FRT 4HG1-T ENG(RDP) EXHAUST BRAKE<NF8> EXC. GENERATOR 24V60A(KG2) IDN	8-97695-485-0	01	1	1601-	●
8	02.480 HARNESS; FRAME,FRT 4HG1-T ENG(RDP) EXC. GENERATOR 24V60A(KG2) IDN	8-97695-485-0	01	1	1601-		●
8	02.480 HARNESS; FRAME,FRT 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> IDN	8-97695-484-0	01	1	1512-	●
8	02.480 HARNESS; FRAME,FRT 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8> IDN	8-97695-663-0	01	1	1512-	●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 2400MM(24W) IDN	8-97381-162-1	01	1	1512-	●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 3300MM(33W) IDN	8-97381-164-1	01	1	1512-	●
9	02.480 HARNESS; FRAME,RR IDN	8-97381-164-1	01	1	1512-		●
171	02.596 HARNESS; CABLE,TAIL LAMP 02.480 IDN	8-97364-151-0	01	1	1512-	●	●
709	02.480 STRAP; HARNESS 02.559 L=250	5-09707-030-1	01	1	1512-	●	●

290 668 668 290 101 101 525 101 668

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
101	02.483 BRACKET; HARNESS CONNECTOR 4HG1-T ENG(RDP) 03.452 (A)	8-97172-882-0	01	1	1512-	●	●
101	02.483 BRACKET; HARNESS CONNECTOR 4HG1-T ENG(RDP) 03.452 (B)	8-97357-141-0	01	1	1512-	●	●
101	02.483 BRACKET; HARNESS CONNECTOR M/T MYY5T(RSM) 02.559 (C)	8-97324-451-1	01	1	1512-	●
101	02.483 BRACKET; HARNESS CONNECTOR M/T MYY5T(RSM),M/T MYY6S(RST) 02.559 (C)	8-97324-451-1	01	1	1512-		●
290	02.483 NUT; BRKT 4HG1-T ENG(RDP) 01.062 (B) M8 FLANGE IDN	0-91180-108-0	03	1	1512-	●	●
290	02.483 NUT; BRKT M/T MYY5T(RSM) 03.162 (A) M10 FLANGE IDN	0-91180-110-0	01	1	1512-	●
290	02.483 NUT; BRKT M/T MYY5T(RSM),M/T MYY6S(RST) 03.162 (A) M10 FLANGE IDN	0-91180-110-0	01	1	1512-		●
525	08.919 NUT; CLIP 01.062 M6 FLANGE IDN	0-91180-106-0	03	1	1512-	●	●
525	08.919 NUT; CLIP 4JB1-TC ENG(RDT) 01.062 M6 FLANGE IDN	0-91180-106-0	01	1	1512-	●
668	02.559 BRACKET; HARNESS 4HG1-T ENG(RDP) (C)	8-97362-859-0	03	1	1512-	●	●
668	02.559 BRACKET; HARNESS 4JB1-TC ENG(RDT) (A) L=20	8-94165-263-1	01	1	1512-	●
668	02.559 BRACKET; HARNESS 4JB1-TC ENG(RDT) (B)	8-97077-845-0	02	1	1512-	●
