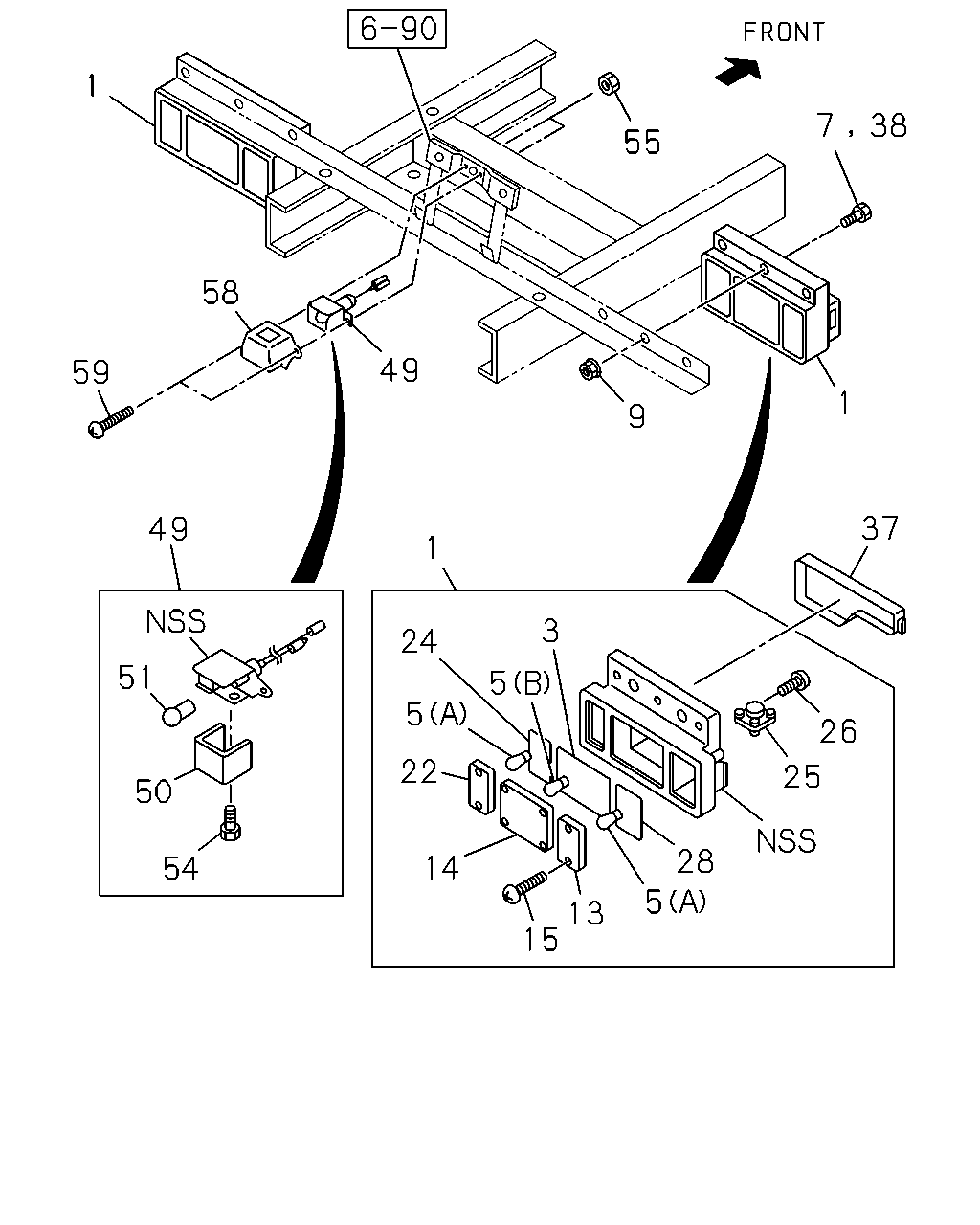

8-03 — LAMP; REAR AND REAR SIDE (#171448) — 70 parça

1 37 26 25 28 5 13 15 14 22 5 24 1 3 9 7 38 55 59 58 49 1 5 49 51 50 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	02.679 LAMP ASM; RR COMB WHEEL BASE 2400MM(24W) VOLTAGE 12V<TRQ> IDN	8-97213-352-0	01	1	1512-	●
1	02.679 LAMP ASM; RR COMB WHEEL BASE 2400MM(24W) VOLTAGE 12V<TRQ> BACK BUZZER<YM9> IDN	8-97213-353-0	01	1	1512-	●
1	02.679 LAMP ASM; RR COMB WHEEL BASE 2400MM(24W) VOLTAGE 12V<TRQ> EXC. BACK BUZZER<YM9>	8-97213-351-0	01	1	1512-	●
1	02.679 LAMP ASM; RR COMB WHEEL BASE 2400MM(24W) BACK BUZZER<YM9> VOLTAGE 24V<7AE> IDN	8-97213-370-0	01	1	1512-	●
1	02.679 LAMP ASM; RR COMB WHEEL BASE 2400MM(24W) VOLTAGE 24V<7AE> IDN	8-97213-369-0	01	1	1512-	●
1	02.679 LAMP ASM; RR COMB WHEEL BASE 2400MM(24W) VOLTAGE 24V<7AE> EXC. BACK BUZZER<YM9>	8-97213-368-0	01	1	1512-	●
1	02.679 LAMP ASM; RR COMB WHEEL BASE 3300MM(33W) BACK BUZZER<YM9> VOLTAGE 24V<7AE> IDN	8-98120-440-0	01	1	1512-	●
1	02.679 LAMP ASM; RR COMB BACK BUZZER<YM9> IDN	8-98120-440-0	01	1	1512-		●
1	02.679 LAMP ASM; RR COMB WHEEL BASE 3300MM(33W) VOLTAGE 24V<7AE> IDN	8-98034-325-0	01	1	1512-	●
1	02.679 LAMP ASM; RR COMB IDN	8-98034-325-0	01	1	1512-		●
1	02.679 LAMP ASM; RR COMB WHEEL BASE 3300MM(33W) VOLTAGE 24V<7AE> EXC. BACK BUZZER<YM9>	8-98034-324-0	01	1	1512-	●
1	02.679 LAMP ASM; RR COMB EXC. BACK BUZZER<YM9>	8-98034-324-0	01	1	1512-		●
3	02.684 GASKET; RR COMB LAMP IMA	8-94257-505-0	01	1	1512-	●	●
3	02.684 GASKET; RR COMB LAMP IMA	8-94257-505-0	01	1	1512-	●	●
5	08.991 BULB; RR COMB LAMP WHEEL BASE 2400MM(24W) VOLTAGE 12V<TRQ> (A) 12V 21W IDN	8-94124-074-0	02	1	1512-	●
5	08.991 BULB; RR COMB LAMP WHEEL BASE 2400MM(24W) VOLTAGE 12V<TRQ> (A) 12V 21W IDN	8-94124-074-0	02	1	1512-	●
5	08.991 BULB; RR COMB LAMP WHEEL BASE 2400MM(24W) VOLTAGE 12V<TRQ> (B) 12V 21/5W IDN	8-94125-959-0	01	1	1512-	●
5	08.991 BULB; RR COMB LAMP WHEEL BASE 2400MM(24W) VOLTAGE 12V<TRQ> (B) 12V 21/5W IDN	8-94125-959-0	01	1	1512-	●
5	08.991 BULB; RR COMB LAMP WHEEL BASE 2400MM(24W) VOLTAGE 24V<7AE> (A) 24V 21W IDN	1-82194-036-0	02	1	1512-	●
5	08.991 BULB; RR COMB LAMP WHEEL BASE 3300MM(33W) BACK BUZZER<YM9> VOLTAGE 24V<7AE> (A) 24V 21W IDN	1-82194-036-0	02	1	1512-	●
5	08.991 BULB; RR COMB LAMP WHEEL BASE 2400MM(24W) VOLTAGE 24V<7AE> (A) 24V 21W IDN	1-82194-036-0	02	1	1512-	●
5	08.991 BULB; RR COMB LAMP BACK BUZZER<YM9> (A) 24V 21W IDN	1-82194-036-0	02	1	1512-		●
5	08.991 BULB; RR COMB LAMP WHEEL BASE 2400MM(24W) VOLTAGE 24V<7AE> (B) 24V 21/5W IDN	1-82194-038-0	01	1	1512-	●
5	08.991 BULB; RR COMB LAMP WHEEL BASE 3300MM(33W) BACK BUZZER<YM9> VOLTAGE 24V<7AE> (B) 24V 21/5W IDN	1-82194-038-0	01	1	1512-	●
5	08.991 BULB; RR COMB LAMP WHEEL BASE 2400MM(24W) VOLTAGE 24V<7AE> (B) 24V 21/5W IDN	1-82194-038-0	01	1	1512-	●
5	08.991 BULB; RR COMB LAMP BACK BUZZER<YM9> (B) 24V 21/5W IDN	1-82194-038-0	01	1	1512-		●
5	08.991 BULB; RR COMB LAMP WHEEL BASE 3300MM(33W) VOLTAGE 24V<7AE> EXC. BACK BUZZER<YM9> (A) 24V 21W IMA	1-82194-108-0	02	1	1512-	●
5	08.991 BULB; RR COMB LAMP WHEEL BASE 3300MM(33W) VOLTAGE 24V<7AE> (A) 24V 21W IMA	1-82194-108-0	02	1	1512-	●
5	08.991 BULB; RR COMB LAMP EXC. BACK BUZZER<YM9> (A) 24V 21W IMA	1-82194-108-0	02	1	1512-		●
5	08.991 BULB; RR COMB LAMP (A) 24V 21W IMA	1-82194-108-0	02	1	1512-		●
5	08.991 BULB; RR COMB LAMP WHEEL BASE 3300MM(33W) VOLTAGE 24V<7AE> EXC. BACK BUZZER<YM9> (B) 24V 21/5W IMA	1-82194-109-0	01	1	1512-	●
5	08.991 BULB; RR COMB LAMP WHEEL BASE 3300MM(33W) VOLTAGE 24V<7AE> (B) 24V 21/5W IMA	1-82194-109-0	01	1	1512-	●
5	08.991 BULB; RR COMB LAMP EXC. BACK BUZZER<YM9> (B) 24V 21/5W IMA	1-82194-109-0	01	1	1512-		●
5	08.991 BULB; RR COMB LAMP (B) 24V 21/5W IMA	1-82194-109-0	01	1	1512-		●
7	02.664 SCREW; RR COMB LAMP WHEEL BASE 2400MM(24W) BOLT M6X20	8-94402-623-0	06	1	1512-	●
7	02.664 SCREW; RR COMB LAMP WHEEL BASE 3300MM(33W) VOLTAGE 24V<7AE> BOLT M6X20	8-94402-623-0	04	1	1512-	●
7	02.664 SCREW; RR COMB LAMP BOLT M6X20	8-94402-623-0	04	1	1512-		●
9	02.689 NUT; LAMP,RR COMB WHEEL BASE 2400MM(24W) 07.829 M6 FLANGE	5-09440-004-0	06	1	1512-	●
9	02.689 NUT; LAMP,RR COMB WHEEL BASE 3300MM(33W) VOLTAGE 24V<7AE> 07.829 M6 FLANGE	5-09440-004-0	04	1	1512-	●
9	02.689 NUT; LAMP,RR COMB 07.829 M6 FLANGE	5-09440-004-0	04	1	1512-		●
13	02.682 LENS; TURN SIGNAL IMA	8-94174-638-0	01	1	1512-	●	●
13	02.682 LENS; TURN SIGNAL IDN	8-94174-639-0	01	1	1512-	●	●
14	02.682 LENS; TAIL & STOP,RR COMB LAMP IMA	8-94178-624-0	01	1	1512-	●	●
14	02.682 LENS; TAIL & STOP,RR COMB LAMP IDN	8-94178-625-0	01	1	1512-	●	●
15	02.664 SCREW; RR COMB LAMP 08.977 M4X20 TAPPING STAINLESS IMA	0-71190-420-0	08	1	1512-	●	●
15	02.664 SCREW; RR COMB LAMP 08.977 M4X20 TAPPING STAINLESS IMA	0-71190-420-0	08	1	1512-	●	●
22	02.697 LENS; BACKUP,RR COMB LAMP CLEAR IMA	8-94257-512-1	01	1	1512-	●	●
22	02.697 LENS; BACKUP,RR COMB LAMP CLEAR IMA	8-94257-512-1	01	1	1512-	●	●
24	02.697 GASKET; BACK,LAMP IMA	8-94257-506-0	01	1	1512-	●	●
24	02.697 GASKET; BACK,LAMP IMA	8-94257-506-0	01	1	1512-	●	●
25	02.810 HORN ASM; BACK BACK BUZZER<YM9> IDN	8-94257-518-0	01	1	1512-	●	●
26	02.812 SCREW; BACK HORN 09.655 M4X14 TAPPING IDN	9-07076-414-0	01	1	1512-	●	●
26	02.812 SCREW; BACK HORN BACK BUZZER<YM9> 02.688 M4X12 TAPPING IDN	9-07076-412-0	02	1	1512-	●	●
26	02.812 SCREW; BACK HORN EXC. BACK BUZZER<YM9> 02.688 M4X12 TAPPING IDN	9-07076-412-0	01	1	1512-	●	●
28	02.684 GASKET; TURN,LAMP IMA	8-94257-507-0	01	1	1512-	●	●
28	02.684 GASKET; TURN,LAMP IMA	8-94257-507-0	01	1	1512-	●	●
37	02.680 COVER; RR COMB LAMP IDN	8-94128-858-4	01	1	1512-	●	●
37	02.680 COVER; RR COMB LAMP IDN	8-94129-274-4	01	1	1512-	●	●
38	02.689 BOLT; LAMP,RR COMB 02.664 M6X20	8-94402-623-0	04	1	1512-	●	●
49	02.700 LAMP; LICENSE PLATE VOLTAGE 12V<TRQ> 12V 10W IDN	5-82120-020-0	01	1	1512-	●
49	02.700 LAMP; LICENSE PLATE VOLTAGE 24V<7AE> 24V 12W IDN	5-82120-021-1	01	1	1512-	●
49	02.700 LAMP; LICENSE PLATE 24V 12W IDN	5-82120-021-1	01	1	1512-		●
50	02.709 LENS; LICENSE PLATE LAMP IDN	5-82125-004-0	01	1	1512-	●	●
51	08.991 BULB; LICENSE PLATE LAMP VOLTAGE 12V<TRQ> 12V 10W IDN	8-94126-494-0	01	1	1512-	●
51	08.991 BULB; LICENSE PLATE LAMP VOLTAGE 24V<7AE> 24V 12W IDN	1-82194-004-0	01	1	1512-	●
51	08.991 BULB; LICENSE PLATE LAMP 24V 12W IDN	1-82194-004-0	01	1	1512-		●
54	02.708 SCREW; LICENSE PLATE LAMP 02.709 M4X8 IDN	8-94419-312-0	01	1	1512-	●	●
55	02.708 NUT; LICENSE PLATE LAMP 03.444 M5 FLANGE	8-94153-039-0	02	1	1512-	●	●
58	02.705 COVER; LICENSE PLATE LAMP IDN	8-97076-590-1	01	1	1512-	●	●
59	02.708 SCREW; TAP,LICENSE LAMP BODY 14.550 M5X20	9-93490-520-0	02	1	1512-	●	●
