8-01 — LAMP; FRONT AND FRONT SIDE (#171447) — 92 parça

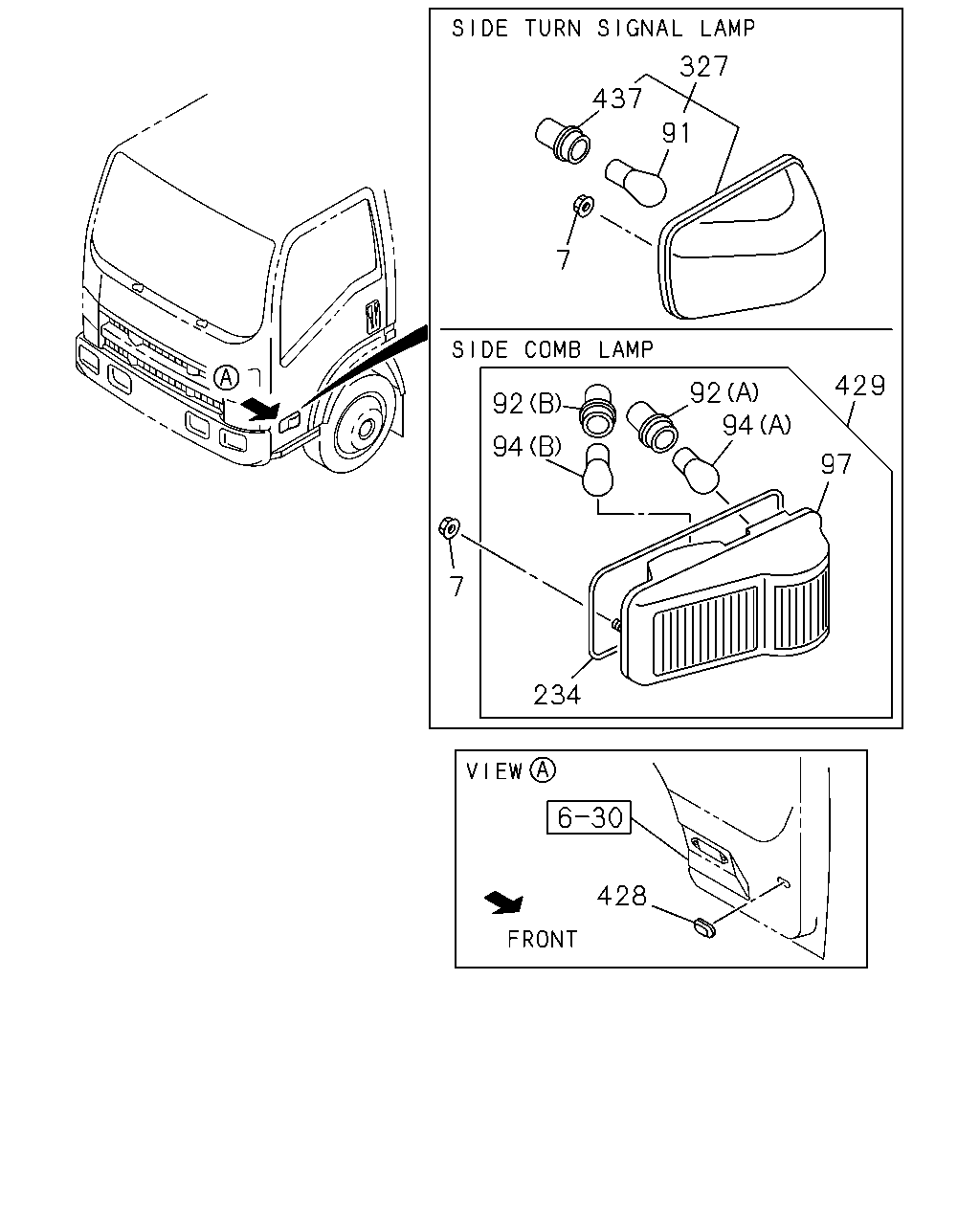

429 97 94 92 92 234 428 94 7 327 437 91 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	02.587 NUT; FRT COMB LAMP 01.062 M6 FLANGE IDN	0-91180-106-0	02	1	1512-	●	●
91	08.991 BULB; SIDE TURN SIGNAL VOLTAGE 12V<TRQ> EXC. CORNERING LAMP<T87> 12V 21W IDN	8-97179-967-0	02	1	1512-	●
91	08.991 BULB; SIDE TURN SIGNAL VOLTAGE 24V<7AE> EXC. CORNERING LAMP<T87> 24V 21W IDN	8-98051-495-0	02	1	1512-	●
91	08.991 BULB; SIDE TURN SIGNAL EXC. CORNERING LAMP<T87> 24V 21W IDN	8-98051-495-0	02	1	1512-		●
92	02.596 SOCKET ASM; SIDE COMB LAMP CORNERING LAMP<T87> 02.575 (B)	8-97172-959-0	02	1	1512-	●	●
92	02.596 SOCKET ASM; SIDE COMB LAMP CORNERING LAMP<T87> (A) IDN	8-98051-390-0	02	1	1512-	●	●
94	08.991 BULB; SIDE COMB LAMP VOLTAGE 12V<TRQ> CORNERING LAMP<T87> (B) 12V 21W IDN	8-94124-074-0	02	1	1512-	●
94	08.991 BULB; SIDE COMB LAMP VOLTAGE 12V<TRQ> CORNERING LAMP<T87> (A) 12V 21W IDN	8-97179-967-0	02	1	1512-	●
94	08.991 BULB; SIDE COMB LAMP CORNERING LAMP<T87> VOLTAGE 24V<7AE> (A) 24V 21W IDN	8-98051-495-0	02	1	1512-	●
94	08.991 BULB; SIDE COMB LAMP CORNERING LAMP<T87> (A) 24V 21W IDN	8-98051-495-0	02	1	1512-		●
94	08.991 BULB; SIDE COMB LAMP CORNERING LAMP<T87> VOLTAGE 24V<7AE> (B) 24V 21W	8-98051-496-0	02	1	1512-	●
94	08.991 BULB; SIDE COMB LAMP CORNERING LAMP<T87> (B) 24V 21W	8-98051-496-0	02	1	1512-		●
97	02.895 LAMP UNIT; COMB CORNERING LAMP<T87>	8-98051-419-0	01	1	1512-	●	●
97	02.895 LAMP UNIT; COMB CORNERING LAMP<T87>	8-98051-420-0	01	1	1512-	●	●
234	02.590 GASKET; SIDE COMB LAMP CORNERING LAMP<T87>	8-98051-432-0	02	1	1512-	●	●
327	02.585 LAMP ASM; SIDE TURN SIGNAL VOLTAGE 12V<TRQ> EXC. CORNERING LAMP<T87> IDN	8-97410-184-4	01	1	1512-	●
327	02.585 LAMP ASM; SIDE TURN SIGNAL VOLTAGE 12V<TRQ> EXC. CORNERING LAMP<T87> IDN	8-97410-185-3	01	1	1512-	●
327	02.585 LAMP ASM; SIDE TURN SIGNAL VOLTAGE 24V<7AE> EXC. CORNERING LAMP<T87> IDN	8-97410-180-4	01	1	1512-	●
327	02.585 LAMP ASM; SIDE TURN SIGNAL EXC. CORNERING LAMP<T87> IDN	8-97410-180-4	01	1	1512-		●
327	02.585 LAMP ASM; SIDE TURN SIGNAL VOLTAGE 24V<7AE> EXC. CORNERING LAMP<T87> IDN	8-97410-181-3	01	1	1512-	●
327	02.585 LAMP ASM; SIDE TURN SIGNAL EXC. CORNERING LAMP<T87> IDN	8-97410-181-3	01	1	1512-		●
428	02.587 GROMMET; SIDE COMB LAMP 17.447	8-94430-184-1	02	1	1512-	●	●
429	02.585 LAMP ASM; SIDE COMB VOLTAGE 12V<TRQ> CORNERING LAMP<T87>	8-98221-977-0	01	1	1512-	●
429	02.585 LAMP ASM; SIDE COMB VOLTAGE 12V<TRQ> CORNERING LAMP<T87>	8-98221-978-0	01	1	1512-	●
429	02.585 LAMP ASM; SIDE COMB CORNERING LAMP<T87> VOLTAGE 24V<7AE>	8-98039-776-2	01	1	1512-	●
429	02.585 LAMP ASM; SIDE COMB CORNERING LAMP<T87>	8-98039-776-2	01	1	1512-		●
429	02.585 LAMP ASM; SIDE COMB CORNERING LAMP<T87> VOLTAGE 24V<7AE>	8-98039-777-2	01	1	1512-	●
429	02.585 LAMP ASM; SIDE COMB CORNERING LAMP<T87>	8-98039-777-2	01	1	1512-		●
437	02.596 SOCKET; SIDE,TURN EXC. CORNERING LAMP<T87> IDN	8-98051-390-0	02	1	1512-	●	●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	02.725 LAMP ASM; FOG VOLTAGE 12V<TRQ> FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9> IDN	8-97695-757-0	01	1	1512-	●
32	02.725 LAMP ASM; FOG VOLTAGE 12V<TRQ> FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9> IDN	8-97695-758-0	01	1	1512-	●
32	02.725 LAMP ASM; FOG FOG LAMP<T96> VOLTAGE 24V<7AE> EXC. FRT BUMPER DARK GRAY<EQ9> IDN	8-97695-759-0	01	1	1512-	●
32	02.725 LAMP ASM; FOG FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9> IDN	8-97695-759-0	01	1	1512-		●
32	02.725 LAMP ASM; FOG FOG LAMP<T96> VOLTAGE 24V<7AE> EXC. FRT BUMPER DARK GRAY<EQ9> IDN	8-97695-760-0	01	1	1512-	●
32	02.725 LAMP ASM; FOG FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9> IDN	8-97695-760-0	01	1	1512-		●

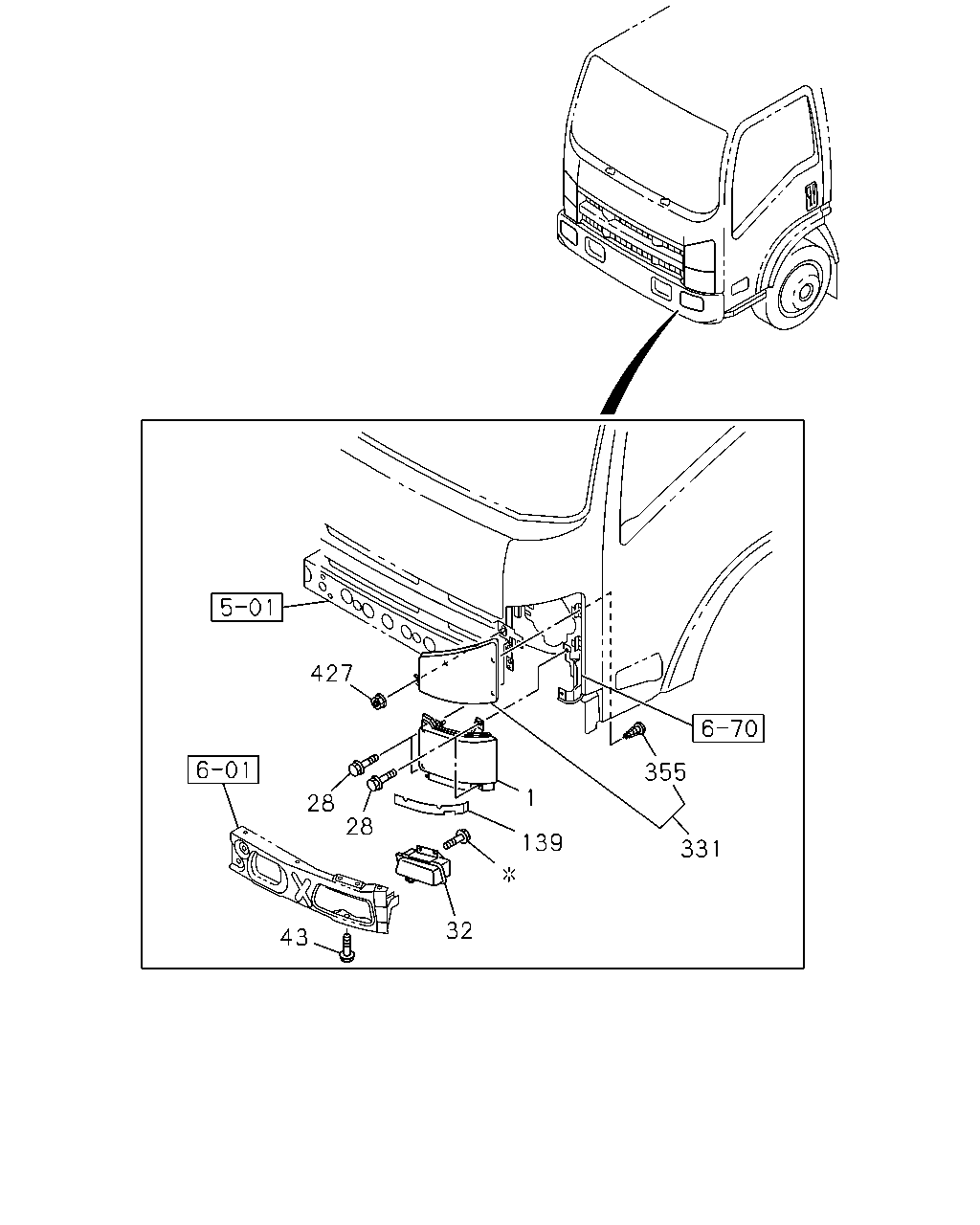

427 28 28 1 139 355 331 32 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	02.725 LAMP ASM; HEAD VOLTAGE 12V<TRQ> IDN	8-98241-321-0	01	1	1512-	●
1	02.725 LAMP ASM; HEAD VOLTAGE 12V<TRQ> IDN	8-98241-322-0	01	1	1512-	●
1	02.725 LAMP ASM; HEAD VOLTAGE 24V<7AE> IDN	8-98241-325-0	01	1	1512-	●
1	02.725 LAMP ASM; HEAD IDN	8-98241-325-0	01	1	1512-		●
1	02.725 LAMP ASM; HEAD VOLTAGE 24V<7AE> IDN	8-98241-326-0	01	1	1512-	●
1	02.725 LAMP ASM; HEAD IDN	8-98241-326-0	01	1	1512-		●
28	02.762 BOLT; HEADLAMP M6X23.5 W/LK&PL WASHER	8-98164-723-0	08	1	1512-	●	●
32	02.725 LAMP ASM; FOG VOLTAGE 12V<TRQ> FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9> IDN	8-97695-757-0	01	1	1512-	●
32	02.725 LAMP ASM; FOG VOLTAGE 12V<TRQ> FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9> IDN	8-97695-758-0	01	1	1512-	●
32	02.725 LAMP ASM; FOG FOG LAMP<T96> VOLTAGE 24V<7AE> EXC. FRT BUMPER DARK GRAY<EQ9> IDN	8-97695-759-0	01	1	1512-	●
32	02.725 LAMP ASM; FOG FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9> IDN	8-97695-759-0	01	1	1512-		●
32	02.725 LAMP ASM; FOG FOG LAMP<T96> VOLTAGE 24V<7AE> EXC. FRT BUMPER DARK GRAY<EQ9> IDN	8-97695-760-0	01	1	1512-	●
32	02.725 LAMP ASM; FOG FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9> IDN	8-97695-760-0	01	1	1512-		●
139	02.726 COVER; HEADLAMP IDN	8-98034-056-1	02	1	1512-	●	●
331	02.585 LAMP; TURN SIGNAL VOLTAGE 12V<TRQ> IDN	8-98155-460-0	01	1	1512-	●
331	02.585 LAMP; TURN SIGNAL VOLTAGE 12V<TRQ> IDN	8-98155-461-0	01	1	1512-	●
331	02.585 LAMP; TURN SIGNAL VOLTAGE 24V<7AE> IDN	8-98155-458-0	01	1	1512-	●
331	02.585 LAMP; TURN SIGNAL IDN	8-98155-458-0	01	1	1512-		●
331	02.585 LAMP; TURN SIGNAL VOLTAGE 24V<7AE> IDN	8-98155-459-0	01	1	1512-	●
331	02.585 LAMP; TURN SIGNAL IDN	8-98155-459-0	01	1	1512-		●
355	02.726 SCREW; TURN SIGNAL IDN	8-98051-428-0	04	1	1512-	●	●
427	02.587 NUT; TURN SIGNAL LAMP 01.062 M6 FLANGE IDN	0-91180-106-0	02	1	1512-	●	●

331 431 357 399 355 432 1 4 420 23 20 457 382 5 5 408

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	02.725 LAMP ASM; HEAD VOLTAGE 12V<TRQ> IDN	8-98241-321-0	01	1	1512-	●
1	02.725 LAMP ASM; HEAD VOLTAGE 12V<TRQ> IDN	8-98241-322-0	01	1	1512-	●
1	02.725 LAMP ASM; HEAD VOLTAGE 24V<7AE> IDN	8-98241-325-0	01	1	1512-	●
1	02.725 LAMP ASM; HEAD IDN	8-98241-325-0	01	1	1512-		●
1	02.725 LAMP ASM; HEAD VOLTAGE 24V<7AE> IDN	8-98241-326-0	01	1	1512-	●
1	02.725 LAMP ASM; HEAD IDN	8-98241-326-0	01	1	1512-		●
4	02.727 HEADLAMP UNIT IDN	8-98226-182-0	01	1	1512-	●	●
4	02.727 HEADLAMP UNIT IDN	8-98226-183-0	01	1	1512-	●	●
5	02.727 BULB; HEADLAMP VOLTAGE 12V<TRQ> 08.991 (B) 12V 5W IDN	8-94124-595-0	02	1	1512-	●
5	02.727 BULB; HEADLAMP VOLTAGE 12V<TRQ> (A) 12V 60/55W IDN	8-97106-708-0	02	1	1512-	●
5	02.727 BULB; HEADLAMP VOLTAGE 24V<7AE> (B) 24V 5W IDN	1-82194-042-0	02	1	1512-	●
5	02.727 BULB; HEADLAMP (B) 24V 5W IDN	1-82194-042-0	02	1	1512-		●
5	02.727 BULB; HEADLAMP VOLTAGE 24V<7AE> (A) 24V 75/70W IDN	1-82194-063-0	02	1	1512-	●
5	02.727 BULB; HEADLAMP (A) 24V 75/70W IDN	1-82194-063-0	02	1	1512-		●
20	02.736 SCREW; HEADLAMP IDN	8-97378-871-0	06	1	1512-	●	●
23	02.727 COVER; BULB,HEADLAMP IDN	8-97232-491-0	02	1	1512-	●	●
331	02.585 LAMP; TURN SIGNAL VOLTAGE 12V<TRQ> IDN	8-98155-460-0	01	1	1512-	●
331	02.585 LAMP; TURN SIGNAL VOLTAGE 12V<TRQ> IDN	8-98155-461-0	01	1	1512-	●
331	02.585 LAMP; TURN SIGNAL VOLTAGE 24V<7AE> IDN	8-98155-458-0	01	1	1512-	●
331	02.585 LAMP; TURN SIGNAL IDN	8-98155-458-0	01	1	1512-		●
331	02.585 LAMP; TURN SIGNAL VOLTAGE 24V<7AE> IDN	8-98155-459-0	01	1	1512-	●
331	02.585 LAMP; TURN SIGNAL IDN	8-98155-459-0	01	1	1512-		●
355	02.726 SCREW; TURN SIGNAL IDN	8-98051-428-0	04	1	1512-	●	●
357	08.991 BULB; TURN SIGNAL VOLTAGE 12V<TRQ> 12V 21W IDN	8-97179-967-0	02	1	1512-	●
357	08.991 BULB; TURN SIGNAL VOLTAGE 24V<7AE> 24V 21W AMBER IDN	8-97323-806-0	02	1	1512-	●
357	08.991 BULB; TURN SIGNAL 24V 21W AMBER IDN	8-97323-806-0	02	1	1512-		●
382	02.575 PLUG; SOCKET,HEADLAMP IDN	8-98225-685-0	02	1	1512-	●	●
399	02.596 SOCKET; TURN SIGNAL VOLTAGE 12V<TRQ> IDN	8-98051-386-0	02	1	1512-	●
399	02.596 SOCKET; TURN SIGNAL VOLTAGE 24V<7AE> IDN	8-98051-387-0	02	1	1512-	●
399	02.596 SOCKET; TURN SIGNAL IDN	8-98051-387-0	02	1	1512-		●
408	02.727 CAP; BREATHER,HEADLAMP IDN	8-97378-874-0	02	1	1512-	●	●
420	02.737 SPRING; BULB,HEADLAMP IDN	8-98218-601-0	02	1	1512-	●	●
431	02.727 CAP; TURN SIGNAL,LAMP IDN	8-97378-874-0	02	1	1512-	●	●
432	02.726 FASTENER; TURN SIGNAL,LAMP IDN	8-98051-431-0	04	1	1512-	●	●
457	16.450 GRIP; HEADLAMP IDN	8-98241-354-0	02	1	1512-	●	●
