◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51642 - NLR/NMR(INDONESIA) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#171445) — 12 parça
çizim 507572
460 139 478 115 480 479
BalonParca AdiParca NoAdetTipApplied Date A B
115 16.720 CUSHION ASM; PASSENGER SEAT
INSPECTION ENGINE COVER<8GA> IDN 		8-97695-680-0 01 1 1512- ●
115 16.720 CUSHION ASM; PASSENGER SEAT
EXC. INSPECTION ENGINE COVER<8GA> IDN 		8-97695-559-0 01 1 1512- ● ●
139 16.679 BOLT; PASSENGER SEAT
M8X20 W/PL WASHER 		8-98031-841-0 03 1 1512-1512 ● ●
139 16.679 BOLT; PASSENGER SEAT
M8X20 W/PL WASHER 		8-98031-841-0 04 1 1601- ● ●
460 16.670 BACK ASM; PASSENGER SEAT
INSPECTION ENGINE COVER<8GA> IDN 		8-97695-681-0 01 1 1512- ●
460 16.670 BACK ASM; PASSENGER SEAT
EXC. INSPECTION ENGINE COVER<8GA> IDN 		8-97695-560-0 01 1 1512- ● ●
478 16.716 BRACKET ASM; HINGE,PASSENGER SEA
IDN 		8-97868-186-0 01 1 1512- ● ●
479 16.716 PLUG; HINGE
16.165 OD=25 BLACK 		1-76798-019-0 02 1 1512- ● ●
480 16.716 CLIP; CUSHION 8-94279-977-0 05 1 1512- ● ●

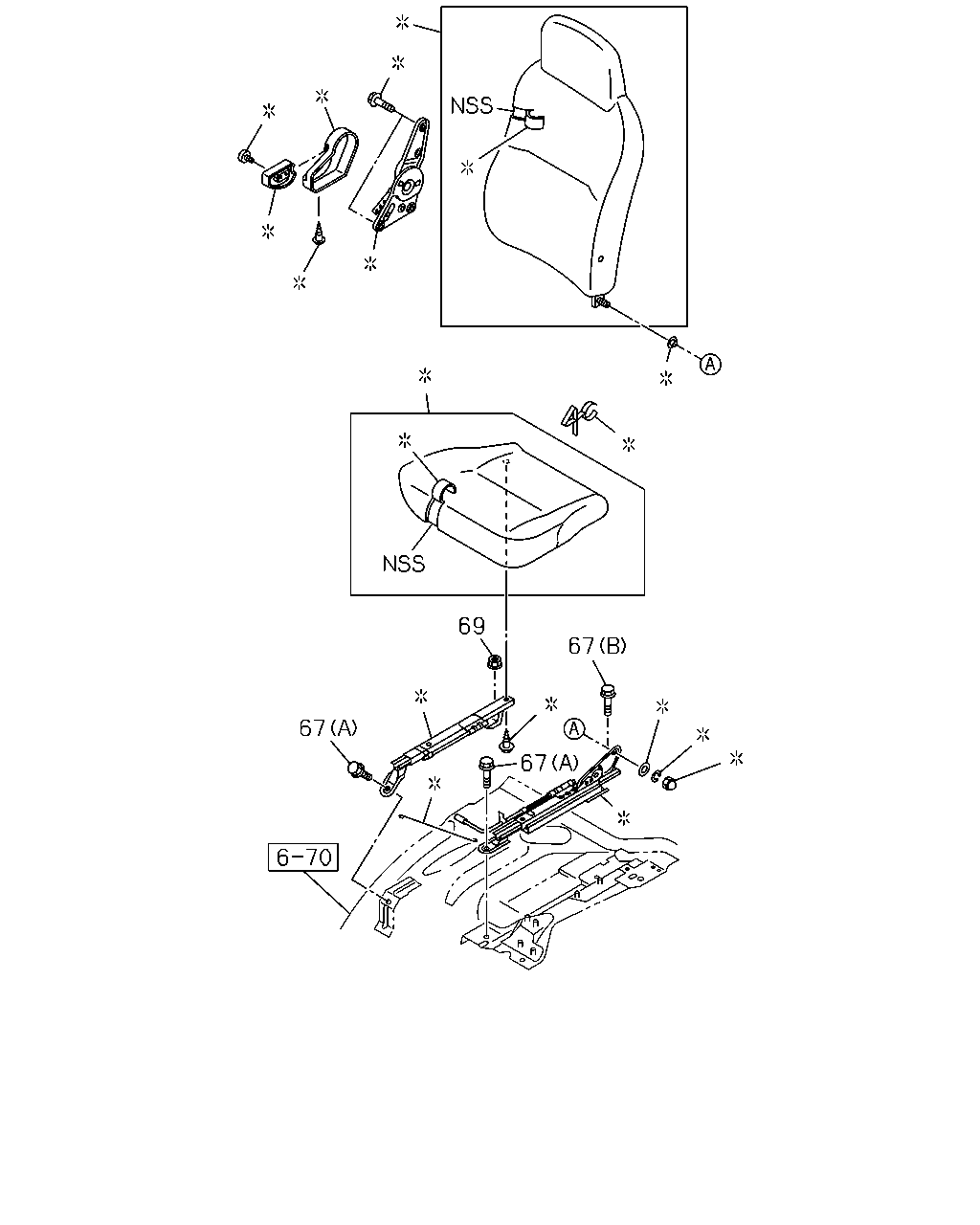

çizim 507751
67 69 67 67
BalonParca AdiParca NoAdetTipApplied Date A B
67 16.682 BOLT; FRT SEAT TO BODY
(A) M10X20 FLANGE 		8-98055-941-0 02 1 1512- ● ●
67 16.682 BOLT; FRT SEAT TO BODY
(B) M10X30 FLANGE 		8-98055-942-0 01 1 1512- ● ●
69 16.682 NUT; FRT SEAT
M10 FLANGE 		8-98055-961-0 01 1 1512- ● ●
