Isuzu WW
▶
TRUCKS
▶
NLR
▶
51642 - NLR/NMR(INDONESIA)
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-43 - SUN VISOR AND ASSIST GRIP
▶

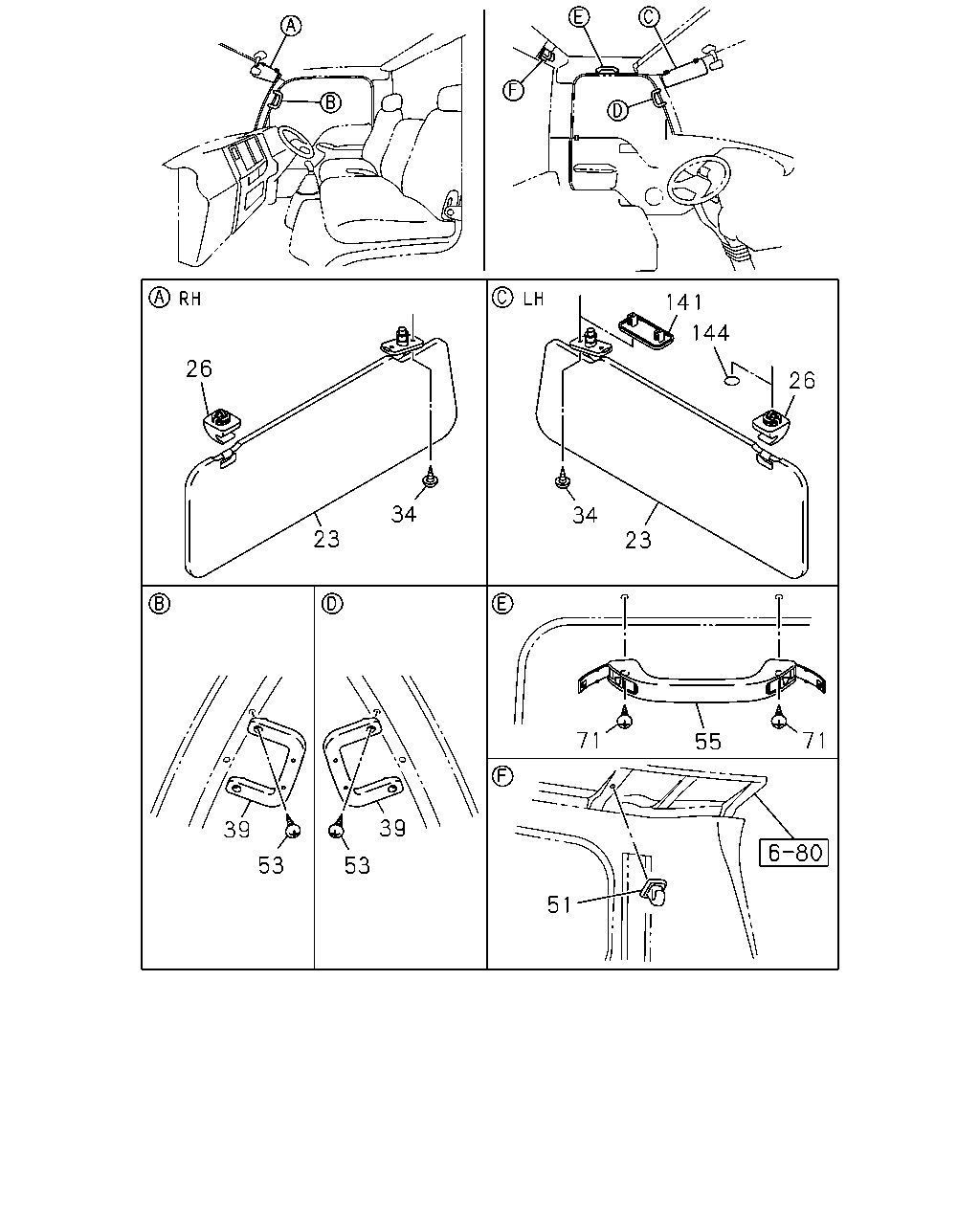

7-43 — SUN VISOR AND ASSIST GRIP
(#171444) — 14 parça
Tümü
A - NMR5SE
B - NMR5SN
26
23
23
34
26
144
141
71
55
71
51
39
53
53
39
34
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
23
16.070 SUN VISOR
SUNVISOR PASSENGER SIDE<D20> DARK GRAY
8-97406-196-1
01
1
1512-
●
●
23
16.070 SUN VISOR
DARK GRAY IDN
8-97409-858-0
01
1
1512-
●
●
26
16.070 HOLDER; SUN VISOR
DARK GRAY
8-97406-200-0
01
1
1512-
●
●
26
16.070 HOLDER; SUN VISOR
SUNVISOR PASSENGER SIDE<D20> DARK GRAY
8-97406-200-0
01
1
1512-
●
●
34
16.070 SCREW; SUN VISOR
M6X26
8-98033-674-0
02
1
1512-
●
●
34
16.070 SCREW; SUN VISOR
SUNVISOR PASSENGER SIDE<D20> M6X26
8-98033-674-0
02
1
1512-
●
●
39
16.450 HANDLE; ASSIST,A-POST
DARK GRAY
8-97405-249-2
02
1
1512-
●
●
51
16.570 HOOK; COAT HANGER
COAT HOOK<S9M> 16.070 DARK GRAY
8-97406-200-0
01
1
1512-
●
●
53
16.450 SCREW; ASSIST HANDLE
M6X28
8-98004-344-0
04
1
1512-
●
●
55
16.450 GRIP; ASSIST,CAB SIDE UPR
ASSIST GRIP PASSENGER<EG5> DARK GRAY
8-97405-285-2
01
1
1512-
●
●
71
16.450 SCREW
ASSIST GRIP PASSENGER<EG5> M6X28
8-98004-344-0
02
1
1512-
●
●
141
16.070 COVER; SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20> L=62 B=25 DARK GRAY
8-97405-173-0
01
1
1512-
●
●
144
16.070 SEAL; LOCATION HOLE
16.570 OD=20 T=0.05 WHITE IDN
8-98059-421-0
01
1
1512-
●
●
144
16.070 SEAL; LOCATION HOLE
EXC. SUNVISOR PASSENGER SIDE<D20> 16.570 OD=20 T=0.05 WHITE IDN
8-98059-421-0
01
1
1512-
●
●
