◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51642 - NLR/NMR(INDONESIA) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#171442) — 95 parça

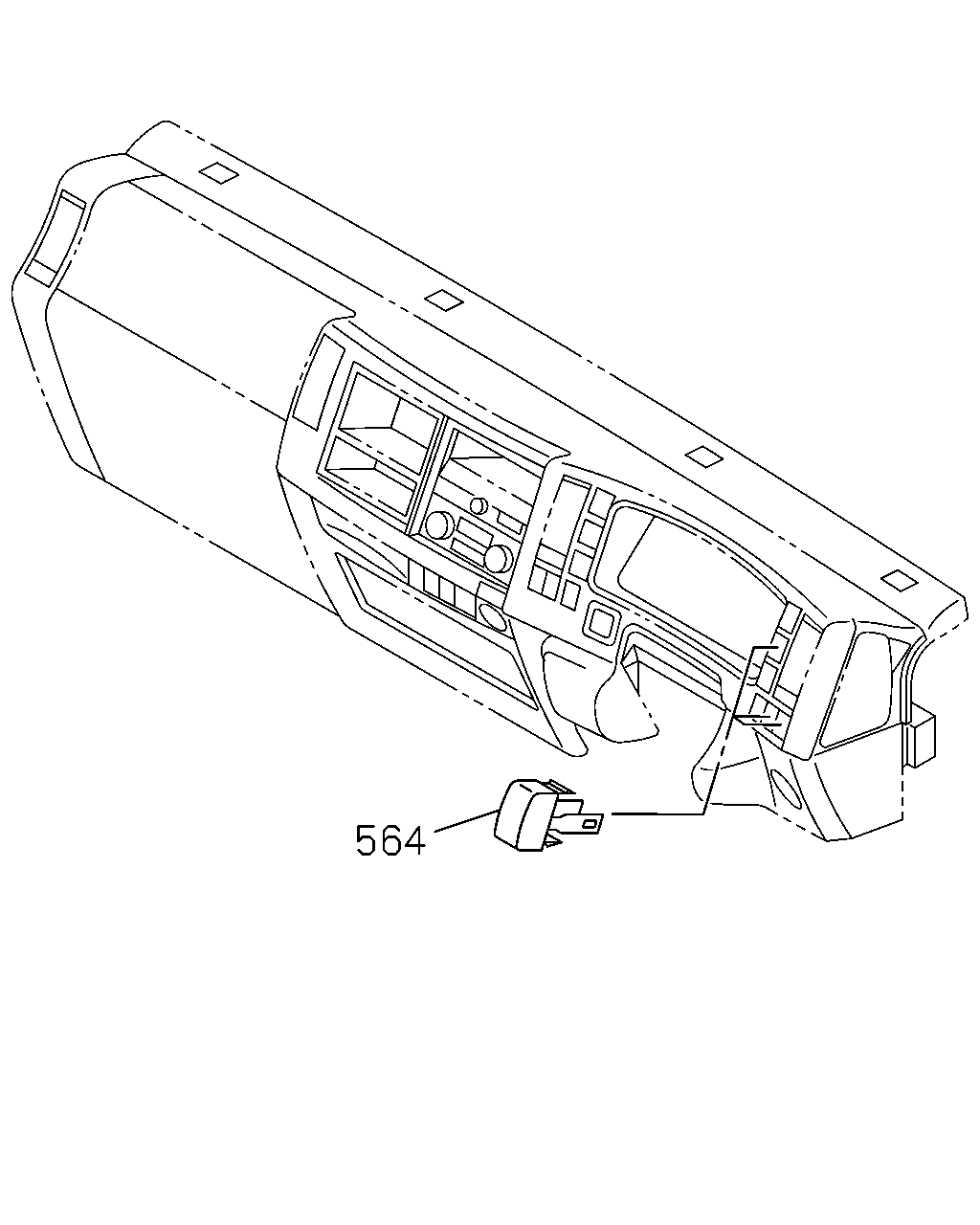

çizim 507557
564
BalonParca AdiParca NoAdetTipApplied Date A B
564 16.081 COVER; SW 8-98025-954-1 03 1 1512- ● ●

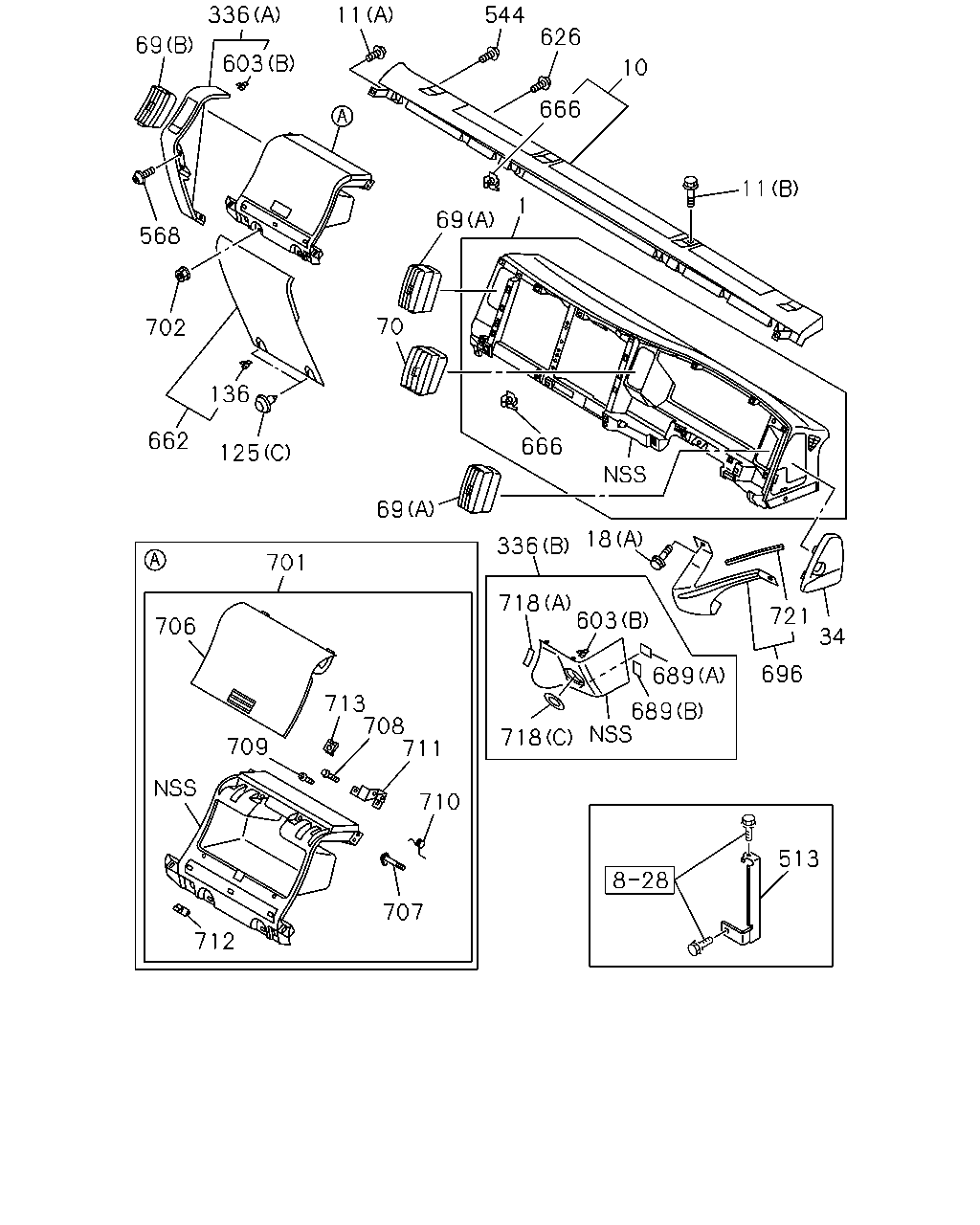

çizim 507562
69 336 603 11 544 626 666 10 69 1 70 702 568 662 136 125 701 706 709 713 708 711 710 707 712 718 603 689 689 718 336 69 666 18 721 34 696 11 513
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.080 PANEL; INST
GRAY 		8-97405-253-8 01 1 1512- ● ●
10 16.069 PANEL ASM; GARNISH
GRAY 		8-97419-684-5 01 1 1512- ● ●
11 16.090 BOLT; INST PNL
(A) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1512- ● ●
11 16.090 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 1512- ● ●
18 16.085 BOLT; BRKT
EXC. CUP HOLDER<7KZ> 16.100 (C) SCREW T25 L=10 HEXALOBULAR 		8-98058-632-0 03 1 1512- ● ●
18 16.085 BOLT; BRKT
02.343 (B) M8X16 FLANGE 		0-28050-816-0 04 1 1512- ● ●
18 16.085 BOLT; BRKT
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1512- ● ●
34 16.085 LID; OIL TANK
GRAY 		8-97405-260-1 01 1 1512- ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 02 1 1512- ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 1512- ● ●
70 09.264 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 01 1 1512- ● ●
125 16.085 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 1512- ● ●
125 16.085 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 02 1 1512- ● ●
125 16.085 CLIP; INST PANEL
(C) GRAY 		8-97419-968-1 02 1 1512- ● ●
136 16.085 CLIP; INST COVER 8-98021-271-0 05 1 1512- ● ●
336 16.081 COVER; INST PANEL SIDE
(B) GRAY 		8-97414-961-4 01 1 1512- ● ●
336 16.081 COVER; INST PANEL SIDE
(A) GRAY 		8-97405-259-4 01 1 1512- ● ●
513 16.120 BRACKET; RELAY
FORGED AIR VENTILATION(C39) IDN 		8-97695-771-0 01 1 1512- ● ●
544 16.085 SCREW; TRAY
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1512- ● ●
568 09.744 BOLT; COVER
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1512- ● ●
603 16.090 CLIP; COVER
16.085 (B) 		8-98021-271-0 03 1 1512- ● ●
603 16.090 CLIP; COVER
16.165 (A) IDN 		8-98004-025-0 01 1 1512- ● ●
603 16.090 CLIP; COVER
16.085 (B) 		8-98021-271-0 02 1 1512- ● ●
626 16.080 RETAINER
16.069 OD=15 BLACK 		8-94279-804-0 02 1 1512- ● ●
662 16.081 COVER; LWR,INST PANEL
GRAY 		8-97406-260-1 01 1 1512- ● ●
666 16.085 INSERT; INST PANEL 8-98037-629-0 15 1 1512- ● ●
689 09.743 SEAL; INST
(A) 7X31 		8-98061-777-0 01 1 1512- ● ●
689 09.743 SEAL; INST
(B) 18X170 		8-98061-778-1 01 1 1512- ● ●
696 16.085 BRACKET; KNEE 8-98199-366-0 01 1 1512- ● ●
701 16.100 TRAY; INST
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> GRAY 		8-97406-268-4 01 1 1512- ● ●
701 16.100 TRAY; INST
COMPARTMENT-I/P ASSIS SIDE WITHOUT LID<JDP> GRAY 		8-97422-090-1 01 1 1512- ● ●
702 16.069 NUT; TRAY
01.062 M6 FLANGE IDN 		0-91180-106-0 02 1 1512- ● ●
706 16.081 LID; TRAY INST
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> GRAY 		8-97409-510-0 01 1 1512- ● ●
707 09.744 SHAFT; TRAY INST LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-97926-393-0 02 1 1512- ● ●
708 16.100 STOPPER; TRAY INST LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-98010-867-1 02 1 1512- ● ●
709 16.085 SCREW; TRAY INST
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> M5X16 TAPPING 		0-71040-516-0 04 1 1512- ● ●
710 09.744 SPRING; TRAY INST LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-97926-398-0 01 1 1512- ● ●
710 09.744 SPRING; TRAY INST LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-97926-399-0 01 1 1512- ● ●
711 16.100 HOLDER ASM; LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 16.081 		8-97926-396-0 01 1 1512- ● ●
711 16.100 HOLDER ASM; LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 16.081 		8-97926-397-0 01 1 1512- ● ●
712 16.110 LOCK; TRAY INST LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-98031-846-0 01 1 1512- ● ●
713 16.069 NUT; TRAY INST LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 16.085 M5 		8-97926-400-0 04 1 1512- ● ●
718 16.100 SEAL; COVER
(A) 30X15 		8-98097-696-0 01 1 1512- ● ●
718 16.100 SEAL; COVER
(C) 		8-98218-319-0 01 1 1512- ● ●
718 16.100 SEAL; COVER
(B) 5X30 		8-98176-199-0 01 1 1512- ● ●
718 16.100 SEAL; COVER
(B) 8X80 		8-98200-040-0 01 1 1512- ● ●
718 16.100 SEAL; COVER
(B) 4X35 		8-98200-041-0 01 1 1512- ● ●
721 16.650 FINISHER; BRKT,KNEE
L=75 		8-98176-240-0 01 1 1512- ● ●

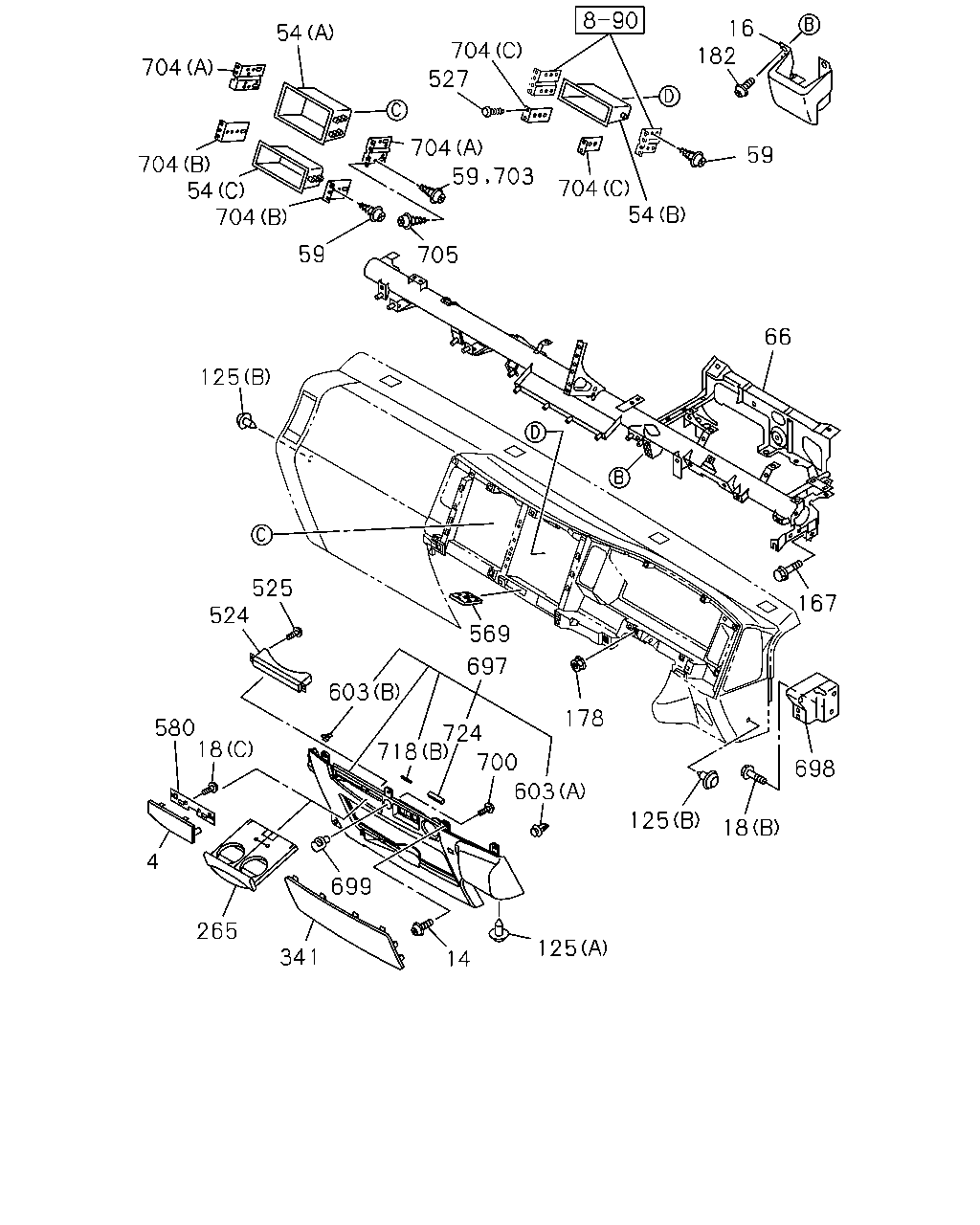

çizim 507651
704 704 54 54 704 527 704 704 705 59 703 182 16 59 66 54 704 59 125 525 524 603 718 697 178 569 125 18 167 698 603 700 724 125 14 699 18 580 4 265 341
BalonParca AdiParca NoAdetTipApplied Date A B
4 16.080 COVER; INST PNL
EXC. CUP HOLDER<7KZ> GRAY 		8-97407-898-1 01 1 1512- ● ●
14 16.085 SCREW; INST PNL
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1512- ● ●
16 16.085 BRACKET; INST PNL 8-98053-711-0 01 1 1512- ● ●
18 16.085 BOLT; BRKT
EXC. CUP HOLDER<7KZ> 16.100 (C) SCREW T25 L=10 HEXALOBULAR 		8-98058-632-0 03 1 1512- ● ●
18 16.085 BOLT; BRKT
02.343 (B) M8X16 FLANGE 		0-28050-816-0 04 1 1512- ● ●
18 16.085 BOLT; BRKT
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1512- ● ●
54 16.100 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-3 01 1 1512- ● ●
54 16.100 POCKET; CENTER CLUSTER
EXC. FORGED AIR VENTILATION(C39) (C) H=69.8 BLACK 		8-97408-865-3 01 1 1512- ● ●
54 16.100 POCKET; CENTER CLUSTER
(A) H=108.4 BLACK 		8-97407-129-3 01 1 1512- ● ●
54 16.100 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK IDN 		8-97408-864-3 01 1 1512- ● ●
59 16.100 SCREW; CLUSTER POCKET
EXC. FORGED AIR VENTILATION(C39) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1512- ● ●
59 16.100 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1512- ● ●
66 16.085 REINFORCEMENT; INST PANEL 8-98199-364-1 01 1 1512- ● ●
125 16.085 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 1512- ● ●
125 16.085 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 02 1 1512- ● ●
125 16.085 CLIP; INST PANEL
(C) GRAY 		8-97419-968-1 02 1 1512- ● ●
167 16.085 BOLT; REINF TO INST
16.090 M8X23 FLANGE 		8-97264-766-0 04 1 1512- ● ●
178 16.085 NUT; INST PANEL
01.062 M6 FLANGE IDN 		0-91180-106-0 01 1 1512- ● ●
182 16.085 BOLT; BRKT,INST PANEL
16.650 T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 1512- ● ●
265 16.100 HOLDER; CUP
CUP HOLDER<7KZ> GRAY 		8-97418-528-0 01 1 1601- ● ●
341 16.110 LID; FUSE BOX
GRAY 		8-97423-658-0 01 1 1512- ● ●
524 16.100 STAND ASM; CUP,INST
CUP HOLDER<7KZ> 		8-98054-414-0 01 1 1601- ● ●
525 16.100 SCREW; CUP STAND
CUP HOLDER<7KZ> 16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1601- ● ●
527 16.100 CLIP; INST CLUSTER
EXC. FORGED AIR VENTILATION(C39) 16.742 DARK GRAY 		8-97098-326-0 01 1 1512- ● ●
569 16.100 HOLDER; CARD 8-97410-276-1 01 1 1512- ● ●
580 16.080 BRACKET; COVER
EXC. CUP HOLDER<7KZ> 		8-98091-546-0 01 1 1512- ● ●
603 16.090 CLIP; COVER
16.085 (B) 		8-98021-271-0 03 1 1512- ● ●
603 16.090 CLIP; COVER
16.165 (A) IDN 		8-98004-025-0 01 1 1512- ● ●
603 16.090 CLIP; COVER
16.085 (B) 		8-98021-271-0 02 1 1512- ● ●
697 16.080 PANEL; INST CENTER
GRAY 		8-97423-656-1 01 1 1512- ● ●
698 16.085 BRACKET; INST BAR SIDE 8-98089-256-1 01 1 1512- ● ●
698 16.085 BRACKET; INST BAR SIDE 8-98089-257-1 01 1 1512- ● ●
699 16.081 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 1512- ● ●
700 16.090 BOLT; HOOK
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1512- ● ●
703 16.085 SCREW; CENTER POCKET
16.100 T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1512- ● ●
704 16.085 BRACKET; CENTER POCKET
EXC. FORGED AIR VENTILATION(C39) (C) 		8-98107-549-0 02 1 1512- ● ●
704 16.085 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 1512- ● ●
704 16.085 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 1512- ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. FORGED AIR VENTILATION(C39) 09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 1512- ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 08 1 1512- ● ●
718 16.100 SEAL; COVER
(A) 30X15 		8-98097-696-0 01 1 1512- ● ●
718 16.100 SEAL; COVER
(C) 		8-98218-319-0 01 1 1512- ● ●
718 16.100 SEAL; COVER
(B) 5X30 		8-98176-199-0 01 1 1512- ● ●
718 16.100 SEAL; COVER
(B) 8X80 		8-98200-040-0 01 1 1512- ● ●
718 16.100 SEAL; COVER
(B) 4X35 		8-98200-041-0 01 1 1512- ● ●
724 16.085 INSULATOR; INST PANEL 8-98200-042-0 01 1 1512- ● ●
