◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51642 - NLR/NMR(INDONESIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-80 - BACK PANEL ▶
6-80 — BACK PANEL (#171434) — 13 parça

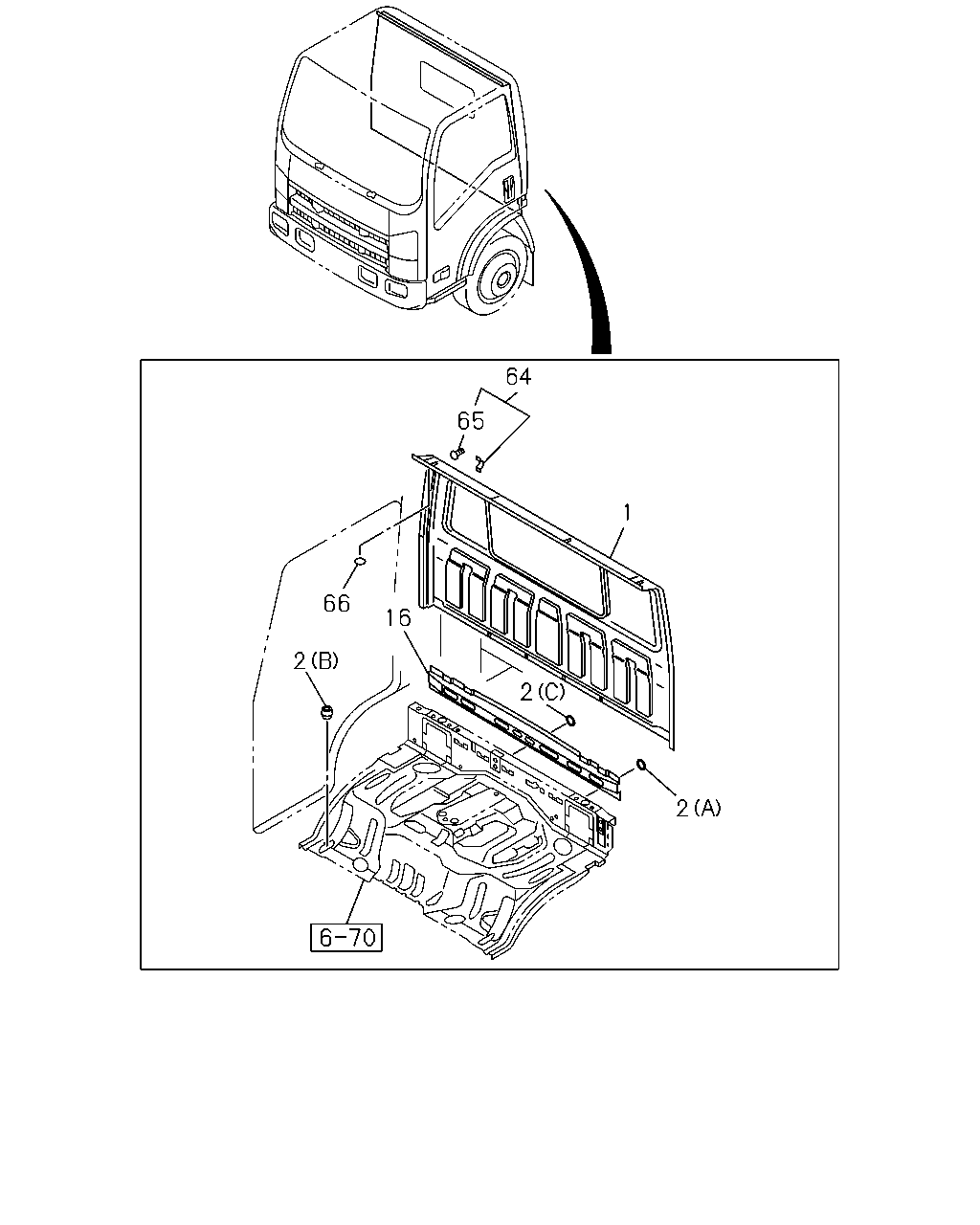

çizim 507331
64 65 66 16 2 2 1 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.587 PANEL; BACK OUTER
GLASS BACK LIGHT DELETE<8CA> IDN 		8-97584-303-4 01 1 1512- ● ●
1 16.587 PANEL; BACK OUTER
EXC. GLASS BACK LIGHT DELETE<8CA> IDN 		8-97584-300-3 01 1 1512- ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
INSPECTION ENGINE COVER<8GA> 16.545 (C) OD=32 BLACK 		8-98031-126-0 09 1 1512- ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.165 (A) OD=25 BLACK 		1-76798-019-0 02 1 1512- ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547 (B) OD=12.1 		8-97898-423-0 04 1 1512- ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.545 (C) OD=32 BLACK 		8-98031-126-0 02 1 1512- ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
EXC. INSPECTION ENGINE COVER<8GA> 16.545 (C) OD=32 BLACK 		8-98031-126-0 06 1 1512- ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
GLASS BACK LIGHT DELETE<8CA> IDN 		8-98313-204-0 01 1 1512- ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
EXC. GLASS BACK LIGHT DELETE<8CA> IDN 		8-97584-607-3 01 1 1512- ● ●
64 16.587 BRACKET; AIR INTAKE DUCT
16.570 		8-97584-611-1 01 1 1512- ● ●
65 17.198 STUD; BACK PANEL
IDN 		8-94389-701-0 01 1 1512- ● ●
66 16.587 SEAL; BACK PANEL
COAT HOOK<S9M> 16.570 OD=20 T=0.05 WHITE IDN 		8-98059-421-0 03 1 1512- ● ●
66 16.587 SEAL; BACK PANEL
EXC. COAT HOOK<S9M> 16.570 OD=20 T=0.05 WHITE IDN 		8-98059-421-0 04 1 1512- ● ●
