Sayfa 6-75 - Isuzu EPC

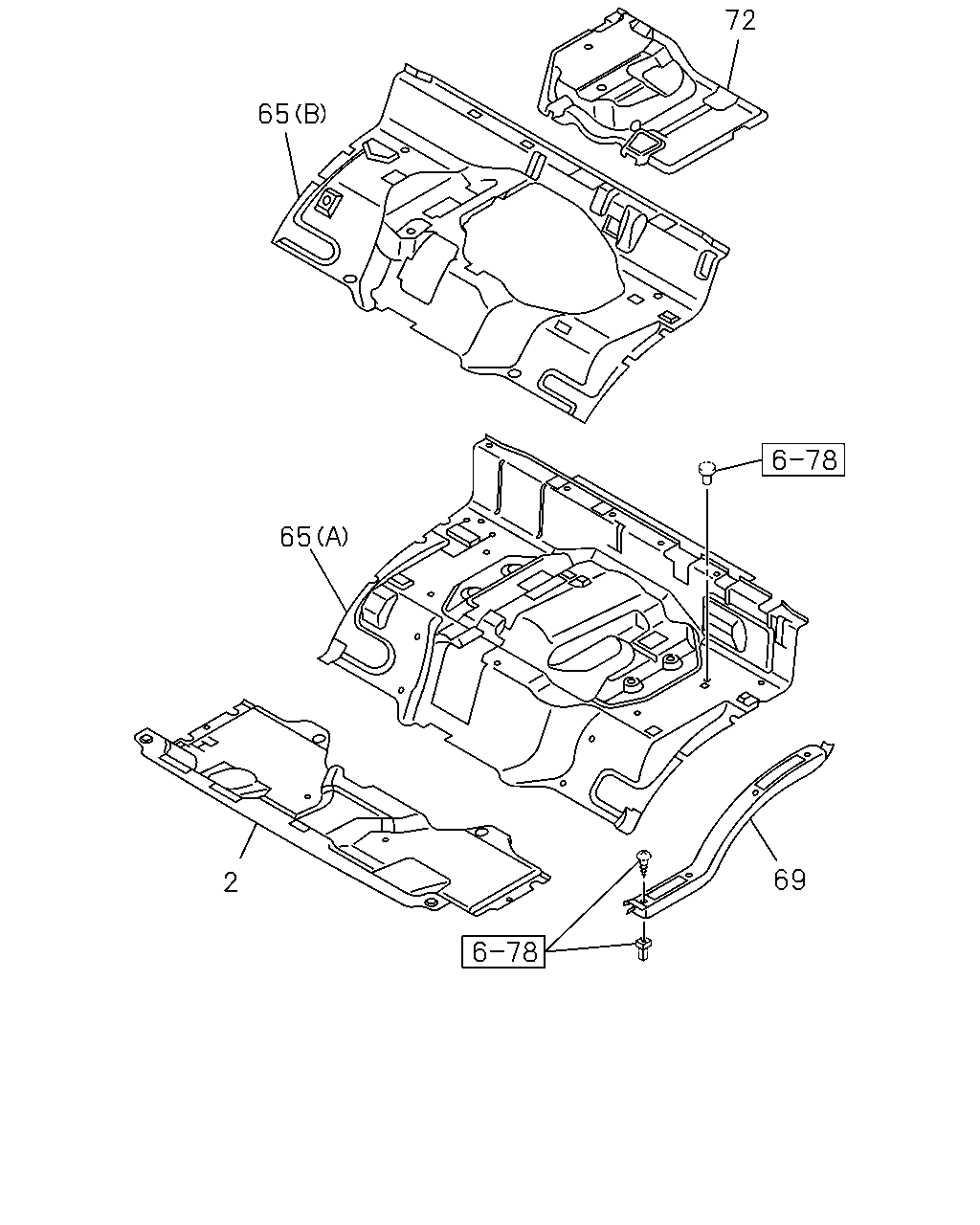

6-75 — MAT AND CARPET (#171431) — 6 parça

65 72 69 65 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	16.800 MAT; FLOOR GRAY IDN	8-97422-050-0	01	1	1512-	●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR INSPECTION ENGINE COVER<8GA> (B) GRAY IDN	8-97422-052-0	01	1	1512-	●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY IDN	8-97422-054-0	01	1	1512-	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-388-1	01	1	1512-	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-389-1	01	1	1512-	●	●
72	16.800 MAT; SILENCER,ENG COVER INSPECTION ENGINE COVER<8GA> GRAY IDN	8-97406-252-3	01	1	1512-	●	●
