6-70 — FLOOR PANEL (#171430) — 47 parça

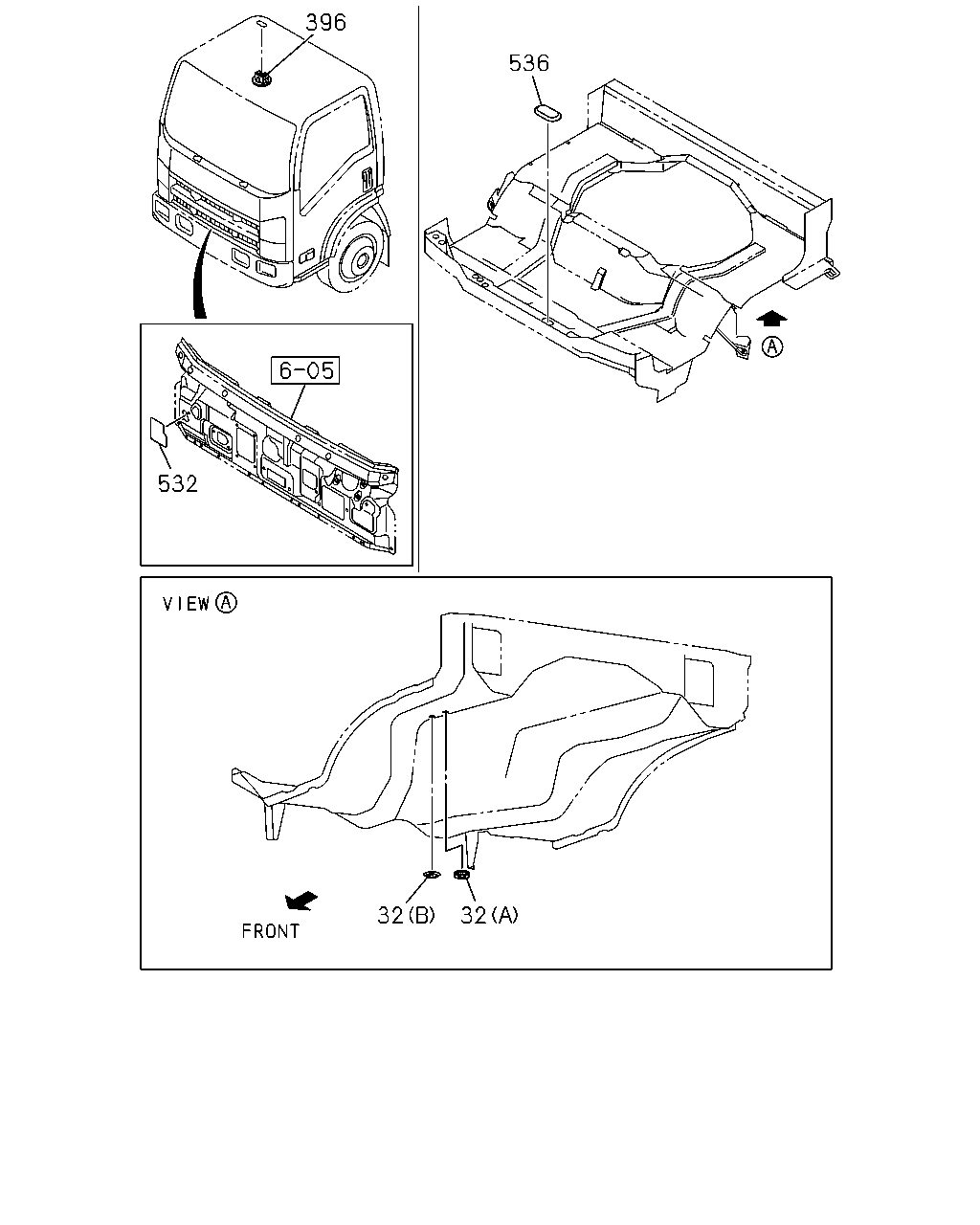

çizim 507286
396 536 532 32 32
BalonParca AdiParca NoAdetTipApplied Date A B
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
(A) OD=15.0 		8-94279-040-0 02 1 1512- ● ●
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
(B) OD=12.1 		8-97898-423-0 02 1 1512- ● ●
396 16.547 GROMMET; LOCATION HOLE 8-98054-990-0 02 1 1512- ● ●
532 16.520 SEAL; CABLE 8-98042-432-1 01 1 1512- ● ●
536 16.549 PLUG; CABLE,PTO
04.008 IDN 		8-98029-219-1 01 1 1512- ● ●

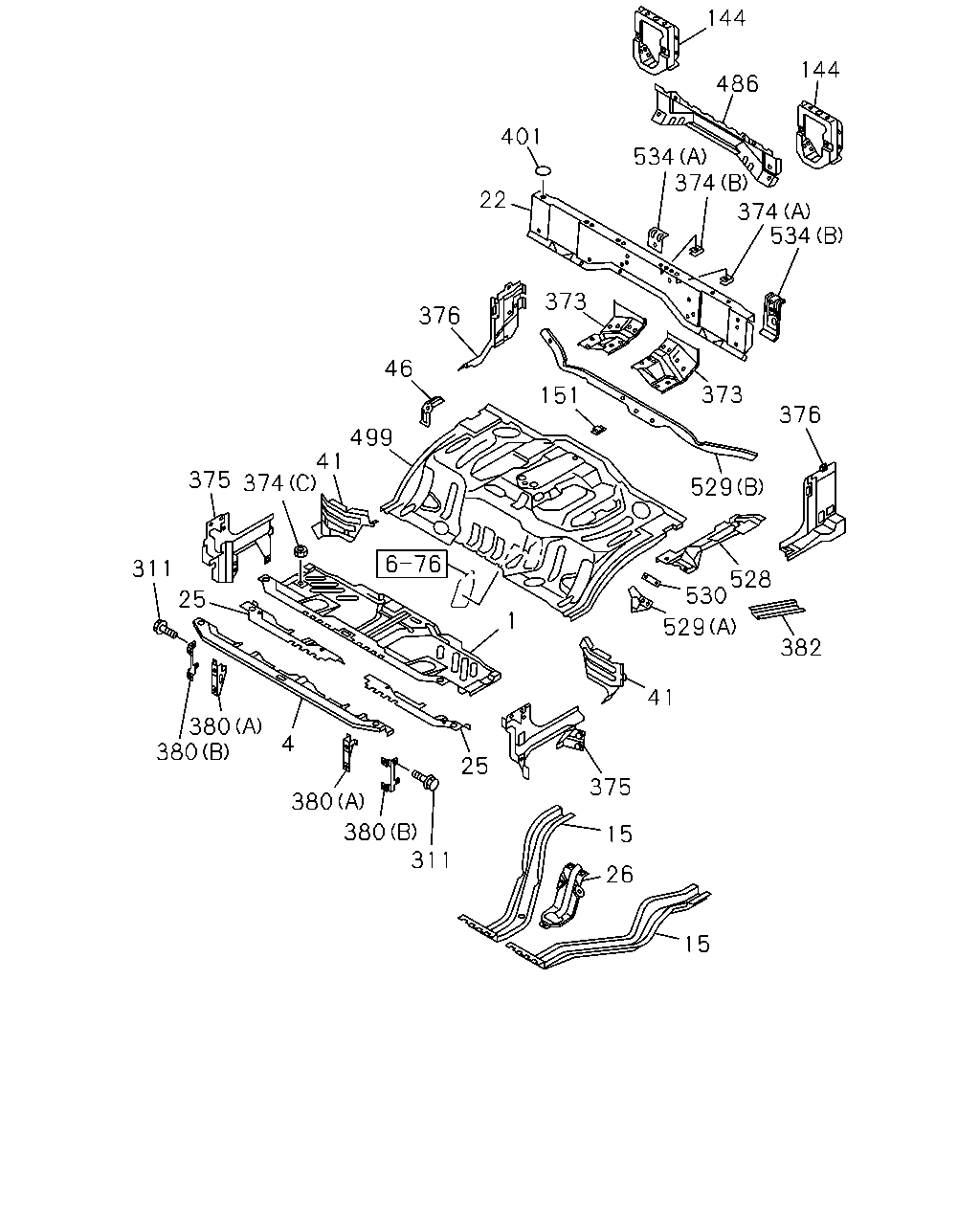

çizim 507644
499 46 376 22 401 373 151 373 376 529 528 382 530 529 41 375 15 26 15 311 25 1 380 380 4 380 380 25 311 375 374 41 374 534 486 144 144 374 534
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.545 PANEL; FLOOR
IDN 		8-97583-910-5 01 1 1512- ● ●
4 16.545 FRAME; FLOOR,FRT
IDN 		8-98059-496-0 01 1 1512- ● ●
15 16.545 FRAME; UNDER
IDN 		8-98061-277-1 01 1 1512- ● ●
15 16.545 FRAME; UNDER
IDN 		8-98061-278-1 01 1 1512- ● ●
22 16.545 FRAME; FLOOR REAR
MANUAL TILT CAB<RWZ> IDN 		8-97583-925-3 01 1 1512- ● ●
22 16.545 FRAME; FLOOR REAR
INSPECTION ENGINE COVER<8GA> IDN 		8-97589-306-4 01 1 1512- ● ●
25 16.545 REINFORCEMENT; FRAME FLOOR,FRT
IDN 		8-97588-030-1 01 1 1512- ● ●
25 16.545 REINFORCEMENT; FRAME FLOOR,FRT
IDN 		8-97588-031-1 01 1 1512- ● ●
26 16.545 PANEL; GEAR CONT REINF
IDN 		8-97589-382-1 01 1 1512- ● ●
41 16.545 SUPPORT; STEP,RR
IDN 		8-97583-935-2 01 1 1512- ● ●
41 16.545 SUPPORT; STEP,RR
IDN 		8-97583-936-2 01 1 1512- ● ●
46 16.545 BRACKET; FRT SEAT,RR OUTER
IDN 		8-97583-834-0 01 1 1512- ● ●
144 16.545 BRACKET; MTG,RR
MANUAL TILT CAB<RWZ> IDN 		8-97589-544-3 02 1 1512- ● ●
144 16.545 BRACKET; MTG,RR
INSPECTION ENGINE COVER<8GA> IDN 		8-98112-244-2 02 1 1512- ● ●
151 16.670 BRACKET; SEAT CUSHION STOPPER
MANUAL TILT CAB<RWZ> IDN 		8-97583-833-0 01 1 1512- ● ●
311 16.545 BOLT; BRKT
02.343 M6X16 FLANGE 		0-28650-616-0 04 1 1512- ● ●
373 16.545 REINFORCEMENT; SEAT BELT
MANUAL TILT CAB<RWZ> IDN 		8-98014-521-2 01 1 1512- ● ●
373 16.545 REINFORCEMENT; SEAT BELT
MANUAL TILT CAB<RWZ> IDN 		8-98014-522-2 01 1 1512- ● ●
374 16.545 NUT; FLOOR
(B) M6 		1-09984-110-0 02 1 1512- ● ●
374 16.545 NUT; FLOOR
MANUAL TILT CAB<RWZ> (A) M8 		1-09984-111-0 01 1 1512- ● ●
374 16.545 NUT; FLOOR
INSPECTION ENGINE COVER<8GA> (A) M8 		1-09984-111-0 04 1 1512- ● ●
374 16.545 NUT; FLOOR
(C) M8 		9-09114-068-0 04 1 1512- ● ●
375 16.545 CLOSING; PILLAR
IDN 		8-97583-882-3 01 1 1512- ● ●
375 16.545 CLOSING; PILLAR
IDN 		8-97583-883-2 01 1 1512- ● ●
376 16.545 CLOSING; PILLAR,LWR
IDN 		8-97583-888-2 01 1 1512- ● ●
376 16.545 CLOSING; PILLAR,LWR
IDN 		8-97584-618-2 01 1 1512- ● ●
380 16.545 BRACKET; HEAD LAMP
(A) IDN 		8-97589-384-4 01 1 1512- ● ●
380 16.545 BRACKET; HEAD LAMP
(A) IDN 		8-97589-385-3 01 1 1512- ● ●
380 16.545 BRACKET; HEAD LAMP
(B) 		8-98029-288-0 01 1 1512- ● ●
380 16.545 BRACKET; HEAD LAMP
(B) 		8-98029-289-0 01 1 1512- ● ●
382 16.545 STIFFENER; RR FLOOR
MANUAL TILT CAB<RWZ> IDN 		8-98041-232-0 01 1 1512- ● ●
401 16.545 GROMMET; HOLE
OD=24.5 T=7.5 IDN 		8-97224-683-0 01 1 1512- ● ●
486 16.545 REINFORCEMENT; FRAME FLOOR,REAR
MANUAL TILT CAB<RWZ> IDN 		8-98030-610-2 01 1 1512- ● ●
486 16.545 REINFORCEMENT; FRAME FLOOR,REAR
INSPECTION ENGINE COVER<8GA> IDN 		8-98030-611-2 01 1 1512- ● ●
499 16.545 PANEL; FLOOR,RR
MANUAL TILT CAB<RWZ> IDN 		8-97583-912-4 01 1 1512- ● ●
499 16.545 PANEL; FLOOR,RR
INSPECTION ENGINE COVER<8GA> IDN 		8-97584-630-1 01 1 1512- ● ●
528 16.545 REINFORCEMENT; PARKING BRAKE
MANUAL TILT CAB<RWZ> IDN 		8-97583-829-4 01 1 1512- ● ●
529 16.545 RETAINER; FLOOR PANEL
INSPECTION ENGINE COVER<8GA> (B) 		8-97589-307-1 01 1 1512- ● ●
529 16.545 RETAINER; FLOOR PANEL
INSPECTION ENGINE COVER<8GA> (A) 		8-98030-358-0 01 1 1512- ● ●
530 16.565 BRACKET; COVER
INSPECTION ENGINE COVER<8GA> 		8-97589-255-0 01 1 1512- ● ●
534 16.545 REINFORCEMENT; SEAT BACK
(B) IDN 		8-98007-678-2 01 1 1512- ● ●
534 16.545 REINFORCEMENT; SEAT BACK
(A) IDN 		8-98019-181-2 01 1 1512- ● ●
