Isuzu WW
▶
TRUCKS
▶
NLR
▶
51642 - NLR/NMR(INDONESIA)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-66 - HEAD LINING AND TRIM
▶

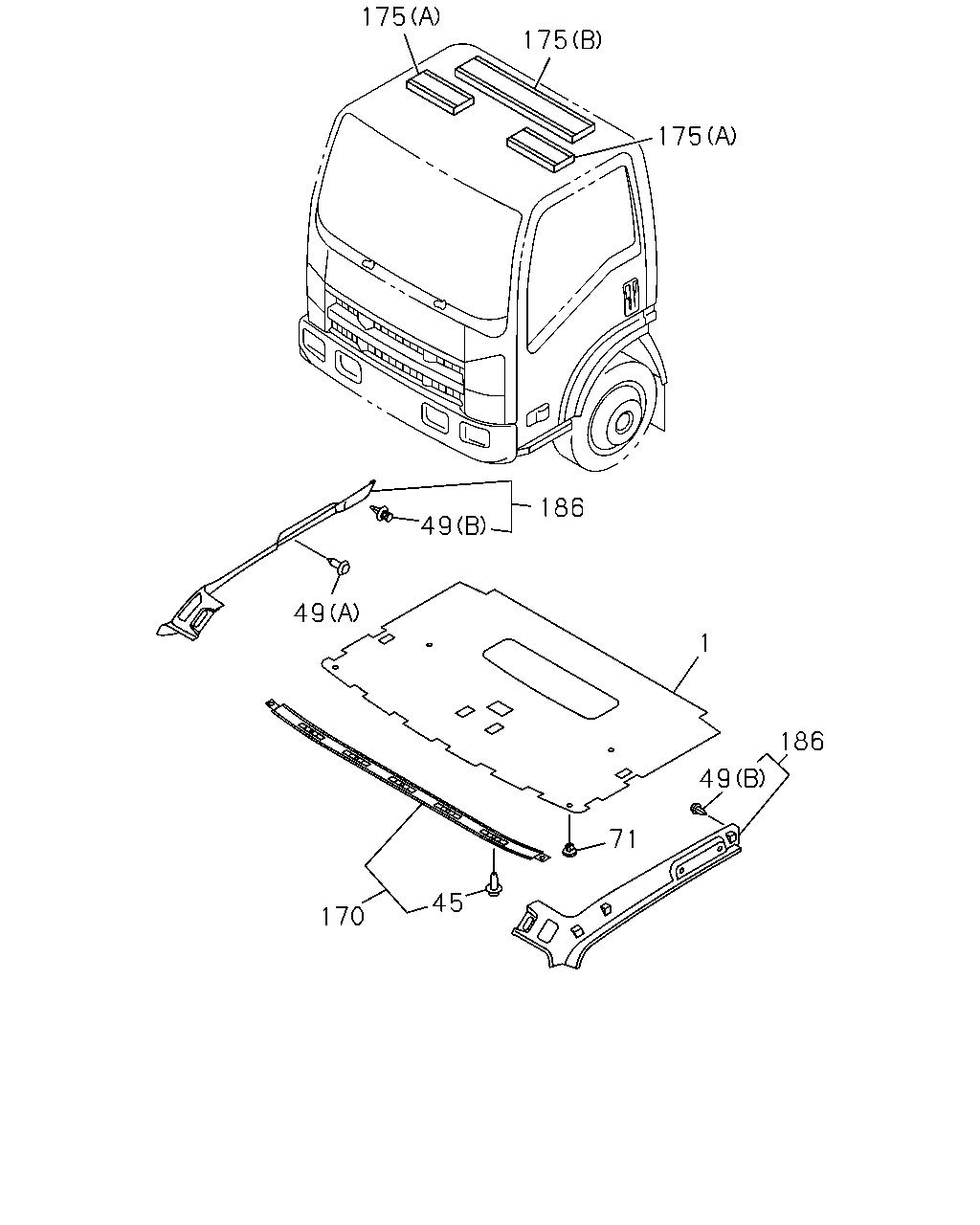

6-66 — HEAD LINING AND TRIM
(#171429) — 11 parça
Tümü
A - NMR5SE
B - NMR5SN
175
175
175
186
49
49
1
186
49
71
45
170
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
16.742 LINING; HD
IDN
8-97695-744-0
01
1
1512-
●
●
45
16.742 CLIP; FINISHER
8-98035-592-1
03
1
1512-
●
●
49
16.742 CLIP; TRIM COVER
ASSIST GRIP PASSENGER<EG5> (A) DARK GRAY
8-97407-768-0
02
1
1512-
●
●
49
16.742 CLIP; TRIM COVER
16.578 (B)
8-98059-610-0
04
1
1512-
●
●
49
16.742 CLIP; TRIM COVER
EXC. ASSIST GRIP PASSENGER<EG5> (A) DARK GRAY
8-97407-768-0
04
1
1512-
●
●
71
16.742 FASTENER; HD LINING
D=8.7X16.5 DARK GRAY
8-97405-282-0
06
1
1512-
●
●
170
16.742 FINISHER; HEAD LINING
DARK GRAY
8-97406-296-4
01
1
1512-
●
●
175
16.742 CUSHION; HEAD LINING
(A)
8-98037-299-3
02
1
1512-
●
●
175
16.742 CUSHION; HEAD LINING
(B)
8-98037-300-3
01
1
1512-
●
●
186
16.742 TRIM; ROOM,CANT RAIL SIDE
DARK GRAY
8-97405-251-3
01
1
1512-
●
●
186
16.742 TRIM; ROOM,CANT RAIL SIDE
DARK GRAY
8-97405-263-3
01
1
1512-
●
●
