6-20 — SIDE PANEL AND STEP (#171421) — 44 parça

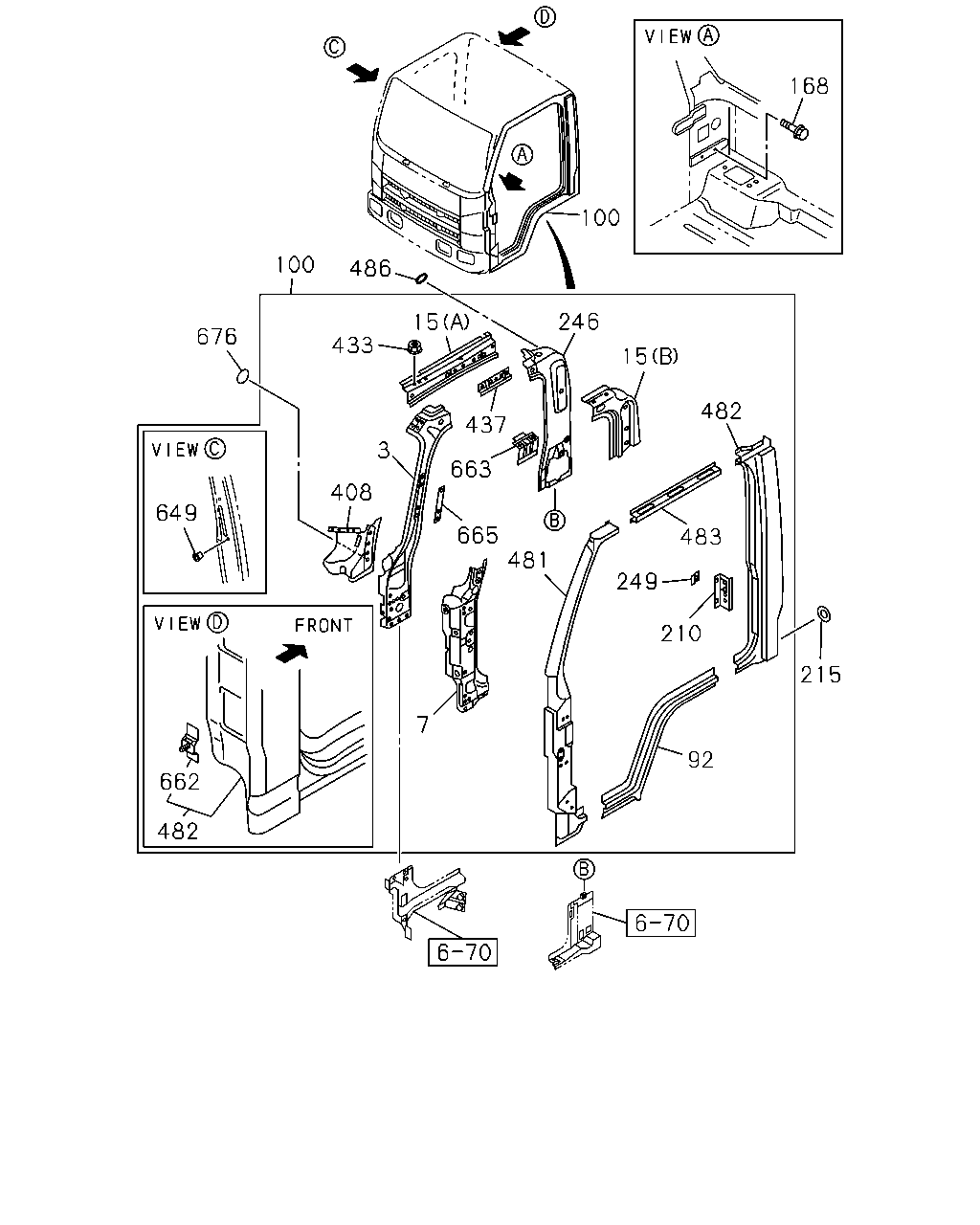

çizim 507233
168 100 246 482 15 15 486 100 433 676 3 437 663 665 481 249 483 215 210 92 7 408 649 662 482
BalonParca AdiParca NoAdetTipApplied Date A B
3 16.592 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 1512- ● ●
3 16.592 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 1512- ● ●
7 16.570 REINFORCEMENT; HINGE 8-97585-240-3 01 1 1512- ● ●
7 16.570 REINFORCEMENT; HINGE 8-97585-244-4 01 1 1512- ● ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97585-294-2 01 1 1512- ● ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97585-295-2 01 1 1512- ● ●
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97585-302-1 01 1 1512- ● ●
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97585-303-2 01 1 1512- ● ●
92 16.570 PANEL; SIDE SILL,CAB 8-98055-461-1 01 1 1512- ● ●
92 16.570 PANEL; SIDE SILL,CAB 8-98055-462-1 01 1 1512- ● ●
100 16.570 PANEL ASM; BODY SIDE 8-97586-023-5 01 1 1512- ● ●
100 16.570 PANEL ASM; BODY SIDE 8-97585-200-9 01 1 1512- ● ●
168 16.570 BOLT; BODY SIDE PANEL
16.650 T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 08 1 1512- ● ●
210 16.588 PANEL; DOOR STRIKER REINF 8-97585-260-4 01 1 1512- ● ●
210 16.588 PANEL; DOOR STRIKER REINF 8-97585-261-4 01 1 1512- ● ●
215 16.674 GROMMET; RR PILLAR
15.222 OD=35 		8-94122-971-0 01 1 1512- ● ●
246 16.575 PANEL; RR PILLAR,INNER 8-97585-301-3 01 1 1512- ● ●
246 16.575 PANEL; RR PILLAR,INNER 8-97586-154-3 01 1 1512- ● ●
249 16.674 REINFORCEMENT; RR PILLAR 8-98012-287-1 02 1 1512- ● ●
408 16.570 GUSSET; PILLAR 8-97585-316-3 01 1 1512- ● ●
408 16.570 GUSSET; PILLAR 8-97585-317-4 01 1 1512- ● ●
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 04 1 1512- ● ●
437 08.155 BRACKET; ROOF RAIL 8-98039-019-0 01 1 1512- ● ●
437 08.155 BRACKET; ROOF RAIL 8-98039-020-0 01 1 1512- ● ●
481 16.570 PANEL; SIDE FRT PILLAR 8-98055-451-0 01 1 1512- ● ●
481 16.570 PANEL; SIDE FRT PILLAR 8-98055-470-0 01 1 1512- ● ●
482 16.570 PANEL; SIDE RR PILLAR 8-98055-463-0 01 1 1512- ● ●
482 16.570 PANEL; SIDE RR PILLAR 8-98055-464-0 01 1 1512- ● ●
483 16.570 PANEL; SIDE CANTRAIL 8-98055-458-0 01 1 1512- ● ●
483 16.570 PANEL; SIDE CANTRAIL 8-98055-460-0 01 1 1512- ● ●
486 16.570 SEAL; BODY SIDE
OD=20 T=0.05 WHITE IDN 		8-98059-421-0 04 1 1512- ● ●
649 16.570 NUT; POP
09.647 M5 POP NUT 		8-97249-574-0 02 1 1512- ● ●
662 16.570 BRACKET; DUCT 8-97584-611-1 01 1 1512- ● ●
663 08.228 BRACKET; AIR 8-97585-207-2 01 1 1512- ● ●
663 08.228 BRACKET; AIR 8-97585-208-2 01 1 1512- ● ●
665 16.575 REINFORCEMENT; GRIP,ASSIST 8-97585-314-0 02 1 1512- ● ●
676 16.520 SEAL
16.165 OD=20 T=0.05 BLACK IDN 		5-76777-036-0 01 1 1512- ● ●

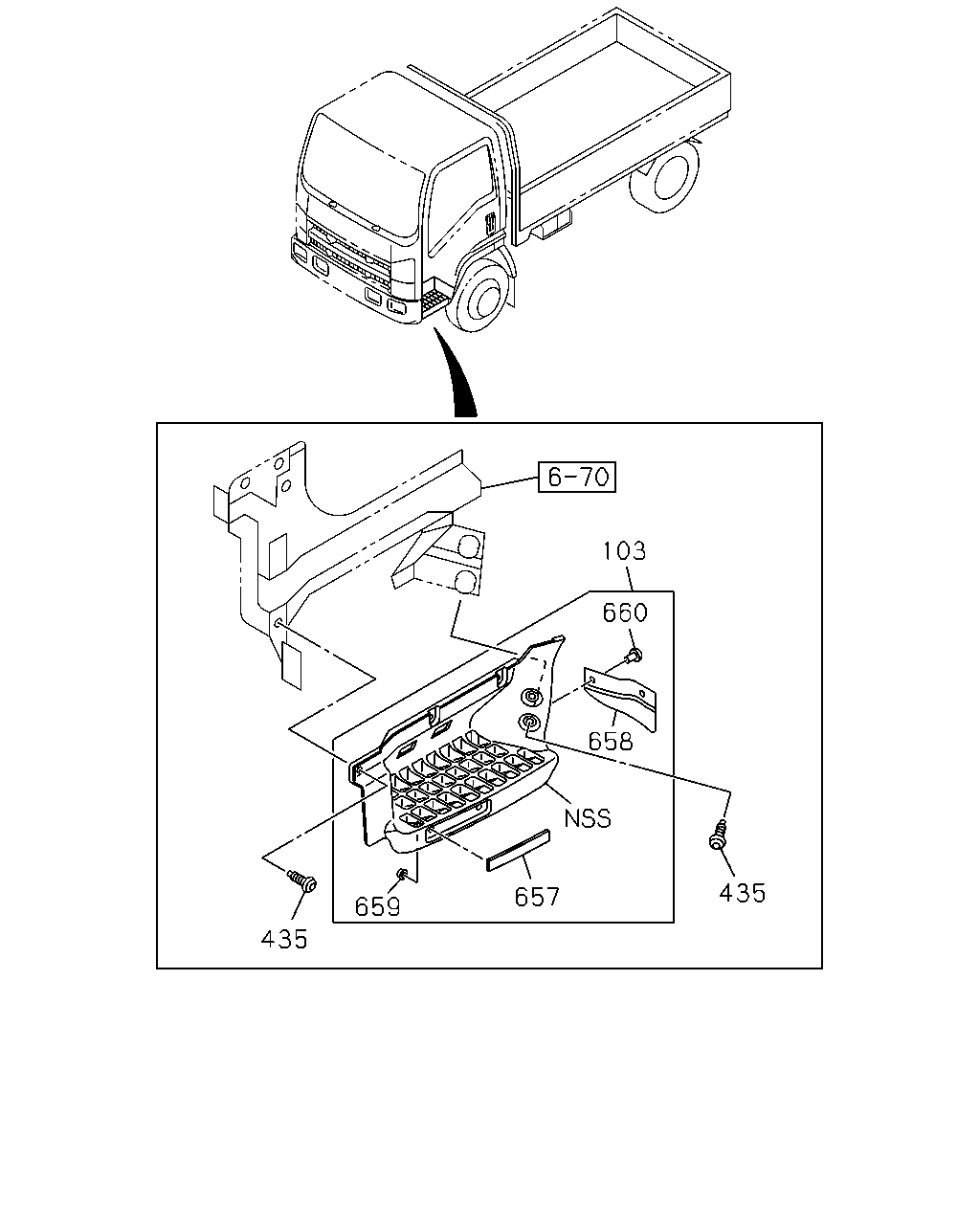

çizim 507641
435 658 660 103 657 659 435
BalonParca AdiParca NoAdetTipApplied Date A B
103 08.228 PLATE; STEP 8-98022-774-3 01 1 1512- ● ●
103 08.228 PLATE; STEP 8-98022-775-3 01 1 1512- ● ●
435 08.225 BOLT; RR STEP
M8X18 		8-98004-345-0 12 1 1512- ● ●
657 16.585 REFLECTOR; REFLEX
AMBER 		8-97378-910-0 02 1 1512- ● ●
658 08.228 FLAP; STEP 8-98037-560-1 02 1 1512- ● ●
659 08.131 CLIP; SPRING NUT 8-97811-510-0 04 1 1512- ● ●
660 08.131 CLIP; FLAP 8-98111-558-0 04 1 1512- ● ●
