6-05 — FRONT PANEL (#171419) — 41 parça

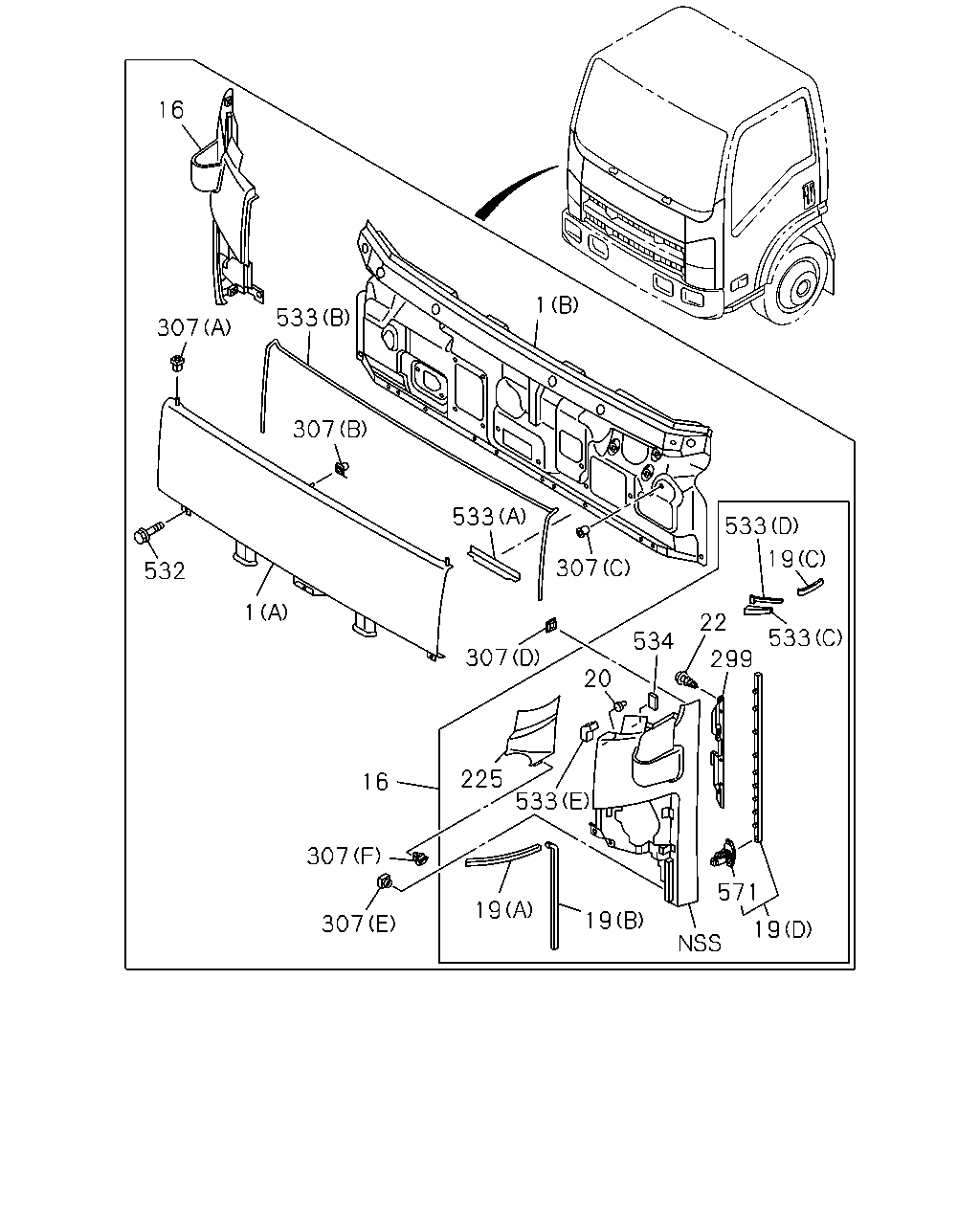

çizim 507362
307 532 16 533 307 1 533 1 307 534 299 22 533 19 533 19 571 19 19 16 307 225 533 307 307 20
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.550 PANEL ASM; FRT
(B) 		8-98186-848-0 01 1 1512- ● ●
1 16.550 PANEL ASM; FRT
(A) 		8-98122-692-0 01 1 1512- ● ●
16 16.588 PANEL; FRONT,SIDE
WHITE IDN 		8-97405-621-8 01 1 1512- ● ●
16 16.588 PANEL; FRONT,SIDE
WHITE IDN 		8-97405-625-8 01 1 1512- ● ●
19 16.588 SEAL; FRT SIDE PANEL
(D) IDN 		8-98028-749-3 01 1 1512- ● ●
19 16.588 SEAL; FRT SIDE PANEL
(D) IDN 		8-98028-750-3 01 1 1512- ● ●
19 16.588 SEAL; FRT SIDE PANEL
(A) IDN 		8-98035-268-0 02 1 1512- ● ●
19 16.588 SEAL; FRT SIDE PANEL
(C) IDN 		8-98038-608-0 02 1 1512- ● ●
19 16.588 SEAL; FRT SIDE PANEL
(B) IDN 		8-98062-215-0 02 1 1512- ● ●
20 16.588 CLIP; FRT PANEL SIDE
IDN 		8-97410-739-1 04 1 1512- ● ●
22 16.588 SCREW; FRT PANEL SIDE
M4X10 TAPPING W/PL WASHER IDN 		0-74360-410-0 06 1 1512- ● ●
225 16.069 COVER; SIDE,FRT
PLEASE PAINT TO MATCH BODY COLOR IDN 		8-98036-520-3 01 1 1512- ● ●
225 16.069 COVER; SIDE,FRT
PLEASE PAINT TO MATCH BODY COLOR IDN 		8-98036-521-3 01 1 1512- ● ●
299 16.069 COVER; FRT PANEL SIDE
IDN 		8-98028-144-1 01 1 1512- ● ●
299 16.069 COVER; FRT PANEL SIDE
IDN 		8-98028-145-1 01 1 1512- ● ●
307 16.125 GROMMET; FRT PANEL
(D) 		8-97410-738-0 02 1 1512- ● ●
307 16.125 GROMMET; FRT PANEL
(E) 		8-98021-300-1 04 1 1512- ● ●
307 16.125 GROMMET; FRT PANEL
(F) 		8-98028-743-0 02 1 1512- ● ●
307 16.125 GROMMET; FRT PANEL
(C) OD=20 		8-98034-363-1 04 1 1512- ● ●
307 16.125 GROMMET; FRT PANEL
(A) 		8-98021-968-0 01 1 1512- ● ●
307 16.125 GROMMET; FRT PANEL
(A) 		8-98021-969-0 01 1 1512- ● ●
307 16.125 GROMMET; FRT PANEL
(B) 		8-98023-229-1 01 1 1512- ● ●
532 08.143 BOLT; FRT PANEL
M6X16 W/LK&PL WASHER 		0-52010-616-0 04 1 1512- ● ●
533 08.143 SEAL; FRT PANEL
(C) IDN 		8-98043-509-0 01 1 1512- ● ●
533 08.143 SEAL; FRT PANEL
(C) IDN 		8-98043-510-0 01 1 1512- ● ●
533 08.143 SEAL; FRT PANEL
(D) IDN 		8-98043-511-1 02 1 1512- ● ●
533 08.143 SEAL; FRT PANEL
(E) IDN 		8-98064-939-0 02 1 1512- ● ●
533 08.143 SEAL; FRT PANEL
(A) 		8-98021-003-1 01 1 1512- ● ●
533 08.143 SEAL; FRT PANEL
(B) 		8-98309-763-0 01 1 1512- ● ●
534 16.550 FASTENER
20X30 IDN 		8-98059-208-1 02 1 1512- ● ●
571 16.570 CLIP; SEAL
16.165 NATURAL IDN 		8-98027-457-0 20 1 1512- ● ●

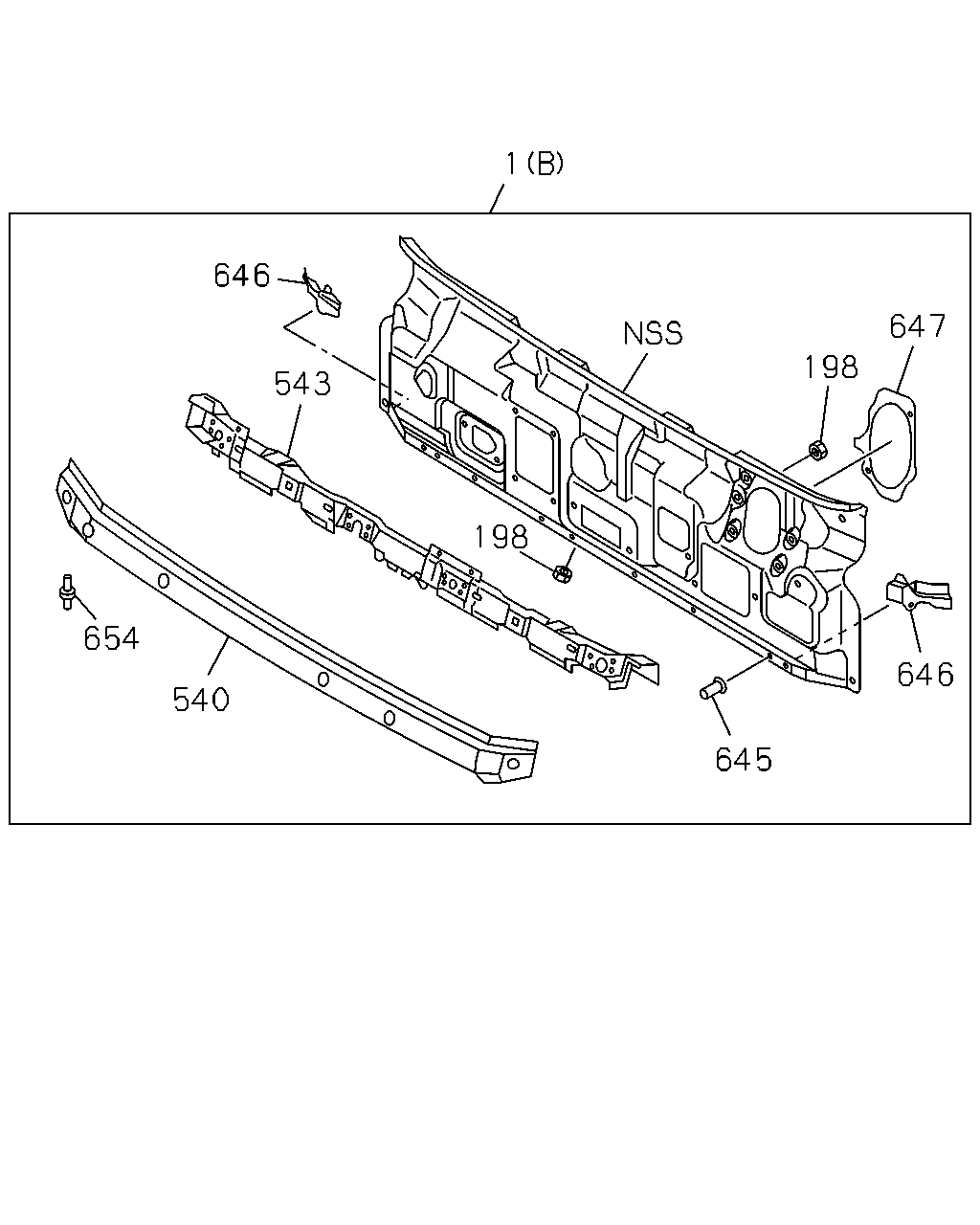

çizim 507383
1 647 198 646 543 198 645 646 540 654
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.550 PANEL ASM; FRT
(B) 		8-98186-848-0 01 1 1512- ● ●
1 16.550 PANEL ASM; FRT
(A) 		8-98122-692-0 01 1 1512- ● ●
198 16.125 NUT; PANEL
16.545 M6 		9-09114-086-0 06 1 1512- ● ●
540 16.588 PANEL; FRONT,OUTER 8-97585-962-3 01 1 1512- ● ●
543 16.570 CLOSING; FRT MTG RAIL 8-97585-988-2 01 1 1512- ● ●
645 16.588 STUD; FRT PANEL
M6X12 		8-98013-112-0 06 1 1512- ● ●
646 08.155 REINFORCEMENT; DASH 8-98023-098-1 01 1 1512- ● ●
646 08.155 REINFORCEMENT; DASH 8-98023-099-1 01 1 1512- ● ●
647 08.155 REINFORCEMENT; WIPER MOTOR 8-98006-327-0 01 1 1512- ● ●
654 16.125 PIN; FRT PANEL 8-98021-967-2 02 1 1512- ● ●
