5-20 — BATTERY CARRIER (#171415) — 52 parça

16 16 26 2 24 26 2 24 52 52 51 49 43 40 45 37 35 29 29 35 49 43 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

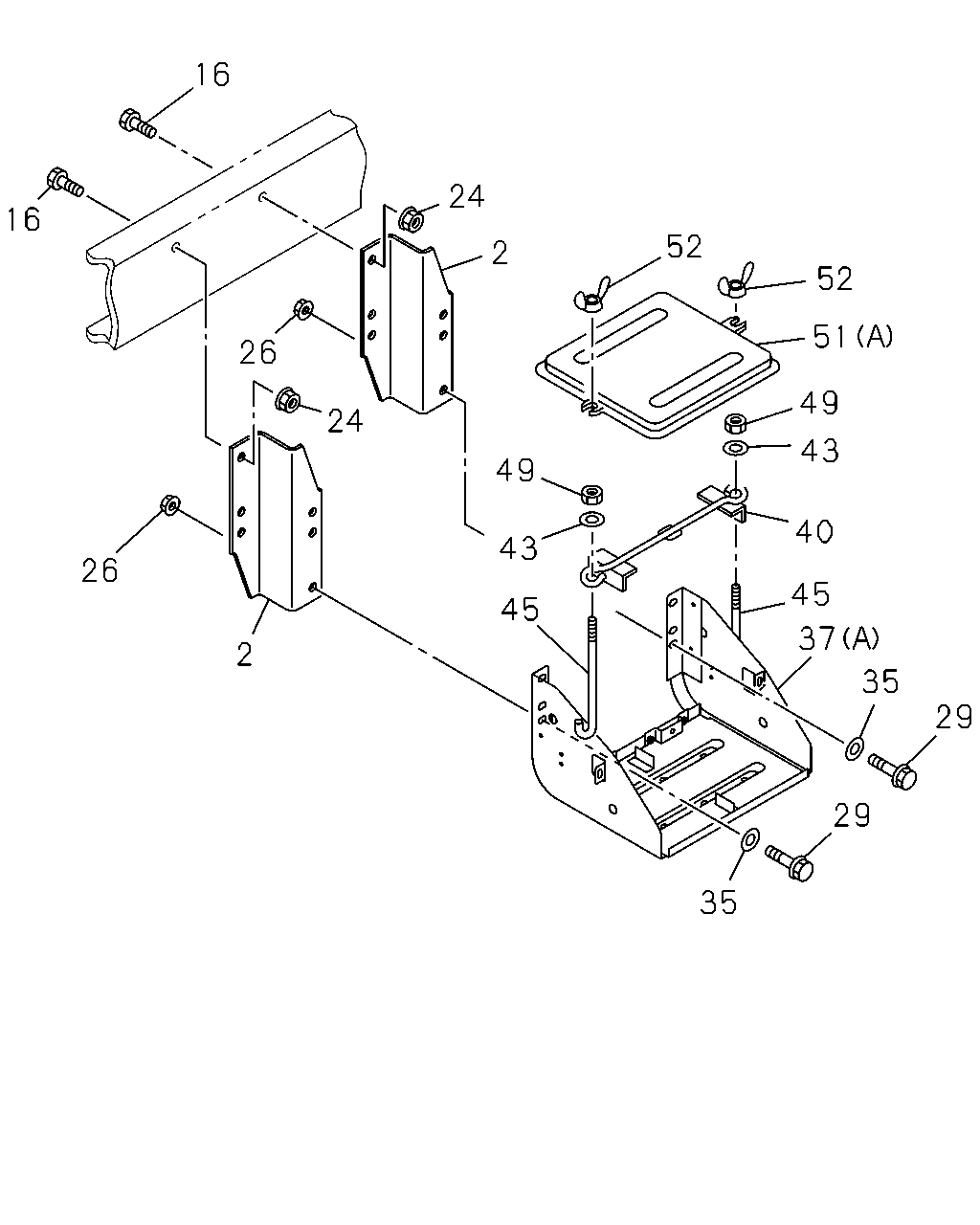

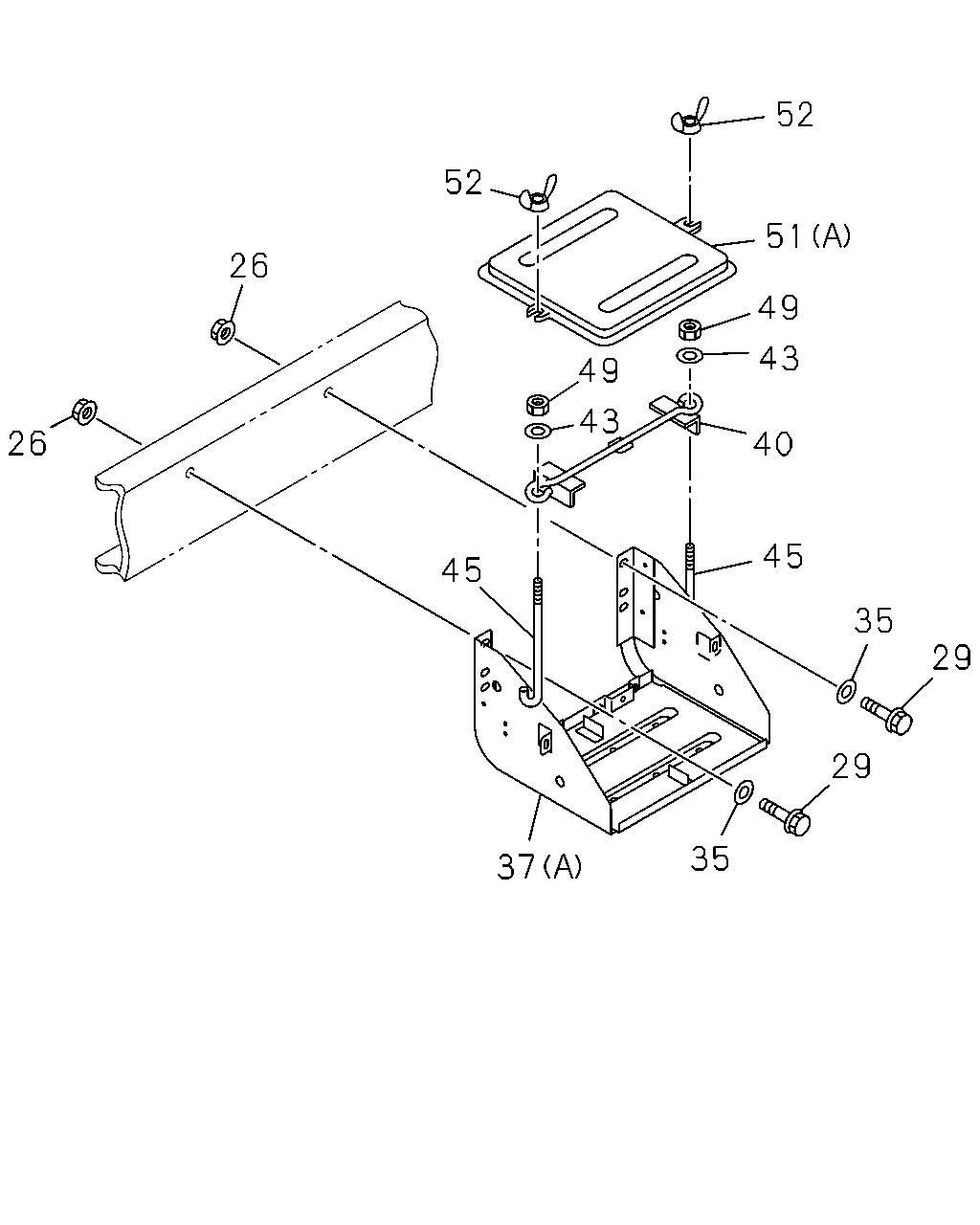

2	02.333 BRACKET; BATTERY 4HG1-T ENG(RDP) WHEEL BASE 2400MM(24W) BATTERY 80D26R<6KC>,BATTERY 75D23R<7PC> IDN	8-94259-139-1	02	1	1512-	●
16	02.334 BOLT; BRKT TO FRAME 4HG1-T ENG(RDP) WHEEL BASE 2400MM(24W) BATTERY 80D26R<6KC>,BATTERY 75D23R<7PC> 09.171 M10X25 FLANGE IDN	0-28051-025-0	04	1	1512-	●
24	02.334 NUT; BRKT TO FRAME 4HG1-T ENG(RDP) WHEEL BASE 2400MM(24W) BATTERY 80D26R<6KC>,BATTERY 75D23R<7PC> 03.162 M10 FLANGE IDN	0-91180-110-0	04	1	1512-	●
26	02.334 NUT; BRKT 04.085 M10 FLANGE	0-91180-210-0	04	1	1512-	●	●
29	02.334 BOLT; BRKT TO FRAME 04.439 M10X30 W/LK WASHER	0-50541-030-0	04	1	1512-	●	●
35	02.334 WASHER; PL,BATTERY CARRIER 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	1512-	●	●
37	02.333 BRACKET; BATTERY BATTERY 95D31R<6DN> (B) IDN	8-97072-544-0	01	1	1512-	●
37	02.333 BRACKET; BATTERY BATTERY 80D26R<6KC> (A)	8-97384-067-2	01	1	1512-	●	●
37	02.333 BRACKET; BATTERY BATTERY 75D23R<7PC> (A) IDN	8-97384-068-2	01	1	1512-	●	●
40	02.335 CLAMP; BATTERY EXC. BATTERY 95D31R<6DN> IDN	5-53615-004-1	01	1	1512-	●
40	02.335 CLAMP; BATTERY IDN	5-53615-004-1	01	1	1512-		●
43	02.334 WASHER; PL,CLAMP EXC. BATTERY 95D31R<6DN> 02.277 ID=8.4 OD=22 IDN	0-91614-708-0	02	1	1512-	●
43	02.334 WASHER; PL,CLAMP 02.277 ID=8.4 OD=22 IDN	0-91614-708-0	02	1	1512-		●
45	02.334 ROD; TENSION,BATTERY L=120 IDN	9-53616-615-0	02	1	1512-	●	●
49	02.334 NUT; ROD,BATTERY EXC. BATTERY 95D31R<6DN> 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	1512-	●
49	02.334 NUT; ROD,BATTERY 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	1512-		●
51	02.335 COVER; BATTERY BATTERY 95D31R<6DN> (B) IDN	8-97313-780-0	01	1	1512-	●
51	02.335 COVER; BATTERY EXC. BATTERY 95D31R<6DN> (A) IDN	8-97120-747-0	01	1	1512-	●
51	02.335 COVER; BATTERY (A) IDN	8-97120-747-0	01	1	1512-		●
52	02.335 NUT; WING,COVER FIX EXC. BATTERY 95D31R<6DN> M8 WING NUT	0-91118-408-0	02	1	1512-	●
52	02.335 NUT; WING,COVER FIX M8 WING NUT	0-91118-408-0	02	1	1512-		●

52 51 49 43 40 45 35 29 29 35 37 43 49 52 45 26 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
26	02.334 NUT; BRKT 04.085 M10 FLANGE	0-91180-210-0	04	1	1512-	●	●
29	02.334 BOLT; BRKT TO FRAME 04.439 M10X30 W/LK WASHER	0-50541-030-0	04	1	1512-	●	●
35	02.334 WASHER; PL,BATTERY CARRIER 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	1512-	●	●
37	02.333 BRACKET; BATTERY BATTERY 95D31R<6DN> (B) IDN	8-97072-544-0	01	1	1512-	●
37	02.333 BRACKET; BATTERY BATTERY 80D26R<6KC> (A)	8-97384-067-2	01	1	1512-	●	●
37	02.333 BRACKET; BATTERY BATTERY 75D23R<7PC> (A) IDN	8-97384-068-2	01	1	1512-	●	●
40	02.335 CLAMP; BATTERY EXC. BATTERY 95D31R<6DN> IDN	5-53615-004-1	01	1	1512-	●
40	02.335 CLAMP; BATTERY IDN	5-53615-004-1	01	1	1512-		●
43	02.334 WASHER; PL,CLAMP EXC. BATTERY 95D31R<6DN> 02.277 ID=8.4 OD=22 IDN	0-91614-708-0	02	1	1512-	●
43	02.334 WASHER; PL,CLAMP 02.277 ID=8.4 OD=22 IDN	0-91614-708-0	02	1	1512-		●
45	02.334 ROD; TENSION,BATTERY L=120 IDN	9-53616-615-0	02	1	1512-	●	●
49	02.334 NUT; ROD,BATTERY EXC. BATTERY 95D31R<6DN> 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	1512-	●
49	02.334 NUT; ROD,BATTERY 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	1512-		●
51	02.335 COVER; BATTERY BATTERY 95D31R<6DN> (B) IDN	8-97313-780-0	01	1	1512-	●
51	02.335 COVER; BATTERY EXC. BATTERY 95D31R<6DN> (A) IDN	8-97120-747-0	01	1	1512-	●
51	02.335 COVER; BATTERY (A) IDN	8-97120-747-0	01	1	1512-		●
52	02.335 NUT; WING,COVER FIX EXC. BATTERY 95D31R<6DN> M8 WING NUT	0-91118-408-0	02	1	1512-	●
52	02.335 NUT; WING,COVER FIX M8 WING NUT	0-91118-408-0	02	1	1512-		●

26 26 51 46 46 47 6 45 29 35 29 35 37 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

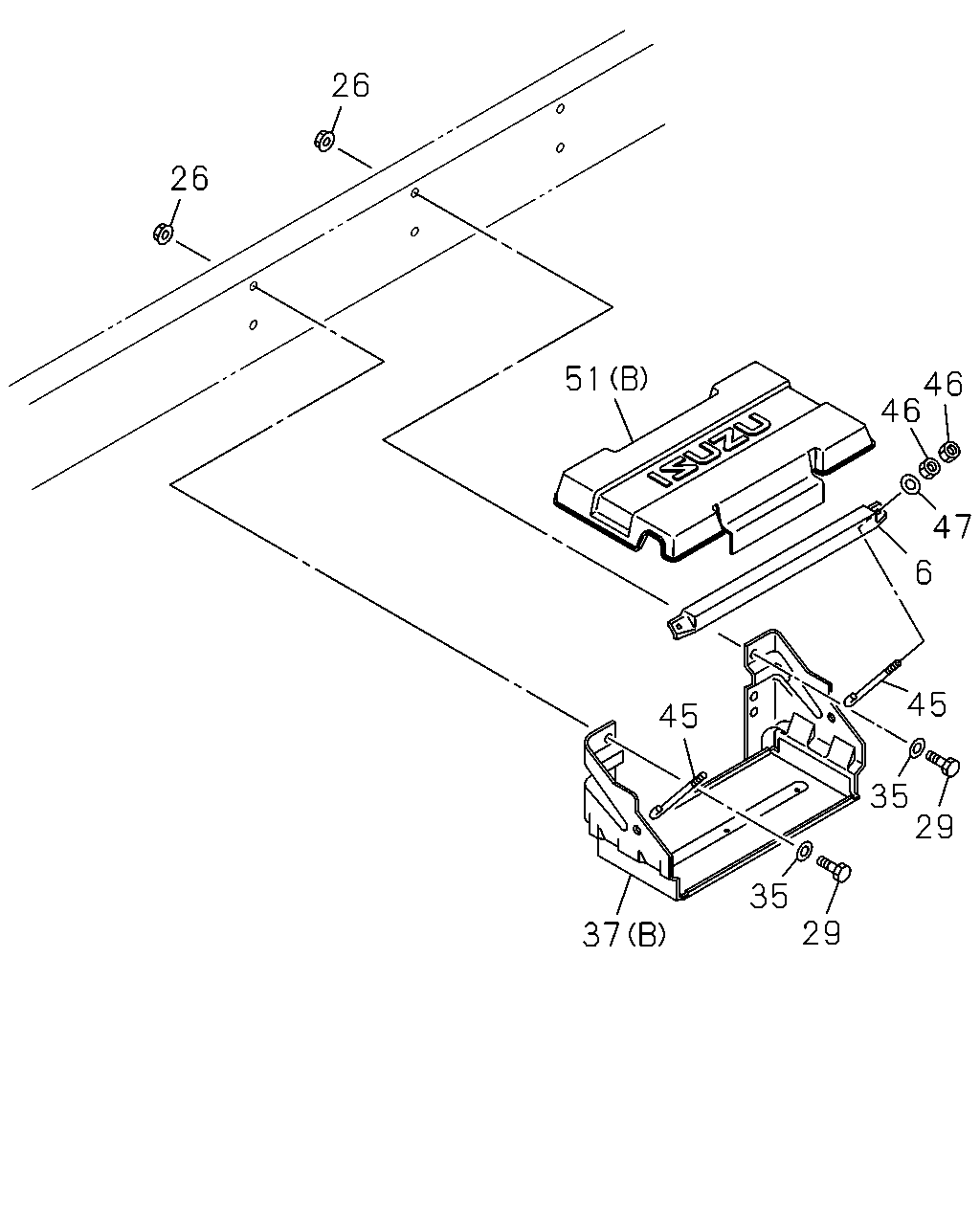

6	02.333 BRACKET; BATTERY CARRIER BATTERY 95D31R<6DN> IDN	8-94108-314-0	01	1	1512-	●
26	02.334 NUT; BRKT 04.085 M10 FLANGE	0-91180-210-0	04	1	1512-	●	●
29	02.334 BOLT; BRKT TO FRAME 04.439 M10X30 W/LK WASHER	0-50541-030-0	04	1	1512-	●	●
35	02.334 WASHER; PL,BATTERY CARRIER 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	1512-	●	●
37	02.333 BRACKET; BATTERY BATTERY 95D31R<6DN> (B) IDN	8-97072-544-0	01	1	1512-	●
37	02.333 BRACKET; BATTERY BATTERY 80D26R<6KC> (A)	8-97384-067-2	01	1	1512-	●	●
37	02.333 BRACKET; BATTERY BATTERY 75D23R<7PC> (A) IDN	8-97384-068-2	01	1	1512-	●	●
45	02.334 ROD; TENSION,BATTERY L=120 IDN	9-53616-615-0	02	1	1512-	●	●
46	02.334 WASHER; PL,BATTERY TO CARRIER BATTERY 95D31R<6DN> 03.417 ID=8.4 OD=16 IDN	0-91610-508-0	02	1	1512-	●
47	02.334 NUT; BRKT BATTERY 95D31R<6DN> M8 IDN	0-91110-508-0	04	1	1512-	●
51	02.335 COVER; BATTERY BATTERY 95D31R<6DN> (B) IDN	8-97313-780-0	01	1	1512-	●
51	02.335 COVER; BATTERY EXC. BATTERY 95D31R<6DN> (A) IDN	8-97120-747-0	01	1	1512-	●
51	02.335 COVER; BATTERY (A) IDN	8-97120-747-0	01	1	1512-		●
