5-01 — FRAME AND OTHER PARTS (#171412) — 108 parça

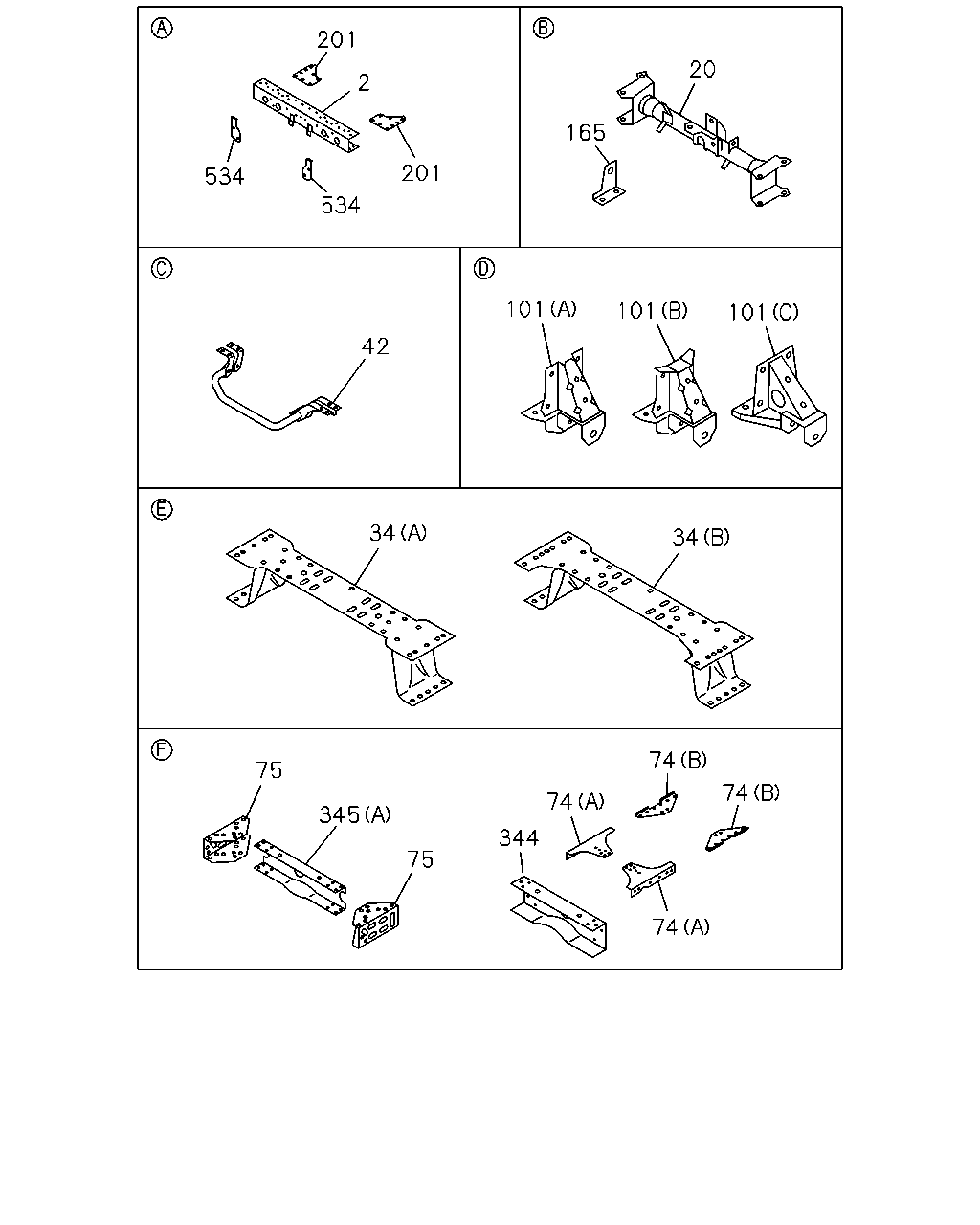

20 165 201 2 201 534 534 42 101 101 101 34 34 345 75 75 344 74 74 74 74

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	07.010 MEMBER; CROSS,1ST IDN	8-97695-532-0	01	1	1512-	●	●
20	07.012 MEMBER; CROSS,2ND IDN	8-97695-533-0	01	1	1512-	●	●
34	07.012 MEMBER; CROSS,3RD 4HG1-T ENG(RDP) WHEEL BASE 2400MM(24W) EXC. MINI BUS CHASSIS<V4B> (A) IDN	8-97695-592-0	01	1	1512-	●
34	07.012 MEMBER; CROSS,3RD WHEEL BASE 3300MM(33W) (B) IDN	8-97695-616-0	01	1	1512-	●
34	07.012 MEMBER; CROSS,3RD (B) IDN	8-97695-616-0	01	1	1512-		●
34	07.012 MEMBER; CROSS,3RD 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) EXC. MINI BUS CHASSIS<V4B> (A) IDN	8-97039-670-1	01	1	1512-	●
42	07.011 MEMBER; CROSS,ENG MTG 4HG1-T ENG(RDP) IDN	8-97165-923-1	01	1	1512-	●
42	07.011 MEMBER; CROSS,ENG MTG IDN	8-97165-923-1	01	1	1512-		●
42	07.011 MEMBER; CROSS,ENG MTG 4JB1-TC ENG(RDT) IDN	8-94246-127-7	01	1	1512-	●
74	07.039 GUSSET; 4TH C/MBR WHEEL BASE 2400MM(24W) (B) IDN	8-97696-041-0	04	1	1512-	●
74	07.039 GUSSET; 4TH C/MBR EXC. HEAVY DUTY FRAME<6WB> (B) IDN	8-97696-041-0	04	1	1512-		●
74	07.039 GUSSET; 4TH C/MBR WHEEL BASE 3300MM(33W) (A) RH-UPPER,LH-LOWER IDN	8-97695-637-0	02	1	1512-	●
74	07.039 GUSSET; 4TH C/MBR WHEEL BASE 3300MM(33W) (A) RH-LOWER,LH-UPPER IDN	8-97695-638-0	02	1	1512-	●
75	07.039 GUSSET; 5TH C/MBR WHEEL BASE 2400MM(24W) IDN	8-94258-081-1	02	1	1512-	●
75	07.039 GUSSET; 5TH C/MBR WHEEL BASE 3300MM(33W) IDN	8-97696-041-0	04	1	1512-	●
75	07.039 GUSSET; 5TH C/MBR EXC. HEAVY DUTY FRAME<6WB> IDN	8-97696-041-0	04	1	1512-		●
101	07.112 BRACKET; RR SPR,FRT WHEEL BASE 2400MM(24W) (B) IDN	8-94258-093-1	02	1	1512-	●
101	07.112 BRACKET; RR SPR,FRT WHEEL BASE 3300MM(33W) (C)	8-98034-042-0	02	1	1512-	●
101	07.112 BRACKET; RR SPR,FRT (A) IDN	8-97695-647-0	02	1	1512-		●
165	01.270 BRACKET; RAD STAY WHEEL BASE 2400MM(24W) IDN	8-97695-548-0	01	1	1512-	●
201	07.039 GUSSET; C/MBR IDN	8-97695-534-0	04	1	1512-	●	●
344	07.012 MEMBER; CROSS,4TH WHEEL BASE 2400MM(24W) IDN	8-97076-793-2	01	1	1512-	●
344	07.012 MEMBER; CROSS,4TH WHEEL BASE 3300MM(33W) IDN	8-97695-636-0	01	1	1512-	●
344	07.012 MEMBER; CROSS,4TH IDN	8-97695-634-0	01	1	1512-		●
345	07.012 MEMBER; CROSS,5TH WHEEL BASE 2400MM(24W) (A) IDN	8-97045-542-2	01	1	1512-	●
345	07.012 MEMBER; CROSS,5TH WHEEL BASE 3300MM(33W) (B) IDN	8-97695-635-0	01	1	1512-	●
345	07.012 MEMBER; CROSS,5TH (B) IDN	8-97695-635-0	01	1	1512-		●
534	07.869 BRACKET; BACK BAR IDN	8-97695-550-0	01	1	1512-	●	●
534	07.869 BRACKET; BACK BAR IDN	8-97695-551-0	01	1	1512-	●	●

173 173 188 103 140 140 140 105 105 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
103	07.420 STOPPER; SUB SPR IDN	8-97695-652-0	04	1	1512-		●
105	07.112 BRACKET; RR SPR,RR WHEEL BASE 2400MM(24W) (B) IDN	8-94126-620-1	01	1	1512-	●
105	07.112 BRACKET; RR SPR,RR WHEEL BASE 2400MM(24W) (B) IDN	8-94126-621-1	01	1	1512-	●
105	07.112 BRACKET; RR SPR,RR WHEEL BASE 3300MM(33W) (C)	8-98031-058-0	01	1	1512-	●
105	07.112 BRACKET; RR SPR,RR WHEEL BASE 3300MM(33W) (C)	8-98031-059-0	01	1	1512-	●
105	07.112 BRACKET; RR SPR,RR (A) IDN	8-97695-649-0	02	1	1512-		●
140	07.112 BRACKET; S/ABS,RR WHEEL BASE 2400MM(24W) (A) IDN	8-94258-103-1	01	1	1512-	●
140	07.112 BRACKET; S/ABS,RR WHEEL BASE 2400MM(24W) (A) IDN	8-94258-104-1	01	1	1512-	●
140	07.112 BRACKET; S/ABS,RR WHEEL BASE 3300MM(33W) (B)	8-97163-956-0	01	1	1512-	●
140	07.112 BRACKET; S/ABS,RR WHEEL BASE 3300MM(33W) (B)	8-97163-957-0	01	1	1512-	●
140	07.112 BRACKET; S/ABS,RR (C) IDN	8-97695-655-0	02	1	1512-		●
173	07.112 STIFFENER; RR SPRING WHEEL BASE 3300MM(33W) (B) IDN	8-97213-460-4	02	1	1512-	●
173	07.112 STIFFENER; RR SPRING (A) IDN	8-97695-657-0	01	1	1512-		●
173	07.112 STIFFENER; RR SPRING (A) IDN	8-97695-675-0	01	1	1512-		●
173	07.112 STIFFENER; RR SPRING EXC. HEAVY DUTY FRAME<6WB> (B) IDN	8-97695-673-0	01	1	1512-		●
173	07.112 STIFFENER; RR SPRING EXC. HEAVY DUTY FRAME<6WB> (B) IDN	8-97695-677-0	01	1	1512-		●
188	07.039 BRACKET; SUPPORT,CTR BRG WHEEL BASE 3300MM(33W) IDN	8-97078-869-1	01	1	1512-	●
188	07.039 BRACKET; SUPPORT,CTR BRG IDN	8-97078-869-1	01	1	1512-		●

123 288 123 62 176 414 414 414 113 286 60 376 376 376 376 376 376 376 376 376 376 376 376 376

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
60	05.601 BOLT; MBR 03.890 M10X30 FLANGE	0-28051-030-0	06	1	1512-		●
62	05.601 NUT; MBR 03.162 M10 FLANGE IDN	0-91180-110-0	06	1	1512-		●
113	07.535 BOLT; SPR STOPPER 06.008 M12X40 FLANGE	0-28061-240-0	24	1	1512-		●
123	07.039 NUT WHEEL BASE 3300MM(33W) 05.816 (A) M12 FLANGE	0-91180-212-0	06	1	1512-	●
123	07.039 NUT 04.085 (B) M10 FLANGE	0-91180-210-0	02	1	1512-		●
123	07.039 NUT 05.816 (A) M12 FLANGE	0-91180-212-0	30	1	1512-		●
176	04.085 BOLT; C/MBR,ENG MTG 03.890 M10X30 FLANGE	0-28051-030-0	08	1	1512-	●	●
286	07.632 BOLT; SPARE TIRE BRKT 09.003 M12X30 FLANGE	0-28051-230-0	04	1	1512-		●
288	07.632 NUT; SPARE TIRE BRKT 05.816 M12 FLANGE	0-91180-212-0	04	1	1512-		●
376	07.039 RIVET; FRAME (A) D8X20 TAPER END	9-06750-820-0	AR	1	1512-	●	●
376	07.039 RIVET; FRAME 07.011 (B) D8X22 TAPER END	9-06750-822-0	AR	1	1512-	●	●
376	07.039 RIVET; FRAME 07.011 (C) D8X24 TAPER END	9-06750-824-0	AR	1	1512-	●	●
376	07.039 RIVET; FRAME 07.395 (D) D8X28 TAPER END	9-06750-828-0	AR	1	1512-	●	●
376	07.039 RIVET; FRAME 07.011 (E) D8X30 TAPER END	9-06750-830-0	AR	1	1512-	●	●
376	07.039 RIVET; FRAME (F) D10X24 TAPER END	9-06751-024-0	AR	1	1512-	●	●
376	07.039 RIVET; FRAME (G) D10X26 TAPER END	9-06751-026-0	AR	1	1512-	●	●
376	07.039 RIVET; FRAME (H) D10X28 TAPER END	9-06751-028-0	AR	1	1512-	●	●
376	07.039 RIVET; FRAME (I) D10X30 TAPER END	9-06751-030-0	AR	1	1512-	●	●
376	07.039 RIVET; FRAME (J) D10X32 TAPER END	9-06751-032-0	AR	1	1512-	●	●
376	07.039 RIVET; FRAME (K) D10X36 TAPER END	9-06751-036-0	AR	1	1512-	●	●
376	07.039 RIVET; FRAME 07.105 (L) D12X30 TAPER END	9-06751-230-0	AR	1	1512-	●	●
376	07.039 RIVET; FRAME 07.535 (M) D12X34 TAPER END	9-06751-234-0	AR	1	1512-	●	●
414	07.011 BOLT WHEEL BASE 3300MM(33W) 09.003 (A) M12X30 FLANGE	0-28051-230-0	06	1	1512-	●
414	07.011 BOLT 09.003 (A) M12X30 FLANGE	0-28051-230-0	06	1	1512-		●
414	07.011 BOLT 06.008 (B) M12X40 FLANGE	0-28061-240-0	24	1	1512-		●
414	07.011 BOLT 07.068 (C) M10X30 FLANGE	0-28661-030-0	02	1	1512-		●

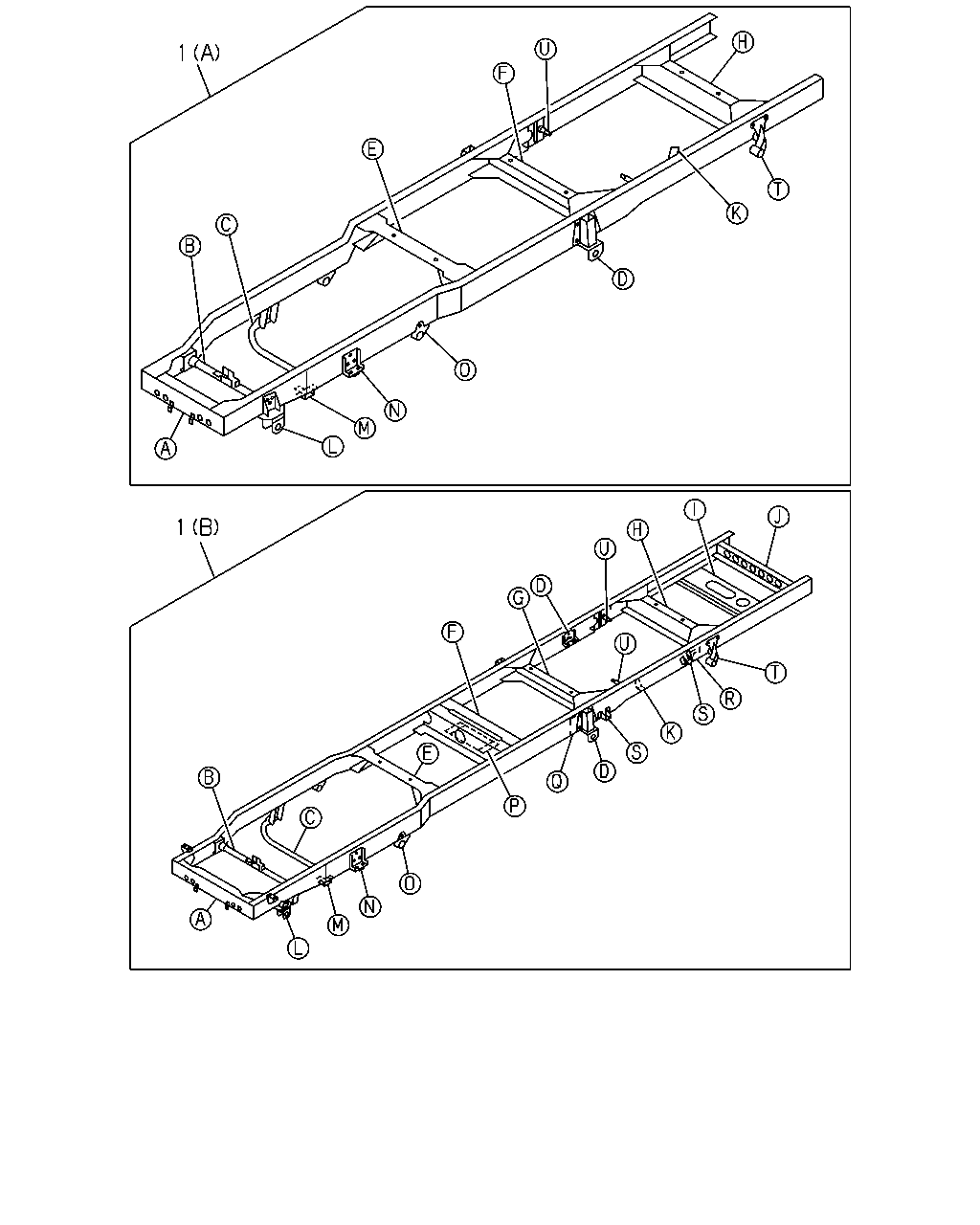

1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	07.003 FRAME ASM 4HG1-T ENG(RDP) WHEEL BASE 2400MM(24W) EXC. MINI BUS CHASSIS<V4B> (A) IDN	8-97695-594-0	01	1	1512-	●
1	07.003 FRAME ASM 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) (B) IDN	8-97695-596-0	01	1	1512-	●
1	07.003 FRAME ASM 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) EXC. MINI BUS CHASSIS<V4B> (A) IDN	8-97695-450-0	01	1	1512-	●
1	07.003 FRAME ASM 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) (B) IDN	8-97695-819-0	01	1	1512-	●
1	07.003 FRAME ASM 4HG1-T ENG(RDP) HEAVY DUTY FRAME<6WB> (B) IDN	8-97695-449-0	01	1	1512-		●
1	07.003 FRAME ASM 4HG1-T ENG(RDP) EXC. HEAVY DUTY FRAME<6WB> (B) IDN	8-97695-597-0	01	1	1512-		●

198 75 75 137 139 345 130 142 142 24 39 51 63 198

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	07.105 BRACKET; FRT SPR,FRT IDN	8-97695-542-0	01	1	1512-	●
24	07.105 BRACKET; FRT SPR,FRT IDN	8-97695-543-0	01	1	1512-	●
24	07.105 BRACKET; FRT SPR,FRT IDN	8-97695-545-0	01	1	1512-		●
24	07.105 BRACKET; FRT SPR,FRT IDN	8-97695-546-0	01	1	1512-		●
39	07.112 BRACKET; FRT SPR,RR WHEEL BASE 2400MM(24W) IDN	8-94258-091-0	02	1	1512-	●
39	07.112 BRACKET; FRT SPR,RR WHEEL BASE 3300MM(33W) IDN	8-97695-646-0	02	1	1512-	●
39	07.112 BRACKET; FRT SPR,RR IDN	8-97695-646-0	02	1	1512-		●
51	07.011 BRACKET; ENG SUPPORT,OUTER 00.029 IDN	8-94258-086-1	02	1	1512-	●	●
63	01.270 BRACKET; RAD MTG IDN	8-94257-949-1	01	1	1512-	●
63	01.270 BRACKET; RAD MTG IDN	8-94257-950-1	01	1	1512-	●
75	07.039 GUSSET; 5TH C/MBR WHEEL BASE 2400MM(24W) IDN	8-94258-081-1	02	1	1512-	●
75	07.039 GUSSET; 5TH C/MBR WHEEL BASE 3300MM(33W) IDN	8-97696-041-0	04	1	1512-	●
75	07.039 GUSSET; 5TH C/MBR EXC. HEAVY DUTY FRAME<6WB> IDN	8-97696-041-0	04	1	1512-		●
130	07.014 MEMBER; CROSS,END WHEEL BASE 3300MM(33W) IDN	8-97695-644-0	01	1	1512-	●
130	07.014 MEMBER; CROSS,END IDN	8-97695-645-0	01	1	1512-		●
137	07.629 BRACKET; SPARE TIRE WHEEL BASE 3300MM(33W) IDN	8-97695-643-0	01	1	1512-	●
137	07.629 BRACKET; SPARE TIRE 4HG1-T ENG(RDP) HEAVY DUTY FRAME<6WB> IDN	8-97695-642-0	02	1	1512-		●
139	07.012 MEMBER; CROSS,6TH WHEEL BASE 3300MM(33W) IDN	8-97695-395-0	01	1	1512-	●
139	07.012 MEMBER; CROSS,6TH IDN	8-97695-635-0	01	1	1512-		●
142	04.845 BRACKET; FLEX HOSE,BRAKE WHEEL BASE 2400MM(24W) (A) IDN	8-97047-775-1	01	1	1512-	●
142	04.845 BRACKET; FLEX HOSE,BRAKE WHEEL BASE 3300MM(33W) (B) IDN	8-97695-669-0	01	1	1512-	●
142	04.845 BRACKET; FLEX HOSE,BRAKE (B) IDN	8-97695-654-0	01	1	1512-		●
198	07.039 GUSSET; 6TH C/MBR WHEEL BASE 3300MM(33W) UPPER IDN	8-97695-396-0	01	1	1512-	●
198	07.039 GUSSET; 6TH C/MBR WHEEL BASE 3300MM(33W) UPPER IDN	8-97695-397-0	01	1	1512-	●
198	07.039 GUSSET; 6TH C/MBR WHEEL BASE 3300MM(33W) LOWER IDN	8-97695-412-0	02	1	1512-	●
198	07.039 GUSSET; 6TH C/MBR IDN	8-97696-041-0	04	1	1512-		●
345	07.012 MEMBER; CROSS,5TH WHEEL BASE 2400MM(24W) (A) IDN	8-97045-542-2	01	1	1512-	●
345	07.012 MEMBER; CROSS,5TH WHEEL BASE 3300MM(33W) (B) IDN	8-97695-635-0	01	1	1512-	●
345	07.012 MEMBER; CROSS,5TH (B) IDN	8-97695-635-0	01	1	1512-		●
