◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51642 - NLR/NMR(INDONESIA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶
4-80 — ROAD WHEEL (#171411) — 46 parça

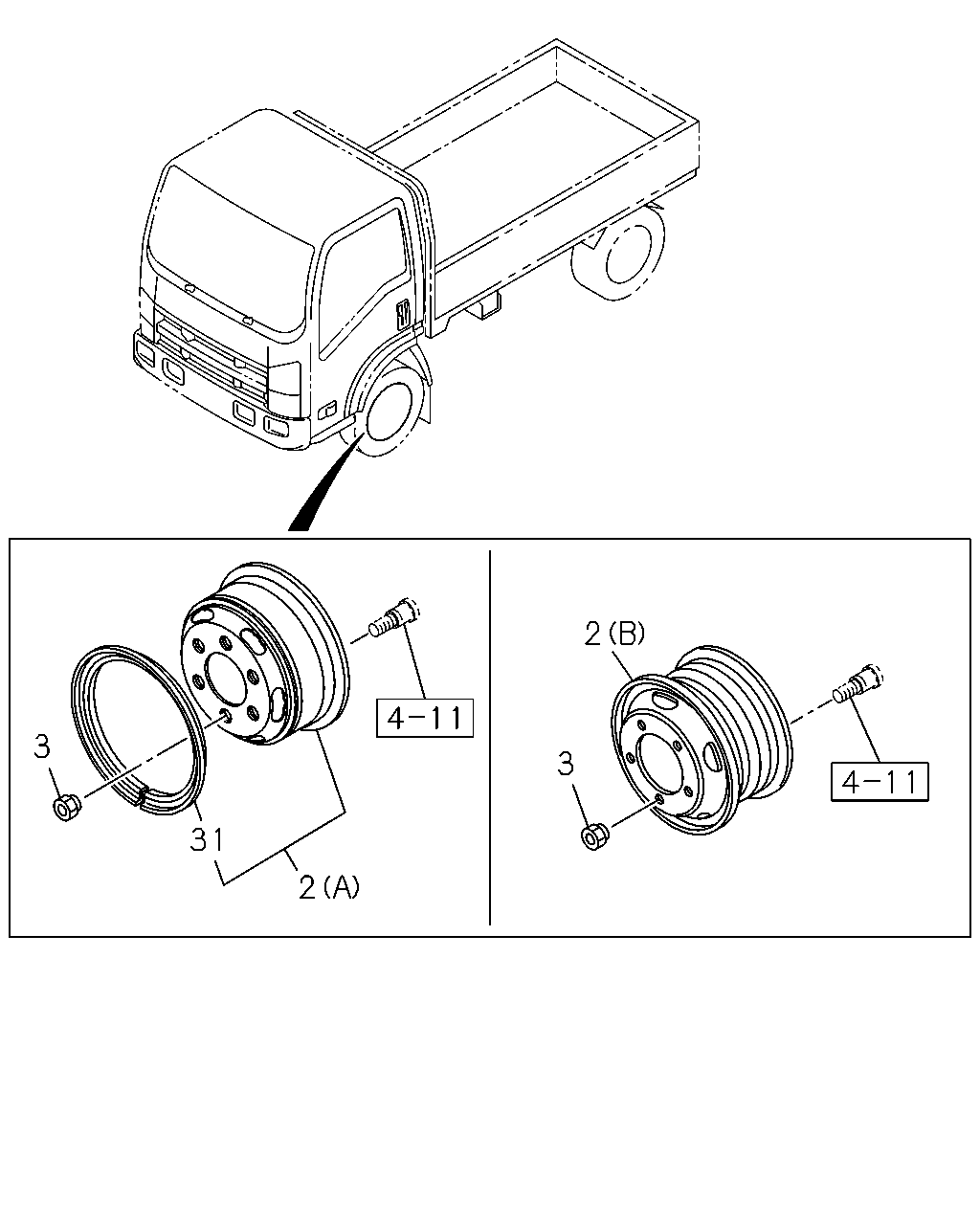

çizim 507378
2 3 2 31 3
BalonParca AdiParca NoAdetTipApplied Date A B
2 05.803 WHEEL; DISC
FRT 7.5R15-10 RR 7.5R15-10 DISC 5.5F-15-2 5(CTH) (A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE IDN 		8-94116-196-0 01 1 1512- ●
2 05.803 WHEEL; DISC
FRT 7.5R15-10 RR 7.5R15-10 DISC 5.5F-15-2 5(CTH) (A) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE IDN 		8-94116-196-0 04 1 1512- ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-15-10 DISC 15X5.5F-30(CZA) (A) SPARE 5.5FX15 OFFSET=30 BLACK 6-HOLE IDN 		8-94119-944-0 01 1 1512- ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-15-10 DISC 15X5.5F-30(CZA) (A) FRONT,REAR 5.5FX15 OFFSET=30 BLACK 6-HOLE IDN 		8-94119-944-0 04 1 1512- ●
2 05.803 WHEEL; DISC
FRT&RR 225/75R16 DISC 16X6.00J-25(CZB) (B) SPARE IDN 		8-98301-310-0 01 1 1512- ●
2 05.803 WHEEL; DISC
FRT&RR 225/75R16 DISC 16X6.00J-25(CZB) (B) FRONT,REAR IDN 		8-98301-310-0 04 1 1512- ●
2 05.803 WHEEL; DISC
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE IDN 		8-94438-670-4 01 1 1512- ●
2 05.803 WHEEL; DISC
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE IDN 		8-94438-670-4 06 1 1512- ●
3 05.813 NUT; WHEEL,FRT AXLE
FRT 7.5R15-10 RR 7.5R15-10 DISC 5.5F-15-2 5(CTH),FRT&RR 7.5-15-10 DISC 15X5.5F-30(CZA),FRT&RR 225/75R16 DISC 16X6.00J-25(CZB) M14 RH THREAD 		8-98007-905-0 06 1 1512- ●
3 05.813 NUT; WHEEL,FRT AXLE
FRT 7.5R15-10 RR 7.5R15-10 DISC 5.5F-15-2 5(CTH),FRT&RR 7.5-15-10 DISC 15X5.5F-30(CZA),FRT&RR 225/75R16 DISC 16X6.00J-25(CZB) M14 LH THREAD 		8-98007-906-0 06 1 1512- ●
3 05.813 NUT; WHEEL,FRT AXLE
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) M20 RH THREAD 		8-97359-807-0 06 1 1512- ●
3 05.813 NUT; WHEEL,FRT AXLE
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) M20 LH THREAD 		8-97359-808-0 06 1 1512- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7.5R15-10 RR 7.5R15-10 DISC 5.5F-15-2 5(CTH),FRT&RR 7.5-15-10 DISC 15X5.5F-30(CZA) SPARE 15X5.50F STAMP, BLACK IDN 		8-94135-599-0 01 1 1512- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7.5R15-10 RR 7.5R15-10 DISC 5.5F-15-2 5(CTH),FRT&RR 7.5-15-10 DISC 15X5.5F-30(CZA) FRONT,REAR 15X5.50F STAMP, BLACK IDN 		8-94135-599-0 04 1 1512- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) SPARE 16X6.00GS STAMP, BLACK IDN 		8-94412-585-0 01 1 1512- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) FRONT,REAR 16X6.00GS STAMP, BLACK IDN 		8-94412-585-0 06 1 1512- ●

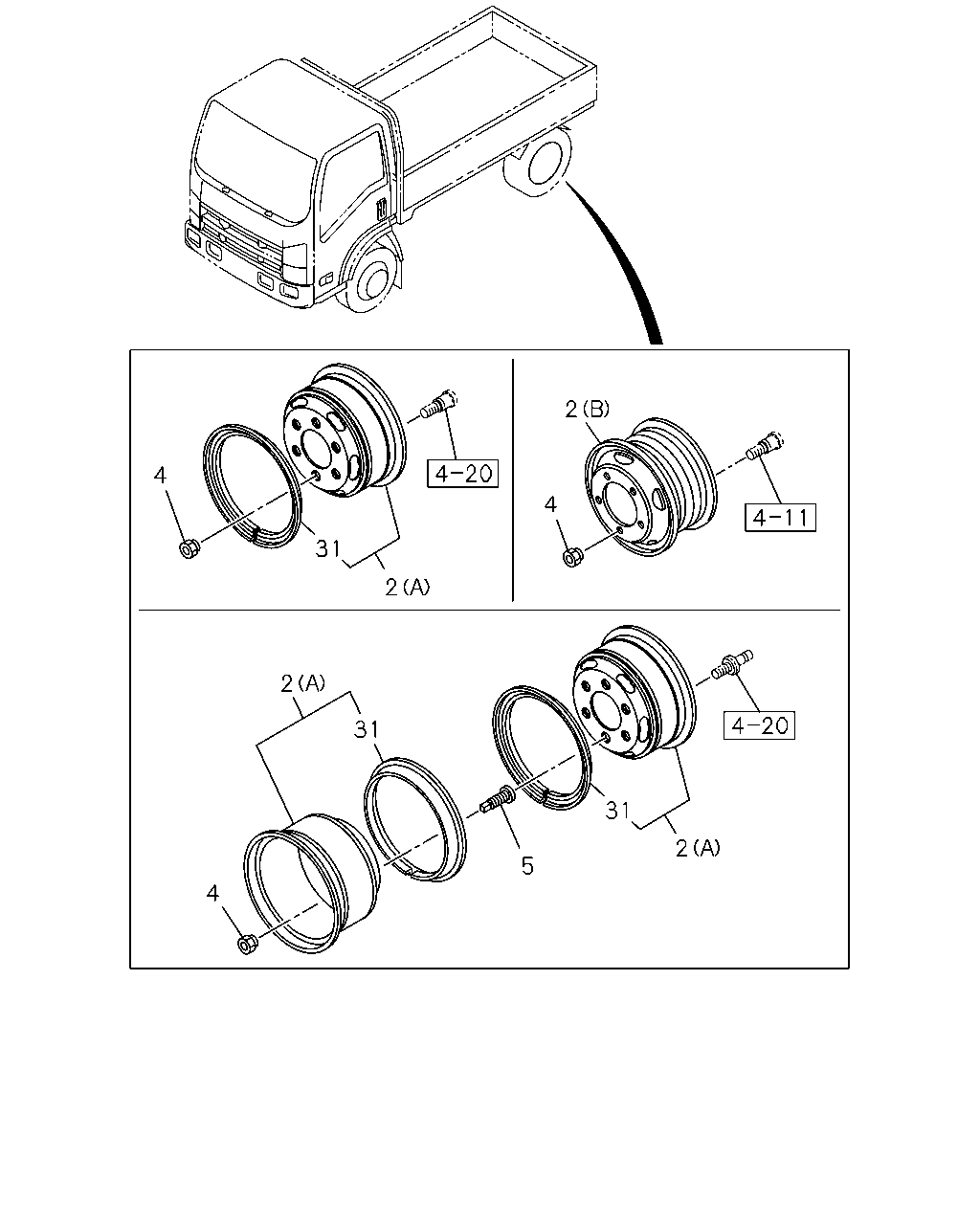

çizim 507379
4 31 2 2 31 4 5 31 2 4 2
BalonParca AdiParca NoAdetTipApplied Date A B
2 05.803 WHEEL; DISC
FRT 7.5R15-10 RR 7.5R15-10 DISC 5.5F-15-2 5(CTH) (A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE IDN 		8-94116-196-0 01 1 1512- ●
2 05.803 WHEEL; DISC
FRT 7.5R15-10 RR 7.5R15-10 DISC 5.5F-15-2 5(CTH) (A) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE IDN 		8-94116-196-0 04 1 1512- ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-15-10 DISC 15X5.5F-30(CZA) (A) SPARE 5.5FX15 OFFSET=30 BLACK 6-HOLE IDN 		8-94119-944-0 01 1 1512- ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-15-10 DISC 15X5.5F-30(CZA) (A) FRONT,REAR 5.5FX15 OFFSET=30 BLACK 6-HOLE IDN 		8-94119-944-0 04 1 1512- ●
2 05.803 WHEEL; DISC
FRT&RR 225/75R16 DISC 16X6.00J-25(CZB) (B) SPARE IDN 		8-98301-310-0 01 1 1512- ●
2 05.803 WHEEL; DISC
FRT&RR 225/75R16 DISC 16X6.00J-25(CZB) (B) FRONT,REAR IDN 		8-98301-310-0 04 1 1512- ●
2 05.803 WHEEL; DISC
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE IDN 		8-94438-670-4 01 1 1512- ●
2 05.803 WHEEL; DISC
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE IDN 		8-94438-670-4 06 1 1512- ●
4 05.813 NUT; WHEEL,RR AXLE
FRT 7.5R15-10 RR 7.5R15-10 DISC 5.5F-15-2 5(CTH),FRT&RR 7.5-15-10 DISC 15X5.5F-30(CZA),FRT&RR 225/75R16 DISC 16X6.00J-25(CZB) M14 RH THREAD 		8-98007-905-0 06 1 1512- ●
4 05.813 NUT; WHEEL,RR AXLE
FRT 7.5R15-10 RR 7.5R15-10 DISC 5.5F-15-2 5(CTH),FRT&RR 7.5-15-10 DISC 15X5.5F-30(CZA),FRT&RR 225/75R16 DISC 16X6.00J-25(CZB) M14 LH THREAD 		8-98007-906-0 06 1 1512- ●
4 05.813 NUT; WHEEL,RR AXLE
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) M30 RH THREAD 		8-97359-809-0 06 1 1512- ●
4 05.813 NUT; WHEEL,RR AXLE
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) M30 LH THREAD 		8-97359-810-0 06 1 1512- ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) OUTER M30,INNER M20 RH THREAD 		8-97359-805-0 06 1 1512- ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) OUTER M30,INNER M20 LH THREAD 		8-97359-806-0 06 1 1512- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7.5R15-10 RR 7.5R15-10 DISC 5.5F-15-2 5(CTH),FRT&RR 7.5-15-10 DISC 15X5.5F-30(CZA) SPARE 15X5.50F STAMP, BLACK IDN 		8-94135-599-0 01 1 1512- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7.5R15-10 RR 7.5R15-10 DISC 5.5F-15-2 5(CTH),FRT&RR 7.5-15-10 DISC 15X5.5F-30(CZA) FRONT,REAR 15X5.50F STAMP, BLACK IDN 		8-94135-599-0 04 1 1512- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) SPARE 16X6.00GS STAMP, BLACK IDN 		8-94412-585-0 01 1 1512- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) FRONT,REAR 16X6.00GS STAMP, BLACK IDN 		8-94412-585-0 06 1 1512- ●

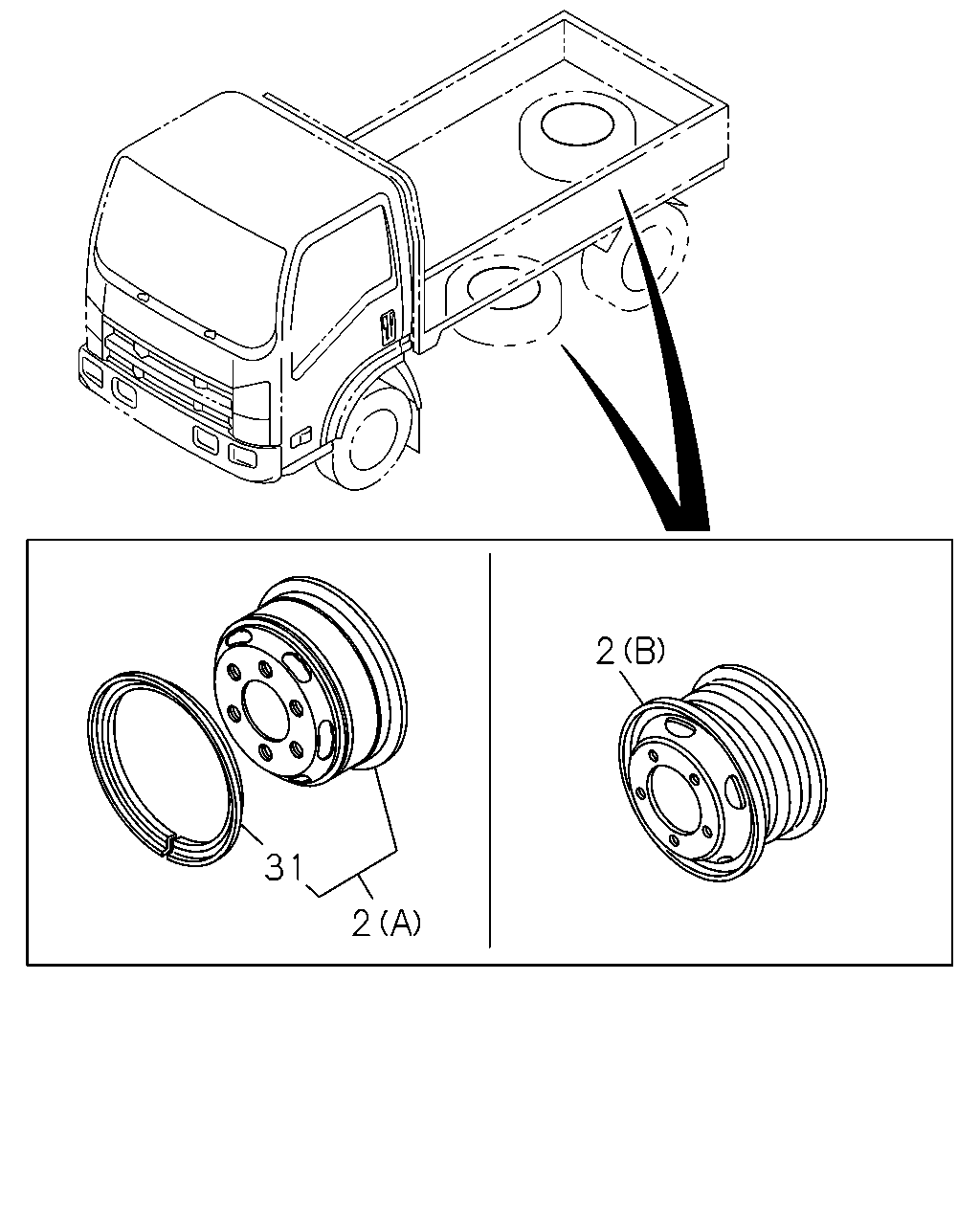

çizim 507769
2 2 31
BalonParca AdiParca NoAdetTipApplied Date A B
2 05.803 WHEEL; DISC
FRT 7.5R15-10 RR 7.5R15-10 DISC 5.5F-15-2 5(CTH) (A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE IDN 		8-94116-196-0 01 1 1512- ●
2 05.803 WHEEL; DISC
FRT 7.5R15-10 RR 7.5R15-10 DISC 5.5F-15-2 5(CTH) (A) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE IDN 		8-94116-196-0 04 1 1512- ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-15-10 DISC 15X5.5F-30(CZA) (A) SPARE 5.5FX15 OFFSET=30 BLACK 6-HOLE IDN 		8-94119-944-0 01 1 1512- ●
2 05.803 WHEEL; DISC
FRT&RR 7.5-15-10 DISC 15X5.5F-30(CZA) (A) FRONT,REAR 5.5FX15 OFFSET=30 BLACK 6-HOLE IDN 		8-94119-944-0 04 1 1512- ●
2 05.803 WHEEL; DISC
FRT&RR 225/75R16 DISC 16X6.00J-25(CZB) (B) SPARE IDN 		8-98301-310-0 01 1 1512- ●
2 05.803 WHEEL; DISC
FRT&RR 225/75R16 DISC 16X6.00J-25(CZB) (B) FRONT,REAR IDN 		8-98301-310-0 04 1 1512- ●
2 05.803 WHEEL; DISC
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE IDN 		8-94438-670-4 01 1 1512- ●
2 05.803 WHEEL; DISC
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE IDN 		8-94438-670-4 06 1 1512- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7.5R15-10 RR 7.5R15-10 DISC 5.5F-15-2 5(CTH),FRT&RR 7.5-15-10 DISC 15X5.5F-30(CZA) SPARE 15X5.50F STAMP, BLACK IDN 		8-94135-599-0 01 1 1512- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7.5R15-10 RR 7.5R15-10 DISC 5.5F-15-2 5(CTH),FRT&RR 7.5-15-10 DISC 15X5.5F-30(CZA) FRONT,REAR 15X5.50F STAMP, BLACK IDN 		8-94135-599-0 04 1 1512- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) SPARE 16X6.00GS STAMP, BLACK IDN 		8-94412-585-0 01 1 1512- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) FRONT,REAR 16X6.00GS STAMP, BLACK IDN 		8-94412-585-0 06 1 1512- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
