Isuzu WW
▶
TRUCKS
▶
NLR
▶
51642 - NLR/NMR(INDONESIA)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶

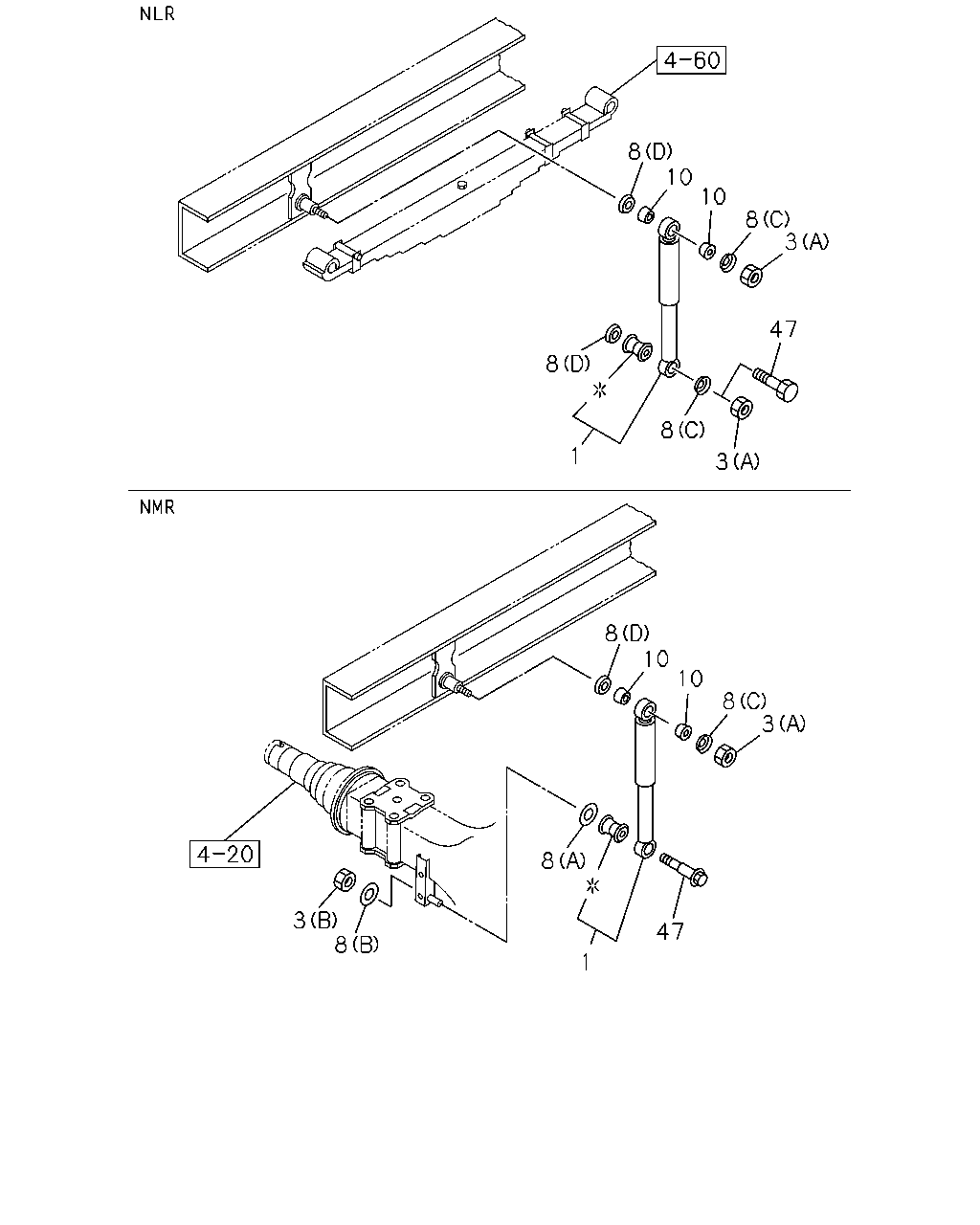

4-61 - SHOCK ABSORBER; REAR SUSPENSION
▶
4-61 — SHOCK ABSORBER; REAR SUSPENSION
(#171407) — 15 parça
Tümü
A - NMR5SE
B - NMR5SN
8
10
10
8
3
47
3
8
1
8
10
10
8
3
8
47
3
8
8
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
07.395 ABSORBER ASM; SHOCK,RR
G.V.W. 3.0-3.5TON(RPP) IDN
8-97695-601-0
02
1
1512-
●
1
07.395 ABSORBER ASM; SHOCK,RR
G.V.W. 4.0-4.5TON(RPR) IDN
8-97695-600-0
02
1
1512-
●
1
07.395 ABSORBER ASM; SHOCK,RR
IDN
8-97695-557-0
02
1
1512-
●
3
07.347 NUT; S/ABS
05.002 (A) M12
0-91110-512-0
04
1
1512-
●
3
07.347 NUT; S/ABS
07.833 (A) M14
0-91110-514-0
02
1
1512-
●
3
07.347 NUT; S/ABS
00.785 (B) M16
0-91111-516-0
02
1
1512-
●
8
07.347 WASHER; S/ABS
(D) ID=16.5
9-51679-021-0
04
1
1512-
●
8
07.347 WASHER; S/ABS
(C) ID=12.5
9-51679-022-0
04
1
1512-
●
8
07.347 WASHER; S/ABS
(C) ID=15
8-97360-056-0
02
1
1512-
●
8
07.347 WASHER; S/ABS
(D) ID=20.0
8-97360-057-0
02
1
1512-
●
8
07.347 WASHER; S/ABS
07.516 (A) ID=16.4
8-97360-118-0
02
1
1512-
●
8
07.347 WASHER; S/ABS
07.427 (B) ID=16.5 IDN
8-98011-489-0
02
1
1512-
●
10
07.388 BUSHING; RUBBER,S/ABS
07.347 KYB IDN
8-94132-727-1
04
1
1512-
●
10
07.388 BUSHING; RUBBER,S/ABS
TOKICO IDN
9-51631-014-0
04
1
1512-
●
47
07.347 PIN; S/ABS SETTING
8-97316-972-0
02
1
1512-
●
