◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51642 - NLR/NMR(INDONESIA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-60 - REAR SUSPENSION ▶
4-60 — REAR SUSPENSION (#171406) — 47 parça

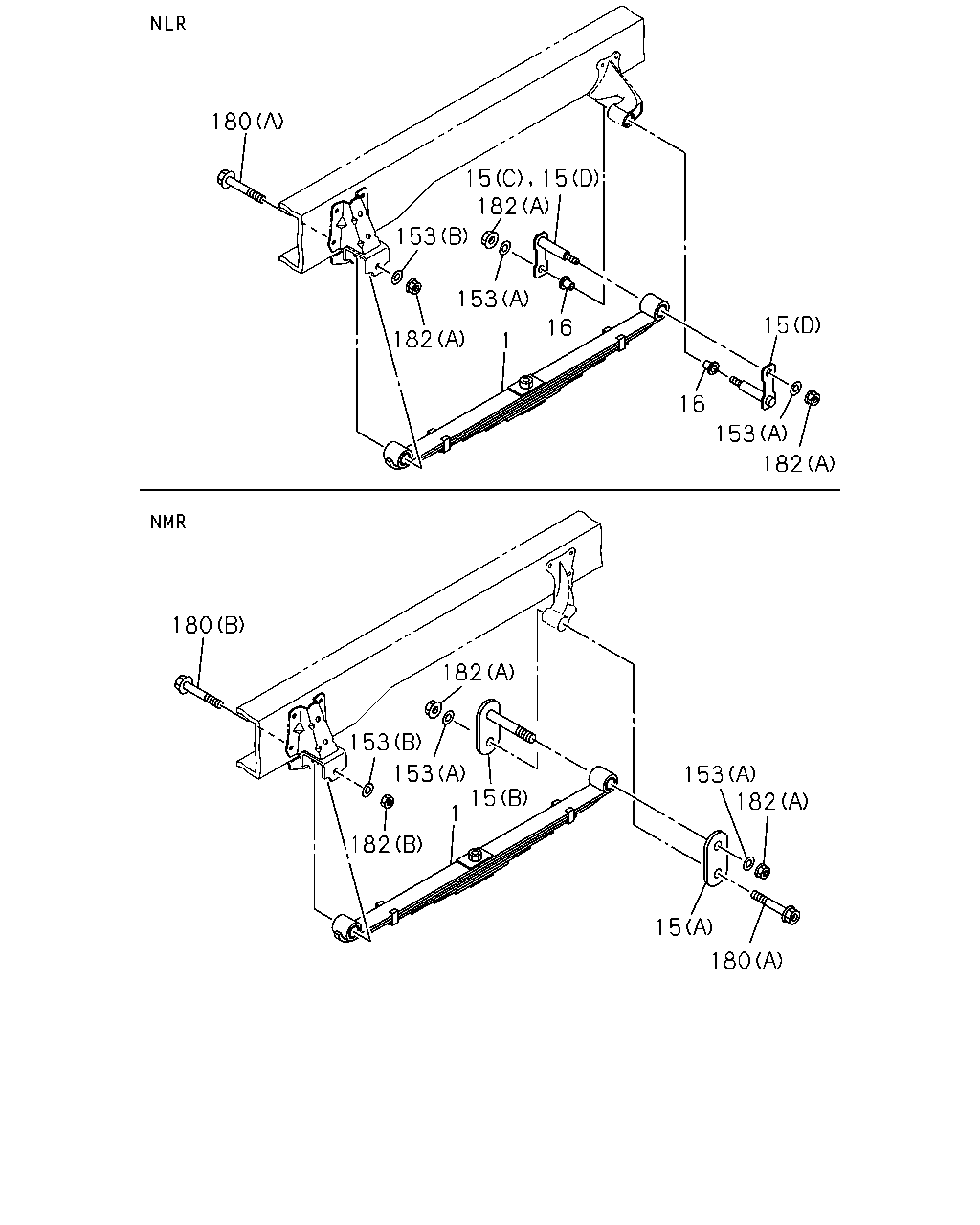

çizim 507278
16 182 153 153 182 15 1 153 182 15 180 15 153 182 180 153 153 182 15 15 16 180 182 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 2400MM(24W) G.V.W. 3.0-3.5TON(RPP) MANUAL TILT CAB<RWZ> 5-LEAF IDN 		8-97695-628-0 02 1 1512- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 2400MM(24W) G.V.W. 3.0-3.5TON(RPP) EXC. MANUAL TILT CAB<RWZ> 5-LEAF IDN 		8-97695-627-0 02 1 1512- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 2400MM(24W) G.V.W. 4.0-4.5TON(RPR) MANUAL TILT CAB<RWZ> 5-LEAF IDN 		8-97695-629-0 02 1 1512- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 3300MM(33W) G.V.W. 4.0-4.5TON(RPR) MANUAL TILT CAB<RWZ> 5-LEAF IDN 		8-97695-630-0 02 1 1512- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 3300MM(33W) G.V.W. 4.0-4.5TON(RPR) EXC. MANUAL TILT CAB<RWZ> 15-LEAF IDN 		8-97695-719-0 02 1 1512- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. HEAVY DUTY FRAME<6WB> 14-LEAF IDN 		8-97695-632-0 02 1 1512- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. HEAVY DUTY FRAME<6WB> 13-LEAF IDN 		8-97695-631-0 02 1 1512- ●
15 07.523 SHACKLE; RR SPR
G.V.W. 3.0-3.5TON(RPP) (D) 		8-94113-322-3 04 1 1512- ●
15 07.523 SHACKLE; RR SPR
G.V.W. 4.0-4.5TON(RPR) (D) 		8-94113-322-3 02 1 1512- ●
15 07.523 SHACKLE; RR SPR
G.V.W. 4.0-4.5TON(RPR) (C) 		8-97033-966-1 02 1 1512- ●
15 07.523 SHACKLE; RR SPR
(A) IDN 		8-94118-511-3 02 1 1512- ●
15 07.523 SHACKLE; RR SPR
(B) IDN 		8-97360-011-0 02 1 1512- ●
16 07.524 BUSHING; SHACKLE,RR SPR 8-94113-323-2 04 1 1512- ●
16 07.524 BUSHING; SHACKLE,RR SPR
BEST VALUE PARTS 		5-87610-160-0 04 1 1512- ●
153 07.529 WASHER; PL,SPRING PIN
KD PREPARATORY PACK<6HF> 07.427 (A) ID=16.5 IDN 		8-98011-489-0 04 1 1512- ● ●
153 07.529 WASHER; PL,SPRING PIN
07.427 (B) ID=16.5 IDN 		8-98011-489-0 02 1 1512- ●
153 07.529 WASHER; PL,SPRING PIN
(B) ID=19 IDN 		8-97360-119-0 02 1 1512- ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 IDN 		8-98011-487-0 02 1 1512- ● ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 FLANGE 		8-97360-110-0 02 1 1512- ● ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> (B) M18X130 IDN 		8-98011-488-0 02 1 1512- ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE 		8-97360-112-0 02 1 1512- ●
182 07.529 NUT; PIN,RR SPR
KD PREPARATORY PACK<6HF> 06.509 (A) M16 IDN 		0-91110-516-0 04 1 1512- ● ●
182 07.529 NUT; PIN,RR SPR
EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16 FLANGE 		8-97360-125-0 04 1 1512- ● ●
182 07.529 NUT; PIN,RR SPR
KD PREPARATORY PACK<6HF> 06.509 (A) M16 IDN 		0-91110-516-0 02 1 1512- ●
182 07.529 NUT; PIN,RR SPR
EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16 FLANGE 		8-97360-125-0 02 1 1512- ●
182 07.529 NUT; PIN,RR SPR
(B) M18 IDN 		0-91110-518-0 02 1 1512- ●
çizim 507296
227 225 502 4 155 6 5 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 2400MM(24W) G.V.W. 3.0-3.5TON(RPP) MANUAL TILT CAB<RWZ> 5-LEAF IDN 		8-97695-628-0 02 1 1512- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 2400MM(24W) G.V.W. 3.0-3.5TON(RPP) EXC. MANUAL TILT CAB<RWZ> 5-LEAF IDN 		8-97695-627-0 02 1 1512- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 2400MM(24W) G.V.W. 4.0-4.5TON(RPR) MANUAL TILT CAB<RWZ> 5-LEAF IDN 		8-97695-629-0 02 1 1512- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 3300MM(33W) G.V.W. 4.0-4.5TON(RPR) MANUAL TILT CAB<RWZ> 5-LEAF IDN 		8-97695-630-0 02 1 1512- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 3300MM(33W) G.V.W. 4.0-4.5TON(RPR) EXC. MANUAL TILT CAB<RWZ> 15-LEAF IDN 		8-97695-719-0 02 1 1512- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. HEAVY DUTY FRAME<6WB> 14-LEAF IDN 		8-97695-632-0 02 1 1512- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. HEAVY DUTY FRAME<6WB> 13-LEAF IDN 		8-97695-631-0 02 1 1512- ●
4 07.516 U-BOLT; RR SPR
REAR AXLE HEAVY DUTY 320MM(6CP) L=325 IDN 		8-94175-946-1 04 1 1512- ●
4 07.516 U-BOLT; RR SPR
REAR AXLE HEAVY DUTY 343MM(8BW) L=335 IDN 		8-97213-253-0 04 1 1512- ●
4 07.516 U-BOLT; RR SPR
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 4.0-4.5TON(RPR) L=235 IDN 		8-94127-920-3 04 1 1512- ●
4 07.516 U-BOLT; RR SPR
REAR AXLE STANDARD 244MM(R39) G.V.W. 3.0-3.5TON(RPP) L=205 IDN 		8-94127-917-3 04 1 1512- ●
5 07.529 NUT; U-BOLT,RR SPR
07.417 M16 		8-97360-121-0 08 1 1512- ● ●
6 07.516 WASHER; PL,U-BOLT
ID=16.4 		8-97360-118-0 08 1 1512- ● ●
155 07.380 BRACKET; S/ABS
WHEEL BASE 3300MM(33W) 		8-94128-360-4 01 1 1512- ●
155 07.380 BRACKET; S/ABS
WHEEL BASE 3300MM(33W) 		8-94128-361-4 01 1 1512- ●
225 07.535 RUBBER; CUSHION,RR SPR
IDN 		8-94142-044-4 02 1 1512- ●
225 07.535 RUBBER; CUSHION,RR SPR
IDN 		8-94118-510-5 02 1 1512- ●
227 07.535 NUT; CUSHION RUBBER
02.042 M12 FLANGE 		0-91180-112-0 02 1 1512- ● ●
502 07.506 CLAMP; RR LEAF SPR
07.518 L=130 T=4.5 		8-94119-069-2 02 1 1512- ●
502 07.506 CLAMP; RR LEAF SPR
REAR AXLE HEAVY DUTY 320MM(6CP) 07.518 L=140 T=4.5 		8-94118-509-1 02 1 1512- ●
502 07.506 CLAMP; RR LEAF SPR
REAR AXLE HEAVY DUTY 343MM(8BW) 		8-98297-180-0 02 1 1512- ●
