4-50 — FRONT SUSPENSION (#171402) — 39 parça

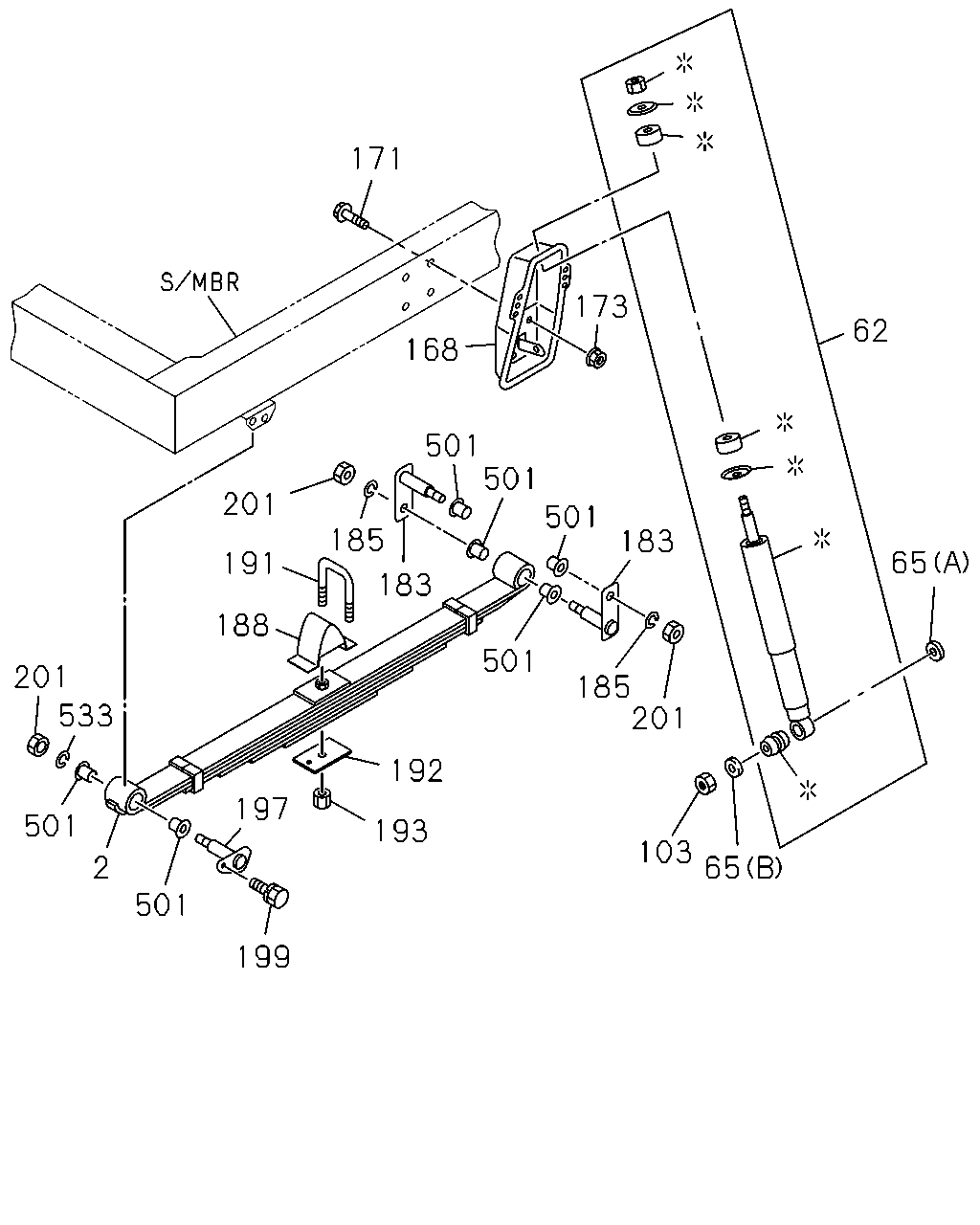

çizim 507455
201 103 65 65 62 168 171 201 191 188 183 185 192 193 199 501 2 501 533 201 173 185 501 501 501 501 183 197
BalonParca AdiParca NoAdetTipApplied Date A B
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 3.0-3.5TON(RPP) MANUAL TILT CAB<RWZ> 5-LEAF IDN 		8-97695-619-0 01 1 1512- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 3.0-3.5TON(RPP) MANUAL TILT CAB<RWZ> 5-LEAF IDN 		8-97695-620-0 01 1 1512- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 3.0-3.5TON(RPP) EXC. MANUAL TILT CAB<RWZ> 5-LEAF IDN 		8-97695-617-0 01 1 1512- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 3.0-3.5TON(RPP) EXC. MANUAL TILT CAB<RWZ> 5-LEAF IDN 		8-97695-618-0 01 1 1512- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 4.0-4.5TON(RPR) MANUAL TILT CAB<RWZ> 6-LEAF IDN 		8-97695-621-0 01 1 1512- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 4.0-4.5TON(RPR) MANUAL TILT CAB<RWZ> 6-LEAF IDN 		8-97695-622-0 01 1 1512- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 4.0-4.5TON(RPR) EXC. MANUAL TILT CAB<RWZ> 6-LEAF IDN 		8-97695-398-0 01 1 1512- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 4.0-4.5TON(RPR) EXC. MANUAL TILT CAB<RWZ> 6-LEAF IDN 		8-97695-399-0 01 1 1512- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. HEAVY DUTY FRAME<6WB> 9-LEAF IDN 		8-97695-625-0 01 1 1512- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. HEAVY DUTY FRAME<6WB> 9-LEAF IDN 		8-97695-626-0 01 1 1512- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. HEAVY DUTY FRAME<6WB> 9-LEAF IDN 		8-97695-623-0 01 1 1512- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. HEAVY DUTY FRAME<6WB> 9-LEAF IDN 		8-97695-624-0 01 1 1512- ●
62 07.345 ABSORBER ASM; SHOCK,FRT
IDN 		8-97695-430-0 02 1 1512- ● ●
65 07.347 WASHER; S/ABS
(A) ID=17 OD=32 		0-91614-616-0 02 1 1512- ● ●
65 07.347 WASHER; S/ABS
(B) ID=12.5 		9-51679-022-0 02 1 1512- ● ●
103 07.347 NUT; S/ABS TO LWR LINK
04.439 M12 		0-91111-512-0 02 1 1512- ● ●
168 07.380 BRACKET; S/ABS,FRT SUSP
G.V.W. 3.0-3.5TON(RPP) 		8-98326-432-0 01 1 1512- ●
168 07.380 BRACKET; S/ABS,FRT SUSP
G.V.W. 4.0-4.5TON(RPR) 		8-97316-007-1 01 1 1512- ●
168 07.380 BRACKET; S/ABS,FRT SUSP 8-97316-007-1 01 1 1512- ●
168 07.380 BRACKET; S/ABS,FRT SUSP
G.V.W. 4.0-4.5TON(RPR) 		8-97316-015-1 01 1 1512- ●
168 07.380 BRACKET; S/ABS,FRT SUSP 8-97316-015-1 01 1 1512- ●
168 07.380 BRACKET; S/ABS,FRT SUSP
G.V.W. 3.0-3.5TON(RPP) 		8-97045-611-1 01 1 1512- ●
171 07.395 BOLT; S/ABS BRKT
00.029 M10X30 FLANGE 		0-28651-030-0 08 1 1512- ● ●
173 07.395 NUT; S/ABS
03.162 M10 FLANGE IDN 		0-91180-110-0 08 1 1512- ● ●
183 07.436 SHACKLE; FRT SUSP
IDN 		8-98034-341-0 04 1 1512- ● ●
185 07.427 WASHER; LK,PIN
ID=16.5 IDN 		8-98011-489-0 04 1 1512- ● ●
188 07.436 RUBBER; CLAMP,U-BOLT,FRT SPR
IDN 		8-94150-265-3 02 1 1512- ● ●
191 07.417 U-BOLT; FRT SPR
G.V.W. 3.0-3.5TON(RPP) L=85 IDN 		8-97304-072-1 04 1 1512- ●
191 07.417 U-BOLT; FRT SPR
G.V.W. 4.0-4.5TON(RPR) L=95 IDN 		8-97304-073-1 04 1 1512- ●
191 07.417 U-BOLT; FRT SPR
L=135 IDN 		8-97304-077-1 04 1 1512- ●
192 07.436 PIECE; DIST
G.V.W. 4.0-4.5TON(RPR) 07.425 		8-94249-413-1 02 1 1512- ●
193 07.417 NUT; U BOLT
06.174 M14 FLANGE 		8-97360-124-0 08 1 1512- ● ●
197 07.427 PIN; FRT SPR,FRT
IDN 		8-94117-900-1 02 1 1512- ● ●
199 07.427 BOLT
00.029 M10X25 FLANGE 		0-28651-025-0 02 1 1512- ● ●
201 07.427 NUT; PIN LK
06.509 M16 IDN 		0-91110-516-0 06 1 1512- ● ●
501 07.413 BUSHING; LEAF SPR,FRT
G.V.W. 3.0-3.5TON(RPP) 07.105 L=38.6 		8-94113-314-2 12 1 1512- ●
501 07.413 BUSHING; LEAF SPR,FRT
G.V.W. 4.0-4.5TON(RPR) 07.105 IDN 		8-97081-531-0 12 1 1512- ●
501 07.413 BUSHING; LEAF SPR,FRT
07.105 IDN 		8-97081-531-0 12 1 1512- ●
533 07.347 WASHER; FRT SUSP
07.427 ID=16.5 IDN 		8-98011-489-0 02 1 1512- ● ●
