4-42 — POWER STEERING OIL PUMP (#171401) — 65 parça

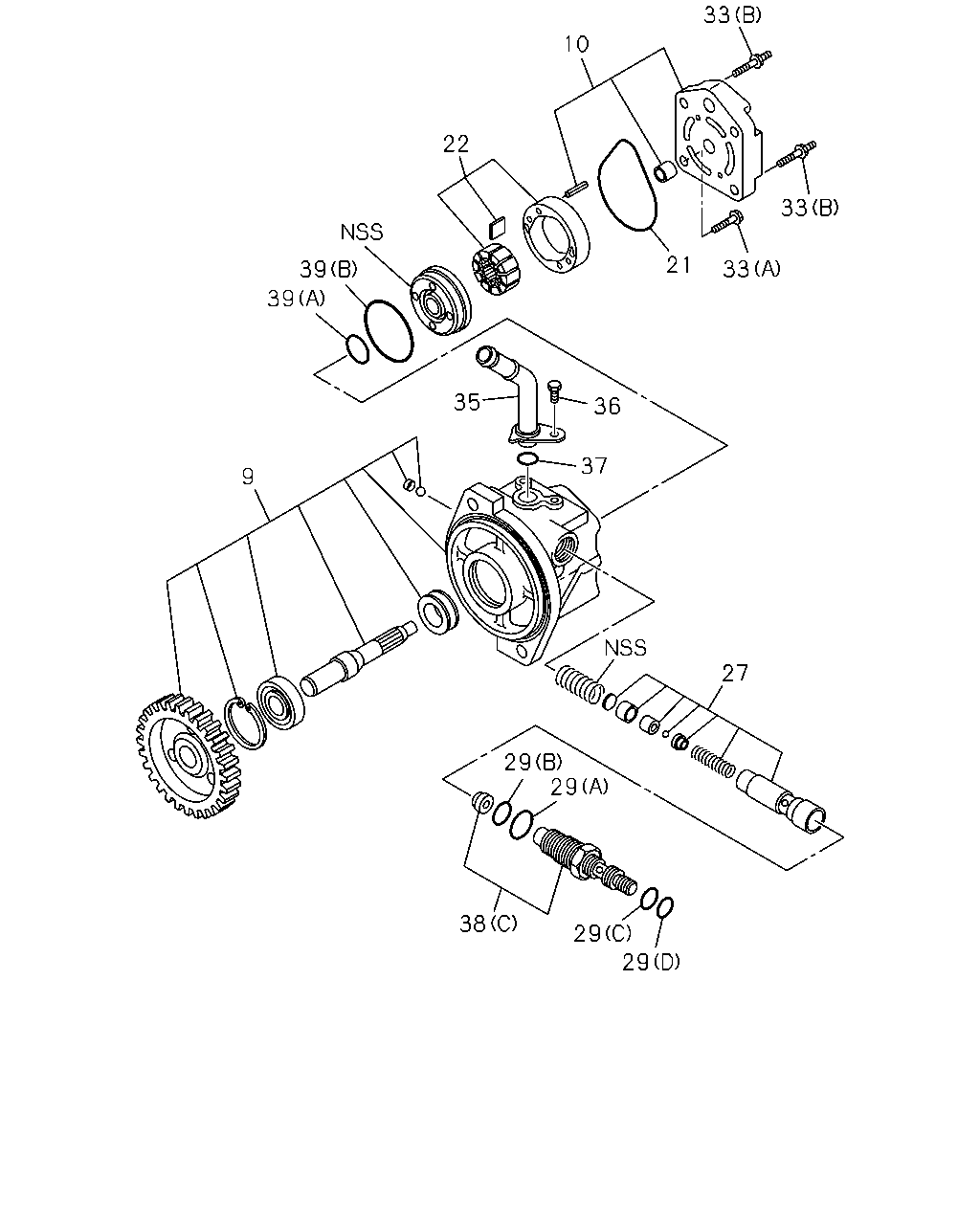

33 33 33 21 10 22 39 39 9 35 36 37 27 29 29 38 29 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: A = 8-98138-130-2, 98138130	8-98058-097-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: B = 8-98217-772-0, 98217772	8-98219-140-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: A = 8-98138-130-2, 98138130	8-98116-059-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: B = 8-98217-772-0, 98217772	8-98219-142-0	01	1	-
21	06.609 GASKET; FRT COVER TO BODY ASM PART: A = 8-98138-130-2, 98138130	8-94380-746-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: B = 8-98217-772-0, 98217772	8-97357-499-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: A = 8-98138-130-2, 98138130	8-98216-517-0	01	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: A = 8-98138-130-2, 98138130	8-98139-287-0	01	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: B = 8-98217-772-0, 98217772	8-98219-136-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (A) ASM PART: A = 8-98138-130-2, 98138130	8-94379-658-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (B) ASM PART: A = 8-98138-130-2, 98138130	8-94379-659-0	01	1	-
29	06.609 GASKET; PLUG TO VLV 06.674, (C) ASM PART: A = 8-98138-130-2, 98138130	8-94379-666-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (D) ASM PART: A = 8-98138-130-2, 98138130	8-97075-581-0	01	1	-
33	06.606 BOLT; COVER (C) ASM PART: B = 8-98217-772-0, 98217772	8-97081-847-0	04	1	-
33	06.606 BOLT; COVER (A) ASM PART: A = 8-98138-130-2, 98138130	8-97184-761-0	01	1	-
33	06.606 BOLT; COVER (B) ASM PART: A = 8-98138-130-2, 98138130	8-98139-286-0	03	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP ASM PART: A = 8-98138-130-2, 98138130	8-98139-290-0	01	1	-
36	06.602 BOLT; CONN,PIPE ASM PART: A = 8-98138-130-2, 98138130	8-97184-763-0	01	1	-
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: A = 8-98138-130-2, 98138130	8-97184-767-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (C) ASM PART: A = 8-98138-130-2, 98138130	8-98139-291-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (A) ASM PART: B = 8-98217-772-0, 98217772	8-98219-135-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (B) ASM PART: B = 8-98217-772-0, 98217772	8-98219-137-0	01	1	-
39	06.609 GASKET; OIL PUMP (B) ASM PART: A = 8-98138-130-2, 98138130	8-94379-647-0	01	1	-
39	06.609 GASKET; OIL PUMP (A) ASM PART: A = 8-98138-130-2, 98138130	8-97147-441-0	01	1	-

37 1 21 29 29

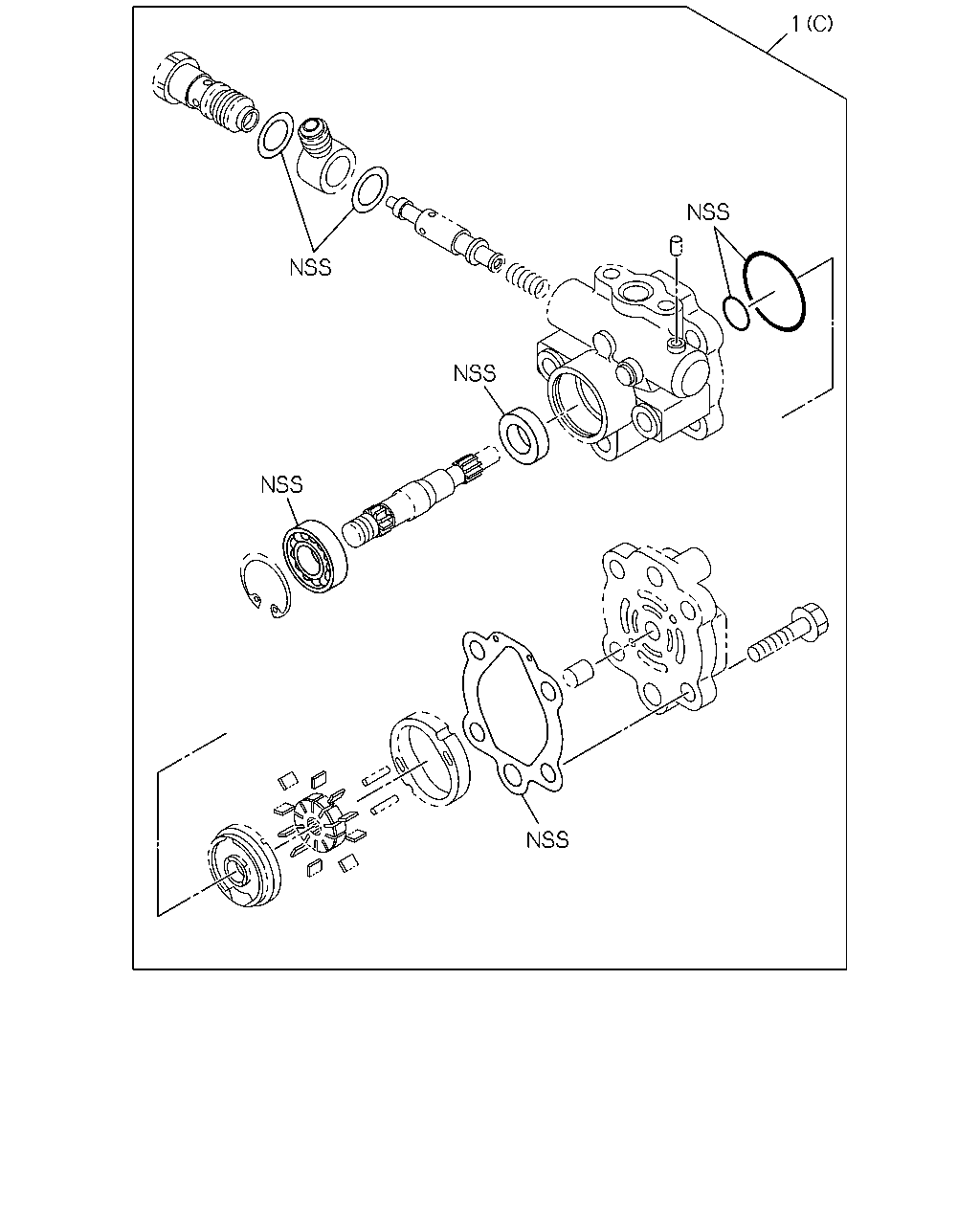

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	06.609 REPAIR KIT; OIL PUMP (A) ASM PART: A = 8-98138-130-2, 98138130	8-98058-095-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (B) ASM PART: A = 8-98138-130-2, 98138130	8-98058-096-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (C) ASM PART: B = 8-98217-772-0, 98217772	8-98219-134-0	01	1	-
21	06.609 GASKET; FRT COVER TO BODY ASM PART: A = 8-98138-130-2, 98138130	8-94380-746-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (A) ASM PART: A = 8-98138-130-2, 98138130	8-94379-658-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (B) ASM PART: A = 8-98138-130-2, 98138130	8-94379-659-0	01	1	-
29	06.609 GASKET; PLUG TO VLV 06.674, (C) ASM PART: A = 8-98138-130-2, 98138130	8-94379-666-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (D) ASM PART: A = 8-98138-130-2, 98138130	8-97075-581-0	01	1	-
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: A = 8-98138-130-2, 98138130	8-97184-767-0	01	1	-

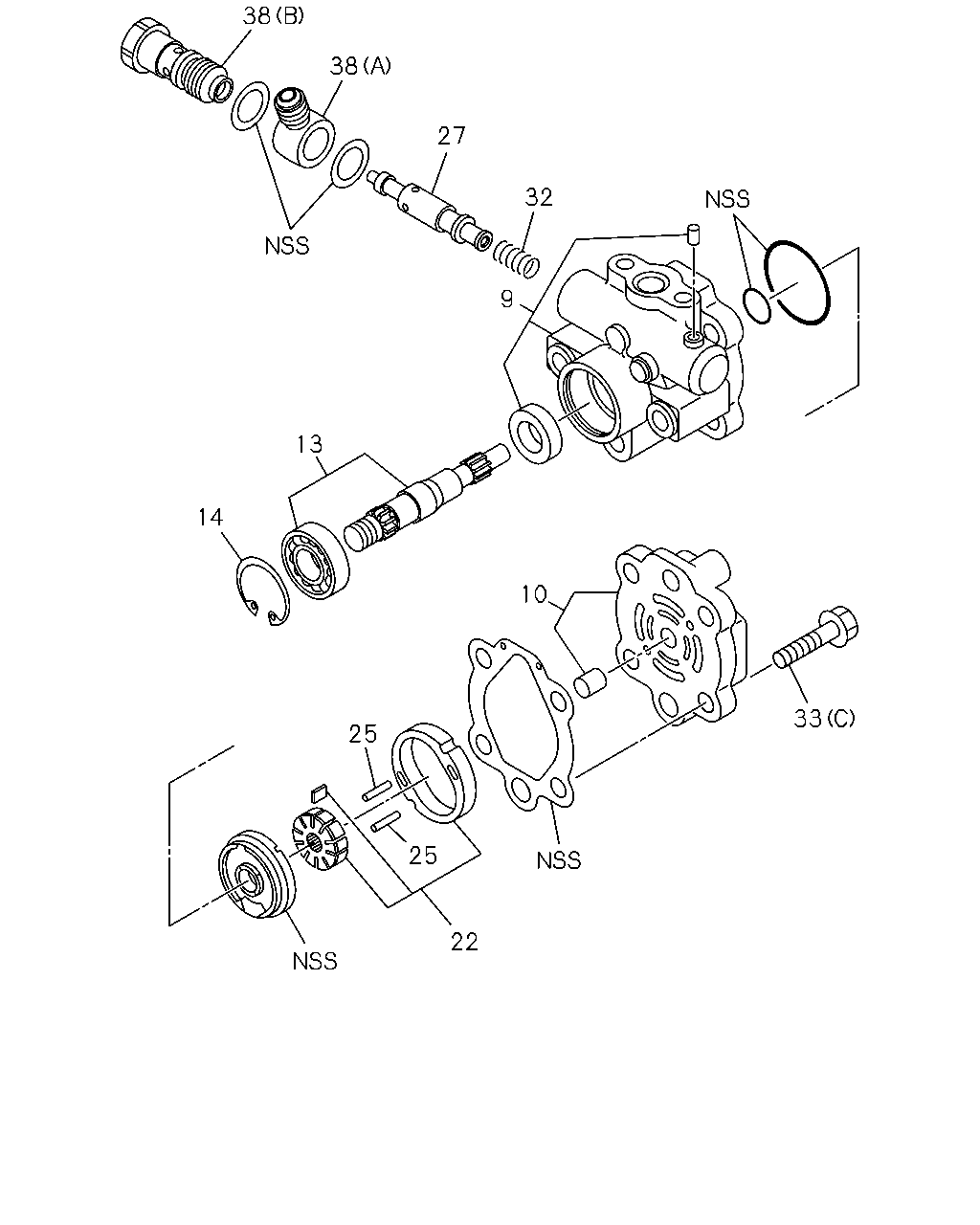

38 38 27 32 13 14 25 10 33 22 25 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: A = 8-98138-130-2, 98138130	8-98058-097-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: B = 8-98217-772-0, 98217772	8-98219-140-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: A = 8-98138-130-2, 98138130	8-98116-059-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: B = 8-98217-772-0, 98217772	8-98219-142-0	01	1	-
13	06.605 SHAFT KIT; RET ASM PART: B = 8-98217-772-0, 98217772	8-98219-139-0	01	1	-
14	06.616 RING; RET,OIL PUMP ASM PART: B = 8-98217-772-0, 98217772	8-97064-620-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: B = 8-98217-772-0, 98217772	8-97357-499-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: A = 8-98138-130-2, 98138130	8-98216-517-0	01	1	-
25	06.608 PIN; HSG,P/S ASM PART: B = 8-98217-772-0, 98217772	8-97081-859-0	02	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: A = 8-98138-130-2, 98138130	8-98139-287-0	01	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: B = 8-98217-772-0, 98217772	8-98219-136-0	01	1	-
32	06.606 SPRING; OIL PUMP ASM PART: B = 8-98217-772-0, 98217772	8-97064-987-0	01	1	-
33	06.606 BOLT; COVER (C) ASM PART: B = 8-98217-772-0, 98217772	8-97081-847-0	04	1	-
33	06.606 BOLT; COVER (A) ASM PART: A = 8-98138-130-2, 98138130	8-97184-761-0	01	1	-
33	06.606 BOLT; COVER (B) ASM PART: A = 8-98138-130-2, 98138130	8-98139-286-0	03	1	-
38	06.624 CONNECTOR; OIL PUMP (C) ASM PART: A = 8-98138-130-2, 98138130	8-98139-291-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (A) ASM PART: B = 8-98217-772-0, 98217772	8-98219-135-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP (B) ASM PART: B = 8-98217-772-0, 98217772	8-98219-137-0	01	1	-

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	06.609 REPAIR KIT; OIL PUMP (A) ASM PART: A = 8-98138-130-2, 98138130	8-98058-095-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (B) ASM PART: A = 8-98138-130-2, 98138130	8-98058-096-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (C) ASM PART: B = 8-98217-772-0, 98217772	8-98219-134-0	01	1	-

37 39 39 1 21 29 29 29 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	06.609 REPAIR KIT; OIL PUMP (A) ASM PART: A = 8-98138-130-2, 98138130	8-98058-095-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (B) ASM PART: A = 8-98138-130-2, 98138130	8-98058-096-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (C) ASM PART: B = 8-98217-772-0, 98217772	8-98219-134-0	01	1	-
21	06.609 GASKET; FRT COVER TO BODY ASM PART: A = 8-98138-130-2, 98138130	8-94380-746-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (A) ASM PART: A = 8-98138-130-2, 98138130	8-94379-658-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (B) ASM PART: A = 8-98138-130-2, 98138130	8-94379-659-0	01	1	-
29	06.609 GASKET; PLUG TO VLV 06.674, (C) ASM PART: A = 8-98138-130-2, 98138130	8-94379-666-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (D) ASM PART: A = 8-98138-130-2, 98138130	8-97075-581-0	01	1	-
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: A = 8-98138-130-2, 98138130	8-97184-767-0	01	1	-
39	06.609 GASKET; OIL PUMP (B) ASM PART: A = 8-98138-130-2, 98138130	8-94379-647-0	01	1	-
39	06.609 GASKET; OIL PUMP (A) ASM PART: A = 8-98138-130-2, 98138130	8-97147-441-0	01	1	-
