4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#171398) — 128 parça

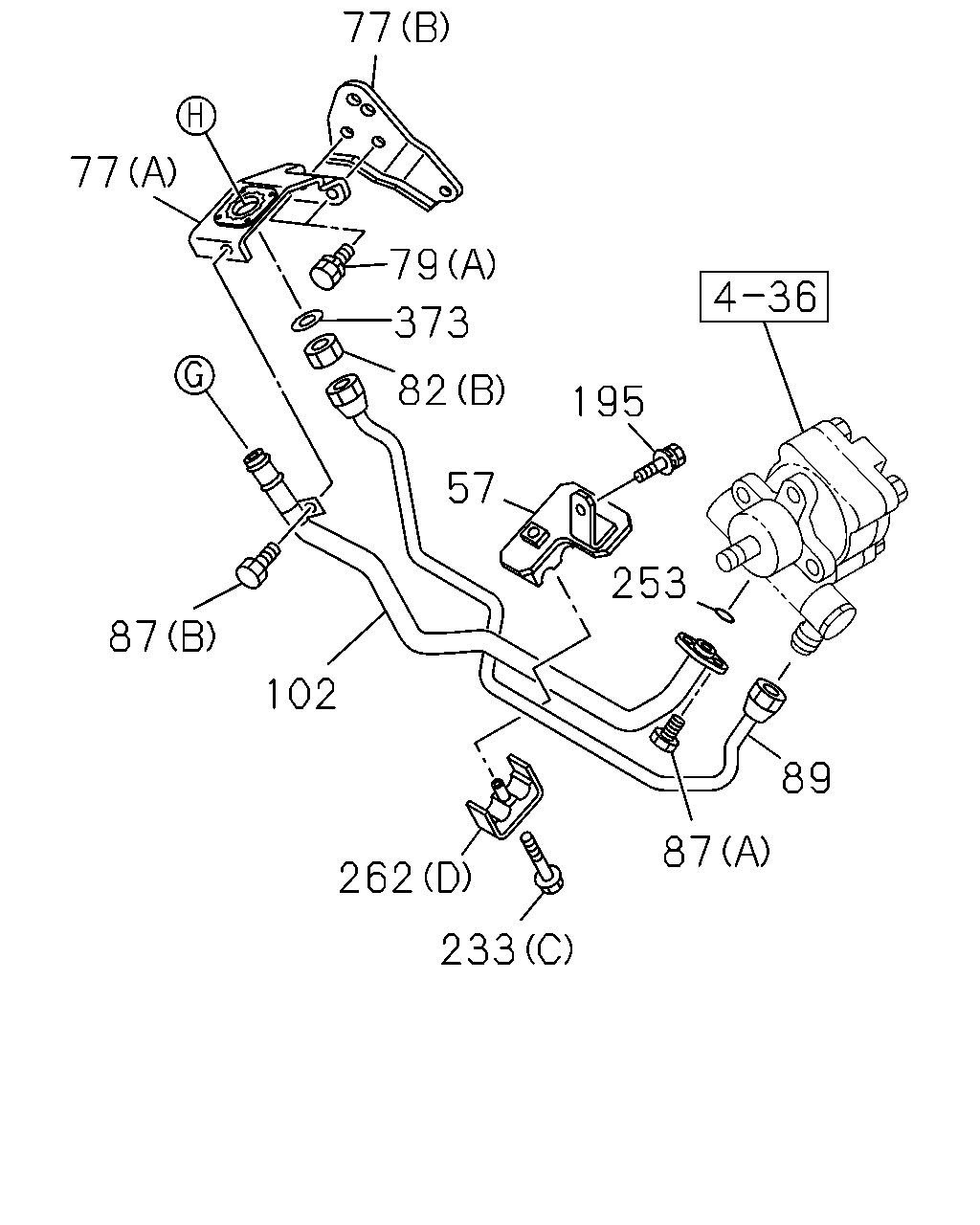

77 77 79 87 262 233 87 89 102 82 37 195 253 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	02	1	1512-	●	●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	02	1	1512-	●	●
37	01.762 CLIP; HOSE,P/S 4JB1-TC ENG(RDT) 02.559 (C) L=250	5-09707-030-1	01	1	1512-	●
37	01.762 CLIP; HOSE,P/S 4JB1-TC ENG(RDT) 04.681 (B) ID=21	8-98150-355-0	02	1	1512-	●
57	06.672 BRACKET; POWER STRG PIPE 4JB1-TC ENG(RDT)	8-97312-558-3	01	1	1512-	●
77	06.672 BRACKET; POWER STEERING HOSE 4JB1-TC ENG(RDT) (B)	8-97075-615-0	01	1	1512-	●
77	06.672 BRACKET; POWER STEERING HOSE 4JB1-TC ENG(RDT) (A)	8-97208-424-0	01	1	1512-	●
79	06.672 BOLT; BRKT 4HG1-T ENG(RDP) 06.216 (B) M8X25 FLANGE IDN	0-28650-825-0	01	1	1512-	●	●
79	06.672 BOLT; BRKT 4JB1-TC ENG(RDT) 06.216 (B) M8X25 FLANGE IDN	0-28650-825-0	03	1	1512-	●
79	06.672 BOLT; BRKT 4JB1-TC ENG(RDT) 00.206 (A) M8X20 W/LK WASHER	0-50540-820-0	02	1	1512-	●
82	06.672 NUT; FLEX HOSE,P/S 4HG1-T ENG(RDP) 06.606 (A) M12 SELF LOCK	8-97028-390-1	01	1	1512-	●	●
82	06.672 NUT; FLEX HOSE,P/S 4JB1-TC ENG(RDT) 06.897 (B) M16	8-94370-339-0	01	1	1512-	●
87	06.672 BOLT; POWER STRG PIPE 4JB1-TC ENG(RDT) 00.206 (B) M6X20	8-94279-112-0	01	1	1512-	●
87	06.672 BOLT; POWER STRG PIPE 4JB1-TC ENG(RDT) (A) M8X14 FLANGE	8-98219-171-0	02	1	1512-	●
89	06.671 PIPE; OIL,P/S OIL PUMP TO FLEX H 4JB1-TC ENG(RDT)	8-98218-675-0	01	1	1512-	●
102	06.671 PIPE; SUCTION,P/S 4JB1-TC ENG(RDT)	8-98218-669-0	01	1	1512-	●
195	06.635 BOLT; BRKT 4JB1-TC ENG(RDT) 00.034 M8X22 W/LK&PL WASHER	8-94329-953-1	01	1	1512-	●
233	06.672 BOLT; PIPE CLIP,P/S 4JB1-TC ENG(RDT) 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	1512-	●
233	06.672 BOLT; PIPE CLIP,P/S 4JB1-TC ENG(RDT) 06.216 (B) M8X25 FLANGE IDN	0-28650-825-0	01	1	1512-	●
233	06.672 BOLT; PIPE CLIP,P/S 4JB1-TC ENG(RDT) 00.685 (C) M8X40 FLANGE	0-28650-840-0	01	1	1512-	●
253	06.673 GASKET; OIL PIPE 4JB1-TC ENG(RDT) 06.609 ID=11.0	9-09561-111-0	01	1	1512-	●
262	06.672 CLIP; P/S PIPE 4HG1-T ENG(RDP) 02.559 (C) ID=11 L=20	0-95235-035-0	01	1	1512-	●	●
262	06.672 CLIP; P/S PIPE 4JB1-TC ENG(RDT) (B) ID=11 L=40	8-94123-171-1	01	1	1512-	●
262	06.672 CLIP; P/S PIPE 4JB1-TC ENG(RDT) (A) ID=11 L=40	8-94259-342-0	01	1	1512-	●
262	06.672 CLIP; P/S PIPE 4JB1-TC ENG(RDT) (D)	8-97300-961-1	01	1	1512-	●

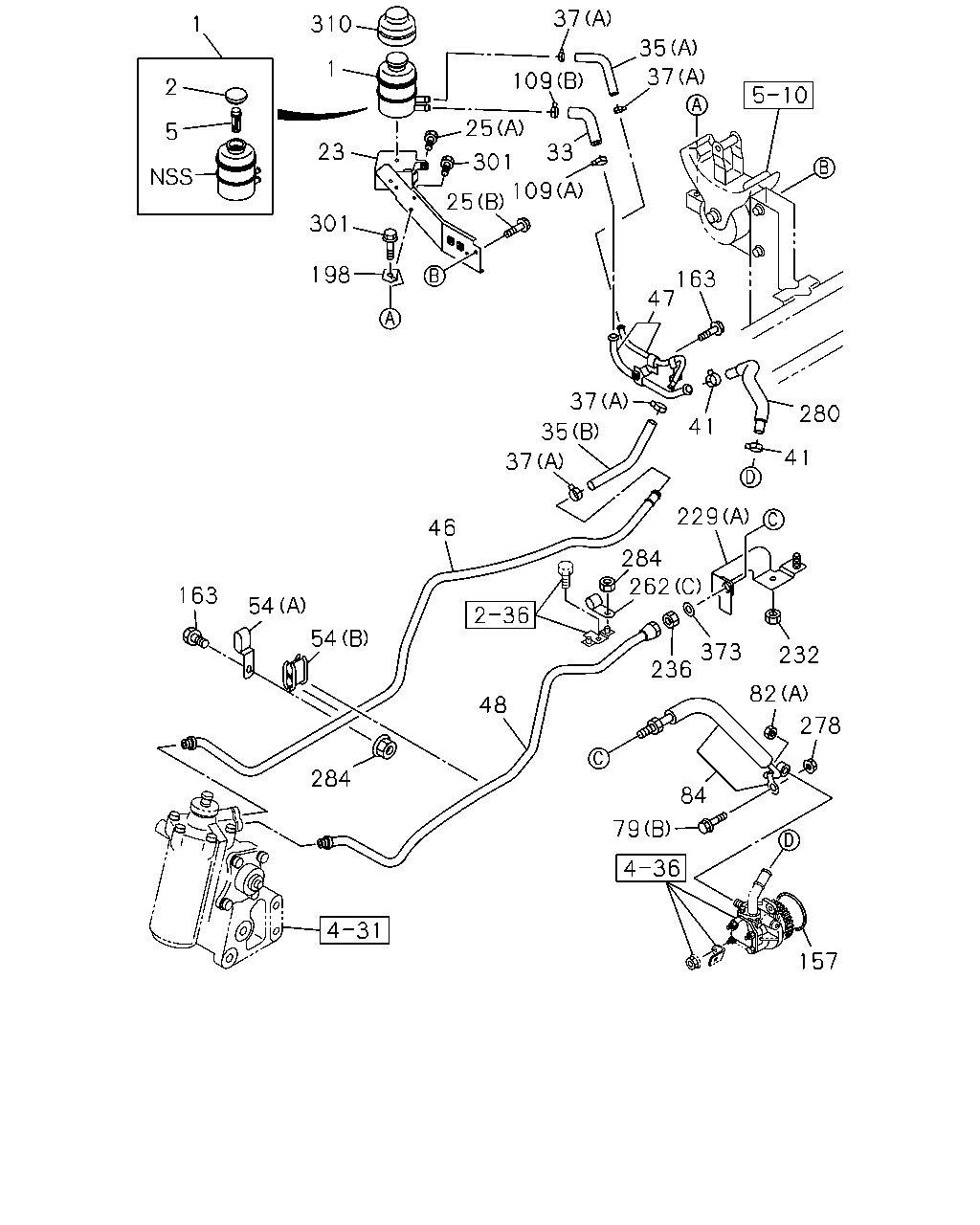

1 2 5 310 1 23 301 198 25 301 25 109 33 109 37 35 37 163 47 37 35 37 41 41 280 229 284 262 373 236 232 82 278 84 79 48 46 54 54 163 284 157

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	06.635 TANK ASM; OIL,P/S	8-97107-987-0	01	1	1512-	●	●
2	06.672 CAP; OIL TANK,P/S 06.635	8-94146-153-2	01	1	1512-	●	●
5	06.600 STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	1512-	●	●
23	06.672 BRACKET; OIL TANK,P/S	8-98053-625-2	01	1	1512-	●	●
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28450-620-0	01	1	1512-	●	●
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE IDN	0-28650-825-0	02	1	1512-	●	●
33	06.672 HOSE; RUBBER,POWER STRG	8-98054-267-0	01	1	1512-	●	●
35	06.671 HOSE; RETURN,P/S TANK 4HG1-T ENG(RDP) (B) L=135	8-98103-321-0	01	1	1512-	●	●
35	06.671 HOSE; RETURN,P/S TANK (A)	8-98054-265-0	01	1	1512-	●	●
35	06.671 HOSE; RETURN,P/S TANK 4JB1-TC ENG(RDT) (B)	8-97081-444-3	01	1	1512-	●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	02	1	1512-	●	●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	02	1	1512-	●	●
37	01.762 CLIP; HOSE,P/S 4JB1-TC ENG(RDT) 02.559 (C) L=250	5-09707-030-1	01	1	1512-	●
37	01.762 CLIP; HOSE,P/S 4JB1-TC ENG(RDT) 04.681 (B) ID=21	8-98150-355-0	02	1	1512-	●
41	06.672 CLIP; HOSE,P/S 4HG1-T ENG(RDP) 04.681 ID=21	8-98150-355-0	02	1	1512-	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4HG1-T ENG(RDP) IDN	8-97695-474-0	01	1	1512-	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JB1-TC ENG(RDT) IDN	8-97695-473-0	01	1	1512-	●
47	06.671 PIPE; RETURN 4HG1-T ENG(RDP) IDN	8-97695-475-0	01	1	1512-	●	●
47	06.671 PIPE; RETURN 4JB1-TC ENG(RDT) IDN	8-97695-598-0	01	1	1512-	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4HG1-T ENG(RDP) IDN	8-97695-472-0	01	1	1512-	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JB1-TC ENG(RDT) IDN	8-97695-471-0	01	1	1512-	●
54	06.672 CLIP; OIL PIPE 4HG1-T ENG(RDP) 03.162 (A) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1512-	●	●
54	06.672 CLIP; OIL PIPE 4HG1-T ENG(RDP) (B) ID=10X2 H=22	8-94252-455-2	01	1	1512-	●	●
79	06.672 BOLT; BRKT 4HG1-T ENG(RDP) 06.216 (B) M8X25 FLANGE IDN	0-28650-825-0	01	1	1512-	●	●
79	06.672 BOLT; BRKT 4JB1-TC ENG(RDT) 06.216 (B) M8X25 FLANGE IDN	0-28650-825-0	03	1	1512-	●
79	06.672 BOLT; BRKT 4JB1-TC ENG(RDT) 00.206 (A) M8X20 W/LK WASHER	0-50540-820-0	02	1	1512-	●
82	06.672 NUT; FLEX HOSE,P/S 4HG1-T ENG(RDP) 06.606 (A) M12 SELF LOCK	8-97028-390-1	01	1	1512-	●	●
82	06.672 NUT; FLEX HOSE,P/S 4JB1-TC ENG(RDT) 06.897 (B) M16	8-94370-339-0	01	1	1512-	●
84	06.670 HOSE; FLEX,P/S 4HG1-T ENG(RDP)	8-97358-334-2	01	1	1512-	●	●
84	06.670 HOSE; FLEX,P/S 4JB1-TC ENG(RDT)	8-97358-326-0	01	1	1512-	●
109	06.672 CLIP; RUBBER HOSE 03.278 (B) ID=22	8-97359-141-0	01	1	1512-	●	●
109	06.672 CLIP; RUBBER HOSE 04.681 (A) ID=21	8-98150-355-0	01	1	1512-	●	●
157	06.673 GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 4HG1-T ENG(RDP)	8-97101-875-2	01	1	1512-	●	●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE IDN	0-28650-825-0	01	1	1512-	●	●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE IDN	0-28650-825-0	01	1	1512-	●	●
198	06.672 STAY; OIL TANK,POWER STEERING	8-98011-885-1	01	1	1512-	●	●
229	06.606 BRACKET; HOSE,POWER STRG 4HG1-T ENG(RDP) (A)	8-97187-402-1	01	1	1512-	●	●
229	06.606 BRACKET; HOSE,POWER STRG 4JB1-TC ENG(RDT) (B)	8-98326-995-0	01	1	1512-	●
232	06.672 NUT; BRKT 4HG1-T ENG(RDP) 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	1512-	●	●
232	06.672 NUT; BRKT 4JB1-TC ENG(RDT) 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	1512-	●
236	06.672 NUT; FLEX HOSE,P/S PIPING 06.897 M16	8-94370-339-0	01	1	1512-	●	●
262	06.672 CLIP; P/S PIPE 4HG1-T ENG(RDP) 02.559 (C) ID=11 L=20	0-95235-035-0	01	1	1512-	●	●
262	06.672 CLIP; P/S PIPE 4JB1-TC ENG(RDT) (B) ID=11 L=40	8-94123-171-1	01	1	1512-	●
262	06.672 CLIP; P/S PIPE 4JB1-TC ENG(RDT) (A) ID=11 L=40	8-94259-342-0	01	1	1512-	●
262	06.672 CLIP; P/S PIPE 4JB1-TC ENG(RDT) (D)	8-97300-961-1	01	1	1512-	●
278	06.670 NUT; HOSE CLIP 4HG1-T ENG(RDP) 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	1512-	●	●
280	06.672 HOSE; P/S OIL PUMP,INL 4HG1-T ENG(RDP)	8-98165-470-0	01	1	1512-	●	●
284	06.670 NUT; PIPE 4HG1-T ENG(RDP) 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	1512-	●	●
301	06.672 BOLT; STAY,OIL TANK 06.216 M8X25 FLANGE IDN	0-28650-825-0	02	1	1512-	●	●
310	06.672 COVER; OIL TANK MANUAL TILT CAB<RWZ>	8-97103-394-0	01	1	1512-	●	●
373	06.673 WASHER; HOSE,P/S 06.672 ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	1512-	●	●
373	06.673 WASHER; HOSE,P/S 4JB1-TC ENG(RDT) 06.672 ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	1512-	●

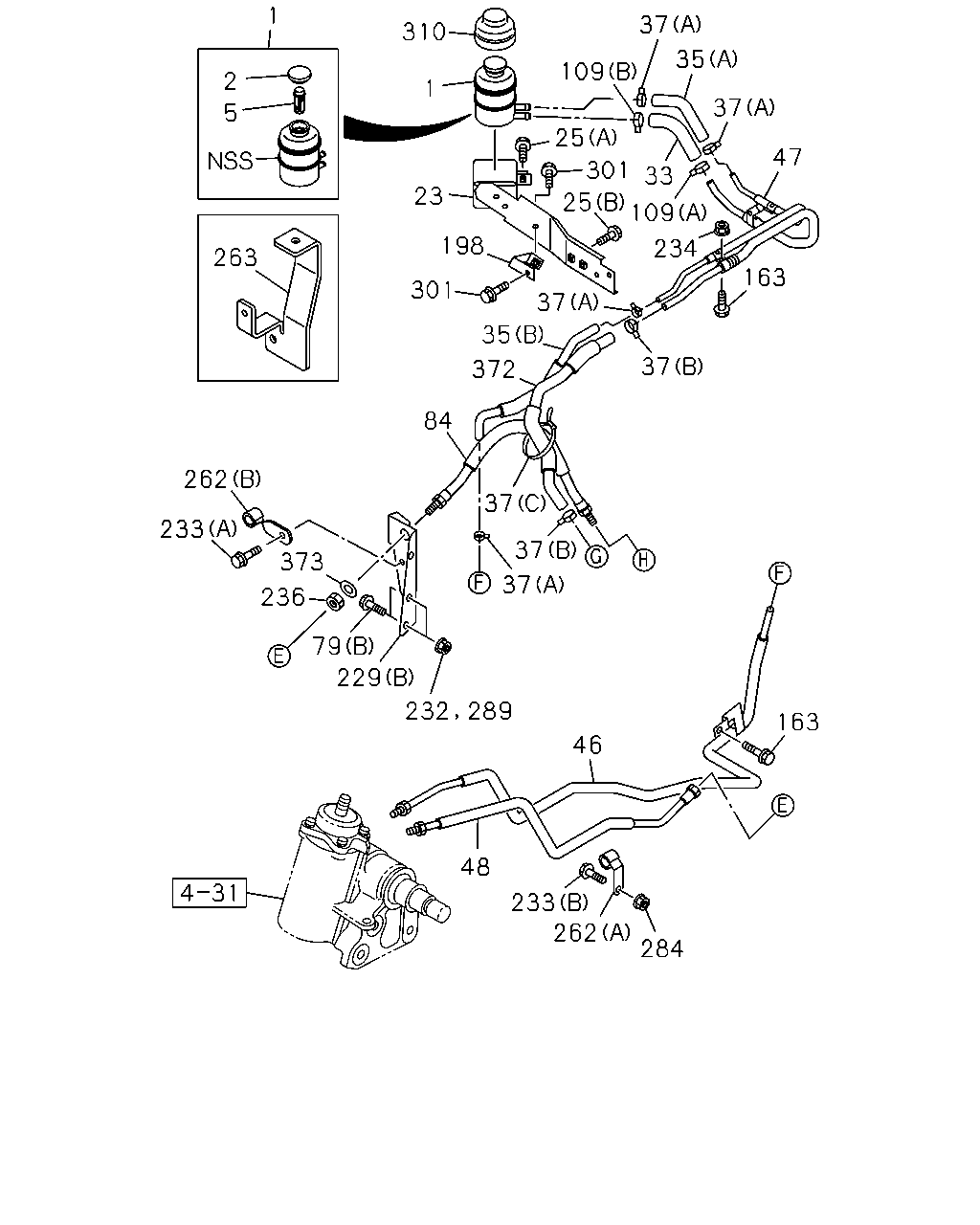

1 2 5 310 1 23 198 301 35 372 84 37 37 37 232 289 229 79 236 373 233 262 48 46 233 262 284 163 37 37 234 109 25 301 25 109 37 35 37 47 163 33 263

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	06.635 TANK ASM; OIL,P/S	8-97107-987-0	01	1	1512-	●	●
2	06.672 CAP; OIL TANK,P/S 06.635	8-94146-153-2	01	1	1512-	●	●
5	06.600 STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	1512-	●	●
23	06.672 BRACKET; OIL TANK,P/S	8-98053-625-2	01	1	1512-	●	●
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28450-620-0	01	1	1512-	●	●
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE IDN	0-28650-825-0	02	1	1512-	●	●
33	06.672 HOSE; RUBBER,POWER STRG	8-98054-267-0	01	1	1512-	●	●
35	06.671 HOSE; RETURN,P/S TANK 4HG1-T ENG(RDP) (B) L=135	8-98103-321-0	01	1	1512-	●	●
35	06.671 HOSE; RETURN,P/S TANK (A)	8-98054-265-0	01	1	1512-	●	●
35	06.671 HOSE; RETURN,P/S TANK 4JB1-TC ENG(RDT) (B)	8-97081-444-3	01	1	1512-	●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	02	1	1512-	●	●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	02	1	1512-	●	●
37	01.762 CLIP; HOSE,P/S 4JB1-TC ENG(RDT) 02.559 (C) L=250	5-09707-030-1	01	1	1512-	●
37	01.762 CLIP; HOSE,P/S 4JB1-TC ENG(RDT) 04.681 (B) ID=21	8-98150-355-0	02	1	1512-	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4HG1-T ENG(RDP) IDN	8-97695-474-0	01	1	1512-	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JB1-TC ENG(RDT) IDN	8-97695-473-0	01	1	1512-	●
47	06.671 PIPE; RETURN 4HG1-T ENG(RDP) IDN	8-97695-475-0	01	1	1512-	●	●
47	06.671 PIPE; RETURN 4JB1-TC ENG(RDT) IDN	8-97695-598-0	01	1	1512-	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4HG1-T ENG(RDP) IDN	8-97695-472-0	01	1	1512-	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JB1-TC ENG(RDT) IDN	8-97695-471-0	01	1	1512-	●
79	06.672 BOLT; BRKT 4HG1-T ENG(RDP) 06.216 (B) M8X25 FLANGE IDN	0-28650-825-0	01	1	1512-	●	●
79	06.672 BOLT; BRKT 4JB1-TC ENG(RDT) 06.216 (B) M8X25 FLANGE IDN	0-28650-825-0	03	1	1512-	●
79	06.672 BOLT; BRKT 4JB1-TC ENG(RDT) 00.206 (A) M8X20 W/LK WASHER	0-50540-820-0	02	1	1512-	●
84	06.670 HOSE; FLEX,P/S 4HG1-T ENG(RDP)	8-97358-334-2	01	1	1512-	●	●
84	06.670 HOSE; FLEX,P/S 4JB1-TC ENG(RDT)	8-97358-326-0	01	1	1512-	●
109	06.672 CLIP; RUBBER HOSE 03.278 (B) ID=22	8-97359-141-0	01	1	1512-	●	●
109	06.672 CLIP; RUBBER HOSE 04.681 (A) ID=21	8-98150-355-0	01	1	1512-	●	●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE IDN	0-28650-825-0	01	1	1512-	●	●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE IDN	0-28650-825-0	01	1	1512-	●	●
198	06.672 STAY; OIL TANK,POWER STEERING	8-98011-885-1	01	1	1512-	●	●
229	06.606 BRACKET; HOSE,POWER STRG 4HG1-T ENG(RDP) (A)	8-97187-402-1	01	1	1512-	●	●
229	06.606 BRACKET; HOSE,POWER STRG 4JB1-TC ENG(RDT) (B)	8-98326-995-0	01	1	1512-	●
232	06.672 NUT; BRKT 4HG1-T ENG(RDP) 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	1512-	●	●
232	06.672 NUT; BRKT 4JB1-TC ENG(RDT) 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	1512-	●
233	06.672 BOLT; PIPE CLIP,P/S 4JB1-TC ENG(RDT) 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	1512-	●
233	06.672 BOLT; PIPE CLIP,P/S 4JB1-TC ENG(RDT) 06.216 (B) M8X25 FLANGE IDN	0-28650-825-0	01	1	1512-	●
233	06.672 BOLT; PIPE CLIP,P/S 4JB1-TC ENG(RDT) 00.685 (C) M8X40 FLANGE	0-28650-840-0	01	1	1512-	●
234	06.672 NUT; PIPE CLIP,P/S 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	1512-	●	●
236	06.672 NUT; FLEX HOSE,P/S PIPING 06.897 M16	8-94370-339-0	01	1	1512-	●	●
262	06.672 CLIP; P/S PIPE 4HG1-T ENG(RDP) 02.559 (C) ID=11 L=20	0-95235-035-0	01	1	1512-	●	●
262	06.672 CLIP; P/S PIPE 4JB1-TC ENG(RDT) (B) ID=11 L=40	8-94123-171-1	01	1	1512-	●
262	06.672 CLIP; P/S PIPE 4JB1-TC ENG(RDT) (A) ID=11 L=40	8-94259-342-0	01	1	1512-	●
262	06.672 CLIP; P/S PIPE 4JB1-TC ENG(RDT) (D)	8-97300-961-1	01	1	1512-	●
263	06.672 BRACKET; P/S PIPE 4JB1-TC ENG(RDT) IDN	8-97695-599-0	01	1	1512-	●
284	06.670 NUT; PIPE 4HG1-T ENG(RDP) 01.062 M8 FLANGE IDN	0-91180-108-0	01	1	1512-	●	●
289	06.673 NUT; BRKT,POWER STRG 4JB1-TC ENG(RDT) 01.062 M8 FLANGE IDN	0-91180-108-0	02	1	1512-	●
301	06.672 BOLT; STAY,OIL TANK 06.216 M8X25 FLANGE IDN	0-28650-825-0	02	1	1512-	●	●
310	06.672 COVER; OIL TANK MANUAL TILT CAB<RWZ>	8-97103-394-0	01	1	1512-	●	●
372	06.673 HOSE; RUBBER 4JB1-TC ENG(RDT) 06.672	8-97205-635-0	01	1	1512-	●
373	06.673 WASHER; HOSE,P/S 06.672 ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	1512-	●	●
373	06.673 WASHER; HOSE,P/S 4JB1-TC ENG(RDT) 06.672 ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	1512-	●
