Sayfa 4-25 - Isuzu EPC

4-25 — REAR FINAL DRIVE (#171394) — 568 parça

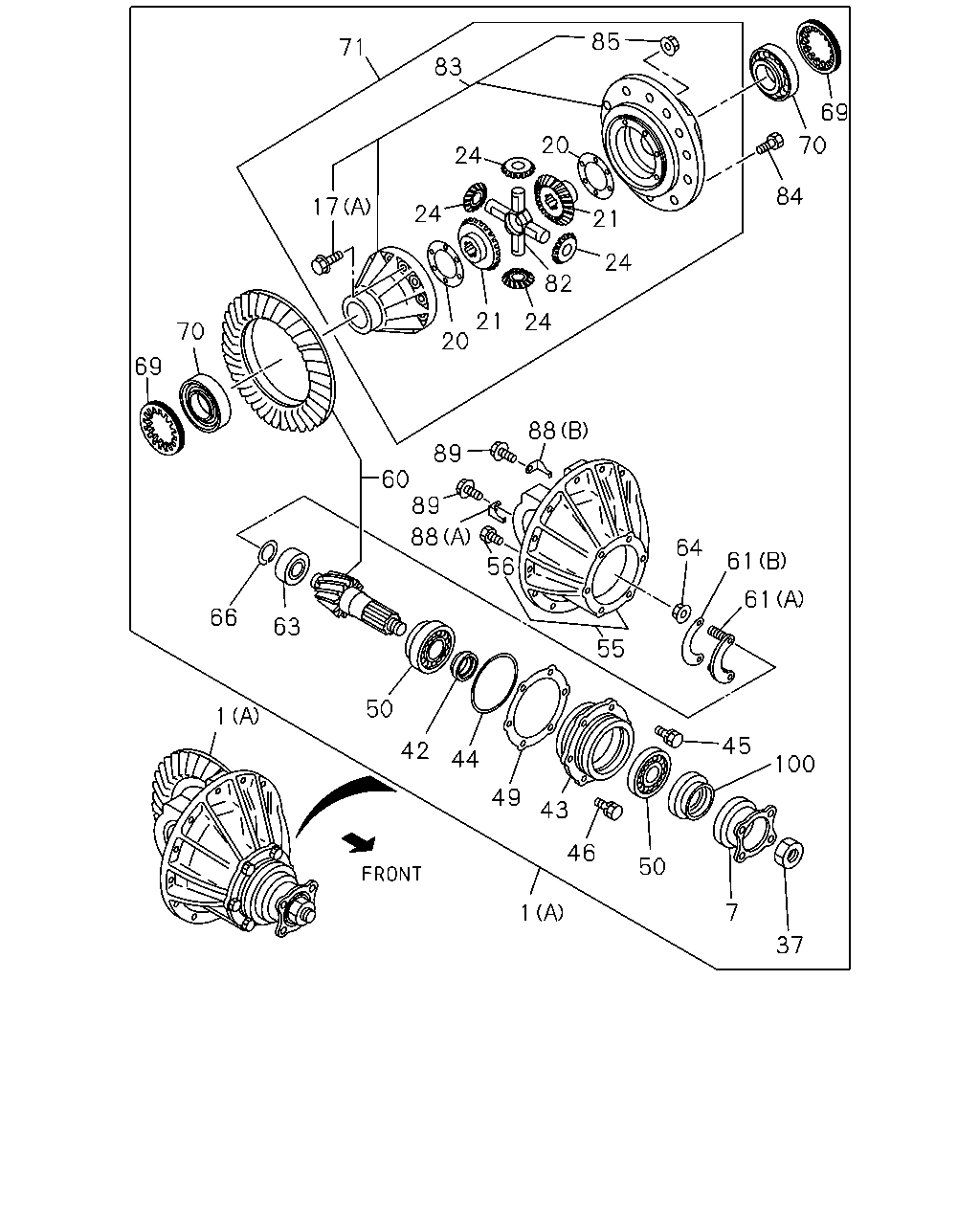

71 86 17 70 69 66 63 1 50 42 44 49 43 39 100 37 7 45 55 64 61 61 1 88 88 88 88 89 56 60 20 21 25 24 82 25 24 21 20 25 83 25 24 24 85 70 69 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/7(R41) (A) 41/7	8-98015-142-0	01	1	1512-	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/8(R40) (B) 43/8	8-98065-942-0	01	1	1512-		●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/10(GT5) (A) 41/10	8-98015-135-0	01	1	1512-	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/9(HC6) (A) 41/9	8-98015-137-0	01	1	1512-	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/8(RU1) (A) 41/8	8-98015-139-0	01	1	1512-	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/9(S2J) (A)	8-98015-380-0	01	1	1512-	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/10(S7C) (A) 43/10	8-98015-136-0	01	1	1512-	●
1	05.505 DRIVE ASM; FINAL,RR G.V.W. 3.0-3.5TON(RPP) (C) 39/8	8-97367-500-0	01	1	1512-	●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/7(R41) (B) 41/7 IDN	8-97094-682-0	01	1	1512-		●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) (B) 43/7	8-97094-684-0	01	1	1512-		●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 39/6(R43) (B) 39/6	8-97209-167-0	01	1	1512-		●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 343MM(8BW) FINAL GEAR RATIO 41/7(R41) (D) 41/7	8-98322-554-0	01	1	1512-		●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 343MM(8BW) FINAL GEAR RATIO 43/7(R42) (D) 43/7	8-98322-555-0	01	1	1512-		●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 343MM(8BW) FINAL GEAR RATIO 39/6(R43) (D) 39/6	8-98321-280-0	01	1	1512-		●
7	05.545 FLANGE; FINAL G.V.W. 4.0-4.5TON(RPR)	8-94477-723-4	01	1	1512-	●
7	05.545 FLANGE; FINAL G.V.W. 3.0-3.5TON(RPP)	8-97075-216-3	01	1	1512-	●
7	05.545 FLANGE; FINAL REAR AXLE HEAVY DUTY 320MM(6CP)	8-97073-802-2	01	1	1512-		●
7	05.545 FLANGE; FINAL REAR AXLE HEAVY DUTY 343MM(8BW)	8-98321-245-0	01	1	1512-		●
17	05.510 BOLT; DIFF CAGE SETTING G.V.W. 4.0-4.5TON(RPR) (A) M10X75 FLANGE	8-97232-161-0	12	1	1512-	●
17	05.510 BOLT; DIFF CAGE SETTING G.V.W. 3.0-3.5TON(RPP) 05.650 (A) M12X58	8-97314-497-0	08	1	1512-	●
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) (B) M12X90	8-98219-448-0	12	1	1512-		●
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 343MM(8BW) (C) M14X85	1-09044-023-0	08	1	1512-		●
20	05.543 WASHER; THRUST,SIDE GEAR G.V.W. 4.0-4.5TON(RPR) T=1.40	9-41562-601-0	02	1	1512-	●
20	05.543 WASHER; THRUST,SIDE GEAR G.V.W. 3.0-3.5TON(RPP) T=1.00	9-41562-602-0	02	1	1512-	●
20	05.543 WASHER; THRUST,SIDE GEAR T=2.80	1-41562-073-0	AR	1	1512-		●
20	05.543 WASHER; THRUST,SIDE GEAR T=2.90	1-41562-074-0	AR	1	1512-		●
20	05.543 WASHER; THRUST,SIDE GEAR T=3.00	1-41562-075-0	AR	1	1512-		●
20	05.543 WASHER; THRUST,SIDE GEAR T=3.10	1-41562-076-0	AR	1	1512-		●
20	05.543 WASHER; THRUST,SIDE GEAR T=3.20	1-41562-077-0	AR	1	1512-		●
20	05.543 WASHER; THRUST,SIDE GEAR T=3.30	1-41562-078-0	AR	1	1512-		●
20	05.543 WASHER; THRUST,SIDE GEAR T=3.40	1-41562-079-0	AR	1	1512-		●
21	05.528 GEAR; SIDE,DIFF G.V.W. 4.0-4.5TON(RPR) 05.515 Z=20	8-97362-599-1	02	1	1512-	●
21	05.528 GEAR; SIDE,DIFF G.V.W. 3.0-3.5TON(RPP) Z=18	8-98190-383-1	02	1	1512-	●
21	05.528 GEAR; SIDE,DIFF REAR AXLE HEAVY DUTY 320MM(6CP) Z=16	8-98165-935-0	02	1	1512-		●
21	05.528 GEAR; SIDE,DIFF REAR AXLE HEAVY DUTY 343MM(8BW) Z=16	1-41561-150-0	02	1	1512-		●
24	05.526 GEAR; PINION,DIFF G.V.W. 4.0-4.5TON(RPR) Z=10	8-98015-202-0	04	1	1512-	●
24	05.526 GEAR; PINION,DIFF G.V.W. 3.0-3.5TON(RPP) Z=10	8-98186-829-0	04	1	1512-	●
24	05.526 GEAR; PINION,DIFF Z=10	1-41551-050-0	04	1	1512-		●
25	05.528 WASHER; THRUST,PINION	1-41552-020-0	04	1	1512-		●
37	05.595 NUT; DRIVING PINION G.V.W. 4.0-4.5TON(RPR) M24 FLANGE	8-94329-526-1	01	1	1512-	●
37	05.595 NUT; DRIVING PINION G.V.W. 3.0-3.5TON(RPP) M24 FLANGE	8-94376-261-1	01	1	1512-	●
37	05.595 NUT; DRIVING PINION REAR AXLE HEAVY DUTY 320MM(6CP) M30 FLANGE	8-97047-146-0	01	1	1512-		●
37	05.595 NUT; DRIVING PINION REAR AXLE HEAVY DUTY 343MM(8BW) M30 FLANGE	1-09449-066-1	01	1	1512-		●
39	05.484 BEARING; FINAL PINION G.V.W. 3.0-3.5TON(RPP) (A) NSK	9-00093-078-0	01	1	1512-	●
39	05.484 BEARING; FINAL PINION G.V.W. 3.0-3.5TON(RPP) 05.447 (B) JTEKT	9-00093-079-1	01	1	1512-	●
39	05.484 BEARING; FINAL PINION (C) JTEKT	5-09812-062-1	01	1	1512-		●
39	05.484 BEARING; FINAL PINION (C) NSK	5-09812-063-0	01	1	1512-		●
42	05.453 COLLAR; DIST,COLLAPSIBLE G.V.W. 4.0-4.5TON(RPR) L=19.6	9-41219-603-1	01	1	1512-	●
42	05.453 COLLAR; DIST,COLLAPSIBLE G.V.W. 3.0-3.5TON(RPP) L=53.35	9-41219-634-1	01	1	1512-	●
42	05.453 COLLAR; DIST,COLLAPSIBLE REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-097-0	01	1	1512-		●
42	05.453 COLLAR; DIST,COLLAPSIBLE REAR AXLE HEAVY DUTY 343MM(8BW) T=15.75	1-41219-004-0	01	1	1512-		●
43	05.453 CAGE; FINAL PINION G.V.W. 4.0-4.5TON(RPR)	8-94400-890-0	01	1	1512-	●
43	05.453 CAGE; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-098-0	01	1	1512-		●
43	05.453 CAGE; FINAL PINION REAR AXLE HEAVY DUTY 343MM(8BW)	1-41151-063-0	01	1	1512-		●
44	05.476 GASKET; PINION CAGE G.V.W. 4.0-4.5TON(RPR) 05.458	9-09720-505-0	01	1	1512-	●
44	05.476 GASKET; PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP)	8-97048-053-0	01	1	1512-		●
44	05.476 GASKET; PINION CAGE REAR AXLE HEAVY DUTY 343MM(8BW) 05.595 ID=35.7 T=5	1-09623-379-0	01	1	1512-		●
45	05.453 BOLT; FINAL PINION CAGE G.V.W. 4.0-4.5TON(RPR) M12X38 W/LK WASHER	8-98221-264-0	05	1	1512-	●
45	05.453 BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) M12X40 W/LK WASHER	8-98220-227-0	06	1	1512-		●
45	05.453 BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 343MM(8BW) M12X40	9-02361-240-0	06	1	1512-		●
49	05.458 SHIM; FINAL PINION CAGE G.V.W. 4.0-4.5TON(RPR) ID=132 T=0.10	8-94401-335-0	AR	1	1512-	●
49	05.458 SHIM; FINAL PINION CAGE G.V.W. 4.0-4.5TON(RPR) ID=132 T=0.12	8-94401-336-0	AR	1	1512-	●
49	05.458 SHIM; FINAL PINION CAGE G.V.W. 4.0-4.5TON(RPR) ID=132 T=0.14	8-94401-337-0	AR	1	1512-	●
49	05.458 SHIM; FINAL PINION CAGE G.V.W. 4.0-4.5TON(RPR) ID=132 T=0.16	8-94401-338-0	AR	1	1512-	●
49	05.458 SHIM; FINAL PINION CAGE G.V.W. 4.0-4.5TON(RPR) ID=132 T=0.18	8-94401-339-0	AR	1	1512-	●
49	05.458 SHIM; FINAL PINION CAGE G.V.W. 4.0-4.5TON(RPR) ID=132 T=0.20	8-94401-340-0	AR	1	1512-	●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.12	8-97047-298-0	AR	1	1512-		●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.15	8-97047-299-0	AR	1	1512-		●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.20	8-97047-300-0	AR	1	1512-		●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.25	8-97048-418-0	AR	1	1512-		●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) 05.528 ID=142 T=0.50	8-97048-419-0	AR	1	1512-		●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 343MM(8BW) T=0.50	1-41154-021-1	AR	1	1512-		●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 343MM(8BW) T=0.30	1-41154-051-1	AR	1	1512-		●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 343MM(8BW) T=0.40	1-41154-052-1	AR	1	1512-		●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 343MM(8BW) T=1.00	1-41154-053-1	AR	1	1512-		●
50	05.447 BEARING; FINAL PINION G.V.W. 4.0-4.5TON(RPR) 05.484 JTEKT	5-09812-062-1	02	1	1512-	●
50	05.447 BEARING; FINAL PINION G.V.W. 4.0-4.5TON(RPR) 05.484 NSK	5-09812-063-0	02	1	1512-	●
50	05.447 BEARING; FINAL PINION 05.484 NSK	1-09812-041-2	01	1	1512-		●
50	05.447 BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	1512-		●
55	05.505 CARRIER; DIFF G.V.W. 4.0-4.5TON(RPR)	8-97307-760-0	01	1	1512-	●
55	05.505 CARRIER; DIFF G.V.W. 3.0-3.5TON(RPP)	8-94376-227-3	01	1	1512-	●
55	05.505 CARRIER; DIFF REAR AXLE HEAVY DUTY 320MM(6CP)	8-97094-637-0	01	1	1512-		●
55	05.505 CARRIER; DIFF REAR AXLE HEAVY DUTY 343MM(8BW)	1-41110-105-0	01	1	1512-		●
56	05.506 BOLT; BRG CAP 05.387 M14X80	8-94365-377-3	04	1	1512-	●
56	05.506 BOLT; BRG CAP M14X95 FLANGE	1-09070-027-0	04	1	1512-		●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/7(R41) 41/7	8-98092-031-1	01	1	1512-	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/8(R40) 43/8	8-98043-095-0	01	1	1512-		●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/10(GT5) 41/10	8-98092-055-0	01	1	1512-	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/9(HC6) 41/9	8-98092-049-0	01	1	1512-	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/8(RU1) 41/8	8-97319-158-0	01	1	1512-	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/9(S2J) 43/9	8-97319-157-0	01	1	1512-	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/10(S7C) 43/10	8-98092-052-0	01	1	1512-	●
60	05.529 GEAR SET; FINAL DRIVE,RR G.V.W. 3.0-3.5TON(RPP) 39/8	8-97035-431-0	01	1	1512-	●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/7(R41) 41/7	8-97083-126-0	01	1	1512-		●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) 43/7	8-97092-946-0	01	1	1512-		●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 39/6(R43) 39/6	8-97209-168-0	01	1	1512-		●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 343MM(8BW) FINAL GEAR RATIO 41/7(R41) 41/7	1-41210-530-0	01	1	1512-		●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 343MM(8BW) FINAL GEAR RATIO 43/7(R42),FINAL GEAR RATIO 39/6(R43) 43/7	1-41210-531-0	01	1	1512-		●
61	05.476 RETAINER; PILOT BRG,PINION G.V.W. 4.0-4.5TON(RPR) (A) W/STUD	5-41227-001-0	01	1	1512-	●
61	05.476 RETAINER; PILOT BRG,PINION G.V.W. 4.0-4.5TON(RPR) (B)	9-41227-601-0	01	1	1512-	●
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 320MM(6CP) (A) W/STUD	8-97047-149-0	01	1	1512-		●
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 320MM(6CP) (B)	8-97047-150-0	01	1	1512-		●
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 343MM(8BW) (C)	9-41227-006-0	02	1	1512-		●
63	05.447 BEARING; PINION PILOT G.V.W. 4.0-4.5TON(RPR) NSK	5-09810-008-1	01	1	1512-	●
63	05.447 BEARING; PINION PILOT G.V.W. 4.0-4.5TON(RPR) JTEKT	8-97107-548-0	01	1	1512-	●
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 320MM(6CP) NSK	8-97047-296-0	01	1	1512-		●
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 320MM(6CP) JTEKT	8-97047-928-0	01	1	1512-		●
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 343MM(8BW) NSK	1-09810-062-1	01	1	1512-		●
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 343MM(8BW) JTEKT	1-09810-063-2	01	1	1512-		●
64	05.476 NUT; RET G.V.W. 4.0-4.5TON(RPR) 01.062 M6 FLANGE IDN	0-91180-106-0	02	1	1512-	●
64	05.476 NUT; RET REAR AXLE HEAVY DUTY 320MM(6CP) 01.062 M6 FLANGE IDN	0-91180-106-0	02	1	1512-		●
64	05.476 NUT; RET REAR AXLE HEAVY DUTY 343MM(8BW) M8 SLOTTED	0-91117-508-0	02	1	1512-		●
66	05.476 RING; SNAP,PILOT BRG G.V.W. 4.0-4.5TON(RPR)	9-09752-002-0	01	1	1512-	●
66	05.476 RING; SNAP,PILOT BRG REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-297-0	01	1	1512-		●
66	05.476 RING; SNAP,PILOT BRG REAR AXLE HEAVY DUTY 343MM(8BW) OD=32.2	1-09588-065-2	01	1	1512-		●
69	05.506 NUT; ADJ,DIFF CAGE G.V.W. 4.0-4.5TON(RPR) M110 H=10	5-41121-001-0	02	1	1512-	●
69	05.506 NUT; ADJ,DIFF CAGE REAR AXLE HEAVY DUTY 320MM(6CP) M115 H=20	1-41121-039-0	02	1	1512-		●
69	05.506 NUT; ADJ,DIFF CAGE REAR AXLE HEAVY DUTY 343MM(8BW) M115 H=26	1-41121-028-0	01	1	1512-		●
69	05.506 NUT; ADJ,DIFF CAGE REAR AXLE HEAVY DUTY 343MM(8BW) M115 H=20	1-41121-039-0	01	1	1512-		●
70	05.536 BEARING; DIFF CAGE G.V.W. 4.0-4.5TON(RPR) NSK	9-00093-602-0	02	1	1512-	●
70	05.536 BEARING; DIFF CAGE G.V.W. 3.0-3.5TON(RPP) JTEKT	8-98003-043-0	02	1	1512-	●
70	05.536 BEARING; DIFF CAGE G.V.W. 3.0-3.5TON(RPP) NSK	9-00032-211-0	02	1	1512-	●
70	05.536 BEARING; DIFF CAGE JTEKT ID=66.7 OD=113 T=30	9-00093-130-0	02	1	1512-		●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE G.V.W. 3.0-3.5TON(RPP)	8-98191-997-1	01	1	1512-	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-100-4	01	1	1512-		●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 343MM(8BW)	1-41510-298-0	01	1	1512-		●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43/9(S2J), FINAL GEAR RATIO 43/10(S7C) G.V.W. 4.0-4.5TON(RPR)	8-98015-181-1	01	1	1512-	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 41/7(R41) G.V.W. 4.0-4.5TON(RPR)	8-98015-182-1	01	1	1512-	●
82	05.517 SPIDER; DIFF PINION G.V.W. 4.0-4.5TON(RPR) 05.520	5-41521-008-0	01	1	1512-	●
82	05.517 SPIDER; DIFF PINION G.V.W. 3.0-3.5TON(RPP)	5-41521-006-0	01	1	1512-	●
82	05.517 SPIDER; DIFF PINION 05.520	1-41521-035-2	01	1	1512-		●
83	05.510 CAGE ASM; DIFF G.V.W. 3.0-3.5TON(RPP)	9-41510-610-0	01	1	1512-	●
83	05.510 CAGE ASM; DIFF REAR AXLE HEAVY DUTY 320MM(6CP)	8-98219-707-0	01	1	1512-		●
83	05.510 CAGE ASM; DIFF FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43/9(S2J), FINAL GEAR RATIO 43/10(S7C) G.V.W. 4.0-4.5TON(RPR)	8-97319-398-1	01	1	1512-	●
83	05.510 CAGE ASM; DIFF FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 41/7(R41) G.V.W. 4.0-4.5TON(RPR)	8-97319-396-1	01	1	1512-	●
84	05.531 BOLT; FINAL DRIVE GEAR G.V.W. 4.0-4.5TON(RPR) M14X25	8-97318-938-1	12	1	1512-	●
84	05.531 BOLT; FINAL DRIVE GEAR G.V.W. 3.0-3.5TON(RPP) M12X25	9-09606-505-2	12	1	1512-	●
84	05.531 BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) M16X30	8-97047-147-0	12	1	1512-		●
84	05.531 BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 343MM(8BW) M14X29.5 FLANGE	1-09070-085-0	16	1	1512-		●
85	05.510 NUT; DIFF CAGE SETTING G.V.W. 4.0-4.5TON(RPR) 04.085 M10 FLANGE	0-91180-210-0	12	1	1512-	●
85	05.510 NUT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) M12	8-97065-214-0	12	1	1512-		●
85	05.510 NUT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 343MM(8BW) M14	1-09400-077-1	08	1	1512-		●
86	05.510 WASHER; PL,DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) ID=12.5 OD=22 T=2	8-97047-294-0	12	1	1512-		●
88	05.506 PLATE; LK,ADJ NUT G.V.W. 4.0-4.5TON(RPR) (A)	8-97027-281-0	AR	1	1512-	●
88	05.506 PLATE; LK,ADJ NUT G.V.W. 4.0-4.5TON(RPR) (B)	8-97027-282-0	AR	1	1512-	●
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 320MM(6CP) (D) T=2.3	8-97087-821-0	AR	1	1512-		●
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 320MM(6CP) (C) T=2.3	9-41124-015-0	AR	1	1512-		●
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 343MM(8BW) (C) T=2.3	9-41124-015-0	02	1	1512-		●
89	05.506 BOLT; LK PLATE G.V.W. 4.0-4.5TON(RPR) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1512-	●
89	05.506 BOLT; LK PLATE REAR AXLE HEAVY DUTY 320MM(6CP) 02.343 M8X16 FLANGE	0-28050-816-0	04	1	1512-		●
89	05.506 BOLT; LK PLATE REAR AXLE HEAVY DUTY 343MM(8BW) M8X16	0-20850-816-0	04	1	1512-		●
100	05.469 SEAL; OIL,FINAL PINION G.V.W. 4.0-4.5TON(RPR) OD=103	8-94408-083-0	01	1	1512-	●
100	05.469 SEAL; OIL,FINAL PINION G.V.W. 3.0-3.5TON(RPP) NOK	8-97328-648-0	01	1	1512-	●
100	05.469 SEAL; OIL,FINAL PINION NOK	1-09625-484-1	01	1	1512-		●
100	05.469 SEAL; OIL,FINAL PINION REAR AXLE HEAVY DUTY 343MM(8BW) TKK	1-09625-637-0	01	1	1512-		●

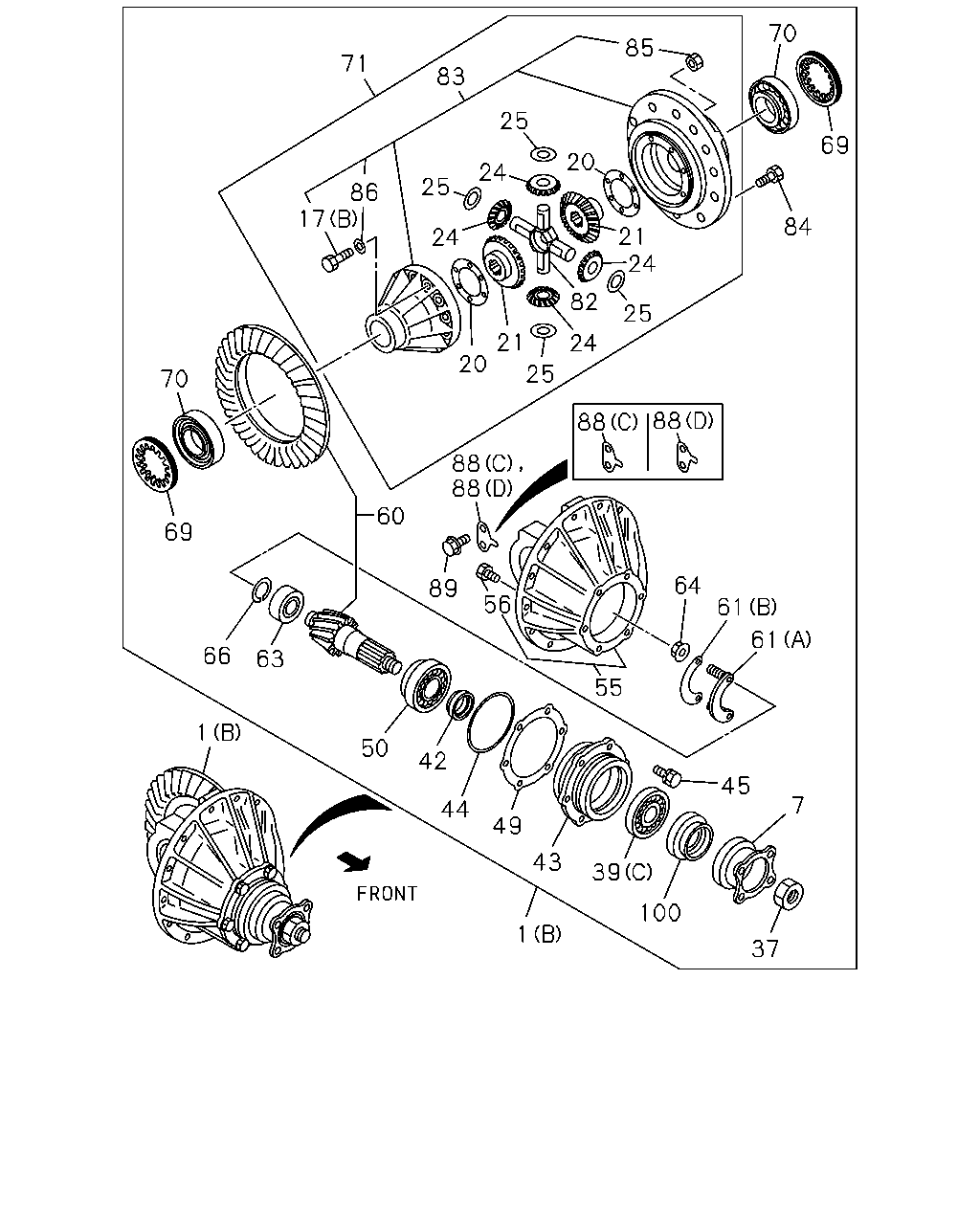

71 83 24 24 20 21 24 82 24 21 20 85 84 70 69 17 70 69 66 63 50 42 44 49 43 46 50 7 37 1 1 88 89 60 89 88 56 55 64 61 61 45 100

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/7(R41) (A) 41/7	8-98015-142-0	01	1	1512-	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/8(R40) (B) 43/8	8-98065-942-0	01	1	1512-		●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/10(GT5) (A) 41/10	8-98015-135-0	01	1	1512-	●

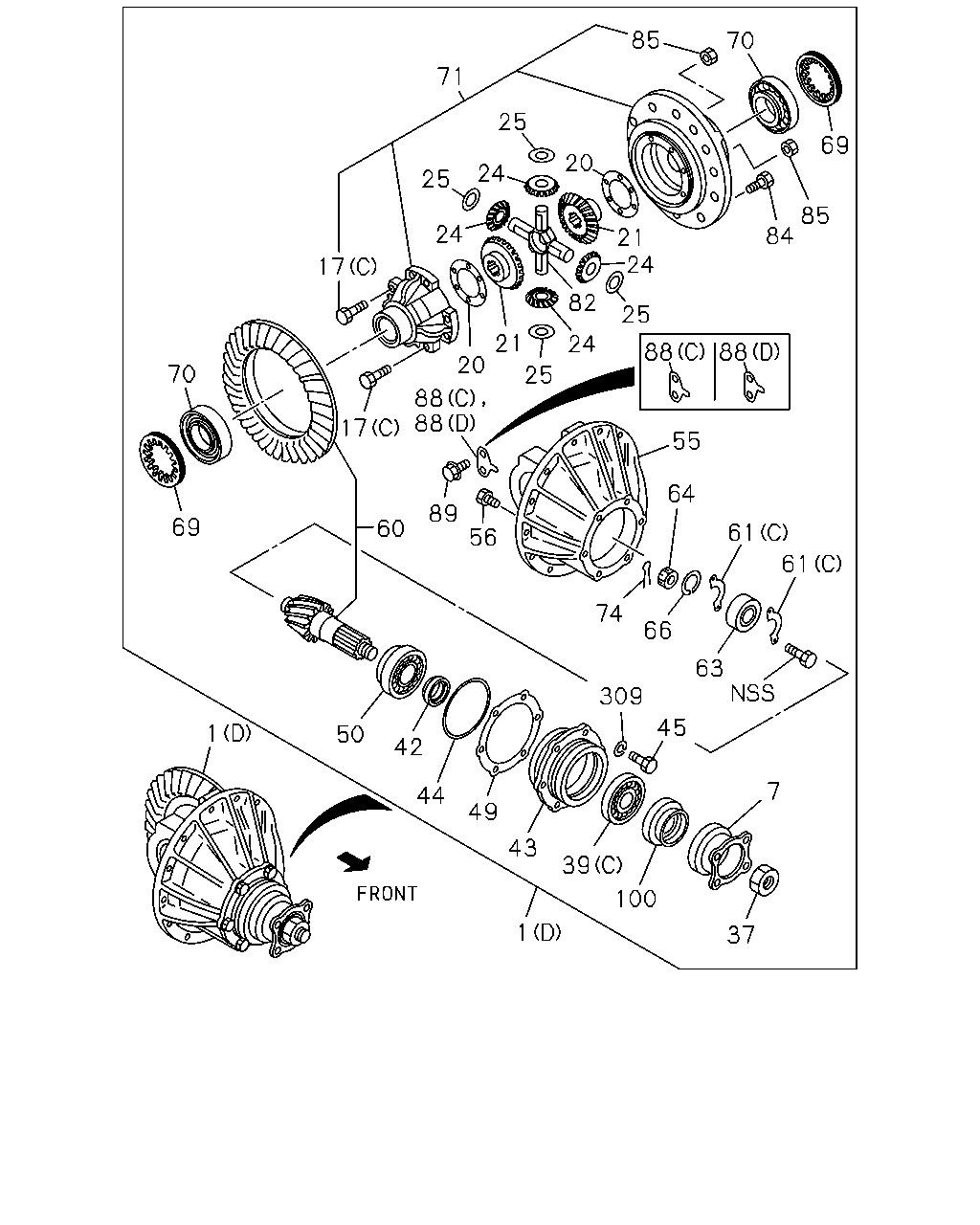

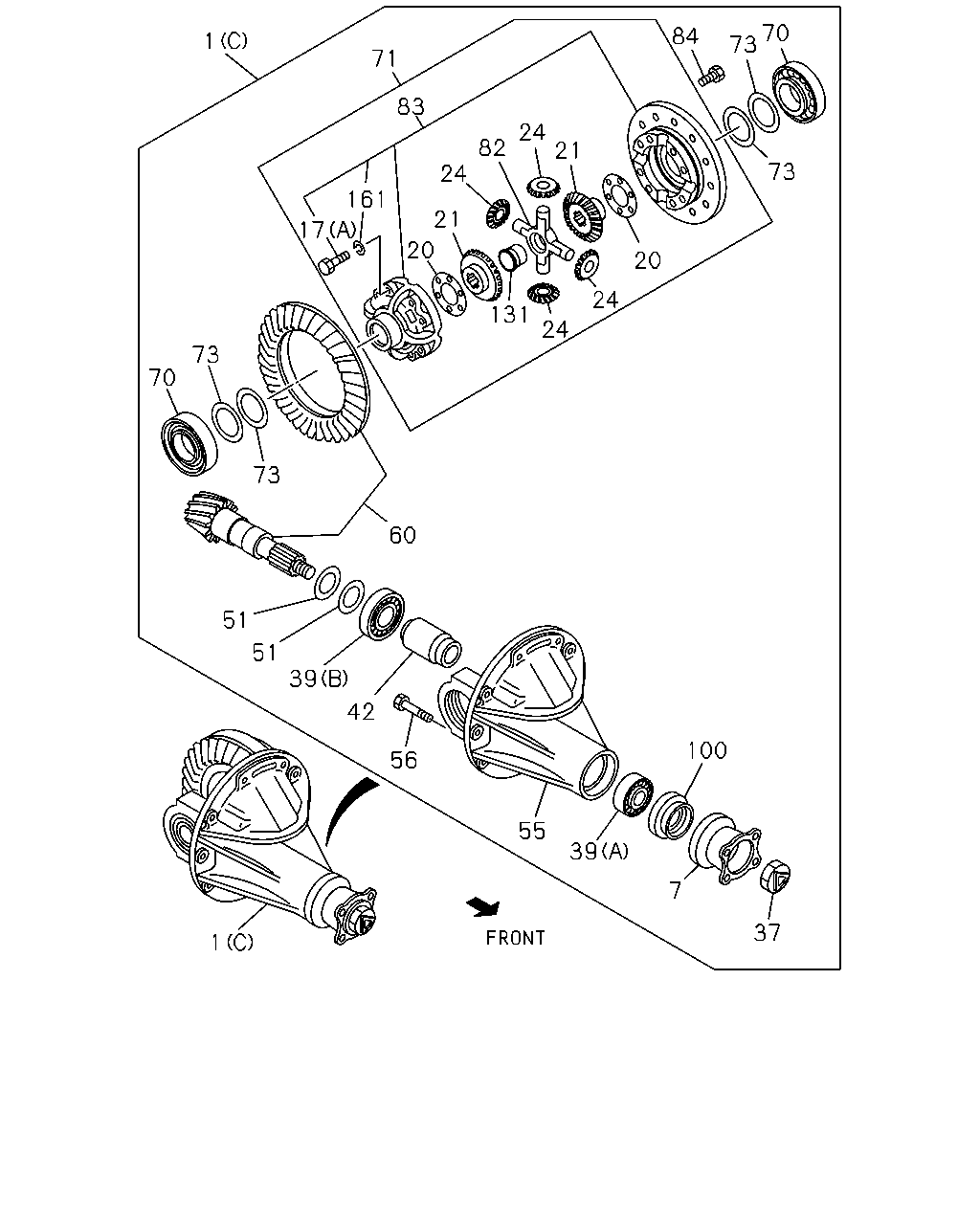

1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/9(HC6) (A) 41/9	8-98015-137-0	01	1	1512-	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/8(RU1) (A) 41/8	8-98015-139-0	01	1	1512-	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/9(S2J) (A)	8-98015-380-0	01	1	1512-	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/10(S7C) (A) 43/10	8-98015-136-0	01	1	1512-	●
1	05.505 DRIVE ASM; FINAL,RR G.V.W. 3.0-3.5TON(RPP) (C) 39/8	8-97367-500-0	01	1	1512-	●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/7(R41) (B) 41/7 IDN	8-97094-682-0	01	1	1512-		●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) (B) 43/7	8-97094-684-0	01	1	1512-		●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 39/6(R43) (B) 39/6	8-97209-167-0	01	1	1512-		●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 343MM(8BW) FINAL GEAR RATIO 41/7(R41) (D) 41/7	8-98322-554-0	01	1	1512-		●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 343MM(8BW) FINAL GEAR RATIO 43/7(R42) (D) 43/7	8-98322-555-0	01	1	1512-		●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 343MM(8BW) FINAL GEAR RATIO 39/6(R43) (D) 39/6	8-98321-280-0	01	1	1512-		●
7	05.545 FLANGE; FINAL G.V.W. 4.0-4.5TON(RPR)	8-94477-723-4	01	1	1512-	●
7	05.545 FLANGE; FINAL G.V.W. 3.0-3.5TON(RPP)	8-97075-216-3	01	1	1512-	●
7	05.545 FLANGE; FINAL REAR AXLE HEAVY DUTY 320MM(6CP)	8-97073-802-2	01	1	1512-		●
7	05.545 FLANGE; FINAL REAR AXLE HEAVY DUTY 343MM(8BW)	8-98321-245-0	01	1	1512-		●
17	05.510 BOLT; DIFF CAGE SETTING G.V.W. 4.0-4.5TON(RPR) (A) M10X75 FLANGE	8-97232-161-0	12	1	1512-	●
17	05.510 BOLT; DIFF CAGE SETTING G.V.W. 3.0-3.5TON(RPP) 05.650 (A) M12X58	8-97314-497-0	08	1	1512-	●
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) (B) M12X90	8-98219-448-0	12	1	1512-		●
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 343MM(8BW) (C) M14X85	1-09044-023-0	08	1	1512-		●
20	05.543 WASHER; THRUST,SIDE GEAR G.V.W. 4.0-4.5TON(RPR) T=1.40	9-41562-601-0	02	1	1512-	●
20	05.543 WASHER; THRUST,SIDE GEAR G.V.W. 3.0-3.5TON(RPP) T=1.00	9-41562-602-0	02	1	1512-	●
20	05.543 WASHER; THRUST,SIDE GEAR T=2.80	1-41562-073-0	AR	1	1512-		●
20	05.543 WASHER; THRUST,SIDE GEAR T=2.90	1-41562-074-0	AR	1	1512-		●
20	05.543 WASHER; THRUST,SIDE GEAR T=3.00	1-41562-075-0	AR	1	1512-		●
20	05.543 WASHER; THRUST,SIDE GEAR T=3.10	1-41562-076-0	AR	1	1512-		●
20	05.543 WASHER; THRUST,SIDE GEAR T=3.20	1-41562-077-0	AR	1	1512-		●
20	05.543 WASHER; THRUST,SIDE GEAR T=3.30	1-41562-078-0	AR	1	1512-		●
20	05.543 WASHER; THRUST,SIDE GEAR T=3.40	1-41562-079-0	AR	1	1512-		●
21	05.528 GEAR; SIDE,DIFF G.V.W. 4.0-4.5TON(RPR) 05.515 Z=20	8-97362-599-1	02	1	1512-	●
21	05.528 GEAR; SIDE,DIFF G.V.W. 3.0-3.5TON(RPP) Z=18	8-98190-383-1	02	1	1512-	●
21	05.528 GEAR; SIDE,DIFF REAR AXLE HEAVY DUTY 320MM(6CP) Z=16	8-98165-935-0	02	1	1512-		●
21	05.528 GEAR; SIDE,DIFF REAR AXLE HEAVY DUTY 343MM(8BW) Z=16	1-41561-150-0	02	1	1512-		●
24	05.526 GEAR; PINION,DIFF G.V.W. 4.0-4.5TON(RPR) Z=10	8-98015-202-0	04	1	1512-	●
24	05.526 GEAR; PINION,DIFF G.V.W. 3.0-3.5TON(RPP) Z=10	8-98186-829-0	04	1	1512-	●
24	05.526 GEAR; PINION,DIFF Z=10	1-41551-050-0	04	1	1512-		●
37	05.595 NUT; DRIVING PINION G.V.W. 4.0-4.5TON(RPR) M24 FLANGE	8-94329-526-1	01	1	1512-	●
37	05.595 NUT; DRIVING PINION G.V.W. 3.0-3.5TON(RPP) M24 FLANGE	8-94376-261-1	01	1	1512-	●
37	05.595 NUT; DRIVING PINION REAR AXLE HEAVY DUTY 320MM(6CP) M30 FLANGE	8-97047-146-0	01	1	1512-		●
37	05.595 NUT; DRIVING PINION REAR AXLE HEAVY DUTY 343MM(8BW) M30 FLANGE	1-09449-066-1	01	1	1512-		●
42	05.453 COLLAR; DIST,COLLAPSIBLE G.V.W. 4.0-4.5TON(RPR) L=19.6	9-41219-603-1	01	1	1512-	●
42	05.453 COLLAR; DIST,COLLAPSIBLE G.V.W. 3.0-3.5TON(RPP) L=53.35	9-41219-634-1	01	1	1512-	●
42	05.453 COLLAR; DIST,COLLAPSIBLE REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-097-0	01	1	1512-		●
42	05.453 COLLAR; DIST,COLLAPSIBLE REAR AXLE HEAVY DUTY 343MM(8BW) T=15.75	1-41219-004-0	01	1	1512-		●
43	05.453 CAGE; FINAL PINION G.V.W. 4.0-4.5TON(RPR)	8-94400-890-0	01	1	1512-	●
43	05.453 CAGE; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-098-0	01	1	1512-		●
43	05.453 CAGE; FINAL PINION REAR AXLE HEAVY DUTY 343MM(8BW)	1-41151-063-0	01	1	1512-		●
44	05.476 GASKET; PINION CAGE G.V.W. 4.0-4.5TON(RPR) 05.458	9-09720-505-0	01	1	1512-	●
44	05.476 GASKET; PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP)	8-97048-053-0	01	1	1512-		●
44	05.476 GASKET; PINION CAGE REAR AXLE HEAVY DUTY 343MM(8BW) 05.595 ID=35.7 T=5	1-09623-379-0	01	1	1512-		●
45	05.453 BOLT; FINAL PINION CAGE G.V.W. 4.0-4.5TON(RPR) M12X38 W/LK WASHER	8-98221-264-0	05	1	1512-	●
45	05.453 BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) M12X40 W/LK WASHER	8-98220-227-0	06	1	1512-		●
45	05.453 BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 343MM(8BW) M12X40	9-02361-240-0	06	1	1512-		●
46	05.453 BOLT G.V.W. 4.0-4.5TON(RPR) M14X35 W/LK WASHER	0-50551-435-0	01	1	1512-	●
49	05.458 SHIM; FINAL PINION CAGE G.V.W. 4.0-4.5TON(RPR) ID=132 T=0.10	8-94401-335-0	AR	1	1512-	●
49	05.458 SHIM; FINAL PINION CAGE G.V.W. 4.0-4.5TON(RPR) ID=132 T=0.12	8-94401-336-0	AR	1	1512-	●
49	05.458 SHIM; FINAL PINION CAGE G.V.W. 4.0-4.5TON(RPR) ID=132 T=0.14	8-94401-337-0	AR	1	1512-	●
49	05.458 SHIM; FINAL PINION CAGE G.V.W. 4.0-4.5TON(RPR) ID=132 T=0.16	8-94401-338-0	AR	1	1512-	●
49	05.458 SHIM; FINAL PINION CAGE G.V.W. 4.0-4.5TON(RPR) ID=132 T=0.18	8-94401-339-0	AR	1	1512-	●
49	05.458 SHIM; FINAL PINION CAGE G.V.W. 4.0-4.5TON(RPR) ID=132 T=0.20	8-94401-340-0	AR	1	1512-	●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.12	8-97047-298-0	AR	1	1512-		●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.15	8-97047-299-0	AR	1	1512-		●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.20	8-97047-300-0	AR	1	1512-		●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.25	8-97048-418-0	AR	1	1512-		●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) 05.528 ID=142 T=0.50	8-97048-419-0	AR	1	1512-		●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 343MM(8BW) T=0.50	1-41154-021-1	AR	1	1512-		●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 343MM(8BW) T=0.30	1-41154-051-1	AR	1	1512-		●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 343MM(8BW) T=0.40	1-41154-052-1	AR	1	1512-		●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 343MM(8BW) T=1.00	1-41154-053-1	AR	1	1512-		●
50	05.447 BEARING; FINAL PINION G.V.W. 4.0-4.5TON(RPR) 05.484 JTEKT	5-09812-062-1	02	1	1512-	●
50	05.447 BEARING; FINAL PINION G.V.W. 4.0-4.5TON(RPR) 05.484 NSK	5-09812-063-0	02	1	1512-	●
50	05.447 BEARING; FINAL PINION 05.484 NSK	1-09812-041-2	01	1	1512-		●
50	05.447 BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	1512-		●
55	05.505 CARRIER; DIFF G.V.W. 4.0-4.5TON(RPR)	8-97307-760-0	01	1	1512-	●
55	05.505 CARRIER; DIFF G.V.W. 3.0-3.5TON(RPP)	8-94376-227-3	01	1	1512-	●
55	05.505 CARRIER; DIFF REAR AXLE HEAVY DUTY 320MM(6CP)	8-97094-637-0	01	1	1512-		●
55	05.505 CARRIER; DIFF REAR AXLE HEAVY DUTY 343MM(8BW)	1-41110-105-0	01	1	1512-		●
56	05.506 BOLT; BRG CAP 05.387 M14X80	8-94365-377-3	04	1	1512-	●
56	05.506 BOLT; BRG CAP M14X95 FLANGE	1-09070-027-0	04	1	1512-		●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/7(R41) 41/7	8-98092-031-1	01	1	1512-	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/8(R40) 43/8	8-98043-095-0	01	1	1512-		●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/10(GT5) 41/10	8-98092-055-0	01	1	1512-	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/9(HC6) 41/9	8-98092-049-0	01	1	1512-	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/8(RU1) 41/8	8-97319-158-0	01	1	1512-	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/9(S2J) 43/9	8-97319-157-0	01	1	1512-	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/10(S7C) 43/10	8-98092-052-0	01	1	1512-	●
60	05.529 GEAR SET; FINAL DRIVE,RR G.V.W. 3.0-3.5TON(RPP) 39/8	8-97035-431-0	01	1	1512-	●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/7(R41) 41/7	8-97083-126-0	01	1	1512-		●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) 43/7	8-97092-946-0	01	1	1512-		●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 39/6(R43) 39/6	8-97209-168-0	01	1	1512-		●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 343MM(8BW) FINAL GEAR RATIO 41/7(R41) 41/7	1-41210-530-0	01	1	1512-		●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 343MM(8BW) FINAL GEAR RATIO 43/7(R42),FINAL GEAR RATIO 39/6(R43) 43/7	1-41210-531-0	01	1	1512-		●
61	05.476 RETAINER; PILOT BRG,PINION G.V.W. 4.0-4.5TON(RPR) (A) W/STUD	5-41227-001-0	01	1	1512-	●
61	05.476 RETAINER; PILOT BRG,PINION G.V.W. 4.0-4.5TON(RPR) (B)	9-41227-601-0	01	1	1512-	●
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 320MM(6CP) (A) W/STUD	8-97047-149-0	01	1	1512-		●
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 320MM(6CP) (B)	8-97047-150-0	01	1	1512-		●
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 343MM(8BW) (C)	9-41227-006-0	02	1	1512-		●
63	05.447 BEARING; PINION PILOT G.V.W. 4.0-4.5TON(RPR) NSK	5-09810-008-1	01	1	1512-	●
63	05.447 BEARING; PINION PILOT G.V.W. 4.0-4.5TON(RPR) JTEKT	8-97107-548-0	01	1	1512-	●
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 320MM(6CP) NSK	8-97047-296-0	01	1	1512-		●
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 320MM(6CP) JTEKT	8-97047-928-0	01	1	1512-		●
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 343MM(8BW) NSK	1-09810-062-1	01	1	1512-		●
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 343MM(8BW) JTEKT	1-09810-063-2	01	1	1512-		●
64	05.476 NUT; RET G.V.W. 4.0-4.5TON(RPR) 01.062 M6 FLANGE IDN	0-91180-106-0	02	1	1512-	●
64	05.476 NUT; RET REAR AXLE HEAVY DUTY 320MM(6CP) 01.062 M6 FLANGE IDN	0-91180-106-0	02	1	1512-		●
64	05.476 NUT; RET REAR AXLE HEAVY DUTY 343MM(8BW) M8 SLOTTED	0-91117-508-0	02	1	1512-		●
66	05.476 RING; SNAP,PILOT BRG G.V.W. 4.0-4.5TON(RPR)	9-09752-002-0	01	1	1512-	●
66	05.476 RING; SNAP,PILOT BRG REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-297-0	01	1	1512-		●
66	05.476 RING; SNAP,PILOT BRG REAR AXLE HEAVY DUTY 343MM(8BW) OD=32.2	1-09588-065-2	01	1	1512-		●
69	05.506 NUT; ADJ,DIFF CAGE G.V.W. 4.0-4.5TON(RPR) M110 H=10	5-41121-001-0	02	1	1512-	●
69	05.506 NUT; ADJ,DIFF CAGE REAR AXLE HEAVY DUTY 320MM(6CP) M115 H=20	1-41121-039-0	02	1	1512-		●
69	05.506 NUT; ADJ,DIFF CAGE REAR AXLE HEAVY DUTY 343MM(8BW) M115 H=26	1-41121-028-0	01	1	1512-		●
69	05.506 NUT; ADJ,DIFF CAGE REAR AXLE HEAVY DUTY 343MM(8BW) M115 H=20	1-41121-039-0	01	1	1512-		●
70	05.536 BEARING; DIFF CAGE G.V.W. 4.0-4.5TON(RPR) NSK	9-00093-602-0	02	1	1512-	●
70	05.536 BEARING; DIFF CAGE G.V.W. 3.0-3.5TON(RPP) JTEKT	8-98003-043-0	02	1	1512-	●
70	05.536 BEARING; DIFF CAGE G.V.W. 3.0-3.5TON(RPP) NSK	9-00032-211-0	02	1	1512-	●
70	05.536 BEARING; DIFF CAGE JTEKT ID=66.7 OD=113 T=30	9-00093-130-0	02	1	1512-		●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE G.V.W. 3.0-3.5TON(RPP)	8-98191-997-1	01	1	1512-	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-100-4	01	1	1512-		●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 343MM(8BW)	1-41510-298-0	01	1	1512-		●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43/9(S2J), FINAL GEAR RATIO 43/10(S7C) G.V.W. 4.0-4.5TON(RPR)	8-98015-181-1	01	1	1512-	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 41/7(R41) G.V.W. 4.0-4.5TON(RPR)	8-98015-182-1	01	1	1512-	●
82	05.517 SPIDER; DIFF PINION G.V.W. 4.0-4.5TON(RPR) 05.520	5-41521-008-0	01	1	1512-	●
82	05.517 SPIDER; DIFF PINION G.V.W. 3.0-3.5TON(RPP)	5-41521-006-0	01	1	1512-	●
82	05.517 SPIDER; DIFF PINION 05.520	1-41521-035-2	01	1	1512-		●
83	05.510 CAGE ASM; DIFF G.V.W. 3.0-3.5TON(RPP)	9-41510-610-0	01	1	1512-	●
83	05.510 CAGE ASM; DIFF REAR AXLE HEAVY DUTY 320MM(6CP)	8-98219-707-0	01	1	1512-		●
83	05.510 CAGE ASM; DIFF FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43/9(S2J), FINAL GEAR RATIO 43/10(S7C) G.V.W. 4.0-4.5TON(RPR)	8-97319-398-1	01	1	1512-	●
83	05.510 CAGE ASM; DIFF FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 41/7(R41) G.V.W. 4.0-4.5TON(RPR)	8-97319-396-1	01	1	1512-	●
84	05.531 BOLT; FINAL DRIVE GEAR G.V.W. 4.0-4.5TON(RPR) M14X25	8-97318-938-1	12	1	1512-	●
84	05.531 BOLT; FINAL DRIVE GEAR G.V.W. 3.0-3.5TON(RPP) M12X25	9-09606-505-2	12	1	1512-	●
84	05.531 BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) M16X30	8-97047-147-0	12	1	1512-		●
84	05.531 BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 343MM(8BW) M14X29.5 FLANGE	1-09070-085-0	16	1	1512-		●
85	05.510 NUT; DIFF CAGE SETTING G.V.W. 4.0-4.5TON(RPR) 04.085 M10 FLANGE	0-91180-210-0	12	1	1512-	●
85	05.510 NUT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) M12	8-97065-214-0	12	1	1512-		●
85	05.510 NUT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 343MM(8BW) M14	1-09400-077-1	08	1	1512-		●
88	05.506 PLATE; LK,ADJ NUT G.V.W. 4.0-4.5TON(RPR) (A)	8-97027-281-0	AR	1	1512-	●
88	05.506 PLATE; LK,ADJ NUT G.V.W. 4.0-4.5TON(RPR) (B)	8-97027-282-0	AR	1	1512-	●
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 320MM(6CP) (D) T=2.3	8-97087-821-0	AR	1	1512-		●
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 320MM(6CP) (C) T=2.3	9-41124-015-0	AR	1	1512-		●
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 343MM(8BW) (C) T=2.3	9-41124-015-0	02	1	1512-		●
89	05.506 BOLT; LK PLATE G.V.W. 4.0-4.5TON(RPR) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1512-	●
89	05.506 BOLT; LK PLATE REAR AXLE HEAVY DUTY 320MM(6CP) 02.343 M8X16 FLANGE	0-28050-816-0	04	1	1512-		●
89	05.506 BOLT; LK PLATE REAR AXLE HEAVY DUTY 343MM(8BW) M8X16	0-20850-816-0	04	1	1512-		●
100	05.469 SEAL; OIL,FINAL PINION G.V.W. 4.0-4.5TON(RPR) OD=103	8-94408-083-0	01	1	1512-	●
100	05.469 SEAL; OIL,FINAL PINION G.V.W. 3.0-3.5TON(RPP) NOK	8-97328-648-0	01	1	1512-	●
100	05.469 SEAL; OIL,FINAL PINION NOK	1-09625-484-1	01	1	1512-		●
100	05.469 SEAL; OIL,FINAL PINION REAR AXLE HEAVY DUTY 343MM(8BW) TKK	1-09625-637-0	01	1	1512-		●

71 25 24 24 25 20 21 24 25 82 24 25 21 20 88 88 89 56 60 17 17 70 69 88 88 84 85 69 70 85 55 64 61 61 63 66 74 309 45 7 39 100 37 1 43 49 44 42 50 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/7(R41) (A) 41/7	8-98015-142-0	01	1	1512-	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/8(R40) (B) 43/8	8-98065-942-0	01	1	1512-		●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/10(GT5) (A) 41/10	8-98015-135-0	01	1	1512-	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/9(HC6) (A) 41/9	8-98015-137-0	01	1	1512-	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/8(RU1) (A) 41/8	8-98015-139-0	01	1	1512-	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/9(S2J) (A)	8-98015-380-0	01	1	1512-	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/10(S7C) (A) 43/10	8-98015-136-0	01	1	1512-	●
1	05.505 DRIVE ASM; FINAL,RR G.V.W. 3.0-3.5TON(RPP) (C) 39/8	8-97367-500-0	01	1	1512-	●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/7(R41) (B) 41/7 IDN	8-97094-682-0	01	1	1512-		●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) (B) 43/7	8-97094-684-0	01	1	1512-		●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 39/6(R43) (B) 39/6	8-97209-167-0	01	1	1512-		●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 343MM(8BW) FINAL GEAR RATIO 41/7(R41) (D) 41/7	8-98322-554-0	01	1	1512-		●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 343MM(8BW) FINAL GEAR RATIO 43/7(R42) (D) 43/7	8-98322-555-0	01	1	1512-		●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 343MM(8BW) FINAL GEAR RATIO 39/6(R43) (D) 39/6	8-98321-280-0	01	1	1512-		●
7	05.545 FLANGE; FINAL G.V.W. 4.0-4.5TON(RPR)	8-94477-723-4	01	1	1512-	●
7	05.545 FLANGE; FINAL G.V.W. 3.0-3.5TON(RPP)	8-97075-216-3	01	1	1512-	●
7	05.545 FLANGE; FINAL REAR AXLE HEAVY DUTY 320MM(6CP)	8-97073-802-2	01	1	1512-		●
7	05.545 FLANGE; FINAL REAR AXLE HEAVY DUTY 343MM(8BW)	8-98321-245-0	01	1	1512-		●
17	05.510 BOLT; DIFF CAGE SETTING G.V.W. 4.0-4.5TON(RPR) (A) M10X75 FLANGE	8-97232-161-0	12	1	1512-	●
17	05.510 BOLT; DIFF CAGE SETTING G.V.W. 3.0-3.5TON(RPP) 05.650 (A) M12X58	8-97314-497-0	08	1	1512-	●
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) (B) M12X90	8-98219-448-0	12	1	1512-		●
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 343MM(8BW) (C) M14X85	1-09044-023-0	08	1	1512-		●
20	05.543 WASHER; THRUST,SIDE GEAR G.V.W. 4.0-4.5TON(RPR) T=1.40	9-41562-601-0	02	1	1512-	●
20	05.543 WASHER; THRUST,SIDE GEAR G.V.W. 3.0-3.5TON(RPP) T=1.00	9-41562-602-0	02	1	1512-	●
20	05.543 WASHER; THRUST,SIDE GEAR T=2.80	1-41562-073-0	AR	1	1512-		●
20	05.543 WASHER; THRUST,SIDE GEAR T=2.90	1-41562-074-0	AR	1	1512-		●
20	05.543 WASHER; THRUST,SIDE GEAR T=3.00	1-41562-075-0	AR	1	1512-		●
20	05.543 WASHER; THRUST,SIDE GEAR T=3.10	1-41562-076-0	AR	1	1512-		●
20	05.543 WASHER; THRUST,SIDE GEAR T=3.20	1-41562-077-0	AR	1	1512-		●
20	05.543 WASHER; THRUST,SIDE GEAR T=3.30	1-41562-078-0	AR	1	1512-		●
20	05.543 WASHER; THRUST,SIDE GEAR T=3.40	1-41562-079-0	AR	1	1512-		●
21	05.528 GEAR; SIDE,DIFF G.V.W. 4.0-4.5TON(RPR) 05.515 Z=20	8-97362-599-1	02	1	1512-	●
21	05.528 GEAR; SIDE,DIFF G.V.W. 3.0-3.5TON(RPP) Z=18	8-98190-383-1	02	1	1512-	●
21	05.528 GEAR; SIDE,DIFF REAR AXLE HEAVY DUTY 320MM(6CP) Z=16	8-98165-935-0	02	1	1512-		●
21	05.528 GEAR; SIDE,DIFF REAR AXLE HEAVY DUTY 343MM(8BW) Z=16	1-41561-150-0	02	1	1512-		●
24	05.526 GEAR; PINION,DIFF G.V.W. 4.0-4.5TON(RPR) Z=10	8-98015-202-0	04	1	1512-	●
24	05.526 GEAR; PINION,DIFF G.V.W. 3.0-3.5TON(RPP) Z=10	8-98186-829-0	04	1	1512-	●
24	05.526 GEAR; PINION,DIFF Z=10	1-41551-050-0	04	1	1512-		●
25	05.528 WASHER; THRUST,PINION	1-41552-020-0	04	1	1512-		●
37	05.595 NUT; DRIVING PINION G.V.W. 4.0-4.5TON(RPR) M24 FLANGE	8-94329-526-1	01	1	1512-	●
37	05.595 NUT; DRIVING PINION G.V.W. 3.0-3.5TON(RPP) M24 FLANGE	8-94376-261-1	01	1	1512-	●
37	05.595 NUT; DRIVING PINION REAR AXLE HEAVY DUTY 320MM(6CP) M30 FLANGE	8-97047-146-0	01	1	1512-		●
37	05.595 NUT; DRIVING PINION REAR AXLE HEAVY DUTY 343MM(8BW) M30 FLANGE	1-09449-066-1	01	1	1512-		●
39	05.484 BEARING; FINAL PINION G.V.W. 3.0-3.5TON(RPP) (A) NSK	9-00093-078-0	01	1	1512-	●
39	05.484 BEARING; FINAL PINION G.V.W. 3.0-3.5TON(RPP) 05.447 (B) JTEKT	9-00093-079-1	01	1	1512-	●
39	05.484 BEARING; FINAL PINION (C) JTEKT	5-09812-062-1	01	1	1512-		●
39	05.484 BEARING; FINAL PINION (C) NSK	5-09812-063-0	01	1	1512-		●
42	05.453 COLLAR; DIST,COLLAPSIBLE G.V.W. 4.0-4.5TON(RPR) L=19.6	9-41219-603-1	01	1	1512-	●
42	05.453 COLLAR; DIST,COLLAPSIBLE G.V.W. 3.0-3.5TON(RPP) L=53.35	9-41219-634-1	01	1	1512-	●
42	05.453 COLLAR; DIST,COLLAPSIBLE REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-097-0	01	1	1512-		●
42	05.453 COLLAR; DIST,COLLAPSIBLE REAR AXLE HEAVY DUTY 343MM(8BW) T=15.75	1-41219-004-0	01	1	1512-		●
43	05.453 CAGE; FINAL PINION G.V.W. 4.0-4.5TON(RPR)	8-94400-890-0	01	1	1512-	●
43	05.453 CAGE; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-098-0	01	1	1512-		●
43	05.453 CAGE; FINAL PINION REAR AXLE HEAVY DUTY 343MM(8BW)	1-41151-063-0	01	1	1512-		●
44	05.476 GASKET; PINION CAGE G.V.W. 4.0-4.5TON(RPR) 05.458	9-09720-505-0	01	1	1512-	●
44	05.476 GASKET; PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP)	8-97048-053-0	01	1	1512-		●
44	05.476 GASKET; PINION CAGE REAR AXLE HEAVY DUTY 343MM(8BW) 05.595 ID=35.7 T=5	1-09623-379-0	01	1	1512-		●
45	05.453 BOLT; FINAL PINION CAGE G.V.W. 4.0-4.5TON(RPR) M12X38 W/LK WASHER	8-98221-264-0	05	1	1512-	●
45	05.453 BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) M12X40 W/LK WASHER	8-98220-227-0	06	1	1512-		●
45	05.453 BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 343MM(8BW) M12X40	9-02361-240-0	06	1	1512-		●
49	05.458 SHIM; FINAL PINION CAGE G.V.W. 4.0-4.5TON(RPR) ID=132 T=0.10	8-94401-335-0	AR	1	1512-	●
49	05.458 SHIM; FINAL PINION CAGE G.V.W. 4.0-4.5TON(RPR) ID=132 T=0.12	8-94401-336-0	AR	1	1512-	●
49	05.458 SHIM; FINAL PINION CAGE G.V.W. 4.0-4.5TON(RPR) ID=132 T=0.14	8-94401-337-0	AR	1	1512-	●
49	05.458 SHIM; FINAL PINION CAGE G.V.W. 4.0-4.5TON(RPR) ID=132 T=0.16	8-94401-338-0	AR	1	1512-	●
49	05.458 SHIM; FINAL PINION CAGE G.V.W. 4.0-4.5TON(RPR) ID=132 T=0.18	8-94401-339-0	AR	1	1512-	●
49	05.458 SHIM; FINAL PINION CAGE G.V.W. 4.0-4.5TON(RPR) ID=132 T=0.20	8-94401-340-0	AR	1	1512-	●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.12	8-97047-298-0	AR	1	1512-		●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.15	8-97047-299-0	AR	1	1512-		●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.20	8-97047-300-0	AR	1	1512-		●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.25	8-97048-418-0	AR	1	1512-		●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) 05.528 ID=142 T=0.50	8-97048-419-0	AR	1	1512-		●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 343MM(8BW) T=0.50	1-41154-021-1	AR	1	1512-		●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 343MM(8BW) T=0.30	1-41154-051-1	AR	1	1512-		●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 343MM(8BW) T=0.40	1-41154-052-1	AR	1	1512-		●
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 343MM(8BW) T=1.00	1-41154-053-1	AR	1	1512-		●
50	05.447 BEARING; FINAL PINION G.V.W. 4.0-4.5TON(RPR) 05.484 JTEKT	5-09812-062-1	02	1	1512-	●
50	05.447 BEARING; FINAL PINION G.V.W. 4.0-4.5TON(RPR) 05.484 NSK	5-09812-063-0	02	1	1512-	●
50	05.447 BEARING; FINAL PINION 05.484 NSK	1-09812-041-2	01	1	1512-		●
50	05.447 BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	1512-		●
55	05.505 CARRIER; DIFF G.V.W. 4.0-4.5TON(RPR)	8-97307-760-0	01	1	1512-	●
55	05.505 CARRIER; DIFF G.V.W. 3.0-3.5TON(RPP)	8-94376-227-3	01	1	1512-	●
55	05.505 CARRIER; DIFF REAR AXLE HEAVY DUTY 320MM(6CP)	8-97094-637-0	01	1	1512-		●
55	05.505 CARRIER; DIFF REAR AXLE HEAVY DUTY 343MM(8BW)	1-41110-105-0	01	1	1512-		●
56	05.506 BOLT; BRG CAP 05.387 M14X80	8-94365-377-3	04	1	1512-	●
56	05.506 BOLT; BRG CAP M14X95 FLANGE	1-09070-027-0	04	1	1512-		●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/7(R41) 41/7	8-98092-031-1	01	1	1512-	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/8(R40) 43/8	8-98043-095-0	01	1	1512-		●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/10(GT5) 41/10	8-98092-055-0	01	1	1512-	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/9(HC6) 41/9	8-98092-049-0	01	1	1512-	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/8(RU1) 41/8	8-97319-158-0	01	1	1512-	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/9(S2J) 43/9	8-97319-157-0	01	1	1512-	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/10(S7C) 43/10	8-98092-052-0	01	1	1512-	●
60	05.529 GEAR SET; FINAL DRIVE,RR G.V.W. 3.0-3.5TON(RPP) 39/8	8-97035-431-0	01	1	1512-	●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/7(R41) 41/7	8-97083-126-0	01	1	1512-		●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) 43/7	8-97092-946-0	01	1	1512-		●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 39/6(R43) 39/6	8-97209-168-0	01	1	1512-		●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 343MM(8BW) FINAL GEAR RATIO 41/7(R41) 41/7	1-41210-530-0	01	1	1512-		●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 343MM(8BW) FINAL GEAR RATIO 43/7(R42),FINAL GEAR RATIO 39/6(R43) 43/7	1-41210-531-0	01	1	1512-		●
61	05.476 RETAINER; PILOT BRG,PINION G.V.W. 4.0-4.5TON(RPR) (A) W/STUD	5-41227-001-0	01	1	1512-	●
61	05.476 RETAINER; PILOT BRG,PINION G.V.W. 4.0-4.5TON(RPR) (B)	9-41227-601-0	01	1	1512-	●
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 320MM(6CP) (A) W/STUD	8-97047-149-0	01	1	1512-		●
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 320MM(6CP) (B)	8-97047-150-0	01	1	1512-		●
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 343MM(8BW) (C)	9-41227-006-0	02	1	1512-		●
63	05.447 BEARING; PINION PILOT G.V.W. 4.0-4.5TON(RPR) NSK	5-09810-008-1	01	1	1512-	●
63	05.447 BEARING; PINION PILOT G.V.W. 4.0-4.5TON(RPR) JTEKT	8-97107-548-0	01	1	1512-	●
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 320MM(6CP) NSK	8-97047-296-0	01	1	1512-		●
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 320MM(6CP) JTEKT	8-97047-928-0	01	1	1512-		●
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 343MM(8BW) NSK	1-09810-062-1	01	1	1512-		●
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 343MM(8BW) JTEKT	1-09810-063-2	01	1	1512-		●
64	05.476 NUT; RET G.V.W. 4.0-4.5TON(RPR) 01.062 M6 FLANGE IDN	0-91180-106-0	02	1	1512-	●
64	05.476 NUT; RET REAR AXLE HEAVY DUTY 320MM(6CP) 01.062 M6 FLANGE IDN	0-91180-106-0	02	1	1512-		●
64	05.476 NUT; RET REAR AXLE HEAVY DUTY 343MM(8BW) M8 SLOTTED	0-91117-508-0	02	1	1512-		●
66	05.476 RING; SNAP,PILOT BRG G.V.W. 4.0-4.5TON(RPR)	9-09752-002-0	01	1	1512-	●
66	05.476 RING; SNAP,PILOT BRG REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-297-0	01	1	1512-		●
66	05.476 RING; SNAP,PILOT BRG REAR AXLE HEAVY DUTY 343MM(8BW) OD=32.2	1-09588-065-2	01	1	1512-		●
69	05.506 NUT; ADJ,DIFF CAGE G.V.W. 4.0-4.5TON(RPR) M110 H=10	5-41121-001-0	02	1	1512-	●
69	05.506 NUT; ADJ,DIFF CAGE REAR AXLE HEAVY DUTY 320MM(6CP) M115 H=20	1-41121-039-0	02	1	1512-		●
69	05.506 NUT; ADJ,DIFF CAGE REAR AXLE HEAVY DUTY 343MM(8BW) M115 H=26	1-41121-028-0	01	1	1512-		●
69	05.506 NUT; ADJ,DIFF CAGE REAR AXLE HEAVY DUTY 343MM(8BW) M115 H=20	1-41121-039-0	01	1	1512-		●
70	05.536 BEARING; DIFF CAGE G.V.W. 4.0-4.5TON(RPR) NSK	9-00093-602-0	02	1	1512-	●
70	05.536 BEARING; DIFF CAGE G.V.W. 3.0-3.5TON(RPP) JTEKT	8-98003-043-0	02	1	1512-	●
70	05.536 BEARING; DIFF CAGE G.V.W. 3.0-3.5TON(RPP) NSK	9-00032-211-0	02	1	1512-	●
70	05.536 BEARING; DIFF CAGE JTEKT ID=66.7 OD=113 T=30	9-00093-130-0	02	1	1512-		●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE G.V.W. 3.0-3.5TON(RPP)	8-98191-997-1	01	1	1512-	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-100-4	01	1	1512-		●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 343MM(8BW)	1-41510-298-0	01	1	1512-		●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43/9(S2J), FINAL GEAR RATIO 43/10(S7C) G.V.W. 4.0-4.5TON(RPR)	8-98015-181-1	01	1	1512-	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 41/7(R41) G.V.W. 4.0-4.5TON(RPR)	8-98015-182-1	01	1	1512-	●
74	05.518 PIN; LK,CROSS PIN REAR AXLE HEAVY DUTY 343MM(8BW) 05.476	0-81122-012-0	02	1	1512-		●
82	05.517 SPIDER; DIFF PINION G.V.W. 4.0-4.5TON(RPR) 05.520	5-41521-008-0	01	1	1512-	●
82	05.517 SPIDER; DIFF PINION G.V.W. 3.0-3.5TON(RPP)	5-41521-006-0	01	1	1512-	●
82	05.517 SPIDER; DIFF PINION 05.520	1-41521-035-2	01	1	1512-		●
84	05.531 BOLT; FINAL DRIVE GEAR G.V.W. 4.0-4.5TON(RPR) M14X25	8-97318-938-1	12	1	1512-	●
84	05.531 BOLT; FINAL DRIVE GEAR G.V.W. 3.0-3.5TON(RPP) M12X25	9-09606-505-2	12	1	1512-	●
84	05.531 BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) M16X30	8-97047-147-0	12	1	1512-		●
84	05.531 BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 343MM(8BW) M14X29.5 FLANGE	1-09070-085-0	16	1	1512-		●
85	05.510 NUT; DIFF CAGE SETTING G.V.W. 4.0-4.5TON(RPR) 04.085 M10 FLANGE	0-91180-210-0	12	1	1512-	●
85	05.510 NUT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) M12	8-97065-214-0	12	1	1512-		●
85	05.510 NUT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 343MM(8BW) M14	1-09400-077-1	08	1	1512-		●
88	05.506 PLATE; LK,ADJ NUT G.V.W. 4.0-4.5TON(RPR) (A)	8-97027-281-0	AR	1	1512-	●
88	05.506 PLATE; LK,ADJ NUT G.V.W. 4.0-4.5TON(RPR) (B)	8-97027-282-0	AR	1	1512-	●
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 320MM(6CP) (D) T=2.3	8-97087-821-0	AR	1	1512-		●
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 320MM(6CP) (C) T=2.3	9-41124-015-0	AR	1	1512-		●
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 343MM(8BW) (C) T=2.3	9-41124-015-0	02	1	1512-		●
89	05.506 BOLT; LK PLATE G.V.W. 4.0-4.5TON(RPR) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1512-	●
89	05.506 BOLT; LK PLATE REAR AXLE HEAVY DUTY 320MM(6CP) 02.343 M8X16 FLANGE	0-28050-816-0	04	1	1512-		●
89	05.506 BOLT; LK PLATE REAR AXLE HEAVY DUTY 343MM(8BW) M8X16	0-20850-816-0	04	1	1512-		●
100	05.469 SEAL; OIL,FINAL PINION G.V.W. 4.0-4.5TON(RPR) OD=103	8-94408-083-0	01	1	1512-	●
100	05.469 SEAL; OIL,FINAL PINION G.V.W. 3.0-3.5TON(RPP) NOK	8-97328-648-0	01	1	1512-	●
100	05.469 SEAL; OIL,FINAL PINION NOK	1-09625-484-1	01	1	1512-		●
100	05.469 SEAL; OIL,FINAL PINION REAR AXLE HEAVY DUTY 343MM(8BW) TKK	1-09625-637-0	01	1	1512-		●
309	05.453 WASHER; FINAL DRIVE PINION REAR AXLE HEAVY DUTY 343MM(8BW) 03.634 ID=12.2	0-91510-512-0	06	1	1512-		●

1 71 83 24 21 20 161 17 73 73 60 70 51 51 39 42 56 55 39 7 37 100 1 82 24 21 20 24 24 131 84 73 70 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/7(R41) (A) 41/7	8-98015-142-0	01	1	1512-	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/8(R40) (B) 43/8	8-98065-942-0	01	1	1512-		●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/10(GT5) (A) 41/10	8-98015-135-0	01	1	1512-	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/9(HC6) (A) 41/9	8-98015-137-0	01	1	1512-	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/8(RU1) (A) 41/8	8-98015-139-0	01	1	1512-	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/9(S2J) (A)	8-98015-380-0	01	1	1512-	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/10(S7C) (A) 43/10	8-98015-136-0	01	1	1512-	●
1	05.505 DRIVE ASM; FINAL,RR G.V.W. 3.0-3.5TON(RPP) (C) 39/8	8-97367-500-0	01	1	1512-	●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/7(R41) (B) 41/7 IDN	8-97094-682-0	01	1	1512-		●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) (B) 43/7	8-97094-684-0	01	1	1512-		●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 39/6(R43) (B) 39/6	8-97209-167-0	01	1	1512-		●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 343MM(8BW) FINAL GEAR RATIO 41/7(R41) (D) 41/7	8-98322-554-0	01	1	1512-		●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 343MM(8BW) FINAL GEAR RATIO 43/7(R42) (D) 43/7	8-98322-555-0	01	1	1512-		●
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 343MM(8BW) FINAL GEAR RATIO 39/6(R43) (D) 39/6	8-98321-280-0	01	1	1512-		●
7	05.545 FLANGE; FINAL G.V.W. 4.0-4.5TON(RPR)	8-94477-723-4	01	1	1512-	●
7	05.545 FLANGE; FINAL G.V.W. 3.0-3.5TON(RPP)	8-97075-216-3	01	1	1512-	●
7	05.545 FLANGE; FINAL REAR AXLE HEAVY DUTY 320MM(6CP)	8-97073-802-2	01	1	1512-		●
7	05.545 FLANGE; FINAL REAR AXLE HEAVY DUTY 343MM(8BW)	8-98321-245-0	01	1	1512-		●
17	05.510 BOLT; DIFF CAGE SETTING G.V.W. 4.0-4.5TON(RPR) (A) M10X75 FLANGE	8-97232-161-0	12	1	1512-	●
17	05.510 BOLT; DIFF CAGE SETTING G.V.W. 3.0-3.5TON(RPP) 05.650 (A) M12X58	8-97314-497-0	08	1	1512-	●
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) (B) M12X90	8-98219-448-0	12	1	1512-		●
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 343MM(8BW) (C) M14X85	1-09044-023-0	08	1	1512-		●
20	05.543 WASHER; THRUST,SIDE GEAR G.V.W. 4.0-4.5TON(RPR) T=1.40	9-41562-601-0	02	1	1512-	●
20	05.543 WASHER; THRUST,SIDE GEAR G.V.W. 3.0-3.5TON(RPP) T=1.00	9-41562-602-0	02	1	1512-	●
20	05.543 WASHER; THRUST,SIDE GEAR T=2.80	1-41562-073-0	AR	1	1512-		●
20	05.543 WASHER; THRUST,SIDE GEAR T=2.90	1-41562-074-0	AR	1	1512-		●
20	05.543 WASHER; THRUST,SIDE GEAR T=3.00	1-41562-075-0	AR	1	1512-		●
20	05.543 WASHER; THRUST,SIDE GEAR T=3.10	1-41562-076-0	AR	1	1512-		●
20	05.543 WASHER; THRUST,SIDE GEAR T=3.20	1-41562-077-0	AR	1	1512-		●
20	05.543 WASHER; THRUST,SIDE GEAR T=3.30	1-41562-078-0	AR	1	1512-		●
20	05.543 WASHER; THRUST,SIDE GEAR T=3.40	1-41562-079-0	AR	1	1512-		●
21	05.528 GEAR; SIDE,DIFF G.V.W. 4.0-4.5TON(RPR) 05.515 Z=20	8-97362-599-1	02	1	1512-	●
21	05.528 GEAR; SIDE,DIFF G.V.W. 3.0-3.5TON(RPP) Z=18	8-98190-383-1	02	1	1512-	●
21	05.528 GEAR; SIDE,DIFF REAR AXLE HEAVY DUTY 320MM(6CP) Z=16	8-98165-935-0	02	1	1512-		●
21	05.528 GEAR; SIDE,DIFF REAR AXLE HEAVY DUTY 343MM(8BW) Z=16	1-41561-150-0	02	1	1512-		●
24	05.526 GEAR; PINION,DIFF G.V.W. 4.0-4.5TON(RPR) Z=10	8-98015-202-0	04	1	1512-	●
24	05.526 GEAR; PINION,DIFF G.V.W. 3.0-3.5TON(RPP) Z=10	8-98186-829-0	04	1	1512-	●
24	05.526 GEAR; PINION,DIFF Z=10	1-41551-050-0	04	1	1512-		●
37	05.595 NUT; DRIVING PINION G.V.W. 4.0-4.5TON(RPR) M24 FLANGE	8-94329-526-1	01	1	1512-	●
37	05.595 NUT; DRIVING PINION G.V.W. 3.0-3.5TON(RPP) M24 FLANGE	8-94376-261-1	01	1	1512-	●
37	05.595 NUT; DRIVING PINION REAR AXLE HEAVY DUTY 320MM(6CP) M30 FLANGE	8-97047-146-0	01	1	1512-		●
37	05.595 NUT; DRIVING PINION REAR AXLE HEAVY DUTY 343MM(8BW) M30 FLANGE	1-09449-066-1	01	1	1512-		●
39	05.484 BEARING; FINAL PINION G.V.W. 3.0-3.5TON(RPP) (A) NSK	9-00093-078-0	01	1	1512-	●
39	05.484 BEARING; FINAL PINION G.V.W. 3.0-3.5TON(RPP) 05.447 (B) JTEKT	9-00093-079-1	01	1	1512-	●
39	05.484 BEARING; FINAL PINION (C) JTEKT	5-09812-062-1	01	1	1512-		●
39	05.484 BEARING; FINAL PINION (C) NSK	5-09812-063-0	01	1	1512-		●
42	05.453 COLLAR; DIST,COLLAPSIBLE G.V.W. 4.0-4.5TON(RPR) L=19.6	9-41219-603-1	01	1	1512-	●
42	05.453 COLLAR; DIST,COLLAPSIBLE G.V.W. 3.0-3.5TON(RPP) L=53.35	9-41219-634-1	01	1	1512-	●
42	05.453 COLLAR; DIST,COLLAPSIBLE REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-097-0	01	1	1512-		●
42	05.453 COLLAR; DIST,COLLAPSIBLE REAR AXLE HEAVY DUTY 343MM(8BW) T=15.75	1-41219-004-0	01	1	1512-		●
51	05.586 SHIM; PINION,FINAL DRIVE G.V.W. 3.0-3.5TON(RPP) OD=89.5 T=2.12	9-41219-608-0	01	1	1512-	●
51	05.586 SHIM; PINION,FINAL DRIVE G.V.W. 3.0-3.5TON(RPP) OD=89.5 T=2.16	9-41219-610-0	01	1	1512-	●
51	05.586 SHIM; PINION,FINAL DRIVE G.V.W. 3.0-3.5TON(RPP) OD=89.5 T=2.20	9-41219-612-0	01	1	1512-	●
51	05.586 SHIM; PINION,FINAL DRIVE G.V.W. 3.0-3.5TON(RPP) OD=89.5 T=2.24	9-41219-614-0	01	1	1512-	●
51	05.586 SHIM; PINION,FINAL DRIVE G.V.W. 3.0-3.5TON(RPP) OD=89.5 T=2.28	9-41219-616-0	01	1	1512-	●
51	05.586 SHIM; PINION,FINAL DRIVE G.V.W. 3.0-3.5TON(RPP) OD=89.5 T=2.32	9-41219-618-0	01	1	1512-	●
51	05.586 SHIM; PINION,FINAL DRIVE G.V.W. 3.0-3.5TON(RPP) OD=89.5 T=2.36	9-41219-620-0	01	1	1512-	●
51	05.586 SHIM; PINION,FINAL DRIVE G.V.W. 3.0-3.5TON(RPP) OD=89.5 T=2.40	9-41219-622-0	01	1	1512-	●
51	05.586 SHIM; PINION,FINAL DRIVE G.V.W. 3.0-3.5TON(RPP) OD=89.5 T=2.44	9-41219-624-0	01	1	1512-	●
51	05.586 SHIM; PINION,FINAL DRIVE G.V.W. 3.0-3.5TON(RPP) OD=89.5 T=2.48	9-41219-626-0	01	1	1512-	●
51	05.586 SHIM; PINION,FINAL DRIVE G.V.W. 3.0-3.5TON(RPP) OD=89.5 T=2.52	9-41219-628-0	01	1	1512-	●
51	05.586 SHIM; PINION,FINAL DRIVE G.V.W. 3.0-3.5TON(RPP) OD=89.5 T=2.56	9-41219-630-0	01	1	1512-	●
55	05.505 CARRIER; DIFF G.V.W. 4.0-4.5TON(RPR)	8-97307-760-0	01	1	1512-	●
55	05.505 CARRIER; DIFF G.V.W. 3.0-3.5TON(RPP)	8-94376-227-3	01	1	1512-	●
55	05.505 CARRIER; DIFF REAR AXLE HEAVY DUTY 320MM(6CP)	8-97094-637-0	01	1	1512-		●
55	05.505 CARRIER; DIFF REAR AXLE HEAVY DUTY 343MM(8BW)	1-41110-105-0	01	1	1512-		●
56	05.506 BOLT; BRG CAP 05.387 M14X80	8-94365-377-3	04	1	1512-	●
56	05.506 BOLT; BRG CAP M14X95 FLANGE	1-09070-027-0	04	1	1512-		●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/7(R41) 41/7	8-98092-031-1	01	1	1512-	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/8(R40) 43/8	8-98043-095-0	01	1	1512-		●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/10(GT5) 41/10	8-98092-055-0	01	1	1512-	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/9(HC6) 41/9	8-98092-049-0	01	1	1512-	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/8(RU1) 41/8	8-97319-158-0	01	1	1512-	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/9(S2J) 43/9	8-97319-157-0	01	1	1512-	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/10(S7C) 43/10	8-98092-052-0	01	1	1512-	●
60	05.529 GEAR SET; FINAL DRIVE,RR G.V.W. 3.0-3.5TON(RPP) 39/8	8-97035-431-0	01	1	1512-	●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/7(R41) 41/7	8-97083-126-0	01	1	1512-		●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) 43/7	8-97092-946-0	01	1	1512-		●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 39/6(R43) 39/6	8-97209-168-0	01	1	1512-		●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 343MM(8BW) FINAL GEAR RATIO 41/7(R41) 41/7	1-41210-530-0	01	1	1512-		●
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 343MM(8BW) FINAL GEAR RATIO 43/7(R42),FINAL GEAR RATIO 39/6(R43) 43/7	1-41210-531-0	01	1	1512-		●
70	05.536 BEARING; DIFF CAGE G.V.W. 4.0-4.5TON(RPR) NSK	9-00093-602-0	02	1	1512-	●
70	05.536 BEARING; DIFF CAGE G.V.W. 3.0-3.5TON(RPP) JTEKT	8-98003-043-0	02	1	1512-	●
70	05.536 BEARING; DIFF CAGE G.V.W. 3.0-3.5TON(RPP) NSK	9-00032-211-0	02	1	1512-	●
70	05.536 BEARING; DIFF CAGE JTEKT ID=66.7 OD=113 T=30	9-00093-130-0	02	1	1512-		●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE G.V.W. 3.0-3.5TON(RPP)	8-98191-997-1	01	1	1512-	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-100-4	01	1	1512-		●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 343MM(8BW)	1-41510-298-0	01	1	1512-		●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43/9(S2J), FINAL GEAR RATIO 43/10(S7C) G.V.W. 4.0-4.5TON(RPR)	8-98015-181-1	01	1	1512-	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 41/7(R41) G.V.W. 4.0-4.5TON(RPR)	8-98015-182-1	01	1	1512-	●
73	05.537 SHIM; DIFF SIDE BRG G.V.W. 3.0-3.5TON(RPP) T=0.50	9-41519-009-0	AR	1	1512-	●
73	05.537 SHIM; DIFF SIDE BRG G.V.W. 3.0-3.5TON(RPP) T=0.25	9-41519-010-0	AR	1	1512-	●
73	05.537 SHIM; DIFF SIDE BRG G.V.W. 3.0-3.5TON(RPP) T=0.30	9-41519-601-0	AR	1	1512-	●
73	05.537 SHIM; DIFF SIDE BRG G.V.W. 3.0-3.5TON(RPP) T=0.35	9-41519-602-0	AR	1	1512-	●
82	05.517 SPIDER; DIFF PINION G.V.W. 4.0-4.5TON(RPR) 05.520	5-41521-008-0	01	1	1512-	●
82	05.517 SPIDER; DIFF PINION G.V.W. 3.0-3.5TON(RPP)	5-41521-006-0	01	1	1512-	●
82	05.517 SPIDER; DIFF PINION 05.520	1-41521-035-2	01	1	1512-		●
83	05.510 CAGE ASM; DIFF G.V.W. 3.0-3.5TON(RPP)	9-41510-610-0	01	1	1512-	●
83	05.510 CAGE ASM; DIFF REAR AXLE HEAVY DUTY 320MM(6CP)	8-98219-707-0	01	1	1512-		●
83	05.510 CAGE ASM; DIFF FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43/9(S2J), FINAL GEAR RATIO 43/10(S7C) G.V.W. 4.0-4.5TON(RPR)	8-97319-398-1	01	1	1512-	●
83	05.510 CAGE ASM; DIFF FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 41/7(R41) G.V.W. 4.0-4.5TON(RPR)	8-97319-396-1	01	1	1512-	●
84	05.531 BOLT; FINAL DRIVE GEAR G.V.W. 4.0-4.5TON(RPR) M14X25	8-97318-938-1	12	1	1512-	●
84	05.531 BOLT; FINAL DRIVE GEAR G.V.W. 3.0-3.5TON(RPP) M12X25	9-09606-505-2	12	1	1512-	●
84	05.531 BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) M16X30	8-97047-147-0	12	1	1512-		●
84	05.531 BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 343MM(8BW) M14X29.5 FLANGE	1-09070-085-0	16	1	1512-		●
100	05.469 SEAL; OIL,FINAL PINION G.V.W. 4.0-4.5TON(RPR) OD=103	8-94408-083-0	01	1	1512-	●
100	05.469 SEAL; OIL,FINAL PINION G.V.W. 3.0-3.5TON(RPP) NOK	8-97328-648-0	01	1	1512-	●
100	05.469 SEAL; OIL,FINAL PINION NOK	1-09625-484-1	01	1	1512-		●
100	05.469 SEAL; OIL,FINAL PINION REAR AXLE HEAVY DUTY 343MM(8BW) TKK	1-09625-637-0	01	1	1512-		●
131	05.510 PIECE; THRUST,DIFF BOX G.V.W. 3.0-3.5TON(RPP)	5-41525-002-0	01	1	1512-	●
161	05.506 WASHER; LK G.V.W. 3.0-3.5TON(RPP) 00.002 ID=12.2	0-91510-612-0	08	1	1512-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
