Sayfa 4-20 - Isuzu EPC

4-20 — REAR AXLE CASE AND SHAFT (#171393) — 256 parça

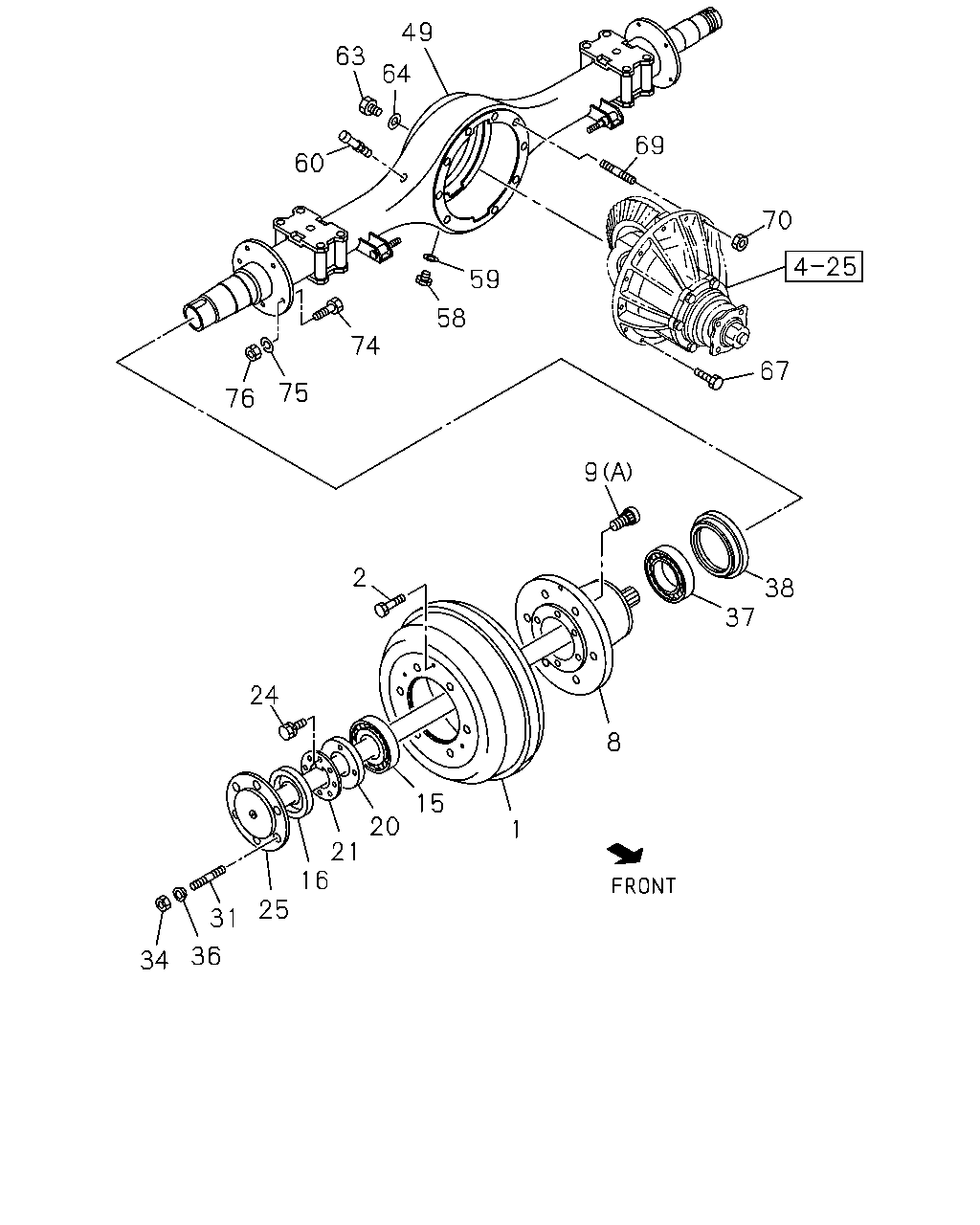

63 64 49 69 70 67 38 37 9 8 1 15 20 21 16 25 31 36 34 24 2 74 75 76 58 59 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	05.809 DRUM; BRK,RR G.V.W. 4.0-4.5TON(RPR)	8-94455-285-2	02	1	1512-	●
1	05.809 DRUM; BRK,RR G.V.W. 3.0-3.5TON(RPP)	8-97034-799-2	02	1	1512-	●
1	05.809 DRUM; BRK,RR	8-97081-219-2	02	1	1512-		●
2	05.812 BOLT; BRK DRUM G.V.W. 4.0-4.5TON(RPR) 04.012 M6X18	0-20800-618-0	02	1	1512-	●
8	05.809 HUB; RR AXLE G.V.W. 4.0-4.5TON(RPR)	5-42311-009-3	02	1	1512-	●
8	05.809 HUB; RR AXLE REAR AXLE HEAVY DUTY 320MM(6CP)	8-97081-323-2	02	1	1512-		●
8	05.809 HUB; RR AXLE REAR AXLE HEAVY DUTY 343MM(8BW)	8-97107-549-2	02	1	1512-		●
9	05.812 PIN; WHEEL,RR AXLE (B) M20X28,M22X57 RH THREAD	8-97081-584-4	06	1	1512-		●
9	05.812 PIN; WHEEL,RR AXLE (B) M20X28 LH THREAD,M22X57 RH THREAD	8-97081-585-4	06	1	1512-		●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 4.0-4.5TON(RPR) (A) M14X50 RH THREAD	9-42331-605-5	06	1	1512-	●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 4.0-4.5TON(RPR) (A) M14X50 LH THREAD	9-42332-605-5	06	1	1512-	●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 3.0-3.5TON(RPP) (A) M14X42 RH THREAD	8-97126-488-0	06	1	1512-	●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 3.0-3.5TON(RPP) (A) M14X42 LH THREAD	8-97126-489-0	06	1	1512-	●
15	05.855 BEARING; HUB OUTER,RR AXLE G.V.W. 4.0-4.5TON(RPR) NSK	9-00093-082-0	02	1	1512-	●
15	05.855 BEARING; HUB OUTER,RR AXLE NSK	9-00093-607-0	02	1	1512-		●
15	05.855 BEARING; HUB OUTER,RR AXLE G.V.W. 4.0-4.5TON(RPR) BEST VALUE PARTS	5-87610-140-0	02	1	1512-	●
15	05.855 BEARING; HUB OUTER,RR AXLE BEST VALUE PARTS	5-87610-139-0	02	1	1512-		●
16	05.822 SEAL; OIL,RR HUB,OUTER G.V.W. 4.0-4.5TON(RPR) NOK	8-98202-911-0	02	1	1512-	●
16	05.822 SEAL; OIL,RR HUB,OUTER G.V.W. 3.0-3.5TON(RPP) ID=50.5 OD=72	9-09724-022-1	02	1	1512-	●
16	05.822 SEAL; OIL,RR HUB,OUTER NOK	8-98202-912-0	02	1	1512-		●
20	05.830 NUT; BRG,RR HUB WHEEL BASE 3300MM(33W) G.V.W. 4.0-4.5TON(RPR)	8-98327-903-0	02	1	1512-	●
20	05.830 NUT; BRG,RR HUB FINAL GEAR RATIO 43/8(R40)	8-98327-902-0	02	1	1512-		●
20	05.830 NUT; BRG,RR HUB WHEEL BASE 2400MM(24W) G.V.W. 4.0-4.5TON(RPR) M52	8-98236-850-0	02	1	1512-	●
20	05.830 NUT; BRG,RR HUB FINAL GEAR RATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42),FINAL GEAR RATIO 39/6(R43) M55	8-97137-094-0	02	1	1512-		●
21	05.830 WASHER; LK,BRG NUT G.V.W. 4.0-4.5TON(RPR) ID=52	9-09853-214-1	02	1	1512-	●
21	05.830 WASHER; LK,BRG NUT FINAL GEAR RATIO 43/8(R40) ID=52	9-09853-214-1	02	1	1512-		●
21	05.830 WASHER; LK,BRG NUT ID=55	9-09653-002-1	02	1	1512-		●
24	05.830 BOLT; LK WASHER WHEEL BASE 2400MM(24W) G.V.W. 4.0-4.5TON(RPR) 03.162 M6X12 FLANGE	0-28050-612-0	04	1	1512-	●
24	05.830 BOLT; LK WASHER FINAL GEAR RATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42),FINAL GEAR RATIO 39/6(R43) 03.162 M6X12 FLANGE	0-28050-612-0	04	1	1512-		●
24	05.830 BOLT; LK WASHER WHEEL BASE 3300MM(33W) G.V.W. 4.0-4.5TON(RPR) 03.671 M6X10 FLANGE	0-28050-610-0	06	1	1512-	●
24	05.830 BOLT; LK WASHER FINAL GEAR RATIO 43/8(R40) 03.671 M6X10 FLANGE	0-28050-610-0	06	1	1512-		●
24	05.830 BOLT; LK WASHER FINAL GEAR RATIO 43/8(R40) 03.162 M6X12 FLANGE	0-28050-612-0	06	1	1512-		●
25	05.420 SHAFT; AXLE,RR FINAL GEAR RATIO 43/8(R40)	8-98098-425-0	02	1	1512-		●
25	05.420 SHAFT; AXLE,RR G.V.W. 4.0-4.5TON(RPR)	8-94366-192-0	02	1	1512-	●
25	05.420 SHAFT; AXLE,RR G.V.W. 3.0-3.5TON(RPP)	8-97083-094-1	02	1	1512-	●
25	05.420 SHAFT; AXLE,RR REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42),FINAL GEAR RATIO 39/6(R43) IDN	8-98151-846-0	02	1	1512-		●
25	05.420 SHAFT; AXLE,RR REAR AXLE HEAVY DUTY 343MM(8BW)	8-98272-242-0	02	1	1512-		●
31	05.422 STUD; AXLE SHAFT TO HUB G.V.W. 4.0-4.5TON(RPR) M10X30 L=49	8-97359-803-0	12	1	1512-	●
31	05.422 STUD; AXLE SHAFT TO HUB M10X30 L=49	8-97359-803-0	16	1	1512-		●
34	05.387 NUT; AXLE SHAFT WHEEL BASE 3300MM(33W) G.V.W. 4.0-4.5TON(RPR) 04.085 M10 FLANGE	0-91180-210-0	28	1	1512-	●
34	05.387 NUT; AXLE SHAFT WHEEL BASE 2400MM(24W) G.V.W. 4.0-4.5TON(RPR) 04.085 M10 FLANGE	0-91180-210-0	12	1	1512-	●
34	05.387 NUT; AXLE SHAFT G.V.W. 3.0-3.5TON(RPP) M45	8-94178-278-0	02	1	1512-	●
34	05.387 NUT; AXLE SHAFT FINAL GEAR RATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42),FINAL GEAR RATIO 39/6(R43) 04.085 M10 FLANGE	0-91180-210-0	16	1	1512-		●
36	05.422 WASHER; SPECIAL,AXLE SHAFT G.V.W. 4.0-4.5TON(RPR) ID=10.5	8-97360-004-0	12	1	1512-	●
36	05.422 WASHER; SPECIAL,AXLE SHAFT FINAL GEAR RATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42),FINAL GEAR RATIO 39/6(R43) ID=10.5	8-97360-004-0	16	1	1512-		●
37	05.855 BEARING; HUB INNER,RR AXLE G.V.W. 4.0-4.5TON(RPR) NSK	9-00093-081-0	02	1	1512-	●
37	05.855 BEARING; HUB INNER,RR AXLE G.V.W. 3.0-3.5TON(RPP) ID=45 OD=85	9-00032-209-0	02	1	1512-	●
37	05.855 BEARING; HUB INNER,RR AXLE REAR AXLE HEAVY DUTY 320MM(6CP) NSK	9-00093-624-0	02	1	1512-		●
37	05.855 BEARING; HUB INNER,RR AXLE REAR AXLE HEAVY DUTY 343MM(8BW) NSK IDN	8-97122-938-0	02	1	1512-		●
37	05.855 BEARING; HUB INNER,RR AXLE REAR AXLE HEAVY DUTY 343MM(8BW) JTEKT IDN	8-97123-119-0	02	1	1512-		●
37	05.855 BEARING; HUB INNER,RR AXLE G.V.W. 4.0-4.5TON(RPR) BEST VALUE PARTS	5-87610-142-0	02	1	1512-	●
37	05.855 BEARING; HUB INNER,RR AXLE REAR AXLE HEAVY DUTY 320MM(6CP) BEST VALUE PARTS	5-87610-141-0	02	1	1512-		●
38	05.822 SEAL; OIL,RR HUB,INNER G.V.W. 4.0-4.5TON(RPR) TKK	8-94336-314-1	02	1	1512-	●
38	05.822 SEAL; OIL,RR HUB,INNER G.V.W. 4.0-4.5TON(RPR) NOK	8-94367-959-0	02	1	1512-	●
38	05.822 SEAL; OIL,RR HUB,INNER G.V.W. 3.0-3.5TON(RPP) 05.387 ID=37.5 OD=60	5-09625-092-0	02	1	1512-	●
38	05.822 SEAL; OIL,RR HUB,INNER REAR AXLE HEAVY DUTY 320MM(6CP) TKK	8-94336-316-1	02	1	1512-		●
38	05.822 SEAL; OIL,RR HUB,INNER REAR AXLE HEAVY DUTY 320MM(6CP) NOK	8-94367-958-0	02	1	1512-		●
38	05.822 SEAL; OIL,RR HUB,INNER REAR AXLE HEAVY DUTY 343MM(8BW) NOK	8-97122-937-0	02	1	1512-		●
49	05.387 CASE; RR AXLE REAR AXLE HEAVY DUTY 343MM(8BW) FINAL GEAR RATIO 43/8(R40)	8-98327-595-0	01	1	1512-		●
49	05.387 CASE; RR AXLE 4HG1-T ENG(RDP) REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 3300MM(33W) FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43/10(S7C) G.V.W. 4.0-4.5TON(RPR)	8-98061-921-0	01	1	1512-	●
49	05.387 CASE; RR AXLE REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 41/7(R41),FINAL GEAR RATIO 43/9(S2J)	8-97304-377-2	01	1	1512-	●
49	05.387 CASE; RR AXLE WHEEL BASE 2400MM(24W) FINAL GEAR RATIO 41/9(HC6)	8-97304-377-2	01	1	1512-	●
49	05.387 CASE; RR AXLE G.V.W. 3.0-3.5TON(RPP) IDN	8-97357-375-2	01	1	1512-	●
49	05.387 CASE; RR AXLE REAR AXLE HEAVY DUTY 320MM(6CP)	8-98192-225-0	01	1	1512-		●
49	05.387 CASE; RR AXLE REAR AXLE HEAVY DUTY 343MM(8BW)	8-98272-076-0	01	1	1512-		●
58	05.508 PLUG; DRAIN,AXLE CASE M16X12.5	8-97307-060-0	01	1	1512-	●	●
59	05.400 GASKET; DRAIN PLUG 01.252 ID=16.2 OD=24	9-09571-416-0	01	1	1512-	●	●
60	05.387 BREATHER; RR AXLE CASE L=29	8-98006-960-0	01	1	1512-	●	●
63	05.400 PLUG; OIL FILLER,AXLE CASE M20X10.5	8-98009-333-0	01	1	1512-	●
63	05.400 PLUG; OIL FILLER,AXLE CASE REAR AXLE HEAVY DUTY 320MM(6CP) M20X10.5	8-98009-333-0	01	1	1512-		●
63	05.400 PLUG; OIL FILLER,AXLE CASE REAR AXLE HEAVY DUTY 343MM(8BW) M24X17 FLANGE	1-09604-022-0	01	1	1512-		●
64	05.400 GASKET; OIL FILLER,AXLE CASE ID=20 OD=30	8-94462-734-0	01	1	1512-	●
64	05.400 GASKET; OIL FILLER,AXLE CASE REAR AXLE HEAVY DUTY 320MM(6CP) ID=20 OD=30	8-94462-734-0	01	1	1512-		●
64	05.400 GASKET; OIL FILLER,AXLE CASE REAR AXLE HEAVY DUTY 343MM(8BW) 04.109 ID=26.8	9-09920-605-0	01	1	1512-		●
67	05.387 BOLT; FINAL DRIVE SETTING G.V.W. 4.0-4.5TON(RPR) 06.156 M10X40 W/LK WASHER	0-50561-040-0	11	1	1512-	●
67	05.387 BOLT; FINAL DRIVE SETTING G.V.W. 3.0-3.5TON(RPP) 06.156 M10X40 W/LK WASHER	0-50561-040-0	08	1	1512-	●
67	05.387 BOLT; FINAL DRIVE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) 06.156 M10X40 W/LK WASHER	0-50561-040-0	07	1	1512-		●
67	05.387 BOLT; FINAL DRIVE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) M10X50 W/LK WASHER	0-50561-050-0	04	1	1512-		●
67	05.387 BOLT; FINAL DRIVE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) M10X35	1-09000-398-0	08	1	1512-		●
67	05.387 BOLT; FINAL DRIVE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) M10X55	1-09000-429-1	04	1	1512-		●
69	05.387 STUD; AXLE CASE M10X40.5 L=52.5	8-97359-802-0	02	1	1512-	●
69	05.387 STUD; AXLE CASE REAR AXLE HEAVY DUTY 320MM(6CP) M10X40.5 L=52.5	8-97359-802-0	02	1	1512-		●
70	05.387 NUT; CARRIER 04.085 M10 FLANGE	0-91180-210-0	02	1	1512-	●
70	05.387 NUT; CARRIER REAR AXLE HEAVY DUTY 320MM(6CP) 04.085 M10 FLANGE	0-91180-210-0	02	1	1512-		●
74	05.002 BOLT; RR BRK ASM SETTING	8-98007-877-0	12	1	1512-	●
74	05.002 BOLT; RR BRK ASM SETTING M12X32	8-97359-819-0	12	1	1512-		●
75	05.002 WASHER; LK,RR BRK ASM SETTING G.V.W. 4.0-4.5TON(RPR) 02.277 ID=10.2	0-91510-810-0	12	1	1512-	●
75	05.002 WASHER; LK,RR BRK ASM SETTING REAR AXLE HEAVY DUTY 343MM(8BW) FINAL GEAR RATIO 43/8(R40) 02.277 ID=10.2	0-91510-810-0	12	1	1512-		●
75	05.002 WASHER; LK,RR BRK ASM SETTING FINAL GEAR RATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42),FINAL GEAR RATIO 39/6(R43) 07.347 ID=12.2	0-91510-812-0	12	1	1512-		●
76	05.002 NUT; RR BRK ASM SETTING 00.833 M10	0-91110-510-0	12	1	1512-	●
76	05.002 NUT; RR BRK ASM SETTING M12	0-91110-512-0	12	1	1512-		●

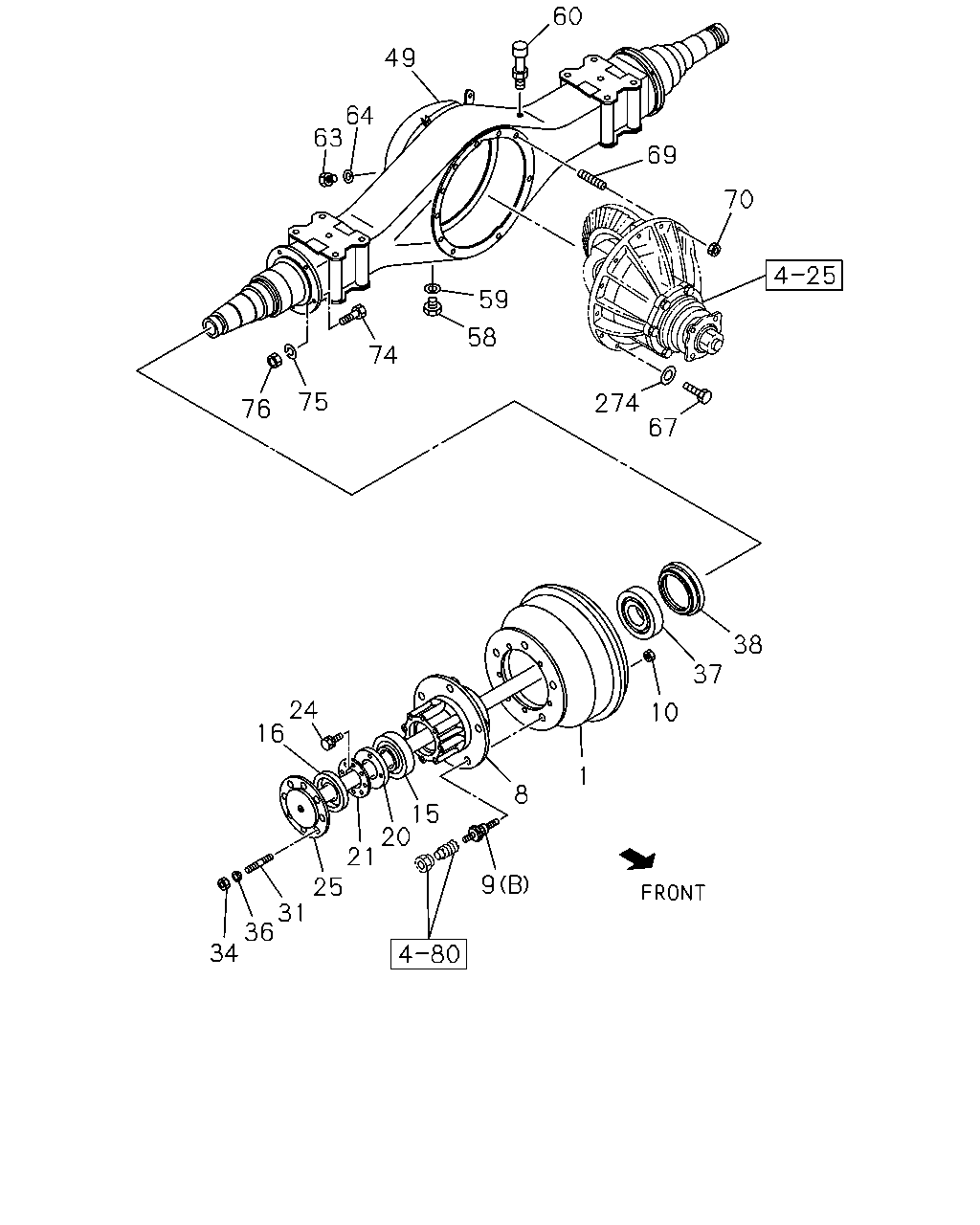

76 75 74 59 58 63 64 49 60 69 70 274 67 10 37 38 1 8 15 20 21 25 31 36 34 16 24 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	05.809 DRUM; BRK,RR G.V.W. 4.0-4.5TON(RPR)	8-94455-285-2	02	1	1512-	●
1	05.809 DRUM; BRK,RR G.V.W. 3.0-3.5TON(RPP)	8-97034-799-2	02	1	1512-	●
1	05.809 DRUM; BRK,RR	8-97081-219-2	02	1	1512-		●
8	05.809 HUB; RR AXLE G.V.W. 4.0-4.5TON(RPR)	5-42311-009-3	02	1	1512-	●
8	05.809 HUB; RR AXLE REAR AXLE HEAVY DUTY 320MM(6CP)	8-97081-323-2	02	1	1512-		●
8	05.809 HUB; RR AXLE REAR AXLE HEAVY DUTY 343MM(8BW)	8-97107-549-2	02	1	1512-		●
9	05.812 PIN; WHEEL,RR AXLE (B) M20X28,M22X57 RH THREAD	8-97081-584-4	06	1	1512-		●
9	05.812 PIN; WHEEL,RR AXLE (B) M20X28 LH THREAD,M22X57 RH THREAD	8-97081-585-4	06	1	1512-		●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 4.0-4.5TON(RPR) (A) M14X50 RH THREAD	9-42331-605-5	06	1	1512-	●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 4.0-4.5TON(RPR) (A) M14X50 LH THREAD	9-42332-605-5	06	1	1512-	●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 3.0-3.5TON(RPP) (A) M14X42 RH THREAD	8-97126-488-0	06	1	1512-	●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 3.0-3.5TON(RPP) (A) M14X42 LH THREAD	8-97126-489-0	06	1	1512-	●
10	05.813 NUT; WHEEL PIN,RR AXLE 07.172 M22	0-91110-522-0	12	1	1512-		●
15	05.855 BEARING; HUB OUTER,RR AXLE G.V.W. 4.0-4.5TON(RPR) NSK	9-00093-082-0	02	1	1512-	●
15	05.855 BEARING; HUB OUTER,RR AXLE NSK	9-00093-607-0	02	1	1512-		●
15	05.855 BEARING; HUB OUTER,RR AXLE G.V.W. 4.0-4.5TON(RPR) BEST VALUE PARTS	5-87610-140-0	02	1	1512-	●
15	05.855 BEARING; HUB OUTER,RR AXLE BEST VALUE PARTS	5-87610-139-0	02	1	1512-		●
16	05.822 SEAL; OIL,RR HUB,OUTER G.V.W. 4.0-4.5TON(RPR) NOK	8-98202-911-0	02	1	1512-	●
16	05.822 SEAL; OIL,RR HUB,OUTER G.V.W. 3.0-3.5TON(RPP) ID=50.5 OD=72	9-09724-022-1	02	1	1512-	●
16	05.822 SEAL; OIL,RR HUB,OUTER NOK	8-98202-912-0	02	1	1512-		●
20	05.830 NUT; BRG,RR HUB WHEEL BASE 3300MM(33W) G.V.W. 4.0-4.5TON(RPR)	8-98327-903-0	02	1	1512-	●
20	05.830 NUT; BRG,RR HUB FINAL GEAR RATIO 43/8(R40)	8-98327-902-0	02	1	1512-		●
20	05.830 NUT; BRG,RR HUB WHEEL BASE 2400MM(24W) G.V.W. 4.0-4.5TON(RPR) M52	8-98236-850-0	02	1	1512-	●
20	05.830 NUT; BRG,RR HUB FINAL GEAR RATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42),FINAL GEAR RATIO 39/6(R43) M55	8-97137-094-0	02	1	1512-		●
21	05.830 WASHER; LK,BRG NUT G.V.W. 4.0-4.5TON(RPR) ID=52	9-09853-214-1	02	1	1512-	●
21	05.830 WASHER; LK,BRG NUT FINAL GEAR RATIO 43/8(R40) ID=52	9-09853-214-1	02	1	1512-		●
21	05.830 WASHER; LK,BRG NUT ID=55	9-09653-002-1	02	1	1512-		●
24	05.830 BOLT; LK WASHER WHEEL BASE 2400MM(24W) G.V.W. 4.0-4.5TON(RPR) 03.162 M6X12 FLANGE	0-28050-612-0	04	1	1512-	●
24	05.830 BOLT; LK WASHER FINAL GEAR RATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42),FINAL GEAR RATIO 39/6(R43) 03.162 M6X12 FLANGE	0-28050-612-0	04	1	1512-		●
24	05.830 BOLT; LK WASHER WHEEL BASE 3300MM(33W) G.V.W. 4.0-4.5TON(RPR) 03.671 M6X10 FLANGE	0-28050-610-0	06	1	1512-	●
24	05.830 BOLT; LK WASHER FINAL GEAR RATIO 43/8(R40) 03.671 M6X10 FLANGE	0-28050-610-0	06	1	1512-		●
24	05.830 BOLT; LK WASHER FINAL GEAR RATIO 43/8(R40) 03.162 M6X12 FLANGE	0-28050-612-0	06	1	1512-		●
25	05.420 SHAFT; AXLE,RR FINAL GEAR RATIO 43/8(R40)	8-98098-425-0	02	1	1512-		●
25	05.420 SHAFT; AXLE,RR G.V.W. 4.0-4.5TON(RPR)	8-94366-192-0	02	1	1512-	●
25	05.420 SHAFT; AXLE,RR G.V.W. 3.0-3.5TON(RPP)	8-97083-094-1	02	1	1512-	●
25	05.420 SHAFT; AXLE,RR REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42),FINAL GEAR RATIO 39/6(R43) IDN	8-98151-846-0	02	1	1512-		●
25	05.420 SHAFT; AXLE,RR REAR AXLE HEAVY DUTY 343MM(8BW)	8-98272-242-0	02	1	1512-		●
31	05.422 STUD; AXLE SHAFT TO HUB G.V.W. 4.0-4.5TON(RPR) M10X30 L=49	8-97359-803-0	12	1	1512-	●
31	05.422 STUD; AXLE SHAFT TO HUB M10X30 L=49	8-97359-803-0	16	1	1512-		●
34	05.387 NUT; AXLE SHAFT WHEEL BASE 3300MM(33W) G.V.W. 4.0-4.5TON(RPR) 04.085 M10 FLANGE	0-91180-210-0	28	1	1512-	●
34	05.387 NUT; AXLE SHAFT WHEEL BASE 2400MM(24W) G.V.W. 4.0-4.5TON(RPR) 04.085 M10 FLANGE	0-91180-210-0	12	1	1512-	●
34	05.387 NUT; AXLE SHAFT G.V.W. 3.0-3.5TON(RPP) M45	8-94178-278-0	02	1	1512-	●
34	05.387 NUT; AXLE SHAFT FINAL GEAR RATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42),FINAL GEAR RATIO 39/6(R43) 04.085 M10 FLANGE	0-91180-210-0	16	1	1512-		●
36	05.422 WASHER; SPECIAL,AXLE SHAFT G.V.W. 4.0-4.5TON(RPR) ID=10.5	8-97360-004-0	12	1	1512-	●
36	05.422 WASHER; SPECIAL,AXLE SHAFT FINAL GEAR RATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42),FINAL GEAR RATIO 39/6(R43) ID=10.5	8-97360-004-0	16	1	1512-		●
37	05.855 BEARING; HUB INNER,RR AXLE G.V.W. 4.0-4.5TON(RPR) NSK	9-00093-081-0	02	1	1512-	●
37	05.855 BEARING; HUB INNER,RR AXLE G.V.W. 3.0-3.5TON(RPP) ID=45 OD=85	9-00032-209-0	02	1	1512-	●
37	05.855 BEARING; HUB INNER,RR AXLE REAR AXLE HEAVY DUTY 320MM(6CP) NSK	9-00093-624-0	02	1	1512-		●
37	05.855 BEARING; HUB INNER,RR AXLE REAR AXLE HEAVY DUTY 343MM(8BW) NSK IDN	8-97122-938-0	02	1	1512-		●
37	05.855 BEARING; HUB INNER,RR AXLE REAR AXLE HEAVY DUTY 343MM(8BW) JTEKT IDN	8-97123-119-0	02	1	1512-		●
37	05.855 BEARING; HUB INNER,RR AXLE G.V.W. 4.0-4.5TON(RPR) BEST VALUE PARTS	5-87610-142-0	02	1	1512-	●
37	05.855 BEARING; HUB INNER,RR AXLE REAR AXLE HEAVY DUTY 320MM(6CP) BEST VALUE PARTS	5-87610-141-0	02	1	1512-		●
38	05.822 SEAL; OIL,RR HUB,INNER G.V.W. 4.0-4.5TON(RPR) TKK	8-94336-314-1	02	1	1512-	●
38	05.822 SEAL; OIL,RR HUB,INNER G.V.W. 4.0-4.5TON(RPR) NOK	8-94367-959-0	02	1	1512-	●
38	05.822 SEAL; OIL,RR HUB,INNER G.V.W. 3.0-3.5TON(RPP) 05.387 ID=37.5 OD=60	5-09625-092-0	02	1	1512-	●
38	05.822 SEAL; OIL,RR HUB,INNER REAR AXLE HEAVY DUTY 320MM(6CP) TKK	8-94336-316-1	02	1	1512-		●
38	05.822 SEAL; OIL,RR HUB,INNER REAR AXLE HEAVY DUTY 320MM(6CP) NOK	8-94367-958-0	02	1	1512-		●
38	05.822 SEAL; OIL,RR HUB,INNER REAR AXLE HEAVY DUTY 343MM(8BW) NOK	8-97122-937-0	02	1	1512-		●
49	05.387 CASE; RR AXLE REAR AXLE HEAVY DUTY 343MM(8BW) FINAL GEAR RATIO 43/8(R40)	8-98327-595-0	01	1	1512-		●
49	05.387 CASE; RR AXLE 4HG1-T ENG(RDP) REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 3300MM(33W) FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43/10(S7C) G.V.W. 4.0-4.5TON(RPR)	8-98061-921-0	01	1	1512-	●
49	05.387 CASE; RR AXLE REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 41/7(R41),FINAL GEAR RATIO 43/9(S2J)	8-97304-377-2	01	1	1512-	●
49	05.387 CASE; RR AXLE WHEEL BASE 2400MM(24W) FINAL GEAR RATIO 41/9(HC6)	8-97304-377-2	01	1	1512-	●
49	05.387 CASE; RR AXLE G.V.W. 3.0-3.5TON(RPP) IDN	8-97357-375-2	01	1	1512-	●
49	05.387 CASE; RR AXLE REAR AXLE HEAVY DUTY 320MM(6CP)	8-98192-225-0	01	1	1512-		●
49	05.387 CASE; RR AXLE REAR AXLE HEAVY DUTY 343MM(8BW)	8-98272-076-0	01	1	1512-		●
58	05.508 PLUG; DRAIN,AXLE CASE M16X12.5	8-97307-060-0	01	1	1512-	●	●
59	05.400 GASKET; DRAIN PLUG 01.252 ID=16.2 OD=24	9-09571-416-0	01	1	1512-	●	●
60	05.387 BREATHER; RR AXLE CASE L=29	8-98006-960-0	01	1	1512-	●	●
63	05.400 PLUG; OIL FILLER,AXLE CASE M20X10.5	8-98009-333-0	01	1	1512-	●
63	05.400 PLUG; OIL FILLER,AXLE CASE REAR AXLE HEAVY DUTY 320MM(6CP) M20X10.5	8-98009-333-0	01	1	1512-		●
63	05.400 PLUG; OIL FILLER,AXLE CASE REAR AXLE HEAVY DUTY 343MM(8BW) M24X17 FLANGE	1-09604-022-0	01	1	1512-		●
64	05.400 GASKET; OIL FILLER,AXLE CASE ID=20 OD=30	8-94462-734-0	01	1	1512-	●
64	05.400 GASKET; OIL FILLER,AXLE CASE REAR AXLE HEAVY DUTY 320MM(6CP) ID=20 OD=30	8-94462-734-0	01	1	1512-		●
64	05.400 GASKET; OIL FILLER,AXLE CASE REAR AXLE HEAVY DUTY 343MM(8BW) 04.109 ID=26.8	9-09920-605-0	01	1	1512-		●
67	05.387 BOLT; FINAL DRIVE SETTING G.V.W. 4.0-4.5TON(RPR) 06.156 M10X40 W/LK WASHER	0-50561-040-0	11	1	1512-	●
67	05.387 BOLT; FINAL DRIVE SETTING G.V.W. 3.0-3.5TON(RPP) 06.156 M10X40 W/LK WASHER	0-50561-040-0	08	1	1512-	●
67	05.387 BOLT; FINAL DRIVE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) 06.156 M10X40 W/LK WASHER	0-50561-040-0	07	1	1512-		●
67	05.387 BOLT; FINAL DRIVE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) M10X50 W/LK WASHER	0-50561-050-0	04	1	1512-		●
67	05.387 BOLT; FINAL DRIVE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) M10X35	1-09000-398-0	08	1	1512-		●
67	05.387 BOLT; FINAL DRIVE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) M10X55	1-09000-429-1	04	1	1512-		●
69	05.387 STUD; AXLE CASE M10X40.5 L=52.5	8-97359-802-0	02	1	1512-	●
69	05.387 STUD; AXLE CASE REAR AXLE HEAVY DUTY 320MM(6CP) M10X40.5 L=52.5	8-97359-802-0	02	1	1512-		●
70	05.387 NUT; CARRIER 04.085 M10 FLANGE	0-91180-210-0	02	1	1512-	●
70	05.387 NUT; CARRIER REAR AXLE HEAVY DUTY 320MM(6CP) 04.085 M10 FLANGE	0-91180-210-0	02	1	1512-		●
74	05.002 BOLT; RR BRK ASM SETTING	8-98007-877-0	12	1	1512-	●
74	05.002 BOLT; RR BRK ASM SETTING M12X32	8-97359-819-0	12	1	1512-		●
75	05.002 WASHER; LK,RR BRK ASM SETTING G.V.W. 4.0-4.5TON(RPR) 02.277 ID=10.2	0-91510-810-0	12	1	1512-	●
75	05.002 WASHER; LK,RR BRK ASM SETTING REAR AXLE HEAVY DUTY 343MM(8BW) FINAL GEAR RATIO 43/8(R40) 02.277 ID=10.2	0-91510-810-0	12	1	1512-		●
75	05.002 WASHER; LK,RR BRK ASM SETTING FINAL GEAR RATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42),FINAL GEAR RATIO 39/6(R43) 07.347 ID=12.2	0-91510-812-0	12	1	1512-		●
76	05.002 NUT; RR BRK ASM SETTING 00.833 M10	0-91110-510-0	12	1	1512-	●
76	05.002 NUT; RR BRK ASM SETTING M12	0-91110-512-0	12	1	1512-		●
274	05.822 WASHER; HSG REAR AXLE HEAVY DUTY 343MM(8BW) 02.277 ID=10.2	0-91510-810-0	12	1	1512-		●

37 33 34 39 39 38 269 63 64 60 49 69 59 58 14 13 39 39 39 4 16 67 70 12 9 1 25 154

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	05.809 DRUM; BRK,RR G.V.W. 4.0-4.5TON(RPR)	8-94455-285-2	02	1	1512-	●
1	05.809 DRUM; BRK,RR G.V.W. 3.0-3.5TON(RPP)	8-97034-799-2	02	1	1512-	●
1	05.809 DRUM; BRK,RR	8-97081-219-2	02	1	1512-		●
4	05.816 HOLDER; BRG,AXLE SHAFT G.V.W. 3.0-3.5TON(RPP)	8-97324-241-0	02	1	1512-	●
9	05.812 PIN; WHEEL,RR AXLE (B) M20X28,M22X57 RH THREAD	8-97081-584-4	06	1	1512-		●
9	05.812 PIN; WHEEL,RR AXLE (B) M20X28 LH THREAD,M22X57 RH THREAD	8-97081-585-4	06	1	1512-		●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 4.0-4.5TON(RPR) (A) M14X50 RH THREAD	9-42331-605-5	06	1	1512-	●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 4.0-4.5TON(RPR) (A) M14X50 LH THREAD	9-42332-605-5	06	1	1512-	●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 3.0-3.5TON(RPP) (A) M14X42 RH THREAD	8-97126-488-0	06	1	1512-	●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 3.0-3.5TON(RPP) (A) M14X42 LH THREAD	8-97126-489-0	06	1	1512-	●
12	05.816 BOLT; BRG HOLDER TO CASE G.V.W. 3.0-3.5TON(RPP) M12X72	8-94477-674-2	04	1	1512-	●
12	05.816 BOLT; BRG HOLDER TO CASE G.V.W. 3.0-3.5TON(RPP) M12X69 REAMER	9-42119-603-2	04	1	1512-	●
13	05.816 WASHER; LK,BRG HOLDER TO CASE G.V.W. 3.0-3.5TON(RPP) 03.634 ID=12.2	0-91510-512-0	08	1	1512-	●
14	05.816 NUT; BRG HOLDER TO CASE G.V.W. 3.0-3.5TON(RPP) 05.002 M12	0-91110-512-0	08	1	1512-	●
16	05.822 SEAL; OIL,RR HUB,OUTER G.V.W. 4.0-4.5TON(RPR) NOK	8-98202-911-0	02	1	1512-	●
16	05.822 SEAL; OIL,RR HUB,OUTER G.V.W. 3.0-3.5TON(RPP) ID=50.5 OD=72	9-09724-022-1	02	1	1512-	●
16	05.822 SEAL; OIL,RR HUB,OUTER NOK	8-98202-912-0	02	1	1512-		●
25	05.420 SHAFT; AXLE,RR FINAL GEAR RATIO 43/8(R40)	8-98098-425-0	02	1	1512-		●
25	05.420 SHAFT; AXLE,RR G.V.W. 4.0-4.5TON(RPR)	8-94366-192-0	02	1	1512-	●
25	05.420 SHAFT; AXLE,RR G.V.W. 3.0-3.5TON(RPP)	8-97083-094-1	02	1	1512-	●
25	05.420 SHAFT; AXLE,RR REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42),FINAL GEAR RATIO 39/6(R43) IDN	8-98151-846-0	02	1	1512-		●
25	05.420 SHAFT; AXLE,RR REAR AXLE HEAVY DUTY 343MM(8BW)	8-98272-242-0	02	1	1512-		●
33	05.422 WASHER; AXLE SHAFT G.V.W. 3.0-3.5TON(RPP)	8-97086-472-0	02	1	1512-	●
34	05.387 NUT; AXLE SHAFT WHEEL BASE 3300MM(33W) G.V.W. 4.0-4.5TON(RPR) 04.085 M10 FLANGE	0-91180-210-0	28	1	1512-	●
34	05.387 NUT; AXLE SHAFT WHEEL BASE 2400MM(24W) G.V.W. 4.0-4.5TON(RPR) 04.085 M10 FLANGE	0-91180-210-0	12	1	1512-	●
34	05.387 NUT; AXLE SHAFT G.V.W. 3.0-3.5TON(RPP) M45	8-94178-278-0	02	1	1512-	●
34	05.387 NUT; AXLE SHAFT FINAL GEAR RATIO 41/7(R41),FINAL GEAR RATIO 43/7(R42),FINAL GEAR RATIO 39/6(R43) 04.085 M10 FLANGE	0-91180-210-0	16	1	1512-		●
37	05.855 BEARING; HUB INNER,RR AXLE G.V.W. 4.0-4.5TON(RPR) NSK	9-00093-081-0	02	1	1512-	●
37	05.855 BEARING; HUB INNER,RR AXLE G.V.W. 3.0-3.5TON(RPP) ID=45 OD=85	9-00032-209-0	02	1	1512-	●
37	05.855 BEARING; HUB INNER,RR AXLE REAR AXLE HEAVY DUTY 320MM(6CP) NSK	9-00093-624-0	02	1	1512-		●
37	05.855 BEARING; HUB INNER,RR AXLE REAR AXLE HEAVY DUTY 343MM(8BW) NSK IDN	8-97122-938-0	02	1	1512-		●
37	05.855 BEARING; HUB INNER,RR AXLE REAR AXLE HEAVY DUTY 343MM(8BW) JTEKT IDN	8-97123-119-0	02	1	1512-		●
37	05.855 BEARING; HUB INNER,RR AXLE G.V.W. 4.0-4.5TON(RPR) BEST VALUE PARTS	5-87610-142-0	02	1	1512-	●
37	05.855 BEARING; HUB INNER,RR AXLE REAR AXLE HEAVY DUTY 320MM(6CP) BEST VALUE PARTS	5-87610-141-0	02	1	1512-		●
38	05.822 SEAL; OIL,RR HUB,INNER G.V.W. 4.0-4.5TON(RPR) TKK	8-94336-314-1	02	1	1512-	●
38	05.822 SEAL; OIL,RR HUB,INNER G.V.W. 4.0-4.5TON(RPR) NOK	8-94367-959-0	02	1	1512-	●
38	05.822 SEAL; OIL,RR HUB,INNER G.V.W. 3.0-3.5TON(RPP) 05.387 ID=37.5 OD=60	5-09625-092-0	02	1	1512-	●
38	05.822 SEAL; OIL,RR HUB,INNER REAR AXLE HEAVY DUTY 320MM(6CP) TKK	8-94336-316-1	02	1	1512-		●
38	05.822 SEAL; OIL,RR HUB,INNER REAR AXLE HEAVY DUTY 320MM(6CP) NOK	8-94367-958-0	02	1	1512-		●
38	05.822 SEAL; OIL,RR HUB,INNER REAR AXLE HEAVY DUTY 343MM(8BW) NOK	8-97122-937-0	02	1	1512-		●
39	05.816 SHIM; BRG HOLDER G.V.W. 3.0-3.5TON(RPP) T=1.000	9-42119-616-0	AR	1	1512-	●
39	05.816 SHIM; BRG HOLDER G.V.W. 3.0-3.5TON(RPP) T=0.500	9-42119-617-0	AR	1	1512-	●
39	05.816 SHIM; BRG HOLDER G.V.W. 3.0-3.5TON(RPP) T=0.13	9-42119-618-0	AR	1	1512-	●
39	05.816 SHIM; BRG HOLDER G.V.W. 3.0-3.5TON(RPP) T=0.076	9-42119-619-0	AR	1	1512-	●
39	05.816 SHIM; BRG HOLDER G.V.W. 3.0-3.5TON(RPP) T=0.050	9-42119-620-0	AR	1	1512-	●
49	05.387 CASE; RR AXLE REAR AXLE HEAVY DUTY 343MM(8BW) FINAL GEAR RATIO 43/8(R40)	8-98327-595-0	01	1	1512-		●
49	05.387 CASE; RR AXLE 4HG1-T ENG(RDP) REAR AXLE HEAVY DUTY 292MM(G73) WHEEL BASE 3300MM(33W) FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43/10(S7C) G.V.W. 4.0-4.5TON(RPR)	8-98061-921-0	01	1	1512-	●
49	05.387 CASE; RR AXLE REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 41/7(R41),FINAL GEAR RATIO 43/9(S2J)	8-97304-377-2	01	1	1512-	●
49	05.387 CASE; RR AXLE WHEEL BASE 2400MM(24W) FINAL GEAR RATIO 41/9(HC6)	8-97304-377-2	01	1	1512-	●
49	05.387 CASE; RR AXLE G.V.W. 3.0-3.5TON(RPP) IDN	8-97357-375-2	01	1	1512-	●
49	05.387 CASE; RR AXLE REAR AXLE HEAVY DUTY 320MM(6CP)	8-98192-225-0	01	1	1512-		●
49	05.387 CASE; RR AXLE REAR AXLE HEAVY DUTY 343MM(8BW)	8-98272-076-0	01	1	1512-		●
58	05.508 PLUG; DRAIN,AXLE CASE M16X12.5	8-97307-060-0	01	1	1512-	●	●
59	05.400 GASKET; DRAIN PLUG 01.252 ID=16.2 OD=24	9-09571-416-0	01	1	1512-	●	●
60	05.387 BREATHER; RR AXLE CASE L=29	8-98006-960-0	01	1	1512-	●	●
63	05.400 PLUG; OIL FILLER,AXLE CASE M20X10.5	8-98009-333-0	01	1	1512-	●
63	05.400 PLUG; OIL FILLER,AXLE CASE REAR AXLE HEAVY DUTY 320MM(6CP) M20X10.5	8-98009-333-0	01	1	1512-		●
63	05.400 PLUG; OIL FILLER,AXLE CASE REAR AXLE HEAVY DUTY 343MM(8BW) M24X17 FLANGE	1-09604-022-0	01	1	1512-		●
64	05.400 GASKET; OIL FILLER,AXLE CASE ID=20 OD=30	8-94462-734-0	01	1	1512-	●
64	05.400 GASKET; OIL FILLER,AXLE CASE REAR AXLE HEAVY DUTY 320MM(6CP) ID=20 OD=30	8-94462-734-0	01	1	1512-		●
64	05.400 GASKET; OIL FILLER,AXLE CASE REAR AXLE HEAVY DUTY 343MM(8BW) 04.109 ID=26.8	9-09920-605-0	01	1	1512-		●
67	05.387 BOLT; FINAL DRIVE SETTING G.V.W. 4.0-4.5TON(RPR) 06.156 M10X40 W/LK WASHER	0-50561-040-0	11	1	1512-	●
67	05.387 BOLT; FINAL DRIVE SETTING G.V.W. 3.0-3.5TON(RPP) 06.156 M10X40 W/LK WASHER	0-50561-040-0	08	1	1512-	●
67	05.387 BOLT; FINAL DRIVE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) 06.156 M10X40 W/LK WASHER	0-50561-040-0	07	1	1512-		●
67	05.387 BOLT; FINAL DRIVE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) M10X50 W/LK WASHER	0-50561-050-0	04	1	1512-		●
67	05.387 BOLT; FINAL DRIVE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) M10X35	1-09000-398-0	08	1	1512-		●
67	05.387 BOLT; FINAL DRIVE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) M10X55	1-09000-429-1	04	1	1512-		●
69	05.387 STUD; AXLE CASE M10X40.5 L=52.5	8-97359-802-0	02	1	1512-	●
69	05.387 STUD; AXLE CASE REAR AXLE HEAVY DUTY 320MM(6CP) M10X40.5 L=52.5	8-97359-802-0	02	1	1512-		●
70	05.387 NUT; CARRIER 04.085 M10 FLANGE	0-91180-210-0	02	1	1512-	●
70	05.387 NUT; CARRIER REAR AXLE HEAVY DUTY 320MM(6CP) 04.085 M10 FLANGE	0-91180-210-0	02	1	1512-		●
154	04.665 SCREW; SLOTTED G.V.W. 3.0-3.5TON(RPP) 05.812 M6X16 CK-HEAD IMA	0-36410-616-0	02	1	1512-	●
269	05.387 GASKET; REAR AXLE G.V.W. 3.0-3.5TON(RPP) 05.822	9-09720-517-0	02	1	1512-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
