Sayfa 3-60 - Isuzu EPC

3-60 — BRAKE PIPING; VACUUM (#171389) — 345 parça

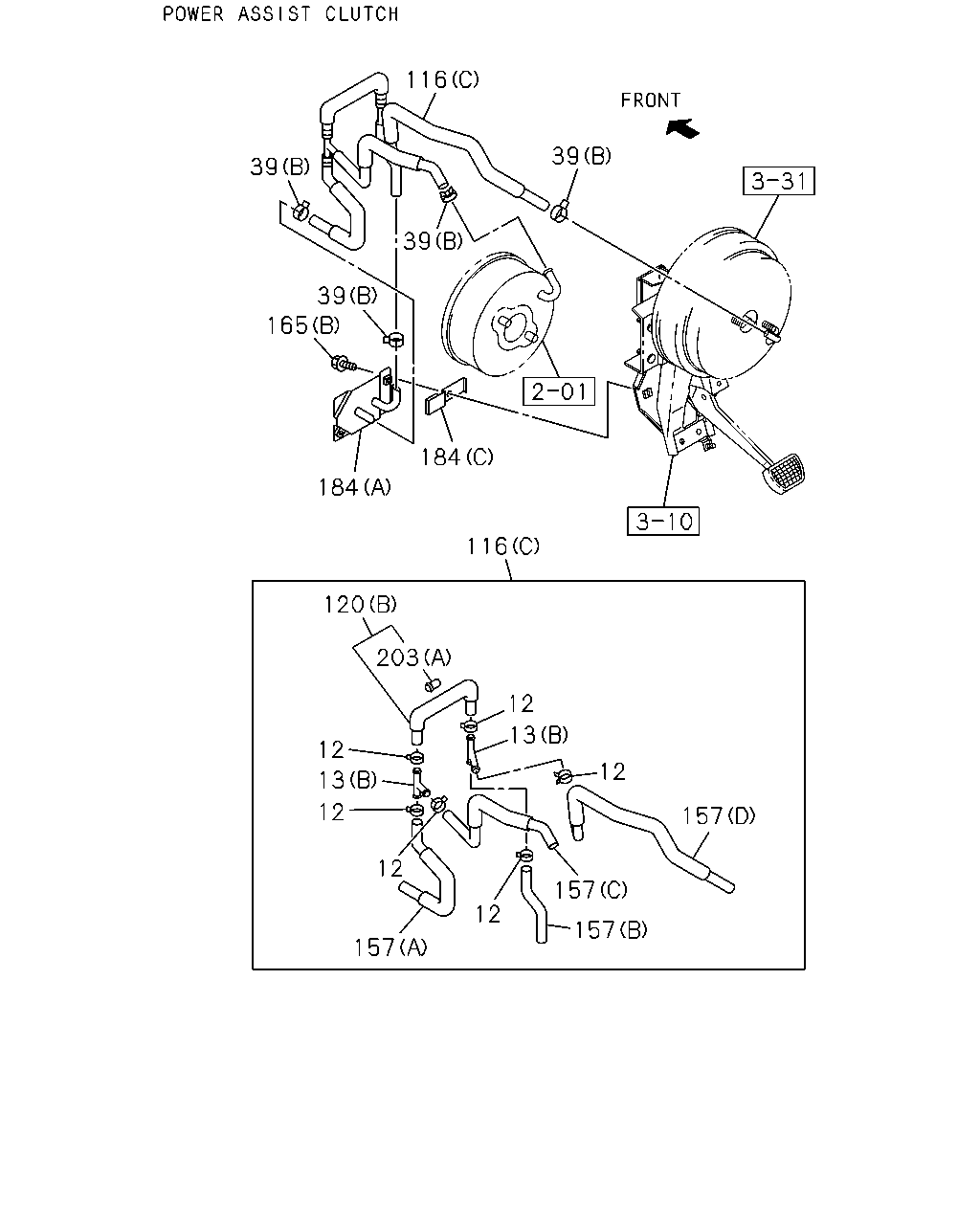

116 165 39 184 184 116 12 12 157 13 157 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5	8-98008-097-0	16	1	1512-	●	●
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5	8-98008-097-0	06	1	1512-	●	●
13	04.681 JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B)	8-98035-106-0	06	1	1512-	●	●
13	04.681 JOINT; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-98035-106-0	02	1	1512-	●	●
13	04.681 JOINT; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98048-075-0	02	1	1512-	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 03.162 (B) ID=16	8-98008-098-0	02	1	1512-	●	●
39	04.681 CLIP; HOSE,VAC 03.162 (B) ID=16	8-98008-098-0	02	1	1512-	●	●
39	04.681 CLIP; HOSE,VAC EXHAUST BRAKE<NF8> 03.162 (B) ID=16	8-98008-098-0	02	1	1512-	●
39	04.681 CLIP; HOSE,VAC 03.162 (B) ID=16	8-98008-098-0	02	1	1512-		●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 03.162 (B) ID=16	8-98008-098-0	04	1	1512-	●	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1512-	●	●
116	04.931 HOSE; VAC,M/VAC 4HG1-T ENG(RDP) EXHAUST BRAKE<NF8> 08.962 (E) L=120 SERVICED BY L=3000 IMA	0-04740-300-0	01	1	1512-	●
116	04.931 HOSE; VAC,M/VAC 4HG1-T ENG(RDP) 08.962 (E) L=120 SERVICED BY L=3000 IMA	0-04740-300-0	01	1	1512-		●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	1512-	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-98115-385-1	01	1	1512-	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	1512-	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98115-399-1	01	1	1512-	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (F)	8-98017-168-3	01	1	1512-	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (C)	8-98027-351-3	01	1	1512-	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (B)	8-98027-353-3	01	1	1512-	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (A)	8-98027-354-2	01	1	1512-	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (D)	8-98125-532-1	01	1	1512-	●	●
157	04.931 HOSE; JOINT EXC. POWER ASSIST CLUTCH(S2T) (H)	8-97389-671-3	01	1	1512-	●	●
157	04.931 HOSE; JOINT EXC. POWER ASSIST CLUTCH(S2T) (E)	8-98022-868-3	01	1	1512-	●	●
157	04.931 HOSE; JOINT EXC. POWER ASSIST CLUTCH(S2T) (G)	8-98125-849-1	01	1	1512-	●	●
165	04.686 BOLT; BRKT WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> 06.216 (C) M8X25 FLANGE IDN	0-28650-825-0	01	1	1512-	●
165	04.686 BOLT; BRKT 06.216 (C) M8X25 FLANGE IDN	0-28650-825-0	01	1	1512-		●
165	04.686 BOLT; BRKT 02.762 (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1512-	●	●
165	04.686 BOLT; BRKT EXC. KD PREPARATORY PACK VAR.4<7TV> 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	1512-	●	●
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (A)	8-98183-467-1	01	1	1512-	●	●
184	04.685 BRACKET; UNION FIX (B)	8-98017-628-1	01	1	1512-	●	●
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (A)	8-98255-535-0	01	1	1512-	●	●
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (C)	8-98255-548-0	01	1	1512-	●	●

116 39 39 39 165 39 184 184 116 120 203 12 13 12 157 157 157 12 157 12 12 12 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5	8-98008-097-0	16	1	1512-	●	●
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5	8-98008-097-0	06	1	1512-	●	●
13	04.681 JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B)	8-98035-106-0	06	1	1512-	●	●
13	04.681 JOINT; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-98035-106-0	02	1	1512-	●	●
13	04.681 JOINT; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98048-075-0	02	1	1512-	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 03.162 (B) ID=16	8-98008-098-0	02	1	1512-	●	●
39	04.681 CLIP; HOSE,VAC 03.162 (B) ID=16	8-98008-098-0	02	1	1512-	●	●
39	04.681 CLIP; HOSE,VAC EXHAUST BRAKE<NF8> 03.162 (B) ID=16	8-98008-098-0	02	1	1512-	●
39	04.681 CLIP; HOSE,VAC 03.162 (B) ID=16	8-98008-098-0	02	1	1512-		●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 03.162 (B) ID=16	8-98008-098-0	04	1	1512-	●	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1512-	●	●
116	04.931 HOSE; VAC,M/VAC 4HG1-T ENG(RDP) EXHAUST BRAKE<NF8> 08.962 (E) L=120 SERVICED BY L=3000 IMA	0-04740-300-0	01	1	1512-	●
116	04.931 HOSE; VAC,M/VAC 4HG1-T ENG(RDP) 08.962 (E) L=120 SERVICED BY L=3000 IMA	0-04740-300-0	01	1	1512-		●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	1512-	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-98115-385-1	01	1	1512-	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	1512-	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98115-399-1	01	1	1512-	●	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (C)	8-97389-695-2	01	1	1512-	●	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (B)	8-98027-352-3	01	1	1512-	●	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE EXC. POWER ASSIST CLUTCH(S2T) (A)	8-97389-696-2	01	1	1512-	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (F)	8-98017-168-3	01	1	1512-	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (C)	8-98027-351-3	01	1	1512-	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (B)	8-98027-353-3	01	1	1512-	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (A)	8-98027-354-2	01	1	1512-	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (D)	8-98125-532-1	01	1	1512-	●	●
157	04.931 HOSE; JOINT EXC. POWER ASSIST CLUTCH(S2T) (H)	8-97389-671-3	01	1	1512-	●	●
157	04.931 HOSE; JOINT EXC. POWER ASSIST CLUTCH(S2T) (E)	8-98022-868-3	01	1	1512-	●	●
157	04.931 HOSE; JOINT EXC. POWER ASSIST CLUTCH(S2T) (G)	8-98125-849-1	01	1	1512-	●	●
165	04.686 BOLT; BRKT WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> 06.216 (C) M8X25 FLANGE IDN	0-28650-825-0	01	1	1512-	●
165	04.686 BOLT; BRKT 06.216 (C) M8X25 FLANGE IDN	0-28650-825-0	01	1	1512-		●
165	04.686 BOLT; BRKT 02.762 (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1512-	●	●
165	04.686 BOLT; BRKT EXC. KD PREPARATORY PACK VAR.4<7TV> 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	1512-	●	●
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (A)	8-98183-467-1	01	1	1512-	●	●
184	04.685 BRACKET; UNION FIX (B)	8-98017-628-1	01	1	1512-	●	●
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (A)	8-98255-535-0	01	1	1512-	●	●
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (C)	8-98255-548-0	01	1	1512-	●	●
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T) (B)	8-94104-021-0	01	1	1512-	●	●
203	04.690 VALVE; CHECK (A)	8-94386-540-0	01	1	1512-	●	●

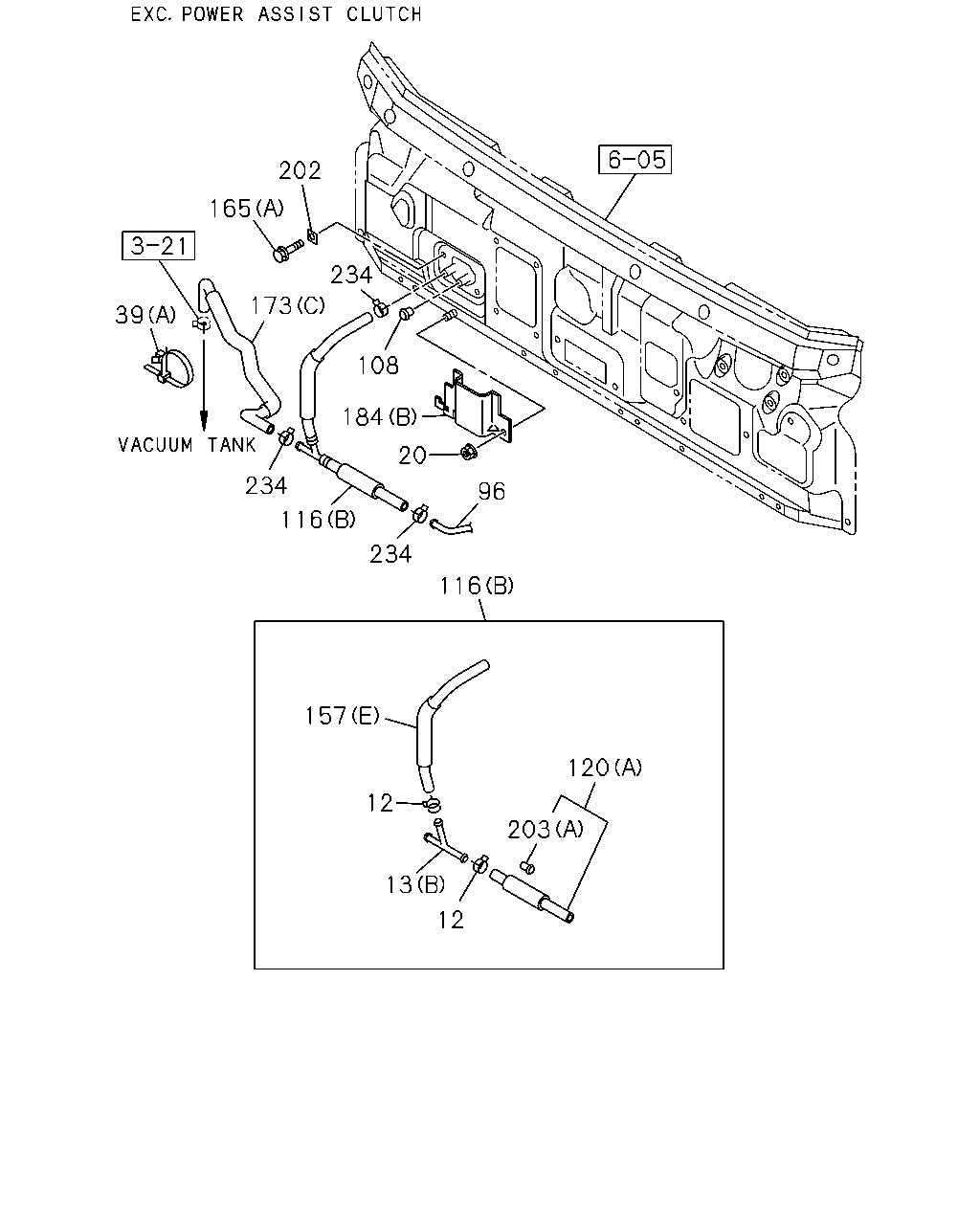

202 165 173 39 234 108 184 96 20 116 234 116 234 157 12 13 12 203 120

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5	8-98008-097-0	16	1	1512-	●	●
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5	8-98008-097-0	06	1	1512-	●	●
13	04.681 JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B)	8-98035-106-0	06	1	1512-	●	●
13	04.681 JOINT; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-98035-106-0	02	1	1512-	●	●
13	04.681 JOINT; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98048-075-0	02	1	1512-	●	●
20	04.686 NUT; BRKT 01.062 M6 FLANGE IDN	0-91180-106-0	01	1	1512-	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 03.162 (B) ID=16	8-98008-098-0	02	1	1512-	●	●
39	04.681 CLIP; HOSE,VAC 03.162 (B) ID=16	8-98008-098-0	02	1	1512-	●	●
39	04.681 CLIP; HOSE,VAC EXHAUST BRAKE<NF8> 03.162 (B) ID=16	8-98008-098-0	02	1	1512-	●
39	04.681 CLIP; HOSE,VAC 03.162 (B) ID=16	8-98008-098-0	02	1	1512-		●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 03.162 (B) ID=16	8-98008-098-0	04	1	1512-	●	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1512-	●	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP	8-98039-736-1	01	1	1512-	●	●
108	04.931 GROMMET; PIPE EXC. POWER ASSIST CLUTCH(S2T) IDN	9-09956-353-0	01	1	1512-	●	●
116	04.931 HOSE; VAC,M/VAC 4HG1-T ENG(RDP) EXHAUST BRAKE<NF8> 08.962 (E) L=120 SERVICED BY L=3000 IMA	0-04740-300-0	01	1	1512-	●
116	04.931 HOSE; VAC,M/VAC 4HG1-T ENG(RDP) 08.962 (E) L=120 SERVICED BY L=3000 IMA	0-04740-300-0	01	1	1512-		●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	1512-	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-98115-385-1	01	1	1512-	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	1512-	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98115-399-1	01	1	1512-	●	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (C)	8-97389-695-2	01	1	1512-	●	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (B)	8-98027-352-3	01	1	1512-	●	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE EXC. POWER ASSIST CLUTCH(S2T) (A)	8-97389-696-2	01	1	1512-	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (F)	8-98017-168-3	01	1	1512-	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (C)	8-98027-351-3	01	1	1512-	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (B)	8-98027-353-3	01	1	1512-	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (A)	8-98027-354-2	01	1	1512-	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (D)	8-98125-532-1	01	1	1512-	●	●
157	04.931 HOSE; JOINT EXC. POWER ASSIST CLUTCH(S2T) (H)	8-97389-671-3	01	1	1512-	●	●
157	04.931 HOSE; JOINT EXC. POWER ASSIST CLUTCH(S2T) (E)	8-98022-868-3	01	1	1512-	●	●
157	04.931 HOSE; JOINT EXC. POWER ASSIST CLUTCH(S2T) (G)	8-98125-849-1	01	1	1512-	●	●
165	04.686 BOLT; BRKT WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> 06.216 (C) M8X25 FLANGE IDN	0-28650-825-0	01	1	1512-	●
165	04.686 BOLT; BRKT 06.216 (C) M8X25 FLANGE IDN	0-28650-825-0	01	1	1512-		●
165	04.686 BOLT; BRKT 02.762 (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1512-	●	●
165	04.686 BOLT; BRKT EXC. KD PREPARATORY PACK VAR.4<7TV> 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	1512-	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (A)	8-98121-940-0	01	1	1512-	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (B)	8-98121-941-0	01	1	1512-	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98107-558-0	01	1	1512-	●	●
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (A)	8-98183-467-1	01	1	1512-	●	●
184	04.685 BRACKET; UNION FIX (B)	8-98017-628-1	01	1	1512-	●	●
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (A)	8-98255-535-0	01	1	1512-	●	●
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (C)	8-98255-548-0	01	1	1512-	●	●
202	04.686 SEAL 08.845	8-97856-616-0	02	1	1512-	●	●
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T) (B)	8-94104-021-0	01	1	1512-	●	●
203	04.690 VALVE; CHECK (A)	8-94386-540-0	01	1	1512-	●	●
234	04.685 CLAMP; PIPE POWER ASSIST CLUTCH(S2T) 03.162 ID=16	8-98008-098-0	04	1	1512-	●	●
234	04.685 CLAMP; PIPE EXC. POWER ASSIST CLUTCH(S2T) 03.162 ID=16	8-98008-098-0	03	1	1512-	●	●

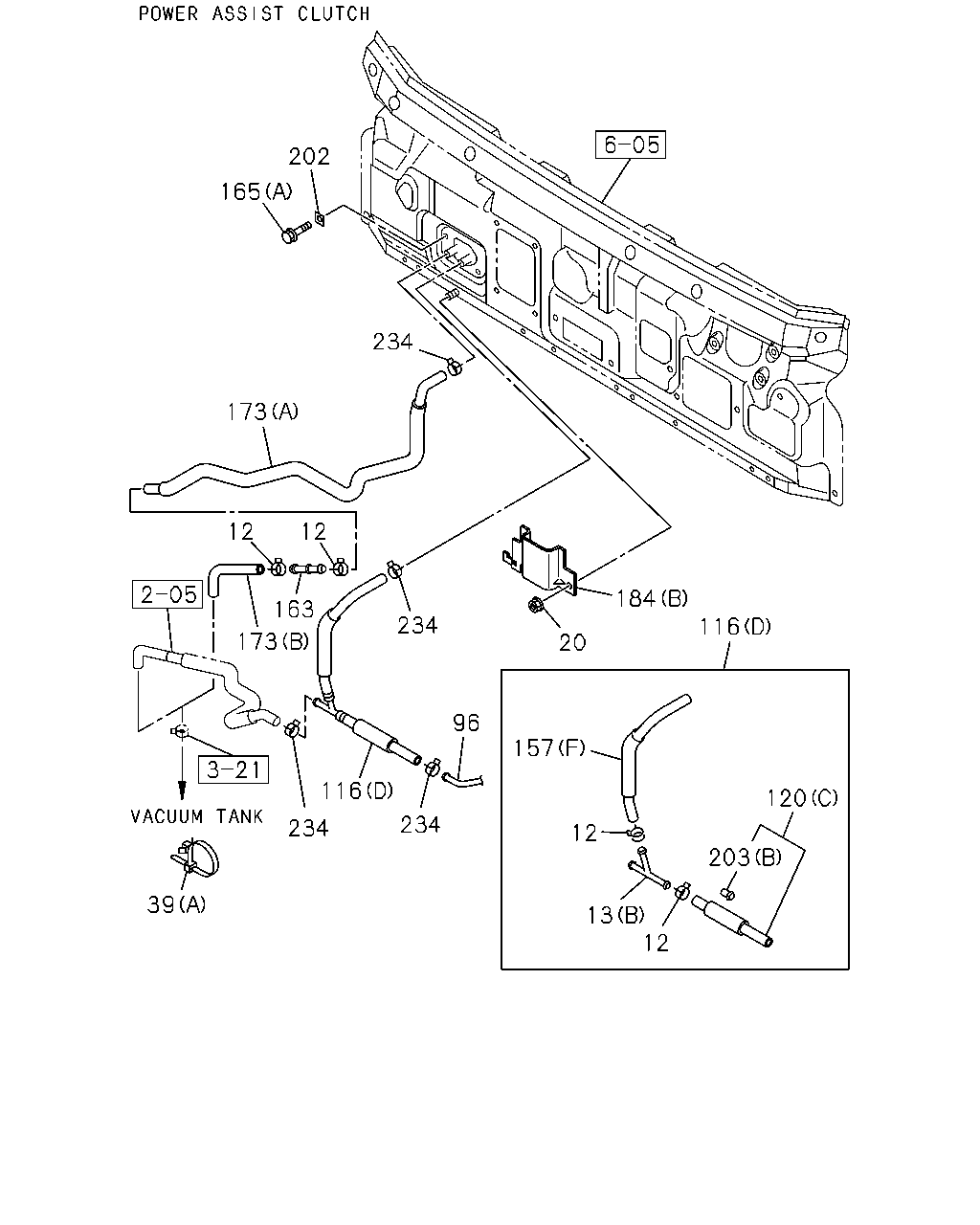

202 165 234 173 12 12 163 173 116 234 234 96 234 20 116 184 157 12 13 12 203 120 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5	8-98008-097-0	16	1	1512-	●	●
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5	8-98008-097-0	06	1	1512-	●	●
13	04.681 JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B)	8-98035-106-0	06	1	1512-	●	●
13	04.681 JOINT; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-98035-106-0	02	1	1512-	●	●
13	04.681 JOINT; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98048-075-0	02	1	1512-	●	●
20	04.686 NUT; BRKT 01.062 M6 FLANGE IDN	0-91180-106-0	01	1	1512-	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 03.162 (B) ID=16	8-98008-098-0	02	1	1512-	●	●
39	04.681 CLIP; HOSE,VAC 03.162 (B) ID=16	8-98008-098-0	02	1	1512-	●	●
39	04.681 CLIP; HOSE,VAC EXHAUST BRAKE<NF8> 03.162 (B) ID=16	8-98008-098-0	02	1	1512-	●
39	04.681 CLIP; HOSE,VAC 03.162 (B) ID=16	8-98008-098-0	02	1	1512-		●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 03.162 (B) ID=16	8-98008-098-0	04	1	1512-	●	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1512-	●	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP	8-98039-736-1	01	1	1512-	●	●
116	04.931 HOSE; VAC,M/VAC 4HG1-T ENG(RDP) EXHAUST BRAKE<NF8> 08.962 (E) L=120 SERVICED BY L=3000 IMA	0-04740-300-0	01	1	1512-	●
116	04.931 HOSE; VAC,M/VAC 4HG1-T ENG(RDP) 08.962 (E) L=120 SERVICED BY L=3000 IMA	0-04740-300-0	01	1	1512-		●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	1512-	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-98115-385-1	01	1	1512-	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	1512-	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98115-399-1	01	1	1512-	●	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (C)	8-97389-695-2	01	1	1512-	●	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (B)	8-98027-352-3	01	1	1512-	●	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE EXC. POWER ASSIST CLUTCH(S2T) (A)	8-97389-696-2	01	1	1512-	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (F)	8-98017-168-3	01	1	1512-	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (C)	8-98027-351-3	01	1	1512-	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (B)	8-98027-353-3	01	1	1512-	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (A)	8-98027-354-2	01	1	1512-	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (D)	8-98125-532-1	01	1	1512-	●	●
157	04.931 HOSE; JOINT EXC. POWER ASSIST CLUTCH(S2T) (H)	8-97389-671-3	01	1	1512-	●	●
157	04.931 HOSE; JOINT EXC. POWER ASSIST CLUTCH(S2T) (E)	8-98022-868-3	01	1	1512-	●	●
157	04.931 HOSE; JOINT EXC. POWER ASSIST CLUTCH(S2T) (G)	8-98125-849-1	01	1	1512-	●	●
163	04.681 JOINT; VAC HOSE POWER ASSIST CLUTCH(S2T) 03.163	8-97353-668-0	01	1	1512-	●	●
165	04.686 BOLT; BRKT WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> 06.216 (C) M8X25 FLANGE IDN	0-28650-825-0	01	1	1512-	●
165	04.686 BOLT; BRKT 06.216 (C) M8X25 FLANGE IDN	0-28650-825-0	01	1	1512-		●
165	04.686 BOLT; BRKT 02.762 (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1512-	●	●
165	04.686 BOLT; BRKT EXC. KD PREPARATORY PACK VAR.4<7TV> 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	1512-	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (A)	8-98121-940-0	01	1	1512-	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (B)	8-98121-941-0	01	1	1512-	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98107-558-0	01	1	1512-	●	●
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (A)	8-98183-467-1	01	1	1512-	●	●
184	04.685 BRACKET; UNION FIX (B)	8-98017-628-1	01	1	1512-	●	●
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (A)	8-98255-535-0	01	1	1512-	●	●
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (C)	8-98255-548-0	01	1	1512-	●	●
202	04.686 SEAL 08.845	8-97856-616-0	02	1	1512-	●	●
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T) (B)	8-94104-021-0	01	1	1512-	●	●
203	04.690 VALVE; CHECK (A)	8-94386-540-0	01	1	1512-	●	●
234	04.685 CLAMP; PIPE POWER ASSIST CLUTCH(S2T) 03.162 ID=16	8-98008-098-0	04	1	1512-	●	●
234	04.685 CLAMP; PIPE EXC. POWER ASSIST CLUTCH(S2T) 03.162 ID=16	8-98008-098-0	03	1	1512-	●	●

39 78 39 236 96 80 66 85 66 136 44 136 78 136 78 136 122 136 136 136 122 136 106 155

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 03.162 (B) ID=16	8-98008-098-0	02	1	1512-	●	●
39	04.681 CLIP; HOSE,VAC 03.162 (B) ID=16	8-98008-098-0	02	1	1512-	●	●
39	04.681 CLIP; HOSE,VAC EXHAUST BRAKE<NF8> 03.162 (B) ID=16	8-98008-098-0	02	1	1512-	●
39	04.681 CLIP; HOSE,VAC 03.162 (B) ID=16	8-98008-098-0	02	1	1512-		●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 03.162 (B) ID=16	8-98008-098-0	04	1	1512-	●	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1512-	●	●
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> IDN	8-97695-609-0	01	1	1512-	●
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> IDN	8-97695-610-0	01	1	1512-	●
44	04.930 PIPE; VAC,MAG VLV IDN	8-97695-610-0	01	1	1512-		●
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	02	1	1512-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HG1-T ENG(RDP) WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> 03.630 (B) L=350 SERVICED BY L=3000 IMA	0-08258-300-0	01	1	1512-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> 03.630 (B) L=230 SERVICED BY L=3000 IMA	0-08258-300-0	01	1	1512-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HG1-T ENG(RDP) 03.630 (B) L=230 SERVICED BY L=3000 IMA	0-08258-300-0	01	1	1512-		●
78	04.931 HOSE; VAC,PIPE TO PIPE (A) IDN	8-97389-745-1	01	1	1512-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> 03.630 (C) L=140 SERVICED BY L=3000 IMA	0-08258-300-0	01	1	1512-	●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> 03.630 (C) L=180 SERVICED BY L=3000 IMA	0-08258-300-0	01	1	1512-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 03.630 (C) L=180 SERVICED BY L=3000 IMA	0-08258-300-0	01	1	1512-		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> 03.630 (B) L=490 SERVICED BY L=3000 IMA	0-08258-300-0	01	1	1512-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> 03.630 (B) L=400 SERVICED BY L=3000 IMA	0-08258-300-0	01	1	1512-	●
80	04.930 PIPE; VAC,ENG SIDE 4HG1-T ENG(RDP) EXHAUST BRAKE<NF8> (D) IDN	8-97695-468-0	01	1	1512-	●
80	04.930 PIPE; VAC,ENG SIDE 4HG1-T ENG(RDP) (D) IDN	8-97695-468-0	01	1	1512-		●
80	04.930 PIPE; VAC,ENG SIDE 4HG1-T ENG(RDP) WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> (B) IDN	8-97695-466-0	01	1	1512-	●
80	04.930 PIPE; VAC,ENG SIDE 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> (C) IDN	8-97695-467-0	01	1	1512-	●
80	04.930 PIPE; VAC,ENG SIDE 4HG1-T ENG(RDP) (C) IDN	8-97695-467-0	01	1	1512-		●
80	04.930 PIPE; VAC,ENG SIDE 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> (A)	8-97695-775-0	01	1	1512-	●
80	04.930 PIPE; VAC,ENG SIDE 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> (A) IDN	8-97695-608-0	01	1	1512-	●
80	04.930 PIPE; VAC,ENG SIDE 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8> (A) IDN	8-97695-607-0	01	1	1512-	●
85	04.931 HOSE; VAC,ENG SIDE 4HG1-T ENG(RDP) L=138	8-97315-080-1	01	1	1512-	●	●
85	04.931 HOSE; VAC,ENG SIDE 4JB1-TC ENG(RDT) L=130	8-94438-246-0	01	1	1512-	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP	8-98039-736-1	01	1	1512-	●	●
106	04.930 CLIP; PIPE WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> (B) ID=10X2 & 4.76	8-97170-259-0	02	1	1512-	●
106	04.930 CLIP; PIPE WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> (A) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	1512-	●
106	04.930 CLIP; PIPE (A) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	1512-		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXHAUST BRAKE<NF8> 03.630 L=140 SERVICED BY L=3000 IMA	0-08258-300-0	01	1	1512-	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> 03.630 L=140 SERVICED BY L=3000 IMA	0-08258-300-0	01	1	1512-	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 03.630 L=140 SERVICED BY L=3000 IMA	0-08258-300-0	01	1	1512-		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> 03.630 L=180 SERVICED BY L=3000 IMA	0-08258-300-0	01	1	1512-	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 03.630 L=180 SERVICED BY L=3000 IMA	0-08258-300-0	01	1	1512-		●
136	04.681 CLIP; VAC HOSE EXHAUST BRAKE<NF8> 03.162 ID=16	8-98008-098-0	06	1	1512-	●
136	04.681 CLIP; VAC HOSE 03.162 ID=16	8-98008-098-0	06	1	1512-		●
155	04.931 HOSE; VAC,AIR FILTER WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> 03.630 L=220 SERVICED BY L=3000 IMA	0-08258-300-0	01	1	1512-	●
155	04.931 HOSE; VAC,AIR FILTER WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> 03.630 L=180 SERVICED BY L=3000 IMA	0-08258-300-0	01	1	1512-1512	●
155	04.931 HOSE; VAC,AIR FILTER 03.630 L=180 SERVICED BY L=3000 IMA	0-08258-300-0	01	1	1512-1512		●
155	04.931 HOSE; VAC,AIR FILTER WHEEL BASE 3300MM(33W) 03.630 L=180 SERVICED BY L=3000 IMA	0-08258-300-0	01	1	1601-	●
155	04.931 HOSE; VAC,AIR FILTER 03.630 L=180 SERVICED BY L=3000 IMA	0-08258-300-0	01	1	1601-		●
236	04.930 BOLT; PIPE 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1512-	●	●

136 136 122 136 136 122 165 85 66 106 155 80 66 44 136 78 116 39 78 39 236 80 96 136 136 78 136

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 03.162 (B) ID=16	8-98008-098-0	02	1	1512-	●	●
39	04.681 CLIP; HOSE,VAC 03.162 (B) ID=16	8-98008-098-0	02	1	1512-	●	●
39	04.681 CLIP; HOSE,VAC EXHAUST BRAKE<NF8> 03.162 (B) ID=16	8-98008-098-0	02	1	1512-	●
39	04.681 CLIP; HOSE,VAC 03.162 (B) ID=16	8-98008-098-0	02	1	1512-		●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 03.162 (B) ID=16	8-98008-098-0	04	1	1512-	●	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1512-	●	●
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> IDN	8-97695-609-0	01	1	1512-	●
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> IDN	8-97695-610-0	01	1	1512-	●
44	04.930 PIPE; VAC,MAG VLV IDN	8-97695-610-0	01	1	1512-		●
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	02	1	1512-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HG1-T ENG(RDP) WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> 03.630 (B) L=350 SERVICED BY L=3000 IMA	0-08258-300-0	01	1	1512-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> 03.630 (B) L=230 SERVICED BY L=3000 IMA	0-08258-300-0	01	1	1512-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HG1-T ENG(RDP) 03.630 (B) L=230 SERVICED BY L=3000 IMA	0-08258-300-0	01	1	1512-		●
78	04.931 HOSE; VAC,PIPE TO PIPE (A) IDN	8-97389-745-1	01	1	1512-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> 03.630 (C) L=140 SERVICED BY L=3000 IMA	0-08258-300-0	01	1	1512-	●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> 03.630 (C) L=180 SERVICED BY L=3000 IMA	0-08258-300-0	01	1	1512-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 03.630 (C) L=180 SERVICED BY L=3000 IMA	0-08258-300-0	01	1	1512-		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> 03.630 (B) L=490 SERVICED BY L=3000 IMA	0-08258-300-0	01	1	1512-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> 03.630 (B) L=400 SERVICED BY L=3000 IMA	0-08258-300-0	01	1	1512-	●
80	04.930 PIPE; VAC,ENG SIDE 4HG1-T ENG(RDP) EXHAUST BRAKE<NF8> (D) IDN	8-97695-468-0	01	1	1512-	●
80	04.930 PIPE; VAC,ENG SIDE 4HG1-T ENG(RDP) (D) IDN	8-97695-468-0	01	1	1512-		●
80	04.930 PIPE; VAC,ENG SIDE 4HG1-T ENG(RDP) WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> (B) IDN	8-97695-466-0	01	1	1512-	●
80	04.930 PIPE; VAC,ENG SIDE 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> (C) IDN	8-97695-467-0	01	1	1512-	●
80	04.930 PIPE; VAC,ENG SIDE 4HG1-T ENG(RDP) (C) IDN	8-97695-467-0	01	1	1512-		●
80	04.930 PIPE; VAC,ENG SIDE 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> (A)	8-97695-775-0	01	1	1512-	●
80	04.930 PIPE; VAC,ENG SIDE 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> (A) IDN	8-97695-608-0	01	1	1512-	●
80	04.930 PIPE; VAC,ENG SIDE 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8> (A) IDN	8-97695-607-0	01	1	1512-	●
85	04.931 HOSE; VAC,ENG SIDE 4HG1-T ENG(RDP) L=138	8-97315-080-1	01	1	1512-	●	●
85	04.931 HOSE; VAC,ENG SIDE 4JB1-TC ENG(RDT) L=130	8-94438-246-0	01	1	1512-	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP	8-98039-736-1	01	1	1512-	●	●
106	04.930 CLIP; PIPE WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> (B) ID=10X2 & 4.76	8-97170-259-0	02	1	1512-	●
106	04.930 CLIP; PIPE WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> (A) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	1512-	●
106	04.930 CLIP; PIPE (A) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	1512-		●
116	04.931 HOSE; VAC,M/VAC 4HG1-T ENG(RDP) EXHAUST BRAKE<NF8> 08.962 (E) L=120 SERVICED BY L=3000 IMA	0-04740-300-0	01	1	1512-	●
116	04.931 HOSE; VAC,M/VAC 4HG1-T ENG(RDP) 08.962 (E) L=120 SERVICED BY L=3000 IMA	0-04740-300-0	01	1	1512-		●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	1512-	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-98115-385-1	01	1	1512-	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	1512-	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98115-399-1	01	1	1512-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXHAUST BRAKE<NF8> 03.630 L=140 SERVICED BY L=3000 IMA	0-08258-300-0	01	1	1512-	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> 03.630 L=140 SERVICED BY L=3000 IMA	0-08258-300-0	01	1	1512-	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 03.630 L=140 SERVICED BY L=3000 IMA	0-08258-300-0	01	1	1512-		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> 03.630 L=180 SERVICED BY L=3000 IMA	0-08258-300-0	01	1	1512-	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 03.630 L=180 SERVICED BY L=3000 IMA	0-08258-300-0	01	1	1512-		●
136	04.681 CLIP; VAC HOSE EXHAUST BRAKE<NF8> 03.162 ID=16	8-98008-098-0	06	1	1512-	●
136	04.681 CLIP; VAC HOSE 03.162 ID=16	8-98008-098-0	06	1	1512-		●
155	04.931 HOSE; VAC,AIR FILTER WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> 03.630 L=220 SERVICED BY L=3000 IMA	0-08258-300-0	01	1	1512-	●
155	04.931 HOSE; VAC,AIR FILTER WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> 03.630 L=180 SERVICED BY L=3000 IMA	0-08258-300-0	01	1	1512-1512	●
155	04.931 HOSE; VAC,AIR FILTER 03.630 L=180 SERVICED BY L=3000 IMA	0-08258-300-0	01	1	1512-1512		●
155	04.931 HOSE; VAC,AIR FILTER WHEEL BASE 3300MM(33W) 03.630 L=180 SERVICED BY L=3000 IMA	0-08258-300-0	01	1	1601-	●
155	04.931 HOSE; VAC,AIR FILTER 03.630 L=180 SERVICED BY L=3000 IMA	0-08258-300-0	01	1	1601-		●
165	04.686 BOLT; BRKT WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> 06.216 (C) M8X25 FLANGE IDN	0-28650-825-0	01	1	1512-	●
165	04.686 BOLT; BRKT 06.216 (C) M8X25 FLANGE IDN	0-28650-825-0	01	1	1512-		●
165	04.686 BOLT; BRKT 02.762 (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1512-	●	●
165	04.686 BOLT; BRKT EXC. KD PREPARATORY PACK VAR.4<7TV> 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	1512-	●	●
236	04.930 BOLT; PIPE 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1512-	●	●

136 78 136 136 78 136 66 66 85 136 44 165 122 136 136 136 122 106 106 155 80 39 78 39 236 96

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 03.162 (B) ID=16	8-98008-098-0	02	1	1512-	●	●
39	04.681 CLIP; HOSE,VAC 03.162 (B) ID=16	8-98008-098-0	02	1	1512-	●	●
39	04.681 CLIP; HOSE,VAC EXHAUST BRAKE<NF8> 03.162 (B) ID=16	8-98008-098-0	02	1	1512-	●
39	04.681 CLIP; HOSE,VAC 03.162 (B) ID=16	8-98008-098-0	02	1	1512-		●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 03.162 (B) ID=16	8-98008-098-0	04	1	1512-	●	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1512-	●	●
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> IDN	8-97695-609-0	01	1	1512-	●
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> IDN	8-97695-610-0	01	1	1512-	●
44	04.930 PIPE; VAC,MAG VLV IDN	8-97695-610-0	01	1	1512-		●
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	02	1	1512-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HG1-T ENG(RDP) WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> 03.630 (B) L=350 SERVICED BY L=3000 IMA	0-08258-300-0	01	1	1512-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> 03.630 (B) L=230 SERVICED BY L=3000 IMA	0-08258-300-0	01	1	1512-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HG1-T ENG(RDP) 03.630 (B) L=230 SERVICED BY L=3000 IMA	0-08258-300-0	01	1	1512-		●
78	04.931 HOSE; VAC,PIPE TO PIPE (A) IDN	8-97389-745-1	01	1	1512-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> 03.630 (C) L=140 SERVICED BY L=3000 IMA	0-08258-300-0	01	1	1512-	●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> 03.630 (C) L=180 SERVICED BY L=3000 IMA	0-08258-300-0	01	1	1512-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 03.630 (C) L=180 SERVICED BY L=3000 IMA	0-08258-300-0	01	1	1512-		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> 03.630 (B) L=490 SERVICED BY L=3000 IMA	0-08258-300-0	01	1	1512-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> 03.630 (B) L=400 SERVICED BY L=3000 IMA	0-08258-300-0	01	1	1512-	●
80	04.930 PIPE; VAC,ENG SIDE 4HG1-T ENG(RDP) EXHAUST BRAKE<NF8> (D) IDN	8-97695-468-0	01	1	1512-	●
80	04.930 PIPE; VAC,ENG SIDE 4HG1-T ENG(RDP) (D) IDN	8-97695-468-0	01	1	1512-		●
80	04.930 PIPE; VAC,ENG SIDE 4HG1-T ENG(RDP) WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> (B) IDN	8-97695-466-0	01	1	1512-	●
80	04.930 PIPE; VAC,ENG SIDE 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> (C) IDN	8-97695-467-0	01	1	1512-	●
80	04.930 PIPE; VAC,ENG SIDE 4HG1-T ENG(RDP) (C) IDN	8-97695-467-0	01	1	1512-		●
80	04.930 PIPE; VAC,ENG SIDE 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> (A)	8-97695-775-0	01	1	1512-	●
80	04.930 PIPE; VAC,ENG SIDE 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> (A) IDN	8-97695-608-0	01	1	1512-	●
80	04.930 PIPE; VAC,ENG SIDE 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8> (A) IDN	8-97695-607-0	01	1	1512-	●
85	04.931 HOSE; VAC,ENG SIDE 4HG1-T ENG(RDP) L=138	8-97315-080-1	01	1	1512-	●	●
85	04.931 HOSE; VAC,ENG SIDE 4JB1-TC ENG(RDT) L=130	8-94438-246-0	01	1	1512-	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP	8-98039-736-1	01	1	1512-	●	●
106	04.930 CLIP; PIPE WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> (B) ID=10X2 & 4.76	8-97170-259-0	02	1	1512-	●
106	04.930 CLIP; PIPE WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> (A) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	1512-	●
106	04.930 CLIP; PIPE (A) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	1512-		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXHAUST BRAKE<NF8> 03.630 L=140 SERVICED BY L=3000 IMA	0-08258-300-0	01	1	1512-	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> 03.630 L=140 SERVICED BY L=3000 IMA	0-08258-300-0	01	1	1512-	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 03.630 L=140 SERVICED BY L=3000 IMA	0-08258-300-0	01	1	1512-		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> 03.630 L=180 SERVICED BY L=3000 IMA	0-08258-300-0	01	1	1512-	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 03.630 L=180 SERVICED BY L=3000 IMA	0-08258-300-0	01	1	1512-		●
136	04.681 CLIP; VAC HOSE EXHAUST BRAKE<NF8> 03.162 ID=16	8-98008-098-0	06	1	1512-	●
136	04.681 CLIP; VAC HOSE 03.162 ID=16	8-98008-098-0	06	1	1512-		●
155	04.931 HOSE; VAC,AIR FILTER WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> 03.630 L=220 SERVICED BY L=3000 IMA	0-08258-300-0	01	1	1512-	●
155	04.931 HOSE; VAC,AIR FILTER WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> 03.630 L=180 SERVICED BY L=3000 IMA	0-08258-300-0	01	1	1512-1512	●
155	04.931 HOSE; VAC,AIR FILTER 03.630 L=180 SERVICED BY L=3000 IMA	0-08258-300-0	01	1	1512-1512		●
155	04.931 HOSE; VAC,AIR FILTER WHEEL BASE 3300MM(33W) 03.630 L=180 SERVICED BY L=3000 IMA	0-08258-300-0	01	1	1601-	●
155	04.931 HOSE; VAC,AIR FILTER 03.630 L=180 SERVICED BY L=3000 IMA	0-08258-300-0	01	1	1601-		●
165	04.686 BOLT; BRKT WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> 06.216 (C) M8X25 FLANGE IDN	0-28650-825-0	01	1	1512-	●
165	04.686 BOLT; BRKT 06.216 (C) M8X25 FLANGE IDN	0-28650-825-0	01	1	1512-		●
165	04.686 BOLT; BRKT 02.762 (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1512-	●	●
165	04.686 BOLT; BRKT EXC. KD PREPARATORY PACK VAR.4<7TV> 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	1512-	●	●
236	04.930 BOLT; PIPE 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1512-	●	●

236 39 78 96 39 80 66 85 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 03.162 (B) ID=16	8-98008-098-0	02	1	1512-	●	●
39	04.681 CLIP; HOSE,VAC 03.162 (B) ID=16	8-98008-098-0	02	1	1512-	●	●
39	04.681 CLIP; HOSE,VAC EXHAUST BRAKE<NF8> 03.162 (B) ID=16	8-98008-098-0	02	1	1512-	●
39	04.681 CLIP; HOSE,VAC 03.162 (B) ID=16	8-98008-098-0	02	1	1512-		●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 03.162 (B) ID=16	8-98008-098-0	04	1	1512-	●	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1512-	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	02	1	1512-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HG1-T ENG(RDP) WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> 03.630 (B) L=350 SERVICED BY L=3000 IMA	0-08258-300-0	01	1	1512-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> 03.630 (B) L=230 SERVICED BY L=3000 IMA	0-08258-300-0	01	1	1512-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HG1-T ENG(RDP) 03.630 (B) L=230 SERVICED BY L=3000 IMA	0-08258-300-0	01	1	1512-		●
78	04.931 HOSE; VAC,PIPE TO PIPE (A) IDN	8-97389-745-1	01	1	1512-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> 03.630 (C) L=140 SERVICED BY L=3000 IMA	0-08258-300-0	01	1	1512-	●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> 03.630 (C) L=180 SERVICED BY L=3000 IMA	0-08258-300-0	01	1	1512-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 03.630 (C) L=180 SERVICED BY L=3000 IMA	0-08258-300-0	01	1	1512-		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> 03.630 (B) L=490 SERVICED BY L=3000 IMA	0-08258-300-0	01	1	1512-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> 03.630 (B) L=400 SERVICED BY L=3000 IMA	0-08258-300-0	01	1	1512-	●
80	04.930 PIPE; VAC,ENG SIDE 4HG1-T ENG(RDP) EXHAUST BRAKE<NF8> (D) IDN	8-97695-468-0	01	1	1512-	●
80	04.930 PIPE; VAC,ENG SIDE 4HG1-T ENG(RDP) (D) IDN	8-97695-468-0	01	1	1512-		●
80	04.930 PIPE; VAC,ENG SIDE 4HG1-T ENG(RDP) WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> (B) IDN	8-97695-466-0	01	1	1512-	●
80	04.930 PIPE; VAC,ENG SIDE 4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> (C) IDN	8-97695-467-0	01	1	1512-	●
80	04.930 PIPE; VAC,ENG SIDE 4HG1-T ENG(RDP) (C) IDN	8-97695-467-0	01	1	1512-		●
80	04.930 PIPE; VAC,ENG SIDE 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> (A)	8-97695-775-0	01	1	1512-	●
80	04.930 PIPE; VAC,ENG SIDE 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> (A) IDN	8-97695-608-0	01	1	1512-	●
80	04.930 PIPE; VAC,ENG SIDE 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8> (A) IDN	8-97695-607-0	01	1	1512-	●
85	04.931 HOSE; VAC,ENG SIDE 4HG1-T ENG(RDP) L=138	8-97315-080-1	01	1	1512-	●	●
85	04.931 HOSE; VAC,ENG SIDE 4JB1-TC ENG(RDT) L=130	8-94438-246-0	01	1	1512-	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP	8-98039-736-1	01	1	1512-	●	●
236	04.930 BOLT; PIPE 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1512-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
