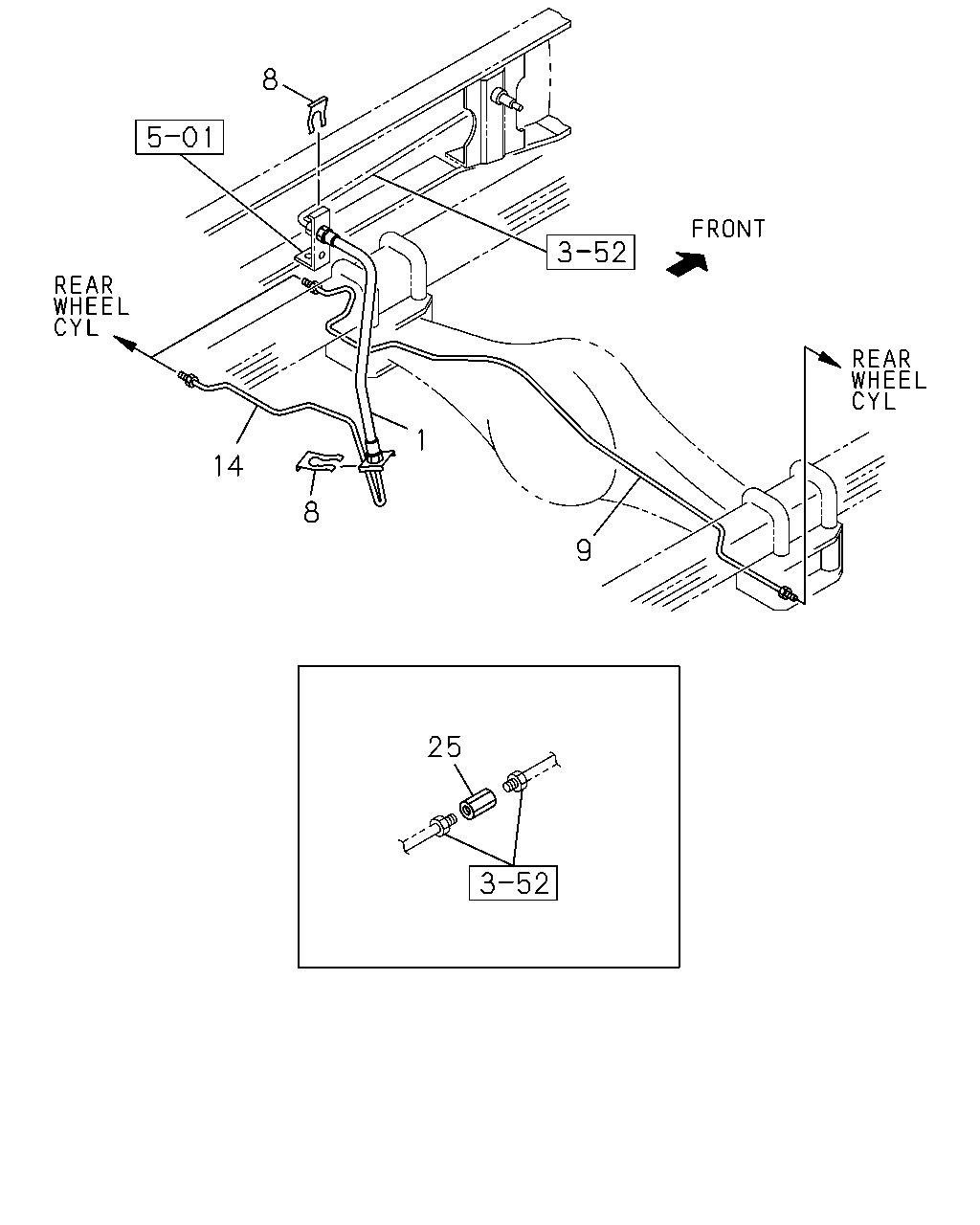

3-55 — BRAKE PIPING; OIL,REAR (#171387) — 15 parça

9 25 1 8 14 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.680 HOSE; FLEX,RR BRK 4HG1-T ENG(RDP) WHEEL BASE 2400MM(24W) L=405	8-97089-061-0	01	1	1512-	●
1	04.680 HOSE; FLEX,RR BRK 4JB1-TC ENG(RDT) WHEEL BASE 2400MM(24W) L=370	8-97035-574-0	01	1	1512-	●
1	04.680 HOSE; FLEX,RR BRK 4HG1-T ENG(RDP),4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) L=370	8-97035-574-0	01	1	1512-	●
1	04.680 HOSE; FLEX,RR BRK 4HG1-T ENG(RDP) L=370	8-97035-574-0	01	1	1512-		●
8	04.686 CLIP; RR BRK	8-97360-054-0	02	1	1512-	●	●
9	04.685 PIPE; BRK,RR AXLE REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 4.0-4.5TON(RPR) IDN	8-97047-813-2	01	1	1512-	●
9	04.685 PIPE; BRK,RR AXLE REAR AXLE STANDARD 244MM(R39) G.V.W. 3.0-3.5TON(RPP) IDN	8-97105-827-0	01	1	1512-	●
9	04.685 PIPE; BRK,RR AXLE REAR AXLE HEAVY DUTY 320MM(6CP) IDN	8-98021-873-0	01	1	1512-		●
9	04.685 PIPE; BRK,RR AXLE REAR AXLE HEAVY DUTY 343MM(8BW)	8-98319-320-0	01	1	1512-		●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 4.0-4.5TON(RPR) MINI BUS CHASSIS<V4B> IDN	8-98021-860-0	01	1	1512-	●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 4.0-4.5TON(RPR) EXC. MINI BUS CHASSIS<V4B> IDN	8-97306-902-0	01	1	1512-	●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL REAR AXLE STANDARD 244MM(R39) G.V.W. 3.0-3.5TON(RPP) EXC. MINI BUS CHASSIS<V4B> IDN	8-97035-850-0	01	1	1512-	●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL REAR AXLE HEAVY DUTY 320MM(6CP) IDN	8-98021-872-0	01	1	1512-		●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL REAR AXLE HEAVY DUTY 343MM(8BW)	8-98319-319-0	01	1	1512-		●
25	04.686 CONNECTOR M10 STRAIGHT	0-92107-005-0	01	1	1512-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
