◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51642 - NLR/NMR(INDONESIA) ▶ 3 - Brakes, Brake System ▶ 3-52 - BRAKE PIPING; OIL,FRONT ▶
3-52 — BRAKE PIPING; OIL,FRONT (#171386) — 22 parça

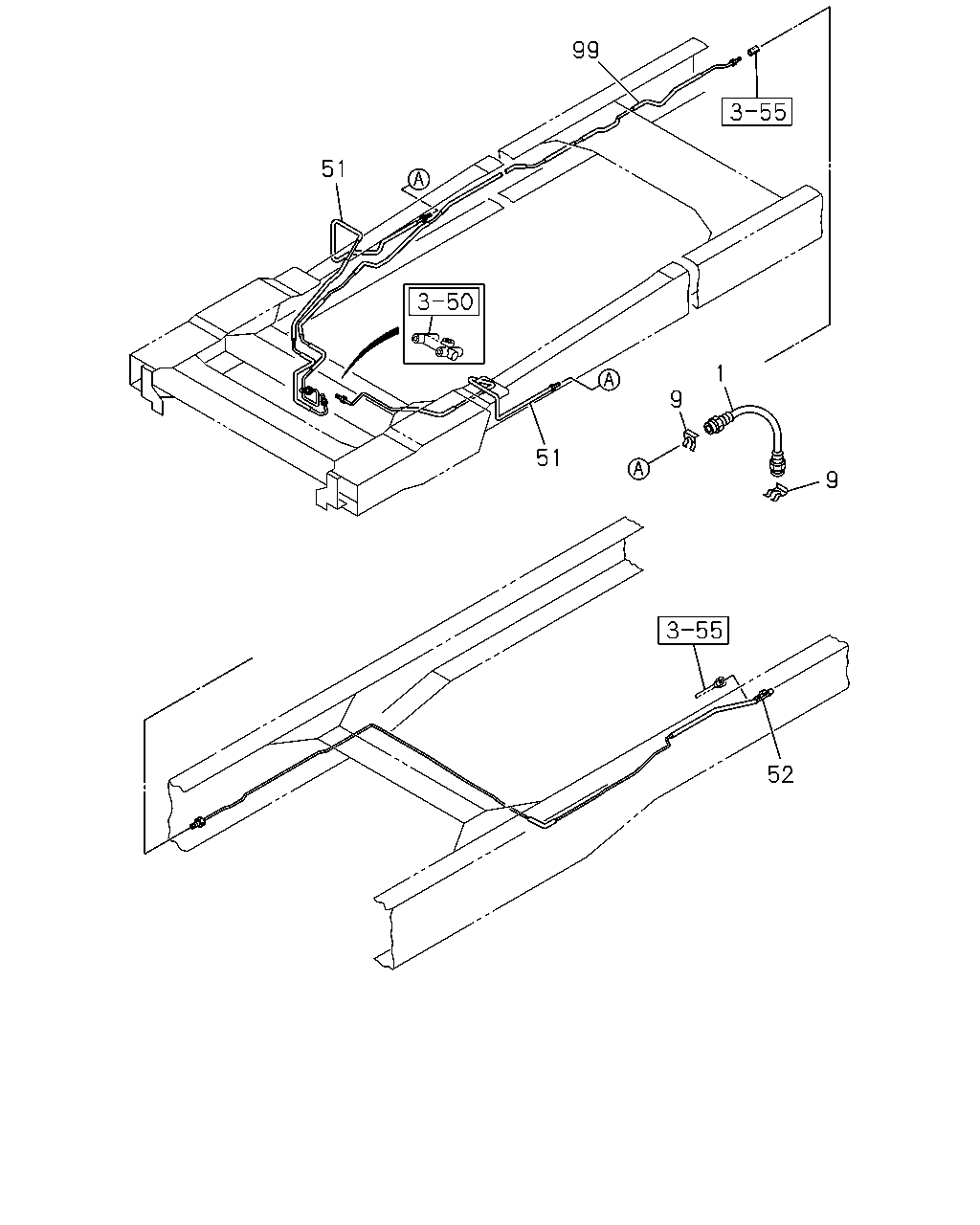

çizim 507514
51 51 9 1 9 99 52
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.680 HOSE; FLEX,FRT BRK
G.V.W. 4.0-4.5TON(RPR) 		8-97042-976-0 02 1 1512- ●
1 04.680 HOSE; FLEX,FRT BRK 8-97042-976-0 02 1 1512- ●
1 04.680 HOSE; FLEX,FRT BRK
G.V.W. 3.0-3.5TON(RPP) L=310 		8-97035-063-1 02 1 1512- ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 1512- ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 1512- ● ●
51 04.685 PIPE; BRK
G.V.W. 3.0-3.5TON(RPP) IDN 		8-97695-716-0 01 1 1512- ●
51 04.685 PIPE; BRK
G.V.W. 3.0-3.5TON(RPP) IDN 		8-97695-717-0 01 1 1512- ●
51 04.685 PIPE; BRK
G.V.W. 4.0-4.5TON(RPR) IDN 		8-97695-461-0 01 1 1512- ●
51 04.685 PIPE; BRK
IDN 		8-97695-461-0 01 1 1512- ●
51 04.685 PIPE; BRK
G.V.W. 4.0-4.5TON(RPR) IDN 		8-97695-462-0 01 1 1512- ●
51 04.685 PIPE; BRK
IDN 		8-97695-462-0 01 1 1512- ●
52 04.685 PIPE; BRK
WHEEL BASE 2400MM(24W) IDN 		8-97695-603-0 01 1 1512- ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) IDN 		8-97695-604-0 01 1 1512- ●
52 04.685 PIPE; BRK
IDN 		8-97695-605-0 01 1 1512- ●
99 04.686 PIPE ASM; 4/5/6 WAY
WHEEL BASE 2400MM(24W) IDN 		8-97695-463-0 01 1 1512- ●
99 04.686 PIPE ASM; 4/5/6 WAY
WHEEL BASE 3300MM(33W) IDN 		8-97695-464-0 01 1 1512- ●
99 04.686 PIPE ASM; 4/5/6 WAY
IDN 		8-97695-464-0 01 1 1512- ●

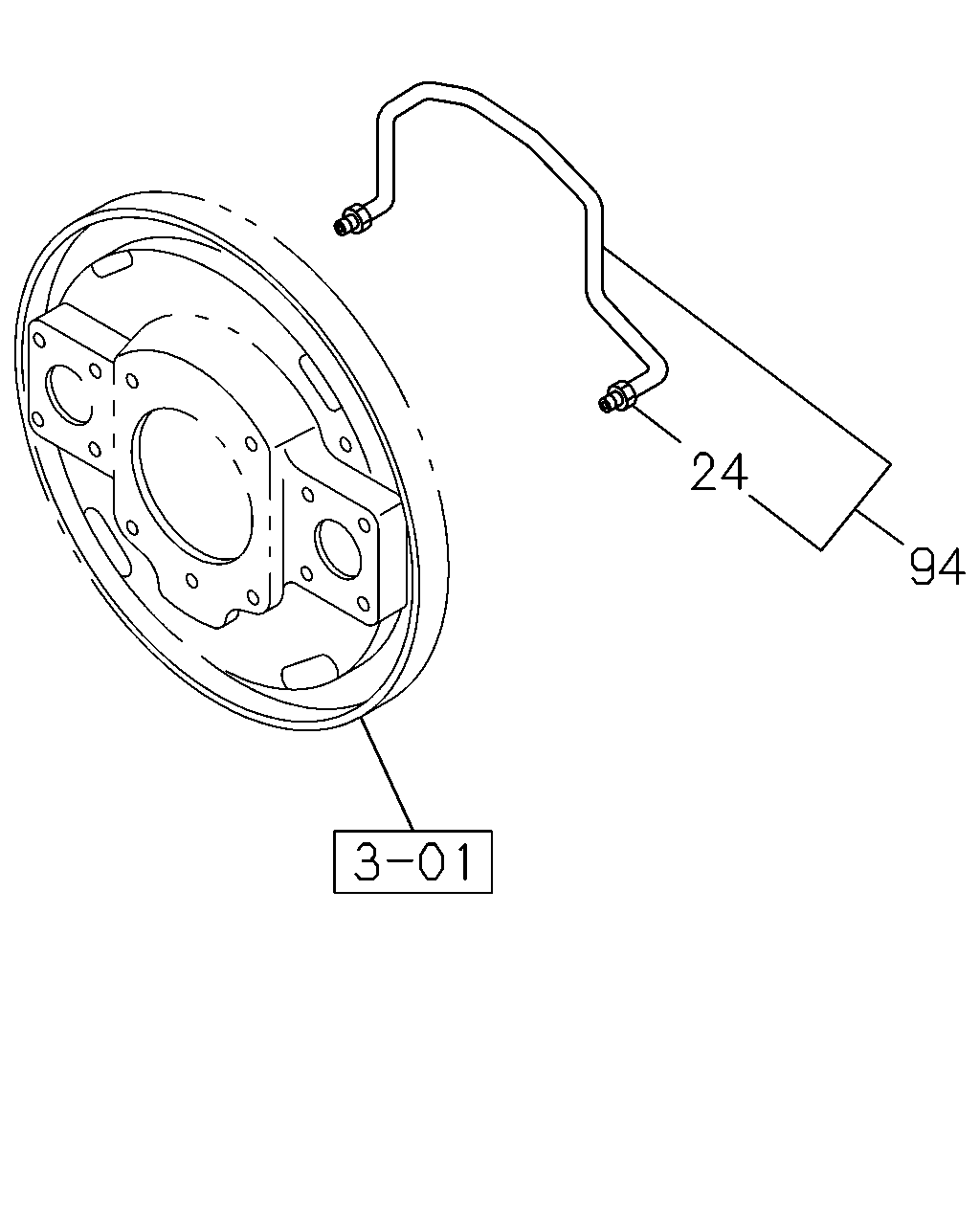

çizim 507722
24 94
BalonParca AdiParca NoAdetTipApplied Date A B
24 04.686 NUT; UNION,OIL PIPE 0-92107-605-0 02 1 1512- ●
94 04.685 PIPE; BRK,W/C TO W/C
G.V.W. 4.0-4.5TON(RPR) 		8-97019-222-0 01 1 1512- ●
94 04.685 PIPE; BRK,W/C TO W/C
G.V.W. 4.0-4.5TON(RPR) 		8-97019-223-0 01 1 1512- ●
94 04.685 PIPE; BRK,W/C TO W/C
G.V.W. 3.0-3.5TON(RPP) 		8-97081-151-0 01 1 1512- ●
94 04.685 PIPE; BRK,W/C TO W/C
G.V.W. 3.0-3.5TON(RPP) 		8-97081-184-0 01 1 1512- ●
