3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#171385) — 11 parça

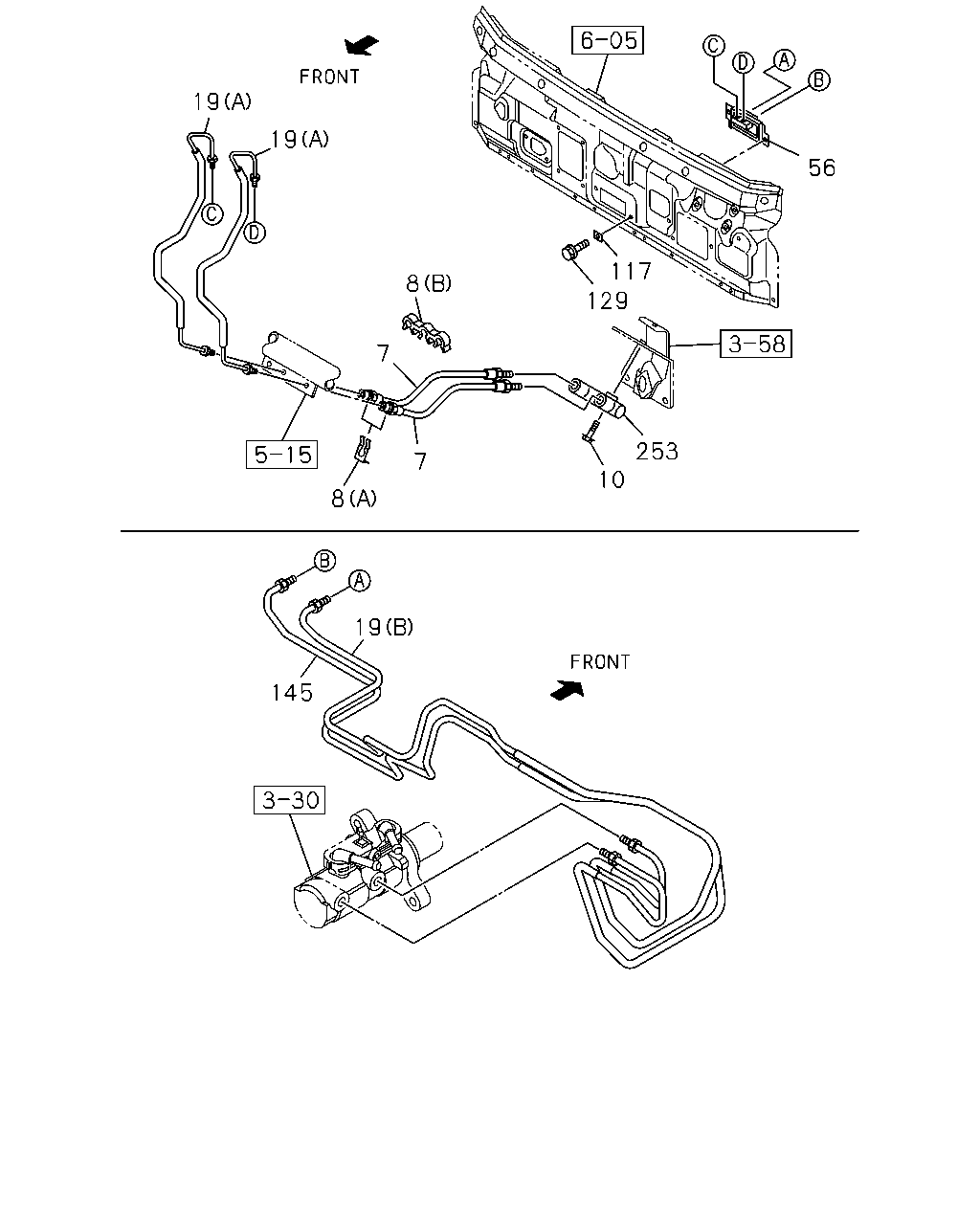

çizim 507293
19 19 7 7 8 8 117 129 56 253 10 19 145
BalonParca AdiParca NoAdetTipApplied Date A B
7 04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT 8-98033-732-0 02 1 1512- ● ●
8 04.681 CLIP; FLEX HOSE,CABLE SIDE
(A) 		8-97365-304-0 02 1 1512- ● ●
8 04.681 CLIP; FLEX HOSE,CABLE SIDE
(B) 		8-98056-614-0 01 1 1512- ● ●
10 04.686 BOLT; JOINT
00.685 M6X40 FLANGE 		0-28650-640-0 01 1 1512- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(A) IDN 		8-98012-095-1 02 1 1512- ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
(B) L=1274 IDN 		8-98115-279-1 01 1 1512- ● ●
56 04.686 BRACKET; UNION,BRK 8-98154-264-1 01 1 1512- ● ●
117 04.686 SEAL; UNION,BRK PIPE JOINT
08.845 		8-97856-616-0 02 1 1512- ● ●
129 04.710 BOLT; BRKT
08.857 M6X20 W/LK&PL WASHER 		8-98081-030-0 02 1 1512- ● ●
145 04.685 PIPE; BRK,METERING VLV TO UNION
L=1371 IDN 		8-98115-269-1 01 1 1512- ● ●
253 04.840 JOINT
04.686 		5-47456-009-1 01 1 1512- ● ●
