◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51642 - NLR/NMR(INDONESIA) ▶ 3 - Brakes, Brake System ▶ 3-11 - PARKING BRAKE CONTROL ▶
3-11 — PARKING BRAKE CONTROL (#171381) — 31 parça

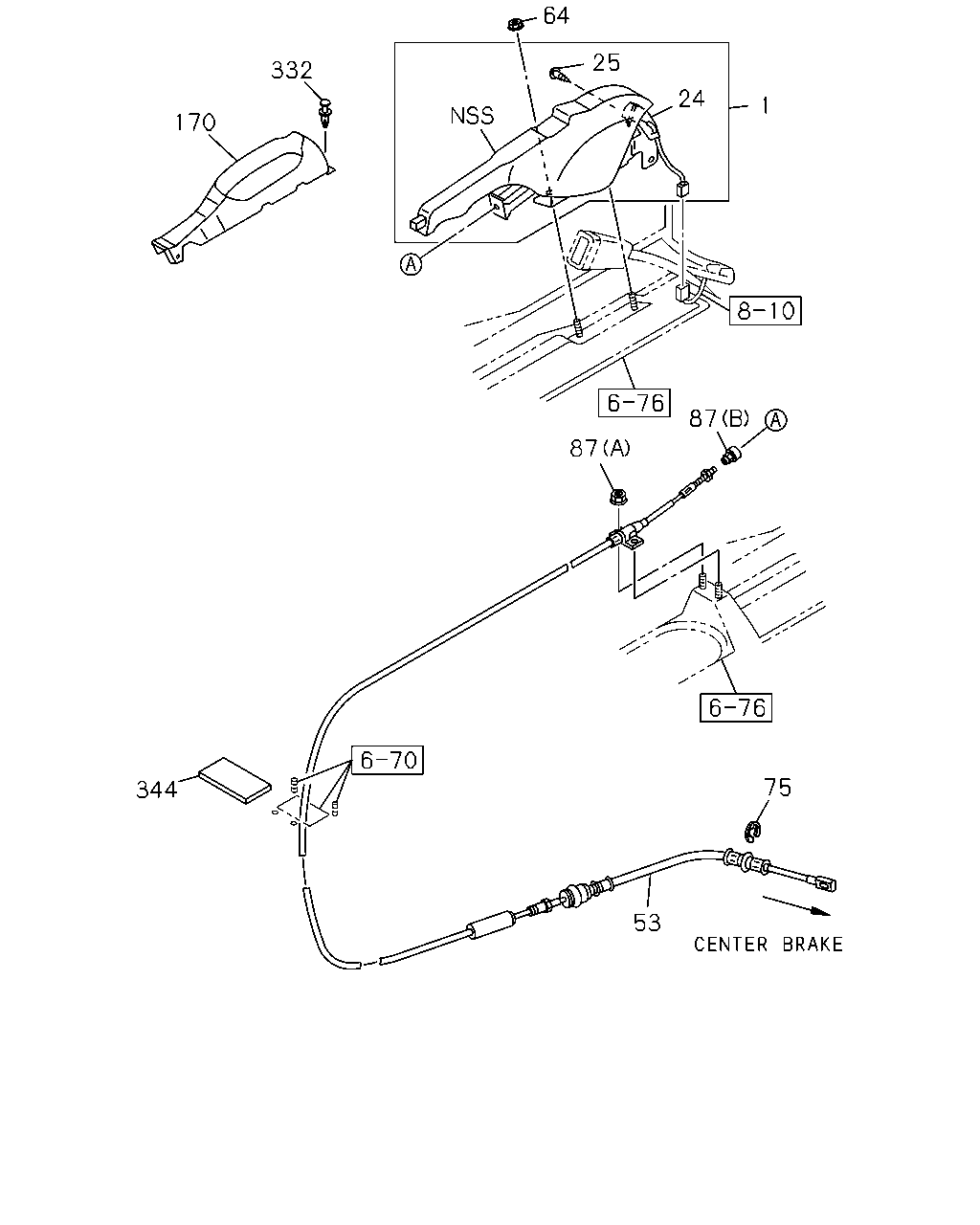

çizim 507272
332 170 64 25 24 87 87 1 75 53 344
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.592 STEM ASM; PARKING BRK
GRAY 		8-97426-513-0 01 1 1512- ● ●
24 04.589 SWITCH ASM; PARK BRK 8-98238-611-0 01 1 1512- ● ●
25 04.589 SCREW; SW,PARKING BRK 8-98152-463-0 01 1 1512- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HG1-T ENG(RDP) M/T MYY5T(RSM) IDN 		8-97695-615-0 01 1 1512- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JB1-TC ENG(RDT) IDN 		8-97695-476-0 01 1 1512- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HG1-T ENG(RDP) M/T MYY6S(RST) IDN 		8-97695-477-0 01 1 1512- ●
64 04.595 NUT; PARKING BRK
16.682 M8 LOCK NUT FLANGE 		0-91380-008-0 02 1 1512- ● ●
75 04.790 RING; SNAP,HAND BRK CABLE
ID=12 		0-91805-512-0 01 1 1512- ● ●
87 04.785 NUT
01.062 (A) M8 FLANGE IDN 		0-91180-108-0 02 1 1512- ● ●
87 04.785 NUT
(B) M6 		8-98034-313-1 01 1 1512- ● ●
170 04.595 COVER; PARKING BRK LEVER
GRAY 		8-97406-170-1 01 1 1512- ● ●
332 04.785 CLIP; COVER
GRAY 		8-97406-171-0 01 1 1512- ● ●
344 04.595 GASKET; DASH LWR
MANUAL TILT CAB<RWZ> 04.047 		8-97096-753-0 01 1 1512- ● ●
çizim 507713
301 324 324 181 181 231 220 86
BalonParca AdiParca NoAdetTipApplied Date A B
86 04.785 BOLT
4JB1-TC ENG(RDT) 06.216 M8X25 FLANGE IDN 		0-28650-825-0 01 1 1512- ●
86 04.785 BOLT
4HG1-T ENG(RDP) 00.029 M10X25 FLANGE 		0-28651-025-0 01 1 1512- ●
86 04.785 BOLT
00.029 M10X25 FLANGE 		0-28651-025-0 01 1 1512- ●
181 04.785 BOLT; BRKT
4HG1-T ENG(RDP) 06.216 M8X25 FLANGE IDN 		0-28650-825-0 02 1 1512- ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE IDN 		0-28650-825-0 02 1 1512- ●
181 04.785 BOLT; BRKT
4JB1-TC ENG(RDT) 06.216 M8X25 FLANGE IDN 		0-28650-825-0 01 1 1512- ●
220 04.785 NUT; CLIP,PARKING CONT CABLE
4JB1-TC ENG(RDT) 01.062 M8 FLANGE IDN 		0-91180-108-0 01 1 1512- ●
220 04.785 NUT; CLIP,PARKING CONT CABLE
4HG1-T ENG(RDP) 03.162 M10 FLANGE IDN 		0-91180-110-0 01 1 1512- ●
220 04.785 NUT; CLIP,PARKING CONT CABLE
03.162 M10 FLANGE IDN 		0-91180-110-0 01 1 1512- ●
231 04.785 CLIP; BAND,BRK CABLE
4JB1-TC ENG(RDT) ID=13 L=50 		0-95235-286-0 01 1 1512- ●
231 04.785 CLIP; BAND,BRK CABLE
4HG1-T ENG(RDP) 00.799 ID=13 L=20 		1-09701-138-1 01 1 1512- ●
231 04.785 CLIP; BAND,BRK CABLE
00.799 ID=13 L=20 		1-09701-138-1 01 1 1512- ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
4HG1-T ENG(RDP) 01.062 M8 FLANGE IDN 		0-91180-108-0 02 1 1512- ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
01.062 M8 FLANGE IDN 		0-91180-108-0 02 1 1512- ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
4JB1-TC ENG(RDT) 01.062 M8 FLANGE IDN 		0-91180-108-0 01 1 1512- ●
324 04.785 BRACKET
4HG1-T ENG(RDP) (A) IDN 		8-97695-662-0 01 1 1512- ●
324 04.785 BRACKET
(A) IDN 		8-97695-662-0 01 1 1512- ●
324 04.785 BRACKET
4JB1-TC ENG(RDT) (B) IDN 		8-97695-661-0 01 1 1512- ●
